中国塑料 ›› 2021, Vol. 35 ›› Issue (7): 69-73.DOI: 10.19491/j.issn.1001-9278.2021.07.012

• 加工与应用 • 上一篇    下一篇

气体⁃水辅助注塑技术的初步研究

王彦卿1, 匡唐清1(), 赖家美2, 柳和生1, 刘天1

  1. 1.华东交通大学机电与车辆工程学院,南昌 330013
    2.南昌大学机电工程学院聚合物成型研究室,南昌 330031
  • 收稿日期:2021-01-20 出版日期:2021-07-26 发布日期:2021-07-21
  • 基金资助:
    江西省自然科学基金项目(20181BAB206014);国家自然科学基金项目(51763016);江西省科技厅重点研发计划项目(20203BBE53065)

Preliminary Research on Gas⁃Water⁃assisted Injection Molding Technology

WANG Yanqing1, KUANG Tangqing1(), LAI Jiamei2, LIU Hesheng1, LIU Tian1

  1. 1.School of Mechanical & Electrical Engineering,East China Jiaotong University,Nanchang 330013,China
    2.Polymer Processing Research Lab,School of Mechanical and Electric Engineering,Nanchang University,Nanchang 330031,China
  • Received:2021-01-20 Online:2021-07-26 Published:2021-07-21
  • Contact: KUANG Tangqing E-mail:tkuang@ecjtu.edu.cn

摘要:

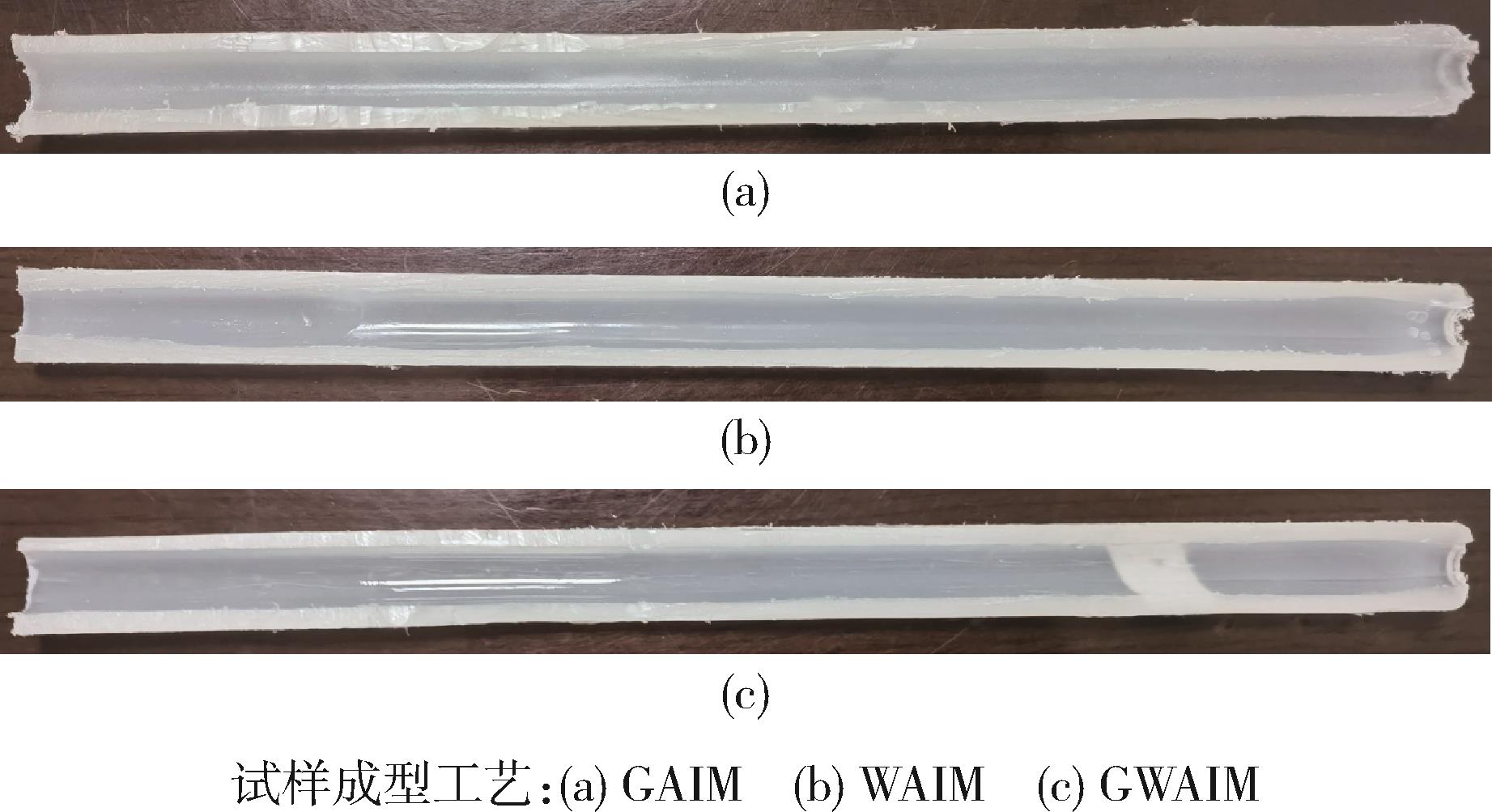

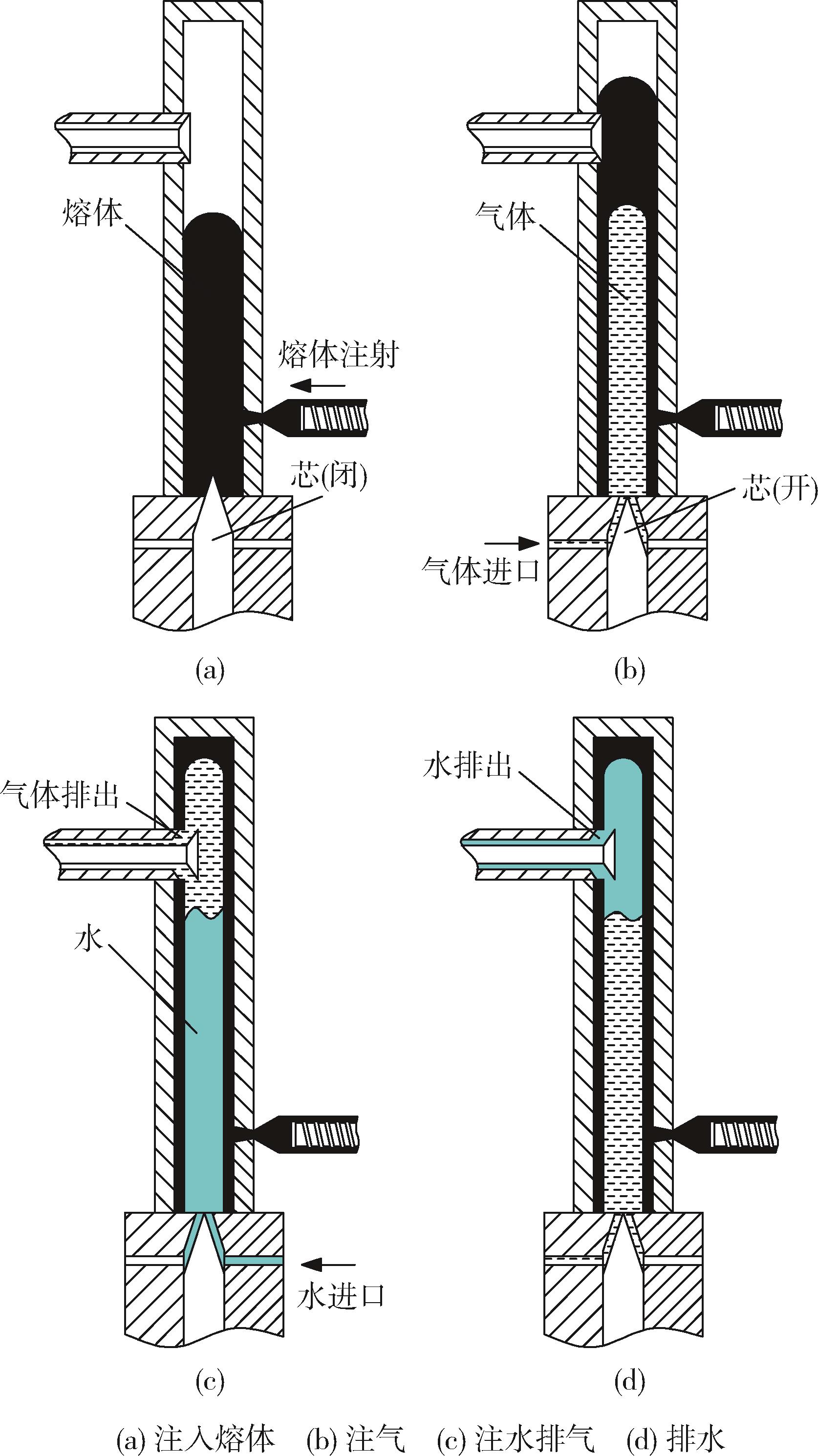

详细阐述了气体?水辅助注射成型(GWAIM)工艺的方法及过程;通过实验探讨了GWAIM工艺实施在装置设计及工艺控制中的关键技术和GWAIM工艺的优点。结果表明,GWAIM试样内壁光亮、壁厚更加均匀,具有更好的成型质量;GWAIM工艺仍然存在材料适用性问题,但相对水辅助注射成型(WAIM)工艺具有更广泛的材料适用性。

关键词: 气体?水辅助注射成型, 装置, 工艺, 实验

Abstract:

In this paper, the method and process of gas?water?assisted injection molding(GWAIM)process were described in detail. The key technology of the specific device design for the GWAIM process and its process control as well as the advantages of GWAIM process were discussed based on our previous research and practical work. The results indicated that the inner wall of GWAIM was brighter, the wall thickness was more uniform, and the molding quality was better. The GWAIM process still has a problem of material applicability, but it has a wider range of material applicability than the water?assisted injection molding process.

Key words: gas?water?assisted injection molding, device, process, experiment
