Preparation and properties of waste epoxy resin/polyamide composite materials

doi:10.19491/j.issn.1001-9278.2024.12.021

Abstract

Abstract:

To address the difficulty in waste epoxy resin （EP） recycling， EP was used as a filling material for the modification of polyamide 66 （PA66）. PA66 grafted with maleic anhydride （PA66⁃g⁃MAH） was prepared as a compatibilizer through melt grafting for enhancing the compatibility between PA66 and EP. Then， PA66/EP/PA66⁃g⁃MAH compounds were prepared through melt extrusion and characterized by using universal mechanical testing machine， thermogravimetric analyzer， and scanning electron microscope. The effects of different compatibilizer content on their mechanical properties， thermal properties and microscopic morphology were investigated. The addition of PA66⁃g⁃MAH enhanced the compatibility of the compounds， resulting in an increase in the tensile strength and elastic modulus. The PA66/20 wt% EP/3 wt% PA66⁃g⁃MAH compound exhibited the optimal comprehensive mechanical performance with tensile strength of 69.2 MPa and an elastic modulus of 678.3 MPa. Moreover， the addition of PA66⁃g⁃MAH also increased the initial decomposition temperature and the temperature corresponding to the maximum decomposition rate.

Key words: waste epoxy resin, polyamide 66, maleic anhydride grafted polyamide 66, modification

CLC Number:

TQ323.6

HU Peng, XU Hao, CAI Shaojun. Preparation and properties of waste epoxy resin/polyamide composite materials[J]. China Plastics, 2024, 38(12): 138-142.

Figures/Tables 10

样品编号	质量份数/%
样品编号	PA66	EP	PA66⁃g⁃MAH
1^#	90	10	0
2^#	80	20	0
3^#	70	30	0
4^#	90	10	3
5^#	80	20	3
6^#	70	30	3
7^#	90	10	5
8^#	80	20	5
9^#	70	30	5
10^#	90	10	10
11^#	80	20	10
12^#	70	30	10

Tab.1. Preparation formula of PA66⁃g⁃MAH /EP/PA66 composite

Fig.1. Polarizing microscope image of EP

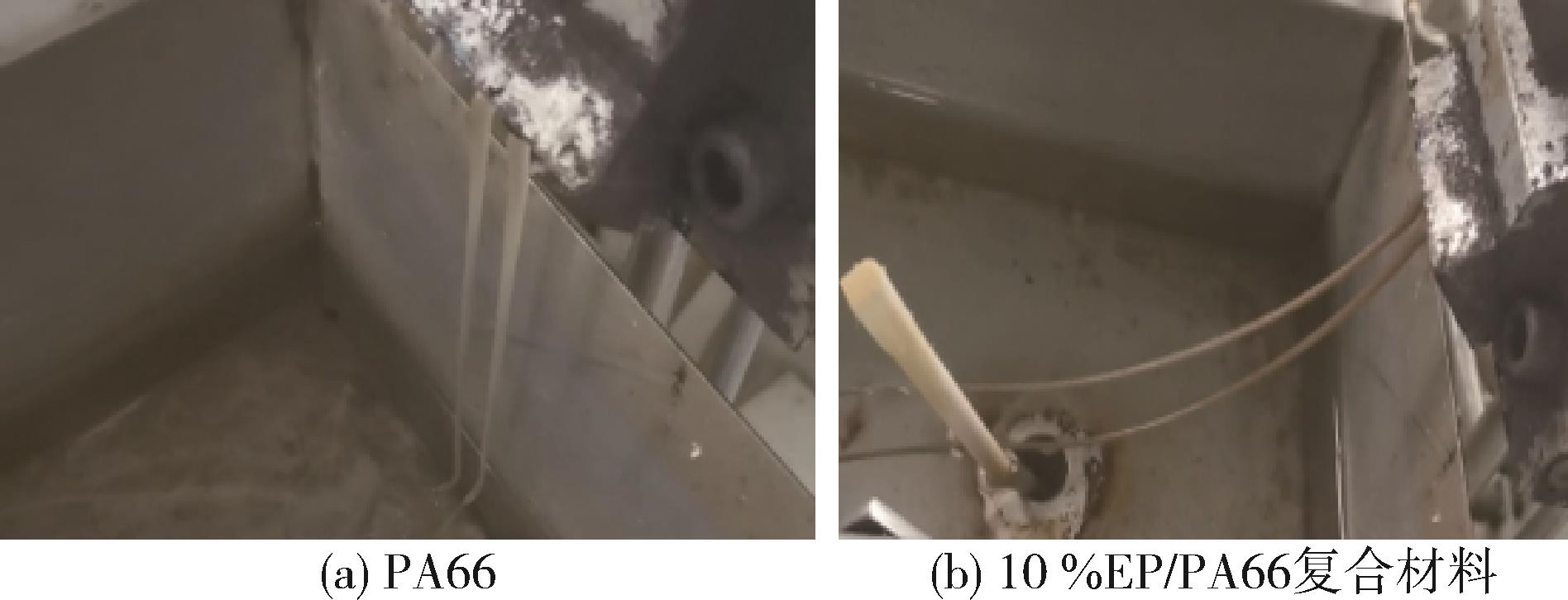

Fig.2. Melt morphology of PA66 and EP/PA66 composite

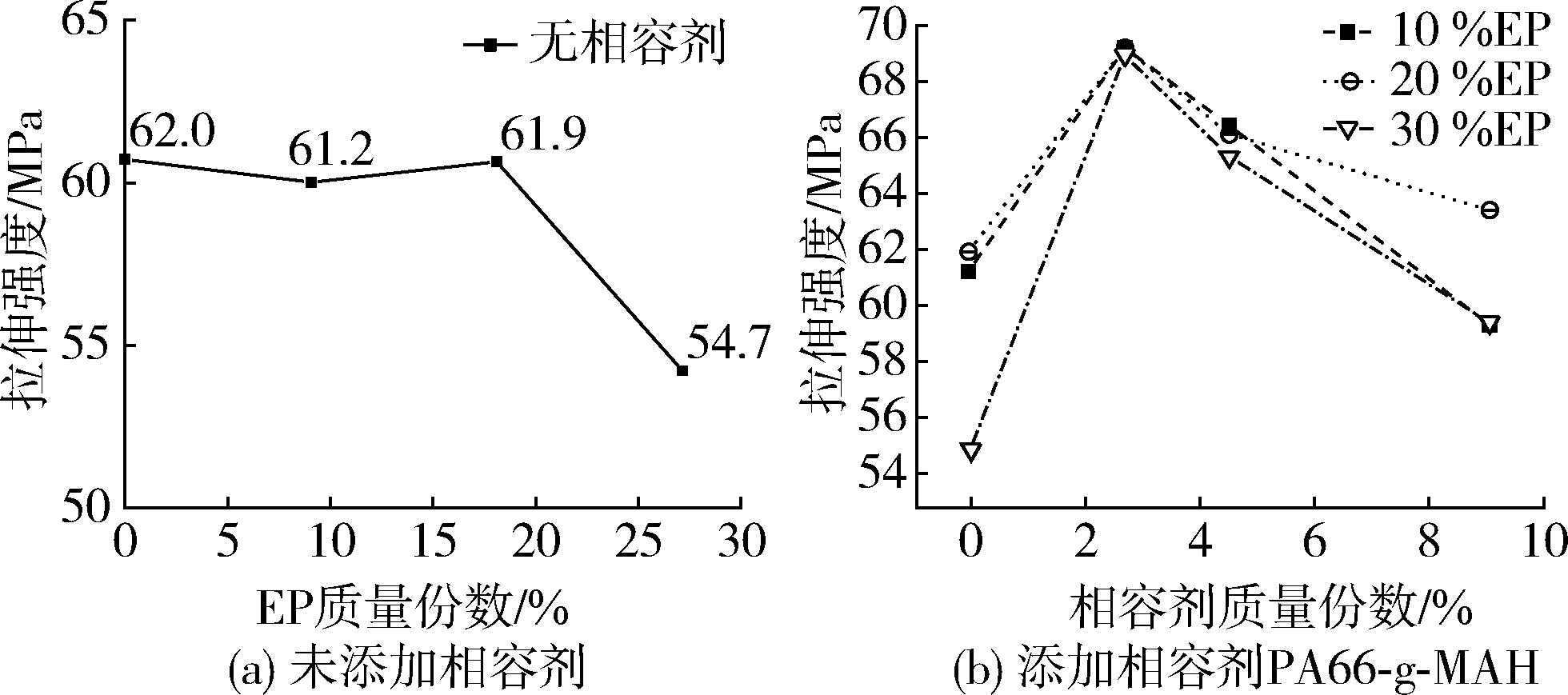

Fig.3. Tensile strength curve of EP/PA66 composite material

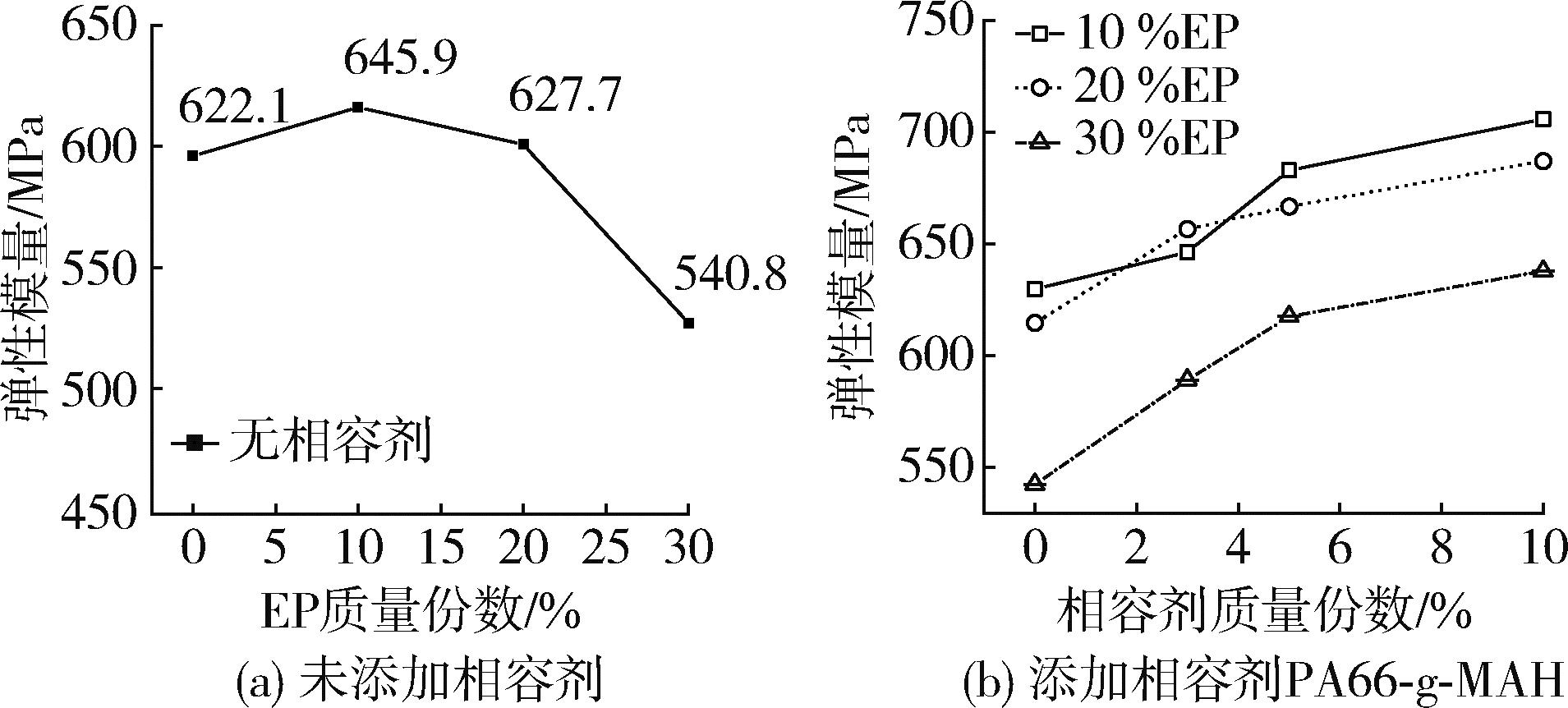

Fig.4. Elastic modulus curve of EP/PA66 composite material

样品	断裂伸长率/%
样品	纯PA66	10 %EP	20 %EP	30 %EP
无相容剂	27.8	7.5	6.0	5.7
3 %相容剂	⁃⁃	7.5	7.0	6.9
5 %相容剂	⁃⁃	8.1	6.7	6.6
10 %相容剂	⁃⁃	6.7	7.3	5.8

Tab.2. Elongation at break of EP/PA66 composite

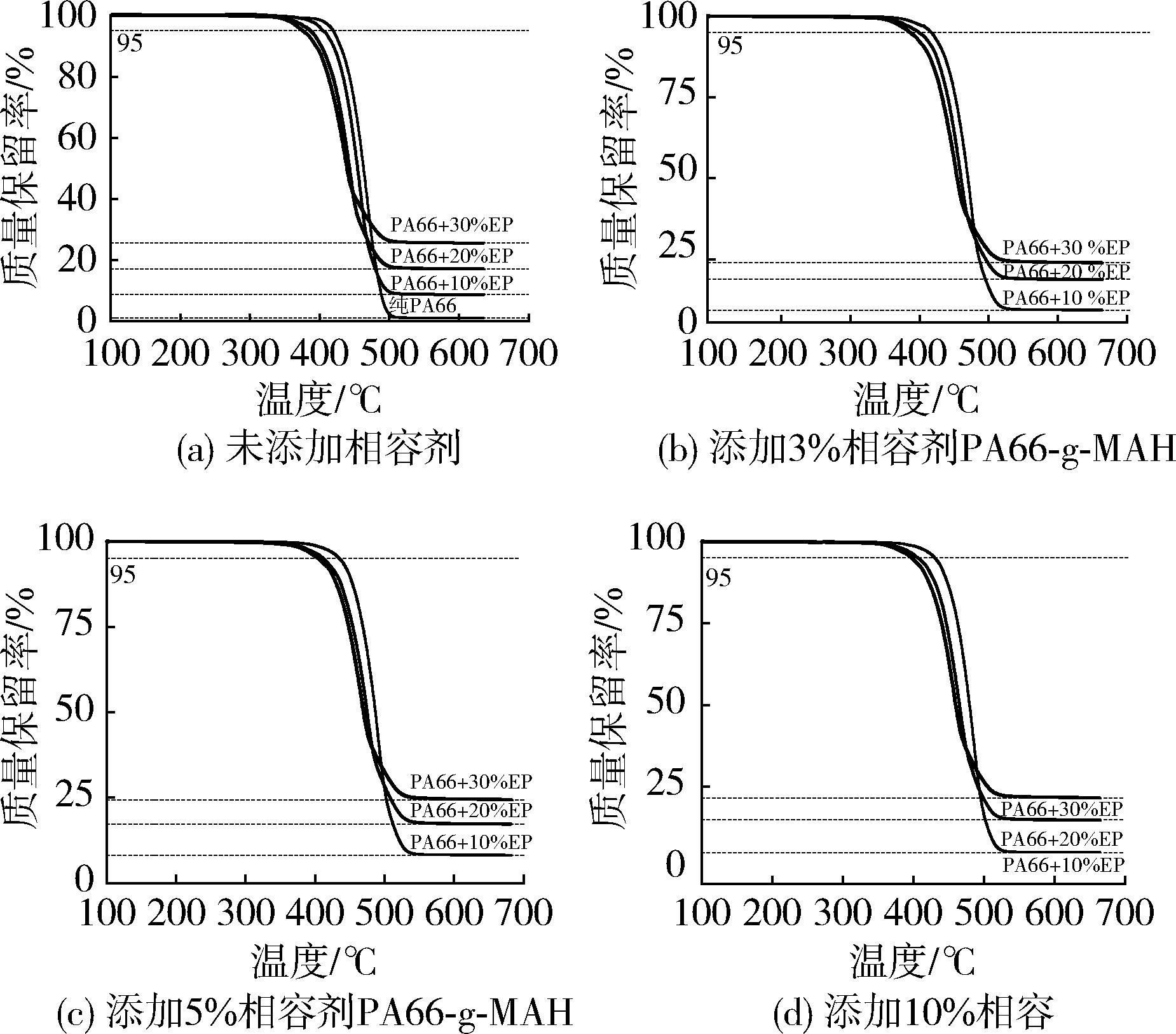

Fig.5. TG curves of EP/PA66 composite materials

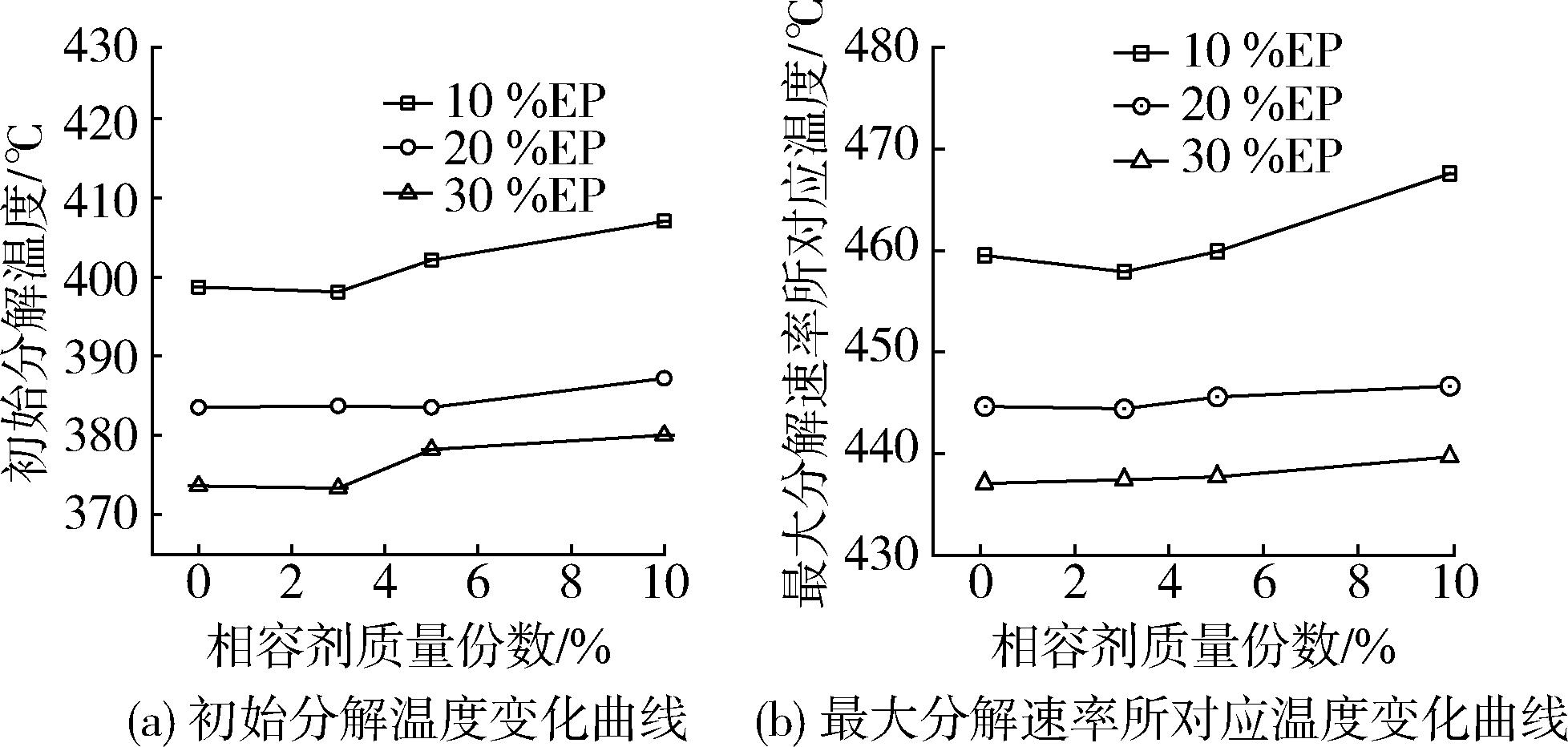

Fig.6. The change curves of the initial decomposition temperature and the temperature corresponding to maximum decomposition rate of PA66⁃g⁃MAH/EP/PA66 composite materials

Fig.7. SEM of the EP/PA66 composites

Fig.8. SEM of the PA66⁃g⁃MAH/EP/PA66 composites
