密炼机转子系统流场特性研究

doi:10.19491/j.issn.1001-9278.2020.04.011

中国塑料 ›› 2020, Vol. 34 ›› Issue (4): 60-69.DOI: 10.19491/j.issn.1001-9278.2020.04.011

密炼机转子系统流场特性研究

韩博宏, 何延东(), 朱向哲

辽宁石油化工大学机械工程学院，辽宁抚顺 113001

收稿日期:2019-10-09 出版日期:2020-04-26 发布日期:2020-04-26
基金资助:
国家自然科学基金项目(51473073);辽宁省自然科学基金项目(2019?ZD?0061)

Study on Flow⁃Field Characteristics of Rotor System in Internal Mixer

Bohong HAN, Yandong HE(), Xiangzhe ZHU

School of Mechanical Engineering, Liaoning Shihua University, Fushun 113001, China

Received:2019-10-09 Online:2020-04-26 Published:2020-04-26
Contact: Yandong HE E-mail:57424824@qq.com

摘要/Abstract

摘要：

采用瞬态计算方法，对4WS型密炼机转子流场进行模拟分析。结果表明，流场的最大速度位于转子棱顶部位，这一位置容易发生回流，转子间隙的流体速度随着转子运行时间逐渐增大直至稳定；转子转动方向的改变会对流体中心区域造成很大影响，对近壁区影响较小；随着转子转动，推进区和背压区的压力差逐渐减小，回流现象随之减少。

关键词: 密炼机, 流场, 速度云图, 压力云图

Abstract:

A transient calculation method is used to simulate the rotor of a 4WS?tpye internal mixer. The maximum velocity of flow field was found to distribute on the top of the rotor ridge, where the reflux was prone to take place. The fluid velocity in the rotor clearance increased gradually and then tended to be stable with the running time of rotor until. There is a great influence on the fluid center area but a small impact on the near?wall area from the change of the rotating direction of the rotor. With the rotation of the rotor, the pressure difference between the propulsion area and backpressure zone decreased gradually, and the reflux phenomenon decreased accordingly.

Key words: internal mixer, flow field, velocity nephogram, pressure nephogram

中图分类号:

TQ 320.5

韩博宏, 何延东, 朱向哲. 密炼机转子系统流场特性研究[J]. 中国塑料, 2020, 34(4): 60-69.

Bohong HAN, Yandong HE, Xiangzhe ZHU. Study on Flow⁃Field Characteristics of Rotor System in Internal Mixer[J]. China Plastics, 2020, 34(4): 60-69.

图/表 15

参数	数值
密度（ρ）/kg·m^-3	7 800
弹性模量（E）/GPa	210
剪切模量（T）/GPa	80.8
泊松比（μ₀）	0.3
拉伸强度（σ）/MPa	980
屈服强度（σ₁）/MPa	835
最大许用应力（[σ_b]）/MPa	557

表1 转子材料参数

Tab.1 Rotor material parameters

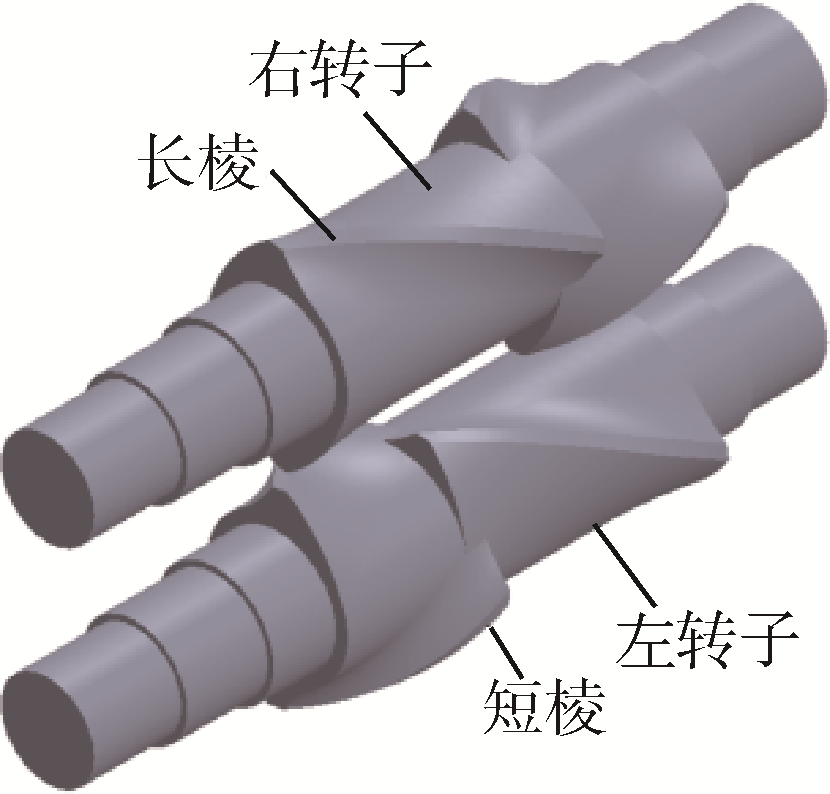

图1 转子几何模型

Fig.1 Rotor geometric model

几何参数	数值
棱顶宽度/mm	2
棱顶间隙/mm	1
转子根直径/mm	25
转子最大回转直径/mm	42
长棱螺旋角/°	30
短棱螺旋角/°	45
长棱长度/mm	50
短棱长度/mm	30
棱长/mm	76
转子中心距/mm	45

表2 模型所用参数

Tab.2 Parameters of the model

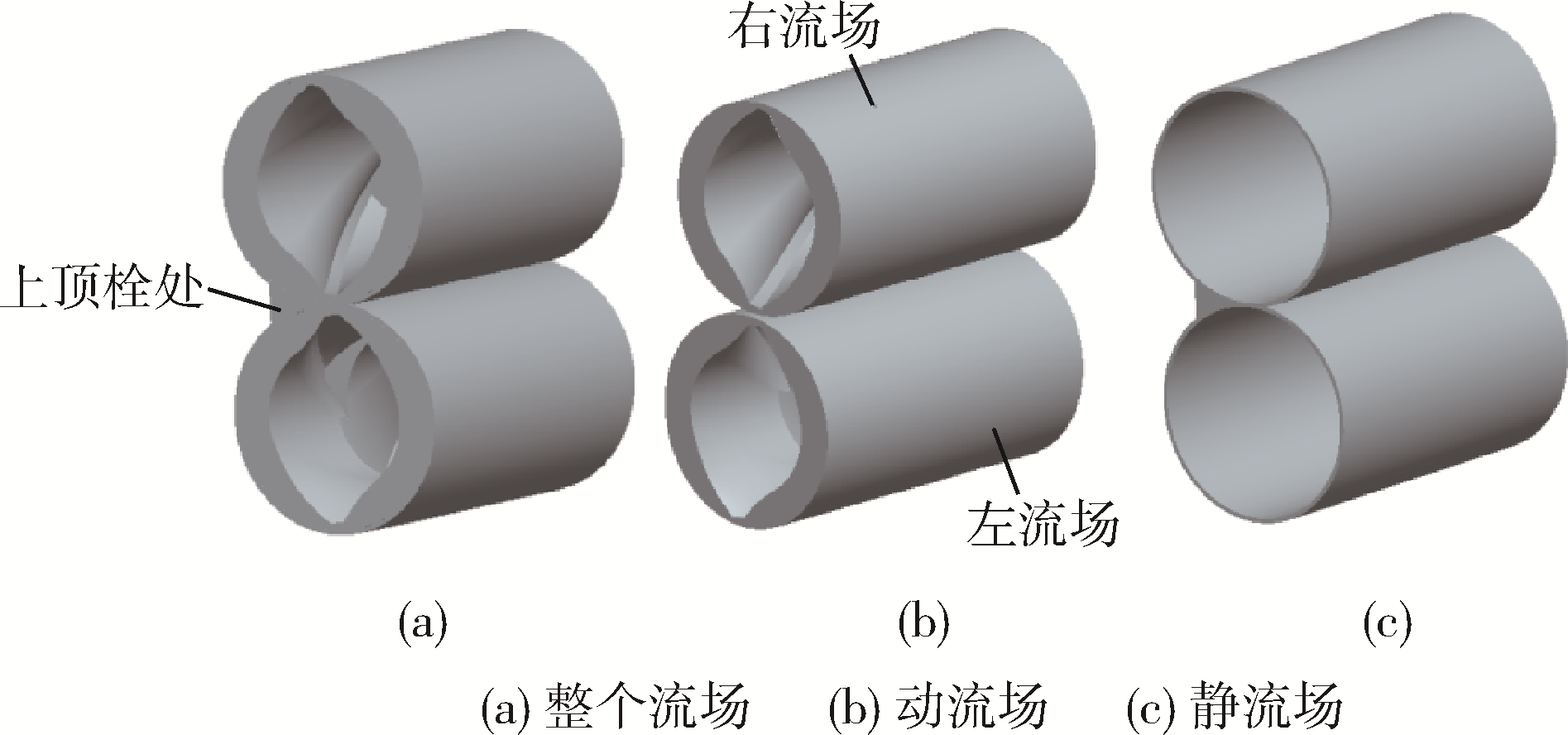

图2 流场示意图

Fig.2 Flow field diagram

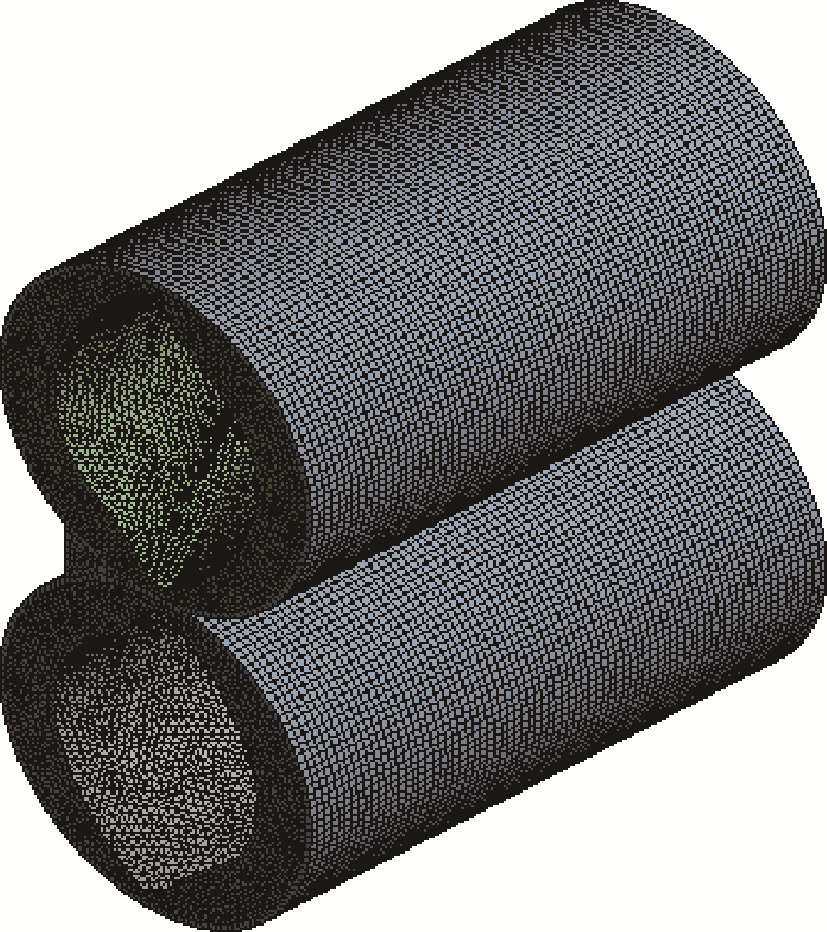

图3 网格模型

Fig.3 Grid model

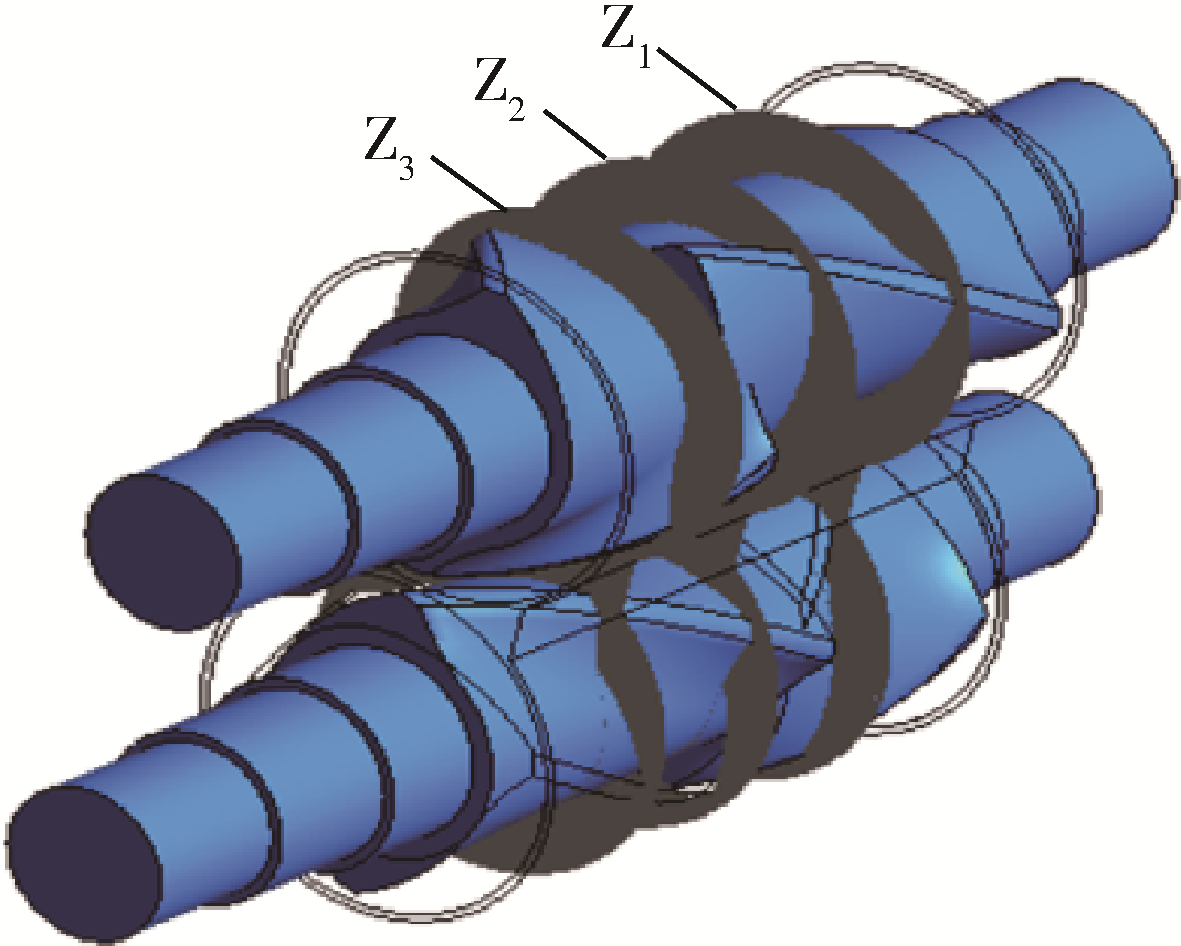

图4 转子截面示意图

Fig.4 Schematic diagram of the rotor section

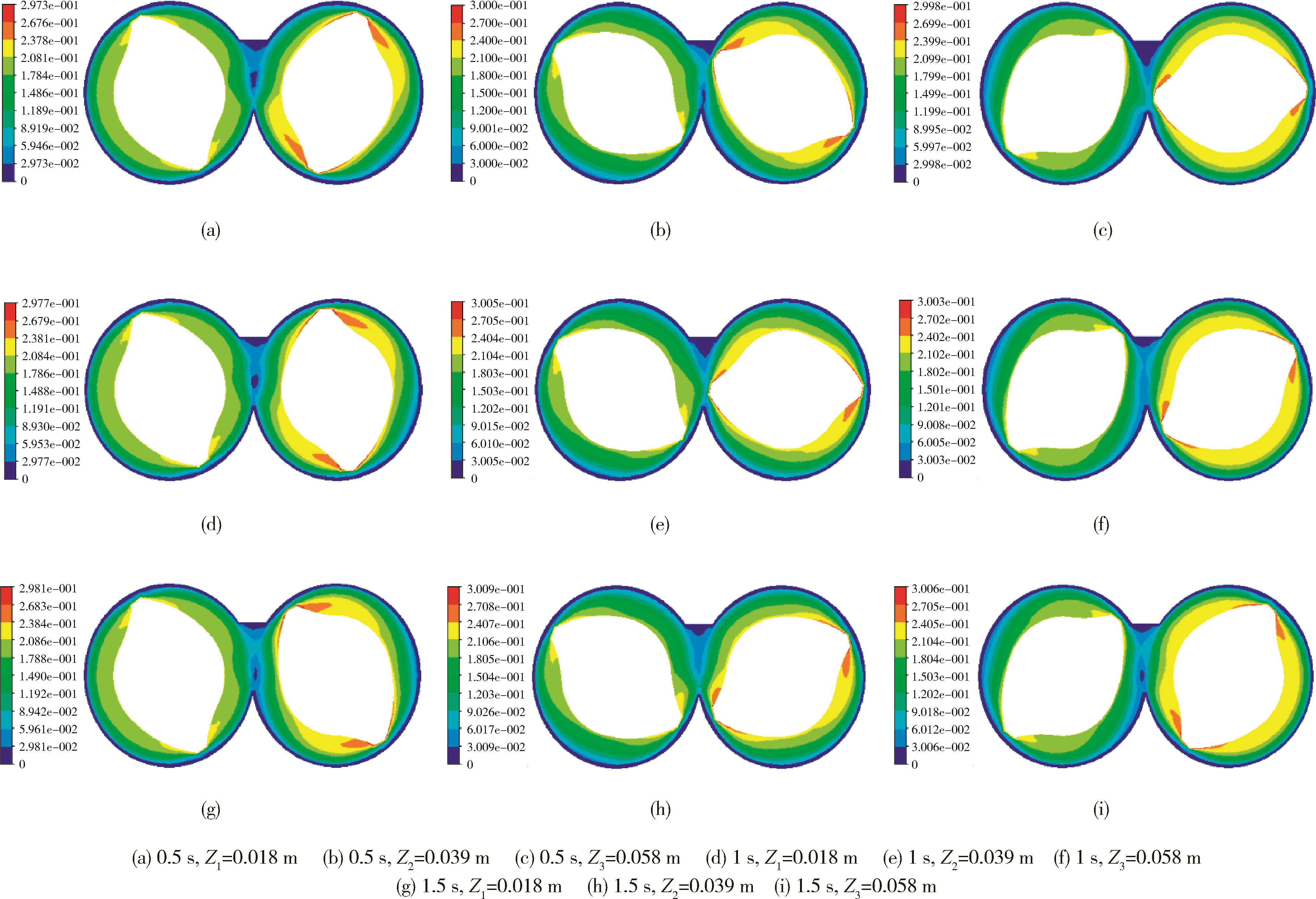

图5 不同时刻不同截面的速度云图 (同向转子)

Fig.5 Velocity nephogram of different sections at different moments (the same direction rotor)

图6 不同时刻不同截面的速度云图 (异向转子)

Fig.6 Velocity nephogram of different sections at different moments (the opposite direction rotor)

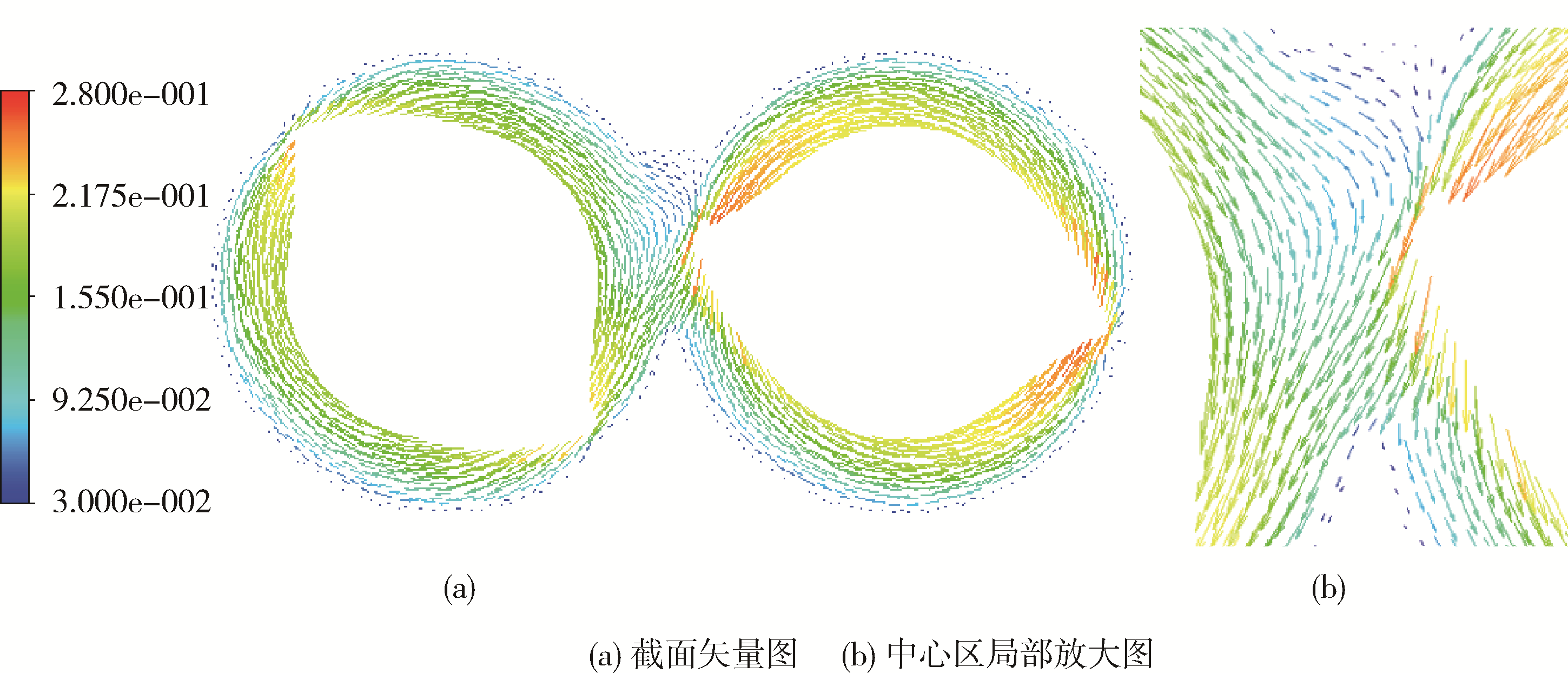

图7 0.52 s时Z2截面的矢量图 (同向转子)

Fig.7 Vector diagram of Z2 section at 0.52 s (the same direction rotor)

图8 0.52 s时Z2截面的矢量图 (异向转子)

Fig.8 Vector diagram of Z2 section at 0.52 s (the opposite direction rotor)

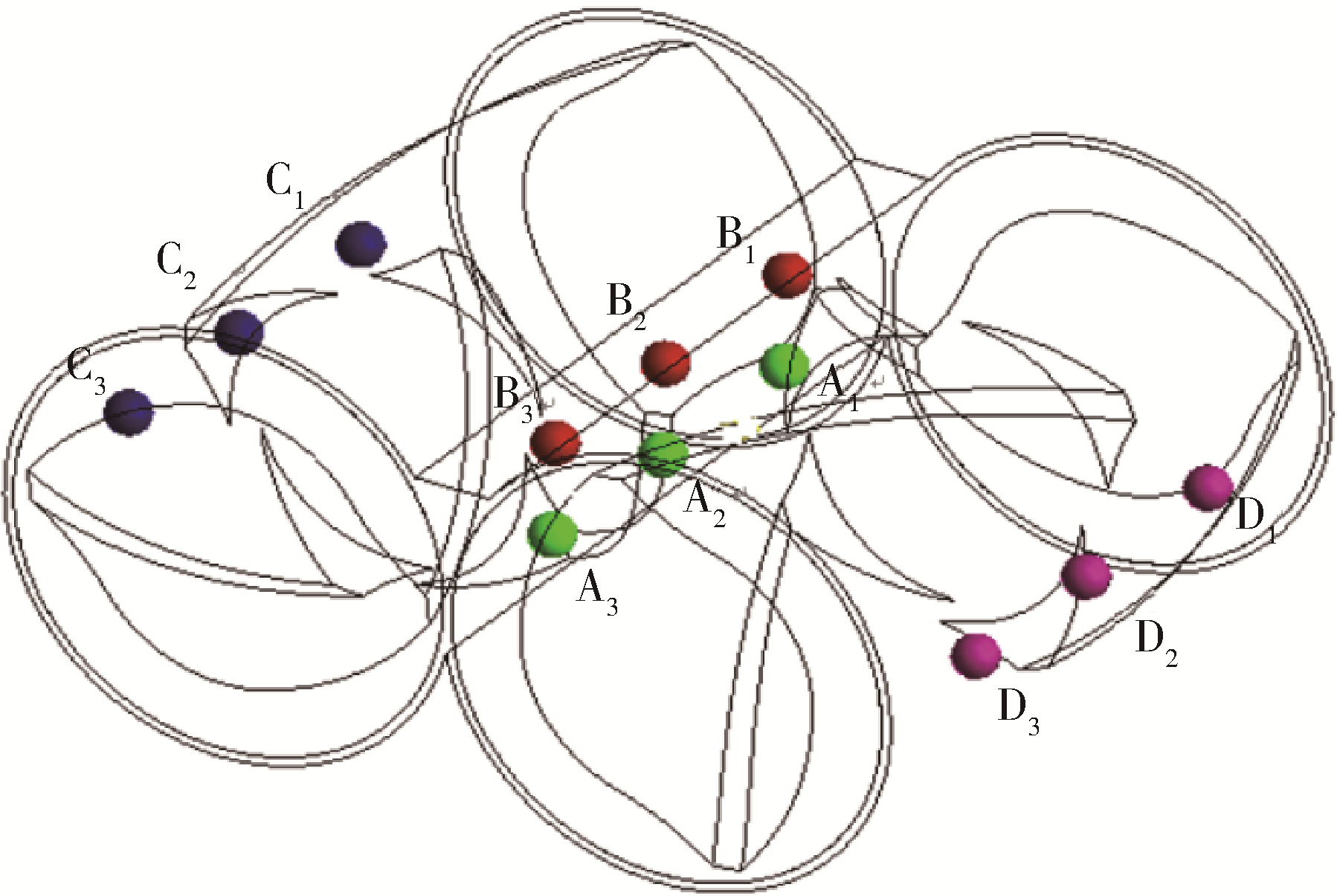

图9 流场数据取值位置

Fig.9 Value position of flow field data

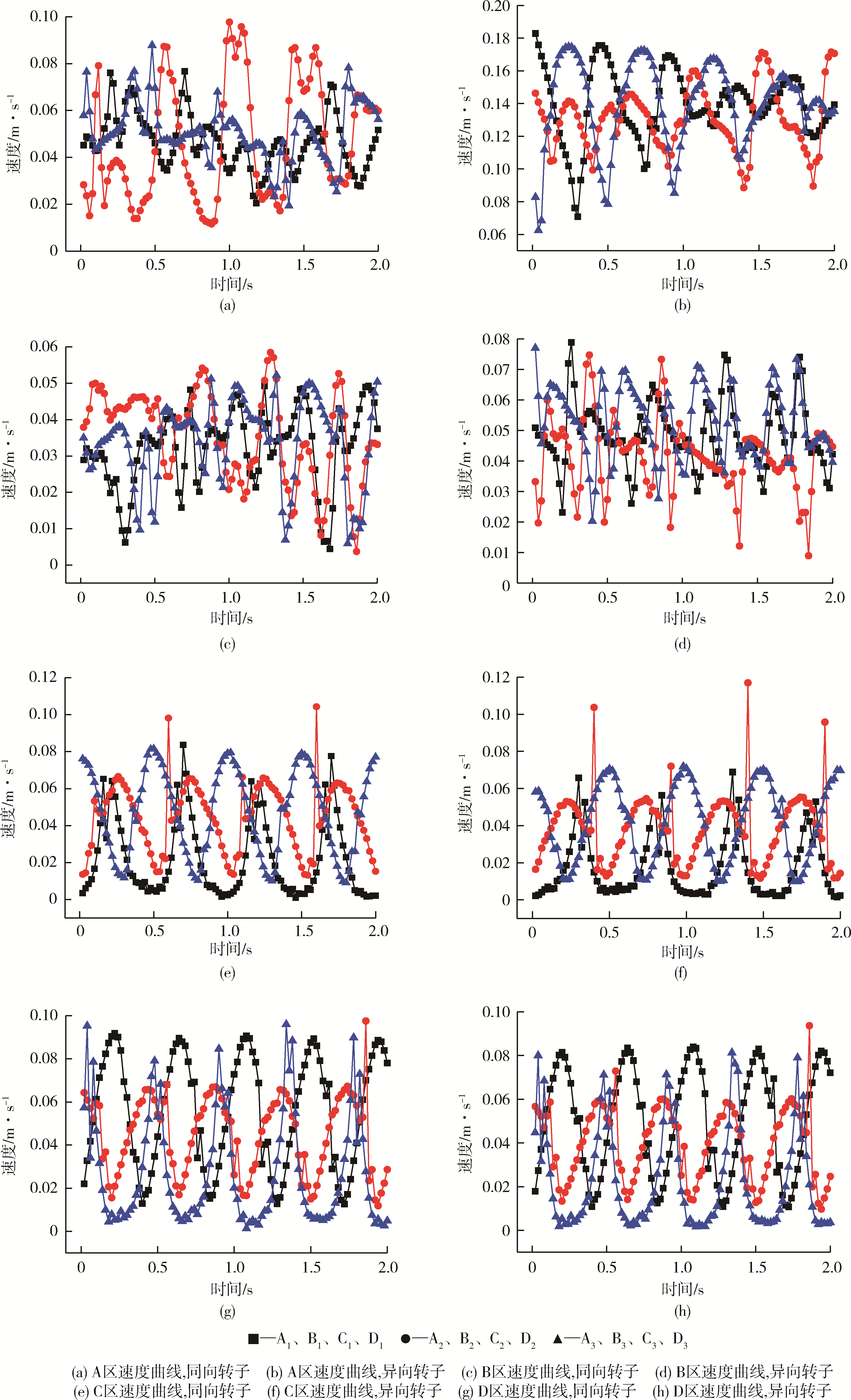

图10 不同区域的速度曲线

Fig.10 Velocity curves of different regions

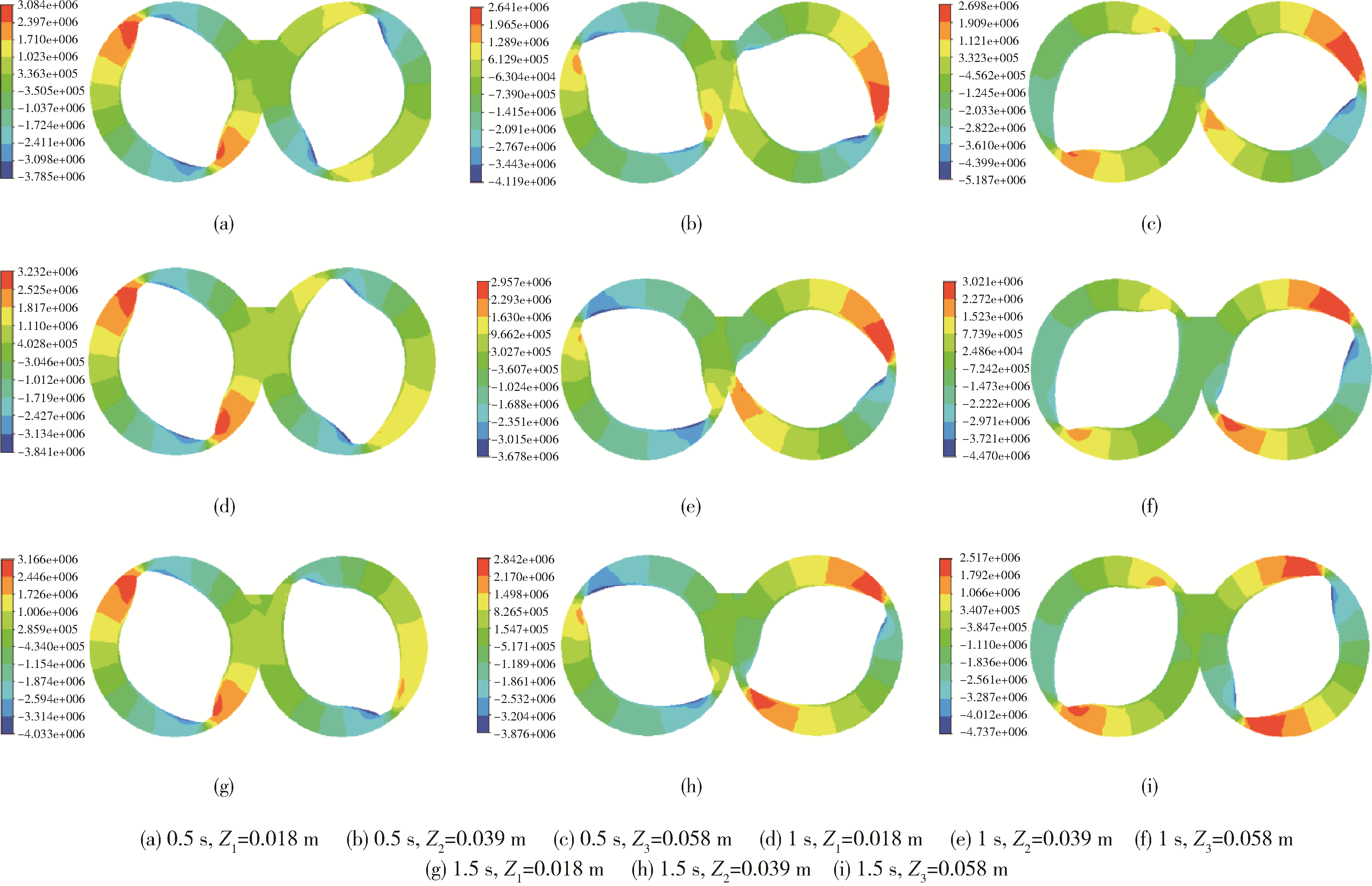

图11 不同时刻不同截面的压力云图 (同向转子)

Fig.11 Pressure nephogram of different sections at different moments (the same direction rotor)

图12 不同时刻不同截面的压力云图 (异向转子)

Fig.12 Pressure nephogram of different sections at different moments (the opposite direction rotor)

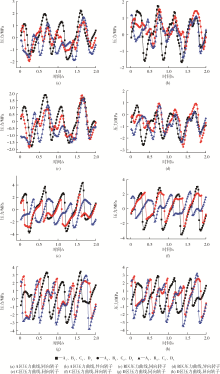

图13 同区域的压力曲线

Fig.13 Pressure curves of different regions

参考文献 10

1	巫静安,李木松.橡胶加工机械[M].北京:化学工业出版社，2006.
2	于清溪. 密闭式橡胶混炼机的技术现状及最近发展[J]. 橡塑技术与装备，2010，36(09)：4⁃17.
	YU Q X.Current Status and Development of the Technology of Internal Mixer[J]. China Rubber/Plastics Technology and Equipment，2010,36(09):4⁃17.
3	高明，陈立，朱向哲，等.转速对密炼机HDPE/PS共混聚合物混合效率的影响[J].石油化工高等学校学报，2015,28（3）：86⁃90.
	GAO M,CHEN L,ZHU X Z,et al. Influence of Rotational Speeds on the Mixing Efficiency of HDPE/PS Blends in a Batch Mixer[J].Journal of Petrochemical Universities,2015,28(3):86⁃90.
4	RATHOD M L，ASHOKAN B K，FANNING L M，et al. Non⁃newtonian Fluid Mixing in a Twin⁃Screw Mixer Geometry: Three⁃Dimensional Mesh Development, Effect of Fluid Model and Operating Conditions[J]. Journal of Food Process Engineering，2014，38(03)： 207⁃224.
5	钟伟源，朱荣生，王秀礼，等. 基于双向流固耦合的核主泵叶轮力学特性[J]. 排灌机械工程学报，2018，221(06)：24⁃32.
	ZHONG W Y, ZHU R S, WANG X L,et al.Mechanical Properties of Nuclear Reactor Coolant Pump Impeller Based on Bidirectional Fluid Structure Interaction[J].Journal of Drainage and Irrigation Machinery Engineering,2018,221(06):24⁃32.
6	何延东,刘万锁,朱向哲.6Ⅰ型转子密炼机流场瞬态流动分析[J].中国塑料,2018,32(11):89⁃95.
	HE Y D, LIU W S, ZHU X Z.Transient Flow Analysis of Flow Field in 6I⁃tpye Rotor Internal Mixer[J].China Plastics,2018,32(11):89⁃95.
7	高鹤，朱向哲，佟莹，等.4WS转子密炼机聚合物混沌混合的拉格朗日拟序结构分析[J].高等化学工程学报，2016,30（6）：1274⁃1283.
	GAO H,ZHU X Z, TONG Y,et al. Lagrangian Coherent Structure Analysis of Chaotic Mixing in an Internal Bbatch Mixer with 4WS Rotors[J].Journal of Chemical Engineering of Chinese,2016,30(6):1274⁃1283.
8	MALVè M，BERGSTROM D J，CHEN X B. Modeling the Flow and Mass Transport in a Mechanically Stimulated Parametric Porous Scaffold Under Fluid⁃Structure Interaction Approach[J]. International Communications in Heat and Mass Transfer，2018，96(07)：53⁃60.
9	董振刚，王宇航，张兴宁，等.三种转子密炼机流体流动和混合特性对比分析[J].辽宁石油化工大学学报，2016,36（6）：43⁃50
	DONG Z G,WANG Y H,ZHANG X N,et al. Comparative Analysis of Fluid Flow and Mixing Characteristics between Three Kinds of Rotor Mixer[J].Journal of Liaoning Shihua University,2016,36(6):43⁃50.
10	张海，麦均洪，贺德化，等．密炼机中橡胶混炼的流变理论及应用[J]．橡胶工业，2001，48(05)：293⁃299
	ZHANG H，MAI J H, HE D H,et al.Rheological Theory and Application of Rubber Mixing in Internal Mixer[J].China Rubber Industry,2001,48(05):293⁃299.
