基于拉格朗日法偏心双螺杆挤出机混合机理分析

doi:10.19491/j.issn.1001-9278.2020.08.009

中国塑料 ›› 2020, Vol. 34 ›› Issue (8): 57-62.DOI: 10.19491/j.issn.1001-9278.2020.08.009

基于拉格朗日法偏心双螺杆挤出机混合机理分析

滕健¹, 王东阳², 朱向哲¹()

^1.辽宁石油化工大学机械工程学院，辽宁抚顺 113001
^2.抚顺市技师学院，辽宁抚顺 113123

收稿日期:2020-02-14 出版日期:2020-08-26 发布日期:2020-08-26
基金资助:
国家自然科学基金项目(51973085)

Analysis of Mixing Mechanism in Eccentric Twin⁃screws Extruders Based on Lagrangian Method

Jian TENG¹, Dongyang WANG², Xiangzhe ZHU¹()

^1.School of Mechanical Engineering, Liaoning Shihua University, Fushun 113001, China
^2.Fushun Technician Institute, Fushun 113123, China

Received:2020-02-14 Online:2020-08-26 Published:2020-08-26
Contact: Xiangzhe ZHU E-mail:xzzhu@126.com

摘要/Abstract

摘要：

利用有限时间李雅普诺夫指数(FTLE)和拉格朗日拟序结构(LCS)，并结合混合指数和瞬时混合效率等，对比分析了偏心距为0、2、4 mm的3种偏心双螺杆挤出机流场内的混合特性。结果表明，当偏心距为4 mm时，偏心双螺杆挤出机中流体粒子的遍历范围较大，拉格朗日拟序结构较为完整；流域中存在双曲不动点，流体粒子经历了相对较好的拉伸和压缩作用。通过瞬时混合效率参数分析表明，偏心距为4 mm的偏心双螺杆挤出机的混合效率优于其他2种模型。

关键词: 偏心双螺杆挤出机, 拉格朗日拟序结构, 有限时间李雅普诺夫指数, 混合指数, 瞬时混合效率

Abstract:

The mixing characteristics in the flow field of three eccentric twin?screw extruders with the eccentricities of 4 mm, 2 mm and 0 mm were comparatively investigated by use of a finite?time Lyapunov exponent (FTLE) and a Lagrangian coherent structure (LCS) combined with the mixing index and instantaneous mixing efficiency. The results indicated that when the eccentricity was 4mm, the fluid particles had a traversal range in the eccentric twin?screw extruder, and their Lagrangian coherent structure was relatively complete. There were some hyperbolic fixed points in the flow field, and the fluid particles underwent relatively good stretching and compressing actions. The analysis of instantaneous mixing efficiency parameters revealed that the mixing efficiency of the eccentric twin?screw extruder with an eccentricity of 4 mm was superior to the other two models.

Key words: twin screw extruder, lagrangian coherent structure, finite?time Lyapunov exponent, mixing index, instantaneous mixing efficiency

中图分类号:

TQ 320.5⁺2

滕健, 王东阳, 朱向哲. 基于拉格朗日法偏心双螺杆挤出机混合机理分析[J]. 中国塑料, 2020, 34(8): 57-62.

Jian TENG, Dongyang WANG, Xiangzhe ZHU. Analysis of Mixing Mechanism in Eccentric Twin⁃screws Extruders Based on Lagrangian Method[J]. China Plastics, 2020, 34(8): 57-62.

图/表 10

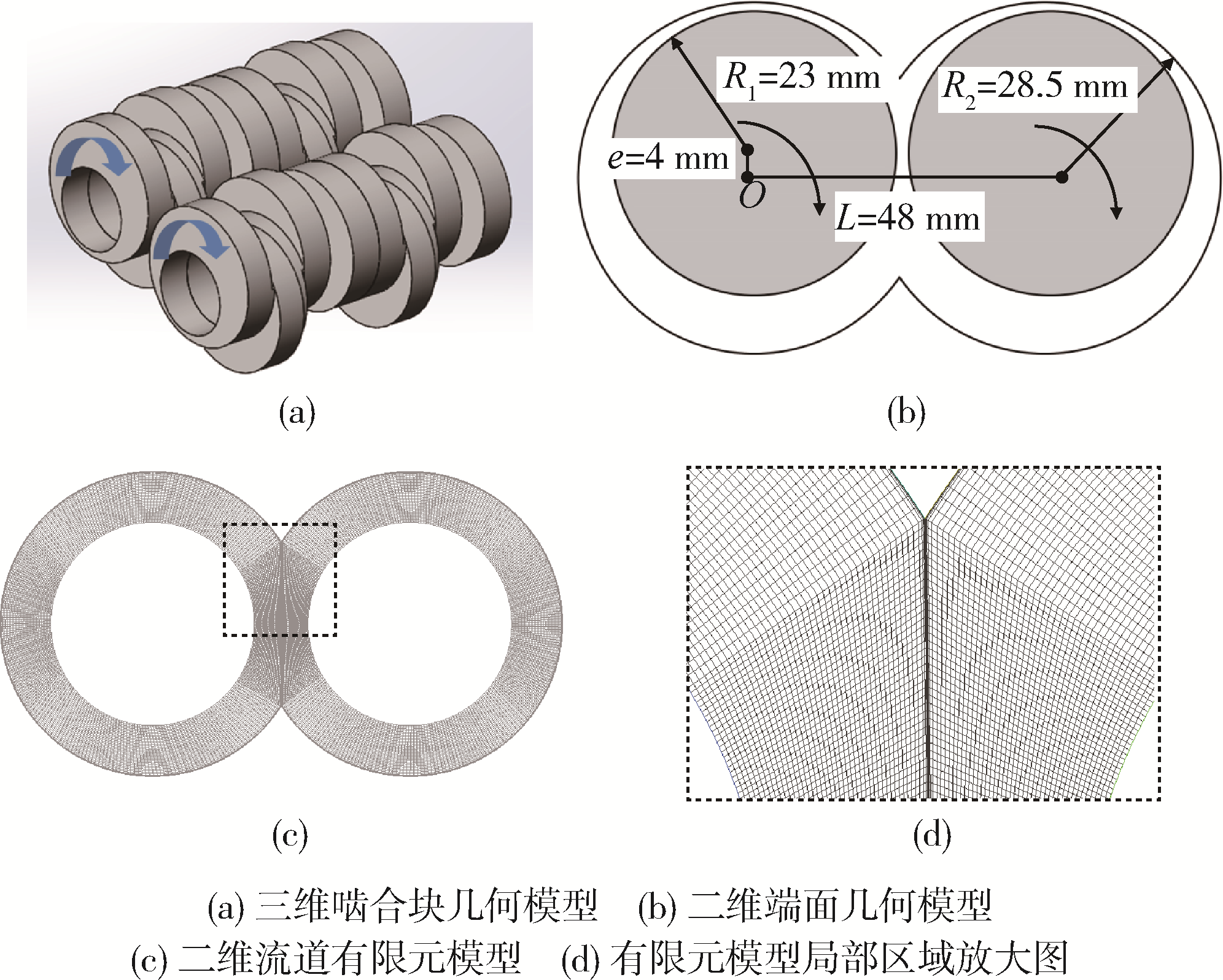

图1 偏心双螺杆几何模型和有限元模型

Fig.1 Eccentric twin?screws geometric and finite element models

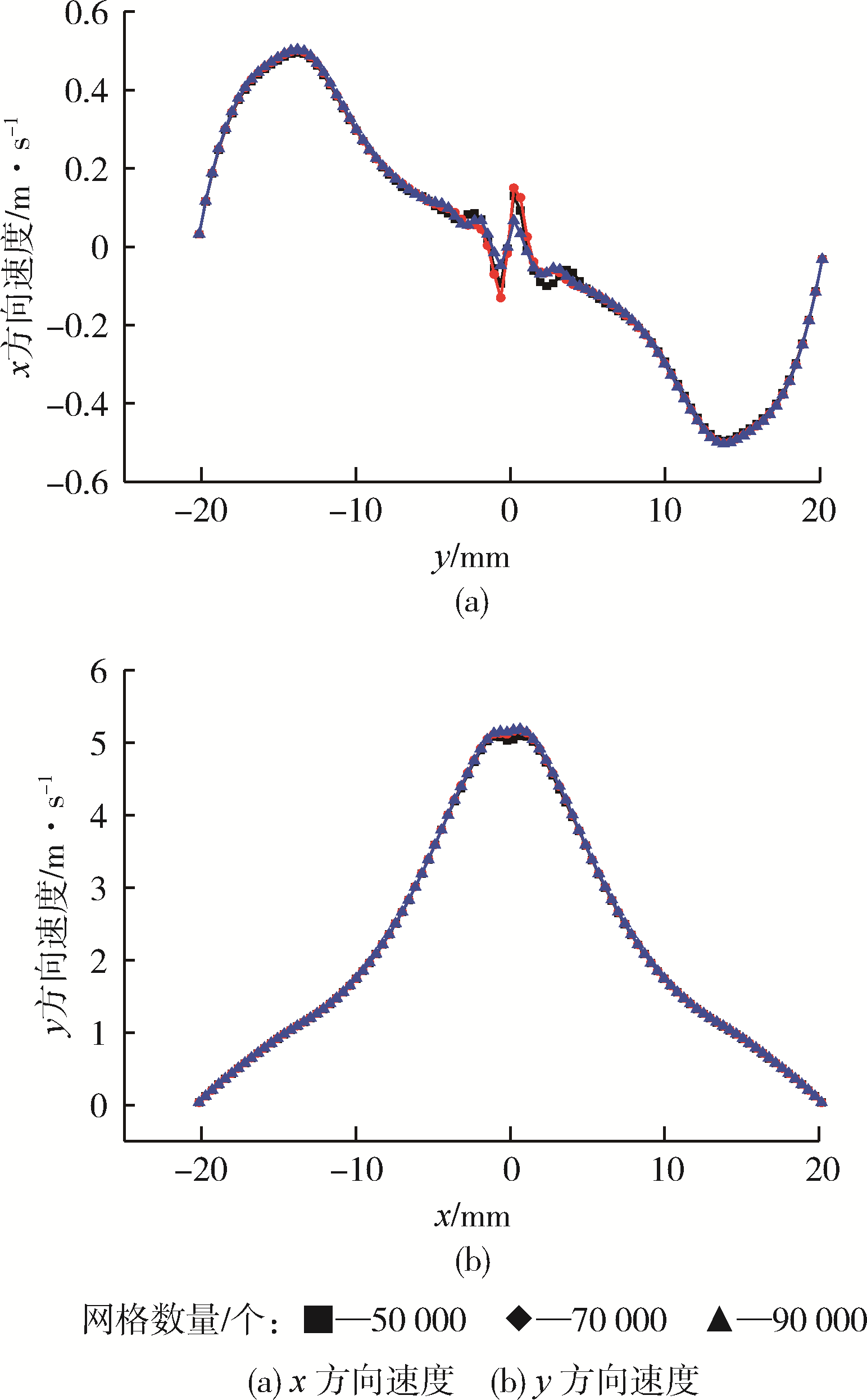

图2 网格密度对速度的影响

Fig.2 Effect of mesh cells on velocity

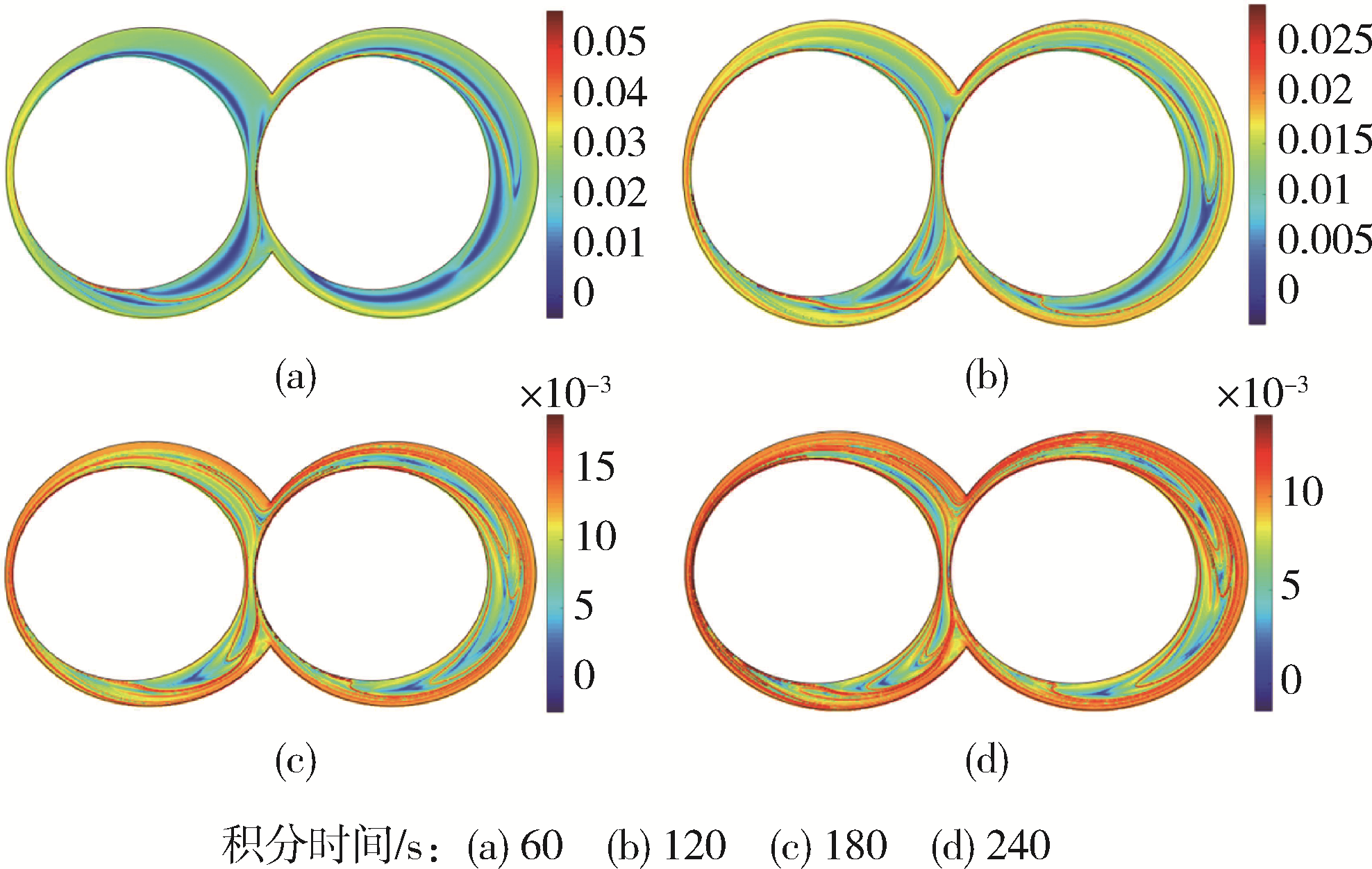

图3 e=4 mm，t=0 s时不同积分时间向前FTLE

Fig.3 Forward time FTLE with different integration time while e=4 mm，t=0 s

图4 e=4 mm时不同初始时刻时间向前FTLE

Fig.4 Forward time FTLE with different initial time while e= 4 mm

图5 e=2 mm时不同初始时刻时间向前FTLE

Fig.5 Forward time FTLE with different initial time while e= 2 mm

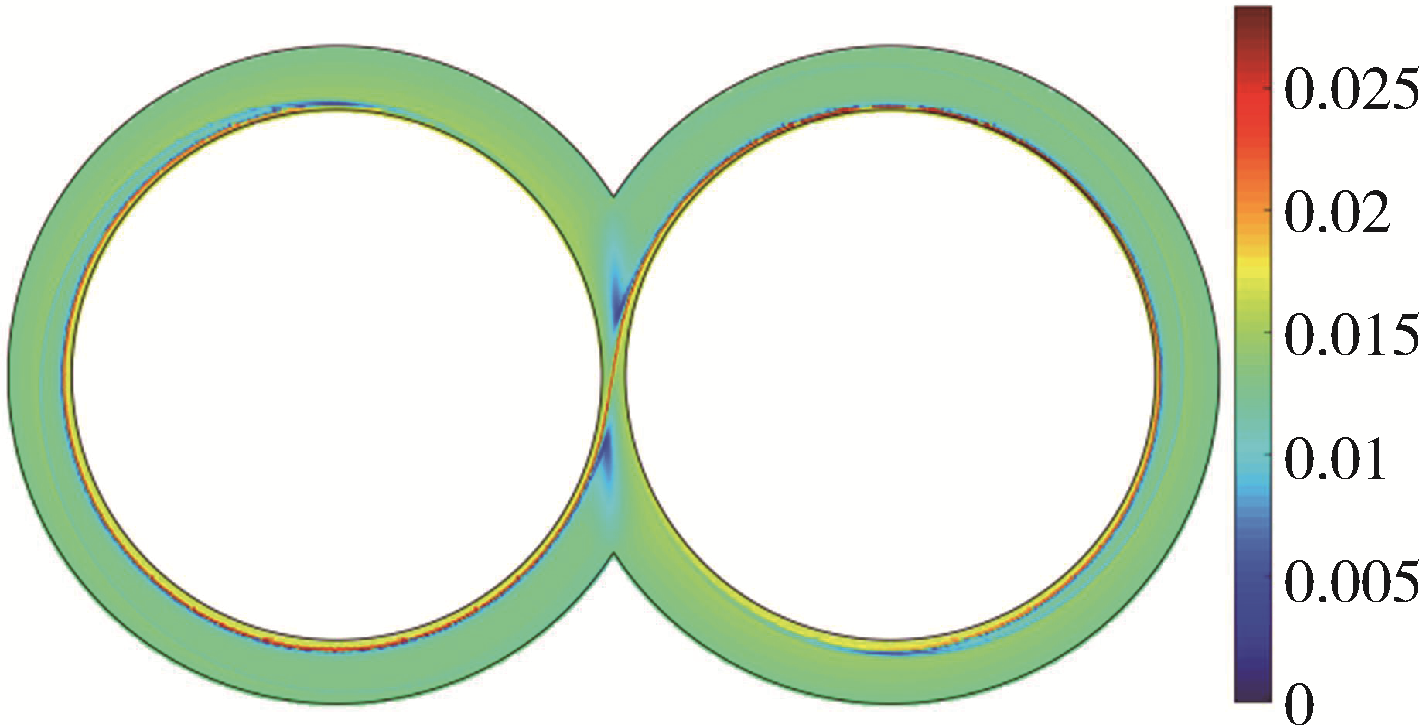

图6 e=0 mm时间向前FTLE

Fig.6 Forward time FTLE while e=0 mm

图7 e=4 mm时不同初始时刻时间向后FTLE

Fig.7 Backward time FTLE with different initial time while e=4 mm

图8 不同偏心距模型的双曲LCS

Fig.8 Hyperbolic LCS from different eccentricity models

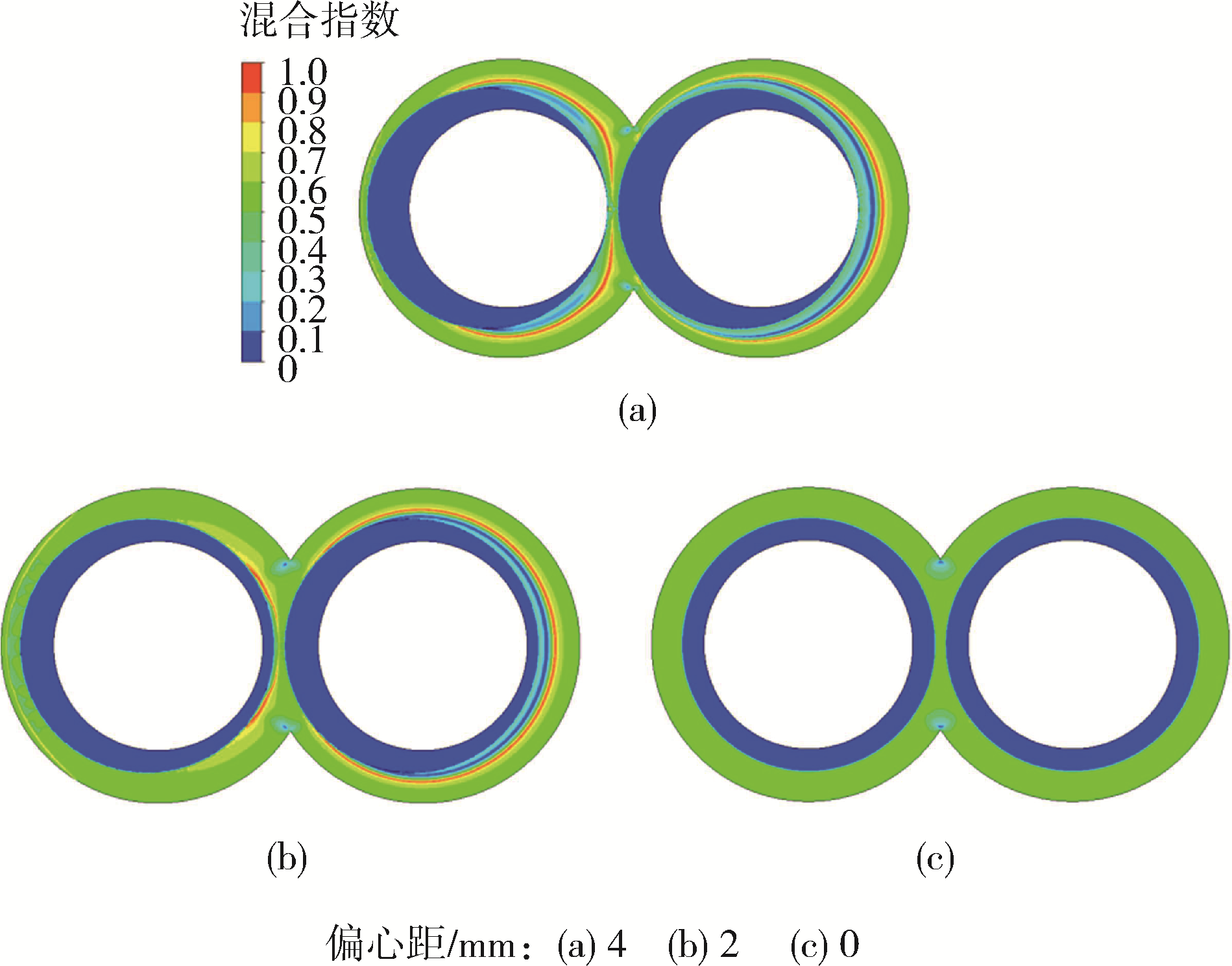

图9 不同偏心距模型的混合指数

Fig.9 Mixing index from different eccentricity models

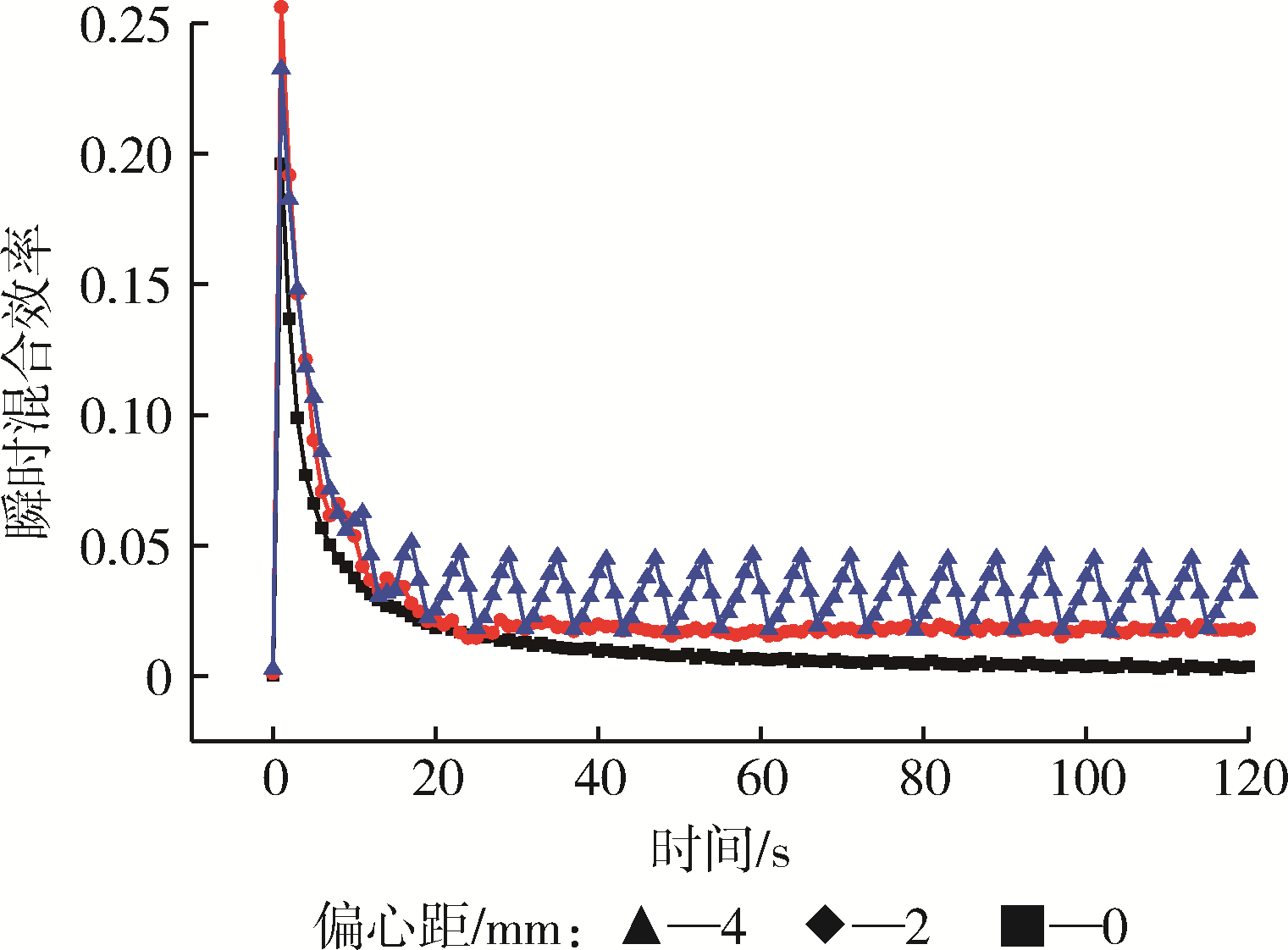

图10 不同偏心距的瞬时混合效率

Fig.10 Instantaneous efficiency with different eccentricity

参考文献 12

1	BROD H, LIESENFELDER U. The Mixing Efficiency of an Eccentric⁃Disc Kneading Zone in Intermeshing Co⁃and Counter⁃Rotating Twin⁃Screw Extruders[J]. Chemical Engineering & Technology, 2004, 27(3):297⁃303.
2	黄高龙, 韦惺, 詹海刚. 吕宋海峡浮标轨迹的拉格朗日拟序结构分析[J]. 热带海洋学报，2015, 34(1) :15⁃22.
	HUANG G L, WEI X, ZHAN H G. Lagrangian Analysis of Drifter Trajectories Near the Luzon Strait[J].Journal of Tropical Oceanogaphy, 2015, 34(1):15⁃22.
3	耿孝正.双螺杆挤出机及其应用[M].北京：中国轻工业出版社，2003：22⁃31.
4	CONNELLY R K, KOKINI J L. Examination of The Mixing Ability of Single and Twin Screw Mixers Using 2D Finite Element Method Simulation with Particle Tracking[J]. Journal of Food Engineering, 2007, 79(3):956⁃969.
5	喻慧文, 徐百平, 何亮，等. 非对称同向双螺杆端面造型对混合行为影响数值模拟[J]. 化工学报, 2012, 63(5):1 622⁃1 629.
	YU H W, XU B P, HE L, et al. Numerical Simulation of Effect of Different Cross⁃section Geometries on Mixing Performance of Novel Co⁃rotating Non⁃twin Screws[J]. Ciesc Journal, 2012, 63(5):1 622⁃1 629.
6	喻慧文, 徐百平, 谭寿再, 等. 自洁型非对称同向双螺杆挤出机混合分析[J]. 中国塑料, 2014, 28(8):66⁃71.
	YU H W, XU B P, TAN S Z, et al. Analysis of Mixing Performance in A Intermeshing Co⁃rotating Asymmetric Twin⁃screw Extruder[J]. China Plastics, 2014, 28(8):66⁃71.
7	佟莹, 朱向哲, 高鹤，等. 三螺杆挤出机啮合块端面二维流场混沌混合拉格朗日拟序结构分析[J].化工学报, 2016, 67(10):4 378⁃4 388.
	TONG Y, ZHU X Z, GAO H, et al. Analysis of 2D Flow Chaotic Mixing at Cross Section of Tri⁃screws Extruder by Lagrangian Coherent Structure[J]. Ciesc Journal, 2016, 67(10):4 378⁃4 388.
8	高鹤, 朱向哲, 佟莹, 等. 4WS转子密炼机聚合物混沌混合的拉格朗日拟序结构分析[J]. 高校化学工程学报, 2016, 30(6) :1 274⁃1 283.
	GAO H, ZHU X Z, TONG Y, et al. Lagrangian Coherent Structure Analysis of Chaotic Mixing in An Internal Batch Mixer with 4WS Rotors[J]. Journal of Chemical Engineering of Chinese Universities, 2016, 30(6) : 1 274⁃1 283.
9	郭大闯, 朱向哲, 滕健, 等. 平行三螺杆挤出机聚合物混沌混合的拉格朗日拟序结构分析[J]. 工程塑料应用, 2019, 47(3):65⁃71.
	GUO D C, ZHU X Z, TENG J, et al. Lagrangian Coherent Structures Analysis of Chaotic Mixing in A Parallel Arranged Tri⁃screw Extruder[J]. Engineering Plastics Application, 2019, 47(3): 65⁃71.
10	HALLER G. A Variational Theory of Hyperbolic Lagrangian Coherent Structures[J]. Physica D Nonlinear Phenomena, 2011, 240(7) : 574⁃598.
11	HALLER G, YUAN G. Lagrangian Coherent Structures and Mixing in Two⁃dimensional Turbulence[J]. Physica D Nonlinear Phenomena, 2000, 147(3/4): 352⁃370.
12	王天书, 王宇航, 苏海, 等. 螺杆间隙及入口流量对三螺杆挤出机组合螺杆流场的影响[J]. 辽宁石油化工大学学报, 2017, 37(1) : 46⁃51.
	WANG T S, WANG Y H, SU H, et al.Effects of Different Clearance and Inlet Flow Rate on the Mixing Characteristics of the Fluid Flow Field of Combined Screws with Tri⁃Screw Extruder[J]. Journal of Liaoning Shihua University, 2017, 37(1) : 46⁃51.
