非溶剂致相分离3D打印/复印成型技术研究

doi:10.19491/j.issn.1001-9278.2020.12.001

中国塑料 ›› 2020, Vol. 34 ›› Issue (12): 1-7.DOI: 10.19491/j.issn.1001-9278.2020.12.001

• 材料与性能 • 下一篇

非溶剂致相分离3D打印/复印成型技术研究

马昊鹏¹^,², 高丽洁¹^,², 焦志伟¹^,², 马具彪¹^,², 杨卫民¹^,²()

^1.北京化工大学有机无机复合材料国家重点实验室，北京 100029
^2.北京化工大学机电工程学院，北京 100029

收稿日期:2020-05-27 出版日期:2020-12-26 发布日期:2020-12-26
基金资助:
国家重点研发计划项目(2016YFB0302000);2018年度珠海市产业核心和关键技术攻关方向项目(ZH01084702180085HJL)

Research on Non⁃solvent Induced Phase Separation Technology for 3D Printing/Copying Forming

MA Haopeng¹^,²,GAO Lijie¹^,², JIAO Zhiwei¹^,², MA Jubiao¹^,²,YANG Weimin¹^,²()

#br#

^1.State Key Laboratory of Organic?Inorganic Composites，Beijing University of Chemical Technology，Beijing 100029，China
^2.College of Mechanical and Electrical Engineering，Beijing University of Chemical Technology，Beijing 100029，China

Received:2020-05-27 Online:2020-12-26 Published:2020-12-26
Contact: YANG Weimin E-mail:yangwm@mail.buct.edu.cn

摘要/Abstract

摘要：

初步探究了一种无需将材料熔融的成型技术即非溶剂致相分离三维（3D）打印/复印成型技术的可行性，并成功制备了聚丙烯腈三维立体制品。通过实验获得了先利用非溶剂致相分离法使制品固化并初步脱除溶剂再利用加热蒸发的方法彻底脱除溶剂的制品成型工艺路径。通过研究发现了减少环境溶液含水量有助于提高成型制品内部孔洞尺寸的均匀性，使生成的孔洞尺寸较小并使孔洞分布均匀。此外，探究了该技术在高性能陶瓷复合材料制品、导电制品以及催化剂载体的制备方面应用的可能，进一步开拓了该成型技术的应用前景。

关键词: 非溶剂致相分离, 3D打印/复印, 微孔结构, 溶剂脱除

Abstract:

This article investigated the feasibility of a non-solvent induced phase separation technology for 3D printing/copying forming. With this technology， the three-dimensional polyacrylonitrile products were successfully prepared without any molten materials. Based on the experimental results， the forming process route was determined as follows： the non-solvent induced phase separation method was first used to solidify the product and remove the solvent initially； the resultant product was then heated and evaporated to completely remove the internal solvent. The reduction of water content of the environmental solution could help to improve the size uniformity of the inner hole in the resulting product， reducing the hole size and leading to a more uniform hole distribution. In addition， we investigated the application possibility of this technology for the preparation of high-performance ceramic composites， conductive products and catalyst carriers as well as the application prospects of this forming technology.

Key words: non?solvent induced phase separation, 3D printing and copying, microporous structure, solvent removal

中图分类号:

TQ320.66

马昊鹏, 高丽洁, 焦志伟, 马具彪, 杨卫民. 非溶剂致相分离3D打印/复印成型技术研究[J]. 中国塑料, 2020, 34(12): 1-7.

MA Haopeng, GAO Lijie, JIAO Zhiwei, MA Jubiao, YANG Weimin∗. Research on Non⁃solvent Induced Phase Separation Technology for 3D Printing/Copying Forming[J]. China Plastics, 2020, 34(12): 1-7.

图/表 10

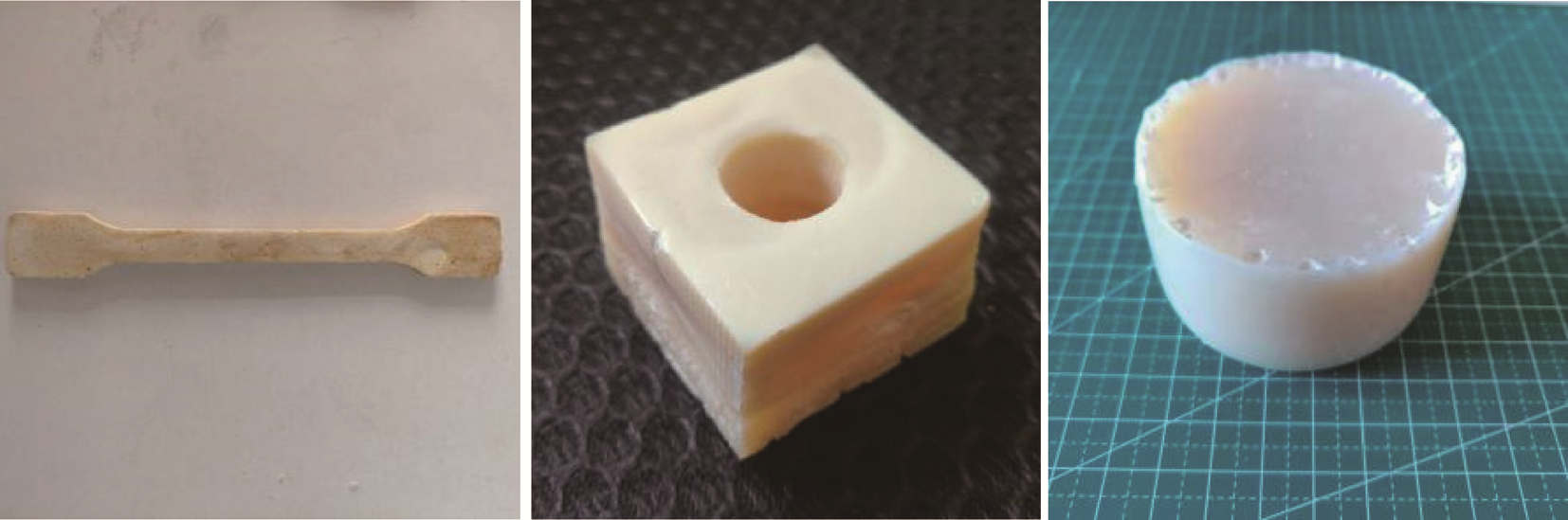

图1 非溶剂致相分离3D打印/复印技术生产的制品

Fig.1 Products produced by non?solvent induced phase separation 3D printing/copying technology

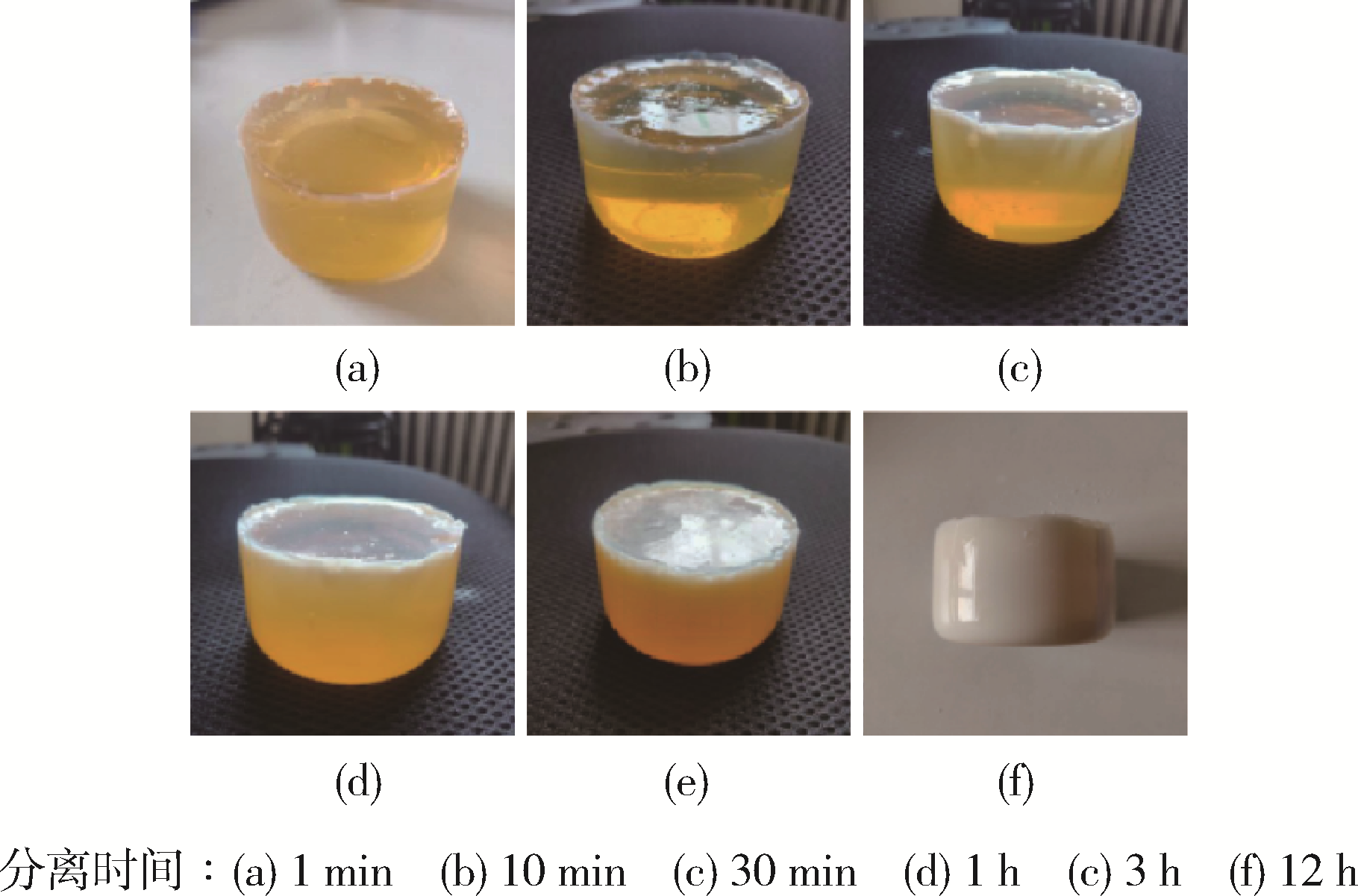

图2 制品形貌随非溶剂致相分离过程时长的变化

Fig.2 Morphology of the product changes with the time of the non?solvent?induced phase separation process

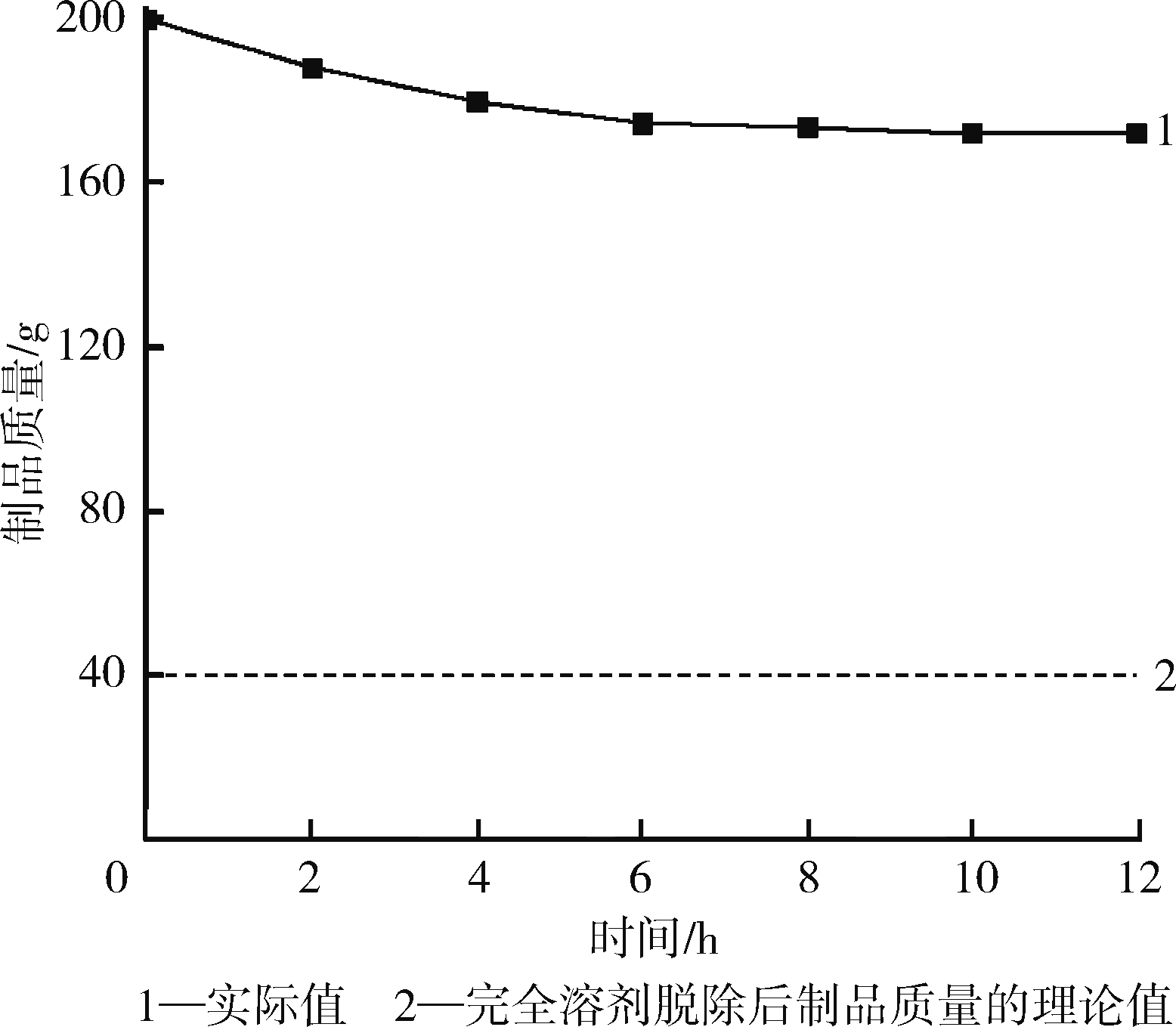

图3 制品质量随随非溶剂致相分离过程时长的变化

Fig.3 Change of product weight with time of non?solvent induced phase separation process

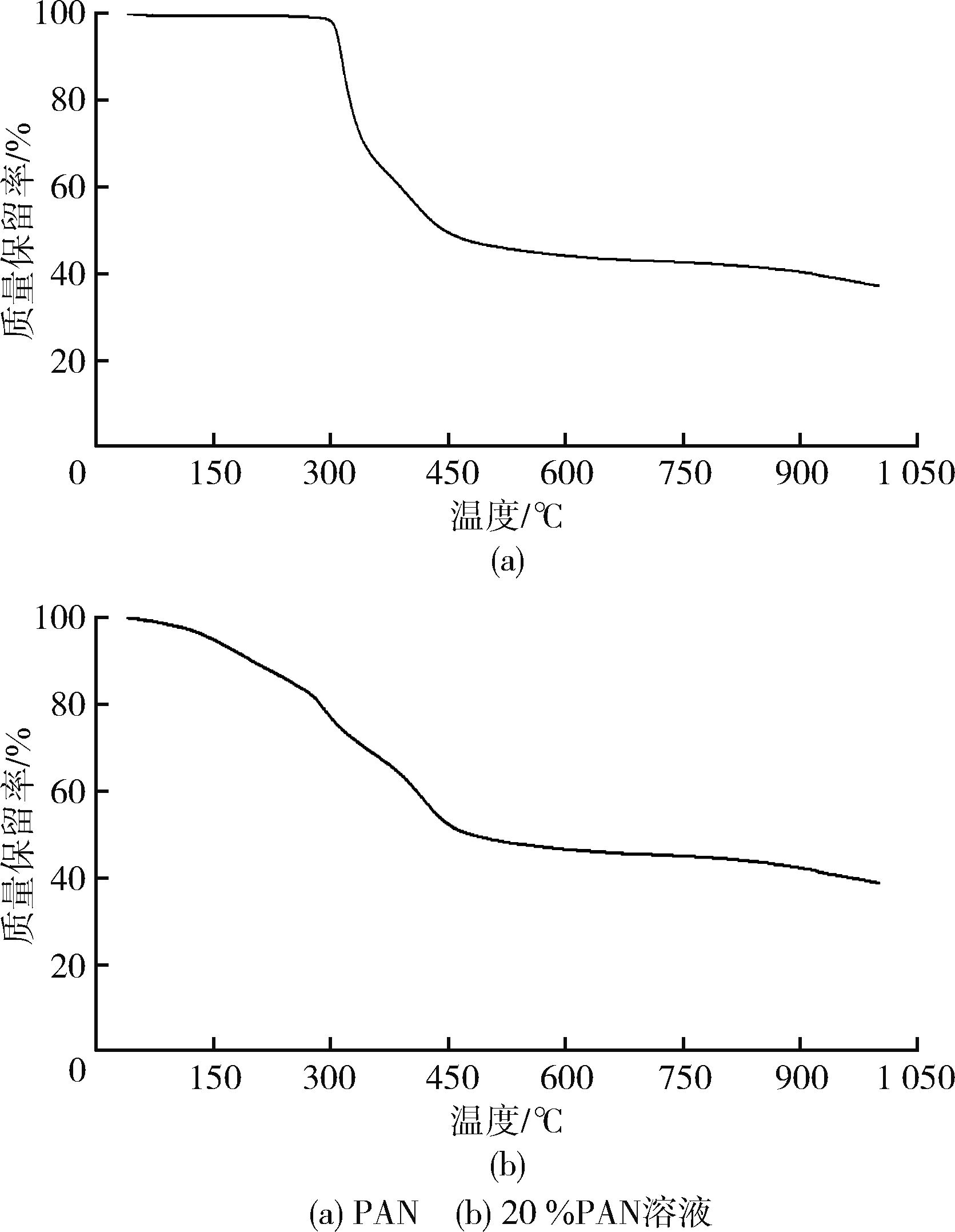

图4 不同样品的TG曲线

Fig.4 TG curves of different samples

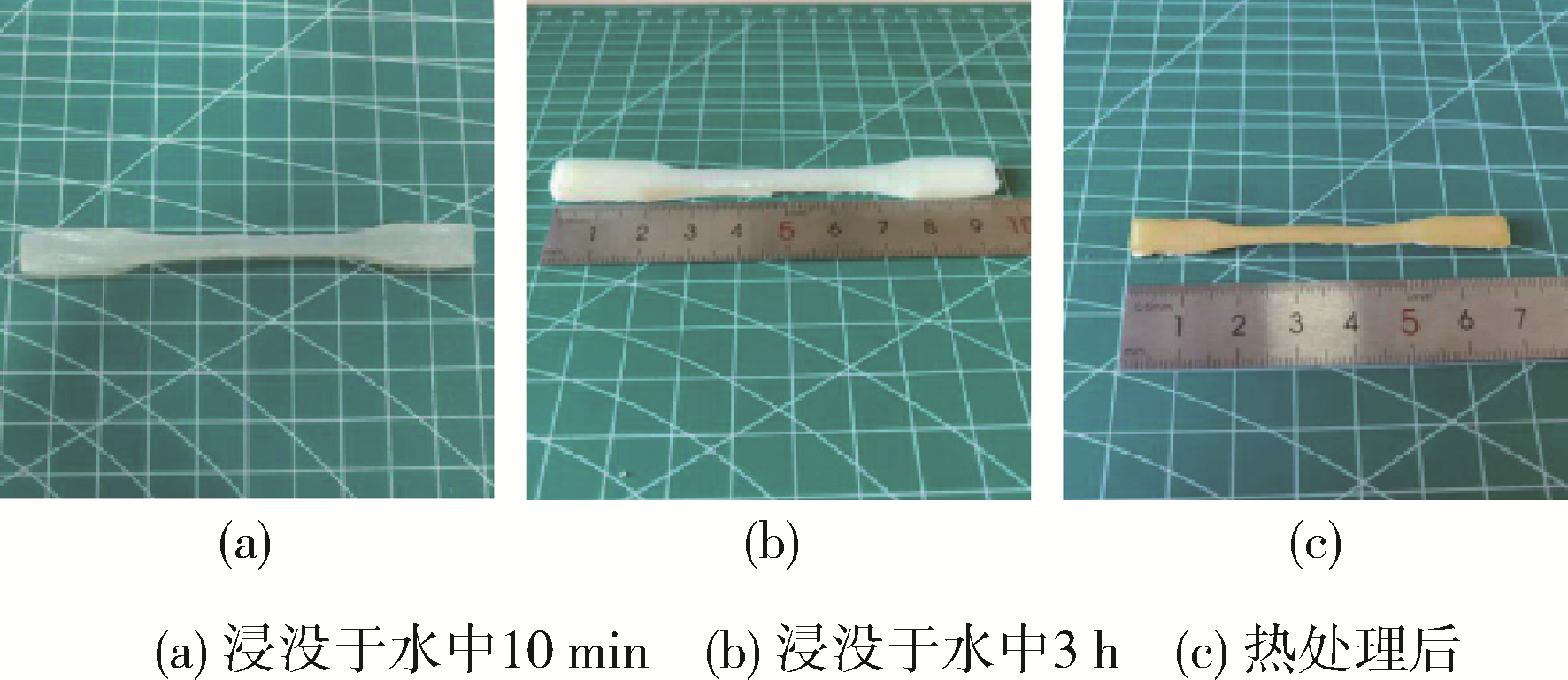

图5 PAN体系脱除溶剂过程中制品的形貌

Fig.5 Morphology of the product during the solvent removal process of the PAN system

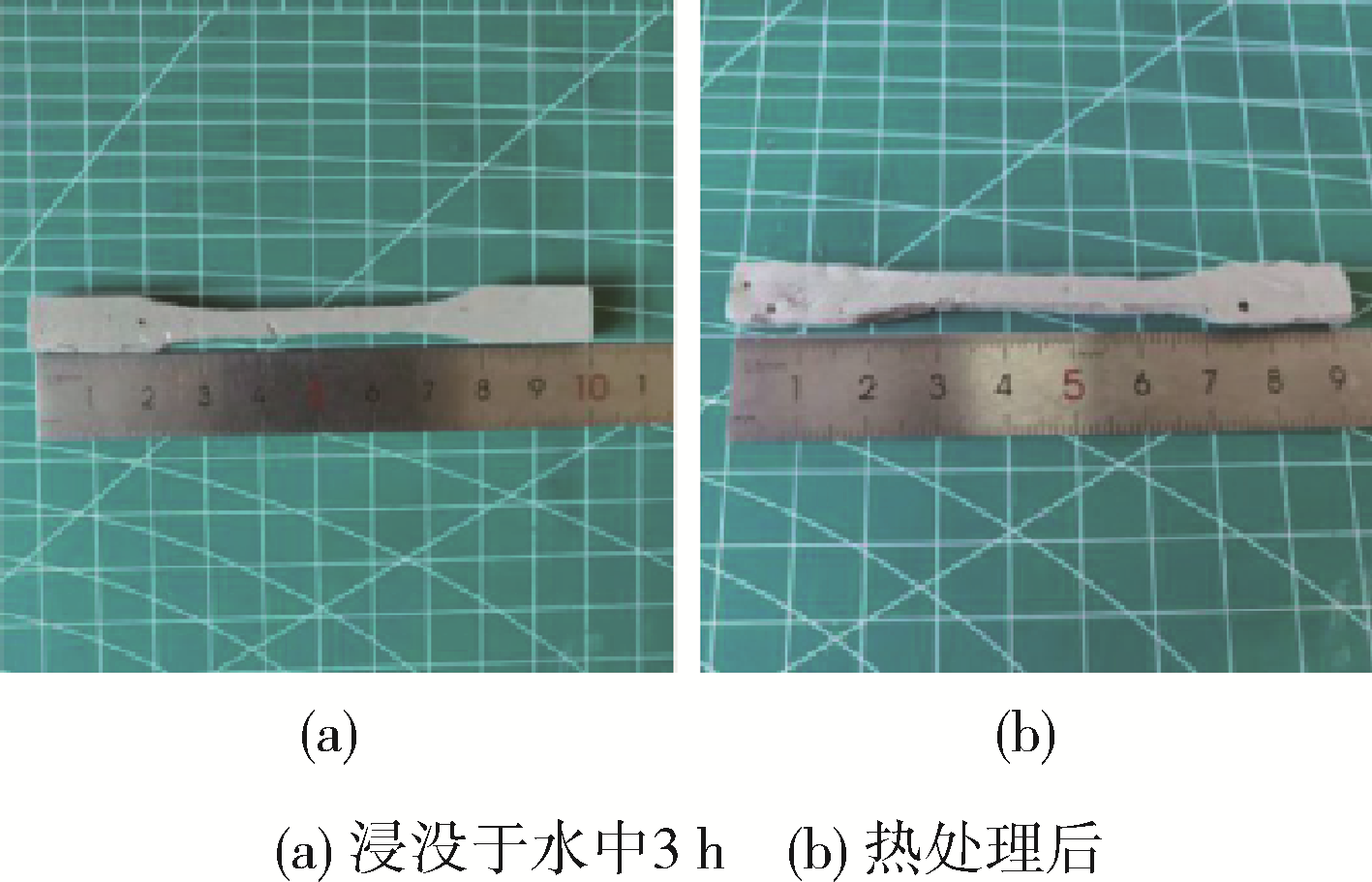

图6 PAN/碳化硅体系脱除溶剂过程中制品的形貌

Fig.6 Morphology of the PAN/silicon carbide system during solvent removal

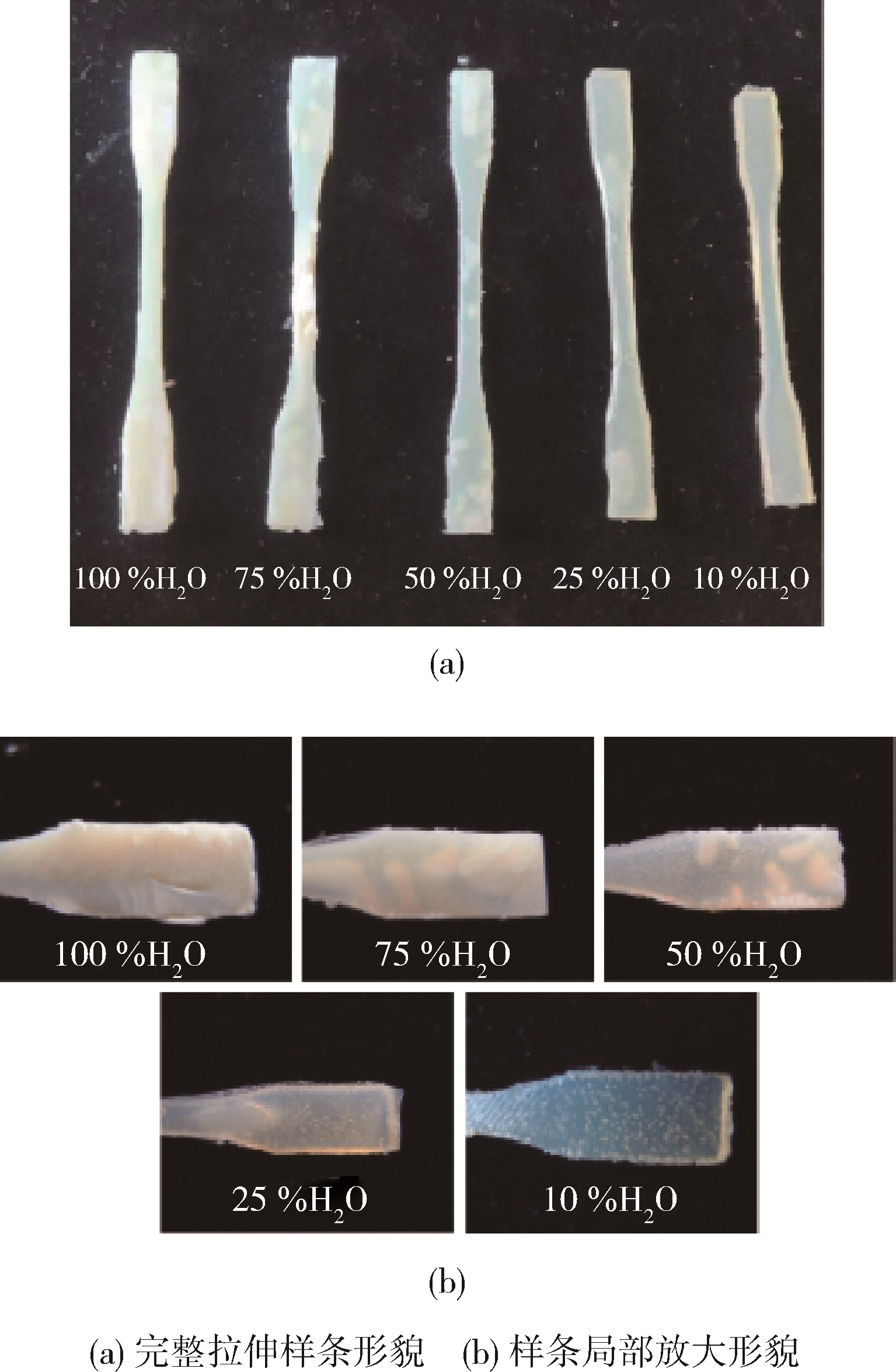

图7 使用不同比例的非溶剂进行非溶剂致相分离后的制品形貌

Fig.7 Product morphology after non?solvent induced phase separation using different proportions of non?solvents

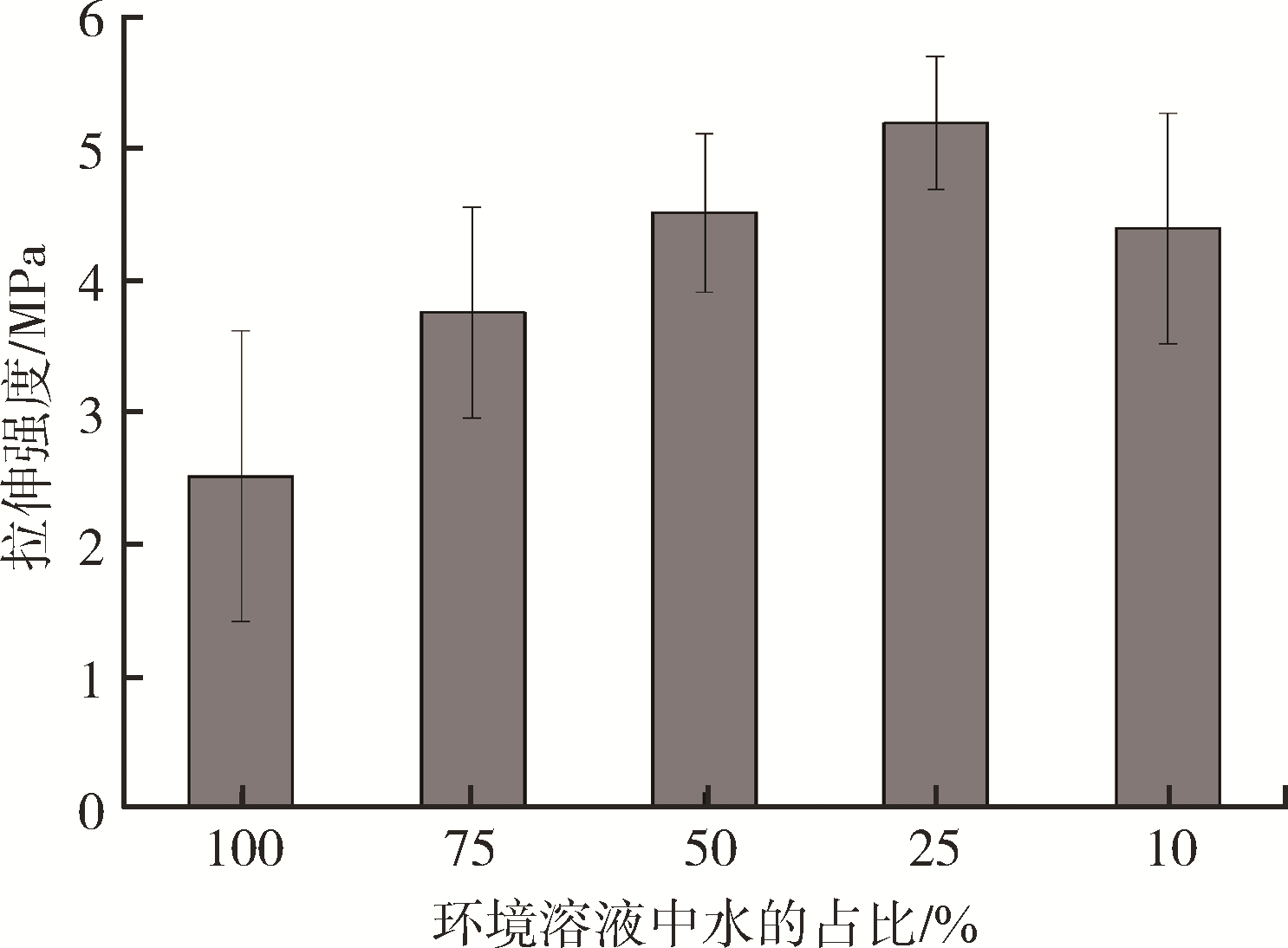

图8 使用不同比例的非溶剂进行非溶剂致相分离后的制品的抗拉伸性能

Fig.8 The tensile properties of products after using different proportions of non?solvents for non?solvent induced phase separation

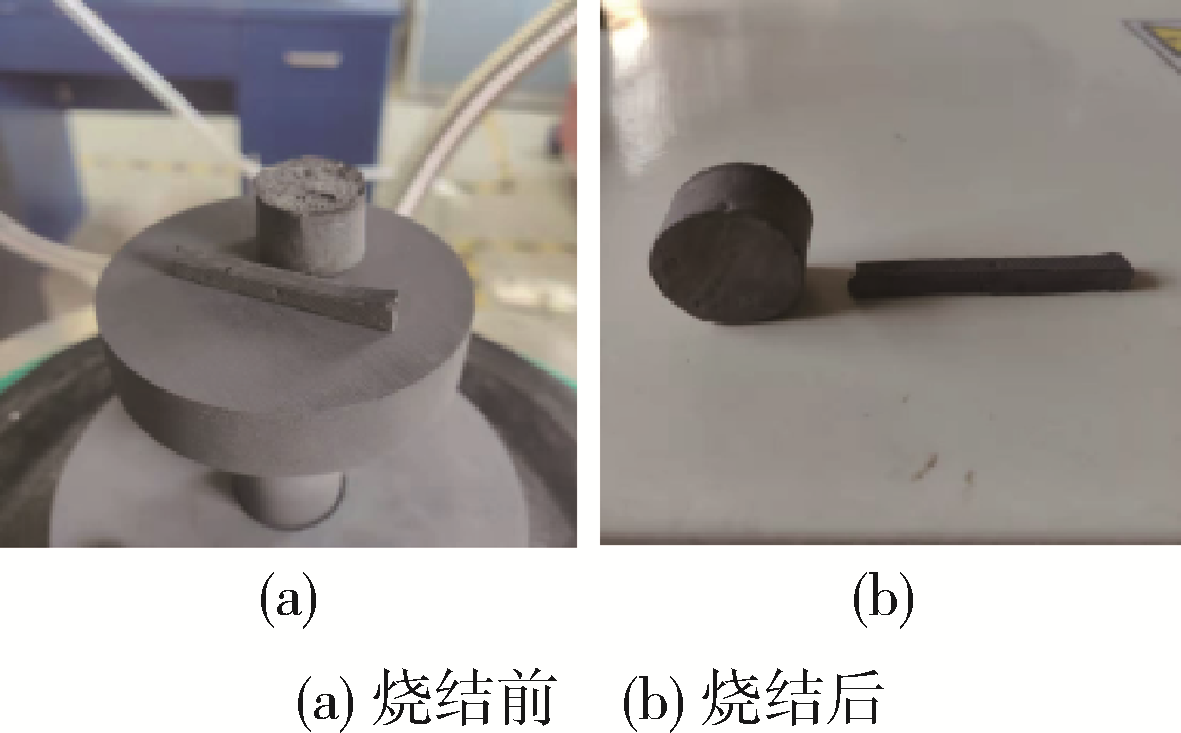

图9 非溶剂致相分离3D打印/复印技术制造的陶瓷制品

Fig.9 Ceramic products manufactured by non?solvent induced phase separation 3D printing/copying technology

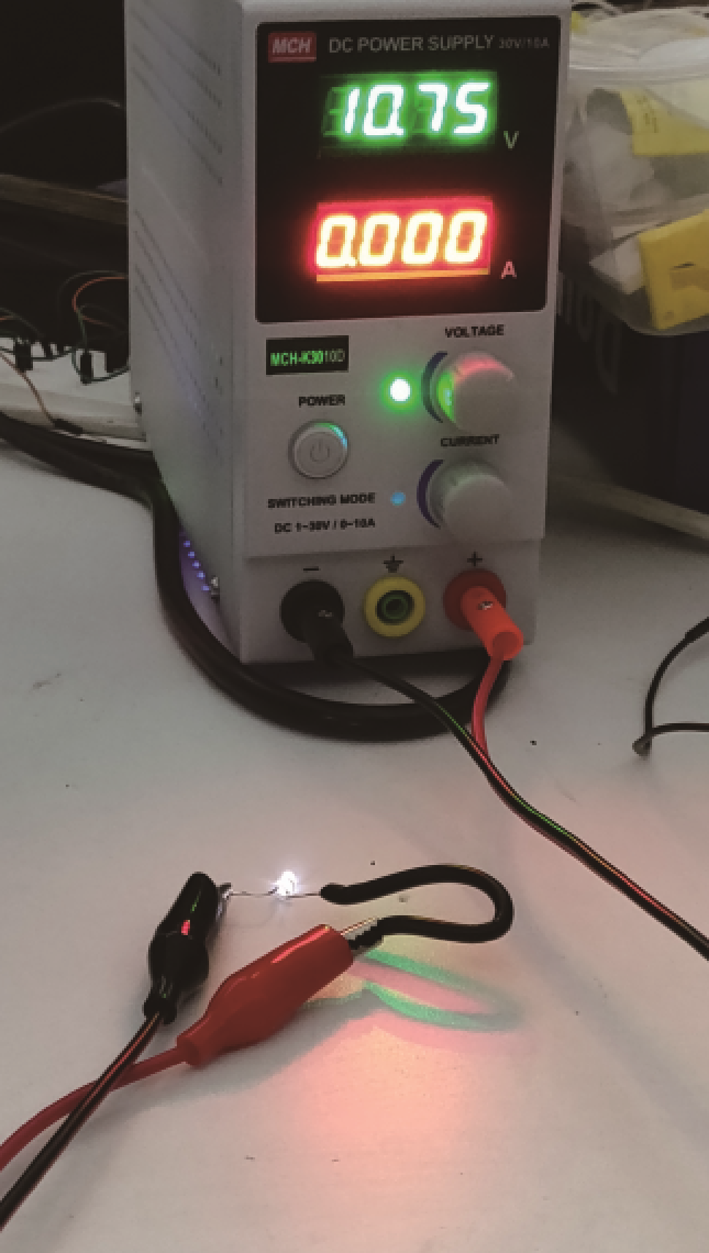

图10 非溶剂致相分离3D打印/复印技术制造的聚合物基导电制品

Fig.10 Polymer?based conductive products manufactured by non?solvent?induced phase separation 3D printing/copying technology

参考文献 18

1	JIN Y， ROBERT D， PAUL M， et al. A Review of Current Developments in Process and Quality Control for Injection Molding［J］. Advances in Polymer Technology， 2010， 24（3）：165⁃182.
2	钟世云. 中空吹塑制品的新进展［J］. 中国塑料， 2003， 17（8）：9⁃14. DOI：10.19491/j.issn.1001-9278.2003.08.003
	ZHONG S Y. Recent Progress of Blow Molded Articles［J］. China Plastics， 2003， 17（8）：9⁃14. DOI：10.19491/j.issn.1001-9278.2003.08.003
3	陈学连. 功能型滚塑用聚乙烯材料的研究进展［J］. 中国塑料， 2015， 29（12）：8⁃13.
	CHEN X L. Research Progress in Functional Polyethylene for Rotational Molding［J］. China Plastics， 2015， 29（12）：8⁃13.
4	TURNER B N， STRONG R， GOLD S A. A Review of Melt Extrusion Additive Manufacturing Processes： I. Process Design and Modeling［J］. Rapid Prototyping Journal， 2014， 20（3）：192⁃204.
5	TURNER B N， GOLD S A. A Review of Melt Extrusion Additive Manufacturing Processes： II. Materials， Dimensional Accuracy， and Surface Roughness［J］. Rapid Prototyping Journal， 2015， 21（3）：250⁃261.
6	覃辉林. PAN增塑熔融纺丝及拉伸萃取工艺的研究［D］. 东华大学， 2012.
7	王清瑞，田小永，汪鑫. 聚醚酰亚胺的熔融沉积成型［C］//第17届全国特种加工学术会议论文集. 广州， 2017：375⁃380.
8	杨卫民，马昊鹏，焦志伟，等. 一种基于固相析出分离工艺的聚合物3D打印成型方法： CN110142957A［P］. 2019⁃08⁃20.
9	杨卫民，王修磊，马昊鹏，等.一种多孔电极制备装置及工艺：CN110587911A ［P］. 2019⁃12⁃20.
10	焦志伟，马昊鹏，李飞，等.一种基于增材制造工艺的高性能陶瓷材料制备方法：CN107140985A ［P］. 2017⁃09⁃08.
11	NAYANI K ， KATEPALLI H ， SHARMA C S ， et al. Electrospinning Combined with Nonsolvent⁃Induced Phase Separation To Fabricate Highly Porous and Hollow Submicrometer Polymer Fibers［J］. Industrial & Engineering Chemistry Research， 2012， 51（4）：1 761⁃1 766.
12	ZHU Y， ZHANG Z C. PVDF Hollow Fiber Formation via Modified NIPS Method： Evolution Elucidation of Phase Separation Mechanism， Structure and Properties of Membrane with Coagulation Strength Varied［J］. Macromolecular Research， 2014， 22（12）：1 275⁃1 281.
13	欧洋，吴青芸，万灵书，等. 采用静电纺丝/非溶剂致相分离制备聚丙烯腈多孔超细纤维的研究［J］. 高分子学报， 2013 （2）：248⁃254.
	OU Y， WU Q Y， WAN L S， et al. Preparation of Porous Polyacrylonitrile Ultrathin Fibers by Electrospinning with Nonsolvent Induced Phase Separation［J］. Acta Polymerica Sinica， 2013 （2）： 248⁃254.
14	GUILLEN G R， PAN Y， LI M， et al. Preparation and Characterization of Membranes Formed by Nonsolvent Induced Phase Separation： A Review［J］. Industrial & Engineering Chemistry Research， 2011， 50（7）：3 798⁃3 817.
15	JUNG J T， KIM J F， WANG H H， et al. Understanding the Non⁃solvent Induced Phase Separation （NIPS） Effect During the Fabrication of Microporous PVDF Membranes via Thermally Induced Phase Separation （TIPS）［J］. Journal of Membrane Science， 2016， 514：250⁃263.
16	张玉坤. 聚偏氟乙烯分离膜的制备及其紫外接枝亲水改性研究［D］. 华南理工大学， 2014.
17	王玥. 聚丙烯腈基碳纤维原丝在干湿法纺丝中的凝固成型机理的研究［D］. 上海：东华大学， 2008.
18	陈娟，葛曷一，柳华实，等. PAN湿法纺丝凝固过程中相分离机理初探［J］. 功能材料， 2009， 40（3）：523⁃526.
	CHEN J， GE H Y， LIU H S， et al. The Phase Separation Mechanism during Coagulation Process in PAN Wet⁃Spinning［J］. Journal of Functional Materials， 2009， 40（3）：523⁃526.
