Effect of Influencing Factor of PAN Chain Entanglement on Rheological Behavior of PAN/DMSO Solution

doi:10.19491/j.issn.1001-9278.2020.04.001

Abstract

Abstract:

The rheological behaviors of polyacrylonitrile (PAN)/dimethyl sulfoxide (DMSO) solutions were measured with a rotary rheometer, and the relationships of apparent viscosity (η_α), storage modulus, loss modulus and loss tangent angle with the temperature, concentration and shearing conditions were investigated. The effect of PAN chain entanglement on the rheological behavior and molecular structure of PAN/DMSO solution were studied. The results indicated that pre?shear could effectively make the PAN chains disentangle to some extent and therefore resulted in a decrease of the η_α of PAN/DMSO solution. Moreover, the effect of shear on the η_α was reduced with increasing the temperature and decreasing the concentration. As a result, the rheological performance of PAN/DMSO solution was improved.

Key words: polyacrylonitrile, rheology, chain entanglement

CLC Number:

TQ 325.1

Yang XING, Chong WANG, Zhongyu FU, Shiyu LIU, Huixuan ZHANG. Effect of Influencing Factor of PAN Chain Entanglement on Rheological Behavior of PAN/DMSO Solution[J]. China Plastics, 2020, 34(4): 1-5.

Figures/Tables 6

Fig.2. Relationship between ηα and γ˙of PAN/DMSO solution with 20 % concentration at different temperatures after 4 cycles of shearing

Fig.3. Relationship between ηα and γ˙at different concentrations of PAN/DMSO solution at 55 °C after 4 cycles of shearing

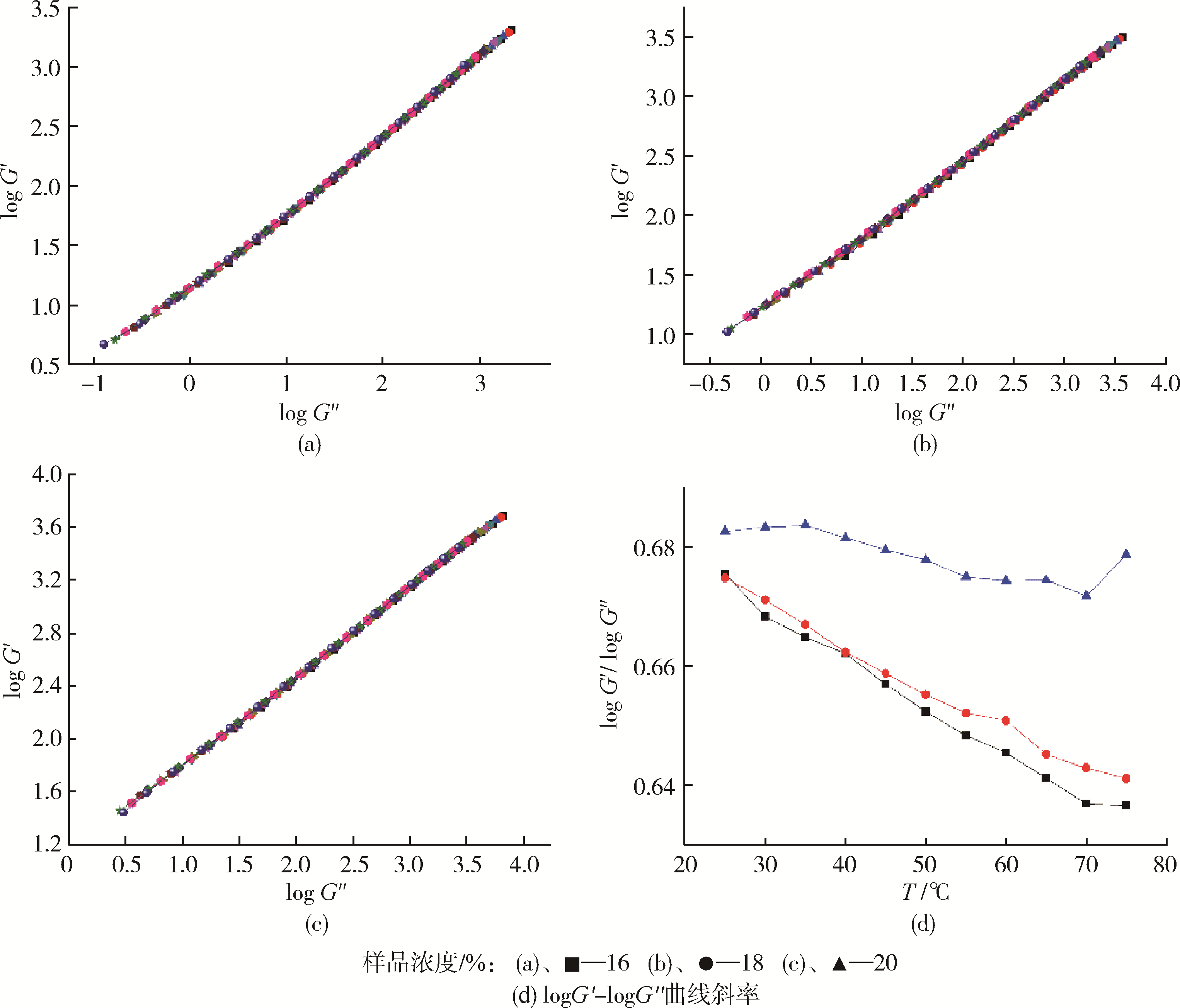

Fig.4. LogG'?logG '' curves of different PAN/DMSO solution at different temperatures and the relationship between the slope of the curve and temperature

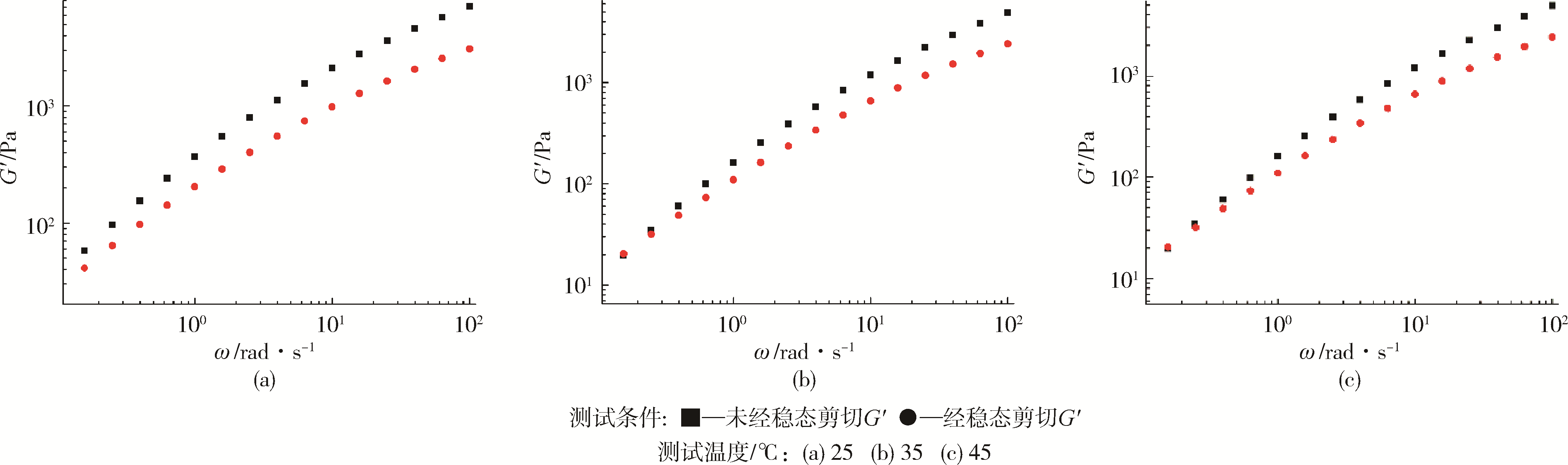

Fig.5. Relationship between storage modulus G' and shear frequency ω of 20 % PAN/DMSO solution with and without steady?state shearing at different temperatures

References 11

1	BAJAJ P, BAHRAMI S H, SEN K, et al. Thermal and Rheological Behavior of Acrylonitrile–Carboxylic Acid Copolymers and Their Metal Salt Complexes[J]. Journal of Applied Polymer Science, 1999, 74(3): 567⁃582.
2	MUKHAMEDZHANOVA M, SHIRSHOVA N, KHAMRAKULOV G. Rheological Properties of Concentrated Solutions of Ternary Acrylonitrile Copolymers[J]. Fibre Chemistry, 2000, 32(5): 340⁃343.
3	NEWCOMB B A, GULGUNJE P V, LIU Y, et al. Polyacrylonitrile Solution Homogeneity Study by Dynamic Shear Rheology and the Effect on the Carbon Fiber Tensile Strength[J]. Polymer Engineering & Science, 2016, 56(3):361⁃370.
4	RAGHAVAN V, GULGUNJE P V, GUPTA K K, et al. Correlation Between Inhomogeneity in Polyacrylonitrile Spinning Dopes and Carbon Fiber Tensile Strength[J]. Polymer Engineering and Science, 2019, 59(3):478⁃482.
5	王鹏. PAN/DMSO溶液的流变性能及干湿纺可纺性能研究[D]. 上海：东华大学, 2005.
6	EOM Y, PARK Y, JUNG Y M, et al. Effects of Conformational Change of Polyacrylonitrile on the Aging Behavior of the Solutions in N, N ⁃Dimethyl Formamide[J]. Polymer, 2017, 108:193⁃205.
7	刘峰钰, 王成国, 朱波等. 聚丙烯腈/二甲基亚砜纺丝原液流变性及流变方程拟合[J]. 高分子材料科学与工程, 2011, 27(1): 57⁃60.
	LIU F Y, WANG C G, ZHU B, et al. Rheology and Equation Simulation of PAN/DMSO Solution [J]. Polymer Science and Engineering, 2011, 27(1):57⁃60.
8	QIAN B, LIN W, HE J, et al. The Role of Macromolecular Entanglements in the Gel Spinning Process and Properties of High Performance Polyacrylonitrile Fibers[J]. Journal of Polymer Engineering, 1995, 15(3/4): 327⁃345.
9	李龙, 孔德玉, 陈旺, 等. PAN 溶液纺丝过程分子链形变及取向的力场相关性研究[J]. 高分子通报, 2014 (10): 98⁃102.
	LI L, KONG D Y, CHEN W, et al. The Force Field Dependence of the Deformation　and Orientation of Molecular Chains during the Spinning of PAN/DMSO Solution[J]. Polymer Bulletin, 2014 (10): 140⁃143.
10	陈方泉, 陈惠芳, 潘鼎. 聚丙烯腈/二甲基亚砜溶液的流变学性质[J]. 高分子材料科学与工程, 2005, 21(3): 140⁃143.
	CHEN F Y, CHEN H F, PAN D. Rheological Behavior of PAN/DMSO Solution [J]. Polymer Science and Engineering, 2005, 21(3): 140⁃143.
11	KIM J K, SON H W, LEE Y B, et al. The Effect of Phase⁃Separated Morphology on the Rheological Properties of Polystyrene/Poly(vinyl methyl ether) Blend[J]. Journal of Polymer Science Part B Polymer Physics, 1999, 37(9): 889⁃906.
