Design of Two⁃stage Side Core⁃pulling Injection Mold for Special⁃shaped Parts with Four Sides and Six Undercuts

doi:10.19491/j.issn.1001-9278.2021.02.017

Abstract

Abstract:

Aim at the difficulty in the large area of undercut in all four sides of the supporting shell in the mold design， we design a scheme to divide all of the side areas into 6 sliders S₁~S₆ for molding according to the demolding direction. Owing to two sliders on the right side of the product， S₂ and S₃， with inconsistent stripper directions and large molding areas， a two-stage sequential core-pulling mechanism with an inclined guide column + hydraulic cylinder was designed. The left side of the product was formed by slider S₅， and a local round hole was formed by the tunnel slider S₆， which was located in the main slider S₅. When the mold was opened， the core?pulling delay was caused by the gap between the holes of the slider angle pin in the slider S₅. After the core?pulling action was completed by the spring?driven slider S₆， the slider S₅ starts to move. The sequential structure of the spring+slider angle pin simplified the secondary core?pulling mechanism. Finally， a single parting hot runner injection mold was designed with a longitudinal layout of one mold and two cavities， a latent gate feeding， and an oblique pushing out. The lateral movement of all the sliders was completed by a single opening of the mold. The mold has a simple structure with a good stability in operation and a high degree of automation.

Key words: shell, undercut, slider, secondary core pulling, hydraulic cylinder, spring, delay

CLC Number:

TQ320.66⁺2

XIONG Yi, WANG Wei. Design of Two⁃stage Side Core⁃pulling Injection Mold for Special⁃shaped Parts with Four Sides and Six Undercuts[J]. China Plastics, 2021, 35(2): 101-106.

Figures/Tables 9

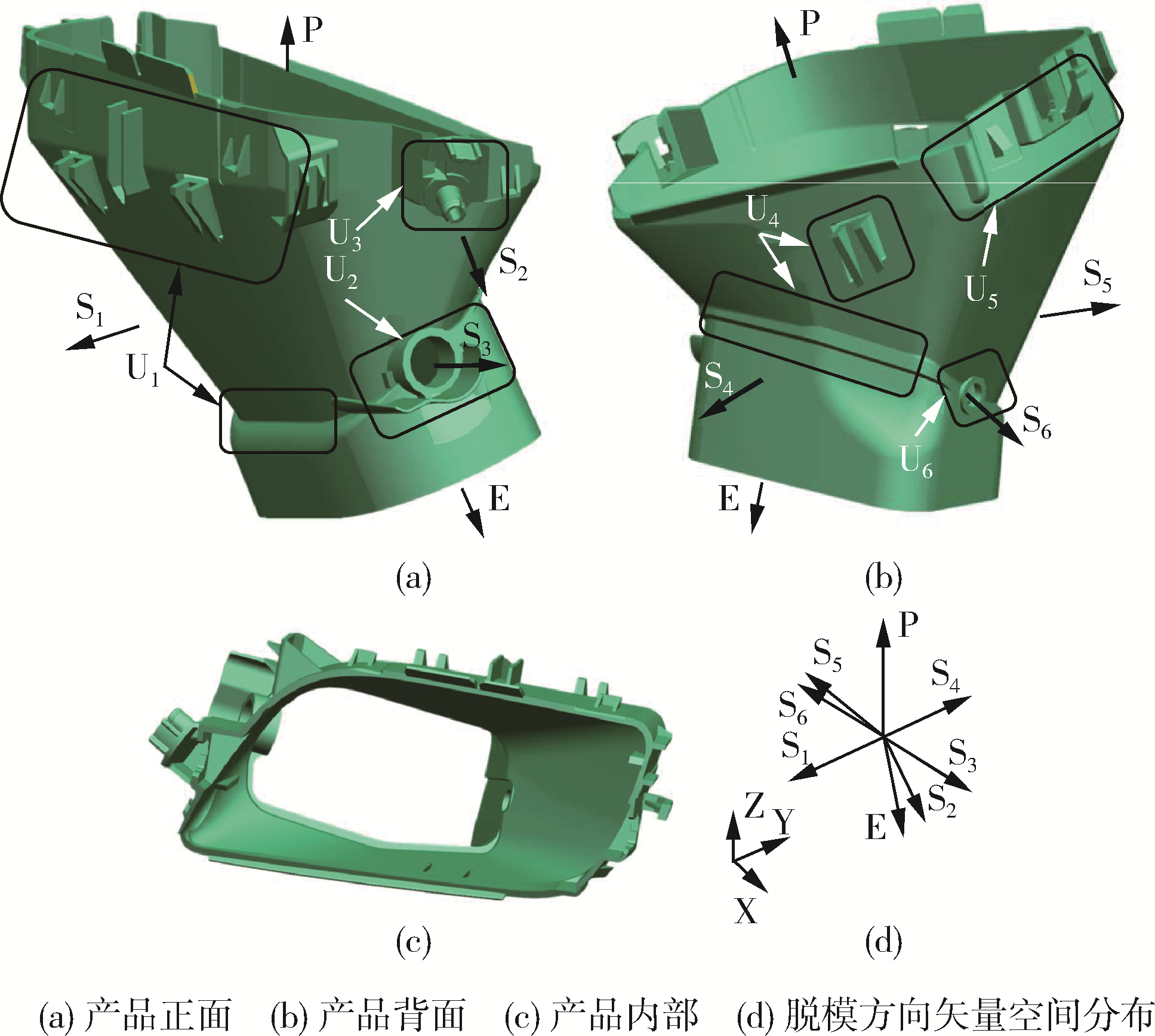

Fig.1. Structure of the product

Fig.2. Main parting of the mold

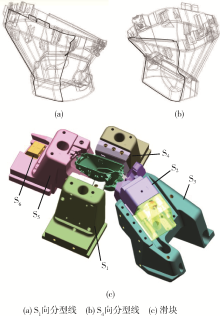

Fig.3. Side parting

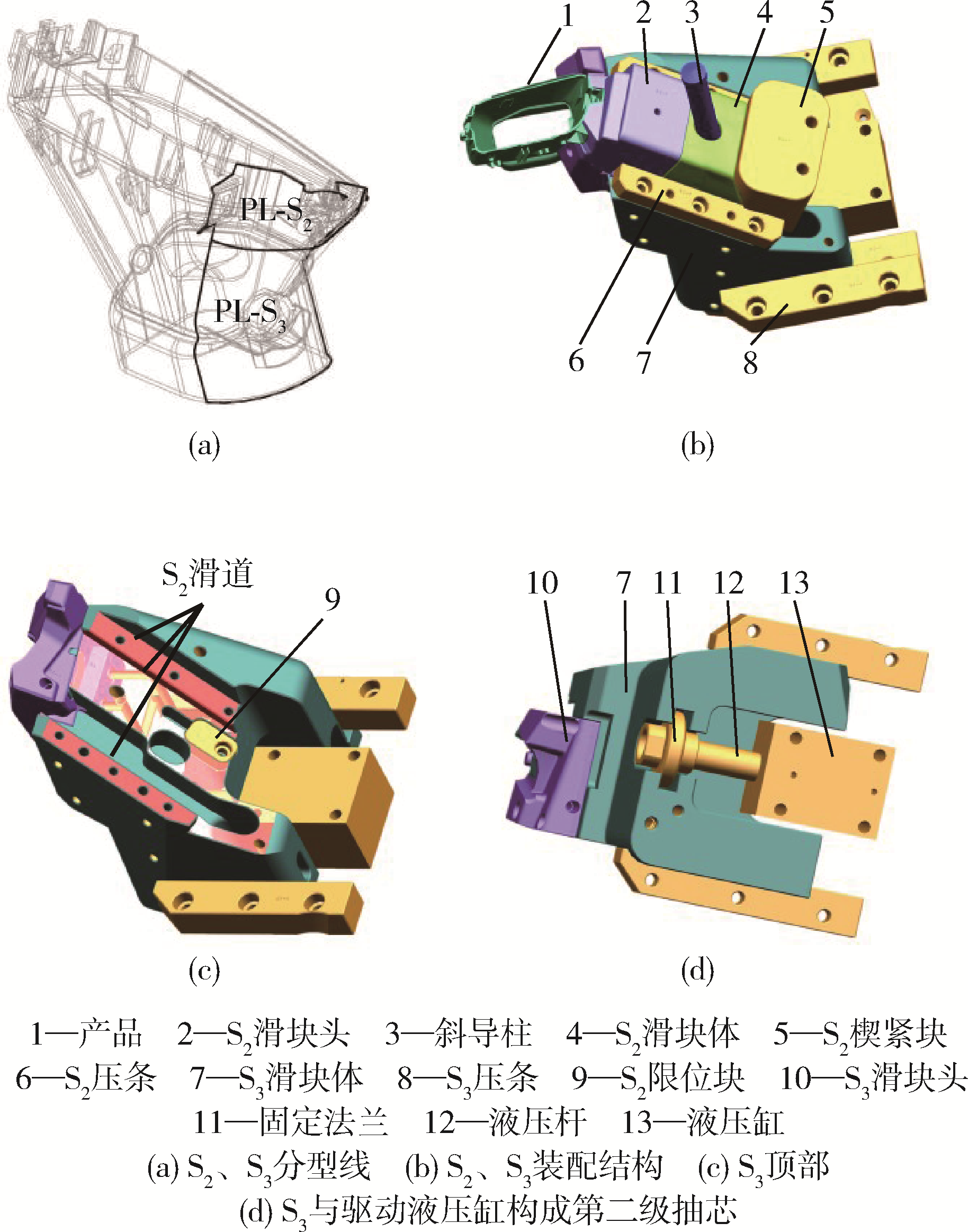

Fig.4. Secondary core?pulling mechanisms of S2 and S3

Fig.5. Secondary core?pulling mechanisms of S5 and S6

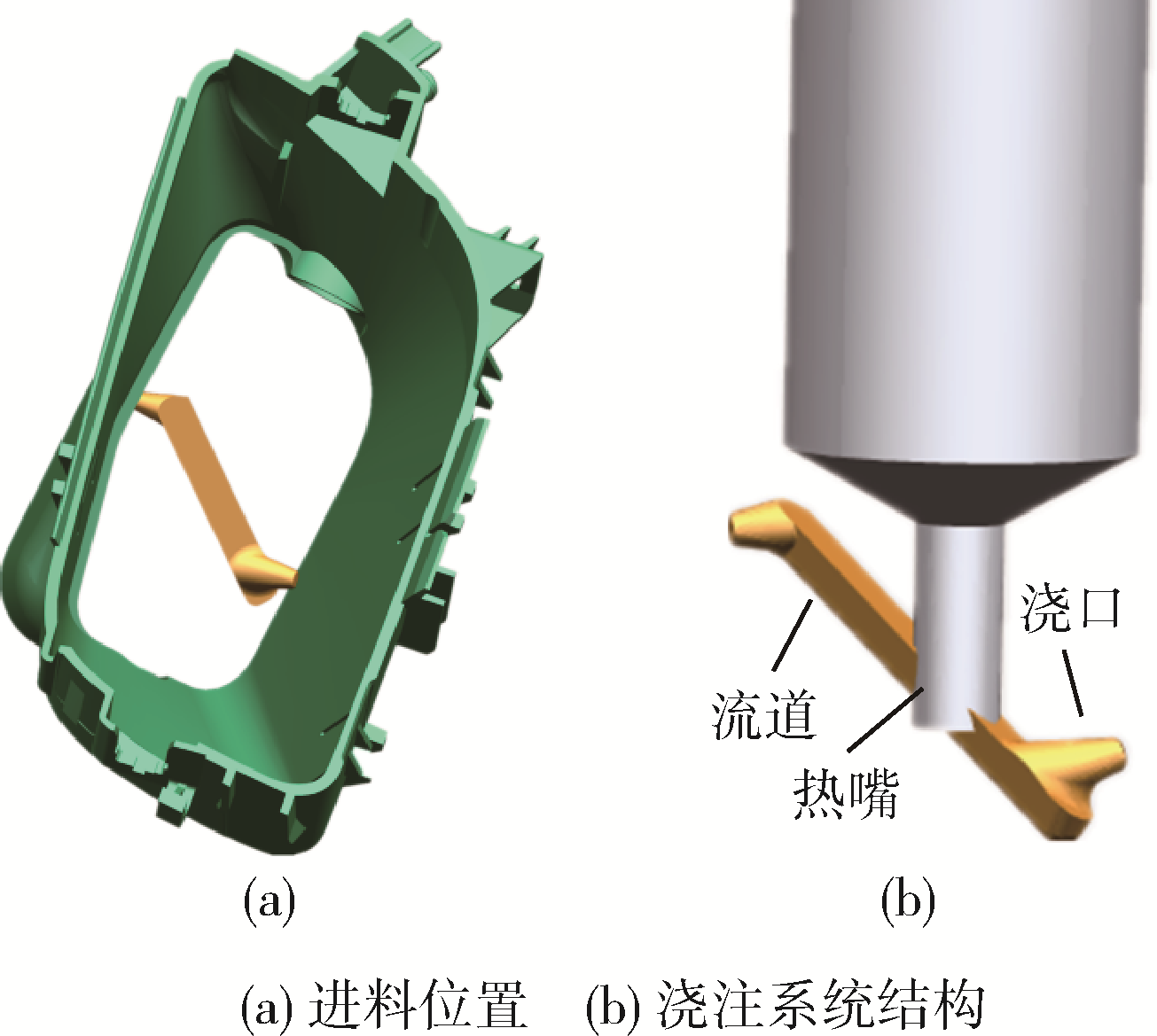

Fig.6. Gating system

Fig.7. Ejection layout

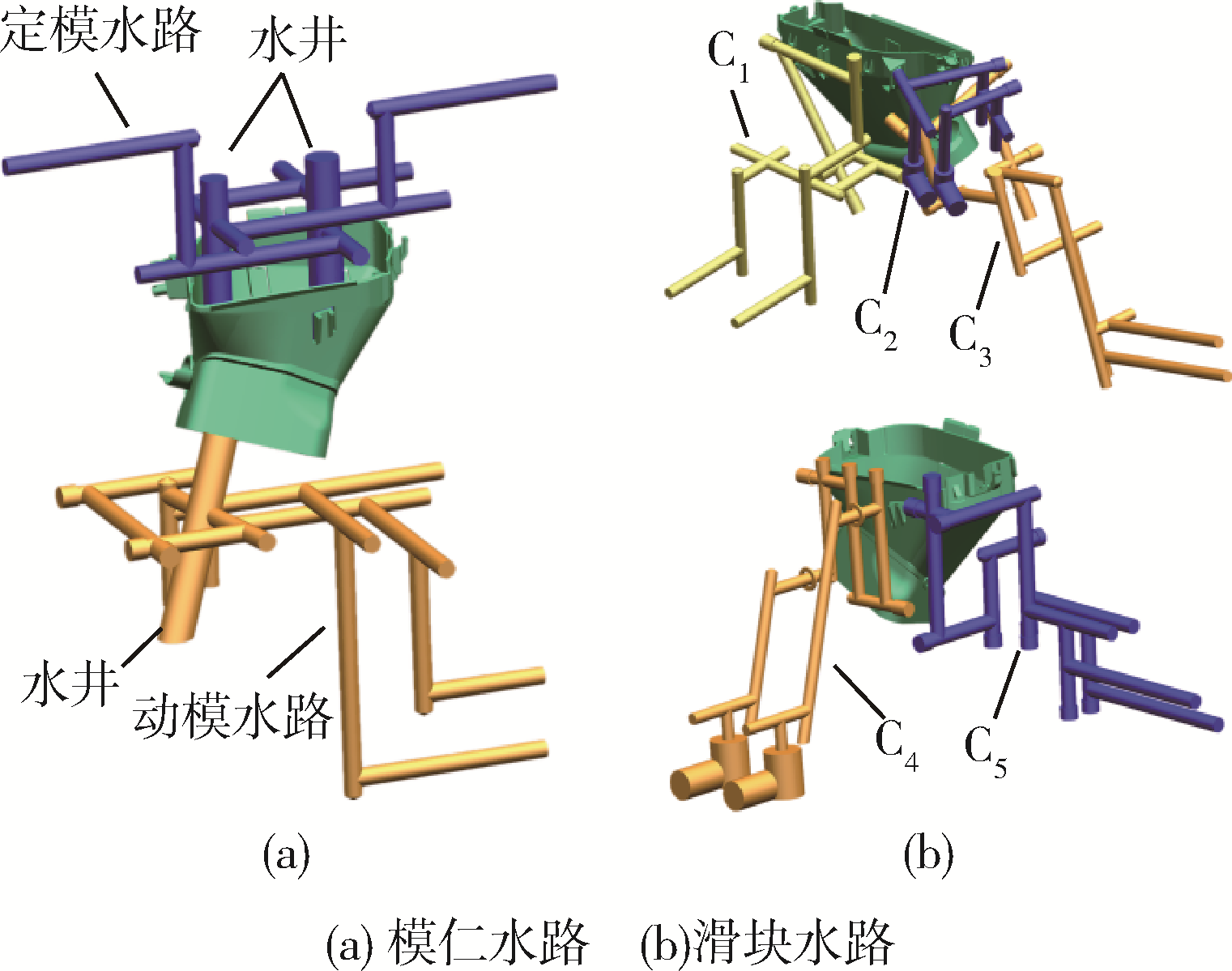

Fig.8. The cooling system

Fig.9. Structure of the mold

References 15
