Study on measurement method of gas evolution of foaming agent ADC based on thermogravimetric analysis

doi:10.19491/j.issn.1001-9278.2022.01.021

Abstract

Abstract:

According to the decomposition equation of the first stage of azodicarbon amide（ADC） thermal decomposition in the temperature range of 200 ~ 240 ℃， the functional relationship between ADC decomposition process and gas generation process was established， and the thermal weight loss curve of ADC was transformed into TG gas?generation curve. The results indicated that by comparing the TG gas?generation curve of foaming agent ADC and the gas?generation curve measured by the drainage gas?gathering method， the data of starting temperature， maximum gas?generation?rate temperature， and ending gas?generation temperature of ADC measured by the two methods were very close with each other. The comparison adjusted R?squares between the two curves and the fitting curve were 0.993 7 and 0.915 43， respectively， In the first stage of ADC thermal decomposition， the TG gas?generation curve of ADC can be calculated using a TG gas?generation curve formula， which can replace the gas?generation curve measured by traditional drainage gas?gathering methods.

Key words: foaming agent, azodicarbon amide, gas volume, thermogravimetric analysis, gas evolution curve

CLC Number:

TQ314.259

WANG Xiaodong, HUA Lei, DONG Aijuan, LUO Lihua. Study on measurement method of gas evolution of foaming agent ADC based on thermogravimetric analysis[J]. China Plastics, 2022, 36(1): 142-147.

Figures/Tables 7

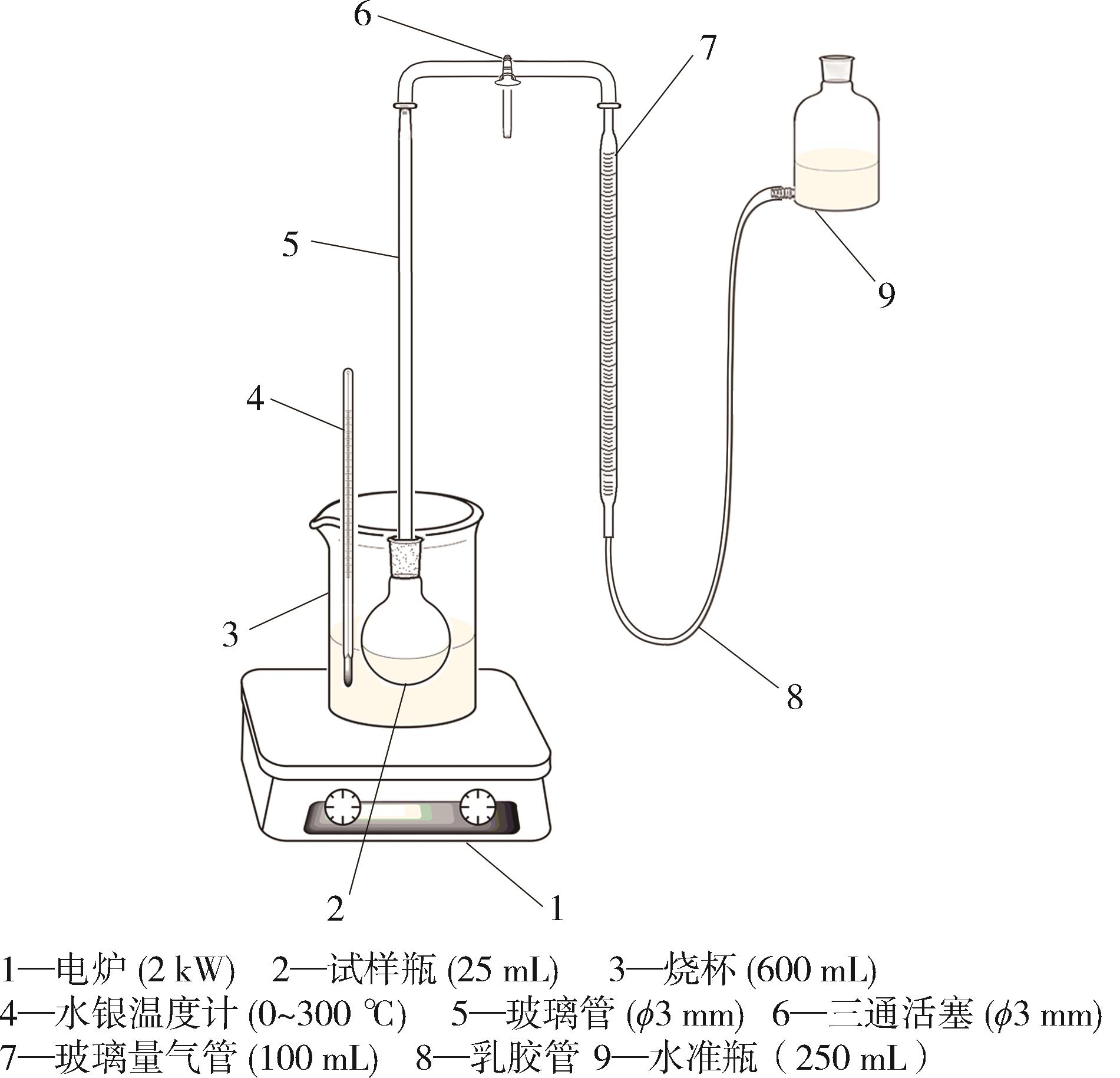

Fig.1. Device for measuring gas evolution by drainage gas collecting method

阶段	温度区间/℃	主要气体产物
1	200~225	N₂
2	225~260	NH₃、HNCO
3	260~285	NH₃

Tab. 1. ADC thermal decomposition process

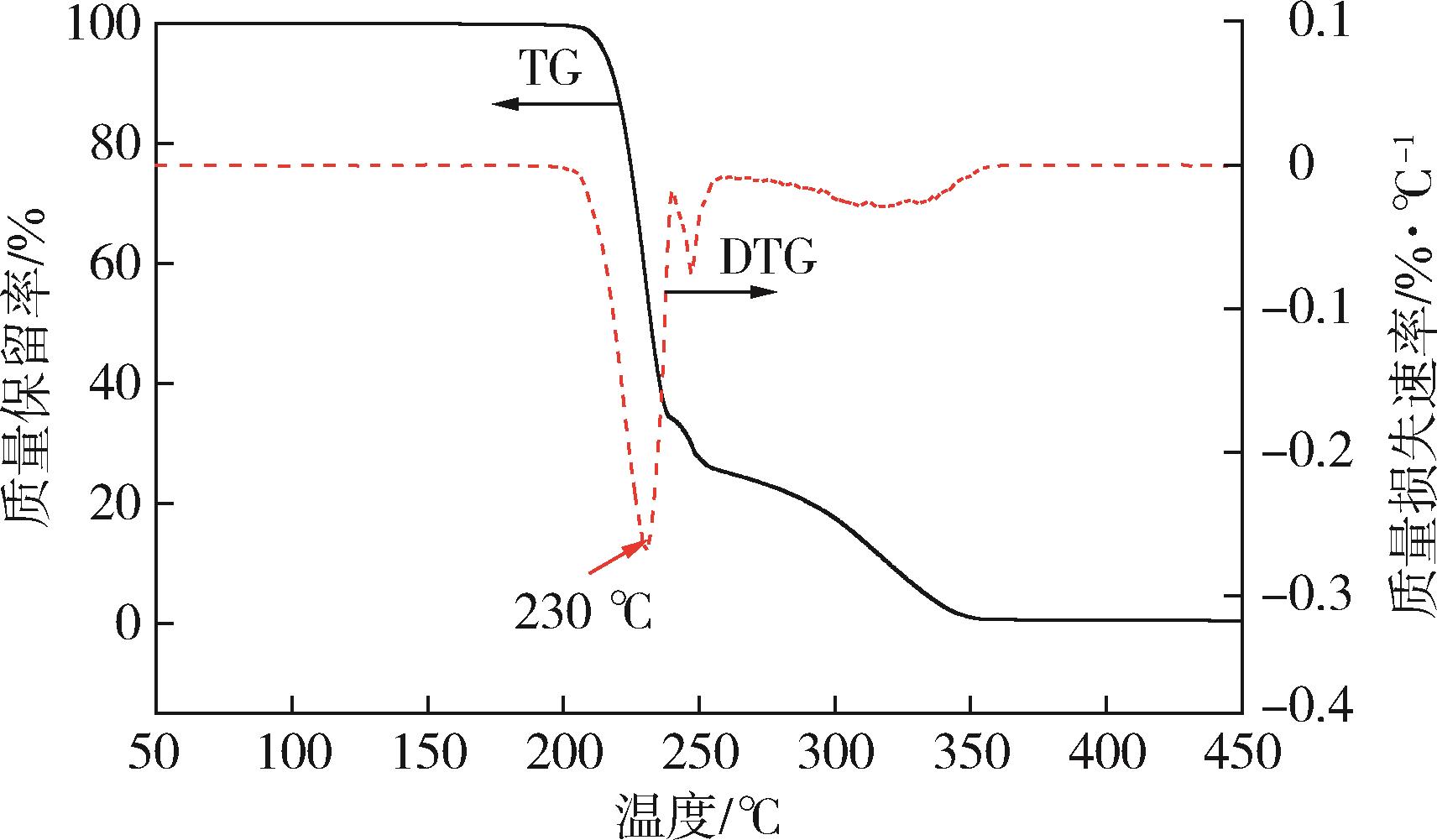

Fig.2. TG and DTG curves of ADC

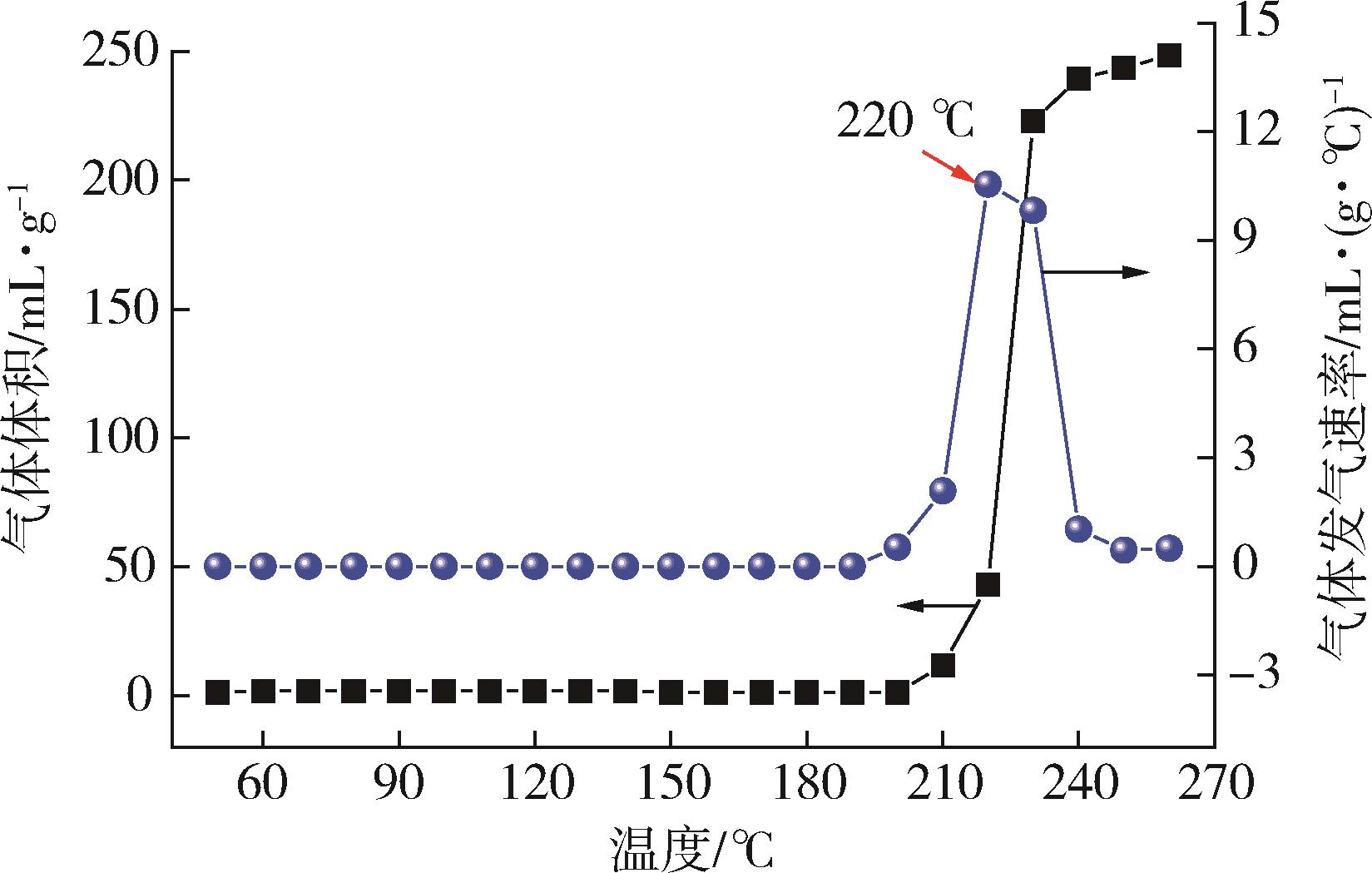

Fig.3. Gas evolution curve and derivative gas volume of ADC by drainage gas collecting method

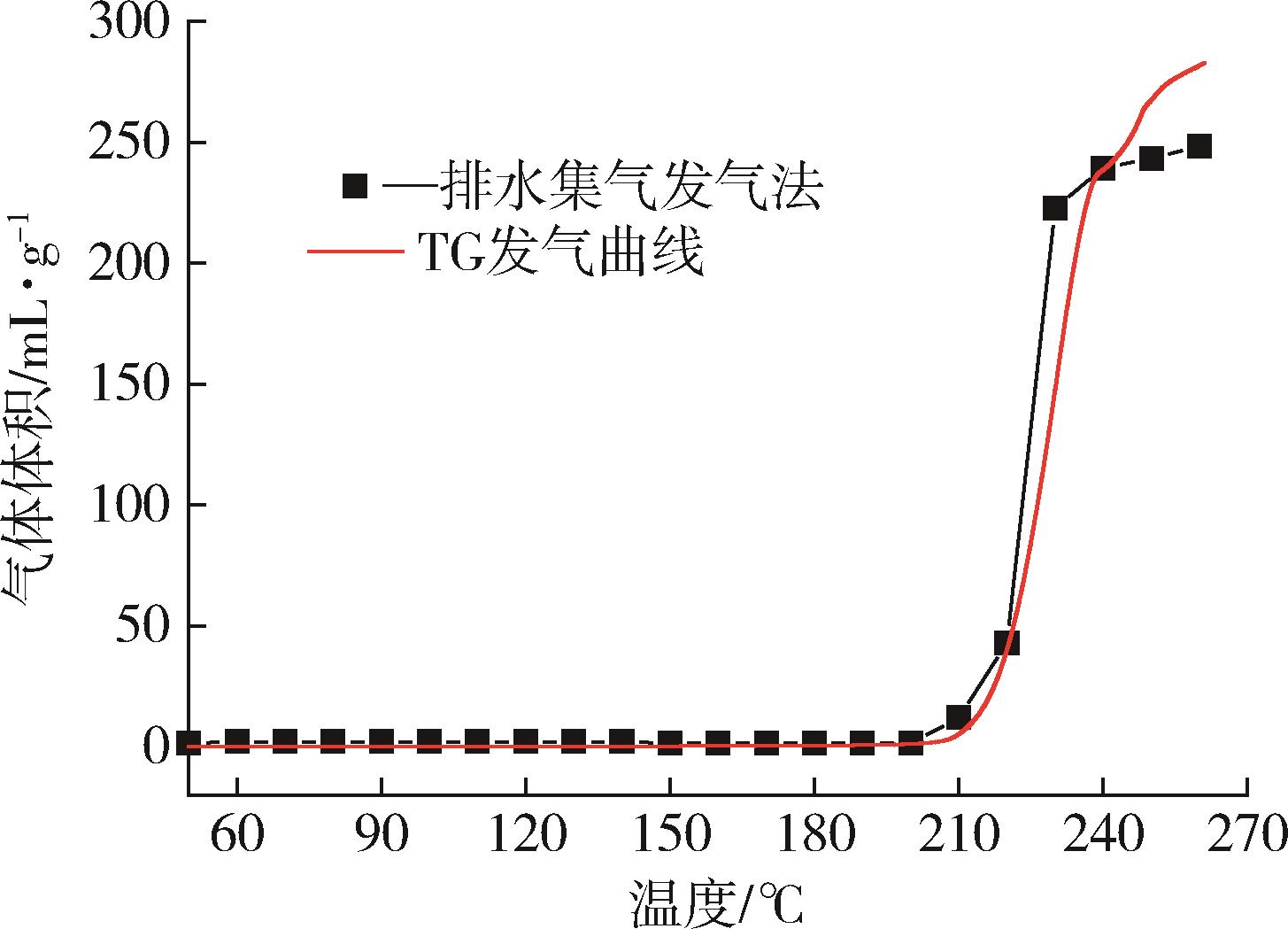

Fig.4. Gas evolution curve of ADC by drainage gas collecting method and TG method

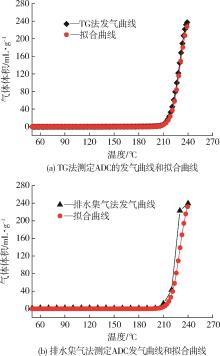

Fig.5. Comparison of the gas evolution curve of ADC by TG method and drainage gas collecting method with fit curve

测试方法	拟合公式	Adjusted R?Square数值
TG数据	$y = ? 270 - 270 1 + (x 230) 45$	0.993 7
排水集气法	$y = ? 270 - 270 1 + (x 230) 45$	0.915 43

测试方法	拟合公式	Adjusted R?Square数值
TG数据	$y = ? 270 - 270 1 + (x 230) 45$	0.993 7
排水集气法	$y = ? 270 - 270 1 + (x 230) 45$	0.915 43

Tab. 2. Correlation coefficient between ADC fitting formula and TG method， and the correlation coefficient between ADC fitting formula and drainage gas collecting method
