Cross⁃linked foaming process and performance of recycled polyethylene

doi:10.19491/j.issn.1001-9278.2022.06.019

Abstract

Abstract:

A cross?linked foamed polyethylene board was prepared through compression molding using three types of recycled linear low?density polyethylene as raw materials and expandable microspheres as a foaming agent. The thermal properties， morphology， impact resistance and tensile properties of cross?linked foamed polyethylene were characterized using differential scanning calorimeter， scanning electron microscope， film impact tester， and electronic universal testing machine. The experimental results indicated that the melting point and molecular weight of recycled polyethylene materials increased after processing owing to the crosslinking effect of dicumyl peroxide. The network structure formed after crosslinking favored the stability of cells. There were independent cells in the recycled polyethylene after crosslinking and foaming. The foamed materials obtained maximum tensile strength of 9.7 N/mm²， impact strength of 21.5 kJ/m²， and oxidation induction time of 7.3 min， and therefore they could meet the requirement for producing various types of plastic products such as floats and buoyancy balls.

Key words: recycled polyethylene, cross?linked foaming, expandable microspheres

CLC Number:

TQ325.1⁺2

LEI Yujie, CHEN Minghuan, WANG Jieyao, CHEN Wangzhi, LI Lei. Cross⁃linked foaming process and performance of recycled polyethylene[J]. China Plastics, 2022, 36(6): 124-129.

Figures/Tables 9

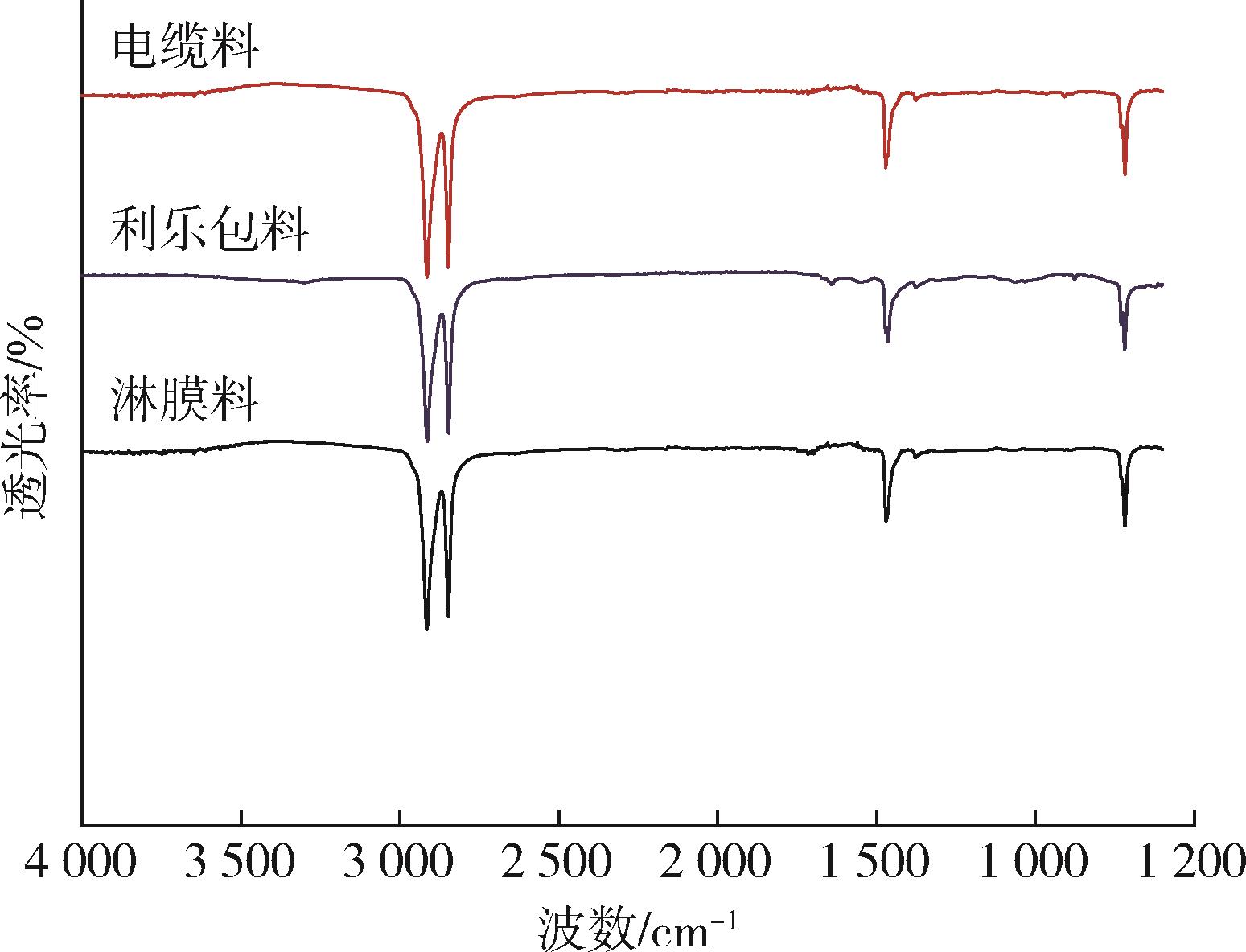

Fig.1. FTIR spectra of recycled polyethylenes

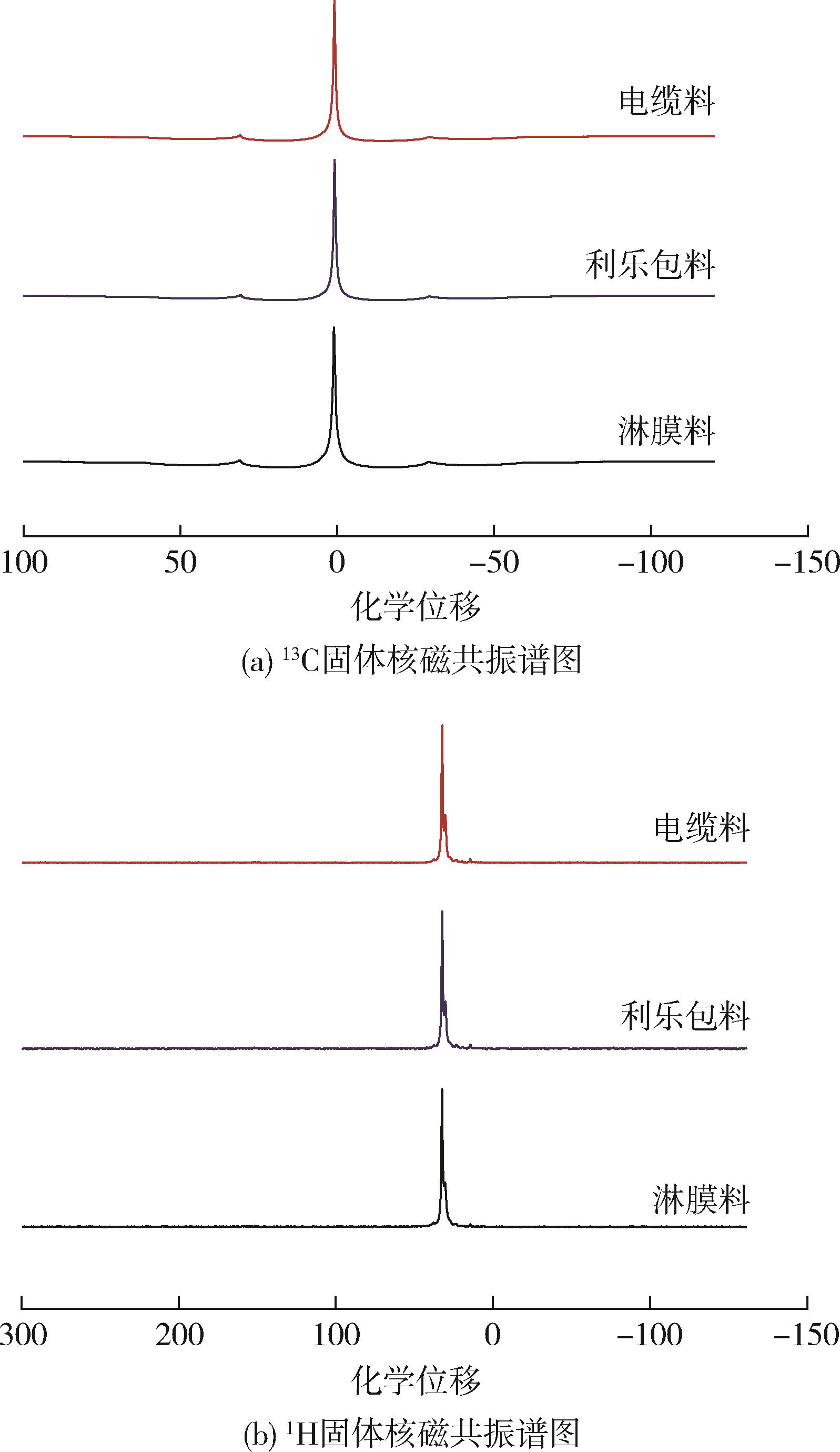

Fig.2. ssNMR spectra of recycled polyethylenes

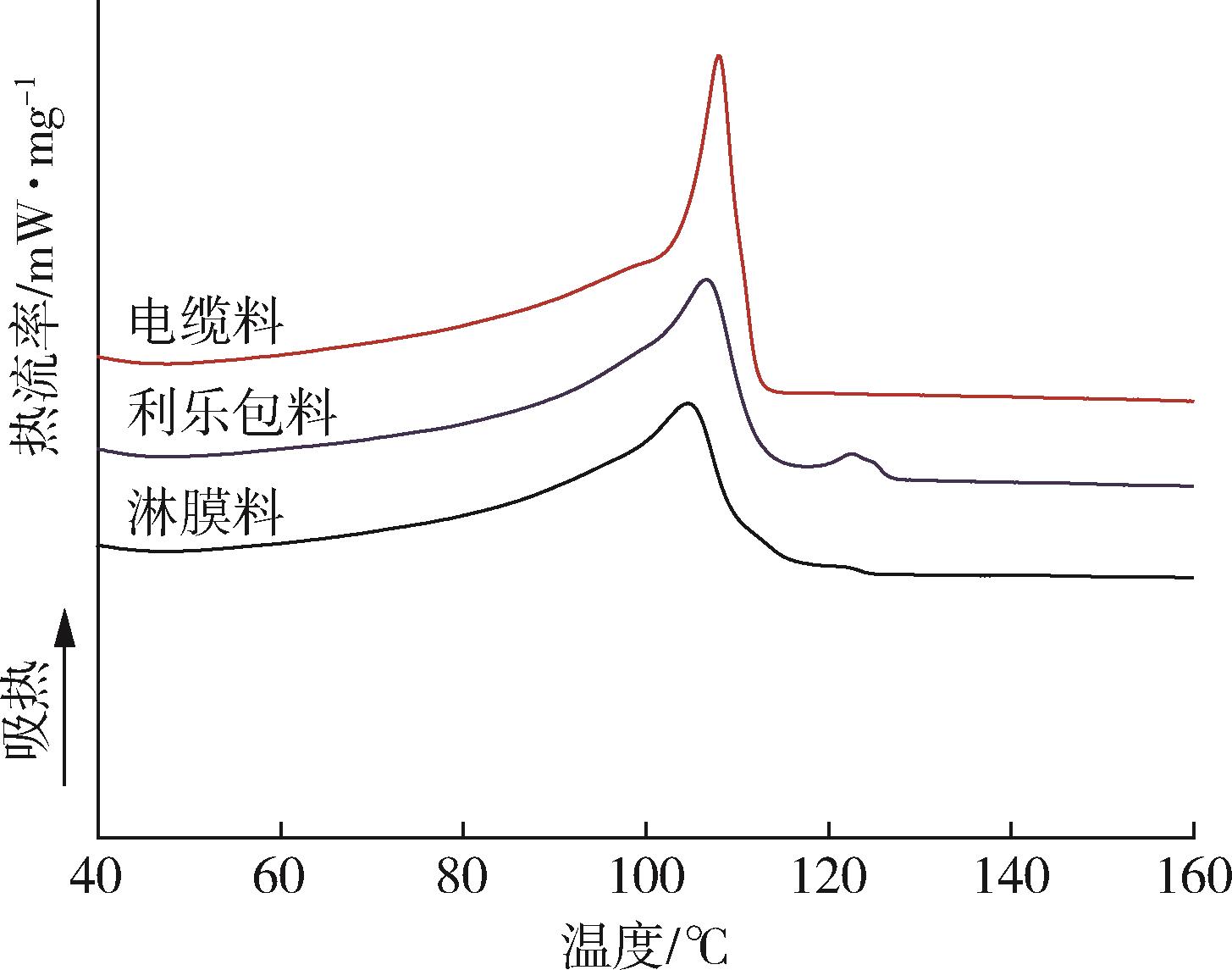

Fig.3. DSC curves of recycled polyethylenes

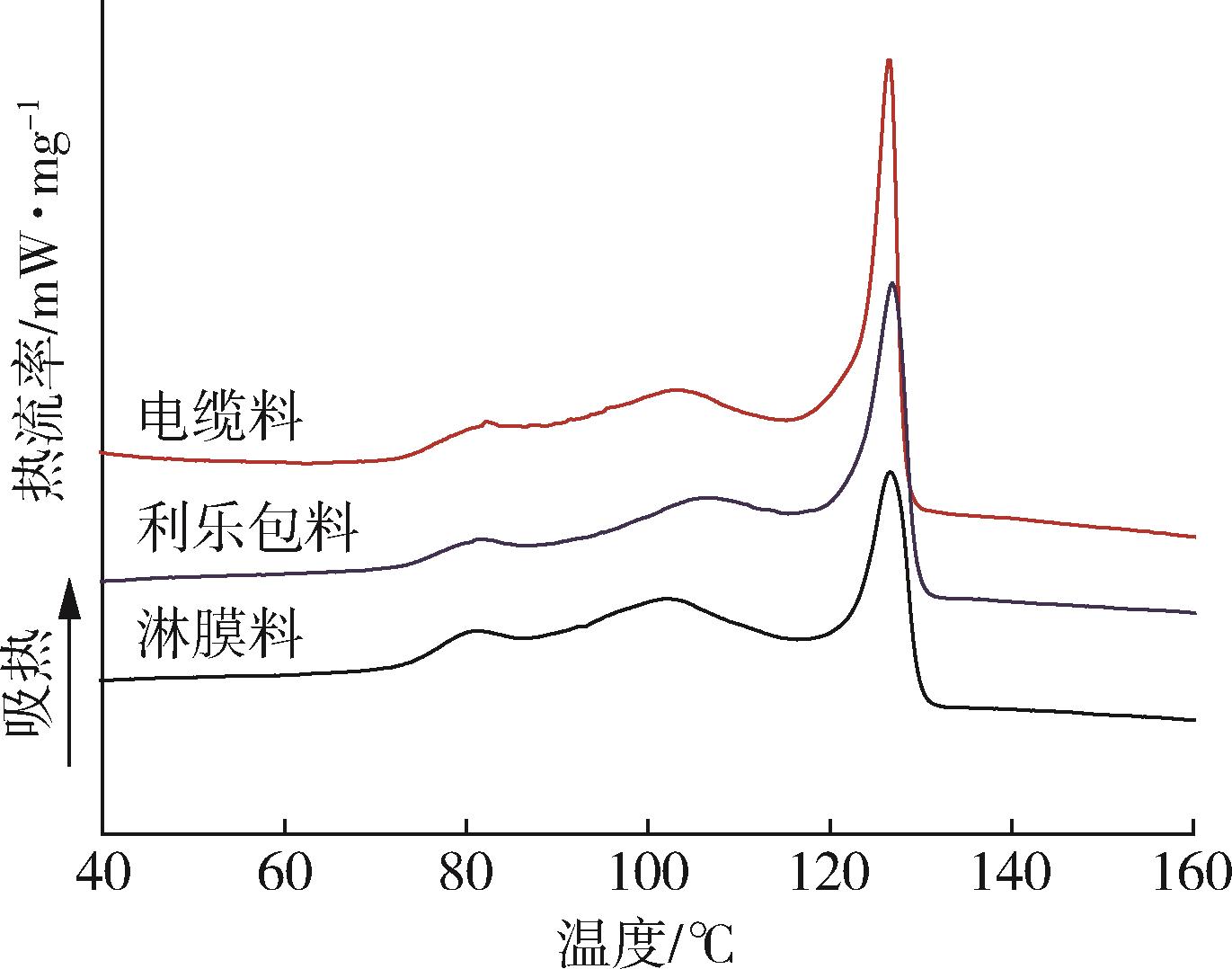

Fig.4. DSC curves of cross?linked foamed polyethylenes

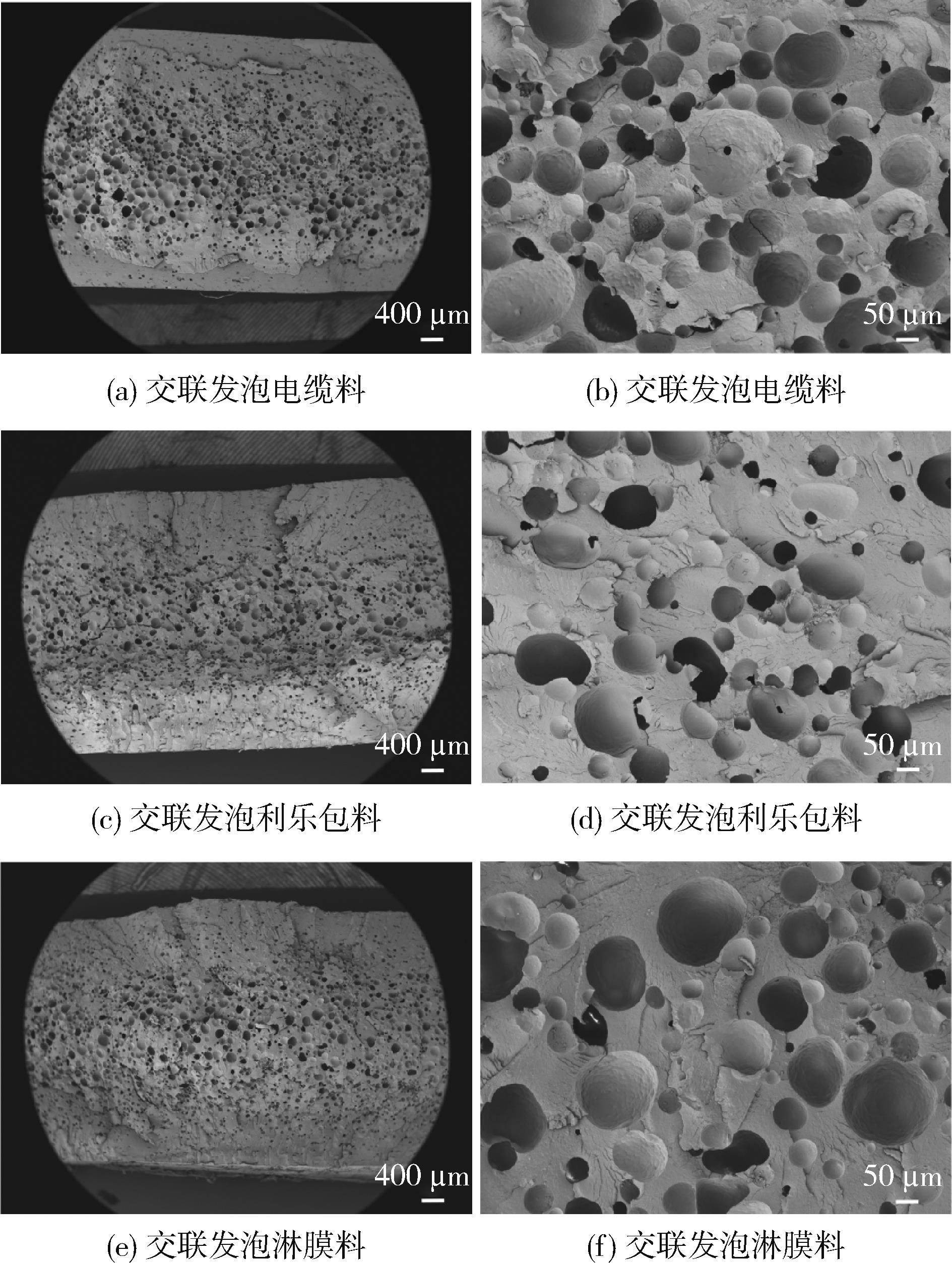

Fig.5. SEM of cross?linked foamed polyethylenes

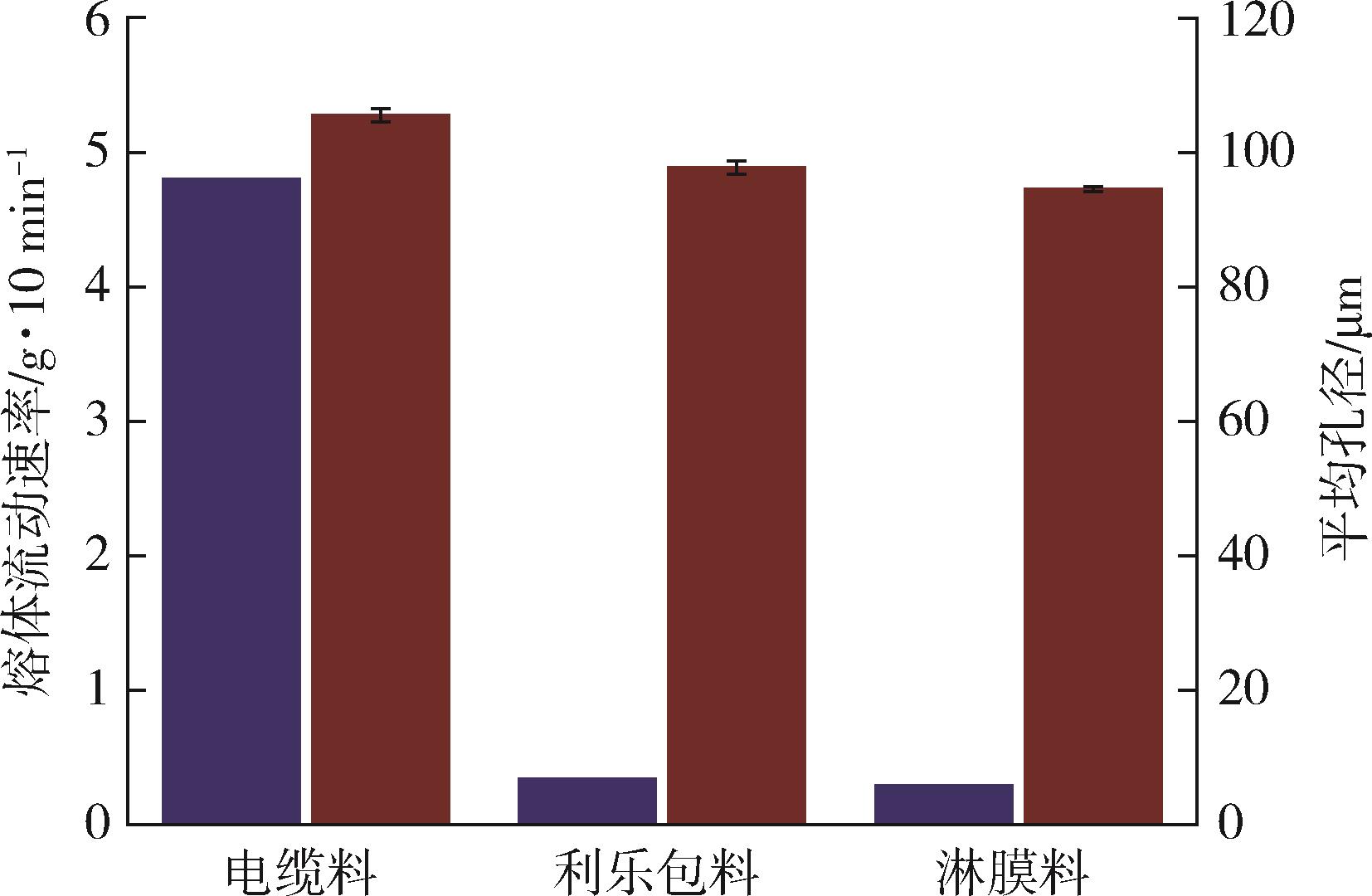

Fig.6. Melt flow rate and cell diameter of crosslinked foamed polyethylenes

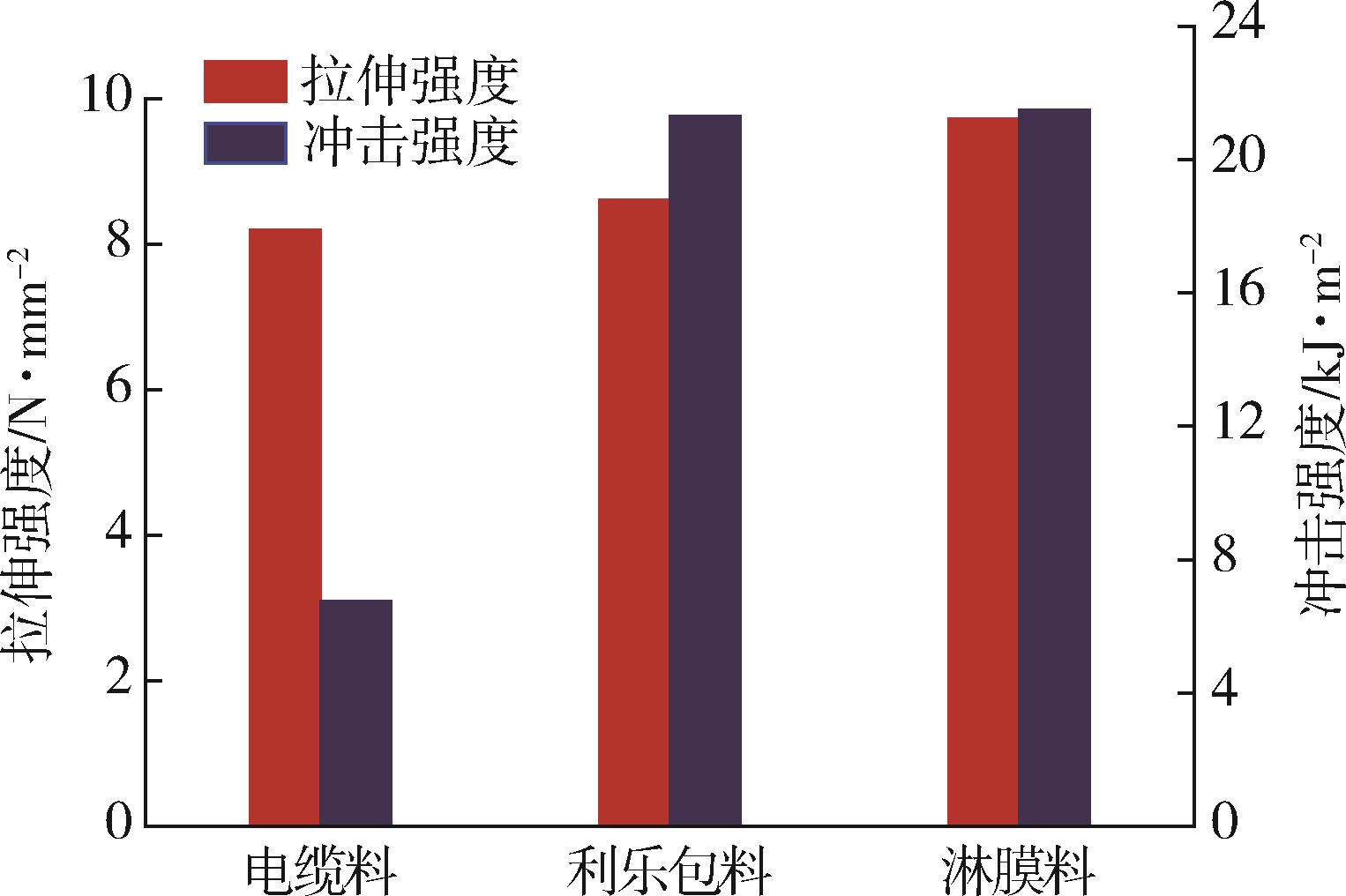

Fig.7. Tensile strength and impact strength of cross?linked foamed polyethylenes

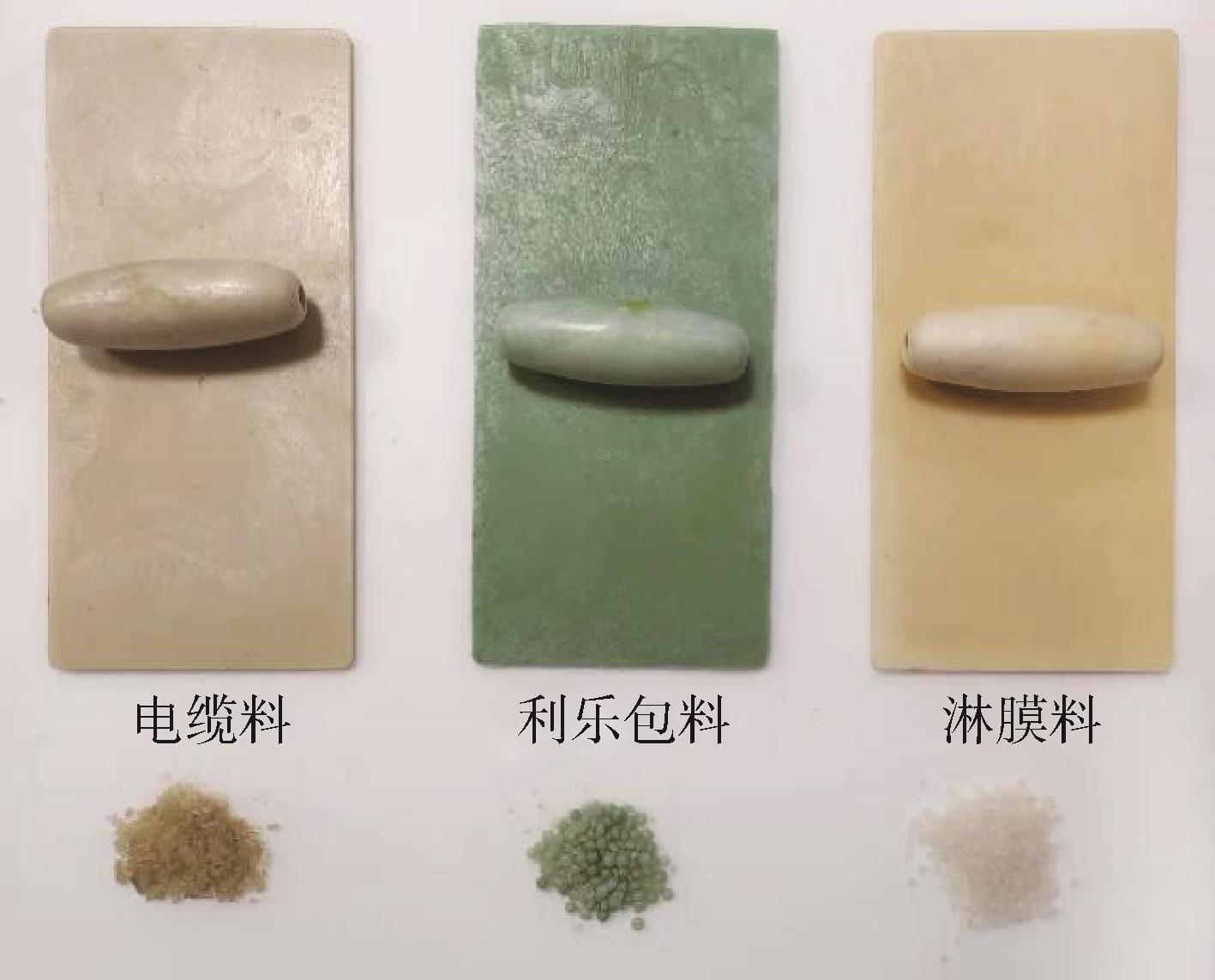

Fig. 8. Recycled polyethylene and its crosslinked foaming products

聚乙烯回收料

交联发泡前200 ℃

氧化诱导期/min

交联发泡后200 ℃

氧化诱导期/min

Tab.1. Comparison of oxidation induction time before and after crosslinking foaming

References 16

1	林宏，蔡毅，瞿贤超. 低温发泡热膨胀微球的合成及应用［J］. 丝网印刷， 2020（01）： 24⁃33.
	LIN H， CAI Y， QU X C. Synthesis and application of low temperature foaming thermal expansion microspheres［J］. Screen Printing， 2020（01）： 24⁃33.
2	纪立军，姜亚帅，乔炜. 常压法合成低温热膨胀微球［J］. 高分子学报， 2015（8）： 906⁃912.
	JI L J， JIANG Y S， QIAO W， et al. Synthesis of low⁃temperature expanding microspheres under atmospheric pressure［J］. Acta Polymerica Sinica， 2015（8）： 906⁃912.
3	美国纽约自7月1日起禁用发泡餐具［J］.保鲜与加工，2015， 15（04）： 69.
	Foam tableware has been banned in New York since July 1［J］. Storage and Process， 2015， 15（04）： 69.
4	Andrew Turner. Foamed polystyrene in the marine environment： sources， additives， transport， behavior， and impacts［J］. Environmental Science & Technology， 2020（54）： 10 411⁃10 420.
5	夏碧华，徐文强，王珂，等. 交联聚乙烯发泡材料的研究进展［J］. 中国塑料，2019， 33（03）： 128⁃135.
	XIA B H， XU W Q， WANG K， et al. Research progress in crosslinked polyethylene foaming materials［J］. China Plastics， 2019， 33（03）： 128⁃135.
6	陈小毛，田生财，谢贵明，等. 热可膨胀微球的影响因素及成粒过程的研究进展［J］. 广州化工， 2019， 47（17）： 30⁃33.
	CHEN X M， TIAN S C， XIE G M， et al. Research progress on influence factors and particles formation of thermally expandable microspheres［J］. Guangzhou Chemical Industry， 2019， 47（17）： 30⁃33.
7	黄凤鸣，李加. 聚乙烯熔体流动速率的测定及有关参数的研究［J］. 工程塑料应用， 1993 （01）： 33⁃36.
	HUANG F M， LI J. Measurement of melt flow index and study of related parameters in PE［J］. Engineering Plastics Application， 1993 （01）： 33⁃36.
8	肖汉文，王国成，刘少波. 高分子材料与工程实验教程［M］. 化学工业出版社， 2008： 119.
9	李建通，祁素霞. 聚合物微孔发泡的研究进展［J］. 西部皮革， 2020， 42（06）： 1.
	LI J T， QI S X. Research progress of polymer microcellular foaming［J］. Western Leather， 2020， 42（06）： 1.
10	张师军，乔金樑. 聚乙烯树脂及其应用［M］. 化学工业出版社， 2011： 247.
11	JacobsLeon J M， KemmereMaartje F， KeurentjesJos T F. Sustainable polymer foaming using high pressure carbon dioxide： a review on fundamentals， processes and applications［J］. Green Chemistry， 2008， 10（7）： 721⁃812.
12	杨光威. LLDPE/HDPE共混物交联结构对其力学性能的影响规律［D］. 北京：北京化工大学， 2019.
13	胡平，吕荣侠，陈端锦. 化学交联对超高分子量聚乙烯结构和性能的影响［J］. 塑料， 1989（05）： 17⁃20.
	HU P， LV R X， CHEN D J. Effect of chemical crosslinking on the structure and properties of UHMW⁃PE［J］. Plastic， 1989（05）： 17⁃20.
14	吴波，成薇，温浩宇. 氧化诱导时间对高密度聚乙烯热氧老化特性的影响［J］. 中国塑料， 2019， 33（04）： 22⁃25.
	WU B， CHENG W， WEN H Y. Effects of oxidation induction time on thermo⁃oxidation aging performance of high⁃density polyethylene［J］. China Plastics， 2019， 33（04）： 22⁃25.
15	杨化浩，者东梅，桂华，等. 测试条件对测定管材类聚乙烯树脂等温氧化诱导时间的影响［J］. 塑料， 2013， 42（03）： 106⁃107.
	YANG H H， ZHE D M， GUI H， et al. Effects of test conditions on determination of isothermal oxidation induction time in polyethlene pipes［J］. Plastic， 2013， 42（03）： 106⁃107.
16	潘祖仁. 高分子化学（第五版）［M］. 化学工业出版社， 2011： 256.
