Preparation and adsorption properties of surface⁃functionalized polyacrylate porous beads for Cu2+

doi:10.19491/j.issn.1001-9278.2022.07.002

Abstract

Abstract:

In this work， poly（tert?butyl methacrylate） porous beads with an open?hole structure and a uniform particle size were prepared through a W/O/W concentrated emulsion/suspension polymerization method using a concentrated emulsion as an oil phase for suspension polymerization. The effects of emulsifier content and stirring speed on the internal microporous morphology and particle size of the resultant porous beads were investigated. The results indicated that a uniform micropore distribution was obtained in the polymer beads at an emulsifier content of 4 wt%. The average particles size of the porous beads decreased with an increase in stirring speed. The beads with different particle sizes were treated through acidic hydrolyzation to obtain the surface?functionalized porous beads with carboxyl groups. The functionalized beads achieved effective adsorption to copper ions （Cu²⁺） thanks to their multiporous structure. The functionalized beads with an average particle size between 200~300 μm obtained a maximum removal rate of 99.3 % for the absorption of copper ions.

Key words: concentrated emulsion, suspension polymerization, porous bead, poly（tert?butyl methacrylate）, acid hydrolysis, copper ion adsorption

CLC Number:

TQ323.4

SONG Jin, XU Hang, ZOU Wei, WANG Hong, ZHANG Chen. Preparation and adsorption properties of surface⁃functionalized polyacrylate porous beads for Cu²⁺[J]. China Plastics, 2022, 36(7): 8-13.

Figures/Tables 7

油相（浓乳液）

水相

甲基丙烯酸叔丁酯含量/g

三羟甲基丙烷

三丙烯酸酯/g

PEG⁃PPG⁃PEG

含量/g

BPO

含量/g

甲苯

含量/g

水含

量/mL

MBAM

含量/g

PVA

含量/g

APS

含量/g

水含

量/mL

Tab.1. Formulation of poly（tert?butyl acrylate） porous beads

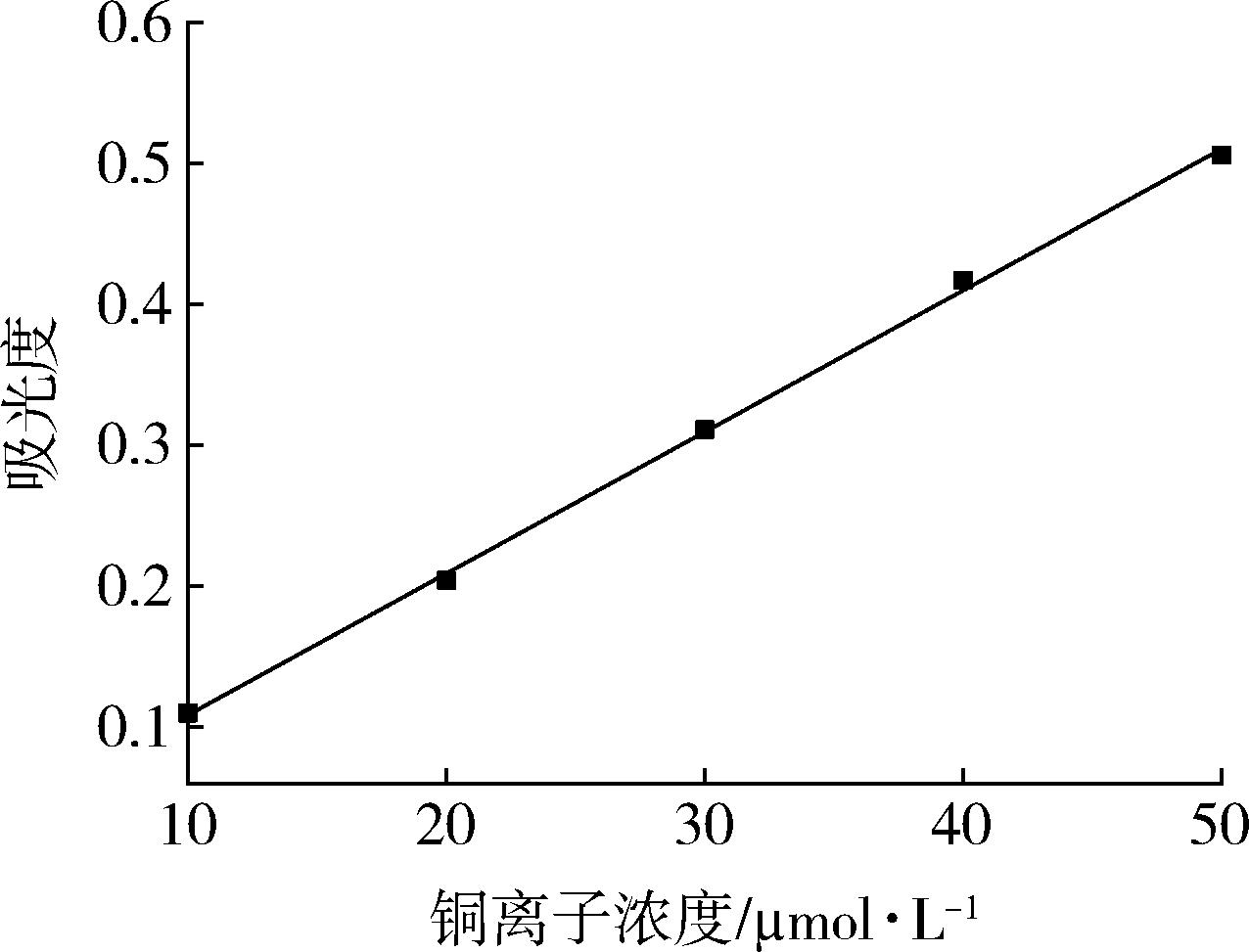

Fig.1. Calibration curve of copper ion solution with linearity concentration

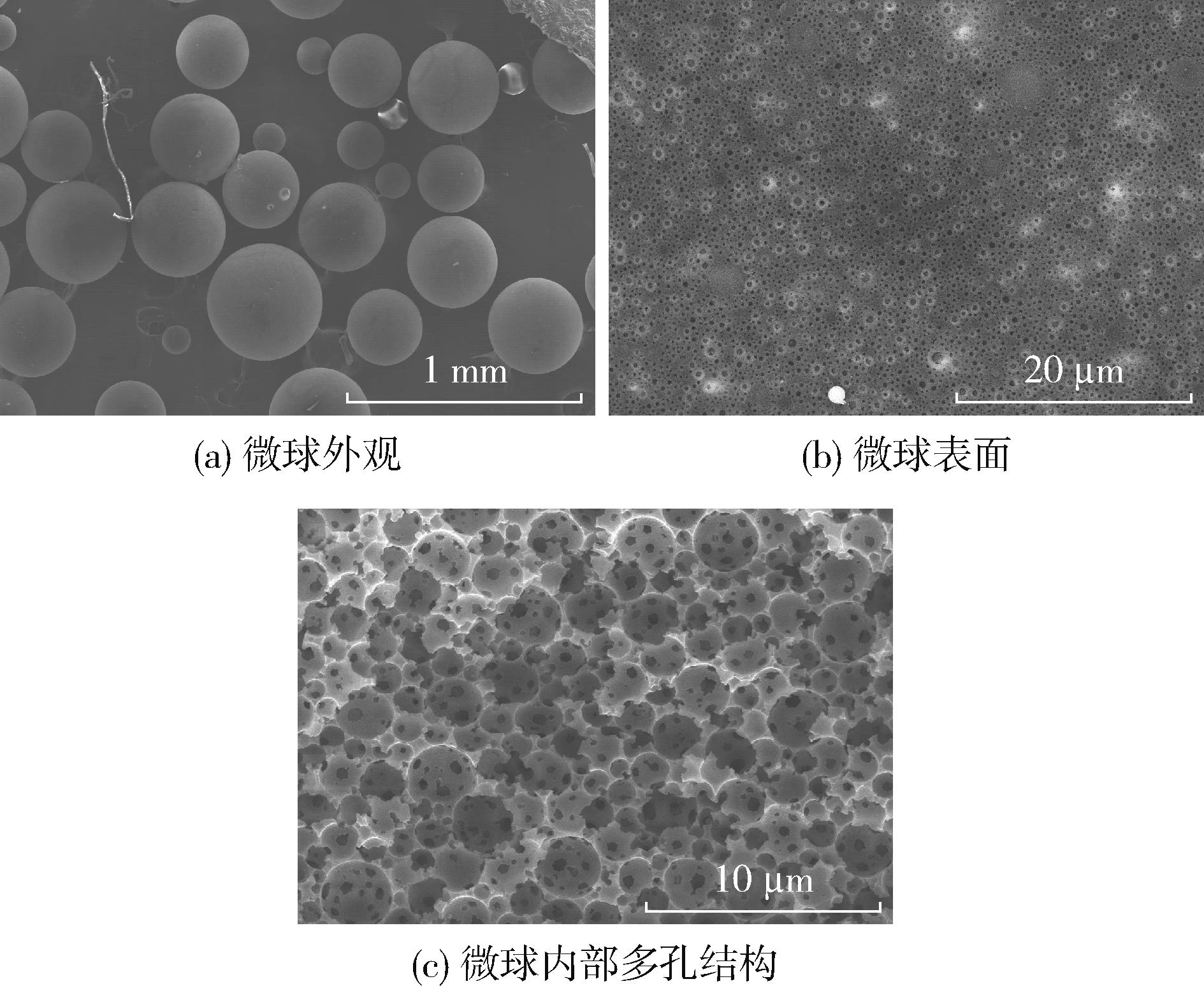

Fig.2. SEM of poly（tert?butyl methacrylate） porous beads

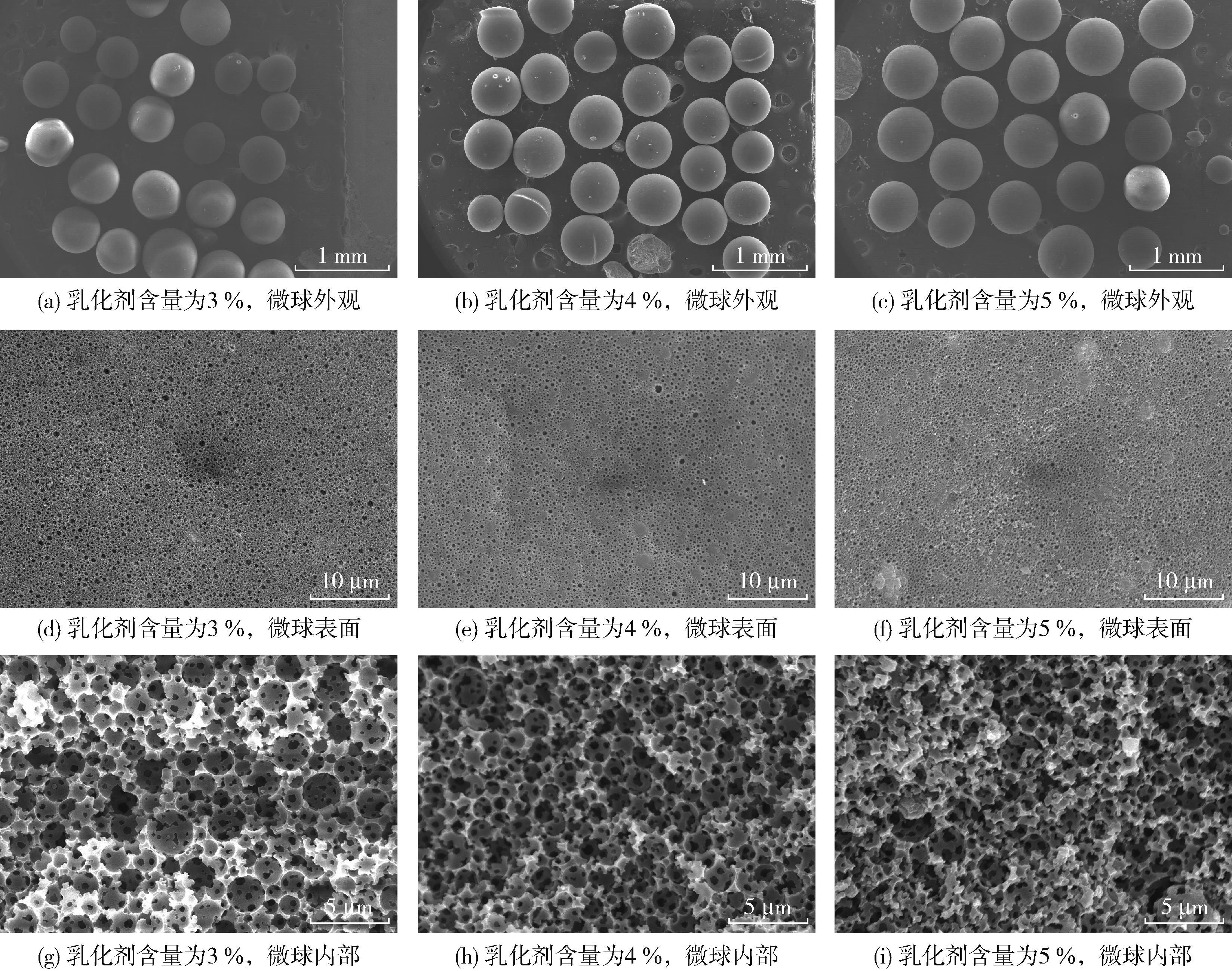

Fig.3. SEM of poly（tert?butyl methacrylate） porous beads with different emulsifier contents

Fig.4. SEM of poly（tert?butyl methacrylate） porous beads prepared at different stirring speeds in suspension polymerization

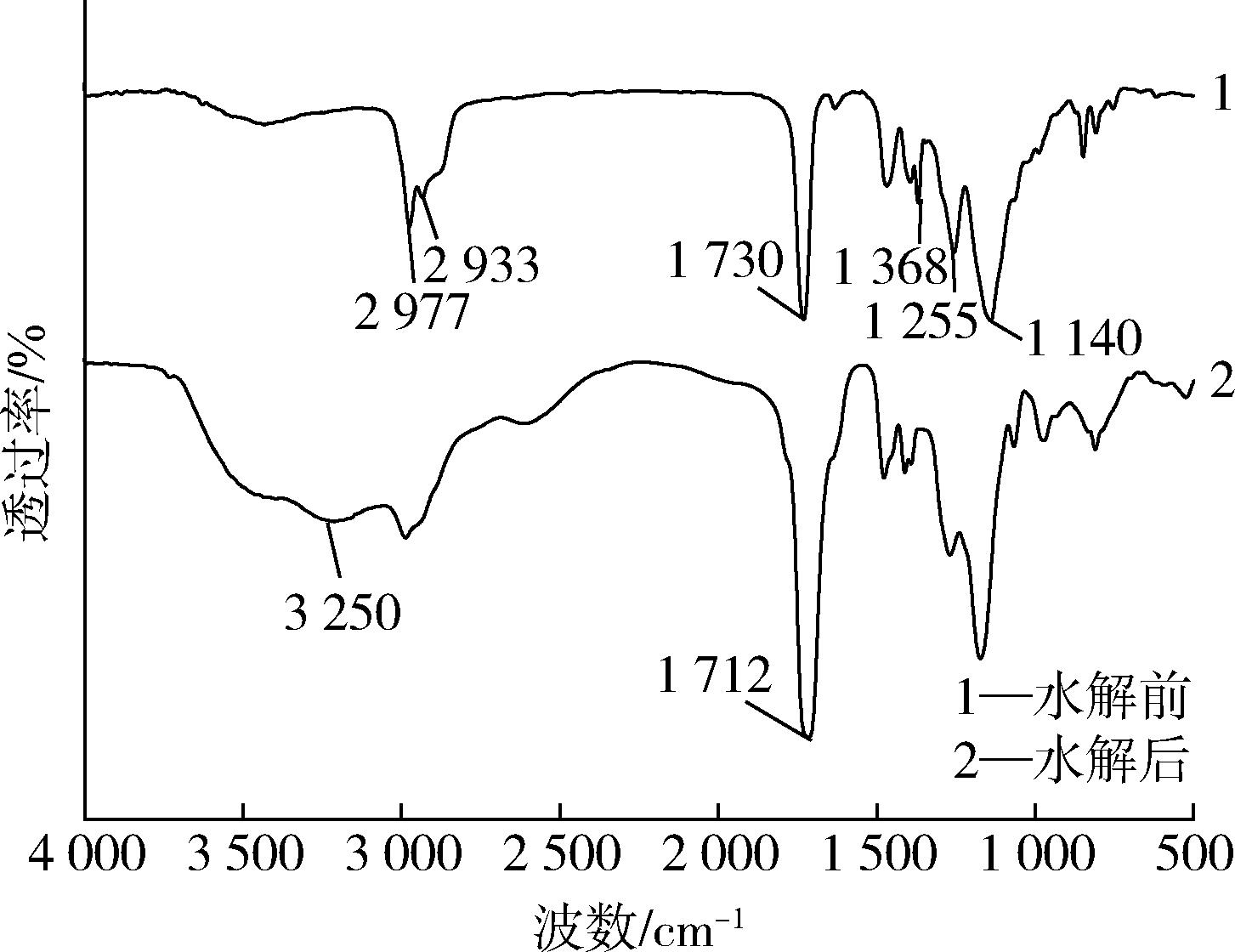

Fig.5. FTIR of poly（tert?butyl methacrylate） before and after hydrolysis

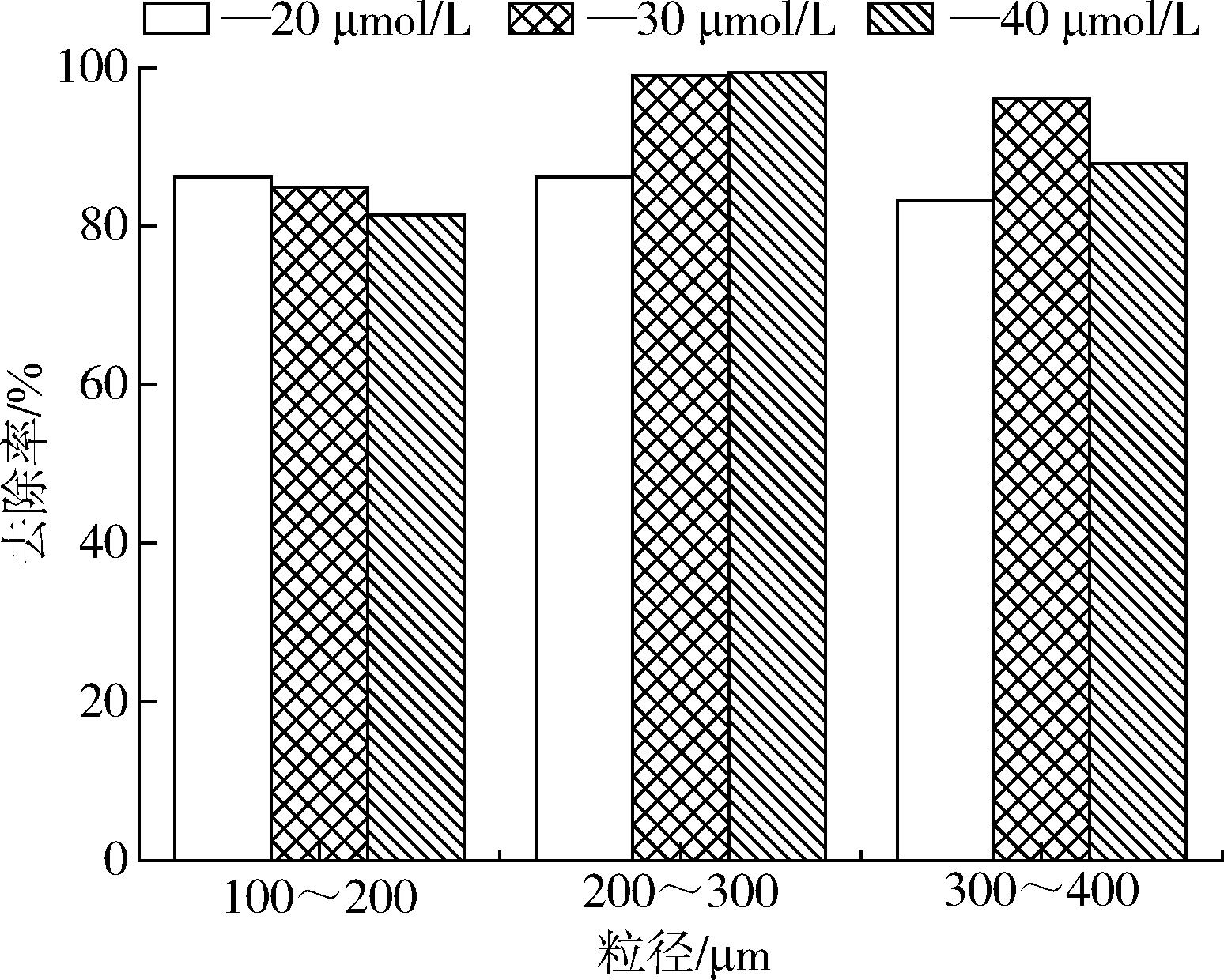

Fig.6. Cu2+ adsorption performance of porous beads with different particle sizes

References 16

1	Zhang H， Cooper A I. Synthesis and applications of emulsion⁃templated porous materials［J］. Soft Matter， 2005， 1（2）： 107⁃113.
2	顾玥，段成，杜中杰，等.聚苯乙烯多孔吸附微球的制备［J］.中国塑料， 2019， 33（2）：52⁃56，68.
	GU Y， DUAN C， DU Z J， et al. Preparation and performance of porous polystyrene microspheres for adsorption ［J］. China Plastics，2019， 33（2）：52⁃56，68.
3	Zhu Y， Wang W， Yu H， et al. Preparation of porous adsorbent via Pickering emulsion template for water treatment： a review［J］. Journal of Environmental Sciences， 2020， 88： 217⁃236.
4	Zhang S， Fan X， Zhang F， et al. Synthesis of emulsion⁃templated magnetic porous hydrogel beads and their application for catalyst of fenton reaction［J］. Langmuir， 2018， 34（12）： 3 669⁃3 677.
5	Kang D W， Kang M， Hong C S. Post⁃synthetic modification of porous materials： superprotonic conductivities and membrane applications in fuel cells［J］. Journal of Materials Chemistry A， 2020， 8（16）： 7 474⁃7 494.
6	Chaudhary V， Sharma S. Suspension polymerization technique： parameters affecting polymer properties and application in oxidation reactions［J］. Journal of Polymer Research， 2019， 26（5）： 1⁃12.
7	朱勤，包永忠，黄志明，等.悬浮态乳液聚合制备疏松型聚甲基丙烯酸甲酯树脂［J］.化学反应工程与工艺，2003（1）：36⁃39.
	ZHU Q， BAO Y Z， HUANG Z M，et al. Preparation of porous poly （methyl methacrylate） resins by suspended emuision polymerization［J］.Chemical Reaction Engineering and Technology，2003（1）：36⁃39.
8	Mansour F R， Waheed S， Paull B， et al. Porogens and porogen selection in the preparation of porous polymer monoliths［J］. Journal of Separation Science， 2020， 43（1）： 56⁃69.
9	Zhang T， Sanguramath R A， Israel S， et al. Emulsion templating： porous polymers and beyond［J］. Macromolecules， 2019， 52（15）： 5 445⁃5 479.
10	李梓超，曾来，刘华蓉，等.贯通多孔聚合物微球的制备及其应用［J］.高分子学报，2015（12）：1 449⁃1 455.
	LI Z C， ZENG L， LIU H R，et al. Preparation and application of highly interconnecting polymer microspheres［J］.Acta Polymerica Sinica，2015（12）：1 449⁃1 455.
11	Deng J， Zou W， Mi J， et al. Construction of porous polymer beads for CO₂ capture in a fluidized bed with high stability［J］. Industrial & Engineering Chemistry Research， 2021， 60（20）： 7 624⁃7 634.
12	Tang C， Brodie P， Brunsting M， et al. Carboxylated cellulose cryogel beads via a one⁃step ester crosslinking of maleic anhydride for copper ions removal［J］. Carbohydrate Polymers， 2020， 242： 116397.
13	Han J， Du Z， Zou W， et al. In⁃situ improved phenol adsorption at ions⁃enrichment interface of porous adsorbent for simultaneous removal of copper ions and phenol［J］. Chemical Engineering Journal， 2015， 262： 571⁃578.
14	朱万超，石艳，付志峰，等.由十二烷基苯磺酰氯制备两亲性聚合物［J］.北京化工大学学报（自然科学版），2007（6）：621⁃624.
	ZHU W C， SHI Y， FU Z F，et al. Preparation of amhiphilic polymers via atom transfer radical polymerization （ATRP） initiated by dodecylbenzene sulfonyl chloride［J］. Journal of Beijing University of Chemical Technology（Natural Science Edition），2007（6）：621⁃624.
15	廖强强，李义久，相波，等.二乙基二硫代氨基甲酸钠与Cu²⁺、Pb²⁺、Cd²⁺、Ni²⁺的络合性研究［J］.精细化工，2008，25（3）：281⁃283，292.
	LIAO Q Q， LI Y J， XIANG B，et al. Stability of Cu²⁺，Pb²⁺，Cd²⁺，and Ni²⁺ complexes of sodium diethyldithiocarbamate［J］. Fine Chemicals，2008，25（3）：281⁃283，292.
16	Silverstein M S. PolyHIPEs： recent advances in emulsion⁃templated porous polymers［J］. Progress in Polymer Science， 2014， 39（1）： 199⁃234.
