Research progress in preparation of separation membranes using interfacial polymerization technology

doi:10.19491/j.issn.1001-9278.2022.11.022

Abstract

Abstract:

Interfacial polymerization technology was widely used in the preparation of separation membranes due to its excellent performance， such as mild reaction conditions， strong controllability， self⁃sealing and self⁃termination， etc. This paper introduced the principle of interfacial polymerization technology and the applications of interfacial polymerization in membrane separation， including nanofiltration membrane， reverse osmosis membrane， and gas separation membrane. The application status of interfacial polymerization technology in microcapsules， conductive polymers， and fiber materials were discussed. The research direction of the preparation of separation membranes using an interfacial polymerization technology was prospected.

Key words: interfacial polymerization, separation membrane, nanofiltration, reverse osmosis, gas separation

CLC Number:

TQ317

QU Yanqing, ZHA Yuxin, JIA Hongge, XU Shuangping, ZHANG Mingyu. Research progress in preparation of separation membranes using interfacial polymerization technology[J]. China Plastics, 2022, 36(11): 150-157.

Figures/Tables 10

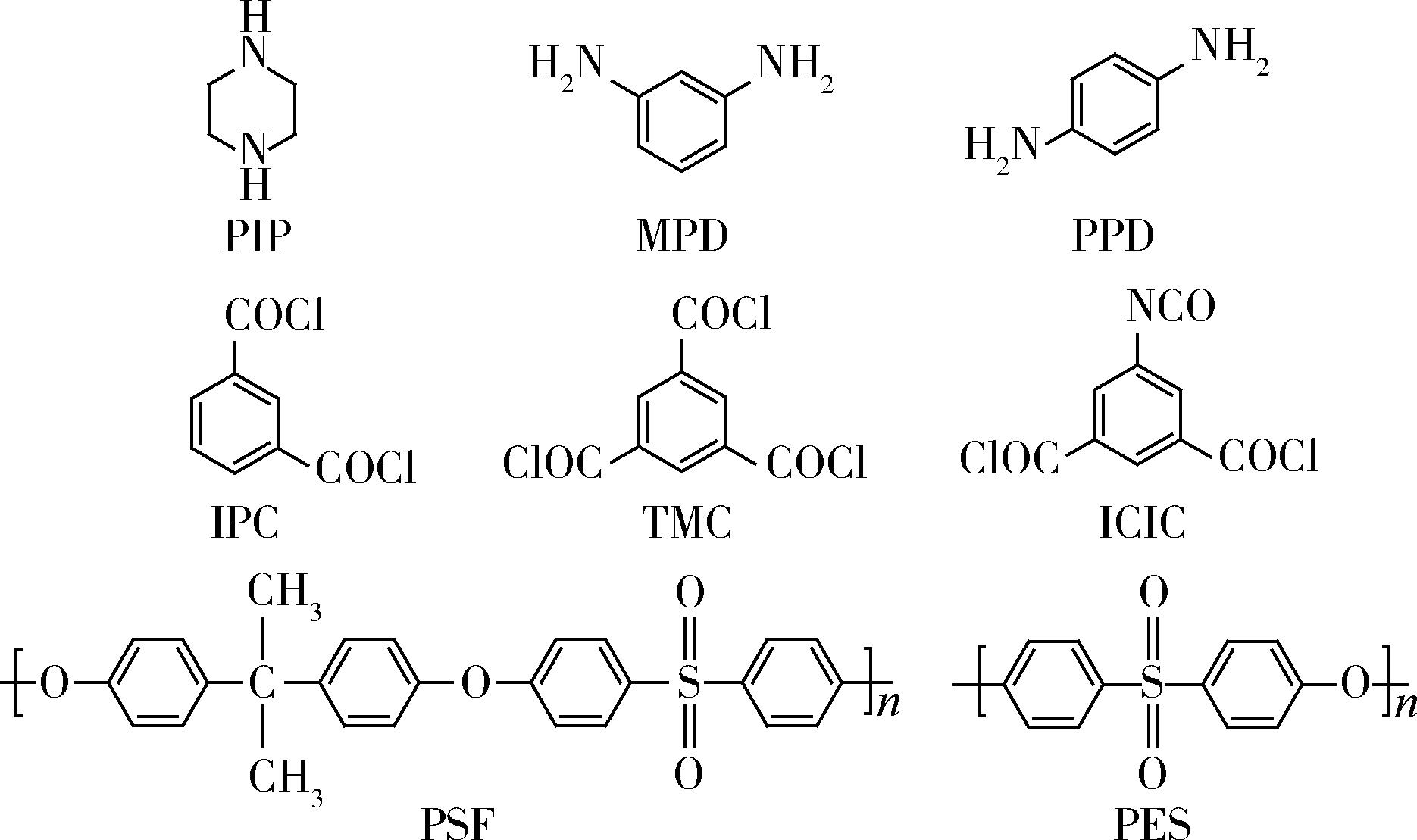

Fig.1. Common monomers and substrates in interfacial polymerization

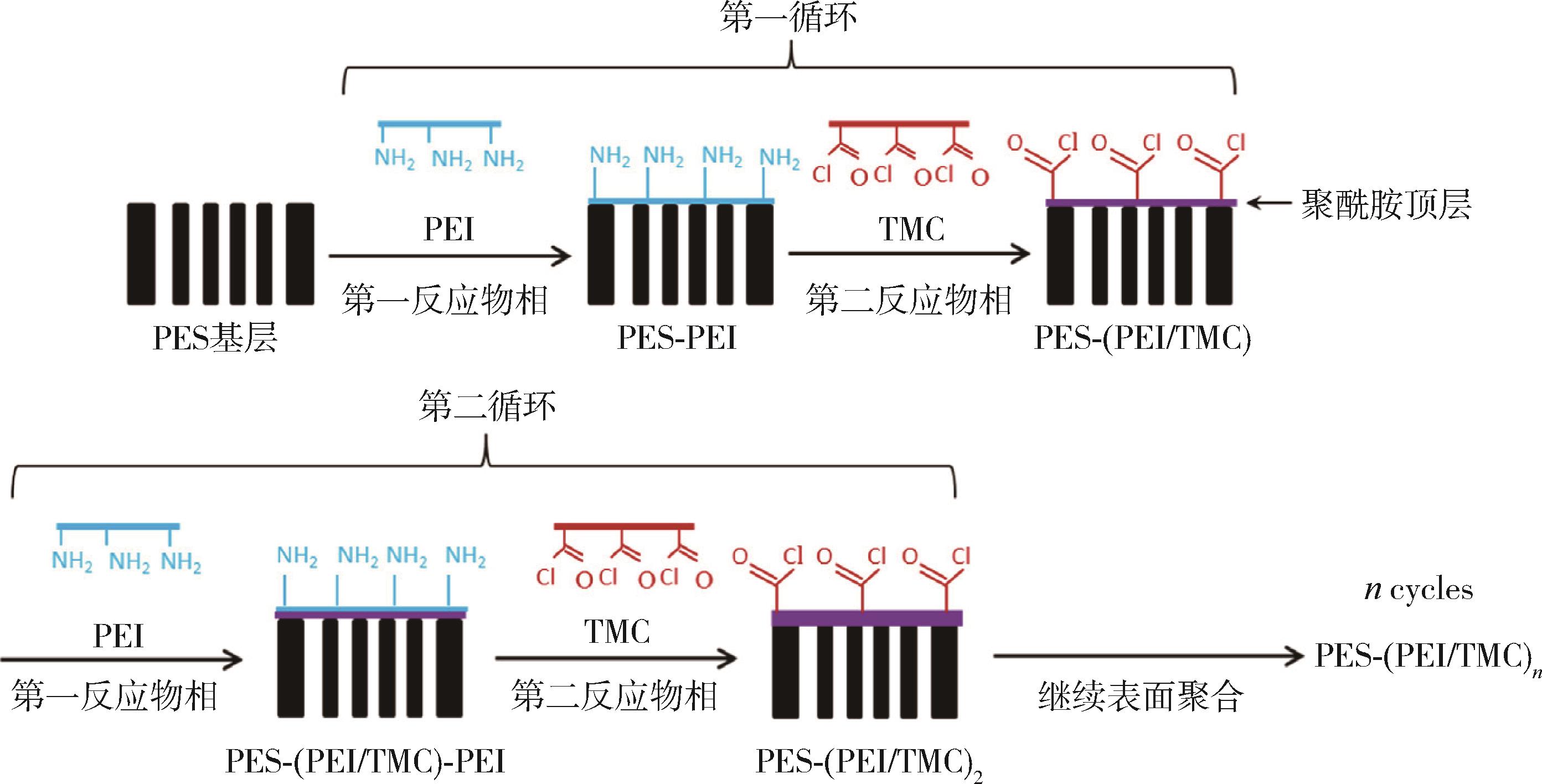

Fig.2. Preparation procedure of thin film composite membrane through multiple cycles of reactant deposition and interfacial polymerization

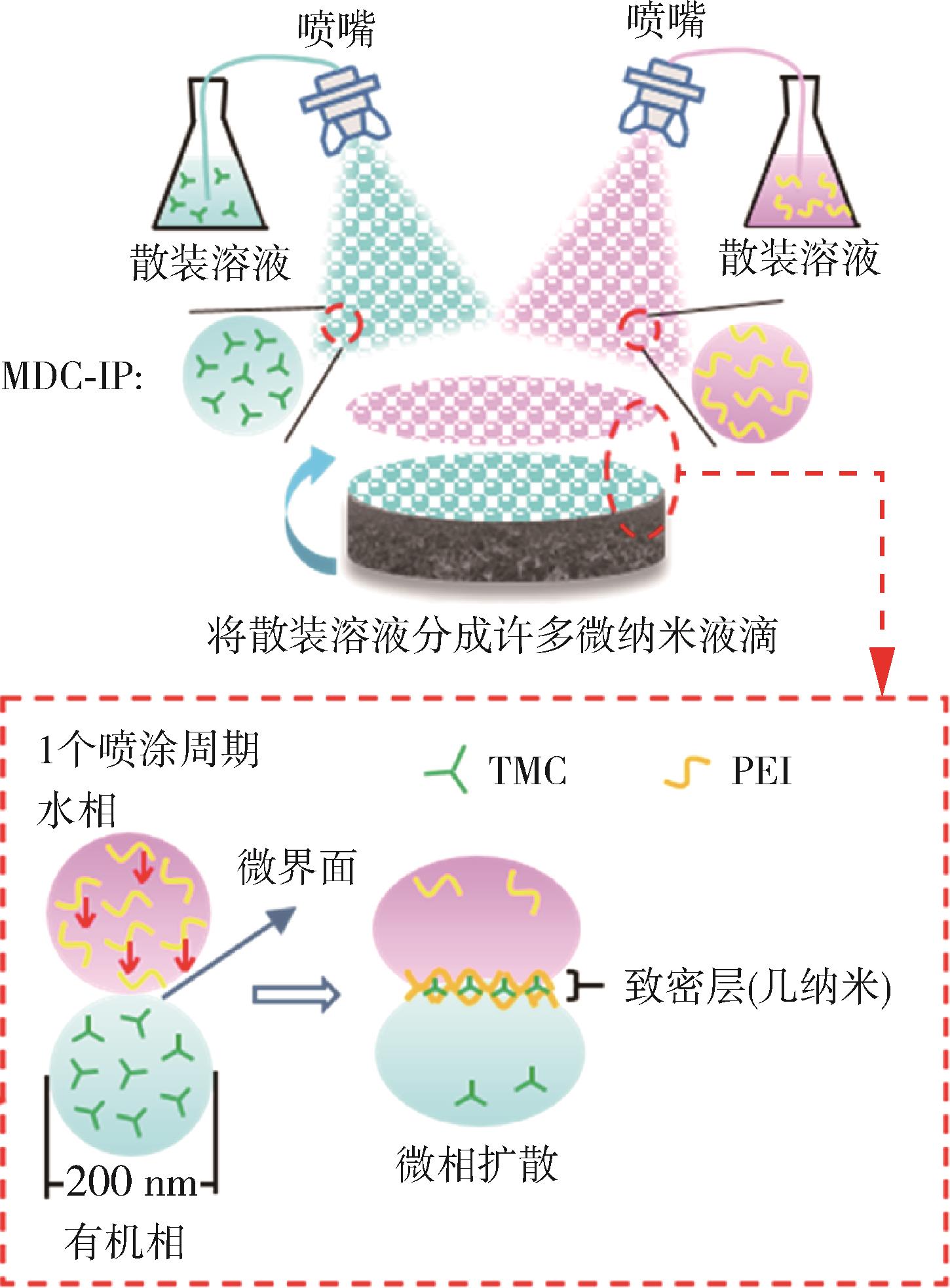

Fig.3. Schematic diagram of microphase diffusion

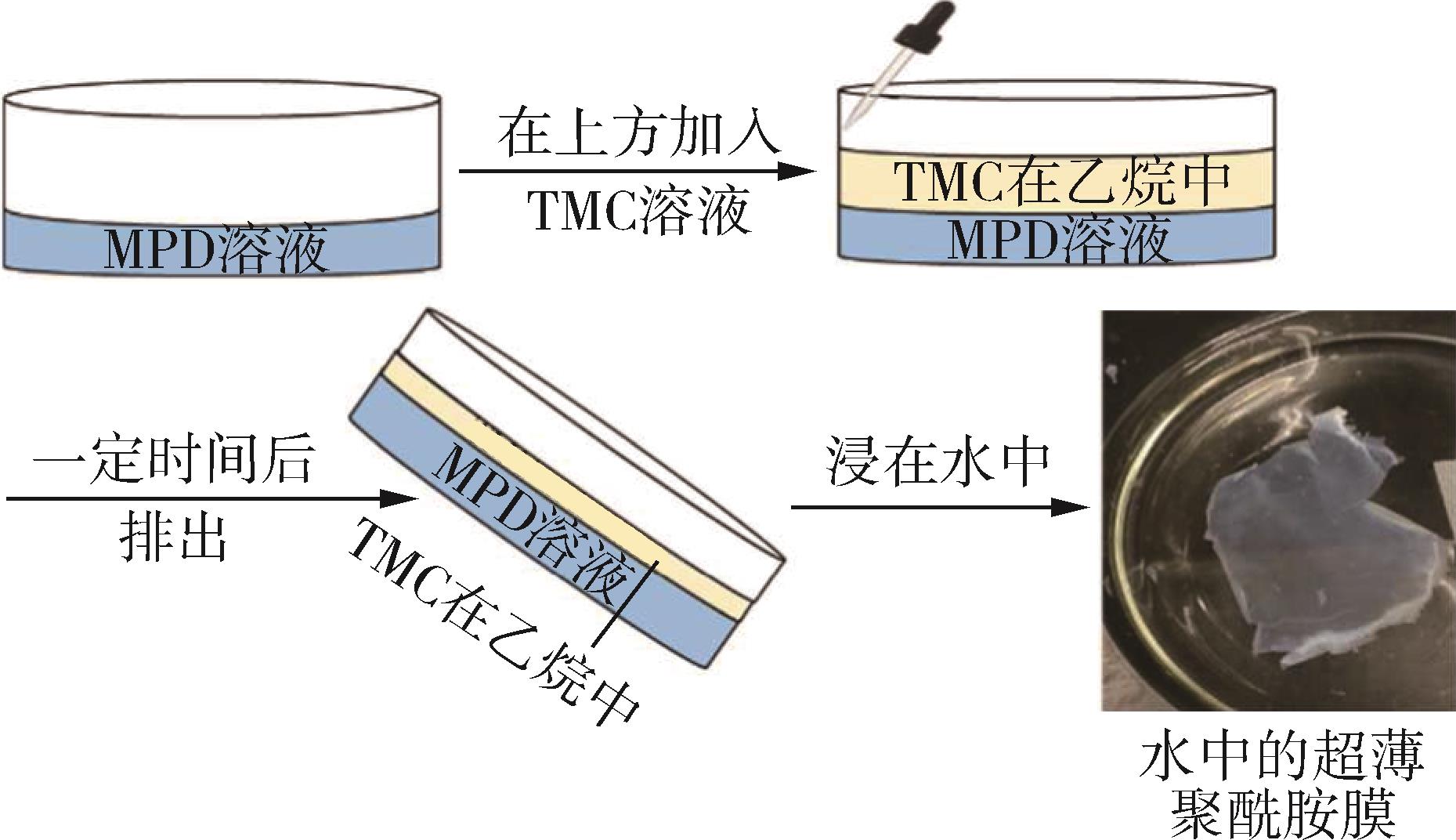

Fig.4. Preparation process of polyamide membrane

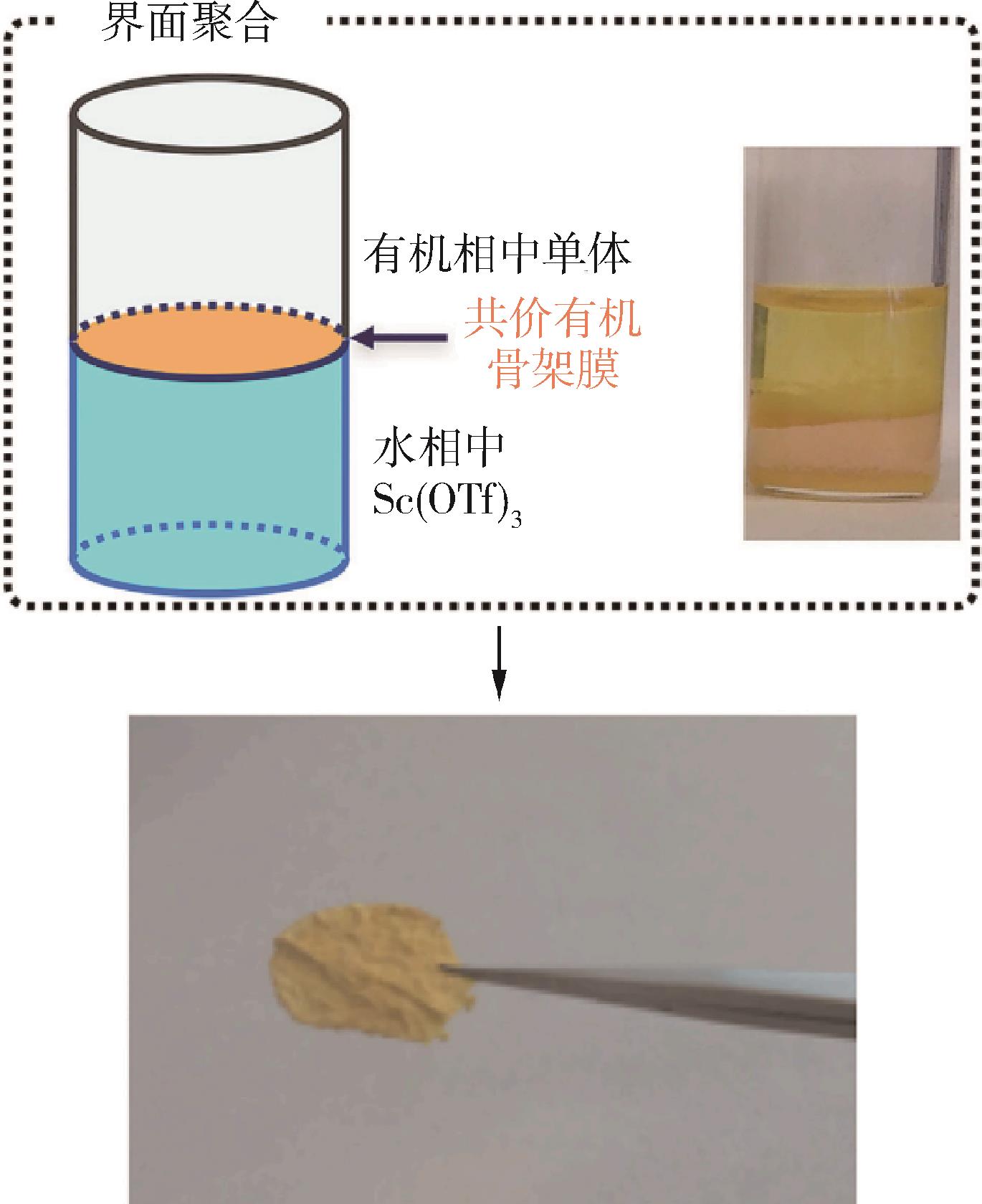

Fig.5. Schematic diagram of interfacial polymerization of two⁃dimensional film and photo of the film

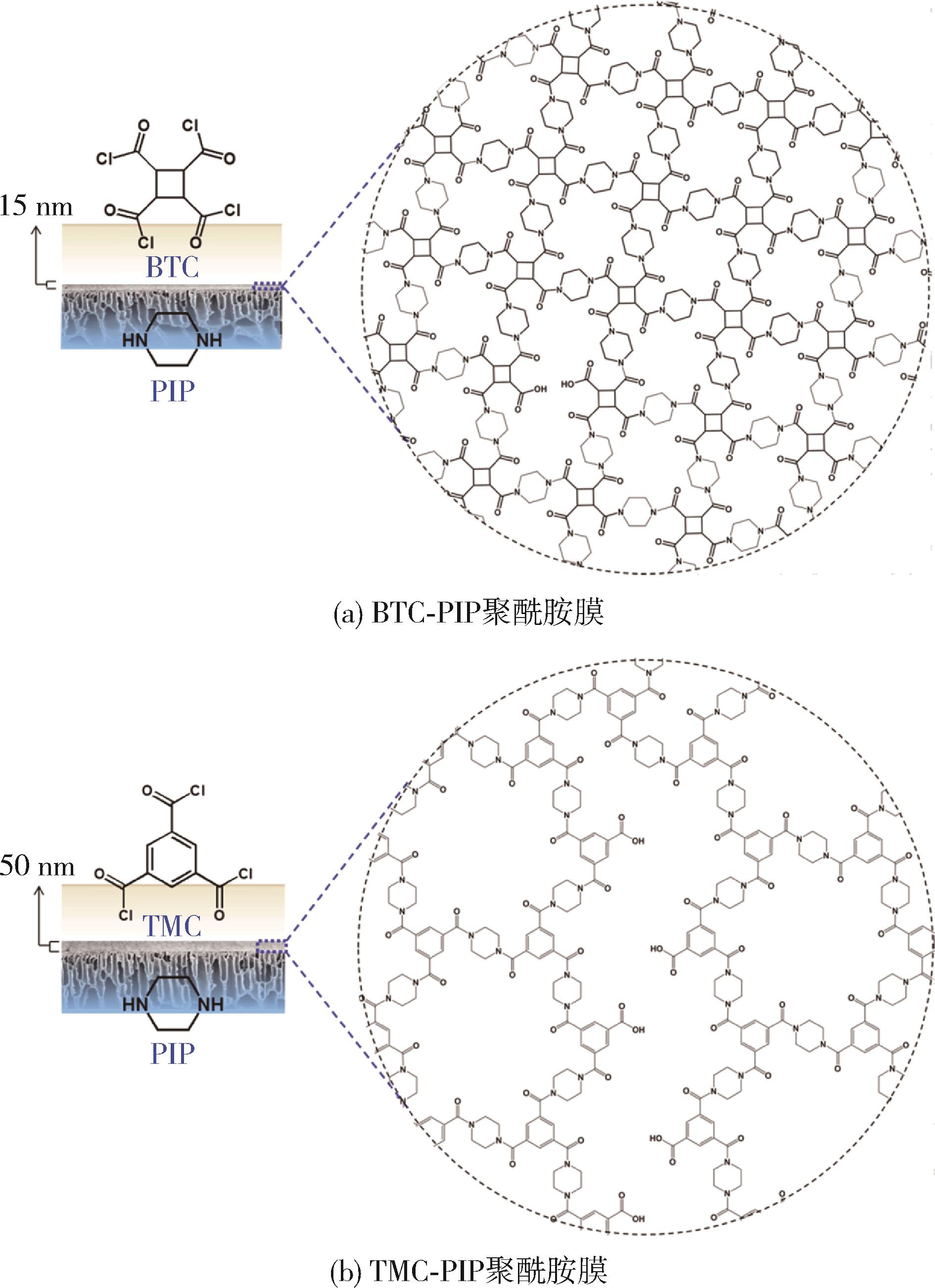

Fig.6. BTC⁃PIP polyamide film and TMC⁃PIP polyamide film

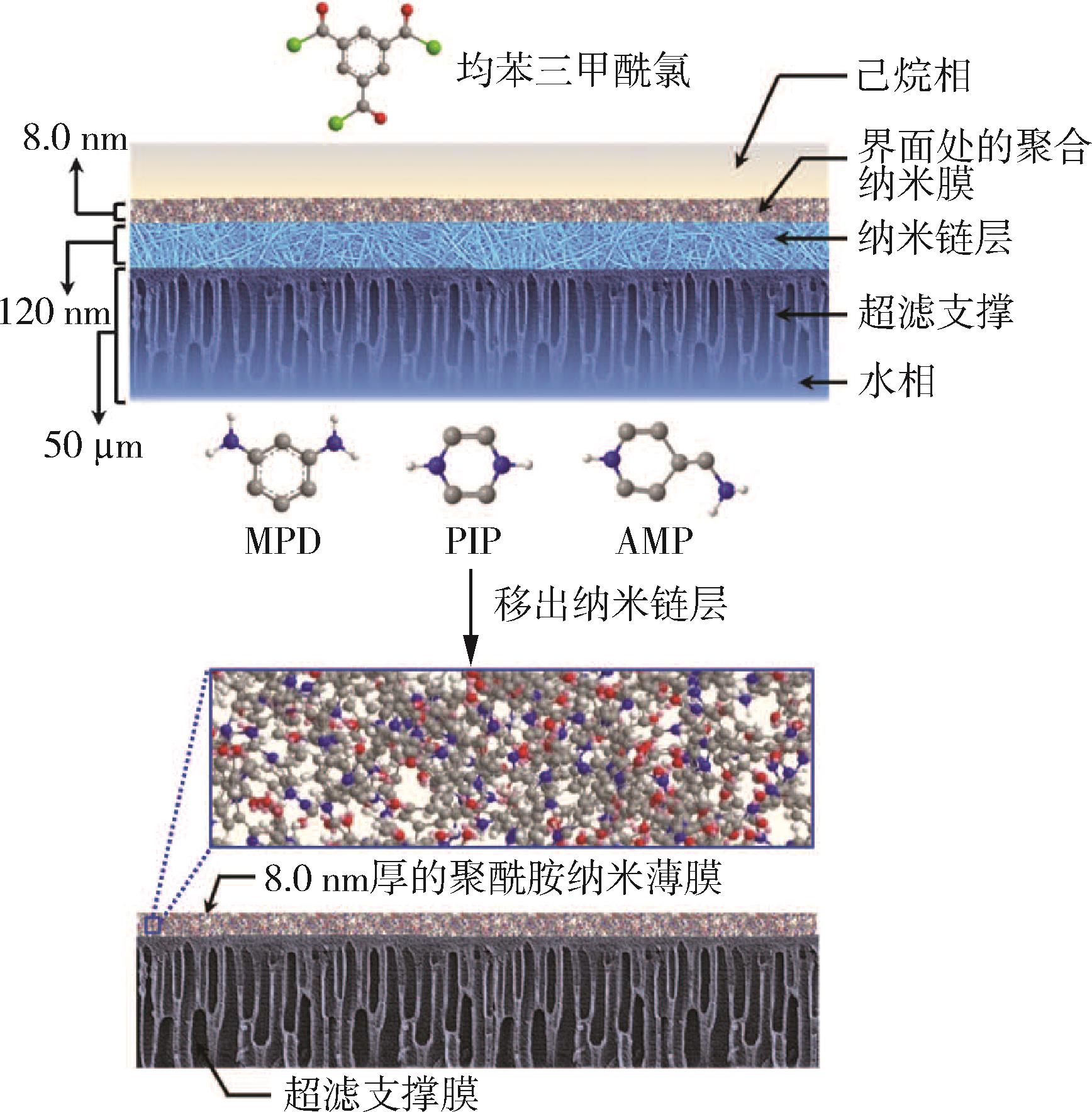

Fig.7. Schematic diagram of interfacial polymerization process control and the resulting nanomembrane

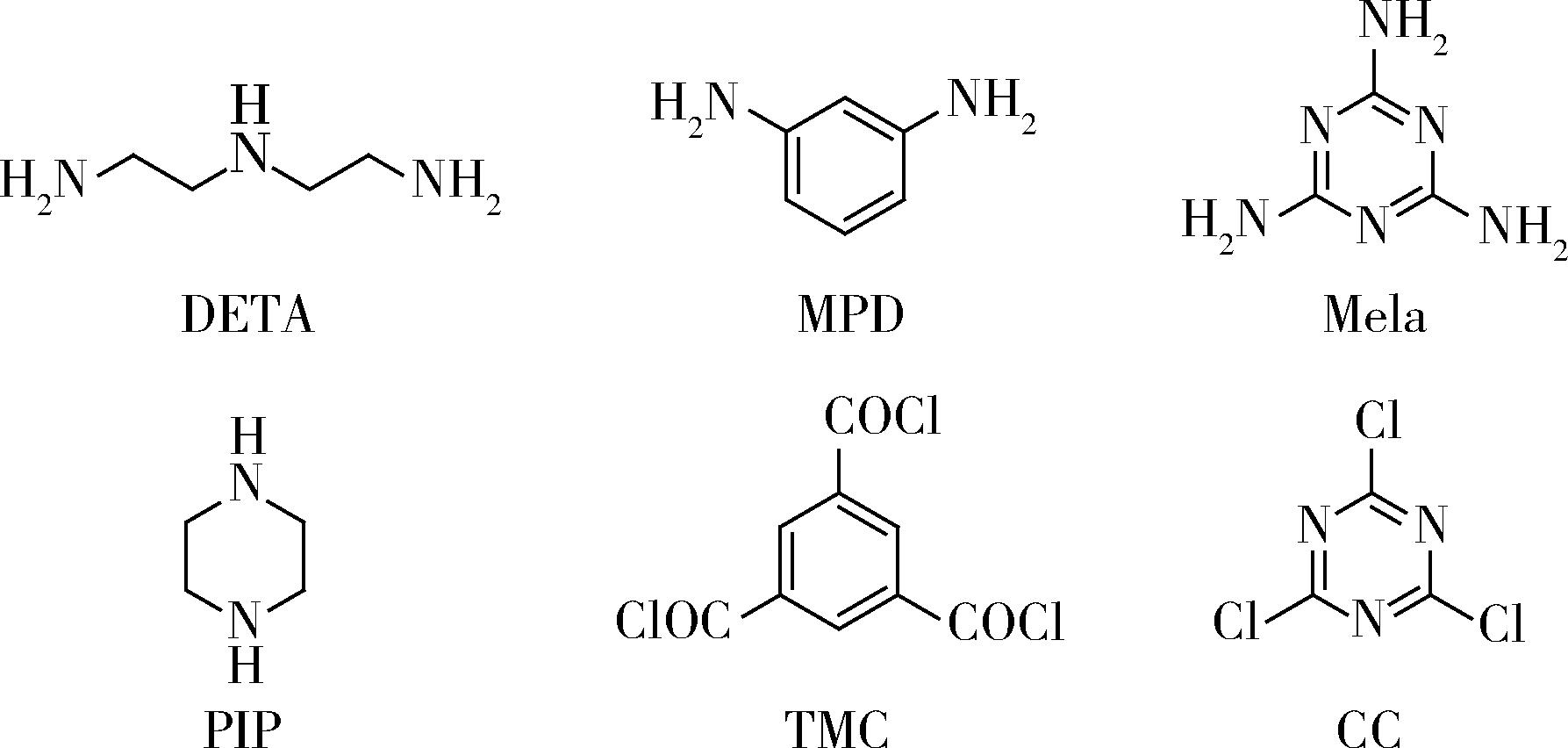

Fig.8. Chemical structure of water phase monomer and organic phase monomer

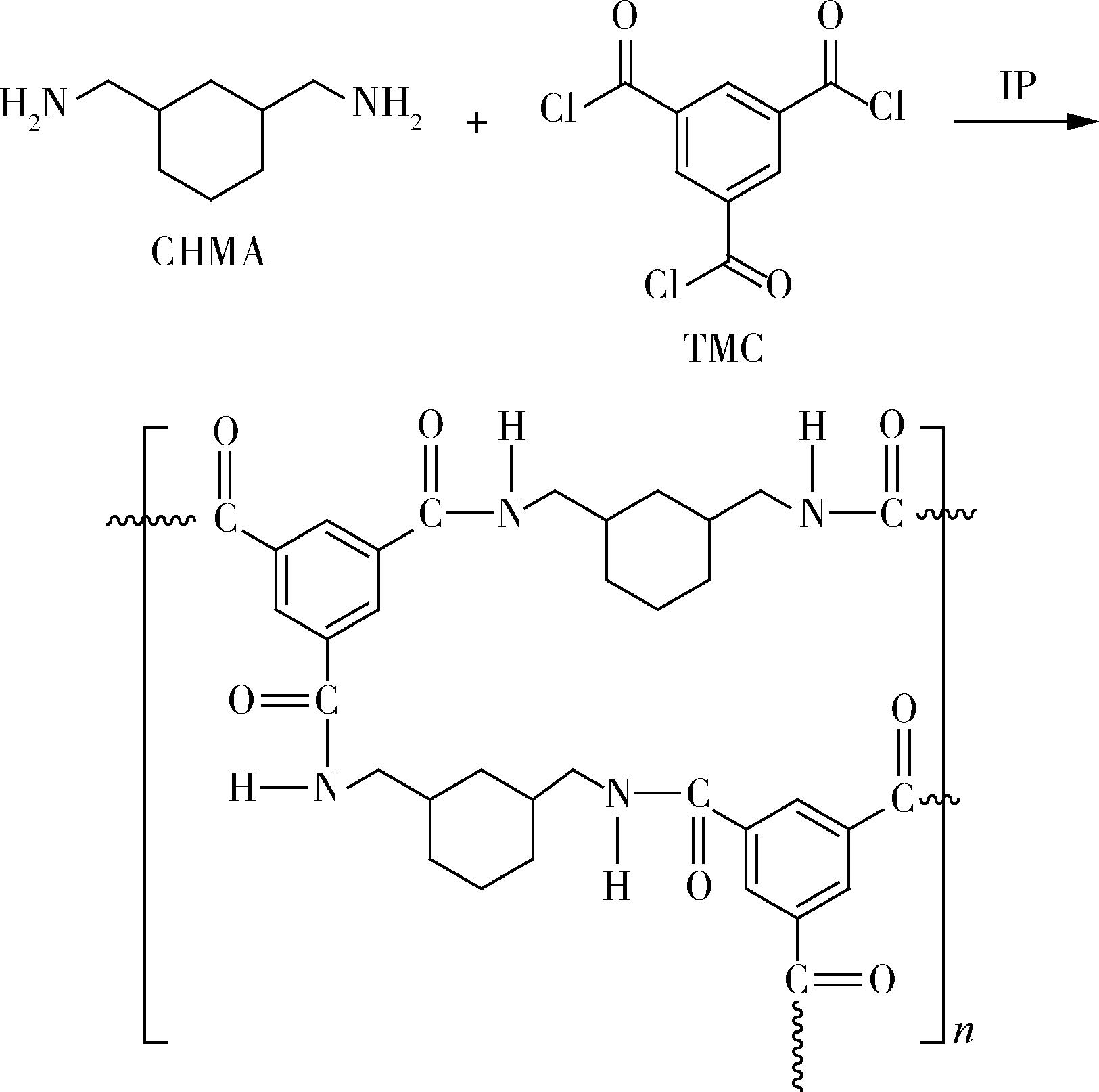

Fig.9. Interfacial polymerization of CHMA and TMC to prepare composite membranes

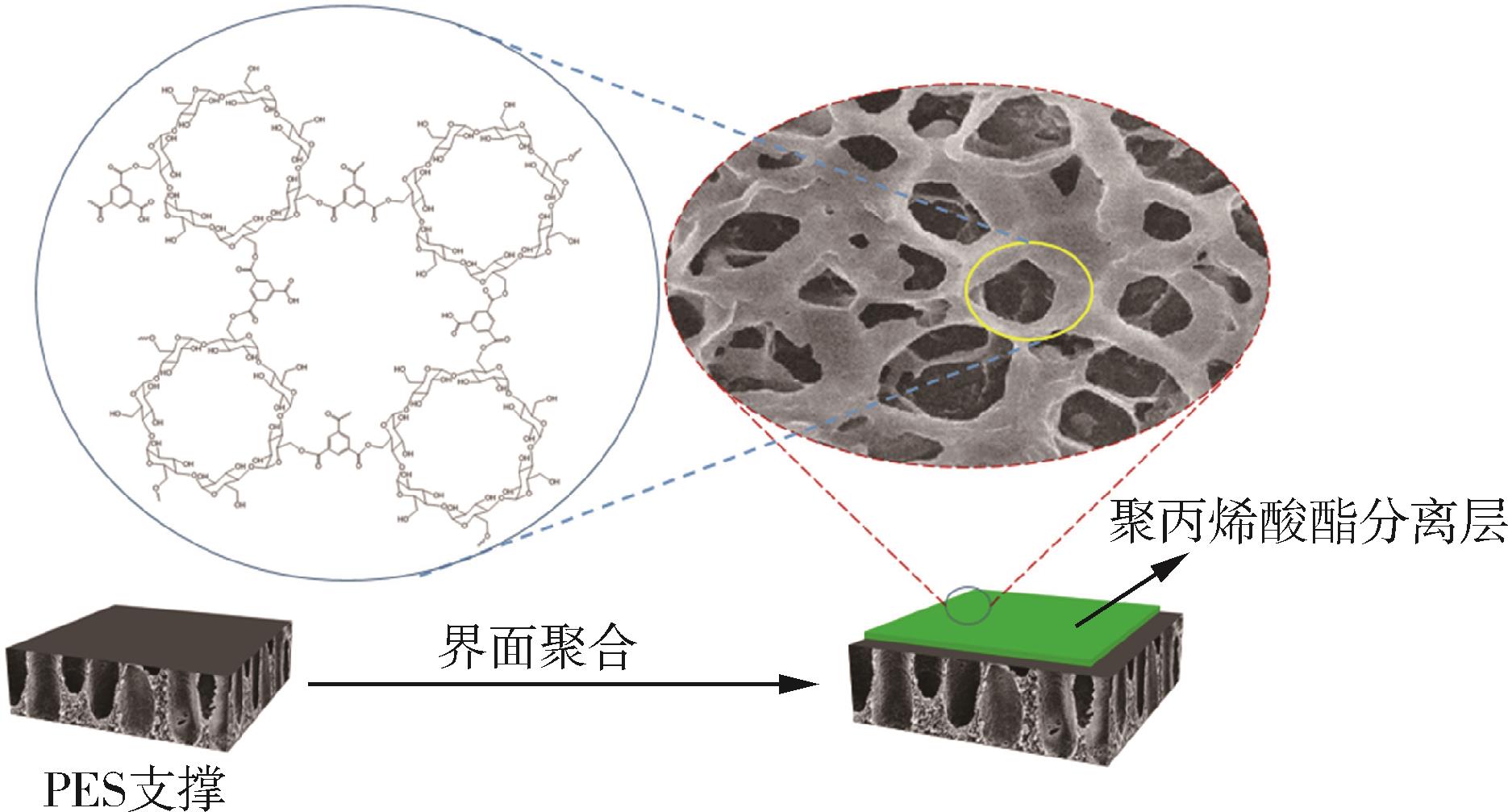

Fig.10. Microporous polyacrylate composite membrane prepared by interfacial polymerization method

References 49
