Research progress in heat transfer enhancement measures for wall materials of microencapsulated phase change materials

doi:10.19491/j.issn.1001-9278.2022.07.025

Abstract

Abstract:

This paper summarized the research progress in the enhancement of the thermal conductivity of the wall materials from three aspects： the modification of inorganic wall materials （calcium carbonate， titanium dioxide）， inorganic carbon materials （graphene oxide， carbon nanotubes， composite carbon materials）， and nanomaterials （nano alumina， nano titanium dioxide and other nano materials）. The characteristics of each method were analyzed， providing a theoretical guidance for the modification direction and measures of enhancement in the thermal conductivity of microencapsulated PCMs in future.

Key words: microencapsulated phase change material, thermal conductivity, inorganic wall material, carbon material, nanomaterial

CLC Number:

TQ316.6⁺3

ZHANG Qiang, ZHANG Jian, LIN Lin, LIU Jing, WANG Tianhe. Research progress in heat transfer enhancement measures for wall materials of microencapsulated phase change materials[J]. China Plastics, 2022, 36(7): 187-196.

Figures/Tables 9

References 71

1	Fang Y， Zou T， Liang X， et al. Self⁃assembly synthesis and properties of microencapsulated n⁃tetradecane phase change materials with a calcium carbonate shell for cold energy storage［J］. ACS Sustainable Chemistry & Engineering， 2017， 5（4）： 3 074⁃3 080.
2	Castell A， Solé C. An overview on design methodologies for liquid⁃solid PCM storage systems［J］. Renewable and Sustainable Energy Reviews， 2015， 52： 289⁃307.
3	Liu J， Chen Z， Liu Y， et al. Preparation of a PCM microcapsule with a graphene oxide platelet⁃patched shell and its thermal camouflage applications［J］. Industrial & Engineering Chemistry Research， 2019， 58（41）： 19 090⁃19 099.
4	Arshad A， Jabbal M， Yan Y， et al. The micro⁃/nano⁃PCMs for thermal energy storage systems： a state of art review［J］. International Journal of Energy Research， 2019， 43（11）： 5 572⁃5 620.
5	Németh B， Németh Á S， Ujhidy A， et al. Fully bio⁃originated latent heat storing calcium alginate microcapsules with high coconut oil loading［J］. Solar Energy， 2018， 170： 314⁃322.
6	Yu Q， Tchuenbou⁃Magaia F， Al⁃Duri B， et al. Thermo⁃mechanical analysis of microcapsules containing phase change materials for cold storage［J］. Applied Energy， 2018， 211： 1 190⁃1 202.
7	Jin Z， Wang Y， Liu J， et al. Synthesis and properties of paraffin capsules as phase change materials［J］. Polymer， 2008， 49（12）： 2 903⁃2 910.
8	Su W， Darkwa J， Kokogiannakis G. Development of microencapsulated phase change material for solar thermal energy storage［J］. Applied Thermal Engineering， 2017， 112： 1 205⁃1 212.
9	Sarı A， Alkan C， Biçer A. Thermal energy storage characteristics of micro⁃nanoencapsulated heneicosane and octacosane with poly （methylmethacrylate） shell［J］. Journal of Microencapsulation， 2016， 33（3）： 221⁃228.
10	Döğüşcü D K， Altıntaş A， Sarı A， et al. Polystyrene microcapsules with palmitic⁃capric acid eutectic mixture as building thermal energy storage materials［J］. Energy and Buildings， 2017， 150： 376⁃382.
11	Lv P， Liu C， Rao Z. Experiment study on the thermal properties of paraffin/kaolin thermal energy storage form⁃stable phase change materials［J］. Applied Energy， 2016， 182： 475⁃487.
12	Wang T， Wang S， Wu W. Experimental study on effective thermal conductivity of microcapsules based phase change composites［J］. International Journal of Heat and Mass Transfer， 2017， 109： 930⁃937.
13	Lin Y， Jia Y， Alva G， et al. Review on thermal conductivity enhancement， thermal properties and applications of phase change materials in thermal energy storage［J］. Renewable and sustainable energy reviews， 2018， 82： 2 730⁃2 742.
14	Zhang Q， Liu C， Rao Z. Preparation and Characterization of n‐Nonadecane/CaCO₃ Microencapsulated Phase Change Material for Thermal Energy Storage［J］. Chemistry Select， 2019， 4（29）： 8 482⁃8 492.
15	Sarı A， Saleh T A， Hekimoğlu G， et al. Microencapsulated heptadecane with calcium carbonate as thermal conductivity⁃enhanced phase change material for thermal energy storage［J］. Journal of Molecular Liquids， 2021， 328： 115508.
16	Ji W， Cheng X， Chen S， et al. Self⁃assembly fabrication of GO/TiO₂@ paraffin microcapsules for enhancement of thermal energy storage［J］. Powder Technology， 2021， 385： 546⁃556.
17	HL A， XW A， DW B， et al. Fabrication and applications of dual⁃responsive microencapsulated phase change material with enhanced solar energy⁃storage and solar photocatalytic effectiveness［J］. Solar Energy Materials and Solar Cells， 2019， 193：184⁃197.

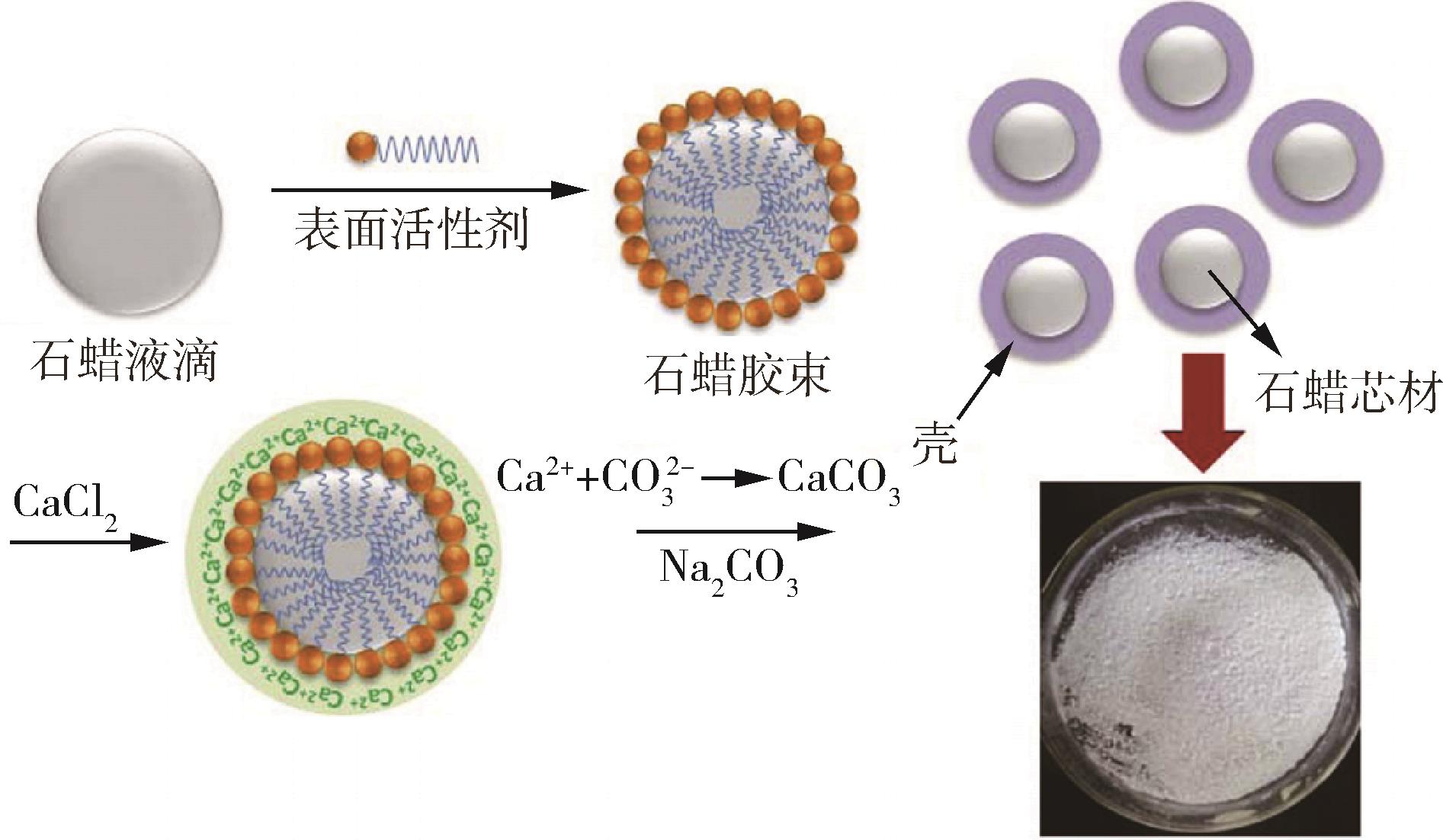

18	Jiang Z， Yang W， He F， et al. Microencapsulated paraffin phase⁃change material with calcium carbonate shell for thermal energy storage and solar⁃thermal conversion［J］. Langmuir， 2018， 34（47）： 14 254⁃14 264.
19	Ma E， Wei Z， Lian C， et al. Preparation of Colored Microcapsule Phase Change Materials with Colored SiO₂ Shell for Thermal Energy Storage and Their Application in Latex Paint Coating［J］. Materials， 2021， 14（14）： 4 012.
20	Zhang B， Li S， Fei X， et al. Enhanced mechanical pro⁃perties and thermal conductivity of paraffin microcapsules shelled by hydrophobic⁃silicon carbide modified melamine⁃formaldehyde resin［J］. Colloids and Surfaces A： Physicochemical and Engineering Aspects， 2020， 603： 125219.
21	Qiao Z， Mao J. Enhanced thermal properties with graphene oxide in the urea⁃formaldehyde microcapsules containing paraffin PCMs［J］. Journal of Microencapsulation， 2017， 34（1）： 1⁃9.
22	Sarı A， Alkan C， Döğüşcü D K， et al. Micro/nano⁃encapsulated n⁃heptadecane with polystyrene shell for latent heat thermal energy storage［J］. Solar Energy Materials and Solar Cells， 2014， 126： 42⁃50.
23	Sarı A， Saleh T A， Hekimoğlu G， et al. Microencapsulated heptadecane with calcium carbonate as thermal conductivity⁃enhanced phase change material for thermal energy storage［J］. Journal of Molecular Liquids， 2021， 328： 115508.
24	Li C， Yu H， Song Y， et al. Preparation and characterization of PMMA/TiO₂ hybrid shell microencapsulated PCMs for thermal energy storage［J］. Energy， 2019， 167： 1 031⁃1 039.
25	Zhang H， Wang X， Wu D. Silica encapsulation of n⁃octadecane via sol⁃gel process： a novel microencapsulated phase⁃change material with enhanced thermal conductivity and performance［J］. Journal of colloid and interface science， 2010， 343（1）： 246⁃255.
26	Liu H， Wang X， Wu D， et al. Morphology⁃controlled synthesis of microencapsulated phase change materials with TiO₂ shell for thermal energy harvesting and temperature regulation［J］. Energy， 2019， 172： 599⁃617.
27	Liu H， Niu J， Wang X， et al. Design and construction of mesoporous silica/n⁃eicosane phase⁃change nanocompo⁃sites for supercooling depression and heat transfer enhancement［J］. Energy， 2019， 188： 116075.
28	Latibari S T， Mehrali M， Mehrali M， et al. Fabrication and Performances of Microencapsulated Palmitic Acid with Enhanced Thermal Properties［J］. Energy & Fuels， 2015， 29（2）：1 010⁃1 018.
29	Kalaiselvam S. Bifunctional nanoencapsulated eutectic phase change material core with SiO₂/SnO₂ nanosphere shell for thermal and electrical energy storage［J］. Materials & Design， 2018， 154： 291⁃301.
30	Yu S， Wang X， Wu D. Self⁃assembly synthesis of microencapsulated n⁃eicosane phase⁃change materials with crystalline⁃phase⁃controllable calcium carbonate shell［J］. Energy & Fuels， 2014， 28（5）： 3 519⁃3 529.
31	Yu S， Wang X， Wu D. Microencapsulation of n⁃octadecane phase change material with calcium carbonate shell for enhancement of thermal conductivity and serving durability： synthesis， microstructure， and performance evaluation［J］. Applied Energy， 2014， 114： 632⁃643.
32	Wang T， Wang S， Luo R， et al. Microencapsulation of phase change materials with binary cores and calcium carbonate shell for thermal energy storage［J］. Applied Energy， 2016， 171： 113⁃119.
33	Ma X， Liu Y， Liu H， et al. Synthesis and characterization of microencapsulated paraffin with TiO₂ shell as thermal energy storage materials［J］. Journal of Materials Science： Materials in Electronics， 2018， 29（17）： 15 241⁃15 248.
34	Chai L， Wang X， Wu D. Development of bifunctional microencapsulated phase change materials with crystalline titanium dioxide shell for latent⁃heat storage and photocatalytic effectiveness［J］. Applied Energy， 2015， 138： 661⁃674.
35	Ma X， Liu Y， Liu H， et al. Fabrication of novel slurry containing graphene oxide⁃modified microencapsulated phase change material for direct absorption solar collector［J］. Solar Energy Materials and Solar Cells， 2018， 188： 73⁃80.
36	Prasher R. Graphene spreads the heat［J］. Science， 2010， 328（5975）： 185⁃186.
37	Seol J H， Jo I， Moore A L， et al. Two⁃dimensional phonon transport in supported graphene［J］. Science， 2010， 328（5975）： 213⁃216.
38	Balandin A A， Ghosh S， Bao W， et al. Superior thermal conductivity of single⁃layer graphene.［J］. Nano Letters， 2008， 8（3）：902.

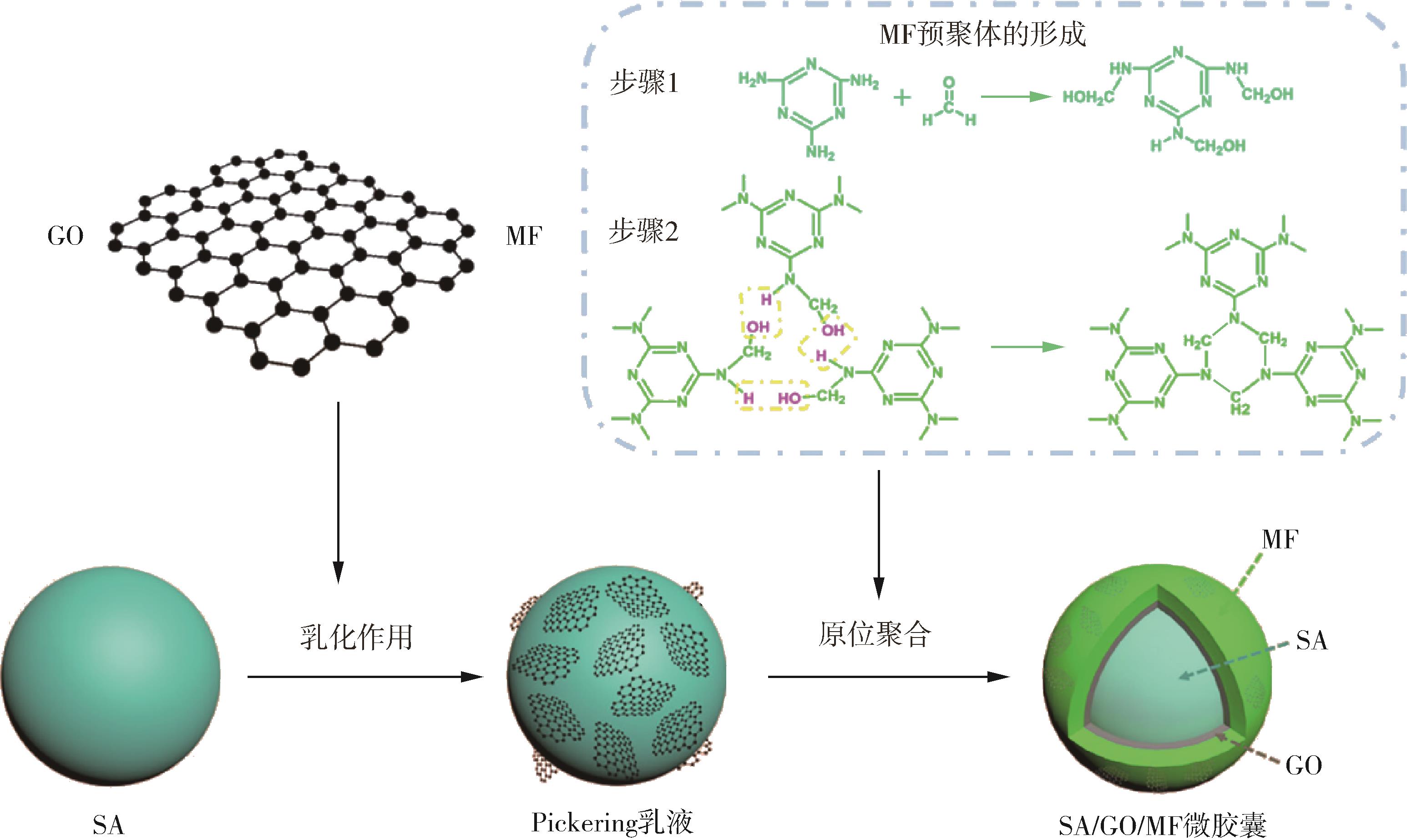

39	Musyoki M O， Li X， Xueling F， et al. Microencapsulated phase change material via Pickering emulsion stabilized by graphene oxide for photothermal conversion［J］. Journal of Materials Science， 2020， 55（18）： 7 731⁃7 742.
40	Meng X， Qin S， Fan H， et al. Long alkyl chain⁃grafted carbon nanotube⁃decorated binary⁃core phase⁃change microcapsules for heat energy storage： Synthesis and thermal properties［J］. Solar Energy Materials and Solar Cells， 2020， 212： 110589.
41	Huang Y T， Zhang H， Wan X J， et al. Carbon nanotube⁃enhanced double⁃walled phase⁃change microcapsules for thermal energy storage［J］. Journal of Materials Chemistry A， 2017， 5（16）： 7 482⁃7 493.
42	Chen D Z， Qin S Y， Tsui G C P， et al. Fabrication， morphology and thermal properties of octadecylamine⁃grafted graphene oxide⁃modified phase⁃change microcapsules for thermal energy storage［J］. Composites Part B： Engineering， 2019， 157： 239⁃247.
43	Zhang L， Yang W， Jiang Z， et al. Graphene oxide⁃modified microencapsulated phase change materials with high encapsulation capacity and enhanced leakage⁃prevention performance［J］. Applied Energy， 2017， 197： 354⁃363.
44	Mahanta N K， Abramson A R. Thermal conductivity of graphene and graphene oxide nanoplatelets［C］//13th InterSociety conference on thermal and thermomechanical phenomena in electronic systems. IEEE， 2012： 1⁃6.
45	Liu Z， Chen Z， Yu F. Microencapsulated phase change material modified by graphene oxide with different degrees of oxidation for solar energy storage［J］. Solar Energy Materials and Solar Cells， 2018， 174： 453⁃459.
46	Zhao Q， Yang W， Li Y， et al. Multifunctional phase change microcapsules based on graphene oxide Pickering emulsion for photothermal energy conversion and superhydrophobicity［J］. International Journal of Energy Research， 2020， 44（6）： 4 464⁃4 474.
47	Gspann T S， Juckes S M， Niven J F， et al. High thermal conductivities of carbon nanotube films and micro⁃fibres and their dependence on morphology［J］. Carbon， 2017， 114： 160⁃168.
48	Karaipekli A， Bicer A， Sarı A， et al. Thermal characteristics of expanded perlite/paraffin composite phase change material with enhanced thermal conductivity using carbon nanotubes［J］. Energy conversion and management， 2017， 134： 373⁃381.
49	Li M， Chen M， Wu Z. Enhancement in thermal property and mechanical property of phase change microcapsule with modified carbon nanotube［J］. Applied Energy， 2014， 127： 166⁃171.
50	Cheng J， Zhou Y， Ma D， et al. Preparation and characterization of carbon nanotube microcapsule phase change materials for improving thermal comfort level of buildings［J］. Construction and Building Materials， 2020， 244： 118388.
51	Lin C Y， Zhao Z， Niu J， et al. Synthesis， properties and applications of 3D carbon nanotube⁃graphene junctions［J］. Journal of Physics D： Applied Physics， 2016， 49（44）： 443001.
52	Kong H X. Hybrids of carbon nanotubes and graphene/graphene oxide［J］. Current Opinion in Solid State and Materials Science， 2013， 17（1）： 31⁃37.
53	Bao H， Shao C， Luo S， et al. Enhancement of interfacial thermal transport by carbon nanotube⁃graphene junction［J］. Journal of Applied Physics， 2014， 115（5）： 053524.
54	Zhou Y， Li C， Wu H， et al. Construction of hybrid graphene oxide/graphene nanoplates shell in paraffin microencapsulated phase change materials to improve thermal conductivity for thermal energy storage［J］. Colloids and Surfaces A： Physicochemical and Engineering Aspects， 2020， 597： 124780.

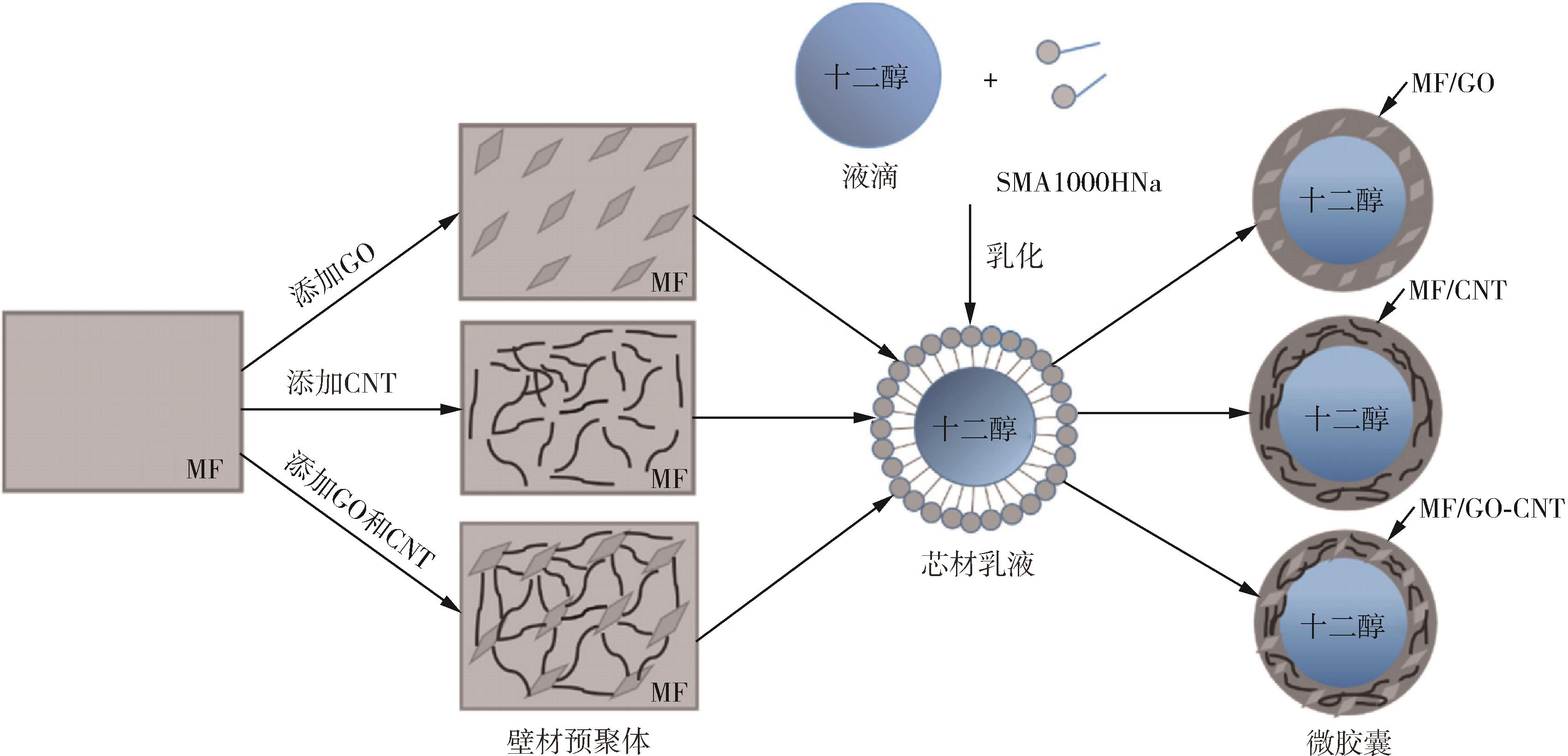

55	Liu Z， Chen Z， Yu F. Enhanced thermal conductivity of microencapsulated phase change materials based on graphene oxide and carbon nanotube hybrid filler［J］. Solar Energy Materials and Solar Cells， 2019， 192： 72⁃80.

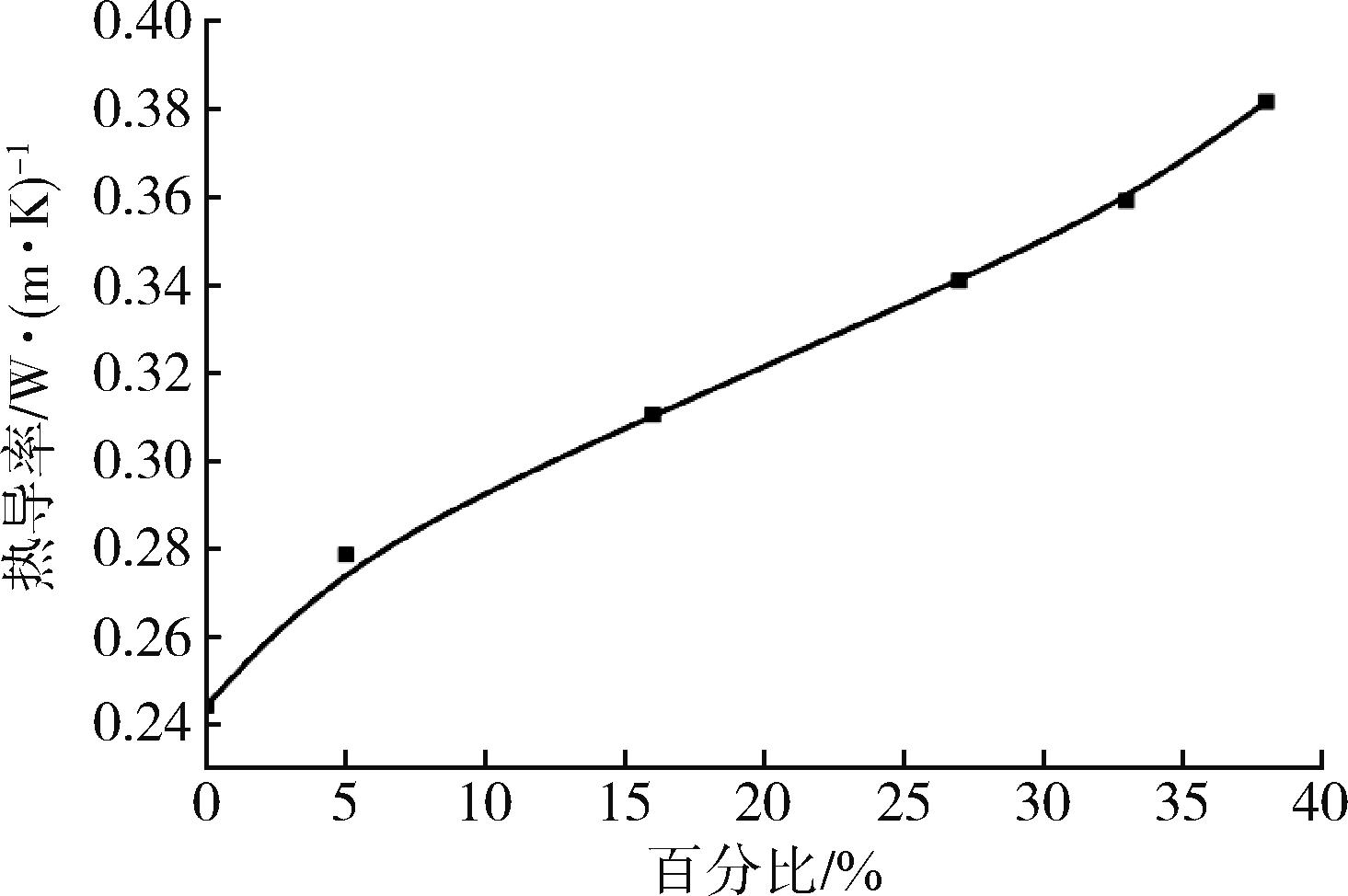

56	Yang Y， Ye X， Luo J， et al. Polymethyl methacrylate based phase change microencapsulation for solar energy storage with silicon nitride［J］. Solar Energy， 2015， 115： 289⁃296.
57	Yang Y， Kuang J， Wang H， et al. Enhancement in thermal property of phase change microcapsules with modified silicon nitride for solar energy［J］. Solar Energy Materials and Solar Cells， 2016， 151： 89⁃95.
58	Wang Y， Qin Z， Zhang T， et al. Effect of encapsulation and additives doping on the thermophysical properties of erythritol for thermal energy storage［J］. Journal of Renewable and Sustainable Energy， 2020， 12（2）： 024103.
59	Chen L， Zhang L Q， Tang R F， et al. Synthesis and thermal properties of phase‐change microcapsules incorporated with nano alumina particles in the shell［J］. Journal of Applied Polymer Science， 2012， 124（1）： 689⁃698.
60	Qiu Z， Zhou Y， Yao Y， et al. Modification of microencapsulated phase change materials （MPCMs） by synthesizing graphene quantum dots （GQDs） and nano⁃aluminum for energy storage and heat transfer applications［J］. Energy， 2019， 181： 1 331⁃1 338.
61	Yu X， Qi H， Huang Z， et al. Preparation and characterization of spherical β⁃cyclodextrin/urea–formaldehyde microcapsules modified by nano⁃titanium oxide［J］. RSC advances， 2017， 7（13）： 7 857⁃7 863.
62	Sun N， Xiao Z. Improvement of the thermostability of silicone oil/polystyrene microcapsules by embedding TiO₂/Si₃N₄ nanocomposites as outer shell［J］. Journal of Materials Science， 2017， 52（18）： 10 800⁃10 813.
63	Lucas S S， De Aguiar J L B. Multifunctional wall coating combining photocatalysis， self⁃cleaning and latent heat storage［J］. Materials Research Express， 2018， 5（2）： 025702.

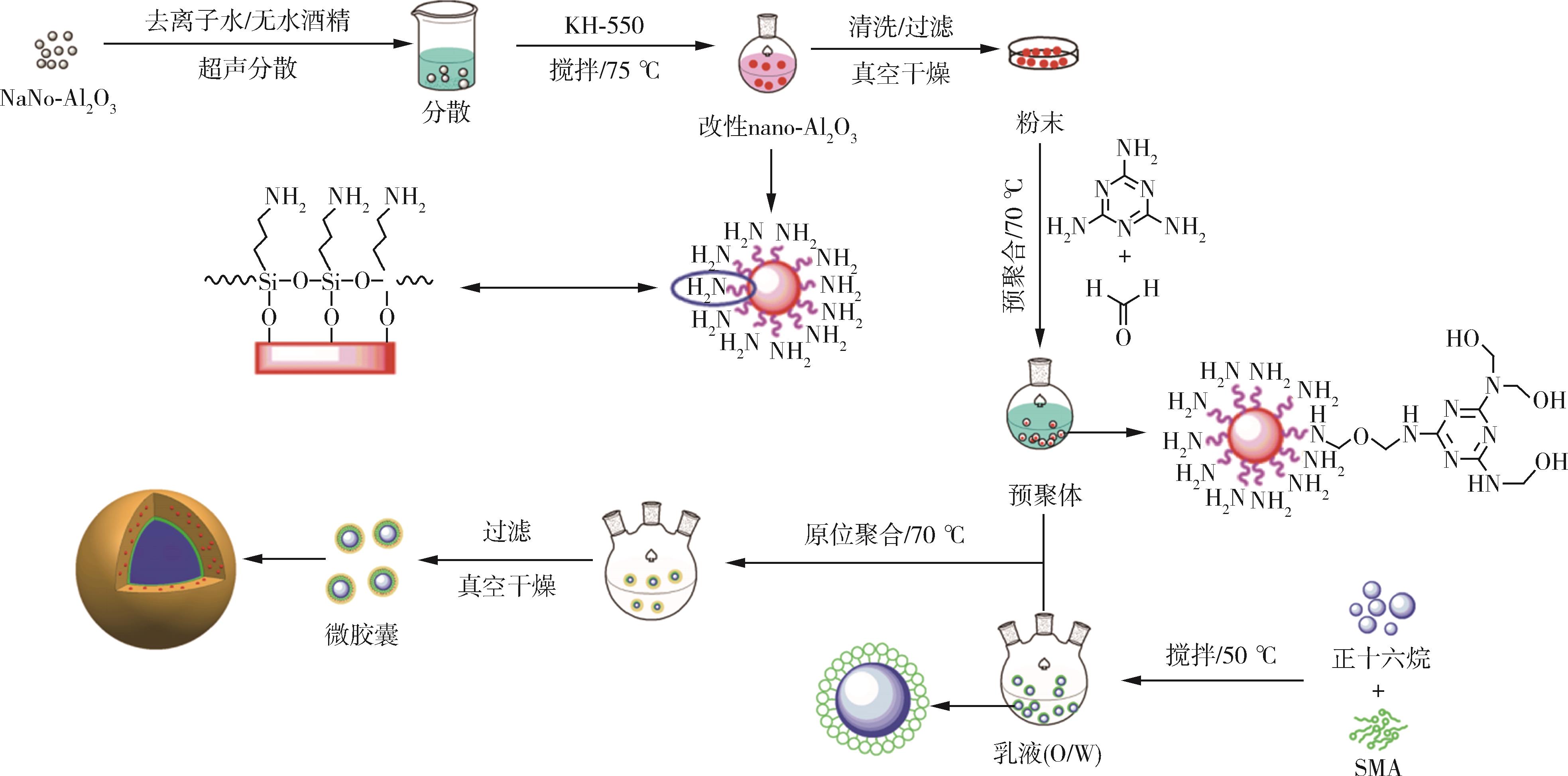

64	Jiang X， Luo R， Peng F， et al. Synthesis， characterization and thermal properties of paraffin microcapsules modified with nano⁃Al₂O₃ ［J］. Applied Energy， 2015， 137（1）：731⁃737.
65	Wei S， Duan Z， Xia Y， et al. Preparation and thermal performances of microencapsulated phase change materials with a nano⁃Al₂O₃⁃doped shell［J］. Journal of Thermal Analysis and Calorimetry， 2019， 138（1）： 233⁃241.
66	Zhou J， Zhao J， Cui Y， et al. Synthesis of bifunctional nanoencapsulated phase change materials with nano⁃TiO₂ modified polyacrylate shell for thermal energy storage and ultraviolet absorption［J］. Polymer International， 2020， 69（2）： 140⁃148.

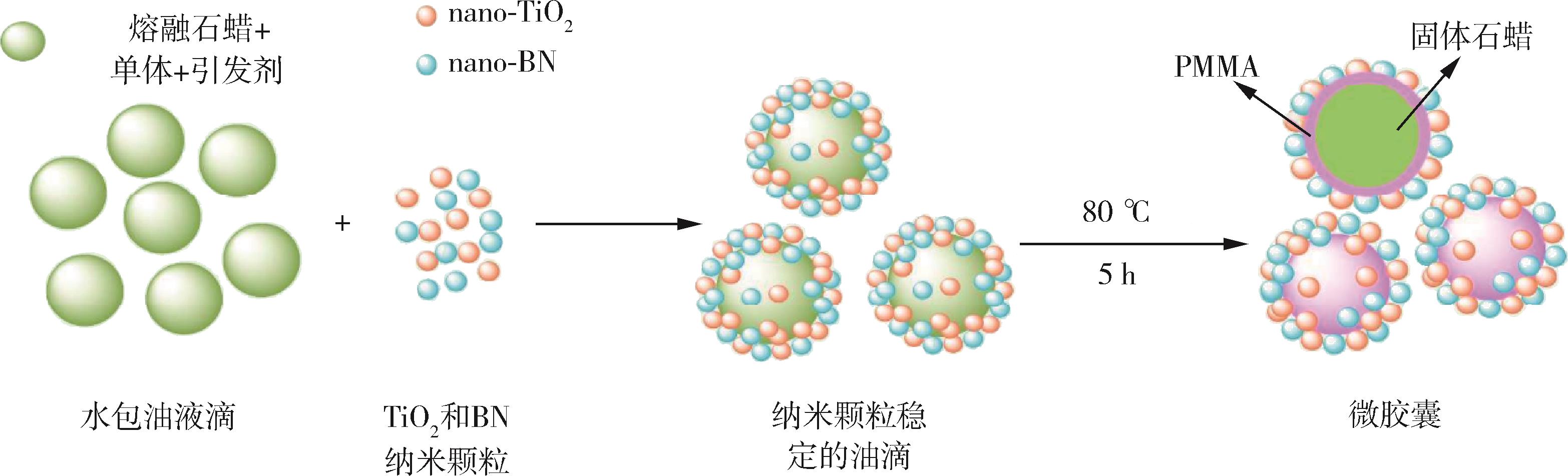

67	Sun N， Xiao Z. Synthesis and performances of phase change materials microcapsules with a polymer/BN/TiO₂ hybrid shell for thermal energy storage［J］. Energy & Fuels， 2017， 31（9）： 10 186⁃10 195.
68	Wang X， Zhang C， Wang K， et al. Highly efficient photothermal conversion capric acid phase change microcapsule： Silicon carbide modified melamine urea formaldehyde［J］. Journal of Colloid and Interface Science， 2021， 582： 30⁃40.
69	Zhang Z， Fang J， Mu J. ZrC nanoparticle‐modified microencapsulated phase change materials with enhanced thermal conductivity and photo‐thermal conversion performance［J］. International Journal of Energy Research， 2020， 44（9）： 7 283⁃7 298.
70	Sun N， Xiao Z. Paraffin wax⁃based phase change microencapsulation embedded with silicon nitride nanoparticles for thermal energy storage［J］. Journal of Materials Science， 2016， 51（18）： 8 550⁃8 561.
71	Wei H， Yang W， He F， et al. Core@ double‐shell structured multifunctional phase change microcapsules based on modified graphene oxide Pickering emulsion［J］. International Journal of Energy Research， 2021， 45（2）： 3 257⁃3 268.

相变储能微胶囊			制备方法	热导率/W·（m·K）^-1	提升率/%	文献
芯材	壁材	属性	制备方法	热导率/W·（m·K）^-1	提升率/%	文献
石蜡	CaCO₃	无机	自组装法	0.846 0	671.43	［18］
石蜡	二氧化硅	无机	界面聚合法	0.701 1	62	［19］
石蜡	MF	有机	原位聚合法	0.111 6	-	［20］
石蜡	UF	有机	原位聚合法	0.223 6	-	［21］
正庚烷	PS	有机	乳液聚合法	0.170 0	-	［22］
正庚烷	CaCO₃	无机	自组装法	1.231 0	368	［23］
正十八烷	PMMA	有机	乳液法	0.192 0	-	［24］
正十八烷	二氧化硅	无机	溶胶⁃凝胶法	0.621 3	313	［25］
正二十烷	TiO₂	无机	乳液模板界面缩聚	0.724 0	350	［26］
正二十烷	二氧化硅	无机	模板法	0.902 0	493	［27］
棕榈酸	氧化铝	无机	溶胶⁃凝胶法	0.530 0	87.94	［28］
油酸⁃聚乙二醇	二氧化硅/氧化锡	无机	原位乳液界面水解和缩聚	0.705 3	282.46	［29］

相变储能微胶囊			制备方法	热导率/W·（m·K）^-1	提升率/%	文献
芯材	壁材	属性	制备方法	热导率/W·（m·K）^-1	提升率/%	文献
石蜡	CaCO₃	无机	自组装法	0.846 0	671.43	［18］
石蜡	二氧化硅	无机	界面聚合法	0.701 1	62	［19］
石蜡	MF	有机	原位聚合法	0.111 6	-	［20］
石蜡	UF	有机	原位聚合法	0.223 6	-	［21］
正庚烷	PS	有机	乳液聚合法	0.170 0	-	［22］
正庚烷	CaCO₃	无机	自组装法	1.231 0	368	［23］
正十八烷	PMMA	有机	乳液法	0.192 0	-	［24］
正十八烷	二氧化硅	无机	溶胶⁃凝胶法	0.621 3	313	［25］
正二十烷	TiO₂	无机	乳液模板界面缩聚	0.724 0	350	［26］
正二十烷	二氧化硅	无机	模板法	0.902 0	493	［27］
棕榈酸	氧化铝	无机	溶胶⁃凝胶法	0.530 0	87.94	［28］
油酸⁃聚乙二醇	二氧化硅/氧化锡	无机	原位乳液界面水解和缩聚	0.705 3	282.46	［29］
