Study on polyvinylidene fluoride/matrix⁃like groups⁃modified graphene composites with high thermal conductivity

doi:10.19491/j.issn.1001-9278.2022.02.007

Abstract

Abstract:

Graphene oxide was modified with vinyl trimethoxysilane containing matrix?like groups， and then functionalized graphene （F?GE） was reduced through a one?pan method. The thermal conductive polyvinylidene fluoride （PVDF）/F?GE composites with excellent interface properties were prepared using a solvent?casting method. The modified state， microstructure， thermal conductivity， and mechanical properties of the obtained composites were investigated using infrared spectrometer， scanning electron microscope， thermal conductivity tester， and electronic tensile testing machine. The results indicated that the dispersibility of the F?GE was enhanced greatly， and its compatibility with the PVDF matrix was improved significantly. The thermal stability， tensile strength， and thermal conductivity of the composites were significantly increased. When the content of F?GE was 20 %， the composite achieved a thermal conductivity 2.08 W/（m·K）， which was 845 % higher than that of pure PVDF ［0.22 W/（m·K）］. However， the PVDF/GE composite only showed an increase in thermal conductivity by 409 %. Meanwhile， the composites maintained good mechanical properties and thermal stability， and their tensile strength reached 112.6 MPa. The composites also exhibited a melting point of 171.3 ℃ and a thermal decomposition temperature of 471 ℃， which were higher than pure PVDF by 5.5 ℃ and 7 ℃， respectively.

Key words: graphene, polyvinylidene fluoride, thermal conductivity, mechanical property, composite material

CLC Number:

TQ325.1⁺2

HE Mingfeng, WANG Ke, WANG Qiyang, YANG Xiao, GUO Hong, HU Boyang, LI Baoan. Study on polyvinylidene fluoride/matrix⁃like groups⁃modified graphene composites with high thermal conductivity[J]. China Plastics, 2022, 36(2): 41-48.

Figures/Tables 11

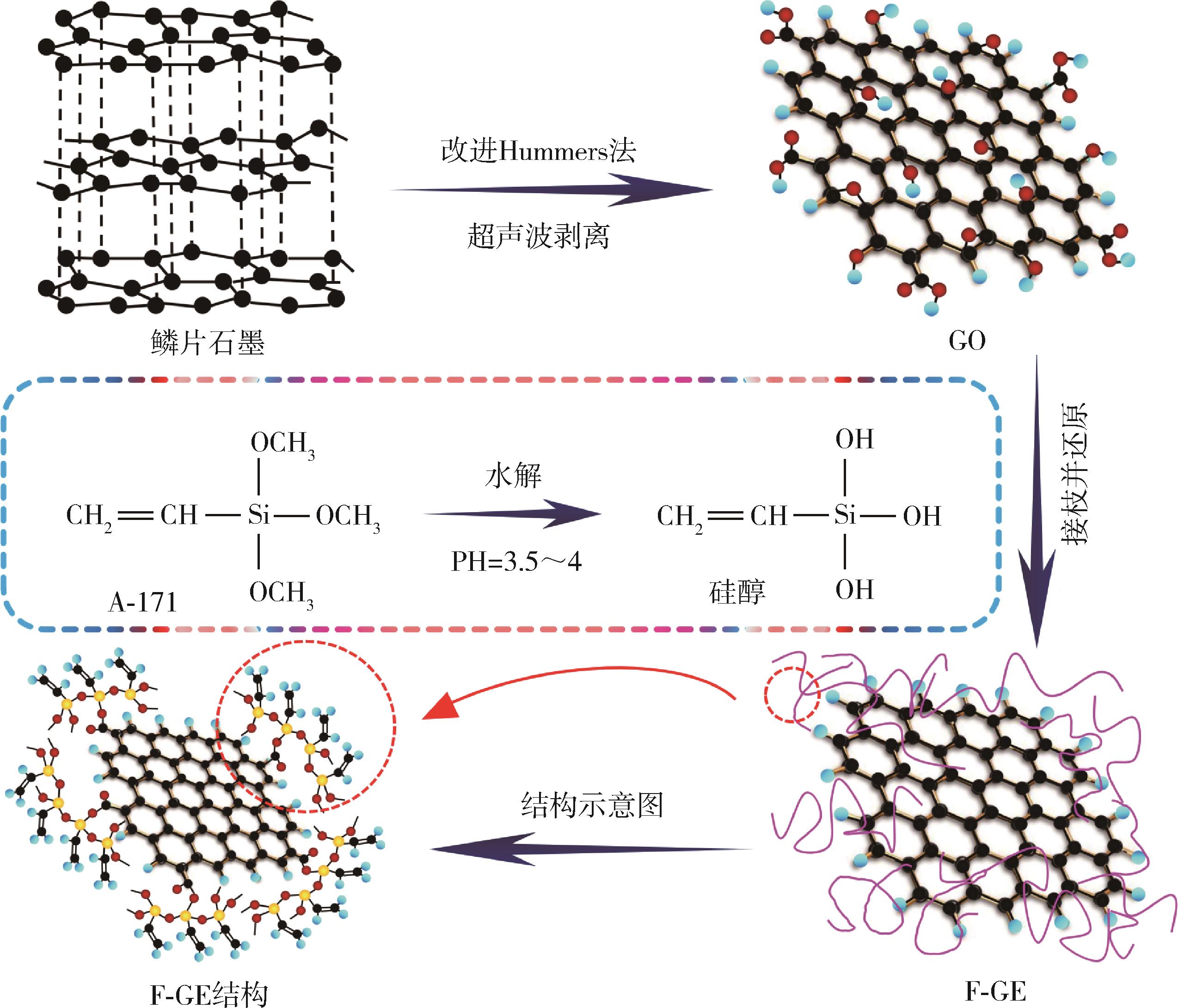

Fig.1. Preparation process of F?GE

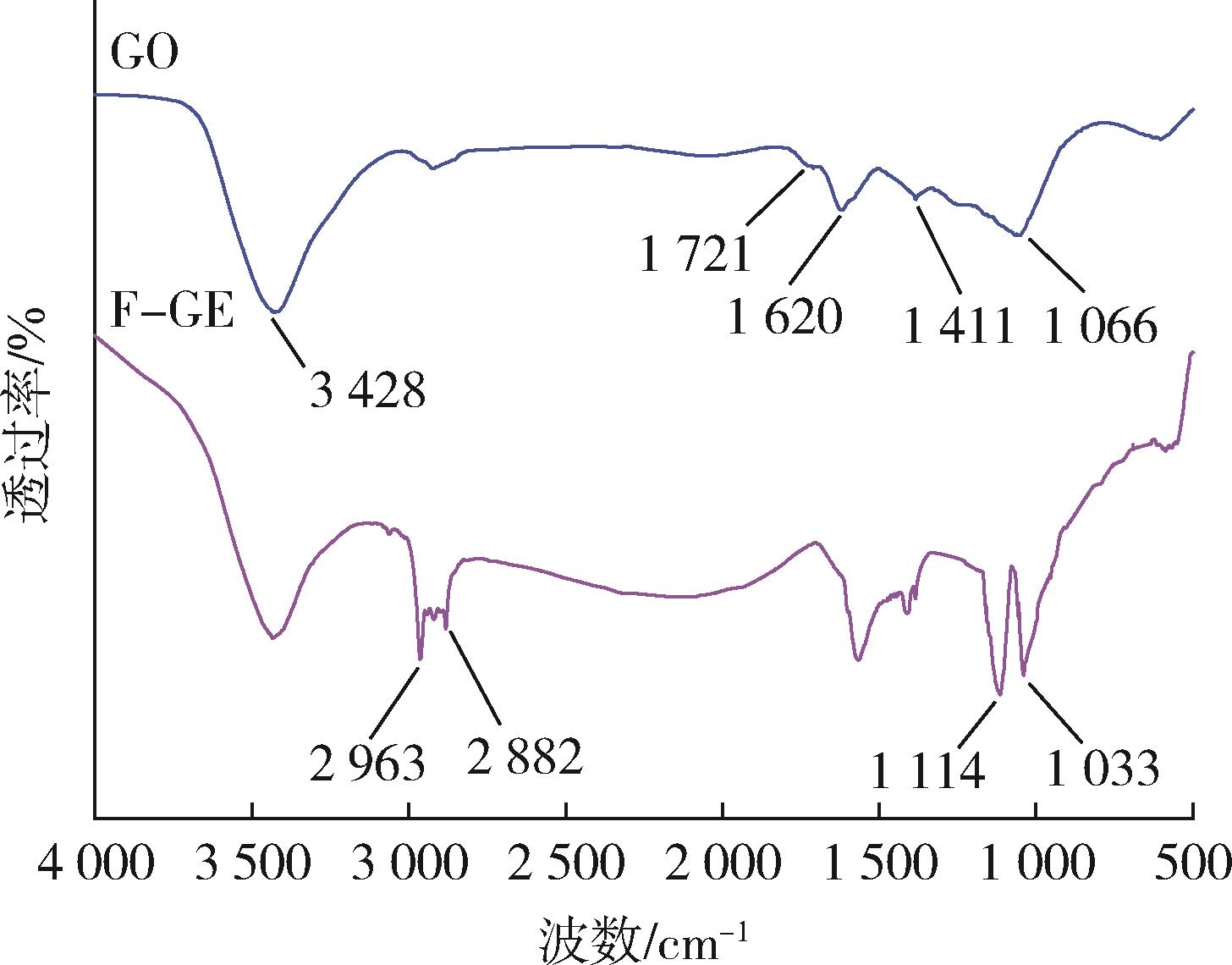

Fig.2. FTIR spectra of GO and F?GE

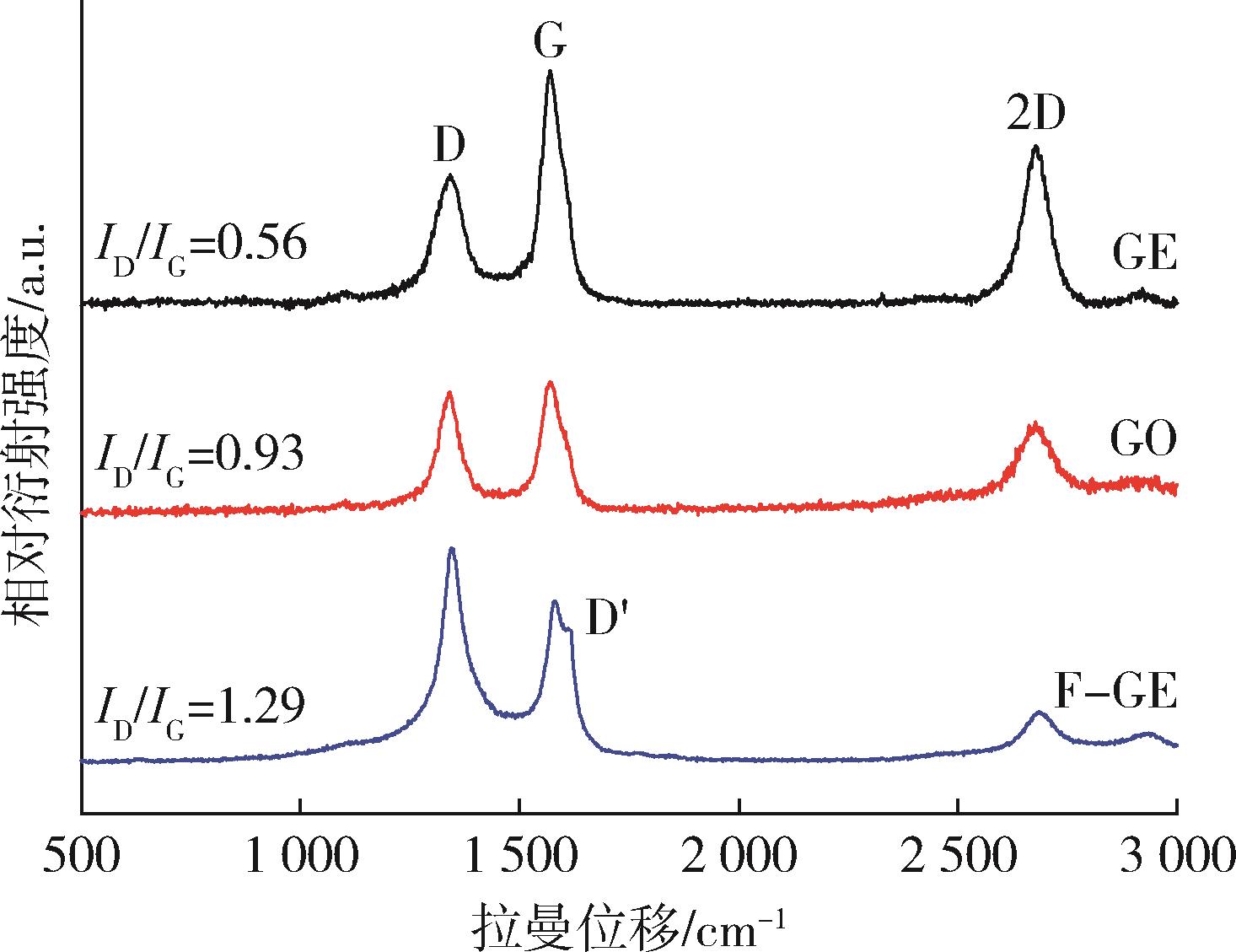

Fig.3. Raman spectra of GE， GO and F?GE

Fig.4. Decentralized state of GE and F?GE

Fig.5. SEM images of the composites

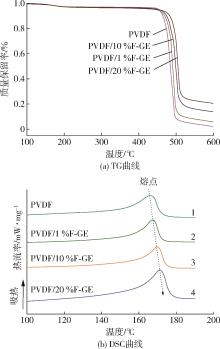

Fig.6. TG curves of the samples

Fig.7. Thermal stability of PVDF/F?GE with different F?GE content

填充材料	填料含量/%	T₅/℃	T₃₀/℃	T/℃
—	—	443.2	476.5	227.0
F⁃GE	1	446.0	486.1	230.3
GE	10	408.8	471.7	218.8
F⁃GE	10	451.1	489.4	232.3
F⁃GE	20	455.3	500.9	236.5

Tab.1. Heat resistance index of PVDF composites

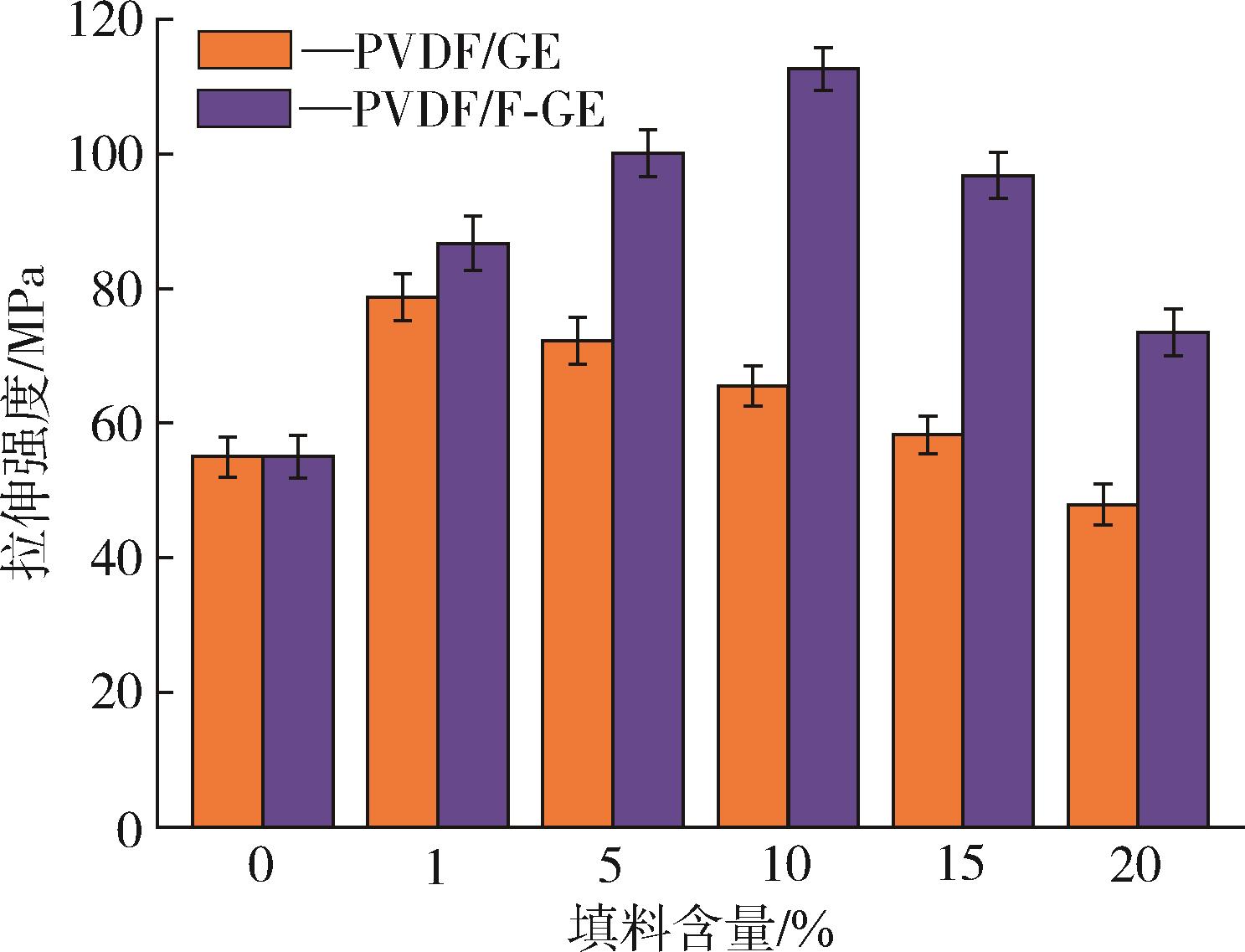

Fig.8. Tensile strength of PVDF composites

Fig.9. Tensile strength enhancement rate of PVDF composites

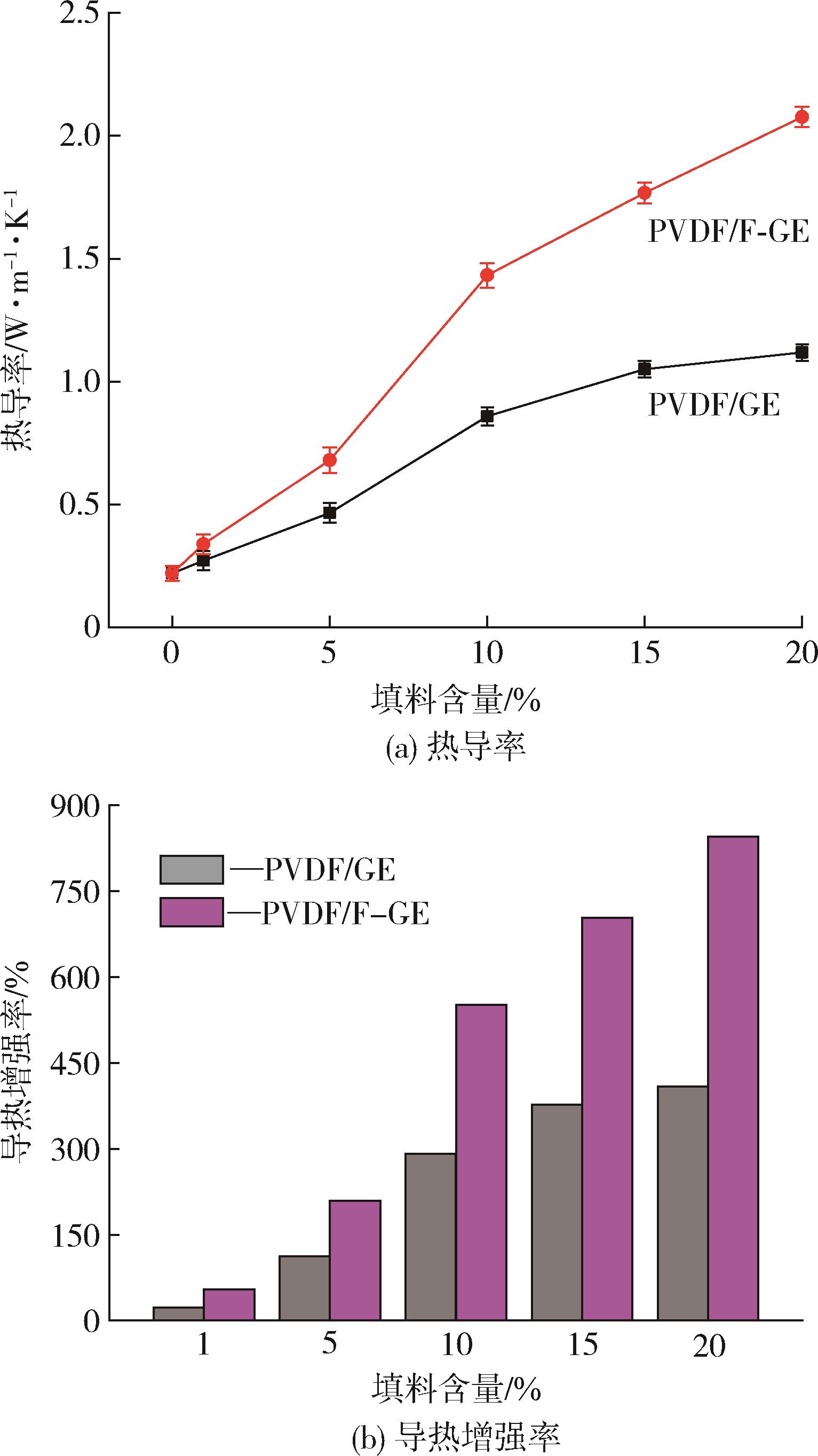

Fig.10. Thermal conductivity of PVDF composites

References 26

1	LEUNG S N . Thermally conductive polymer composites and nanocomposites： processing⁃structure⁃property relationships［J］. Composites Part B： Engineering， 2018， 150：78⁃92.
2	XU X ， ZHOU J ， CHEN J . Thermal transport in conductive polymer–based materials［J］. Advanced Functional Mate⁃rials， 2019， 30：1904704.
3	GUO H ， LIU J ， WANG Q ， et al . High thermal conductive poly（vinylidene fluoride）⁃based composites with well⁃dispersed carbon nanotubes/graphene three⁃dimensional network structure via reduced interfacial thermal resistance［J］. Composites Science and Technology， 2019， 181：107713.
4	HU B ， GUO H ， WANG Q ， et al . Enhanced thermal conductivity by constructing 3D⁃networks in poly（vinylidene fluoride） composites via positively charged hexagonal boron nitride and silica coated carbon nanotubes［J］. Composites Part A： Applied Science and Manufacturing， 2020， 137：106038.
5	GUO H ， LI X ， LI B ， et al . Thermal conductivity of graphene/poly（vinylidene fluoride） nanocomposite membrane［J］. Materials & Design， 2017， 114： 355⁃363.
6	BALANDIN A A ， GHOSH S ， BAO W ， et al . Superior thermal conductivity of single⁃layer grapheme［J］. Nano Letters， 2008， 8（3）：902⁃907.
7	FANG H ， BAI S L ， PING W C . Microstructure engineering of graphene towards highly thermal conductive compo⁃sites［J］. Composites Part A： Applied Science and Manufacturing， 2018， 112：216⁃238.
8	XUE P ， ZHANG H B ， LI X ， et al . Thermally conductive and electrically insulating epoxy nanocomposites with silica⁃coated graphene［J］. RSC Advances， 2014， 4（29）：15 297⁃15 303.
9	KIM H S ， JANGJI⁃UN， LEE H ， et al . Thermal management in polymer composites： a review of physical and structural parameters［J］. Advanced Engineering Materials， 2018， 20（10）：1800204.
10	XU X ， CHEN J ， ZHOU J ， et al . Thermal conductivity of polymers and their nanocomposites［J］. Advanced Materials， 2018， 30：1705544.
11	赵茜，邱东方，王晓燕，等 . 壳聚糖/氧化石墨烯纳米复合材料的形态和力学性能研究［J］.化学学报， 2011， 69：1 259⁃1 263.
	ZHAO Q ， QIU D F ， WANG X Y ，et al . Morphology and mechanical properties of chitosan/graphene oxide nanocompo⁃sites［J］. Acta Chimica Sinica， 2011， 69（10）：1 259⁃1 263.
12	COMPTON O C ， NGUYEN S T . Graphene oxide， highly reduced graphene oxide， and graphene： versatile building blocks for carbon⁃based materials［J］. Small， 2010， 6（6）：711⁃723.
13	YANG X ， LI L ， SHANG S ， et al . Synthesis and characterization of layer⁃aligned poly（vinyl alcohol）/graphene nanocomposites［J］. Polymer， 2010， 51（15）：3 431⁃3 435.
14	GANGULI S ， ROY A K ， ANDERSON D P . Improved thermal conductivity for chemically functionalized exfolia⁃ted graphite/epoxy composites［J］. Carbon， 2008， 46（5）：806⁃817.
15	SONG S ， CAO M ， SHAN H ， et al . Polyhedral oligomeric silsesquioxane functionalized carbon nanotubes for high thermal conductive poly（vinylidene fluoride） composite membrane［J］. Materials & Design， 2018， 156：242⁃251.
16	CAO M ， DU C ， GUO H ， et al . Continuous network of CNTs in poly（vinylidene fluoride） composites with high thermal and mechanical performance for heat exchangers［J］. Composites Science and Technology， 2019， 173：33⁃40.
17	KIM J Y ， LEE J H ， GROSSMAN J C . Thermal transport in functionalized graphene［J］. ACS Nano， 2012， 6：9 050⁃9 057.
18	SHTEIN M ， NADIV R. ， BUZAGLO M ， et al . Thermally conductive graphene⁃polymer composites： size， percolation， and synergy effects［J］. Chemistry of Materials， 2015， 27：2 100⁃2 106.
19	HUMMERS W S ， OFFEMAN R E . Preparation of graphitic oxide［J］. Journal of the American Chemical Socie⁃ty， 1958， 80（6）：1339.
20	TANG L ， DANG J ， HE M ， et al . Preparation and pro⁃perties of cyanate⁃based wave⁃transparent laminated composites reinforced by dopamine/POSS functionalized Kevlar cloth［J］. Composites Science and Technology， 2019， 169：120⁃126.
21	GUO Y ， LYU Z ， YANG X ， et al . Enhanced thermal conductivities and decreased thermal resistances of functionalized boron nitride/polyimide composites［J］. Composites Part B： Engineering， 2019， 164：732⁃739.
22	FERRARI A C ， ROBERTSON J . Interpretation of raman spectra of disordered and amorphous carbon［J］. Phy⁃sical Review B Condensed Matter， 2008， 61（20）：14 095⁃14 107.
23	FERRARI A C ， MEYER J C ， SCARDACI V ， et al . Raman spectrum of graphene and graphene layers［J］. Physical Review Letters， 2006， 97（18）：187401.
24	ZHANG Y C ， BROEKHUIS A A ， STUART M C A ， et al . Cross⁃linking of multiwalled carbon nanotubes with polymeric amines［J］. Macromolecules， 2008， 41：6 141⁃6 146.
25	YANG Y ， XIE X ， WU J ， et al . Multiwalled carbon nanotubes functionalized by hyperbranched poly（urea⁃urethane）s by a one⁃pot polycondensation［J］. Macromolecular Rapid Communications， 2006， 27：1 695⁃1 701.
26	LOURIE O ， WAGNER H D . Transmission electron microscopy observations of fracture of single⁃wall carbon nanotubes under axial tension［J］. Applied Physics Letters， 1998， 73： 3 527⁃3 529.
