Preparation and performance of carboxyl⁃terminated tannic acid/gallic acid⁃based epoxy composite

doi:10.19491/j.issn.1001-9278.2022.07.007

Abstract

Abstract:

A bio?based hyperbranched polymer （CTMTA） and a gallic acid?based epoxy resin （GAER） were prepared through an A₂+B₃ one?step method and a polycondensation reaction， respectively. The GAER/MTHPA/2?MI/CTMTA composites were prepared using a melt blending method. The effects of CTMTA content on the properties of the GAER/MTHPA/2?MI composites were investigated using by FTIR， ¹H?NMR， DSC， SEM， mechanical measurement， and water absorption. The results indicated that the addition of CTMTA improved the mechanical properties and water absorption rate of the composites but reduced their curing temperature. The composites exhibited maximum mechanical properties and water absorption rate at a CTMTA content of 1.5 wt%. Compared to the GAER/MTHPA/2?MI composite system， the GAER/MTHPA/2?MI/CTMTA composites presented an increase in tensile strength， elongation at break， impact strength， and water absorption rate by 33 %， 37 %， 47.6 %， and 45.5 %， respectively. The optimum curing parameter of the GAER/MTHPA/2?MI/CTMTA composite system was determined to be 110 oC/20 min.

Key words: gallic acid?based epoxy resin, tannic acid, mechanical property, curing reaction

CLC Number:

TQ323.5

XU Jie, ZHONG Jinfu, TONG Xiaoqian, LI Guangfu, FU Dongliang, LI Chengcheng. Preparation and performance of carboxyl⁃terminated tannic acid/gallic acid⁃based epoxy composite[J]. China Plastics, 2022, 36(7): 44-50.

Figures/Tables 8

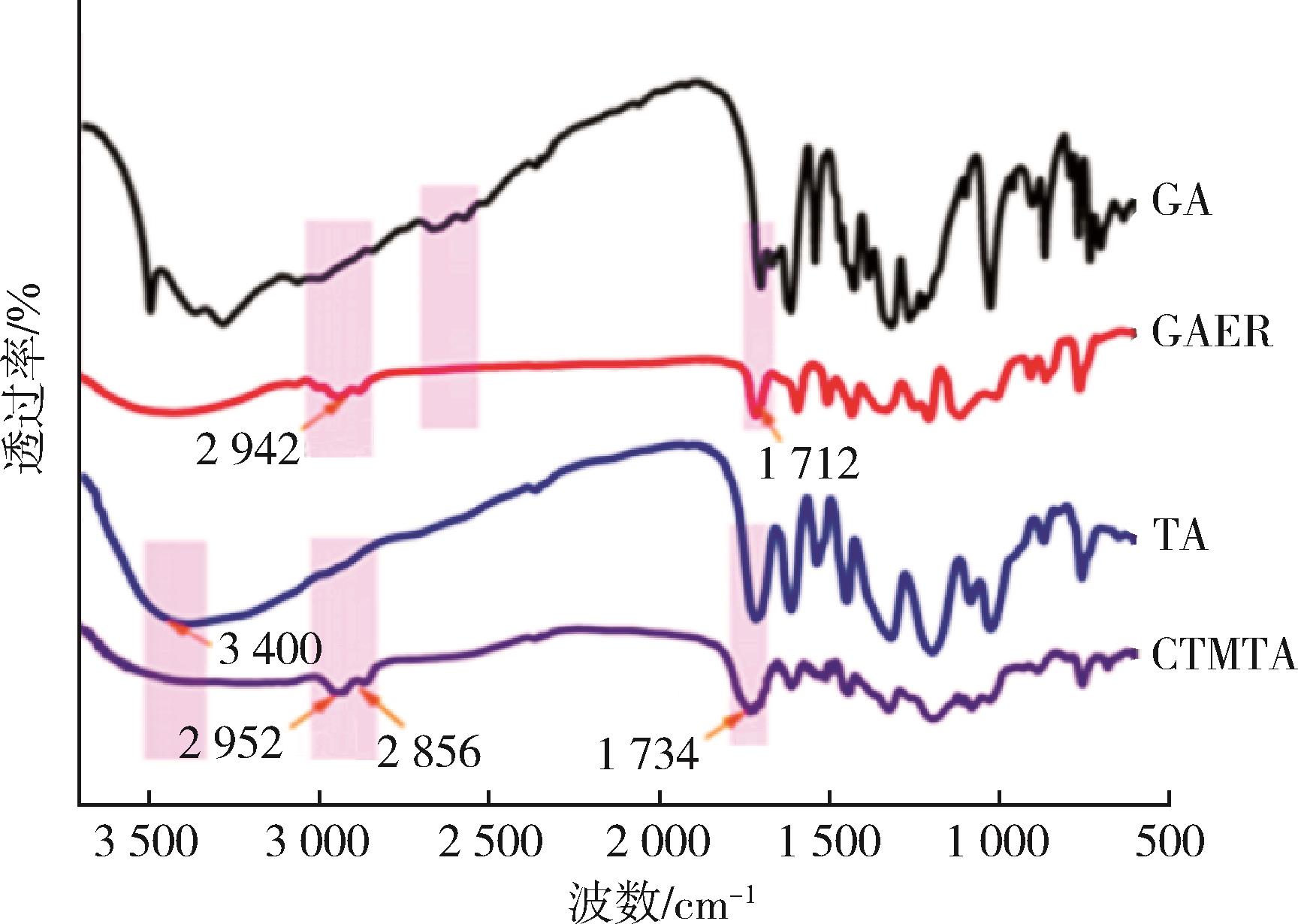

Fig.1. FTIR spectra of TA， CTMTA，GA and GAER

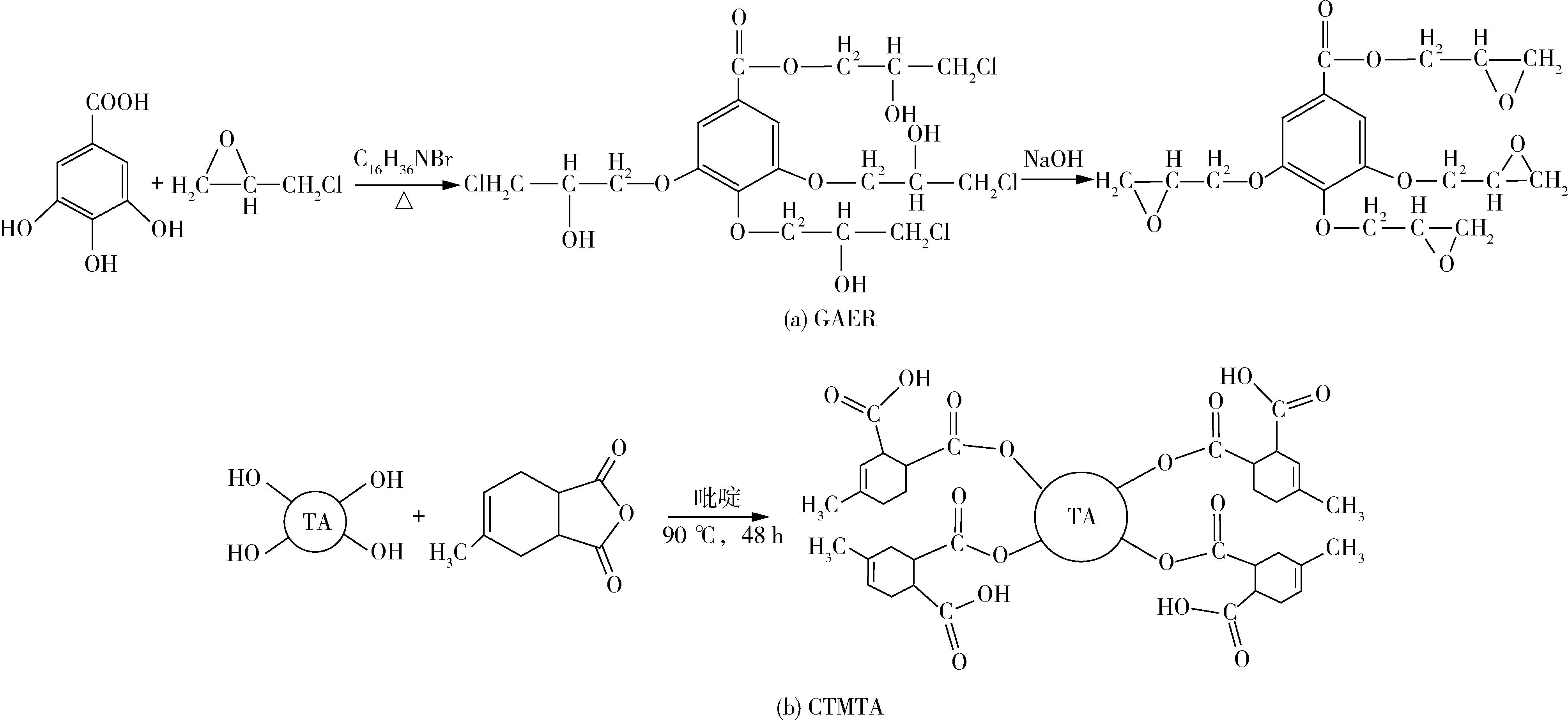

Fig.2. Synthetic route of GAER and CTMTA

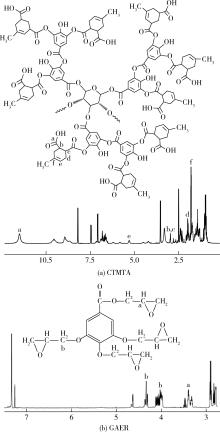

Fig.3. 1H?NMR spectra of CTMTA and GAER

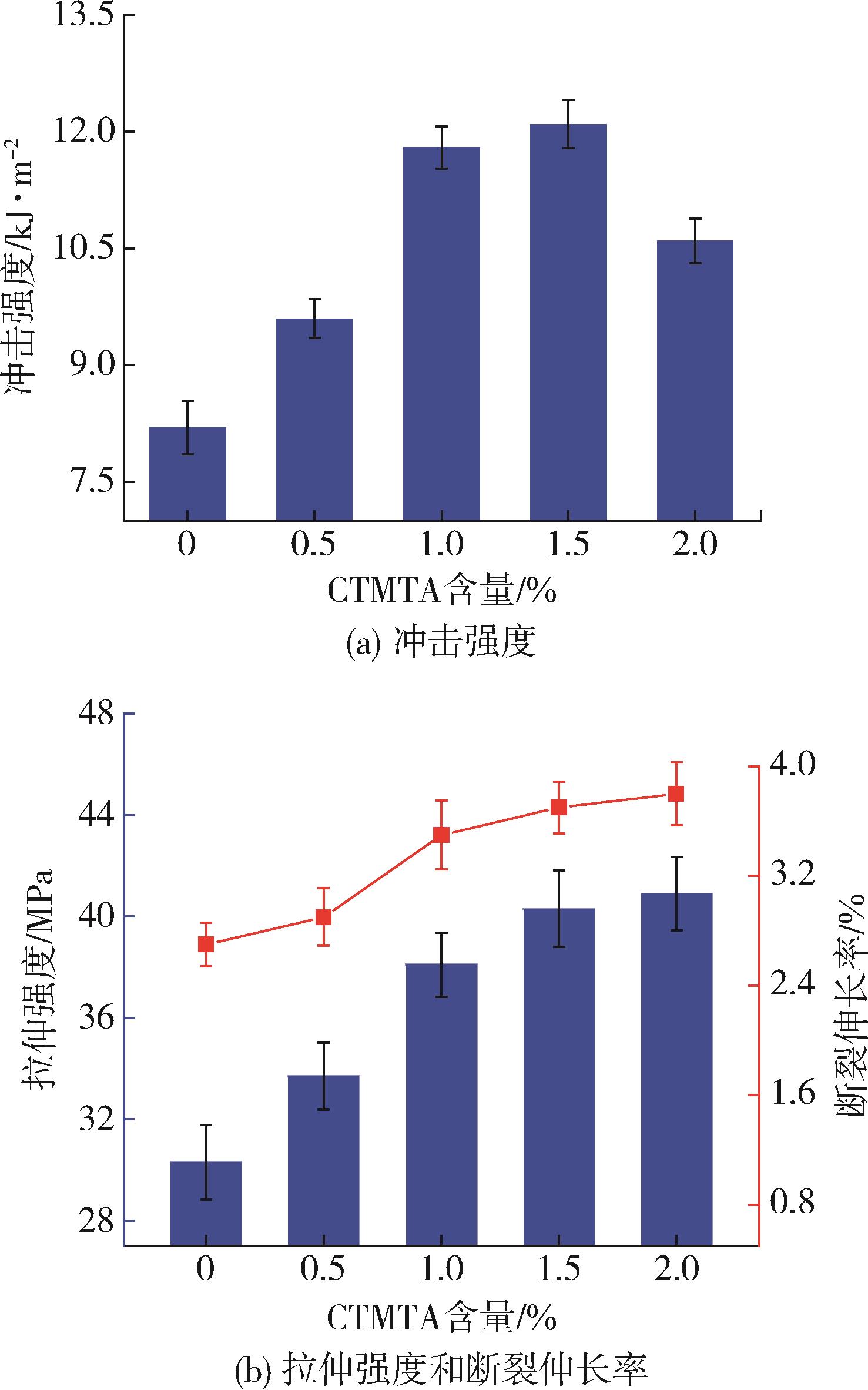

Fig.4. Mechanical properties of GAER/MTHPA/2?MI/CTMTA systems with different CTMTA contents

Fig.5. SEM of impact fracture surfaces of GAER/MTHPA systems modified with different CTMTA contents

Fig.6. DSC curves of curing process of GAER/MTHPA/2?MI and GAER/MTHPA/2?MI/CTMTA composites

β/（℃·min^-1）	T_i /℃	T_p /℃	T_f /℃	1/T_p ·℃^-1	lnβ/℃·min^-1	-ln（β/T_p²）/（ ℃^-1·min^-1）
5	59.4	112.1	180.5	0.008 92	1.609	10.298
10	66.5	125.5	193.7	0.007 97	2.079	9.674
20	72.1	129.6	201.6	0.007 72	2.398	9.289
30	77.3	134.5	224.3	0.007 43	2.639	9.025

Tab.1. DSC parameters of the first exothermic peak of GAER/MTHPA/2?MI/CTMTA system

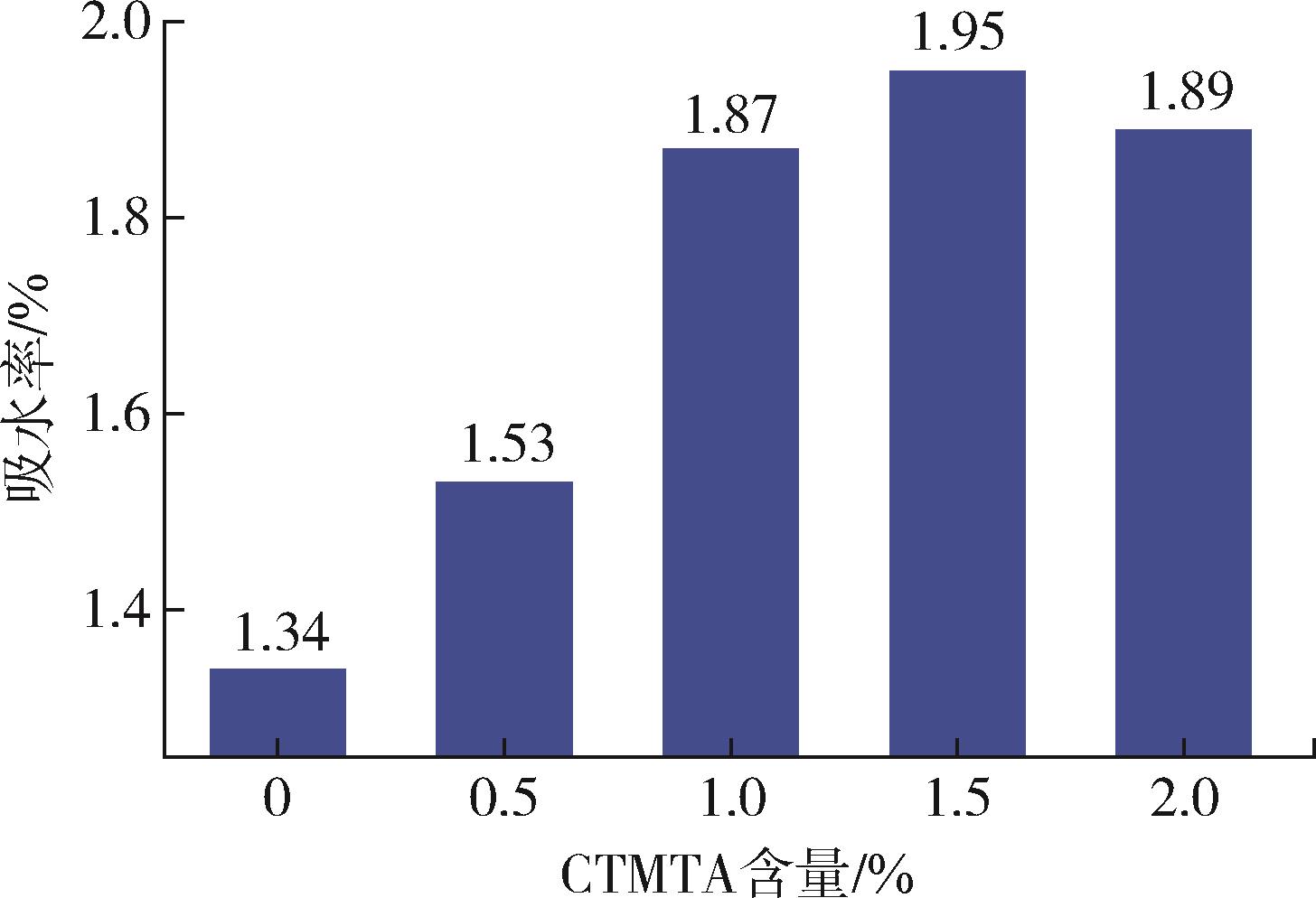

Fig.7. Water absorption of GAER/MTHPA/2?MI/CTMTA systems with different CTMTA contents
