Mechanical and tribological properties of ultra⁃high molecular weight polyethylene/sepiolite fiber composites

doi:10.19491/j.issn.1001-9278.2022.05.004

Abstract

Abstract:

Sepiolite fibers （Sep） were modified with a silane?coupling agent （KH550）， and the ultra?high molecular weight polyethylene （PE?UHMW）/Sep and PE?UHMW/modified Sep （O?Sep） composites were prepared on a flat vulcanizer using a hot?pressing method. The surface structure of Sep and O?Sep and the mechanical and tribological properties of the composites were investigated using an infrared spectrometer， an electronic universal testing machine， and a scanning electron microscope. The results indicated that the KH550 molecules covered the surface of O?Sep， resulting in a uniform distribution of O?Sep in the composites. When the content of O?Sep fibers reached 6 wt%， the composites exhibited the optimal performance with tensile strength of 32.1 MPa， flexural strength of 171.2 MPa， flexural modulus of 138.3 GPa， and impact strength of 17.62 kJ/mm²， which were 41.4 %， 40.0 %， 95.6 %， and 36.9 % higher than those of pure PE?UHMW， respectively. The composites also revealed a friction factor of 0.124 and a wear amount of 0.1 mg， which were 77.1 % and 80 % higher than those of pure PE?UHMW， respectively.

Key words: ultra?high molecular weight polyethylene, sepiolite fiber, composite, mechanical property, tribological behavior

CLC Number:

TQ325.1⁺2

WANG Ke, LONG Chunguang. Mechanical and tribological properties of ultra⁃high molecular weight polyethylene/sepiolite fiber composites[J]. China Plastics, 2022, 36(5): 19-23.

Figures/Tables 6

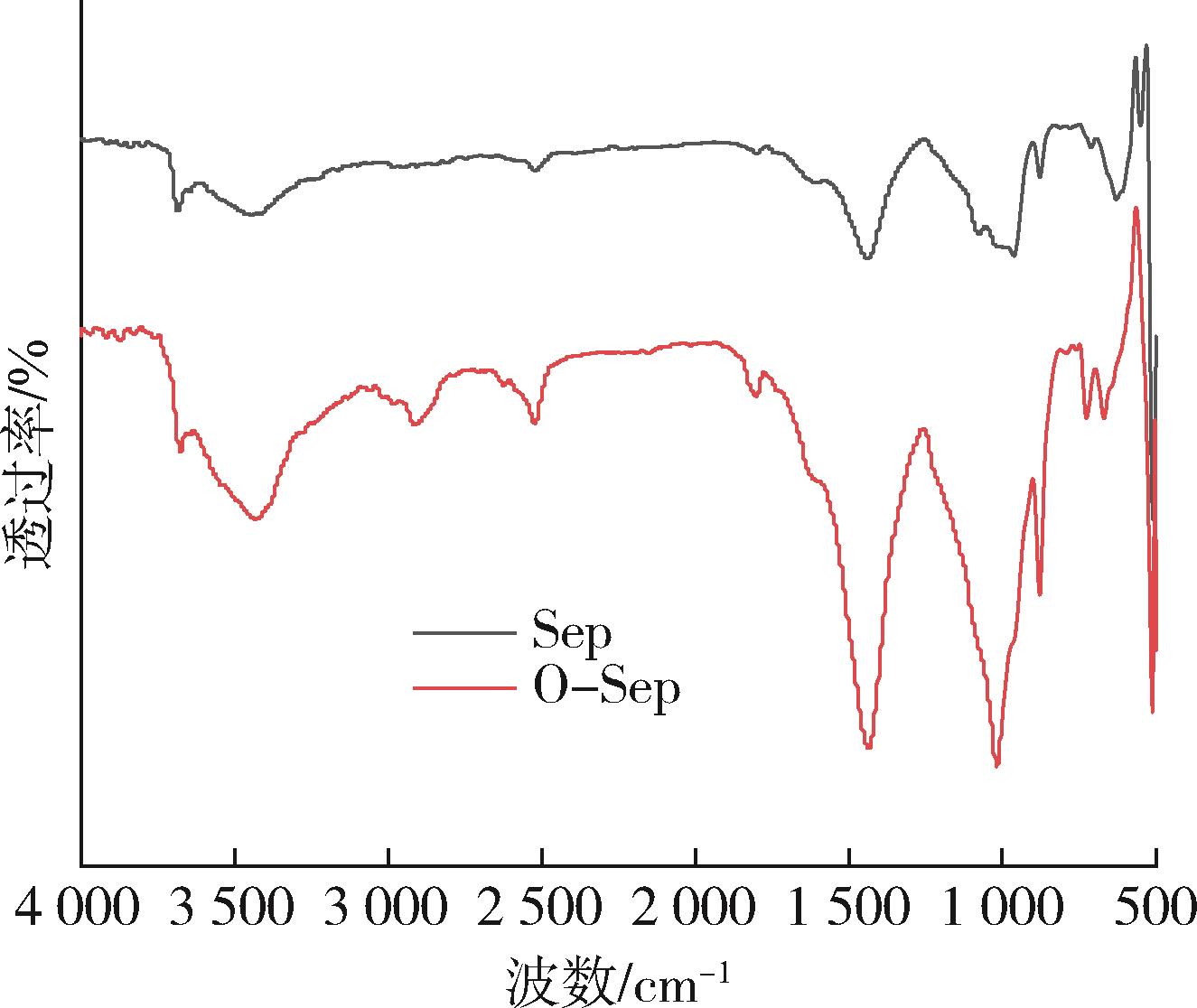

Fig.1. FTIR spectra of the samples

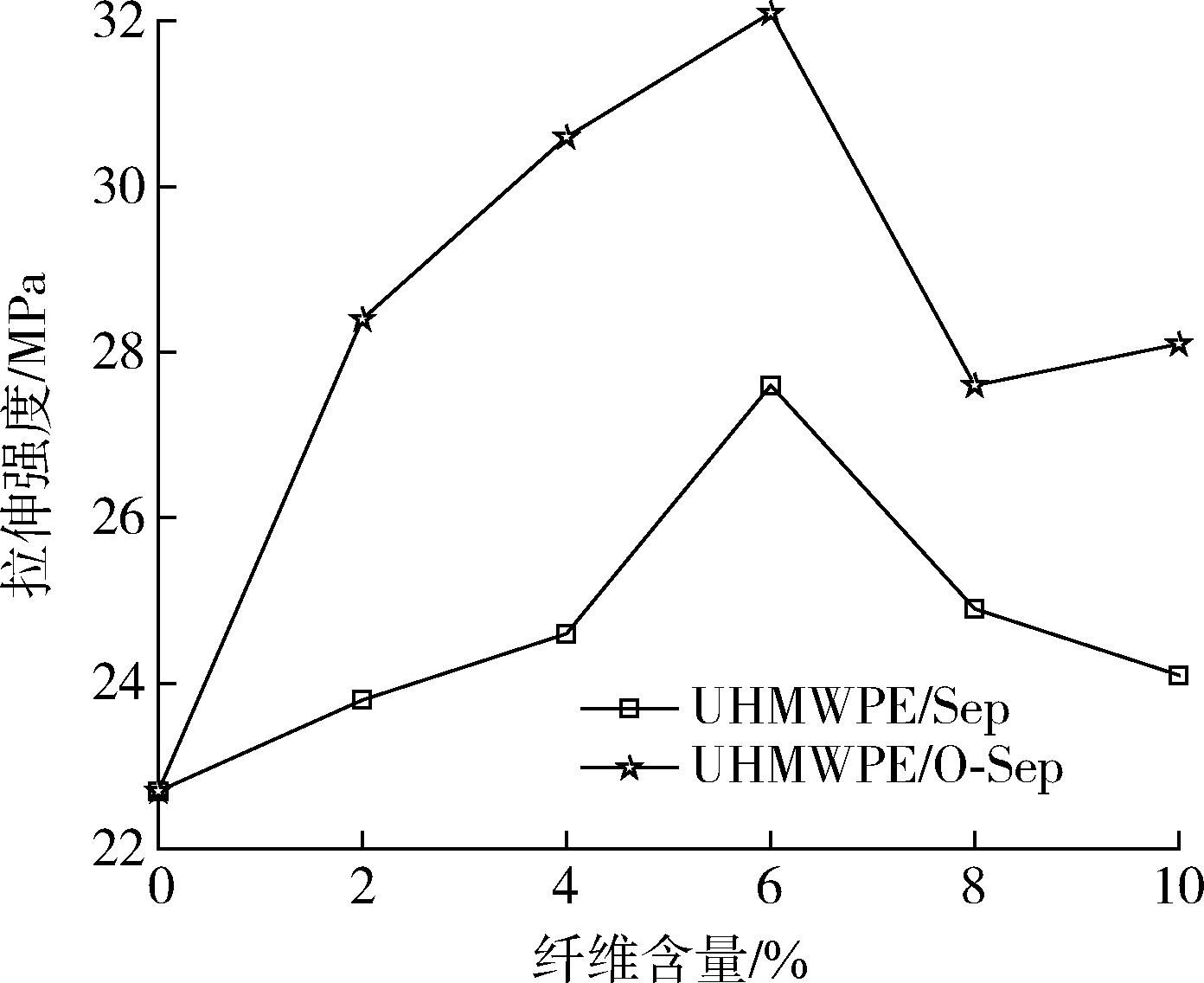

Fig.2. Tensile property of the samples

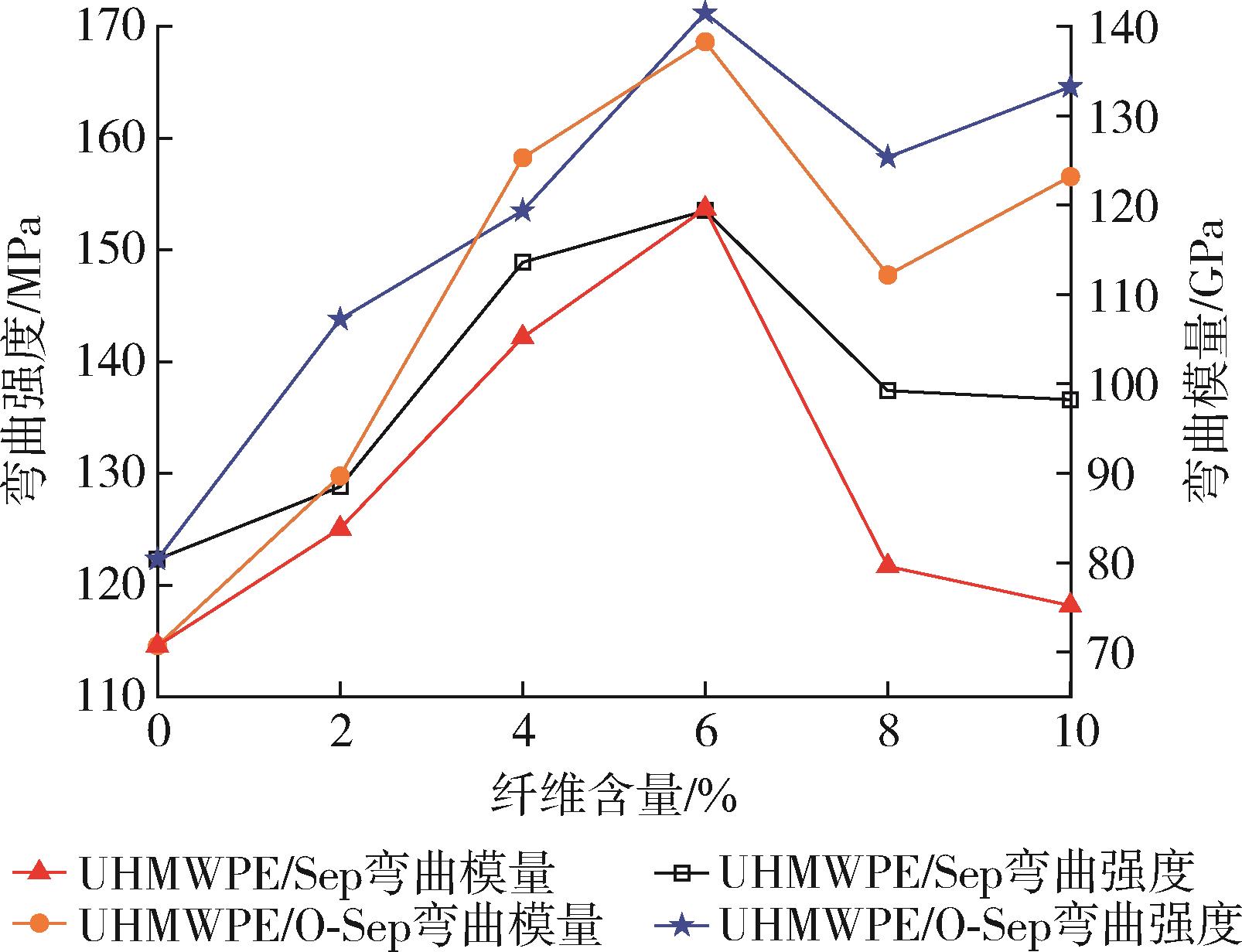

Fig.3. Bending properties of the samples

Fig.4. Impact property of the samples

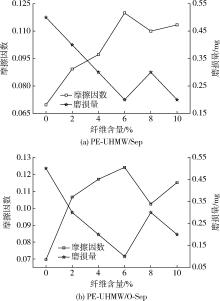

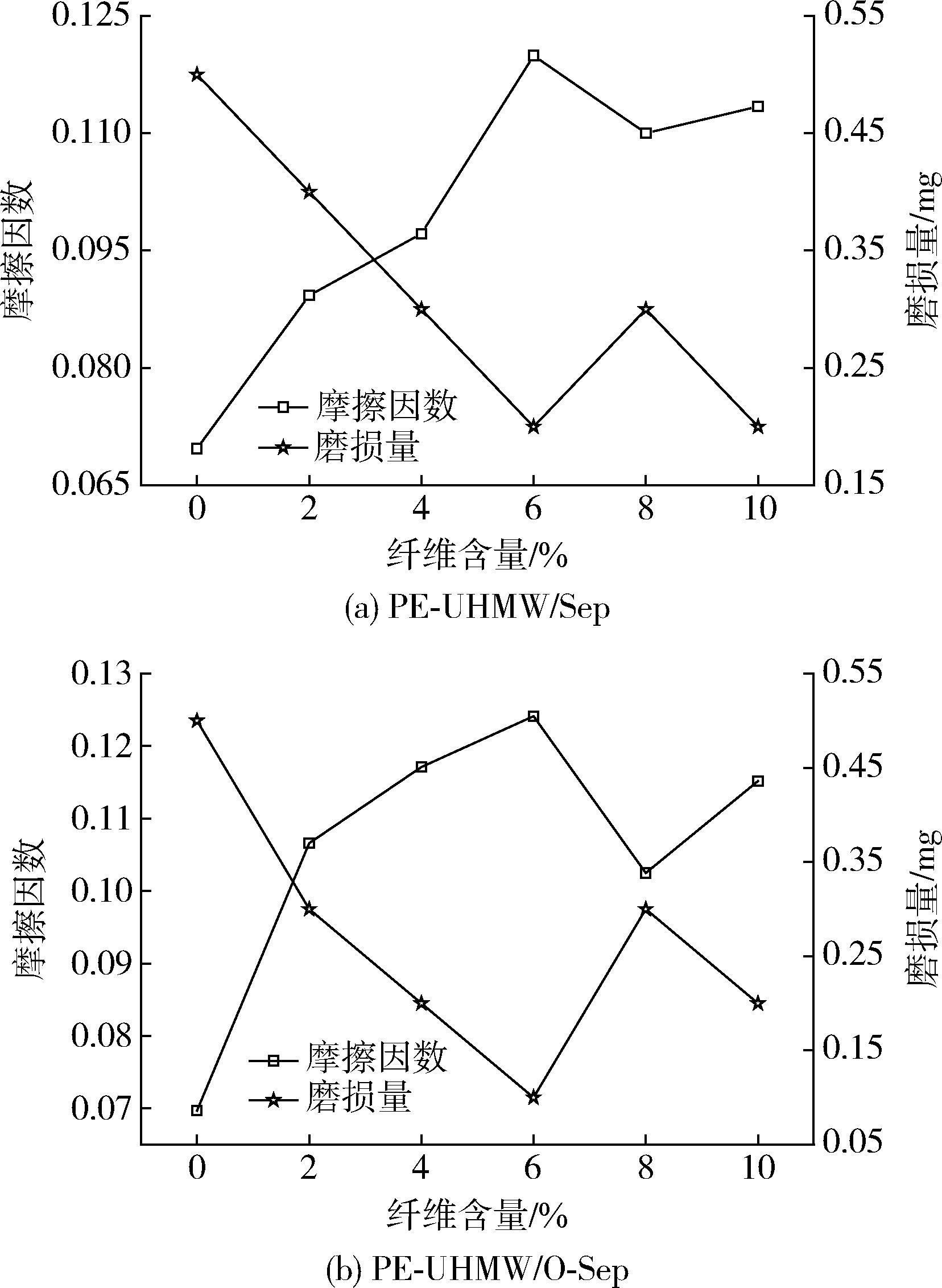

Fig.5. Tribological properties of the samples

Fig.6. SEM images of wear surface of PE?UHMW and its composites

References 17

1	张恒，王李波，高誉鹏，等. 纳米改性增强超高分子量聚乙烯复合材料研究进展［J］. 材料导报， 2016， 30（5）：7.
	ZHANG H， WANG L B， GAO Y P，et al.Research progress of nano⁃modified ultra⁃high molecular weight polyethyle⁃ne composites［J］. Materials Review， 2016， 30（5）：7.
2	史铁军，冯建平，谭晓霞. 超高分子量聚乙烯/短玻璃纤维复合材料力学特性和断裂形态分析［J］. 高分子材料科学与工程， 1997，13（4）：69⁃72.
	SHI T J， FENG J P， TAN X X. Mechanical properties and fracture morphology of ultra high molecular weight polyethy⁃lene/short glass fibre composties［J］. Polymeric Materials Science & Engineering， 1997，13（4）：69⁃72.
3	JIN T， MA Y H， MAN J. Effects of the wollastonite fiber modification on the sliding wear behavior of the UHMWPE composites［J］. Wear， 2003，255（1/6）：734⁃741.
4	GOGOLEVA O V， PETROVA P N， POPOV S N， et al. Wear⁃resistant composite materials based on ultrahigh molecular weight polyethylene and basalt fibers［J］. Journal of Friction and Wear， 2015，36（4）：301⁃305.
5	KIYOHIRO T， OTSUKA R. Dehydration mechanism of bound water in sepiolite［J］. Thermochimica Acta， 1989，147（1）：127⁃138.
6	谢治明. 海泡石复合水处理剂的研制及其处理染料废水性能研究［D］. 湘潭：湘潭大学，2007.
7	YAVAS B H， TANRIVER N， BENLI B， et al. In situ polymerization of sepiolite modified polysulfone［J］. Procedia⁃Social and Behavioral Sciences， 2015，195：2 006⁃2 009.
8	GAROFALO E， D’ARIENZO L， SCARFATO P， et al. Copolyamide/sepiolite nanocomposites with enhanced stiffness and toughness［J］. AIP Conference Proceedings， 2016， 1 736（1）： 020154.
9	OLIVATO J B， MARINI J， POLLET E， et al. Elaboration，morphology and properties of starch/polyester nano⁃biocomposites based on sepiolite clay［J］. Carbohydrate Polymers， 2015，118：250.
10	ZHANG W， WANG Y， YAN P， et al. Preparation and characterization of copper powder/fibrous sepiolite/fluororubber composites［J］. New Chemical Materials， 2015，43（10）：82⁃84.
11	ZHENG F， MI Q H， ZHANG K， et al. Synthesis and characterization of poly（propylenecarbonate）/modified sepiolite nanocomposites［J］. Polymer Composites， 2016，37（1）：21⁃27.
12	AHRNETLI G， DEVECI H， SOYDAL U， et al. Coating，mechanical and thermal properties of epoxy toluene oligomer modified epoxy resin/sepiolite composites［J］. Progress in Organic Coatings， 2012，75（1/2）：97⁃105.
13	FUKUSHIMA K， TABUANI D， CAMINO G. Nanocomposites of PLA and PCL based on montmorillonite and sepiolite［J］. Materials Science & Engineering C，2009，29（4）：1 433⁃1 441.
14	付扬威，龙春光，董佩冉. 聚甲醛/海泡石纤维复合材料的制备与性能研究［J］. 中国塑料，2019，33（2）：24⁃28.
	FU Y W， LONG C G， DONG P R. Study of preparation and properties of POM/sepiolite fiber composites［J］. China Plastics，2019，33（2）：24⁃28.
15	LU H Z， YI D L， CHEN H X， et al. The influence of clay⁃like sepiolite on the structure and properties of polyurethaneurea/sepiolite nanocomposites［J］. Advanced Materials Research， 2012， 399/401：486⁃492.
16	ABDELMOULEH M， BOUFI S， BELGACEM M N， et al. Modification of cellulosic fibres with functionalised silanes： development of surface properties［J］. International Journal of Adhesion and Adhesives， 2004， 24（1）： 43⁃54.
17	叶素娟，范清，禹权. 钛酸钾晶须填充超高分子量聚乙烯复合材料的性能研究［J］. 塑料， 2008，37（6）：5⁃8.
	YE S J， FAN Q， YU Q. Properties of the PTW filled UHMWPE composites［J］. Plastics， 2008，37（6）：5⁃8.
