Preparation and performance of epoxy resin modified with mercaptan polysiloxane

doi:10.19491/j.issn.1001-9278.2022.07.004

Abstract

Abstract:

In this article， a series of polysiloxane epoxy composites were prepared through physical mixing and chemical modification methods using epoxy resin （E51） as a base material， amino?terminated polyoxypropylene （D?230） as a curing agent， and mercaptan polysiloxane （PMMS） as a modifier. The chemical structure of the cured epoxy resins were characterized using attenuated total reflection infrared spectroscope and X?ray diffractometer， and their mechanical properties， thermal stability and anti?corrosion performance were investigated through tensile and impact tests， scanning electron microscopy， contact angle measurement， dynamic thermomechanical analysis， and neutral salt spray test. The results indicated that the cured epoxy resins exhibited better comprehensive properties that the conventional epoxy resin. The cured epoxy resins containing 1 wt% PMMS obtained tensile strength of 74.63 MPa， which was 13.5 % higher than that before modification. Compared to neat pure E51， the polysiloxane epoxy resins showed an increase in elongation at break by 40.2 % and in impact strength by 43.7 %. The contact angle of the cured epoxy resins increased from 72.8 ° to 100.3 °， their surface energy decreased from 39.4 J/m² to 17.4 J/m²， their water absorption rate decreased by 44 %， and their water resistance was enhanced greatly. In addition， their anti?corrosion performance and T_g were also improved.

Key words: mercapto, polysiloxane, epoxy resin, mechanical property, water resistance, corrosion resistance

CLC Number:

TQ323.5

TAN Liqin, LIU Weiqu, LIANG Liyan, WANG Shuo, FENG Zhiqiang, LIN Jiaming. Preparation and performance of epoxy resin modified with mercaptan polysiloxane[J]. China Plastics, 2022, 36(7): 21-29.

Figures/Tables 11

Fig.1. Preparation route of the cured polysiloxane epoxy resin

样品编号	E51 含量	D230 含量	PMMS 含量	SO 含量	DMAP 含量
E51	25	7.78	0	0	0
E51⁃D⁃PMMS⁃1 %	25	7.78	0.25	0	0.01
E51⁃D⁃PMMS⁃3 %	25	7.78	0.75	0	0.03
E51⁃D⁃PMMS⁃5 %	25	7.78	1.25	0	0.05
E51⁃D⁃PMMS⁃7 %	25	7.78	1.75	0	0.07
E51⁃SO⁃1 %	25	7.78	0	0.25	0
E51⁃PMMS⁃1 %	25	7.78	0.25	0	0

Tab.1. Feeding ratio of the cured polysiloxane epoxy resin

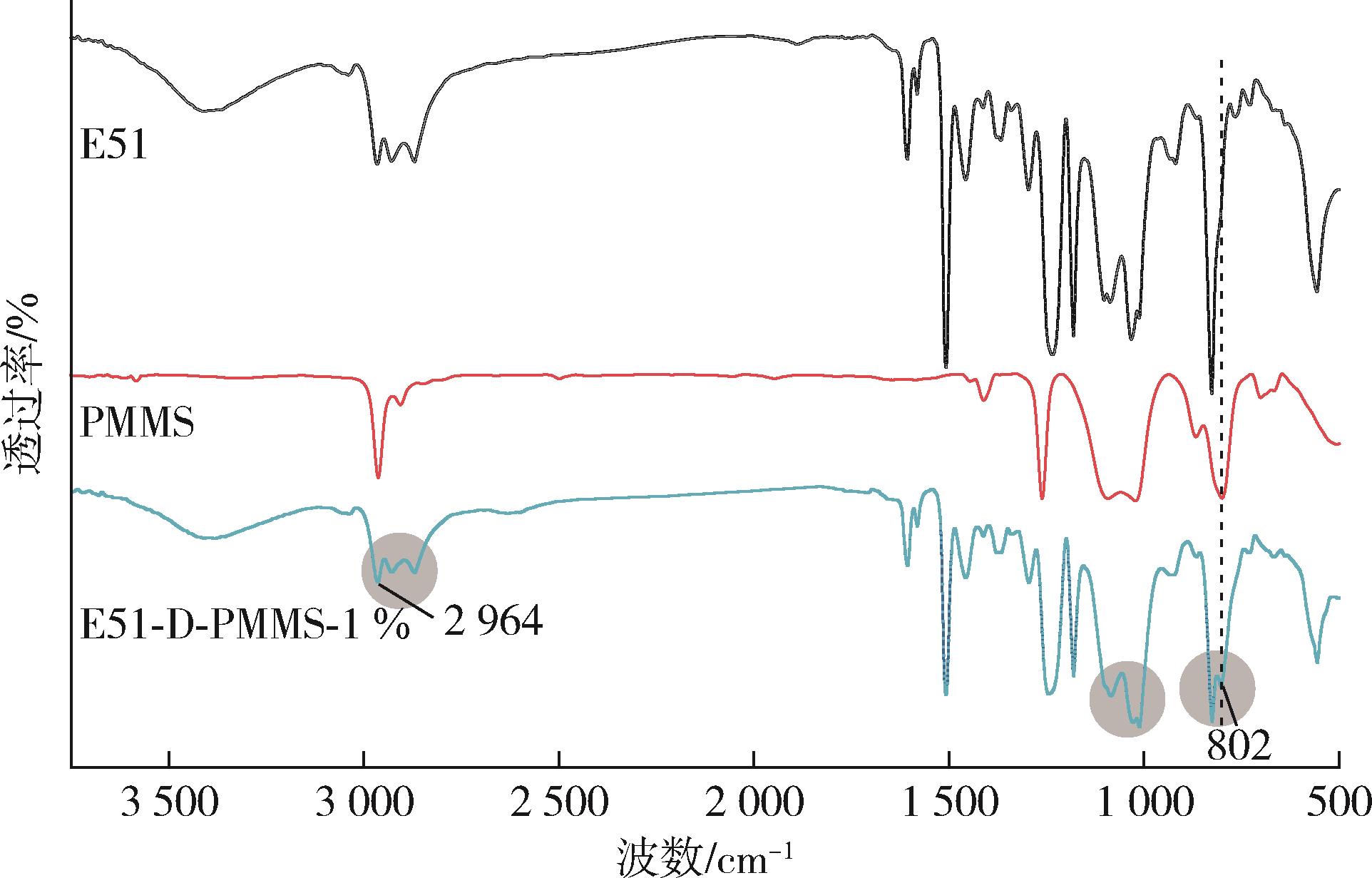

Fig.2. FTIR spectra of neat cured E51， PMMS and E51?D?PMMS?1 %

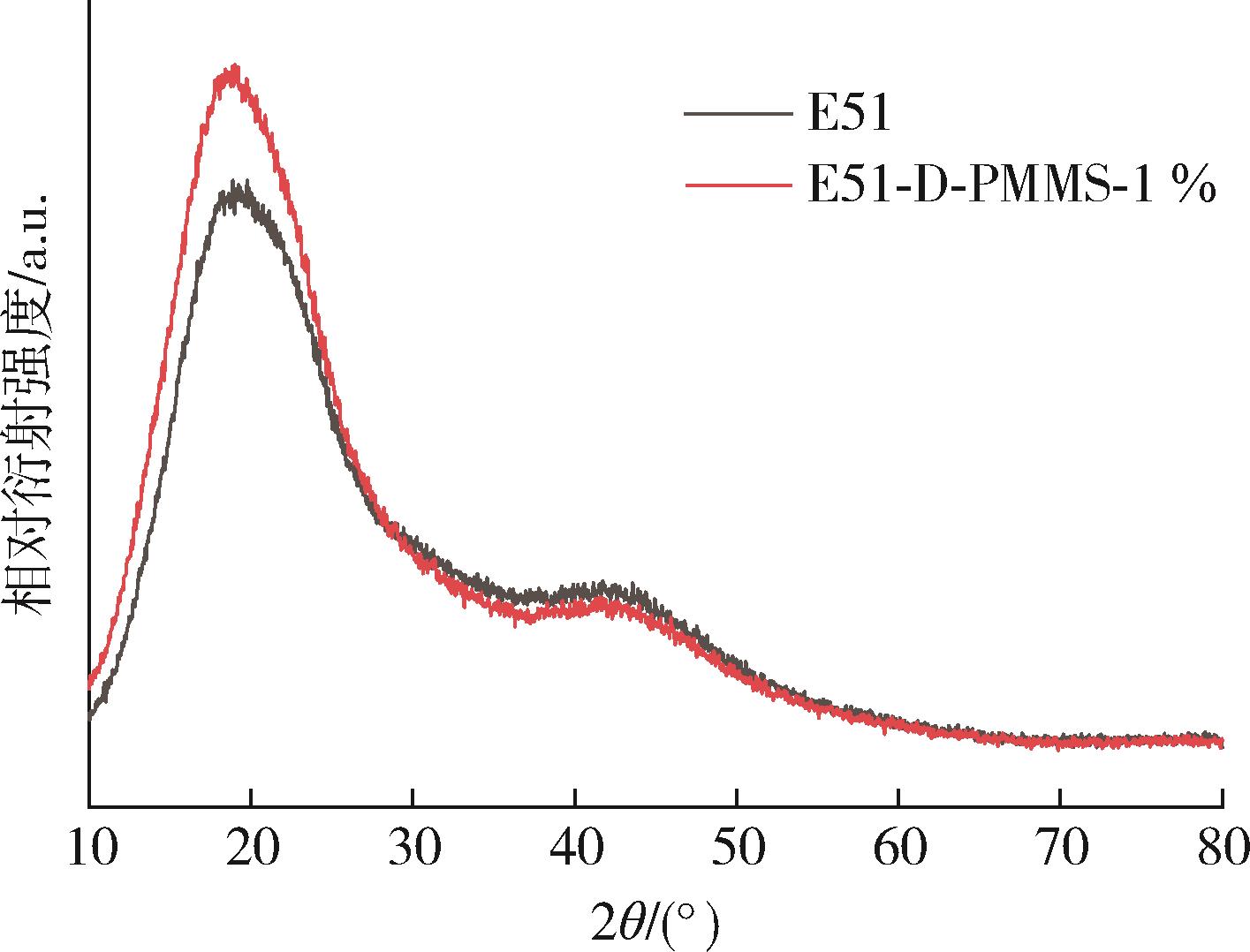

Fig.3. XRD patterns of neat cured E51 and E51?D?PMMS?1 %

Fig.4. Mechanical properties of the cured polysiloxane epoxy resin

Fig.5. SEM of fracture surface of the cured polysiloxane epoxy resin

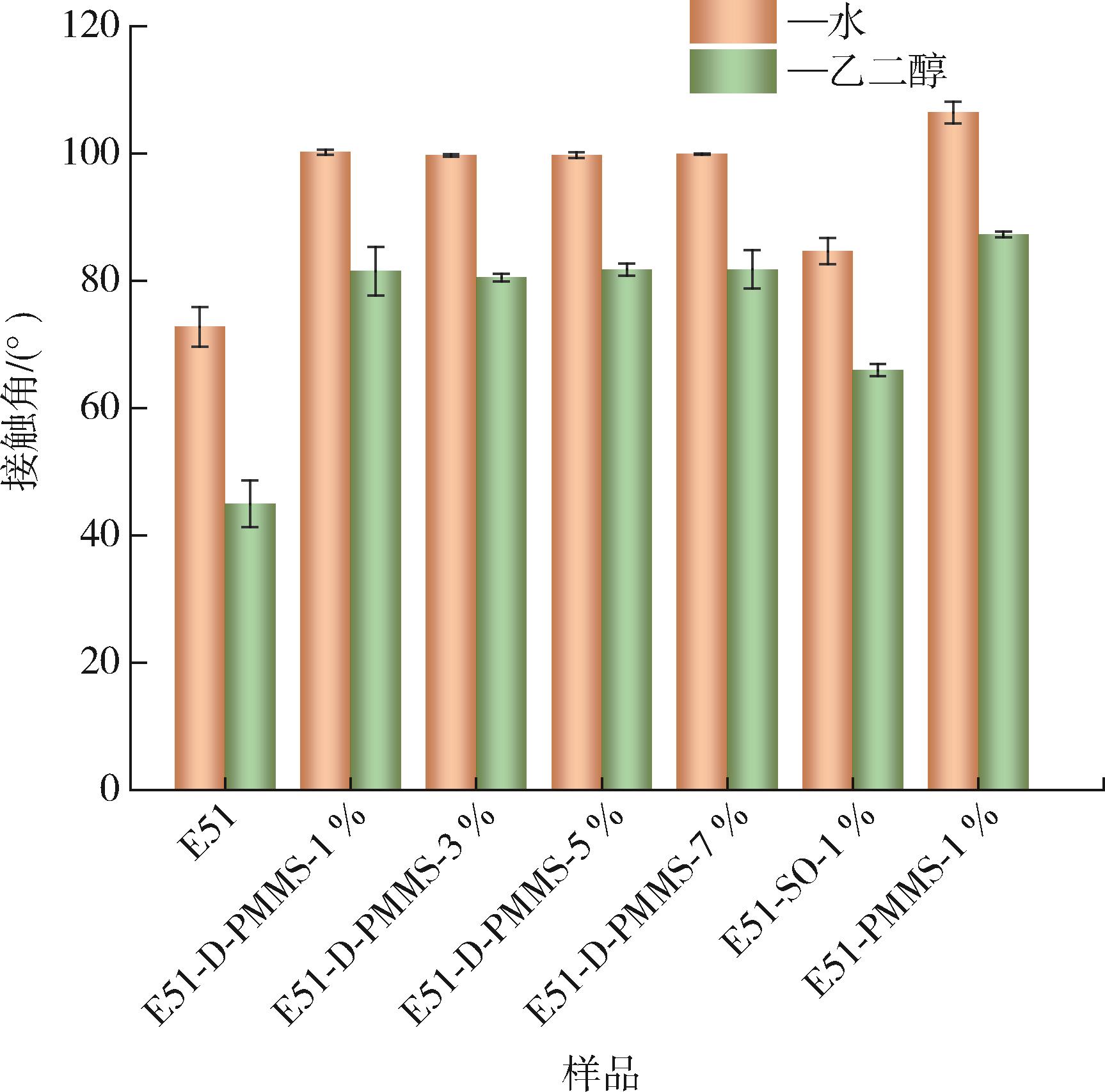

Fig.6. Water contact angle and ethylene glycol contact angle of the cured polysiloxane epoxy resin

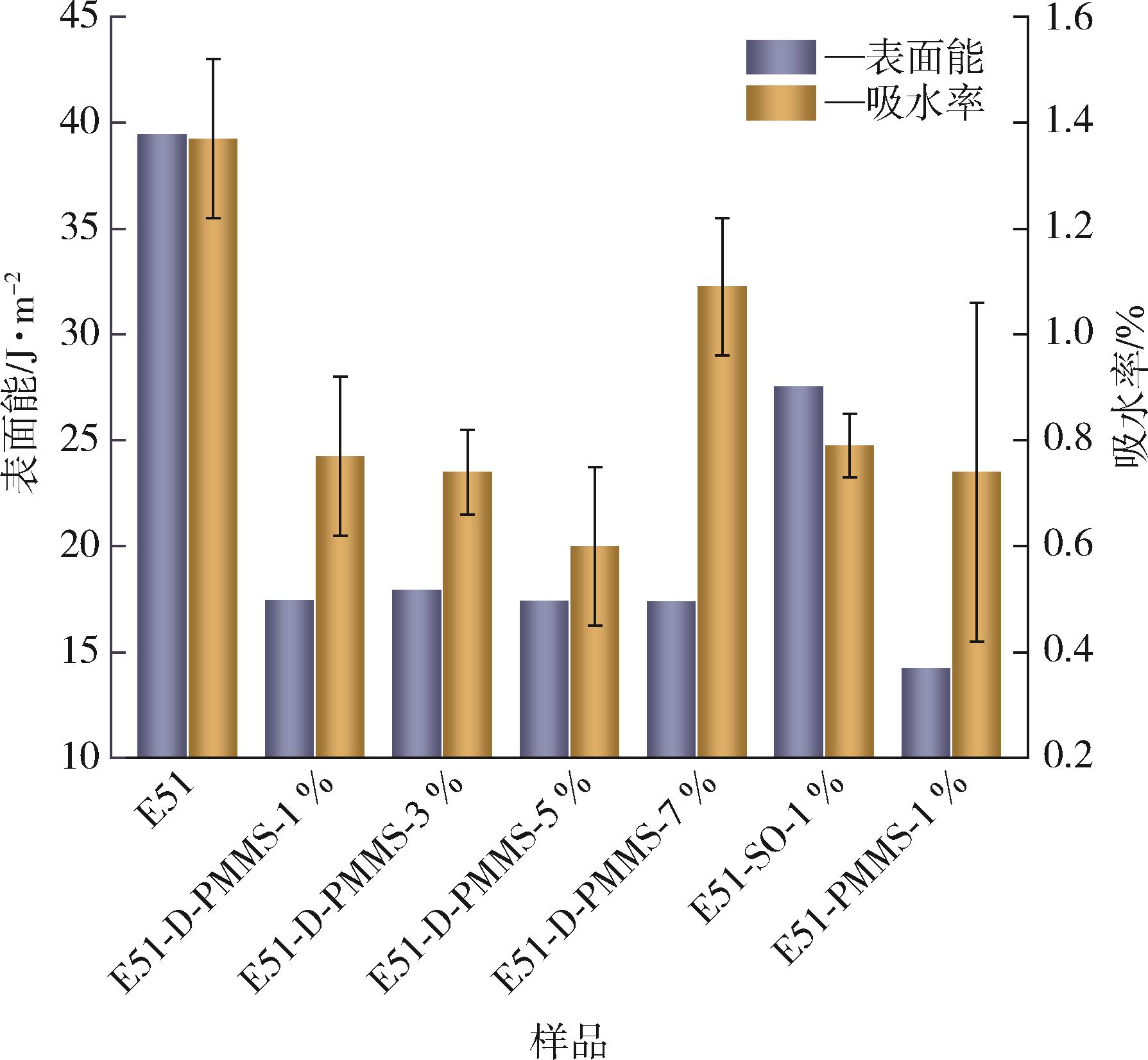

Fig.7. Surface energy and water absorption of the cured polysiloxane epoxy resin

Fig.8. 900 h salt spray test of the cured polysiloxane epoxy resin

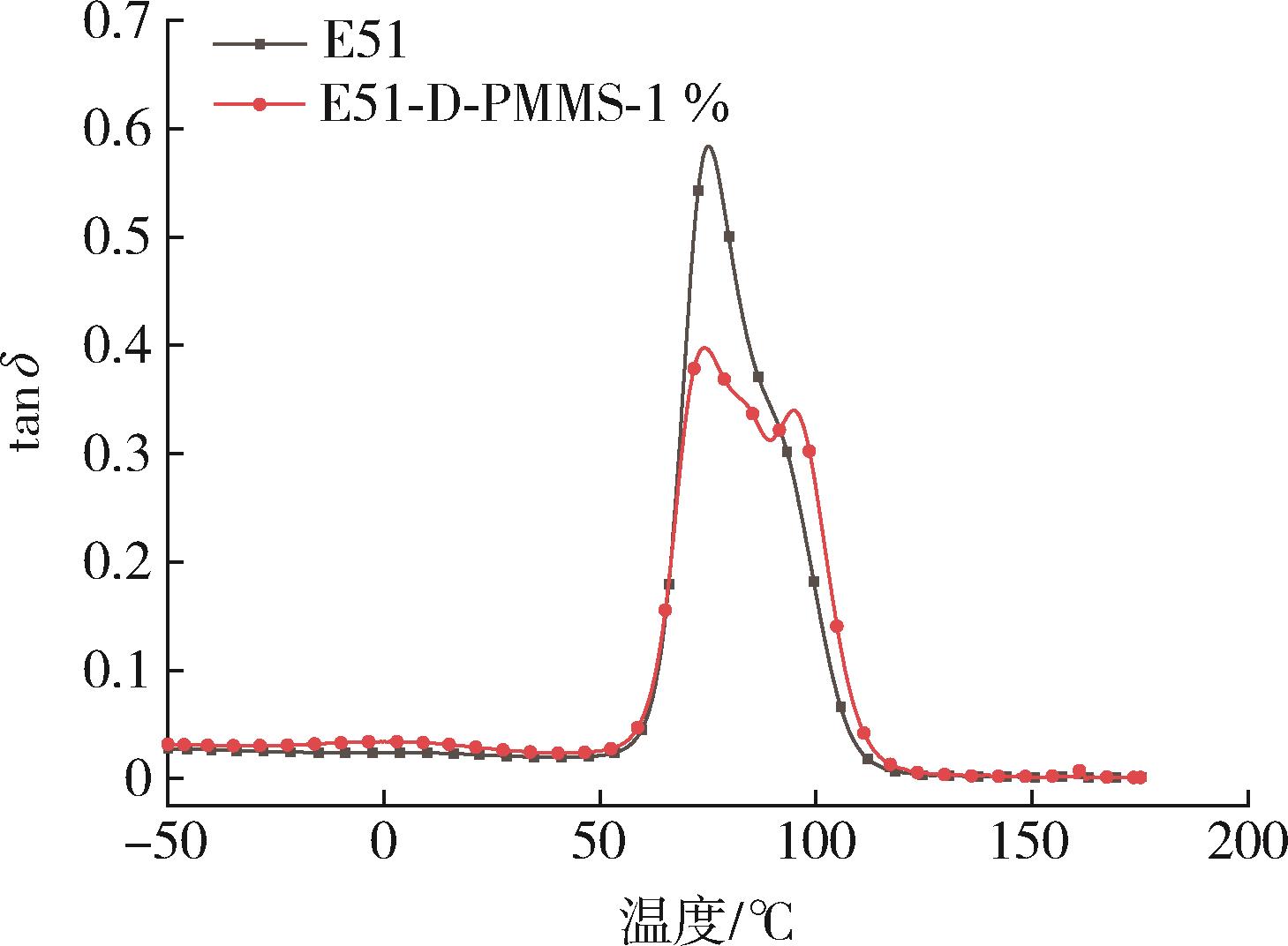

Fig.9. tan δ of neat cured E51 and E51?D?PMMS?1 % composites

样品	T_g /℃	储能模量/MPa
样品	T_g /℃	-50 ℃	25 ℃
E51	75.0	3 326	2 702
E51⁃D⁃PMMS⁃1 %	74.6、94.3	3 922	2 924

Tab.2. DMA data of neat cured E51 and E51?D?PMMS?1 %

References 29

1	Capricho Jaworski C， Bronwyn Fox， Nishar Hameed. Multifunctionality in epoxy resins［J］. Polymer Reviews， 2020， 60（1）： 1⁃41.
2	Liu Xiaofeng， Xiao Yanfang， Xi Luo， et al. Flame⁃retardant multifunctional epoxy resin with high performances［J］. Chemical Engineering Journal， 2021， 427： 132031.
3	Hallad Shankar A， Banapurmath N R， Yunus Khan T M， et al. Statistical analysis of polymer nanocomposites for mechanical properties［J］. Molecules， 2021， 26（14）： 4 135.
4	Luo Jintian， Yang Shurui， Lei Luoqi， et al. Toughening， synergistic fire retardation and water resistance of polydimethylsiloxane grafted graphene oxide to epoxy nanocomposites with trace phosphorus［J］. Composites Part A⁃Applied Science and Manufacturing， 2017， 100： 275⁃284.
5	Vincent Sebastian Joseph， Theo Calais， Thileepan Stalin， et al. Silicone/epoxy hybrid resins with tunable mechanical and interfacial properties for additive manufacture of soft robots［J］. Applied Materials Today， 2021， 22： 100979.
6	Wang Yongqiang， Zhuo Zeng， Huang Ziye， et al. Preparation and characteristics of silicone⁃modified aging⁃resistant epoxy resin insulation material［J］. Journal of Materials Science， 2022， 57： 3 295⁃3 308.
7	Kasemura T， Takahashi S， Nishihara K， et al. Surface modification of epoxy resin with telechelic silicone［J］. Polymer， 1993， 34： 3 416⁃3 420.
8	Mitsukazu Ochi， Shinzi Shimaoka. Phase structure and toughness of silicone⁃modified epoxy resin with added silicone graft copolymer［J］. Polymer， 1999， 40（5）： 1 305⁃1 312.
9	Yu Zhouhui， Cui Aiyong， Zhao Peizhong， et al. Preparation and properties studies of UV⁃curable silicone modified epoxy resin composite system［J］. Journal of Applied Biomaterials & Functional Materials， 2018， 16（1）： 170⁃176.
10	Xiong Gang， Peng Kang， Zhang Jiancheng， et al. Improved adhesion， heat resistance， anticorrosion properties of epoxy resins/POSS/methyl phenyl silicone coatings［J］. Progress in Organic Coatings， 2019， 135： 454⁃464.
11	Gou Xiaobin， Peng Longgui， Wu Siyuan， et al. Thermal and sound absorption properties of porous epoxy resin modified by organic silicon［J］. Journal of Physics Conference Series， 2021， 1838（1）： 012005.
12	Zheng Shen， Xia Zhengbin， Zhang Yanhong. Characterization and properties of epoxy resin （E⁃20） modified with silicone intermediate RSN⁃6018［J］. Progress in Organic Coatings， 2018， 114： 115⁃122.
13	Eva Sanchez Armengol， Flavia Laffleur. The progress on sulfhydryl modified polymers with regard to synthesis， characterization and mucoadhesion［J］. International Journal of Pharmacology， 2021， 592： 120016.
14	Ribeiro Luiz F， Masini Jorge C， Frantisek Svec. Use of thiol functionalities for the preparation of porous monolithic structures and modulation of their surface chemistry： a review［J］. Trac⁃trends In Analytical Chemistry， 2019， 118： 606⁃624.
15	Ali Osman Konuray， Fernández Francos Xavier， Xavier Ramis. Analysis of the reaction mechanism of the thiol⁃epoxy addition initiated by nucleophilic tertiary amines［J］. Polymer Chemistry， 2017， 8（38）： 5 934⁃5 947.
16	谭立钦，刘伟区，梁利岩，等. 含巯基有机硅改性水性苯丙乳液的制备及性能［J］. 中国塑料， 2022， 36（1）： 1⁃8.
	TAN L Q， LIU W Q， LIANG L Y， et al. Preparation and performance of waterborne styrene⁃acrylic emulsion modified with mercaptan silicone［J］. China Plastics， 2022， 36（1）： 1⁃8.
17	Minoru Sakiyama. The infrared spectra of methylhydropolysiloxanes［J］. Bulletin of the Chemical Society of Japan， 1958， 31（1）： 67⁃73.
18	Horodecka S， Strachota A， Mossety⁃Leszczak B， et al. Low⁃temperature meltable elastomers based on linear polydimethylsiloxane chains alpha， omega⁃terminated with mesogenic groups as physical crosslinkers： a passive smart material with potential as viscoelastic coupling. Part I： synthesis and phase behavior［J］. Polymers， 2020， 12（11）： 2 840.
19	Liu Zongqi， Zhou Gang， Song Shuzheng， et al. Synthesis and characteristic analysis of coal dust explosion suppressant based on surface modification of ammonium dihydrogen phosphate with methyl hydrogen⁃containing silicone oil［J］. Journal of Loss Prevention in the Process Industries， 2020， 64： 104059.
20	Perrissin Fabert I， Peix G， Babot D. Energy⁃dispersive wide angle Xray scattering （WAXS） measurements applied to polymer characterization［J］. Measurement Science and Technology， 2004， 15（5）： 889⁃895.
21	He Liping， Li Wenjun， Chen Dachuan， et al. Microscopic mechanism of amino silicone oil modification and modification effect with different amino group contents based on molecular dynamics simulation［J］. Applied Surface Science， 2018， 440： 331⁃340.
22	Wakako Araki， Tadaharu Adachi， Akihiko Yamaji， et al. Fracture toughness of bisphenol A⁃type epoxy resin［J］. Journal of Applied Polymer Science， 2002， 86（9）： 2 266⁃2 271.
23	Johnsen B B， Kinloch A J， Mohammed R D， et al. Toughening mechanisms of nanoparticle⁃modified epoxy polymers［J］. Polymer， 2007， 48（2）： 530⁃541.
24	Pei Jia， Liu Hanchao， Qiang Liu， et al. Thermal degradation mechanism and flame retardancy of MQ silicone/epoxy resin composites［J］. Polymer Degradation and Stability， 2016， 134： 144⁃150.
25	Sarah Sobhani， Ali Jannesari， Saeed Bastani. Effect of molecular weight and content of PDMS on morphology and properties of silicone⁃modified epoxy resin［J］. Journal of Applied Polymer Science， 2011， 123（1）： 162⁃178.
26	Yuan Wang， Ling Youquan， Zhou Shengtai， et al. Enhanced mechanical and adhesive properties of PDMS based on novel PDMS⁃epoxy IPN structure［J］. Journal of Polymer Research， 2021， 28（5）： 1⁃10.
27	Wang Chenyu， Sithara Nair， Wynne Kenneth J. Wilhelmy balance characterization beyond contact angles： differentiating leaching from nanosurface reorganization and optimizing surface modification［J］. Polymer， 2017， 116： 565⁃571.
28	Ananda Kumar S， Balakrishnan T， Alagar M， et al. Development and characterization of silicone/phosphorus modified epoxy materials and their application as anticorrosion and antifouling coatings［J］. Progress in Organic Coatings， 2006， 55（3）： 207⁃217.
29	朱铭铮. 基于DMA技术的环氧树脂耐热性能研究［D］. 武汉：武汉理工大学， 2005.
