Preparation and characterization of EVA foaming materials modified with thermoplastic polyamide elastomer

doi:10.19491/j.issn.1001-9278.2022.04.002

Abstract

Abstract:

This paper reported a study on the effect of addition amount of foaming agent on the ethylene?vinyl acetate copolymer （EVA） foaming materials modified with thermoplastic polyamide elastomer （TPAE）， and the foaming performance and mechanical properties of the resulting EVA/TPAE foaming materials were also investigated at a fixed mass ratio of EVA to TPAE of 100 to 5. The results indicated that the foaming materials foamed more fully at a mass ratio of foaming material to foaming agent of 100 to 3， leading to a uniform cell size. The obtained foaming materials could meet the requirement of the shoe materials for mechanical strength. At this mass ratio， the foaming materials exhibited good comprehensive performance， suggesting a good application prospect in the shoe market.

Key words: thermoplastic polyamide elastomer, ethylene?vinyl acetate copolymer, modification, cell structure, mechanical property

CLC Number:

TQ323.6

LI Suyuan, LIU Huipeng, GONG Shun, HUANG Guotao, LI Yucai, WU Xin, DENG Jianping, PAN Kai. Preparation and characterization of EVA foaming materials modified with thermoplastic polyamide elastomer[J]. China Plastics, 2022, 36(4): 6-14.

Figures/Tables 17

样品编号	EVA含量/份	TPAE含量/份
EVA/TPAE （5）	100	5
EVA/TPAE （10）	100	10
EVA/TPAE （15）	100	15

Tab.1. Formulation of EVA/TPAE blends

样品编号	EVA/TPAE含量/份	AC含量/份	发泡助剂含量/份
EVA/TPAE （5）⁃AC （1）	100 ［EVA/TPAE （5）］	1	9
EVA/TPAE （5）⁃AC （2）	100 ［EVA/TPAE （5）］	2	9
EVA/TPAE （5）⁃AC （3）	100 ［EVA/TPAE （5）］	3	9
EVA/TPAE （10）⁃AC （3）	100 ［EVA/TPAE （10）］	3	9
EVA/TPAE （15）⁃AC （3）	100 ［EVA/TPAE （15）］	3	9

Tab.2. Formulation of EVA/TPAE foaming composites

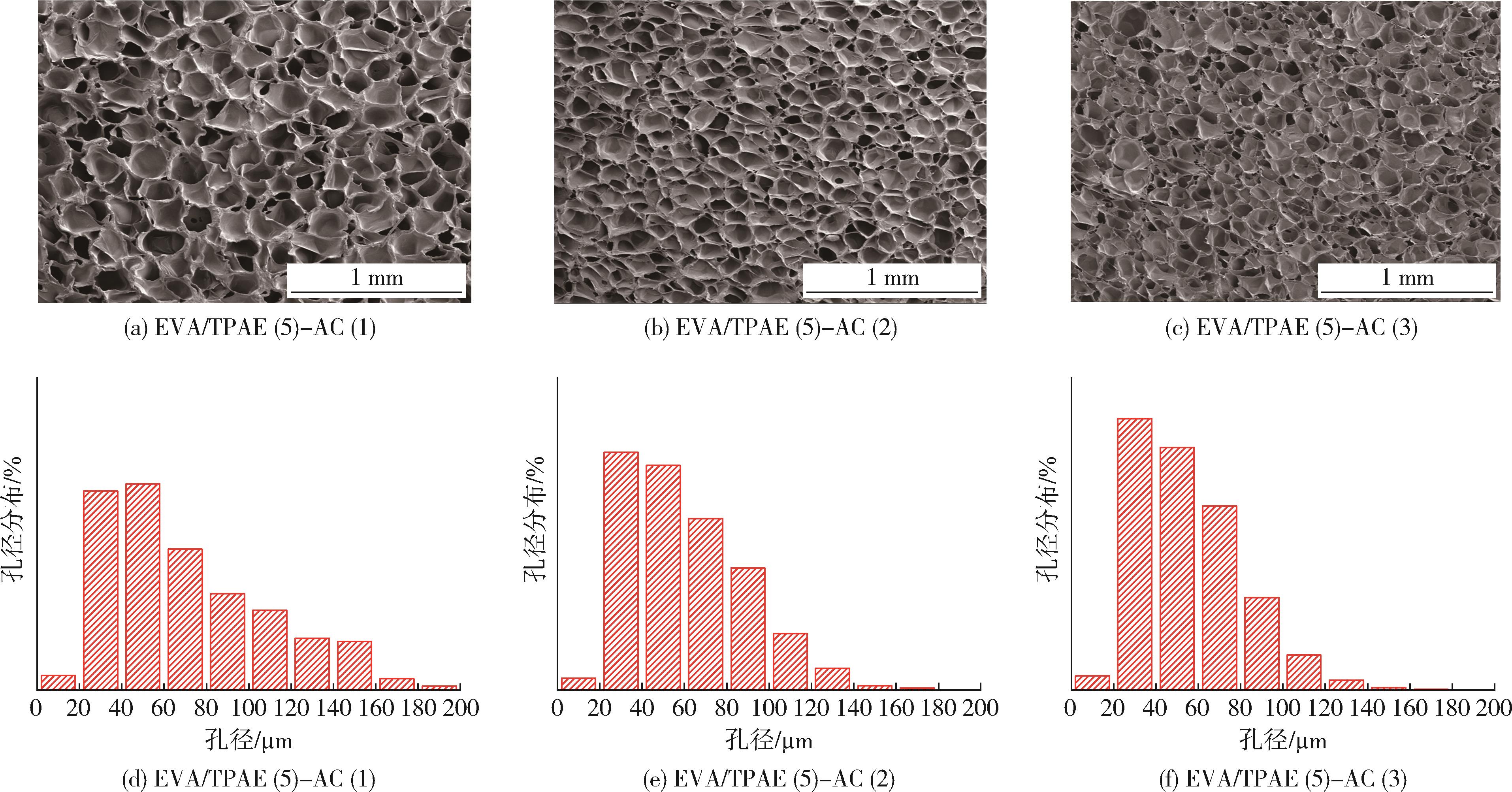

Fig.1. SEM and cell sizes distribution diagrams of EVA/TPAE （5）?AC （Y）

样品	发泡剂用量/份	$D ¯$ /µm	$N c$ /个·cm^-3
EVA/TPAE （5）⁃AC （1）	1	71	6.82×10⁶
EVA/TPAE （5）⁃AC （2）	2	60	2.22×10⁷
EVA/TPAE （5）⁃AC （3）	3	55	3.44×10⁷

样品	发泡剂用量/份	$D ¯$ /µm	$N c$ /个·cm^-3
EVA/TPAE （5）⁃AC （1）	1	71	6.82×10⁶
EVA/TPAE （5）⁃AC （2）	2	60	2.22×10⁷
EVA/TPAE （5）⁃AC （3）	3	55	3.44×10⁷

Tab.3. Average cell diameter and cell density of EVA/TPAE （5）?AC （Y）

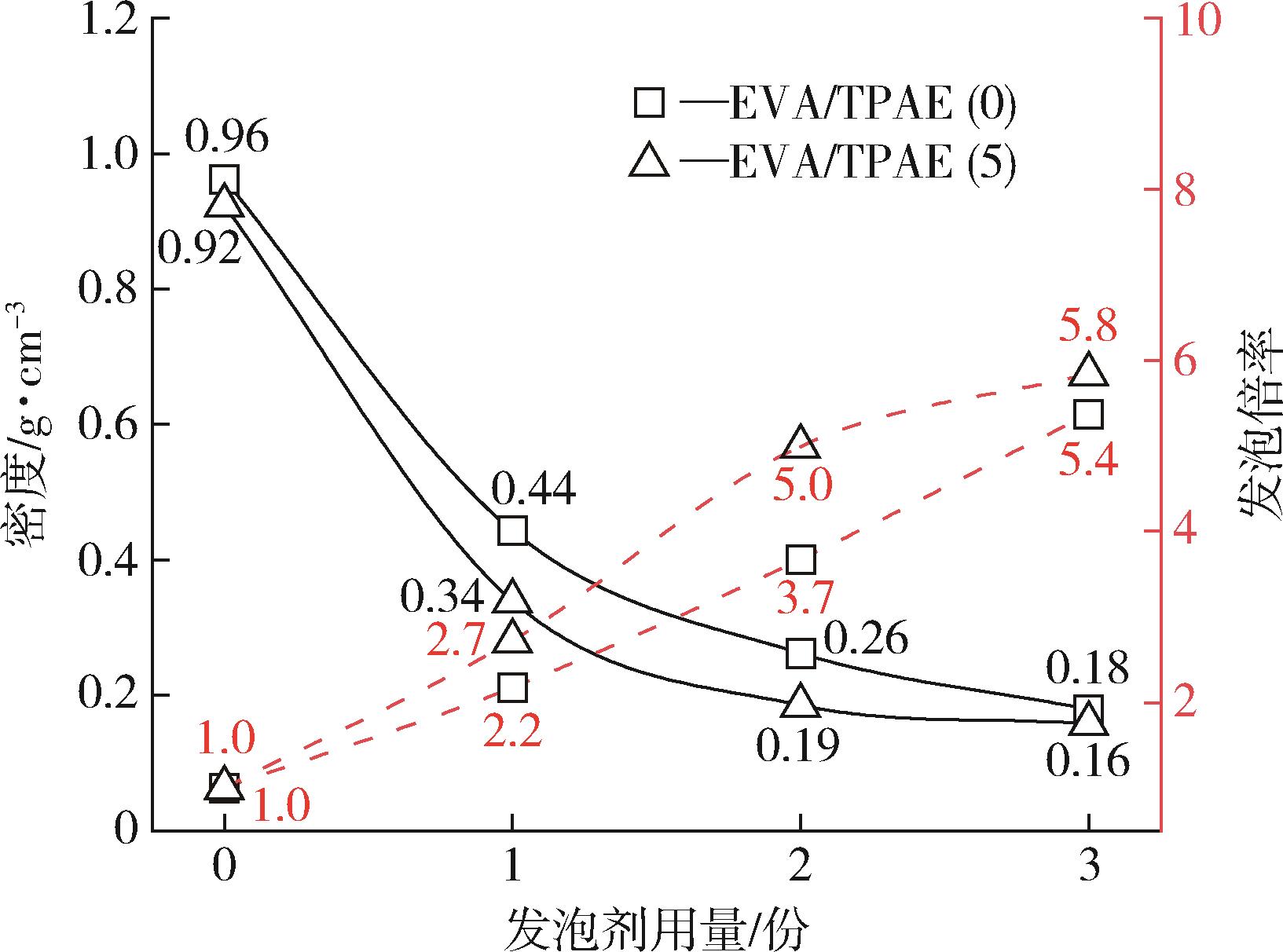

Fig.2. Density and expansion ratio curve of EVA/TPAE （5）?AC （Y）

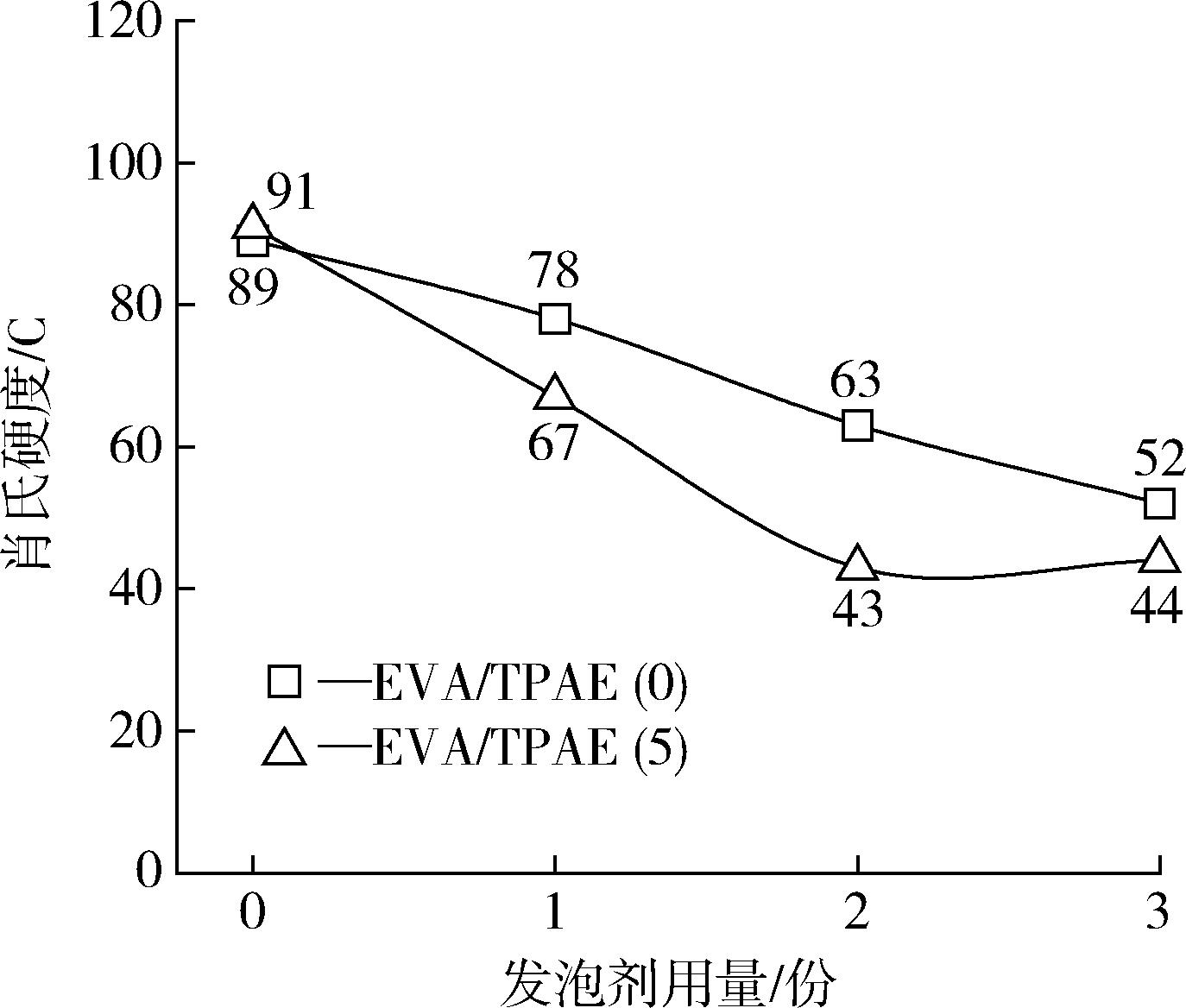

Fig.3. Hardness curve of EVA/TPAE （5）?AC （Y）

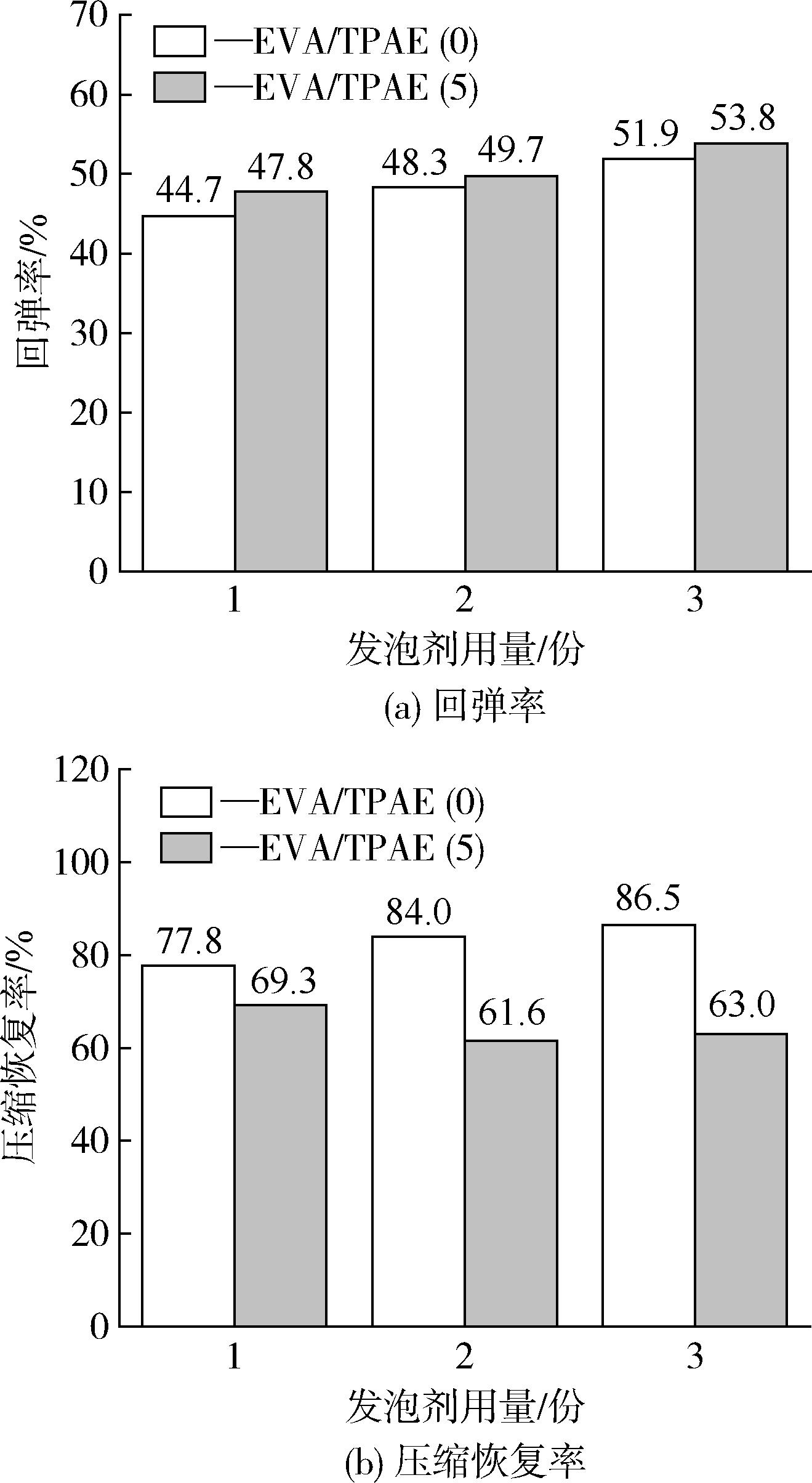

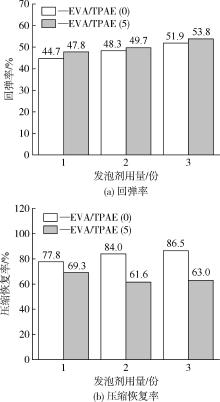

Fig.4. Histogram of resilience and compression recovery performance of EVA/TPAE （5）?AC （Y）

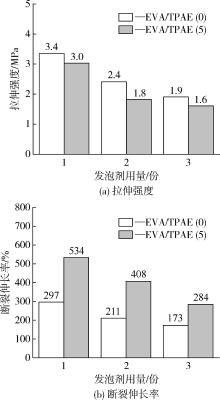

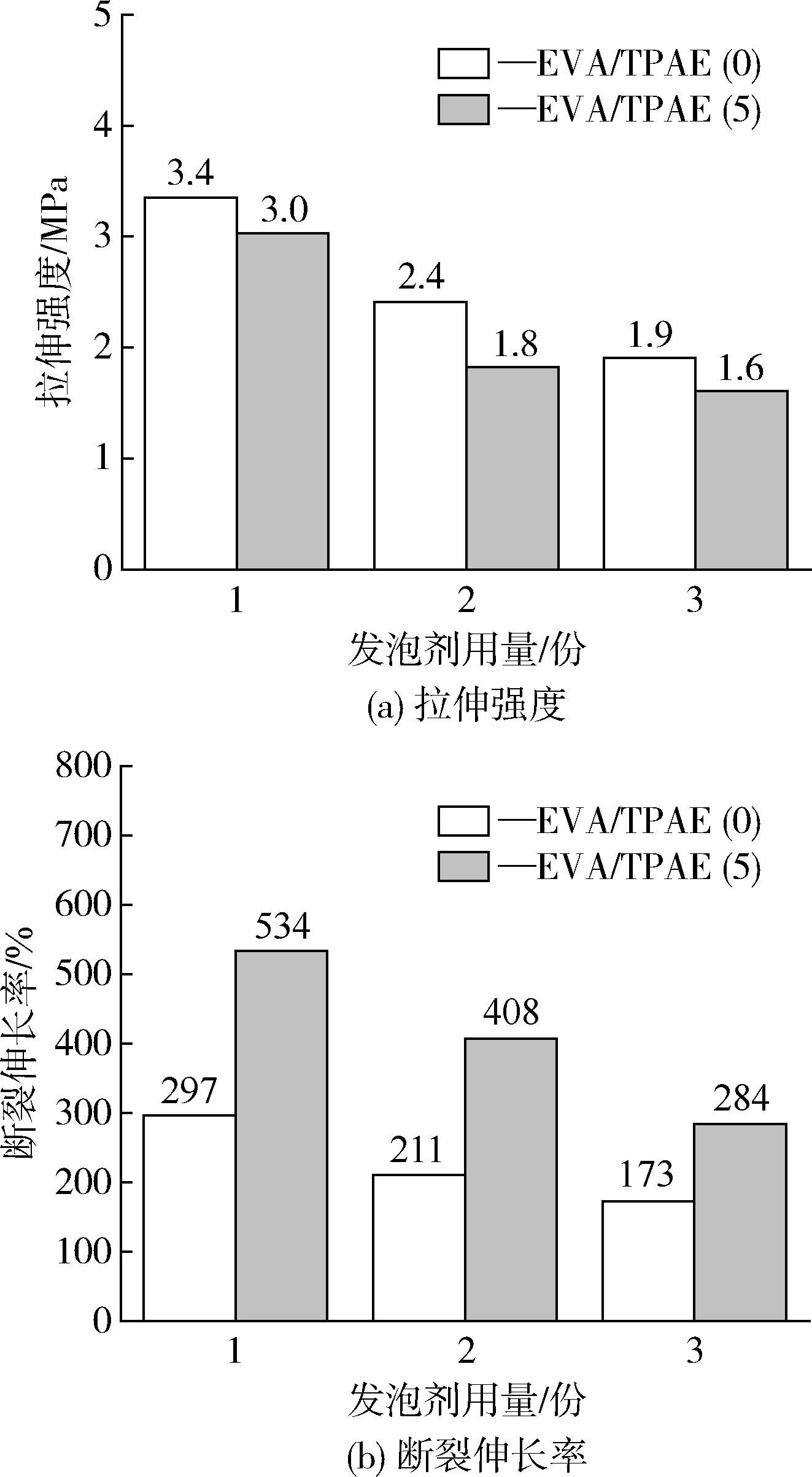

Fig.5. Histogram of tensile strength and elongation at break of EVA/TPAE （5）?AC （Y）

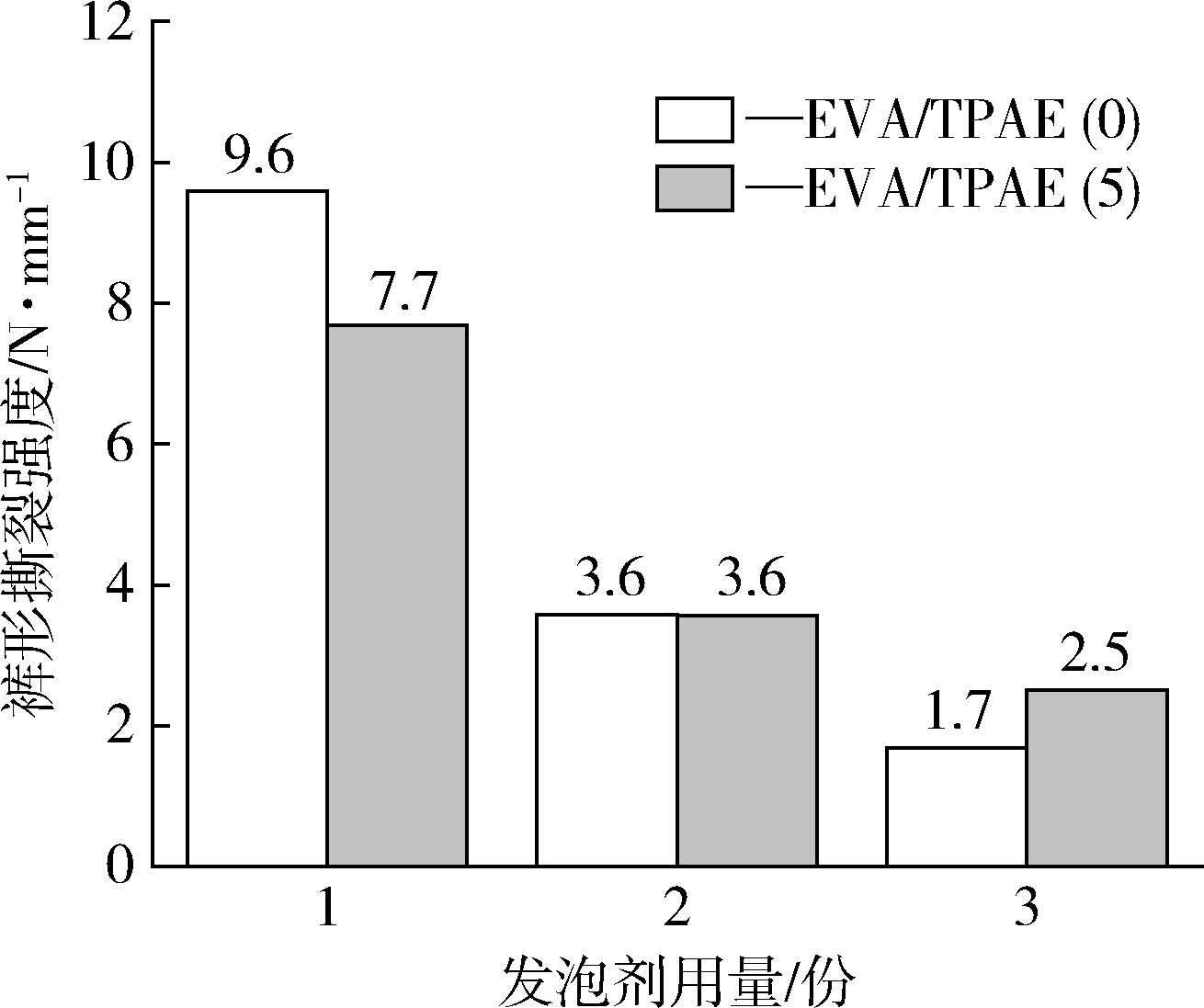

Fig.6. Histogram of pants tear strength of EVA/TPAE （5）?AC （Y）

Fig.7. SEM and cell sizes distribution diagrams of EVA/TPAE （X）?AC （3）

样品

发泡剂

用量/份

D ¯

/µm

N c

样品

发泡剂

用量/份

D ¯

/µm

N c

/个·cm^-3

EVA/TPAE （5）⁃AC （3）

3.44×10⁷

EVA/TPAE （10）⁃AC （3）

2.69×10⁷

EVA/TPAE （15）⁃AC （3）

2.29×10⁷

Tab.4. Average cell diameter and cell density of EVA/TPAE （X）?AC （3）

Fig.8. SEM of EVA/TPAE （X） internal cross section

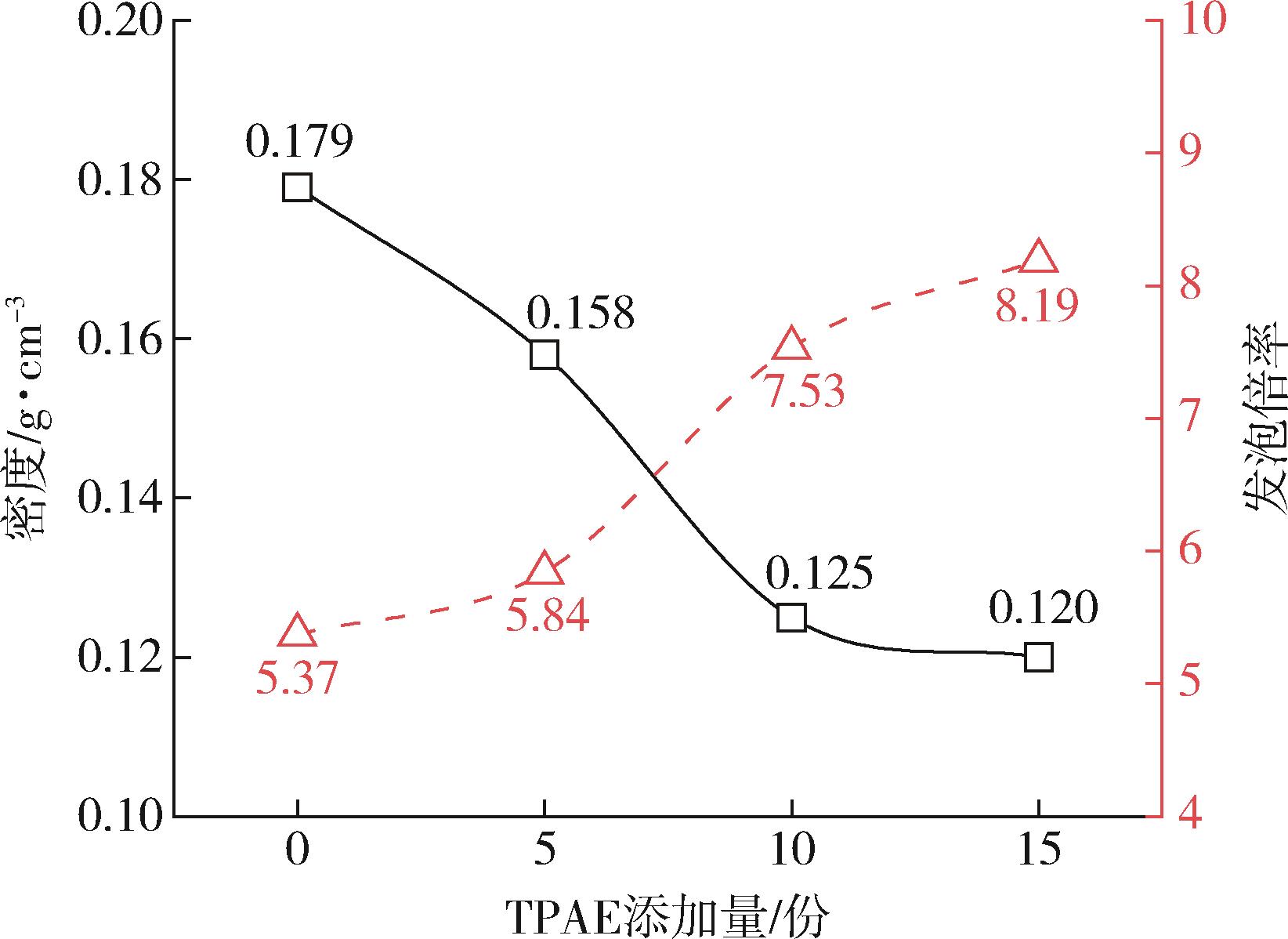

Fig.9. Density and expansion ratio curve of EVA/TPAE （X）?AC （3）

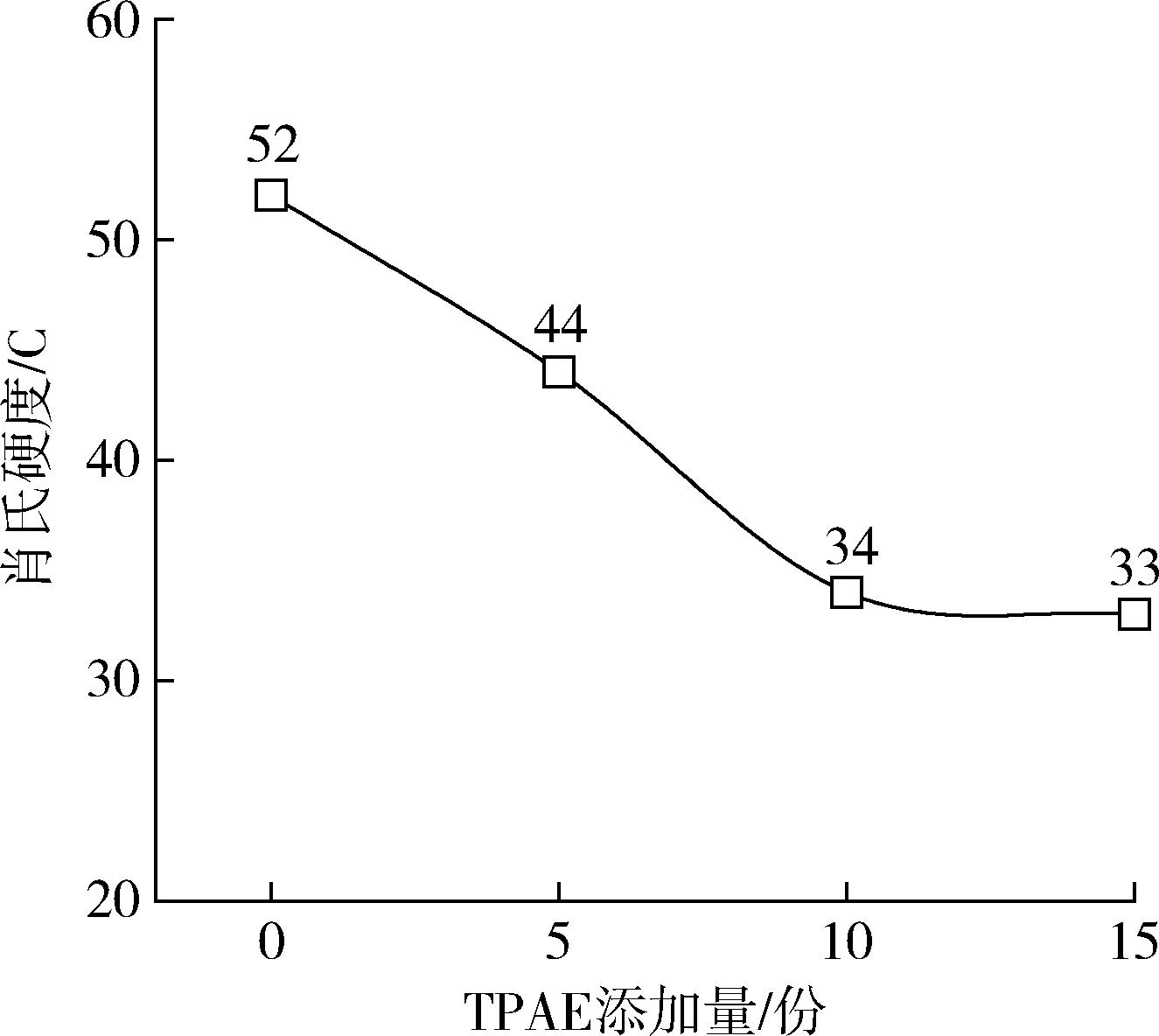

Fig.10. Hardness curve of EVA/TPAE （X）?AC （3）

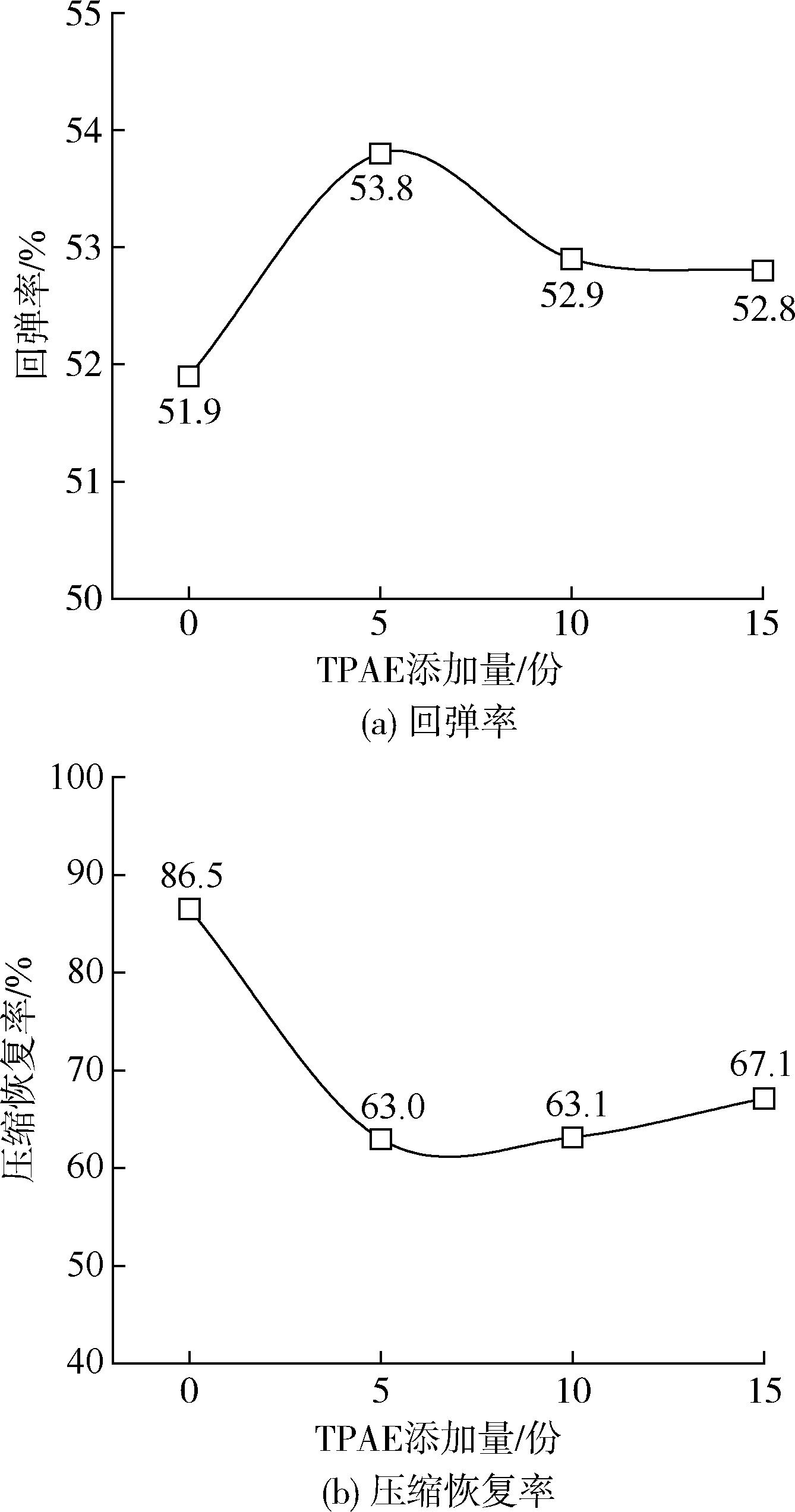

Fig.11. Resilience and compression recovery performance curve of EVA/TPAE （X）?AC （3）

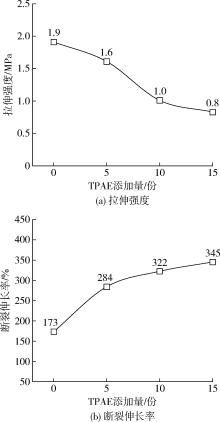

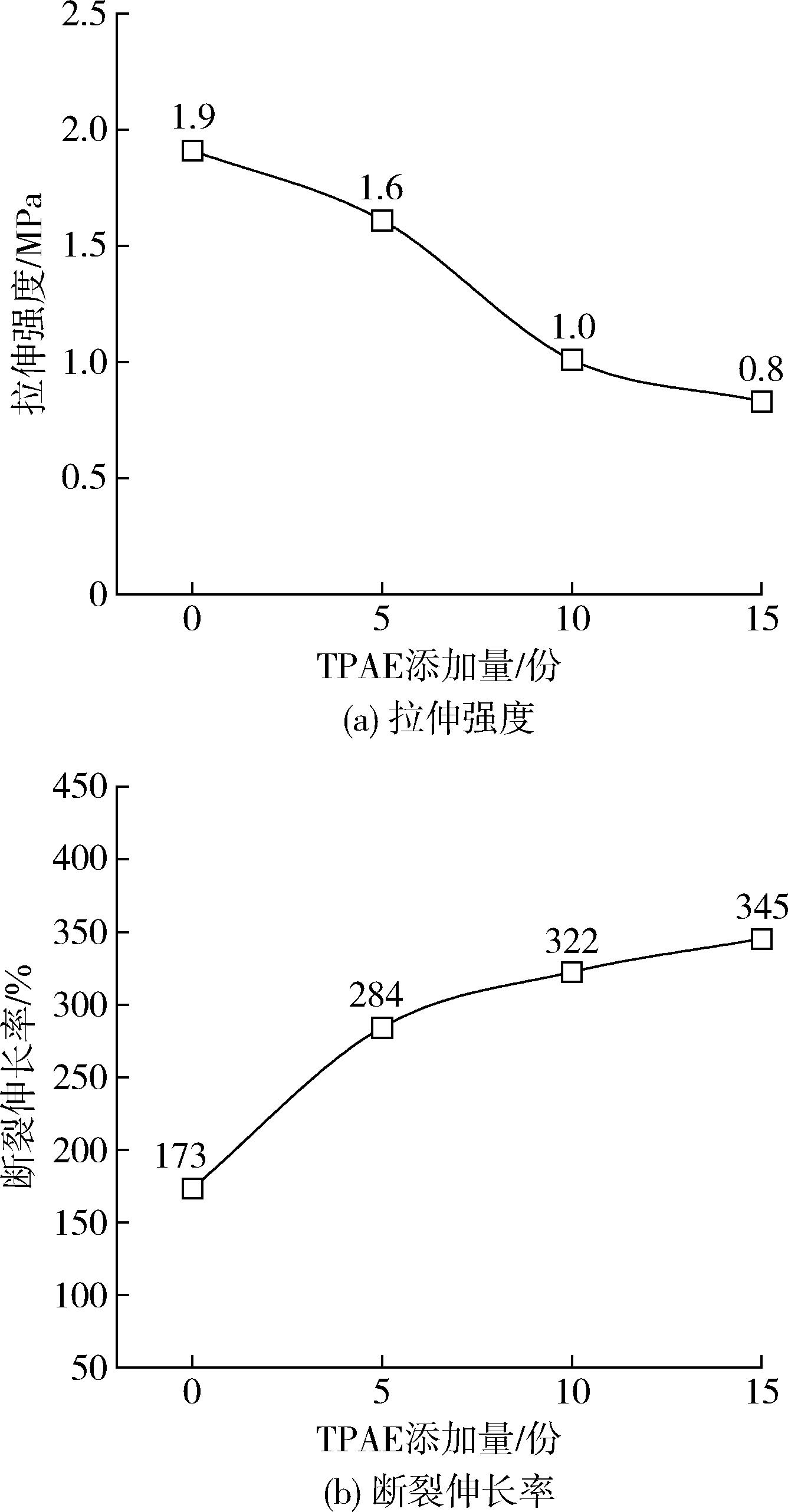

Fig.12. Tensile strength and elongation at break curve of EVA/TPAE （X）?AC （3）

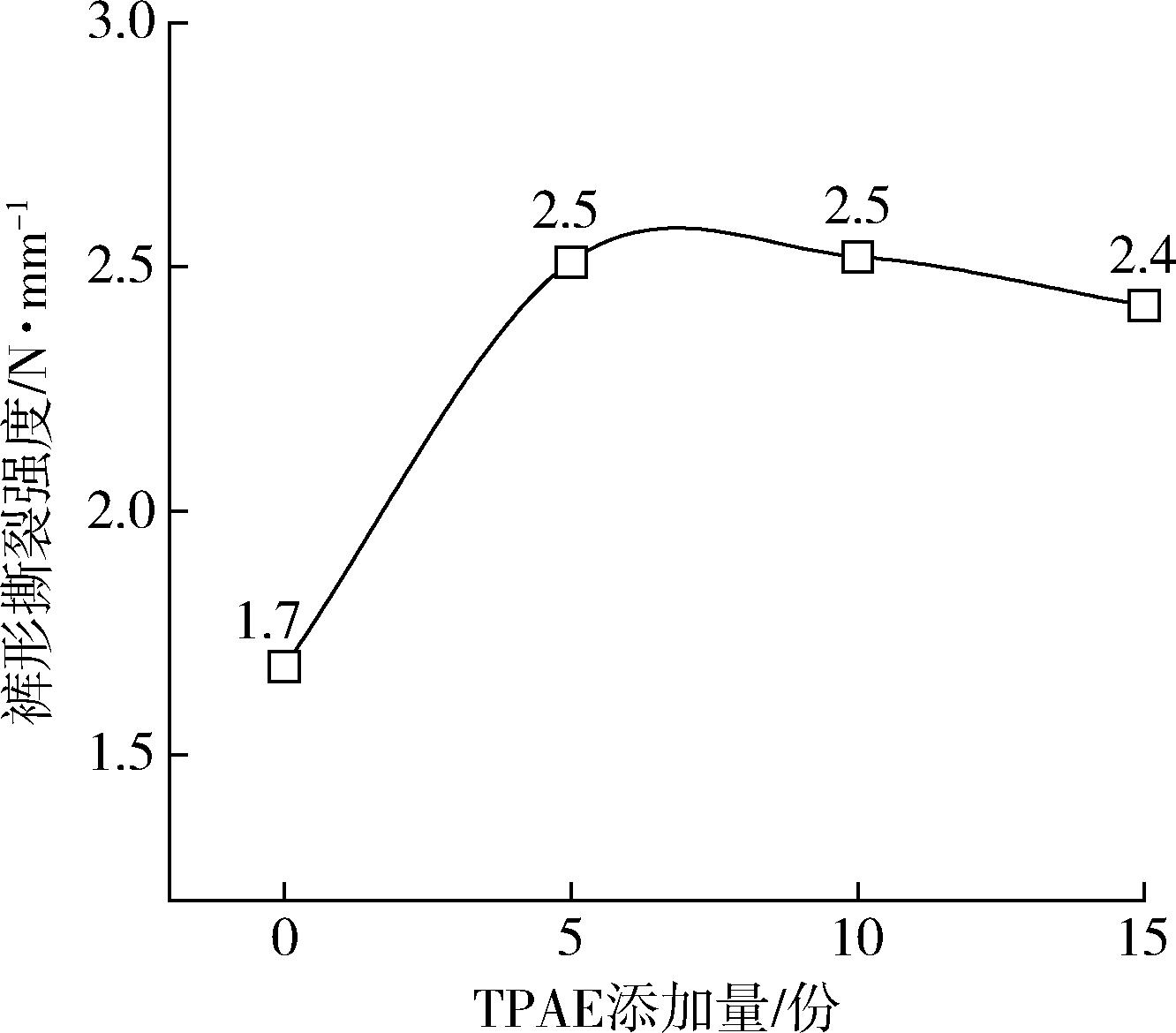

Fig.13. Pants tear strength curve of EVA/TPAE （X）?AC （3）
