PVC⁃U排水管道中重金属铅的浸出研究

doi:10.19491/j.issn.1001-9278.2020.07.011

中国塑料 ›› 2020, Vol. 34 ›› Issue (7): 69-73.DOI: 10.19491/j.issn.1001-9278.2020.07.011

PVC⁃U排水管道中重金属铅的浸出研究

李沙, 战佳宇(), 李延军, 刘振新, 杨飞华

固废资源化利用与节能建材国家重点实验室，北京 100041

收稿日期:2020-02-10 出版日期:2020-07-26 发布日期:2020-07-26
基金资助:
国家重点研发计划项目(2017YFF0211500)

Study on Leaching of Heavy Metal Lead from Unplasticized Poly(vinyl chloride) Drainpipes

Sha LI, Jiayu ZHAN(), Yanjun LI, Zhenxin LIU, Feihua YANG

State Key Laboratory of Solid Waste Reuse for Building Materials, Beijing 100041, China

Received:2020-02-10 Online:2020-07-26 Published:2020-07-26
Contact: Jiayu ZHAN E-mail:13031188952@163.com

摘要/Abstract

摘要：

研究了3种添加铅稳定剂的铅总量和硬聚氯乙烯（PVC?U）管道产品在不同时间，温度及pH下的浸出规律，并讨论了浸出机理。结果表明，3种产品浸出规律一致：铅浸出量随时间增加先增加后减少，浸出4 h时浸出量最大；温度对铅浸出量影响显著，铅浸出量随温度的增加持续增加；铅在强酸性环境的浸出量大于在强碱性环境下的浸出量，在偏碱性环境下的浸出量最少。

关键词: 硬聚氯乙烯, 管道, 铅, 重金属, 浸出

Abstract:

This paper reported a study on the total lead leaching and relevant mechanisms of three PVC?U drainpipes products with a lead stabilizer at different time, temperature and pH value. The results indicated that the leaching law was consistent for these three types of products, which presented an increase trend in the leaching amount of lead at first and then a decrease trend with the time. The leaching amount of lead reached a maximum value at the time of 4 h. The temperature also influenced the leaching amount of lead significantly. Moreover, the leaching amount of lead in the strong acid environment is greater than that in the strong alkaline environment, the products showed a minimum leaching amount in the partial alkaline environment.

Key words: unplasticized poly(vinyl chloride), drainpipes, lead, heavy metal, leaching

中图分类号:

TQ322.4

李沙, 战佳宇, 李延军, 刘振新, 杨飞华. PVC⁃U排水管道中重金属铅的浸出研究[J]. 中国塑料, 2020, 34(7): 69-73.

Sha LI, Jiayu ZHAN, Yanjun LI, Zhenxin LIU, Feihua YANG. Study on Leaching of Heavy Metal Lead from Unplasticized Poly(vinyl chloride) Drainpipes[J]. China Plastics, 2020, 34(7): 69-73.

图/表 10

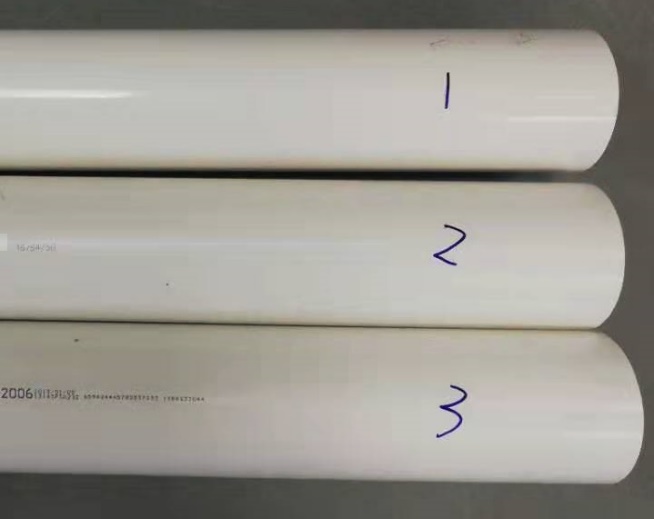

图1 PVC?U排水管道

Fig.1 PVC?U drainpipes

图2 PVC?U排水管道主要工艺流程

Fig.2 The main process flowchart of PVC?U drainpipes

管道样品编号	铅总量/μg·g^-1
1	49.5
2	6 577.3
3	5 512.8

表1 PVC?U管道中铅总量

Tab.1 Total lead in PVC?U drainpipes

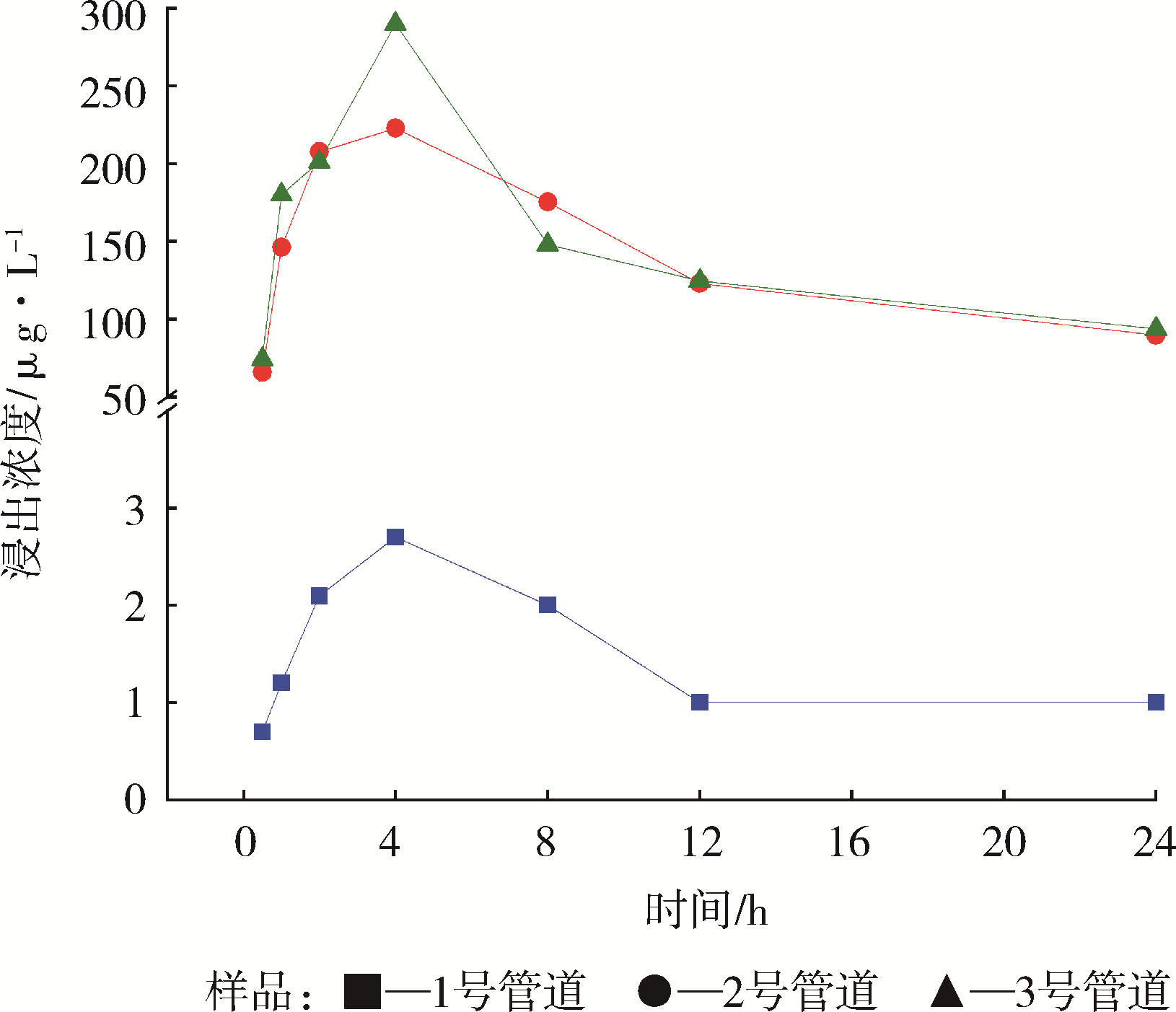

图3 浸出时间对铅浸出浓度的影响

Fig.3 Leaching amount of lead at different time

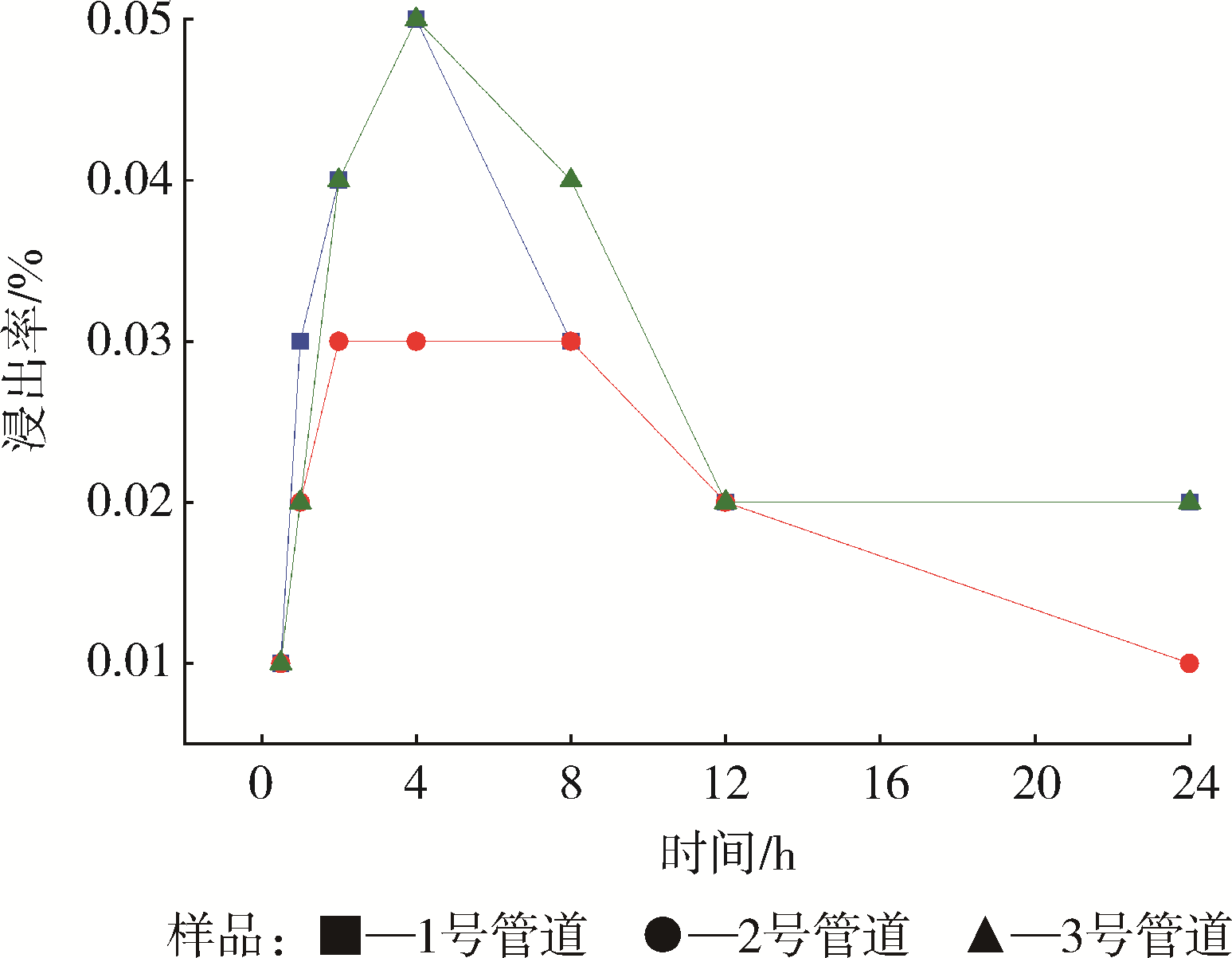

图4 不同浸出时间的铅浸出率

Fig.4 Leaching rates of lead at different times

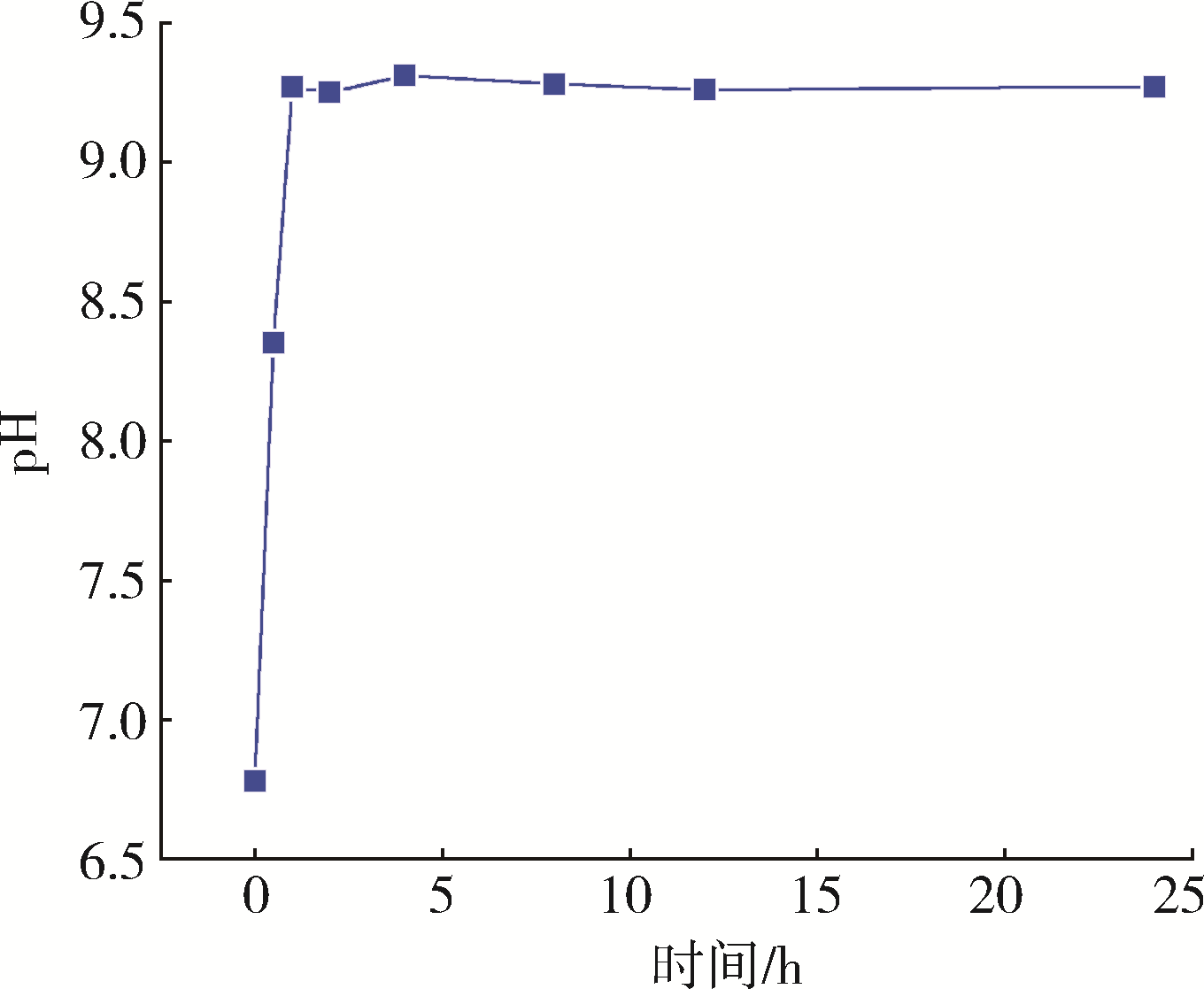

图5 浸出时间对溶液pH的影响

Fig.5 Effect of time on pH of the solution

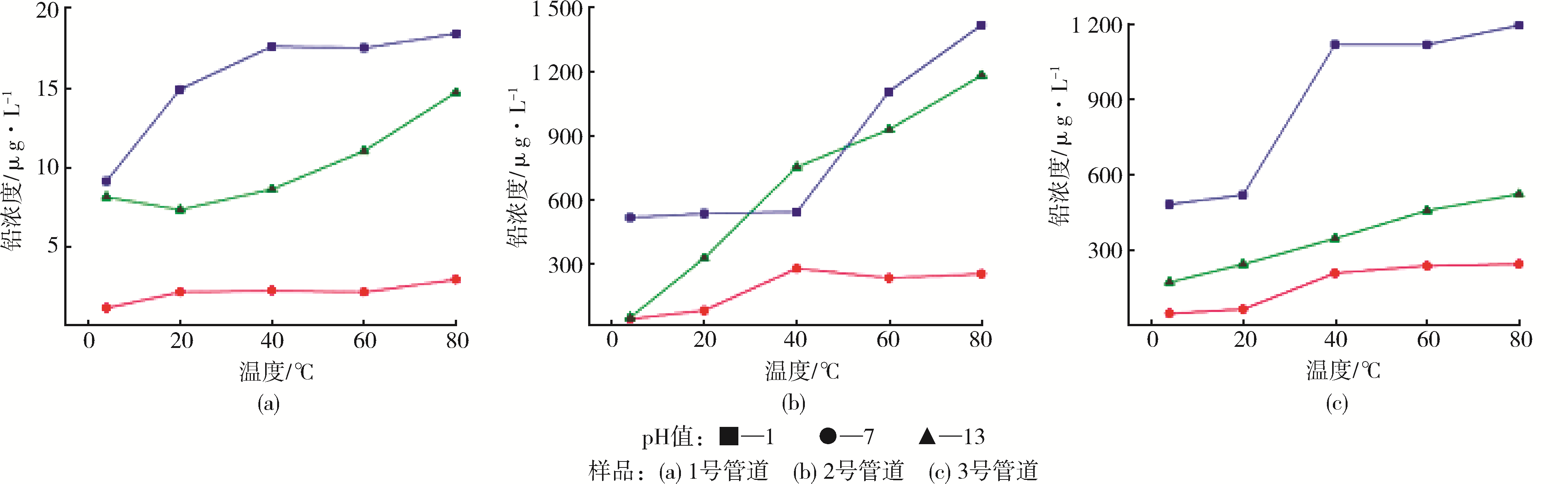

图6 浸出温度对铅浸出量的影响

Fig.6 Effect of temperature on lead leaching

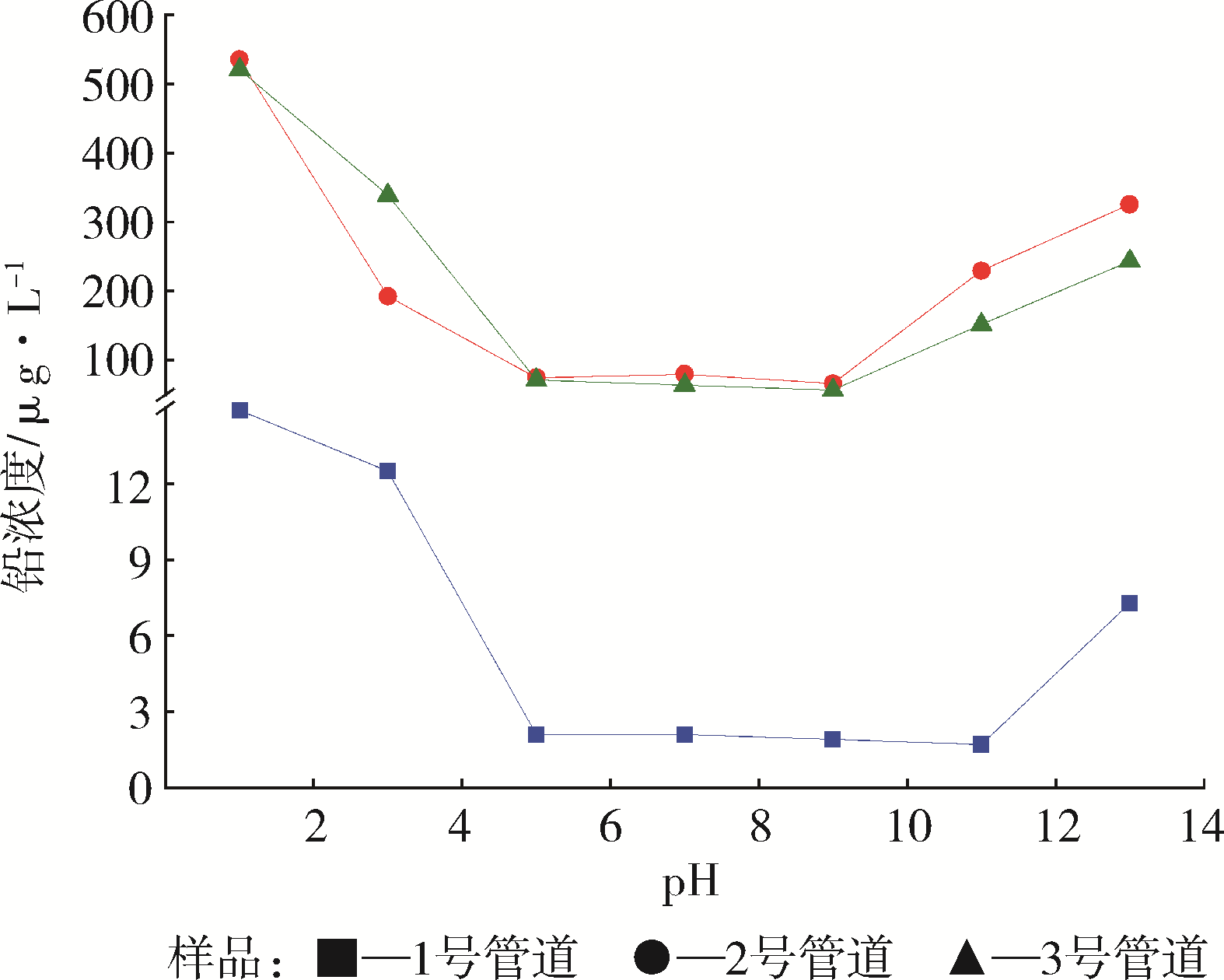

图7 浸出液pH对铅浸出量的影响

Fig.7 Effect of pH on lead leaching

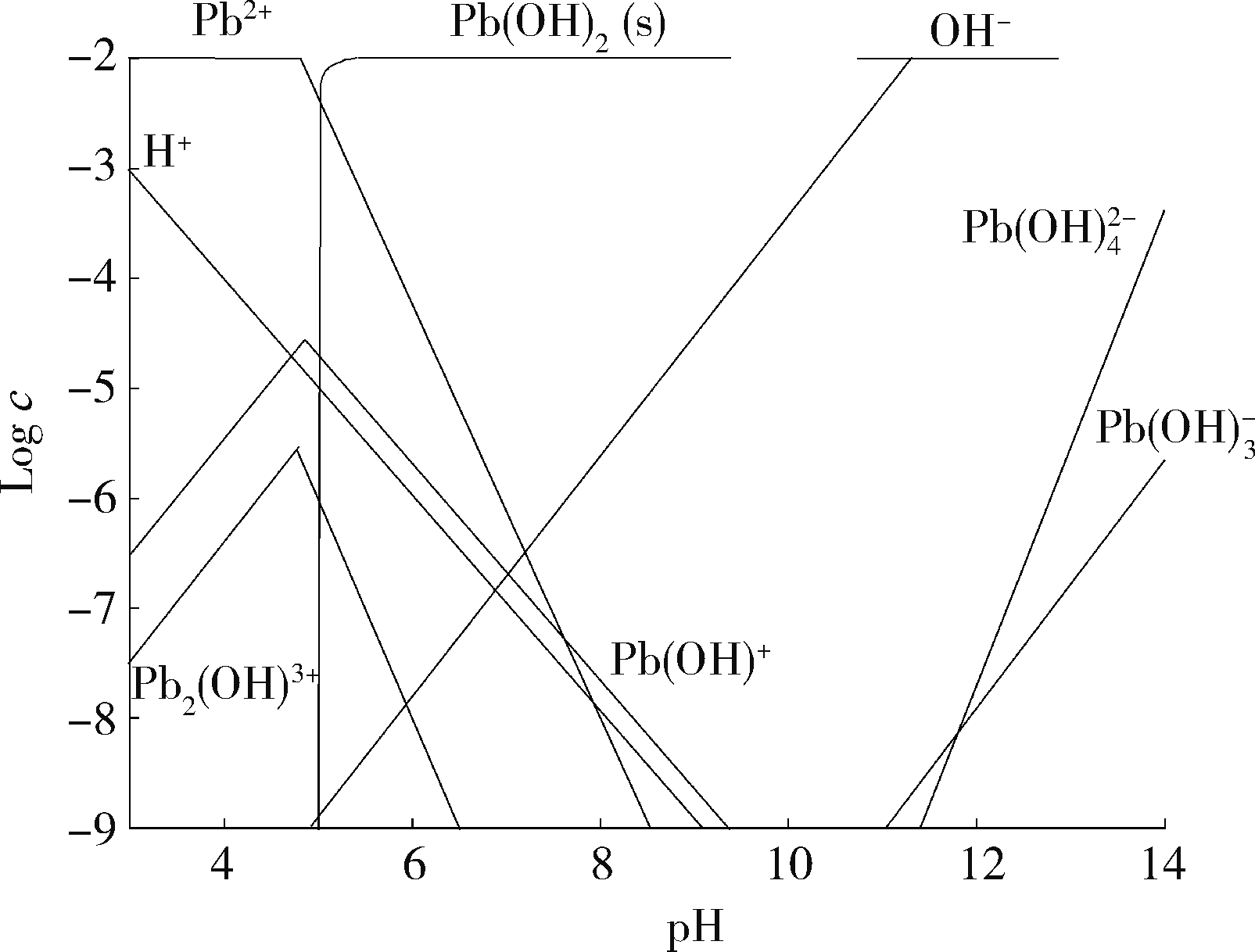

图8 Pb?O?H2O体系中不同组分的浓度对数图

Fig.8 Logarithmic map of concentrations of different components in Pb?O?H2O systemc(Pb2+)=10.00 mmol/L

序号	酸碱反应式	平衡常数
1	H₂O $?$ H⁺+OH^-	logK=-14.00
2	2Pb²⁺+6H₂O $?$ 2Pb(OH)₃^-+6H⁺	logK=-28.6
3	Pb²⁺+4H₂O $?$ Pb(OH)₄^2-+4H⁺	logK=-39.7
4	2Pb²⁺+H₂O $?$ Pb₂(OH)³⁺+H⁺	logK=-6.63
5	Pb²⁺+H₂O $?$ Pb(OH)⁺+H⁺	logK=-7.71

序号	酸碱反应式	平衡常数
1	H₂O $?$ H⁺+OH^-	logK=-14.00
2	2Pb²⁺+6H₂O $?$ 2Pb(OH)₃^-+6H⁺	logK=-28.6
3	Pb²⁺+4H₂O $?$ Pb(OH)₄^2-+4H⁺	logK=-39.7
4	2Pb²⁺+H₂O $?$ Pb₂(OH)³⁺+H⁺	logK=-6.63
5	Pb²⁺+H₂O $?$ Pb(OH)⁺+H⁺	logK=-7.71

表2 Pb?O?H2O体系的酸碱化学反应

Tab .2 Acid?base chemical reaction in Pb?O?H2O system

表2 Pb?O?H2O体系的酸碱化学反应

Tab .2 Acid?base chemical reaction in Pb?O?H2O system

参考文献 13

1	JOSEPH S H, LEEVERS P S. Failure Mechanics of UPVC Cyclically Pressurized Water Drainpipess[J]. Journal of Materials Science,1985,20(1):237⁃245.
2	CARTY P, METCALFA E, WHITE S. A Review of the Role of Iron Containing Compounds in Char Forming/Smoke Suppressing Reactions During the Thermal Decomposition of Semi⁃Rigid Poly(vinyl chloride) Formulations[J]. Polymer,1992,33(13):2704⁃2708.
3	吴国权, 钱庆玲. UPVC管在给水管道中的应用[J]. 净水技术, 1997,34(2):27⁃29.
	WU G L, QIAN Q L. Application of UPVC Pipeline in Water Supply[J]. Water Purification Technology, 1997,34(2):27⁃29.
4	李永荃, 乔雷. 钙锌复合稳定剂在UPVC型材中的应用研究[J]. 塑料制造, 2005,97(7):42⁃44.
	LI Y Q, QIAO L. Application Research of Ca⁃Zn Compound Thermal Stabilizer in PVC Profile[J]. Plastics Manufacture[J].2005,97(7):42⁃44.
5	孟祥雪, 陈鸯飞. 铅盐稳定剂和钙锌复合热稳定剂对PVC防水卷材性能的影响研究[J]. 中国建筑防水, 2018,388(8):5⁃8.
	MENG X X, CHEN Y F. Study on Influences of Lead Salt Stabilizer and Calcium⁃Zincum Composite Heat Stabilizer on Performances of PVC Waterproofing Membrane[J].China Building Waterproofing. 2018,388(8):5⁃8.
6	MOHAMMED F S, CONLEY M, Rumple A C, et al. Enhanced Thermal Stabilization and Reduced Color Formation of Plasticized Poly(vinyl chloride) Using Zinc and Calcium Salts of 11⁃Maleimideoundecanoic Acid[J]. Polymer Degradation & Stability, 2015,111(3):64⁃70.
7	钟格梅, 唐振柱. 我国环境中镉、铅、砷污染及其对暴露人群健康影响的研究进展[J]. 环境与健康杂志, 2006,23(6):562⁃565.
	ZHAONG G M, TANG Z Z. Environmental Cadmium,Lead and Arsnic Pollution and Health Impact⁃Research Progress in China[J]. Journal of Environment and Health,2006,23(6):562⁃565.
8	傅佳, 刘建平. 有机类PVC热稳定剂的研究现状[J]. 塑料制造, 2010，46(5):60⁃63.
	FU J, LIU J P. Research Progress of Organic PVC Thermal Stabilizer[J]. Plastics Manufacture, 2010，46(5):60⁃63.
9	许家友. 聚氯乙烯无毒稳定剂及其稳定机理的研究[D]. 成都：四川大学, 2005.
10	林萍, 吕永生. 生活饮用水输配水设备及防护材料的安全性评价标准探讨[J]. 环境与健康杂志, 2001,18(1):50⁃51.
	LIN P, LV Y S. Discuss on Standard for Safety Evaluation of Equipment and Protective Materials in Drinking Water System[J]. Journal of Environment and Health, 2001,18(1):50⁃51.
11	中国标准化管理委员会. GB/T 5836.1⁃2018 建筑排水用硬聚氯乙烯（PVC⁃U）管材[S]. 中国: 中国标准出版社, 2018.
12	郭英, 张琦, 孙国新, 等. 纳米氧化铅的制备及表面酸碱性质[J]. 济南大学学报(自然科学版), 2010,24(2):123⁃126.
	GUO Y, ZHANG Q, SUN G X, et al.Synthesis and Surface Acid⁃Base Properties of PbO Nanoparticles. Journal of University of Jinan (Science & Technology), 2010,24(2):123⁃126.
13	SUN Z X, And, et al. Surface Reactions in Aqueous Metal Sulfide Systems. 1. Fundamental Surface Reactions of Hydrous PbS and ZnS[J]. International Journal of Mineral Processing, 1991,1⁃4(33):83⁃93.
