Experimental Study and Numerical Simulation for Effect of Carbon Black on Laser Energy Absorption of PEEK

doi:10.19491/j.issn.1001-9278.2020.10.008

Abstract

Abstract:

Polyetheretherketone （PEEK）/carbon black （CB） blending sheets with an thickness of 0.5 mm were prepared by a compression molding process using Victrex PEEK-450PF as a raw material， and their optical characteristics were characterized by a laser power meter and UV-Vis-IR spectrophotometer. The effect of CB content on the laser energy deposition efficiency of blending sheets was investigated under the process condition of a laser power density of 35 W/cm² and a moving speed of 5 mm/s. A numerical model was established for the laser energy absorption of PEEK by using the COMSOL software. The results indicated that pure PEEK sheet did not strongly absorb the laser at a wavelength of 1070 nm. However， the addition of CB could significantly reduce the reflection and transmission of PEEK to the laser and enhance the photo?thermal conversion efficiency of blending sheets. There was little effect on the tensile strength of blending sheets. In addition， the numerical simulation results were found to be in good agreement with the experimental ones.

Key words: polyetheretherketone, carbon black, laser, numerical simulation

CLC Number:

TQ 324.8

TIAN Renjie, ZHU Guangming, LYU Yuwei, WU Taotao, REN Tianning, MA Zhiliang, ZHANG Shuang. Experimental Study and Numerical Simulation for Effect of Carbon Black on Laser Energy Absorption of PEEK[J]. China Plastics, 2020, 34(10): 44-50.

Figures/Tables 13

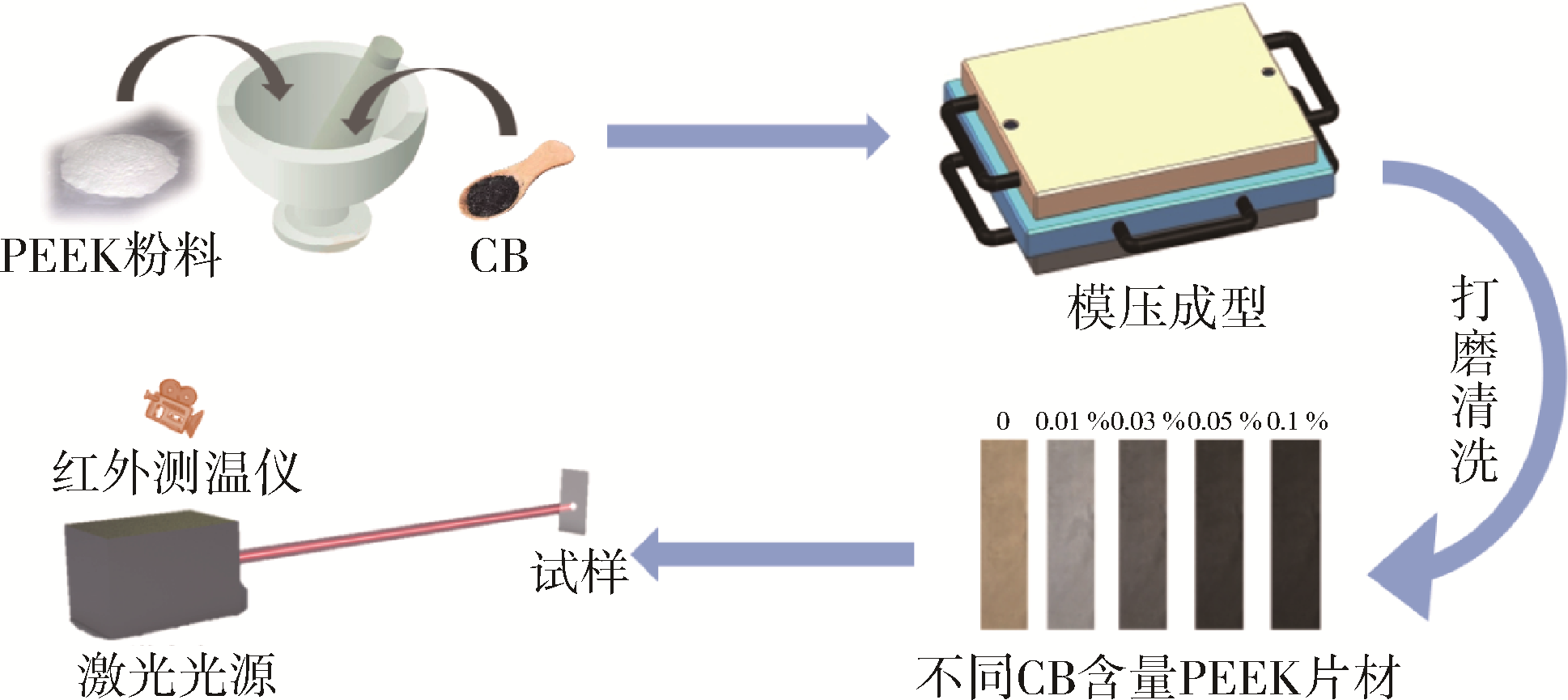

Fig.1. Schematic diagram of preparation method and test method for the PEEK sample

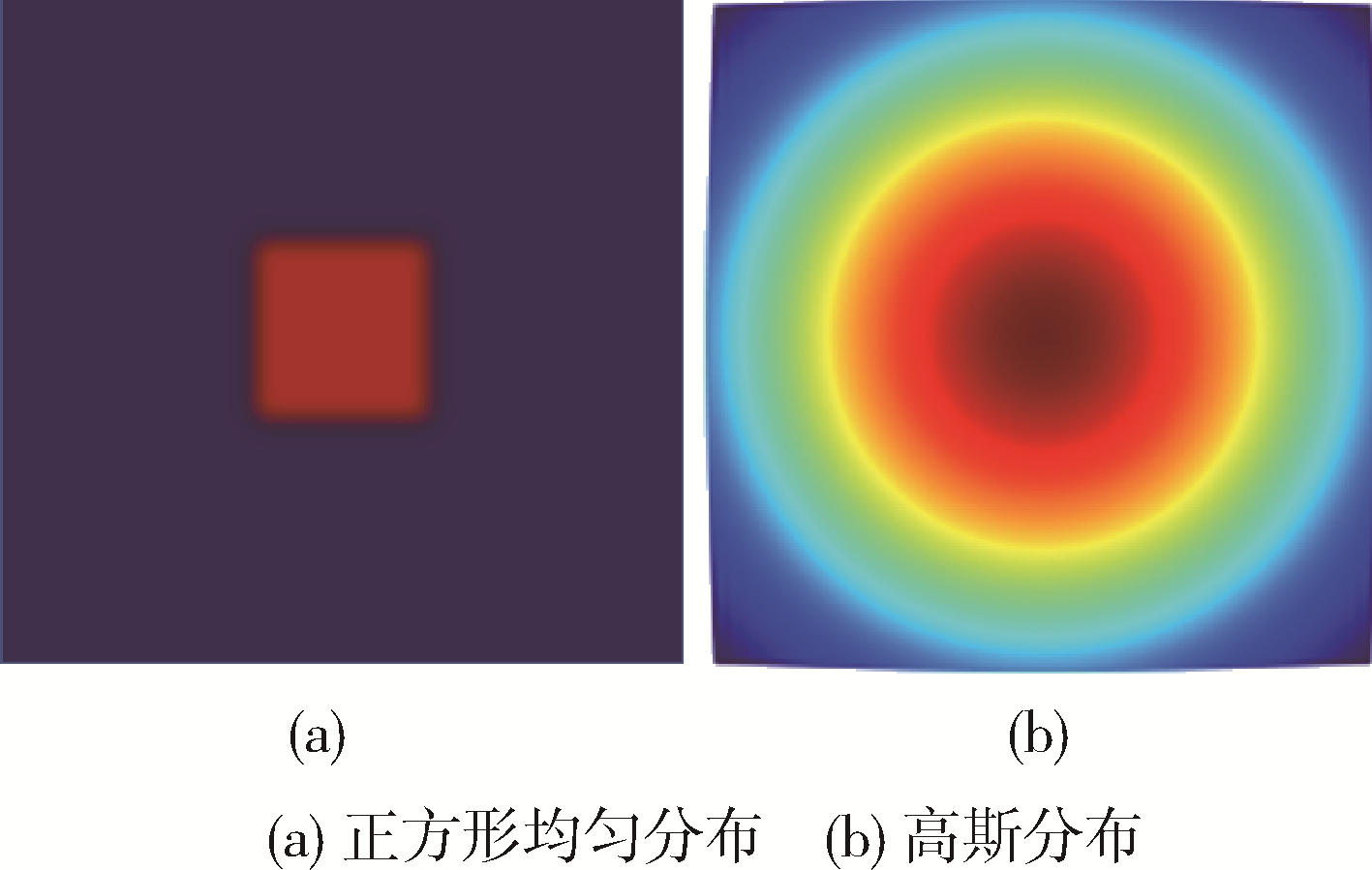

Fig.2. Schematic diagram of laser energy distribution

密度/g·cm^-3	比热容/kJ·kg^-1·K^-1	热导率/W·m^-1·K^-1
1.3	2.0	0.25

Tab. 1. Physical properties of PEEK

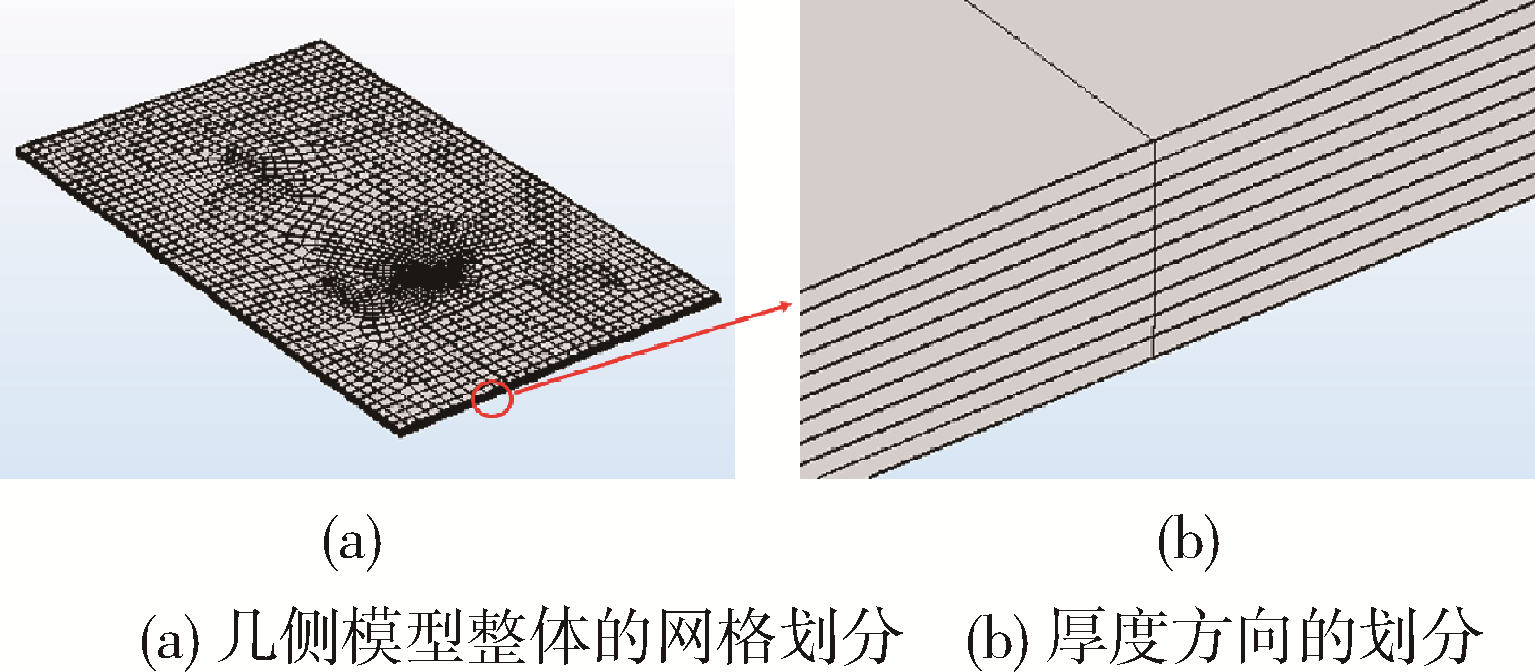

Fig.3. Meshing of geometric models

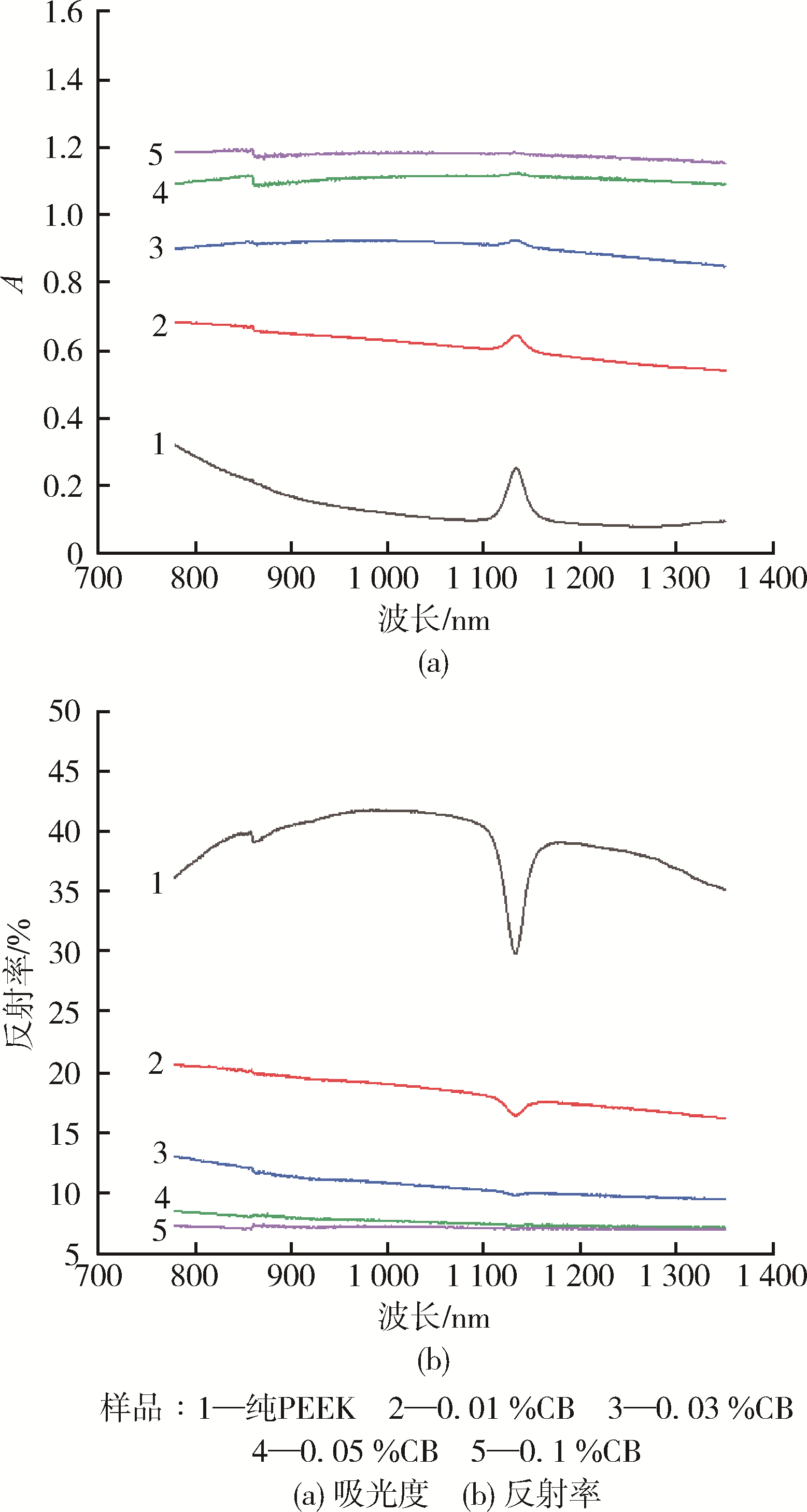

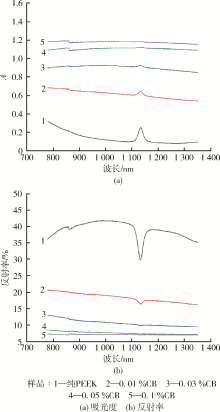

Fig.4. Effect of carbon black filler on the absorbance and reflectance of PEEK

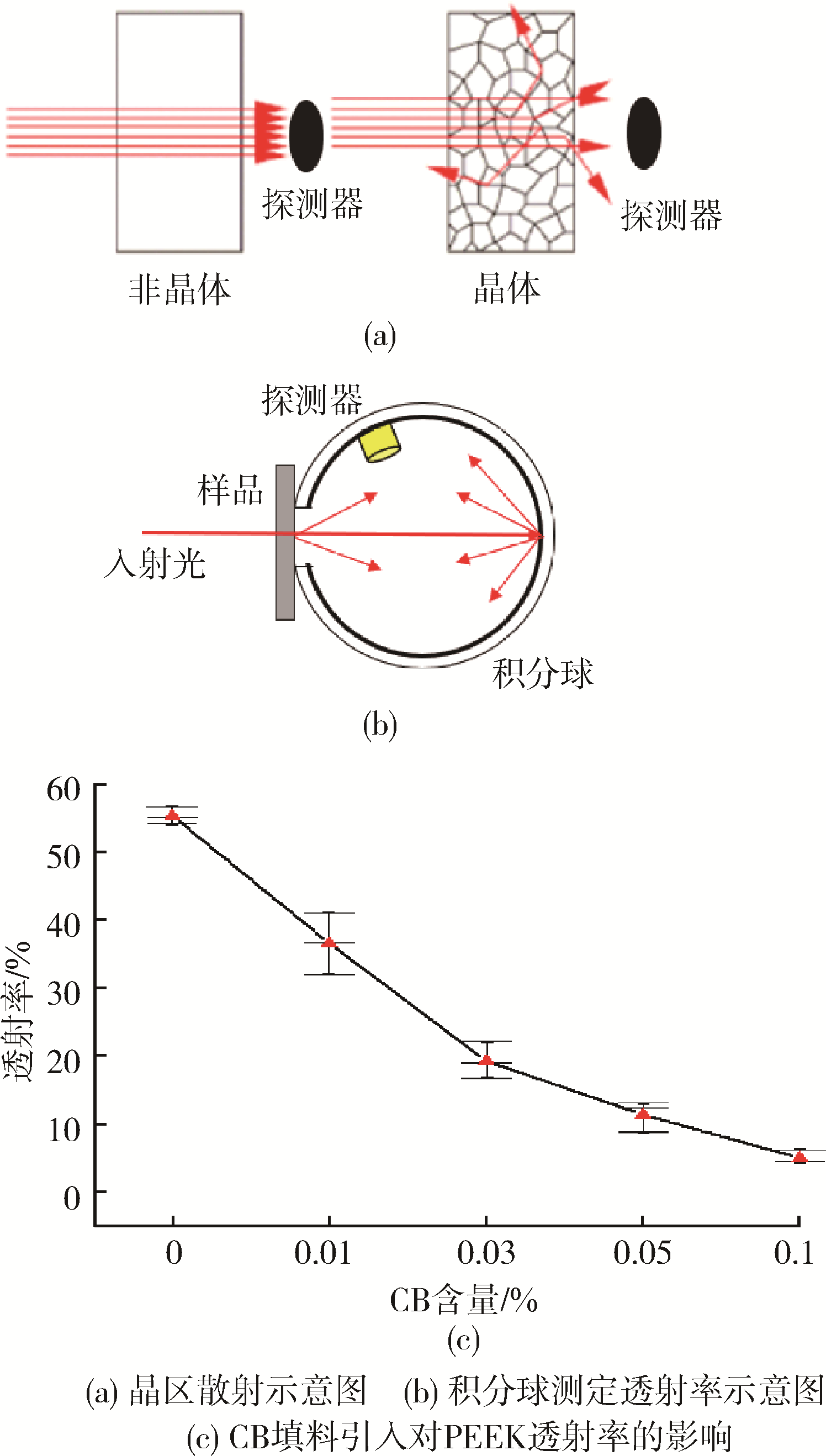

Fig.5. Determination of PEEK transmittance with different contents of carbon black

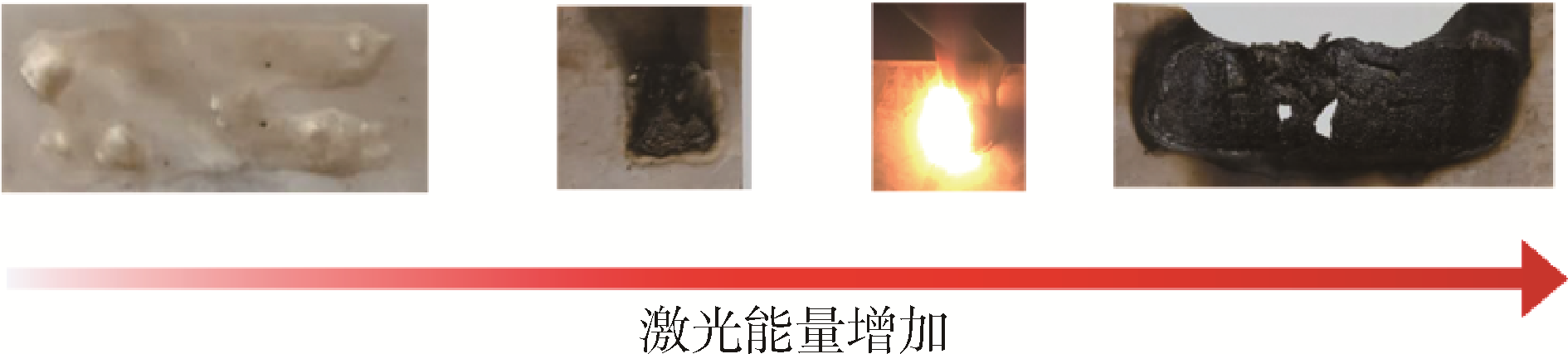

Fig.6. Ablation of PEEK during laser irradiation

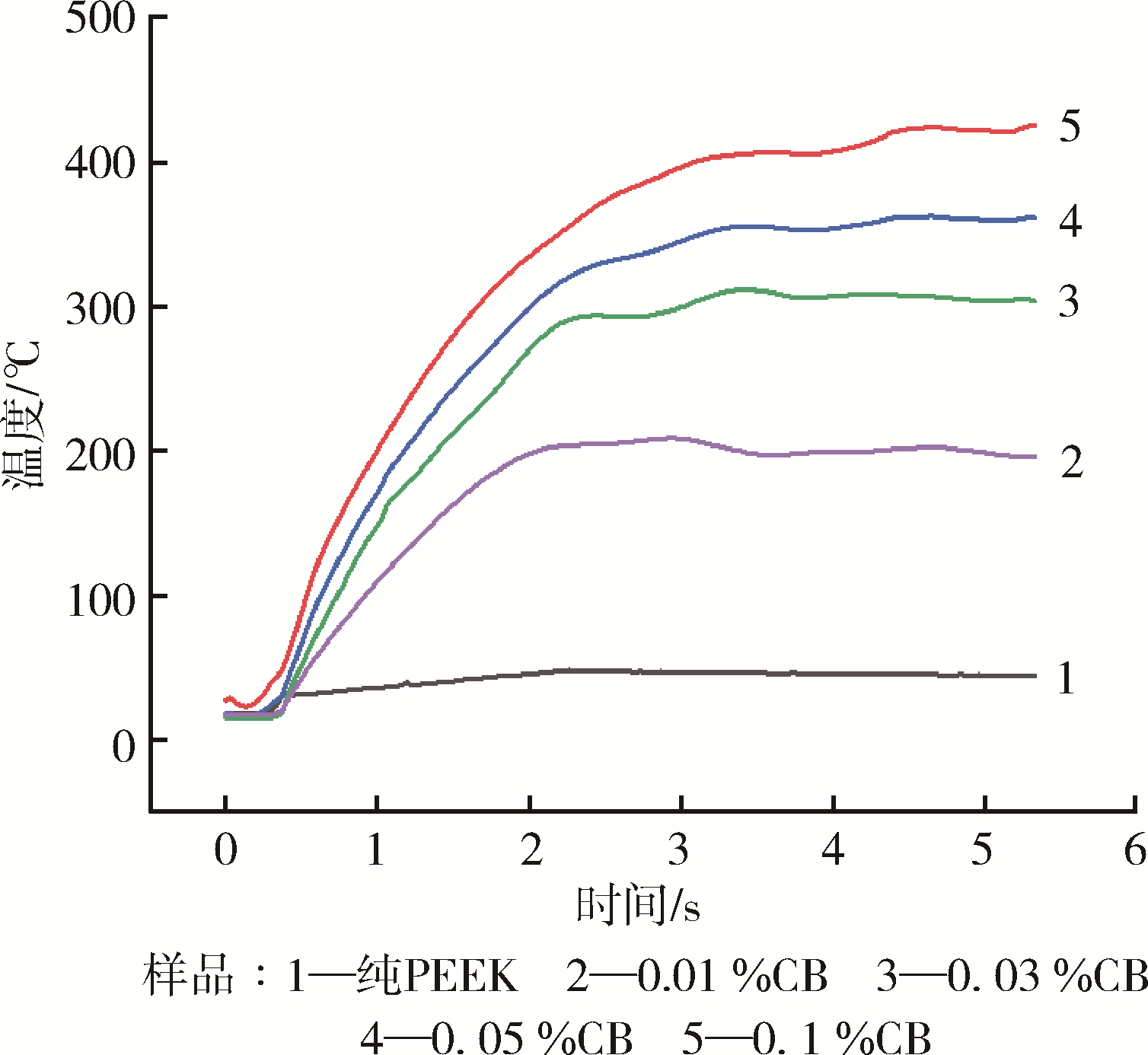

Fig.7. Heating curves of PEEK with different carbon black content during laser irradiation

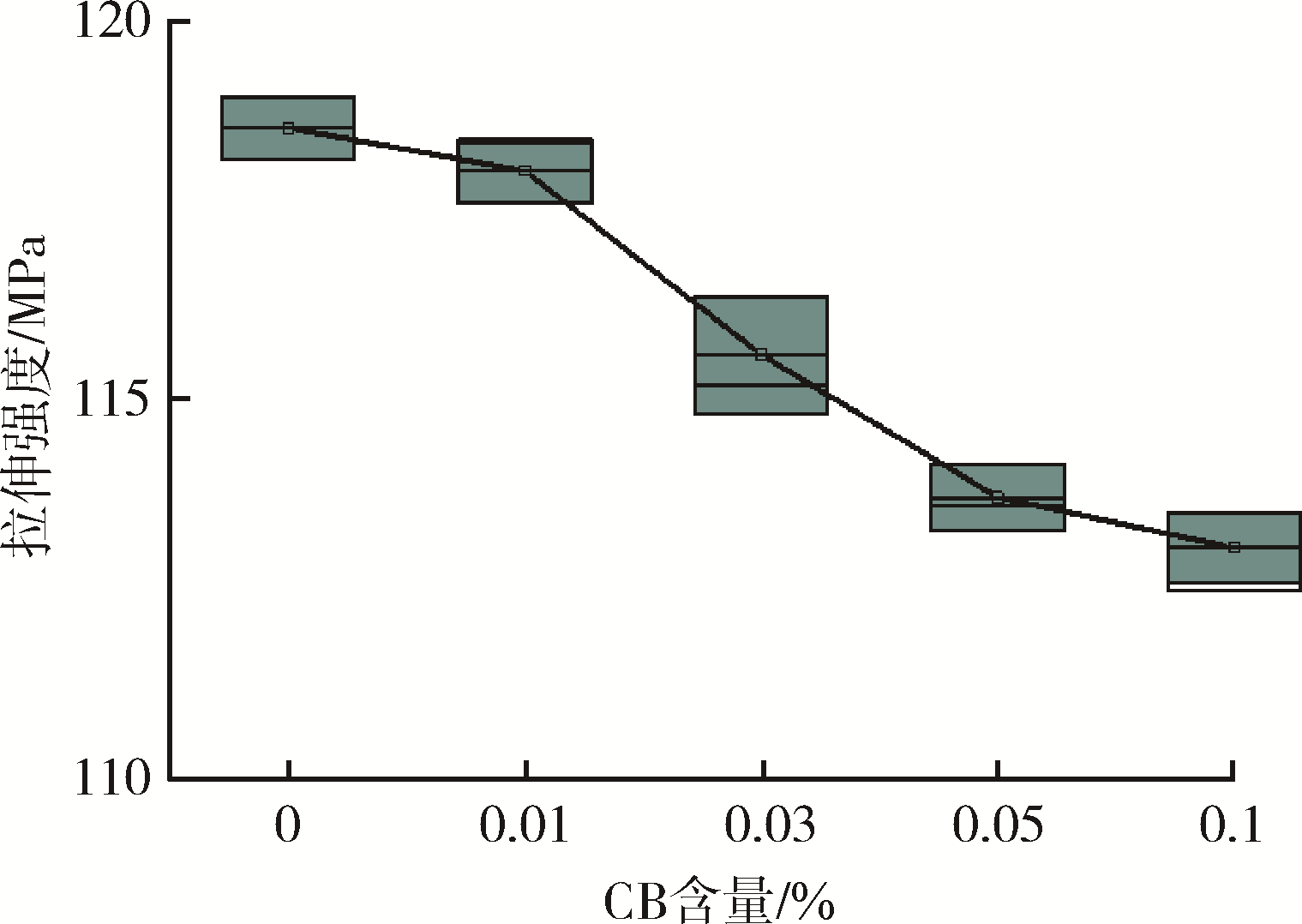

Fig.8. Tensile strength of PEEK with different carbon black content

Fig.9. SEM pictures of PEEK with different carbon black content

CB含量/%	反射率/%	透射率/%	吸收系数/mm^-1
0	41.2	55.6	0.112
0.01	20.0	36.6	1.564
0.03	12.5	19.3	3.023
0.05	7.1	11.4	4.196
0.1	7.0	5.0	5.844

Tab. 2. Absorption coefficient of PEEK with different content of carbon black

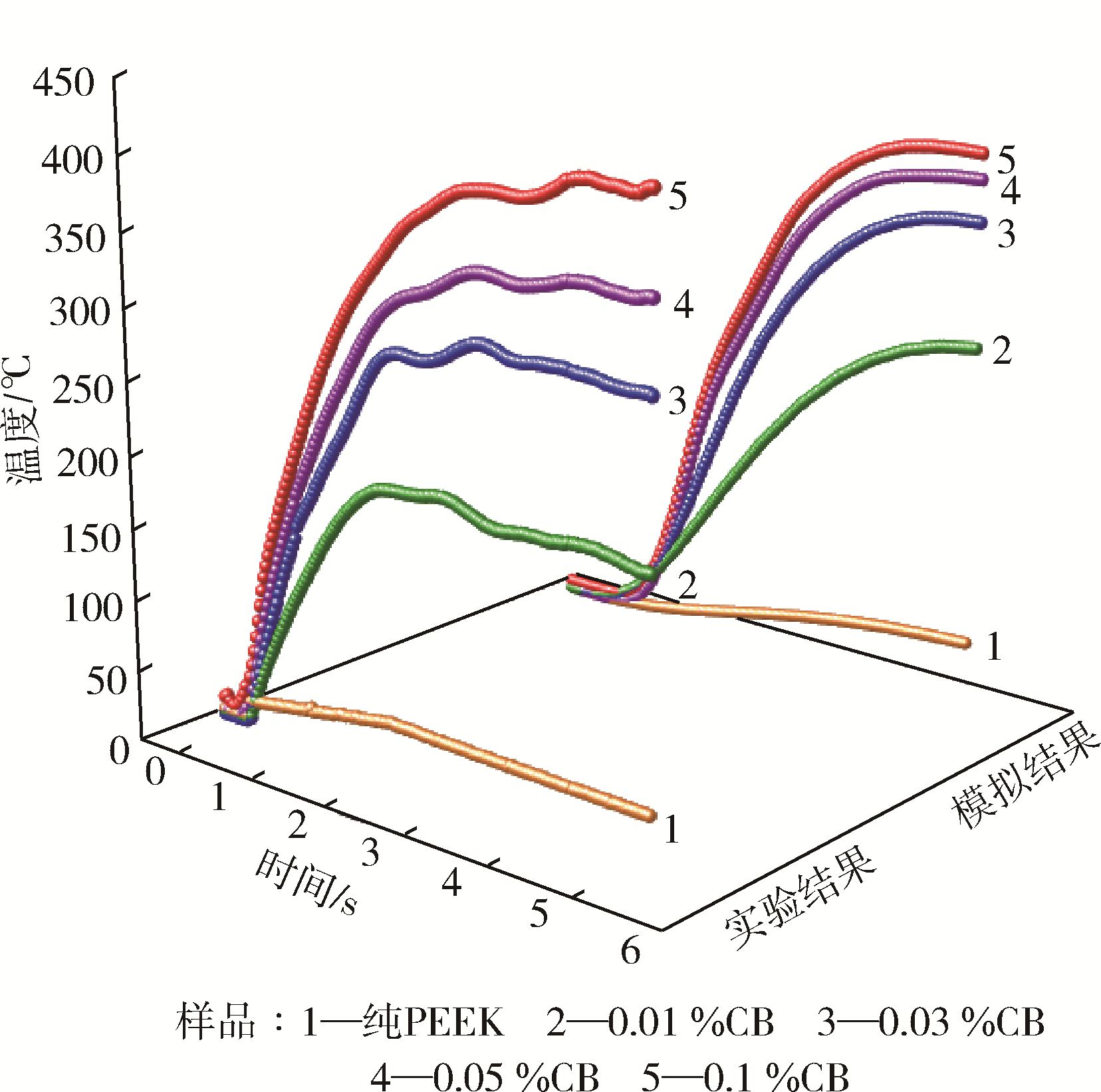

Fig.10. Heating curves of PEEK with different carbon black content during laser irradiation

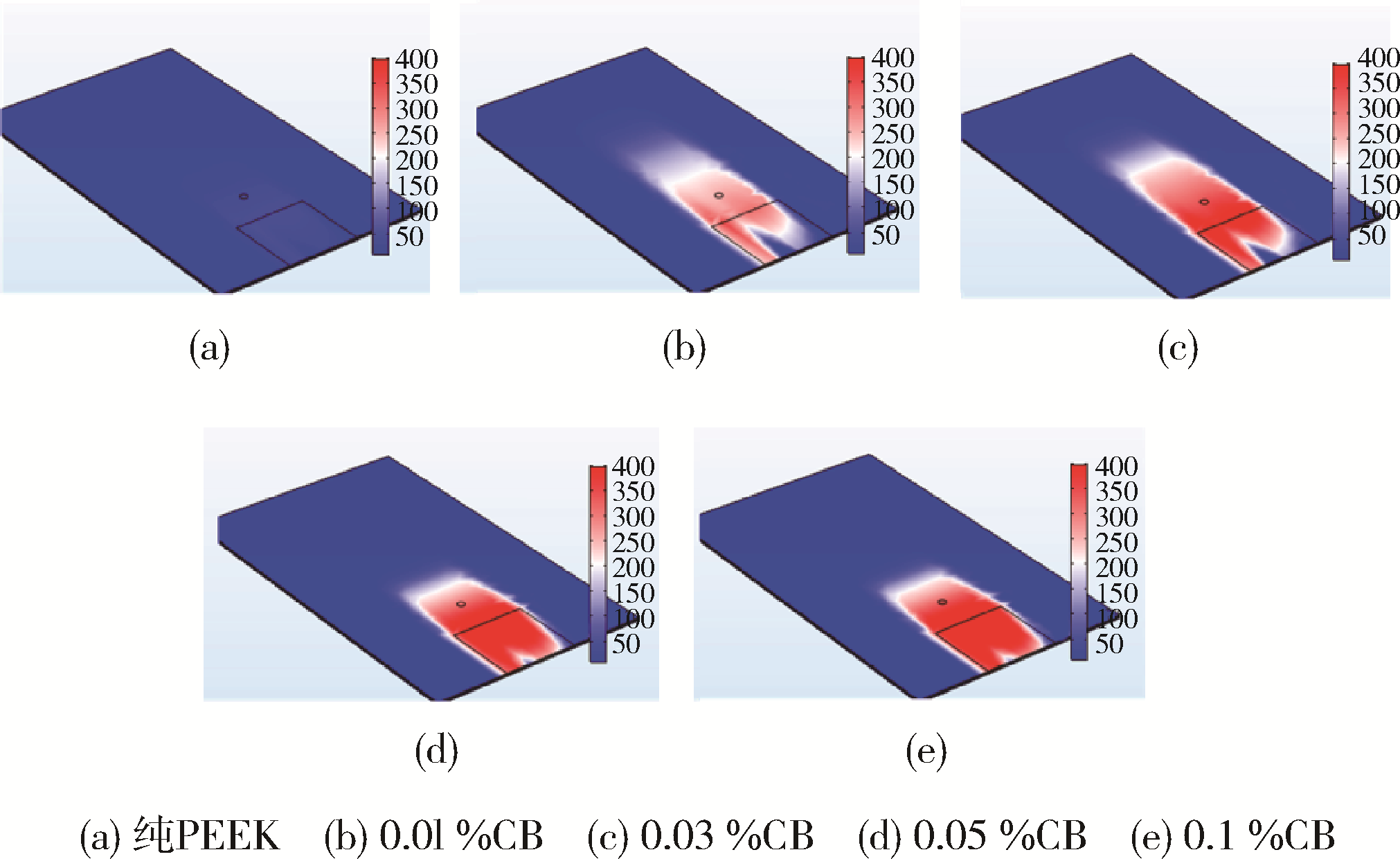

Fig.11. Temperature clouds of numerical simulation of PEEK sheets with different carbon black content

References 21

1	TSAFACK T， BARTOLUCCI S F， MAURER J A. An Atomistic View of Heat Propagation from Graphene to Polyetheretherketone （PEEK）［J］. Computational Materials Science， 2020，177（109590）：266⁃273.
2	WANG X， HUANG Z， LAI M， et al. Highly Enhancing the Interfacial Strength of CF/PEEK Composites by Introducing PAIK onto Diazonium Functionalized Carbon Fibers［J］. Applied Surface Science， 2020，510（145400）：68⁃77.
3	冯刚，黄军生，马骅. 国外聚醚醚酮树脂专用料及应用开发概述［J］. 中国塑料， 2019，33（05）：115⁃120.
	FENG G， HUANG J S， MA Y. Review on Poly（ether⁃ether⁃ketone） Appropriative Resin and Its Application Development［J］. China Plastics， 2019，33（05）：115⁃120.
4	LAMBIASE F， GENNA S. Experimental Analysis of Laser Assisted Joining of Al⁃Mg Aluminium Alloy with Polyetheretherketone （PEEK）［J］. International Journal of Adhesion and Adhesives， 2018，84：265⁃274.
5	SU J， TAN C， WU Z， et al. Influence of Defocus Distance on Laser Joining of CFRP to Titanium Alloy［J］. Optics and Laser Technology， 2020，124（106006）.
6	GERRINGER J C， MORAN A G， HABIB T， et al. Radio Frequency Heating of Laser⁃Induced Graphene on Polymer Surfaces for Rapid Welding［J］. ACS Applied Nano Materials， 2019，2（11）：7032⁃7042.
7	STOKES⁃GRIFFIN C M， KOLLMANNSBERGER A， COMPSTON P， et al. The Effect of Processing Temperature on Wedge Peel Strength of CF/PA6 Laminates Manufactured in A Laser Tape Placement Process［J］. Composites Part A⁃Applied Science and Manufacturing， 2019，121：84⁃91.
8	STOKES⁃GRIFFIN C M， COMPSTON P. The Effect of Processing Temperature and Placement Rate on the Short Beam Strength of Carbon Fibre⁃PEEK Manufactured Using a Laser Tape Placement Process［J］. Composites Part A⁃Applied Science and Manufacturing， 2015，78：274⁃283.
9	田仁杰，朱光明. 聚醚醚酮的激光加工研究进展［J］. 中国塑料， 2020，34（02）：96⁃102.
	TIAN R J， ZHU G M. Research Progress in Laser Proces⁃sing of PEEK［J］. China Plastics， 2020，34（02）：96⁃102.
10	XIN B， ZHOU X， CHENG G， et al. Microstructure and Mechanical Properties of Thin⁃Wall Structure by Hybrid Laser Metal Deposition and Laser Remelting Process［J］. Optics and Laser Technology， 2020，127（106087）：147⁃154.
11	ZHANG Y， PERRIN V， SEVEYRAT L， et al. On A Better Understanding of the Electromechanical Coupling in Electroactive Polyurethane［J］. Smart Materials and Structures， 2020，29（0550075）：178⁃186.
12	王维，刘奇，杨光，等. 电磁搅拌作用下激光熔池电磁场、温度场和流场的数值模拟［J］. 中国激光， 2015，42（02）：48⁃55.
	WANG W， LIU Q， YANG G， et al. Numerical Simulation of Electromagnetic Flow， Temperature Field and Flow Field in Laser Molten Pool with Electromagnetic Stirring［J］. Chinese Journal of Lasers， 2015，42（02）：48⁃55.
13	李强，陈奇海，霍绍新，等. PEEK导热性能研究进展［J］. 工程塑料应用， 2019，47（05）：144⁃147.
	LI Q， CHEN H Q， HUO S Q， et al. Research Development on Thermal Conductivity of PEEK［J］. Engineering Plastics Application， 2019，47（05）：144⁃147.
14	龚飞. 热塑性塑料PP激光透射焊接技术研究［D］. 武汉：华中科技大学， 2011.
15	BENEDETTI L， BRULE B， DECREAMER N， et al. Shrinkage Behavior of Semi⁃Crystalline Polymers in Laser Sintering： PEKK and PA12［J］. Materials & Design， 2019，181（UNSP 107906）：47⁃56.
16	魏胜敏，李英，常明，等. 聚醚醚酮的红外光谱研究［J］. 合成树脂及塑料， 2019，36（02）：27⁃31.
	WEI S M， LI Y， CHANG M， et al. Research on Infrared Spectroscopy of PEEK［J］. China Synthetic Resin and Plastics， 2019，36（02）：27⁃31.
17	LI H， WU L， ZHANG H， et al. Self⁃Assembly of Carbon Black/AAO Templates on Nanoporous Si for Broadband Infrared Absorption［J］. ACS Applied Materials & Interfaces， 2020，12（3）：4 081⁃4 087.
18	CLANCY G， PEETERS D， OLIVERI V， et al. A Study of the Influence of Processing Parameters on Stee⁃ring of Carbon Fibre/PEEK Tapes Using Laser⁃Assisted Tape Placement［J］. Composites Part B⁃Engineering， 2019，163：243⁃251.
19	VILLAR M， GARNIER C， CHABERT F， et al. In⁃Situ Infrared Thermography Measurements to Master Transmission Laser Welding Process Parameters of PEKK［J］. Optics and Lasers in Engineering， 2018，106：94⁃104.
20	沈璇璇. 热塑性塑料激光透射焊接的实验研究和温度场模拟［D］. 苏州：苏州大学， 2011.
21	SONG J， MA L， HE Y， et al. Discussion about Thermal Conductivity of Carbon Black Filled Rubber［J］. Special Topics & Reviews in Porous Media⁃An International Journal， 2015，6（2）：159⁃172.
