Establishment of Rheological Model of Solid Propellant in Spiral Extrusion Process

doi:10.19491/j.issn.1001-9278.2021.02.010

Abstract

Abstract:

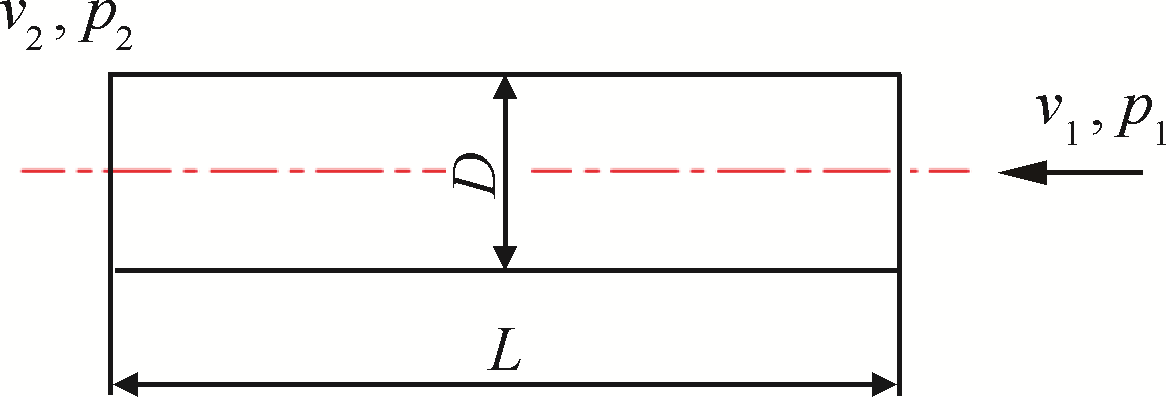

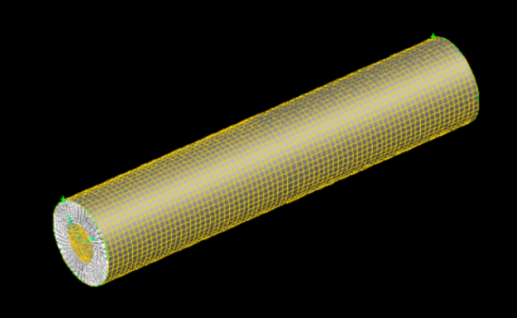

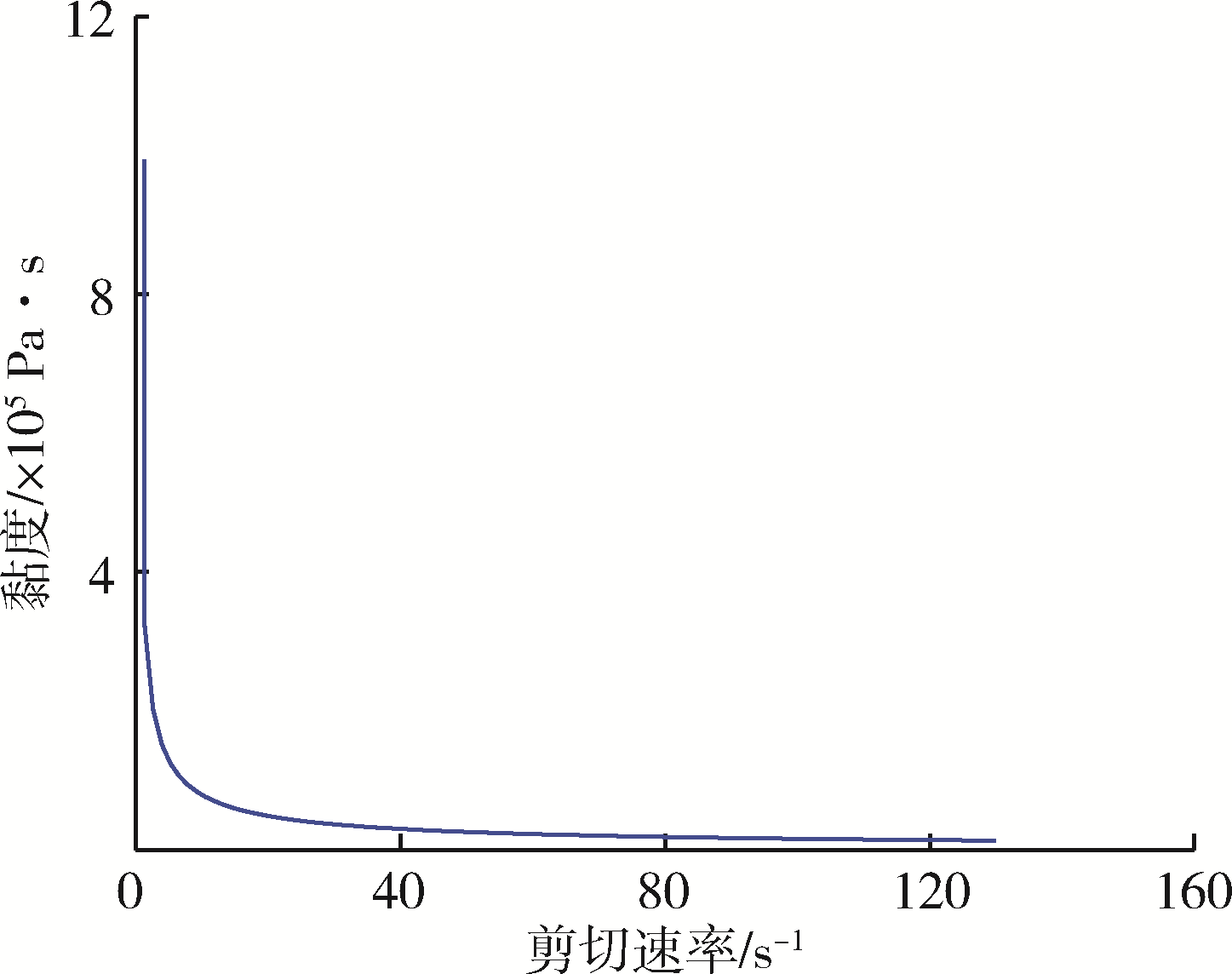

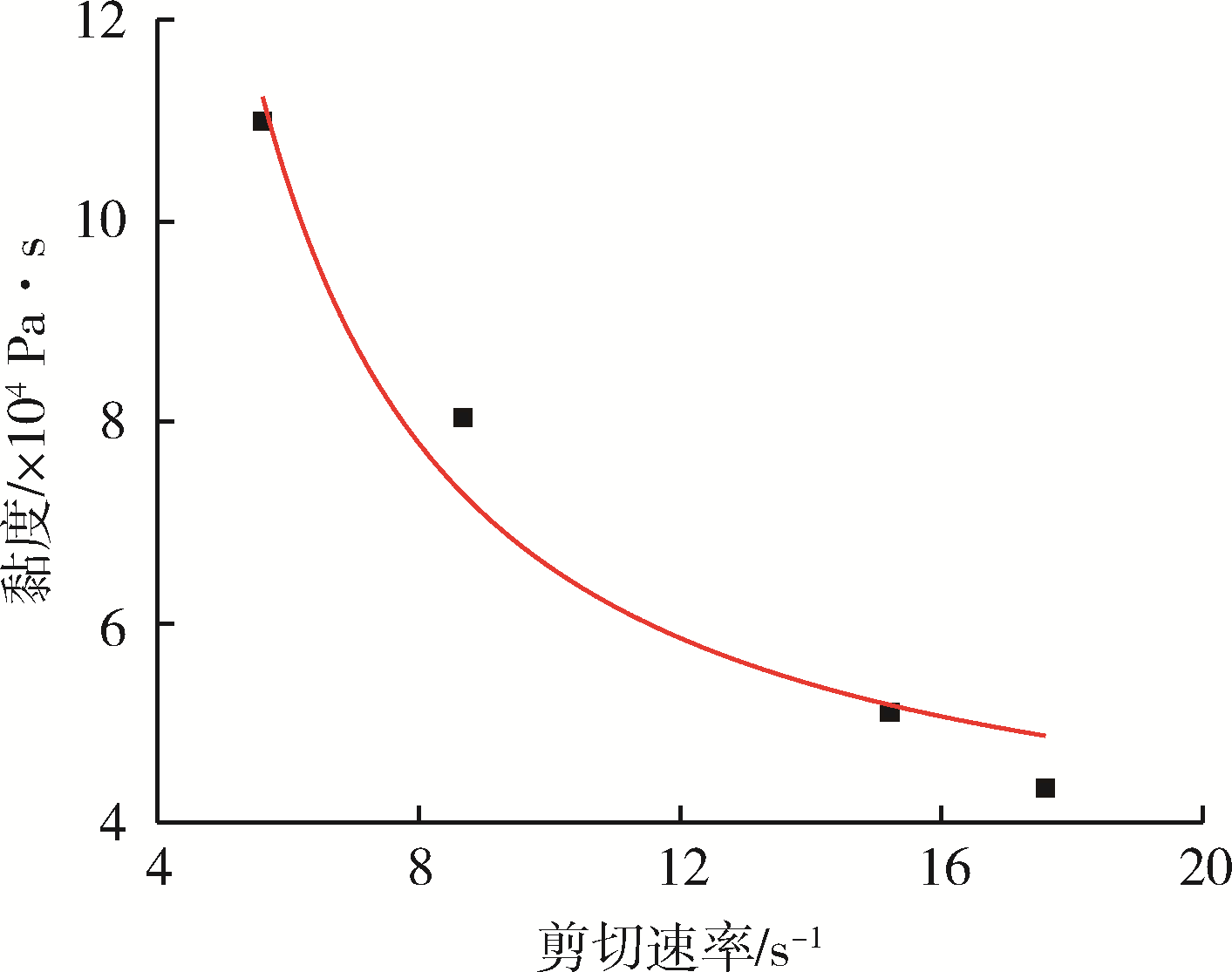

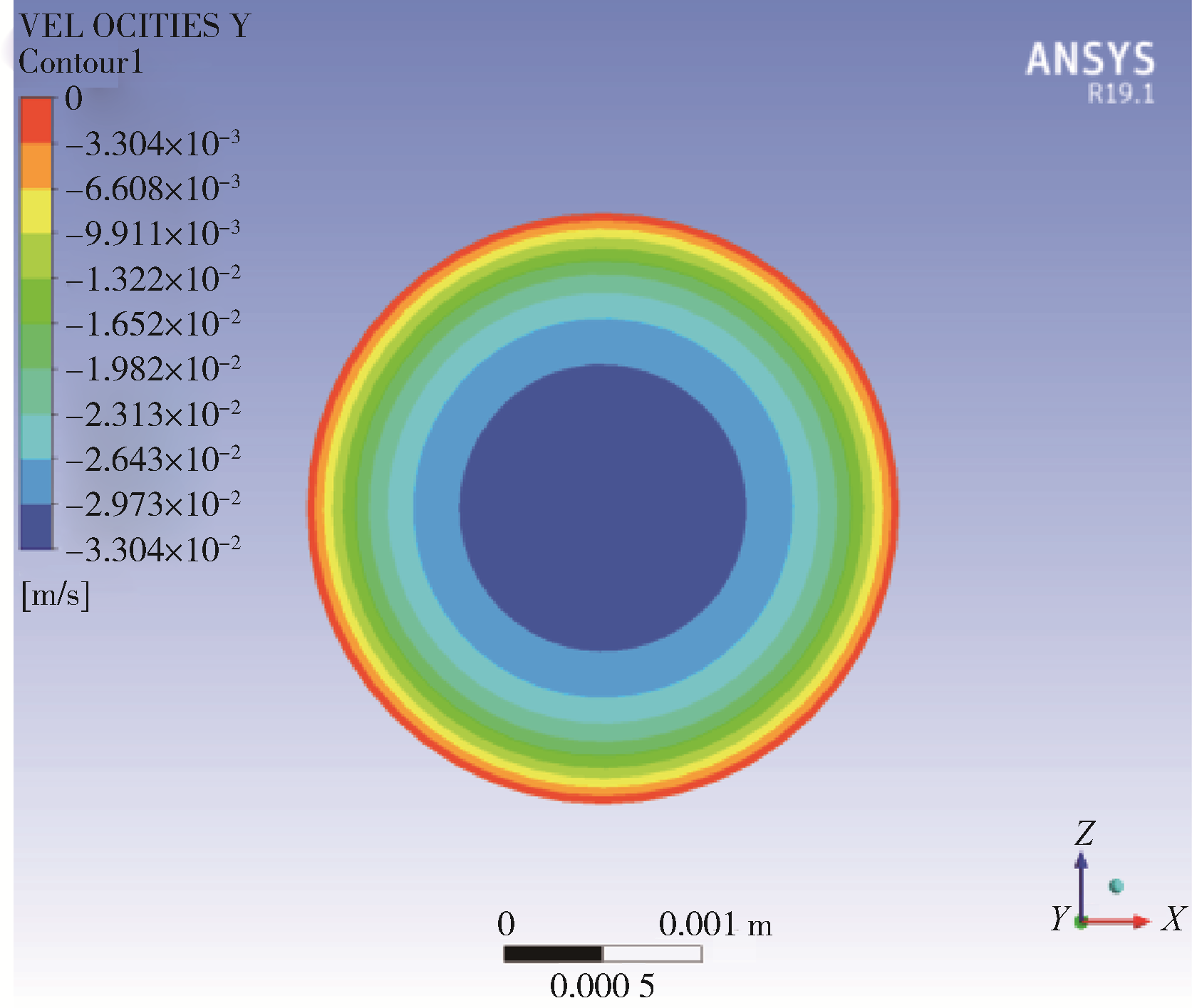

On the basis of research results in the spiral compression and extension process of solid propellant， a new method was explored to establish a rheological model of solid propellant. To develop this new method， a least square method was used to fit the data obtained from the capillary rheometer test to achieve a preliminary solid propellant rheological constitutive model. The test process of the capillary rheometer was then simulated by using by a Polyflow finite element simulation software to correct the parameters of the rheological constitutive model so as to determine the final propellant rheological constitutive model. The rheological constitutive model of the propellant was established through a combination of experimental data fitting and finite element simulation. This lays a foundation for simulating the spiral extrusion process of solid propellant with a finite element method. The results indicated that there was only an error of around 10% between the real data and the data obtained from the simulation with the propellant rheological model by a combination of data fitting and numerical simulation. The obtained results were in good agreement with the expected results from the numerical simulation

Key words: propellant, rheological model, numerical simulation, least square

CLC Number:

TQ320.66

HE Jialong, GU Lin, ZHU Yuting, SONG Xiuduo, YANG Xueqin, MA Yulu, XIE Linsheng. Establishment of Rheological Model of Solid Propellant in Spiral Extrusion Process[J]. China Plastics, 2021, 35(2): 58-62.

Figures/Tables 7

References 13

1	张续柱. 双基火药［M］. 北京：北京理工大学出版社， 1997：169⁃171.
2	孟祥荣. 国外低特征信号推进剂应用研究及发展趋势［J］. 飞航导弹，1999（8）：3⁃5.
	MENG X R. Application Research and Development Trend of Low Characteristic Signal Propellant Abroad ［J］. Airborne Missiles， 1999（8）：3⁃5.
3	吴世玉. 大型实用发动机推进剂燃速评估技术初探——固体推进剂应用性能评估技术之一［J］. 飞航导弹，1988（11）：21⁃26.
	WU S Y. Primary Probe into the Application Performance Evaluation Technology of Large⁃scale Practical Engine Propellant——One of the Technologies ［J］. Airborne Missiles， 1988（11）：21⁃26.
4	陈雄. 固体推进剂黏弹性力学［M］. 北京：北京理工大学出版社， 2016：12⁃14.
5	冯刚. 螺杆挤出机挤出过程数值模拟研究进展［J］. 工程塑料应用， 2012， 40（4）：96⁃99.
	FENG G. Research Progress in Numerical Simulation of Screw Extruder Process［J］. Engineering Plastics Application， 2012， 40（4）：96⁃99.
6	LEADERMAN H. Large Longitudinal Retarded Elastic Deformation of Rubber⁃like Network Polymers［J］. Journal of Polymer Science， 1962， 59（168）：361⁃382
7	陈晋南，王建，彭炯. 热敏高黏度材料的流变测试方法及其本构方程［C］. 全国流变学学术会议. 2014， 9.
8	吕章林，裴云梦，王烨烨，等. TPU流变性能测试及胶片挤出过程模拟仿真［J］. 塑料工业， 2018， 46（11）：57⁃61，84.
	LV Z L， PEI Y M， WANG Y Y， et al. Rheological Pro⁃perty Test of TPU and the Simulation of Film Extrusion Process［J］. China Plastics Industry， 2018， 46（11）：57⁃61，84.
9	宋大余，刘颖，连利仙，等. 稀土磁性塑料充模流动过程模拟［J］. 模具工业， 2005， 31（9）：41⁃46.
	SONG D Y， LIU Y， LIAN L X， et al. Mould⁃Filling Flow Process Simulation of Rare⁃Earth Magnetic Plastics［J］. Die & Mould Industry， 2005， 31（9）：41⁃46.
10	丁亚军，应三九. 螺杆挤出过程中物料在线流变行为及其数值模拟［J］. 兵工学报， 2015， 36（8）：1 437⁃1 442.
	DING Y J， YING S J. In⁃Line Rheologicai Behaviors and Numerical Simulation of Material in Extrusion Processing［J］. Acta Armamentarii， 2015， 36（8）：1437⁃1442.
11	BUSBY A J， MORRIS K， FLOWER P Q. Twin⁃screw Extrusion of Gun Propellants Based on Energetic Binders［C］. International Annual Conference of ICT， Karlsruhe， June 24⁃June 27， 2008.
12	张子贤. 可线性化的非线性回归的有关问题与几种回归方法的比较［J］. 数学的实践与认识， 2015， 45（18）：167⁃173.
	ZHANG Z X. Issues in Linearization Nonlinear Regression and Comparison of Several Regression Methods［J］. Mathematics in Practice and Theory， 2015， 45（18）：167⁃173.
13	刘新，王大尉. 基于信赖域方法的矿井通风网络解算［J］. 辽宁工程技术大学学报（自然科学版）， 2008， 27（z1）：10⁃12.
	LIU X， WANG D W. Mine Ventilation Network Solution Based on Trust Region Method［J］. Journal of Liaoning Technical University （Natural Science Edition）， 2008， 27（z1）：10⁃12.

剪切速率/ s^-1	剪切应力/ MPa	表观黏度/ Pa·s	压力/ MPa	温度/ ℃	流量/ g·h^-1
5.61	0.62	109 901.45	24.67	89.53	209.40
8.68	0.70	80 327.84	27.89	90.87	324.00
15.21	0.18	51 034.33	31.05	91.50	567.60
17.59	0.16	43 413.08	30.54	91.83	656.40

剪切速率/ s^-1	剪切应力/ MPa	表观黏度/ Pa·s	压力/ MPa	温度/ ℃	流量/ g·h^-1
5.61	0.62	109 901.45	24.67	89.53	209.40
8.68	0.70	80 327.84	27.89	90.87	324.00
15.21	0.18	51 034.33	31.05	91.50	567.60
17.59	0.16	43 413.08	30.54	91.83	656.40

压力/MPa	实验产量/g·h^-1	模拟产量/g·h^-1	误差/%
24.67	209.40	229.98	9.83
27.90	324.00	346.45	6.93
31.04	567.60	495.51	12.7

压力/MPa	实验产量/g·h^-1	模拟产量/g·h^-1	误差/%
24.67	209.40	229.98	9.83
27.90	324.00	346.45	6.93
31.04	567.60	495.51	12.7
