Optimization Design of PET Bottle Stretch Blow Molding Based on Orthogonal Test

doi:10.19491/j.issn.1001-9278.2020.06.012

Abstract

Abstract:

Aiming at the defect of small wall thickness near the bottom end of some molded PET bottles, a Polyflow^? simulation software was adopted to perform a numerical simulation for the stretch blow molding process of PET bottles. The interactive orthogonal test method was used to optimize the combination of process parameters including the heating temperature of parison, the stretching speed of rod, pre?blowing pressure, delay time and high blowing pressure so as to improve the minimum thickness and uniformity of the bottle. An optimum combination of process parameters was achieved when the delay time was set as 0.06 s, the stretching speed as 1.6 m/s, the pre?blowing pressure as 0.7 MPa, and the heating temperature was set as 110 °C. After the process parameters were optimized, the minimum wall thickness and wall thickness uniformity increased by 28 % and 63%, respectively.

Key words: stretch blow molding, numerical simulation, interaction, orthogonal test, process parameter

CLC Number:

TQ320.66

Liangxian LIU, Zhihua FENG, Chunxue HU, Jinan GE. Optimization Design of PET Bottle Stretch Blow Molding Based on Orthogonal Test[J]. China Plastics, 2020, 34(6): 73-79.

Figures/Tables 17

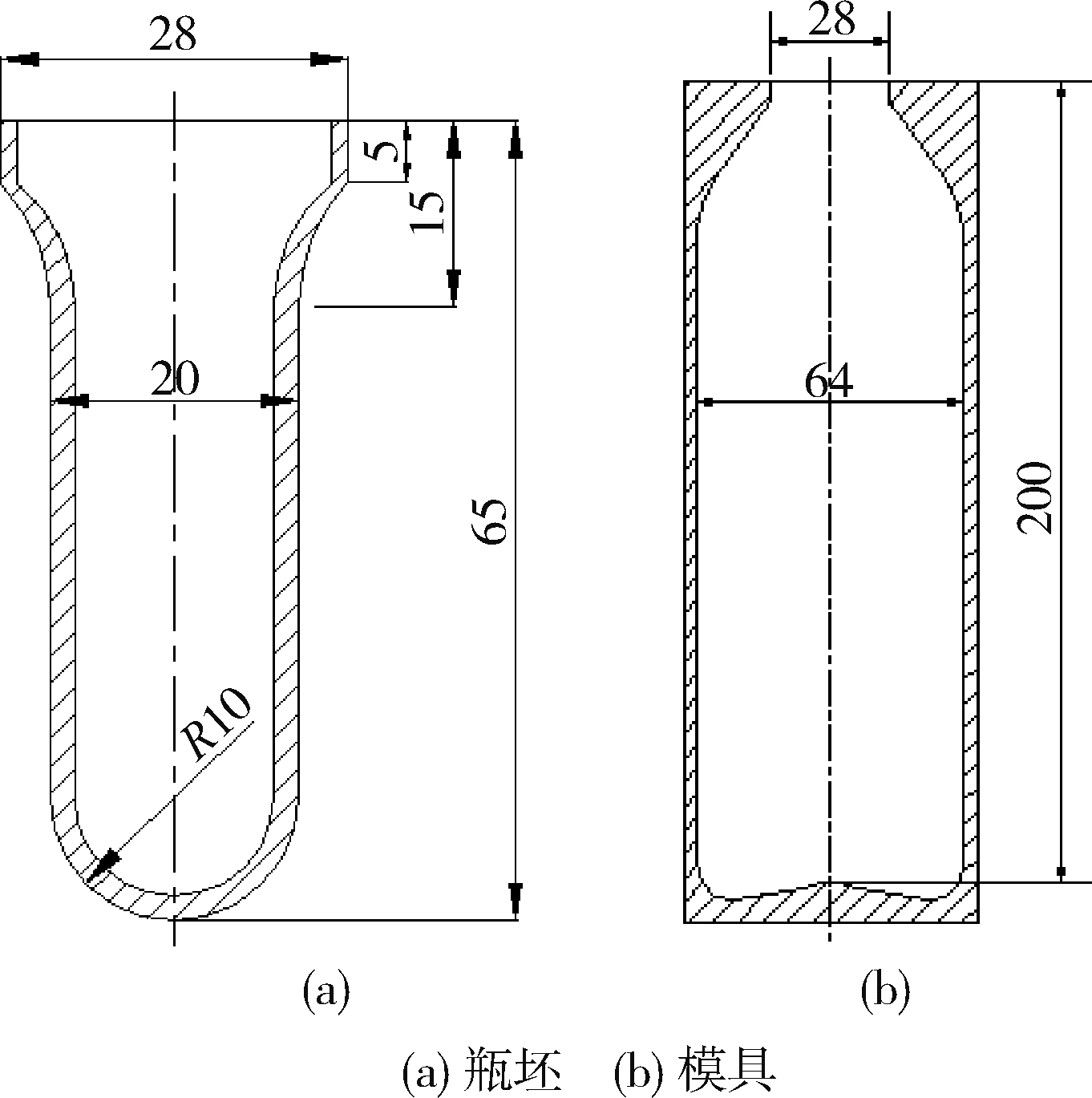

Fig.1. Parison and bottle moulds

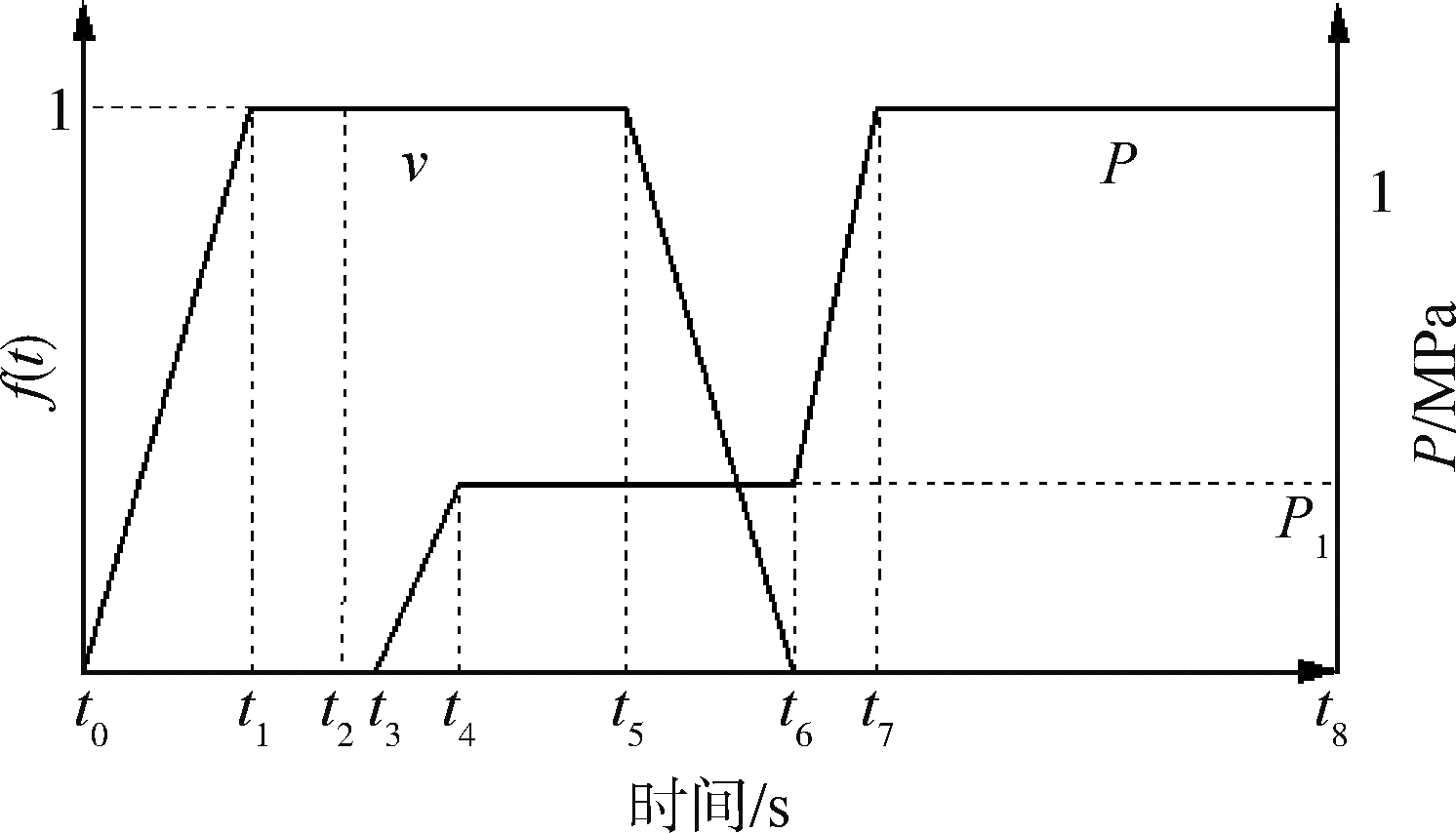

Fig.2. Changes in stretching speed and pre?blowing pressure

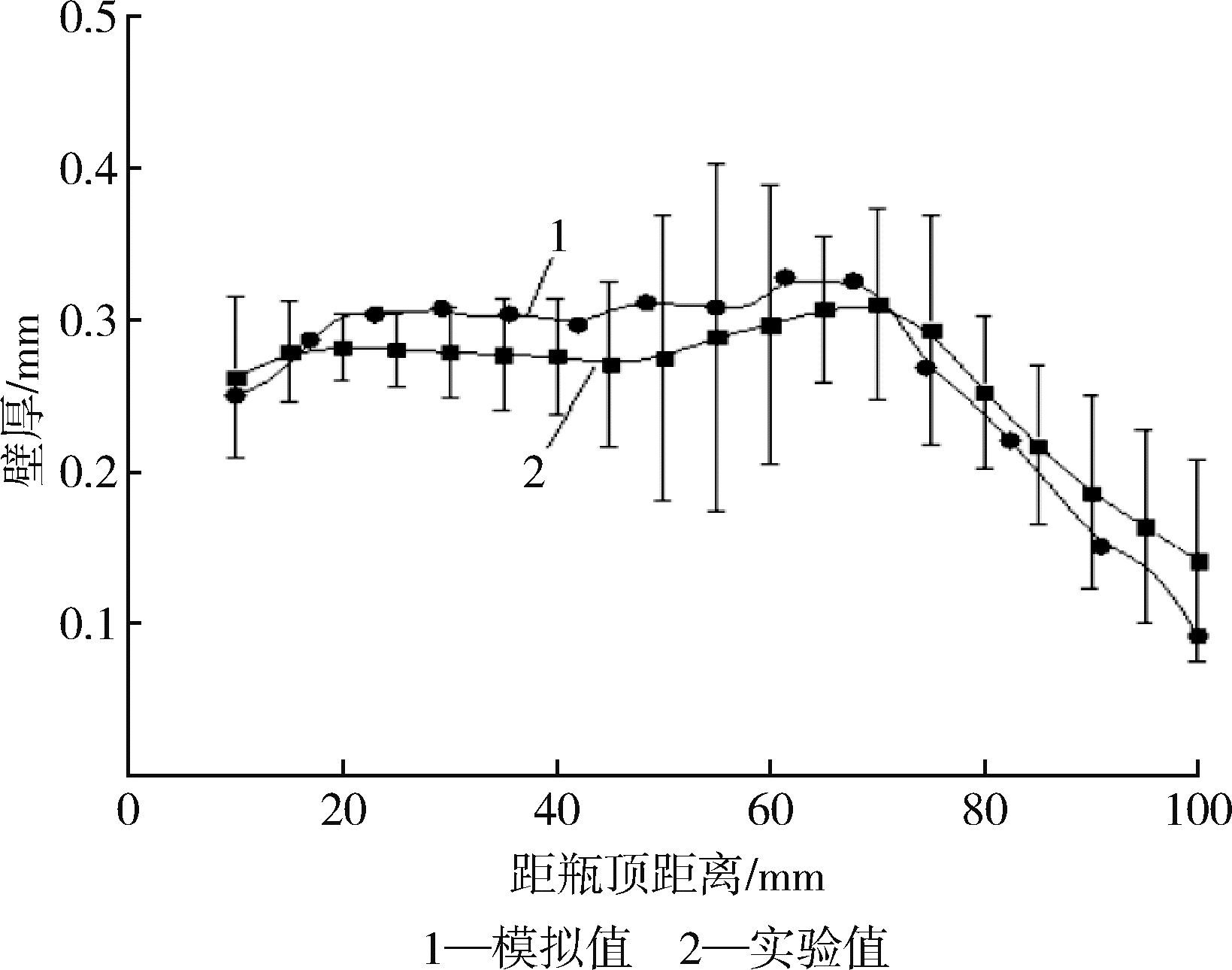

Fig.3. Comparison of bottle wall thickness distribution

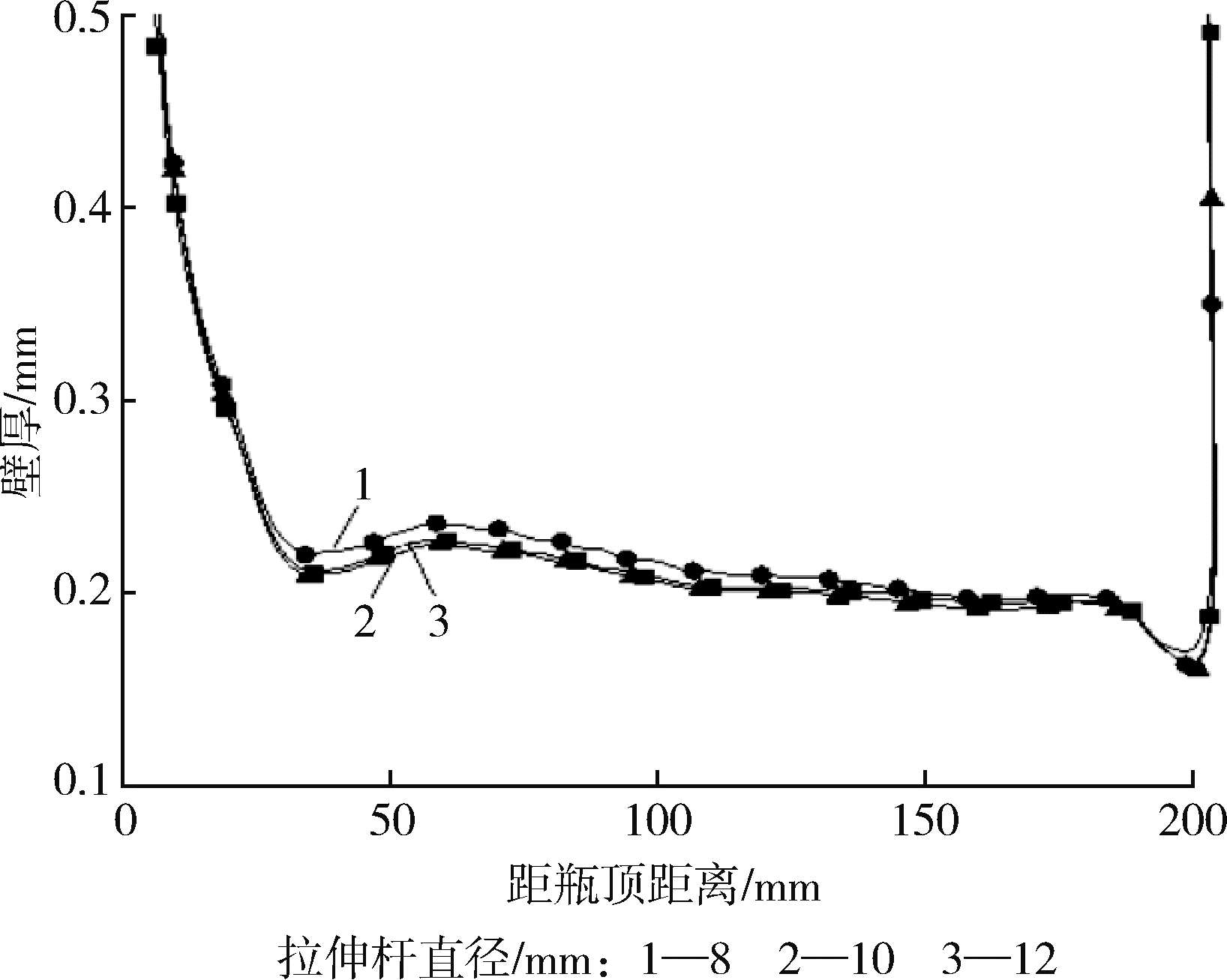

Fig.4. Thickness distribution against different rod diameters

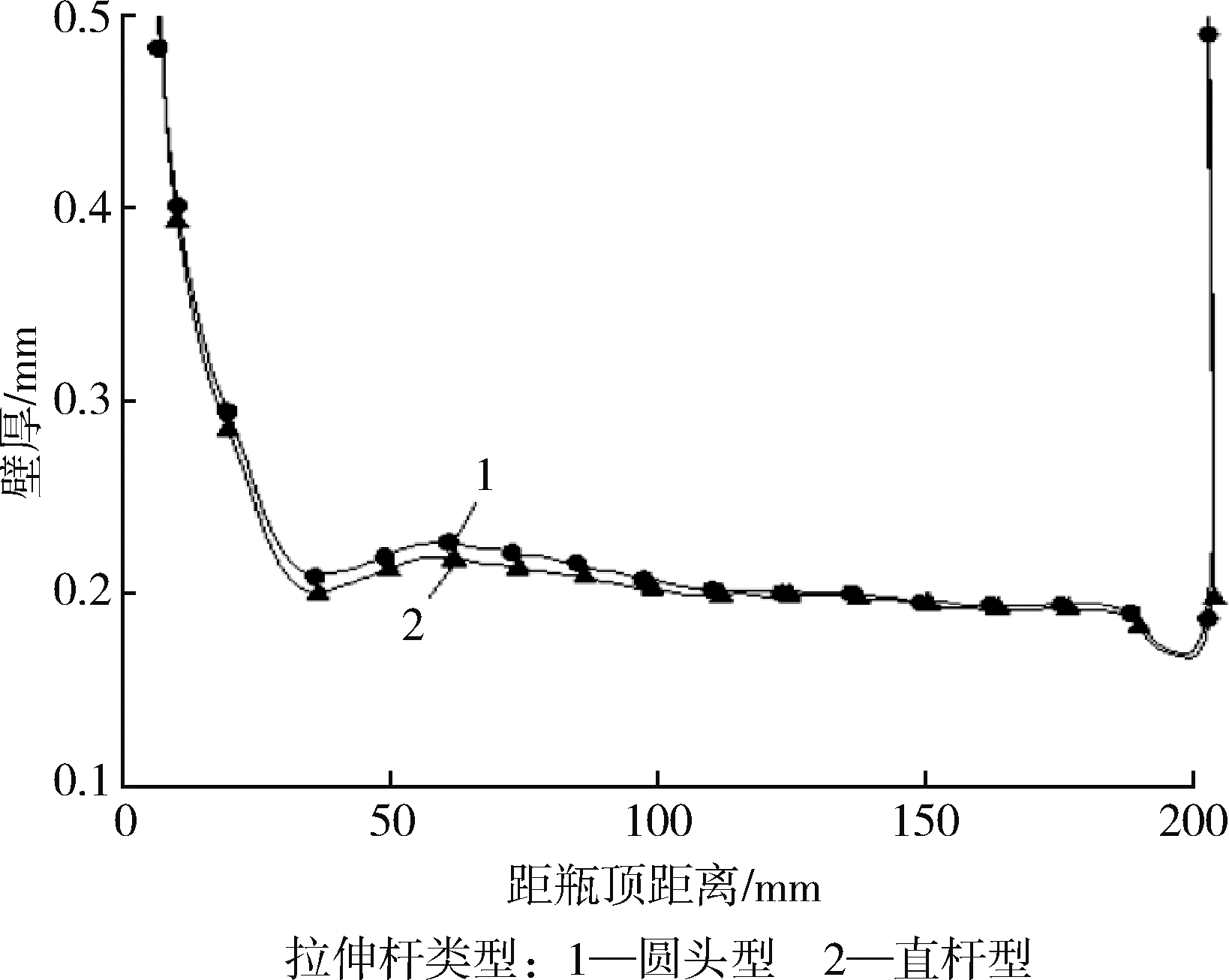

Fig.5. Thickness distribution against different rod shapes

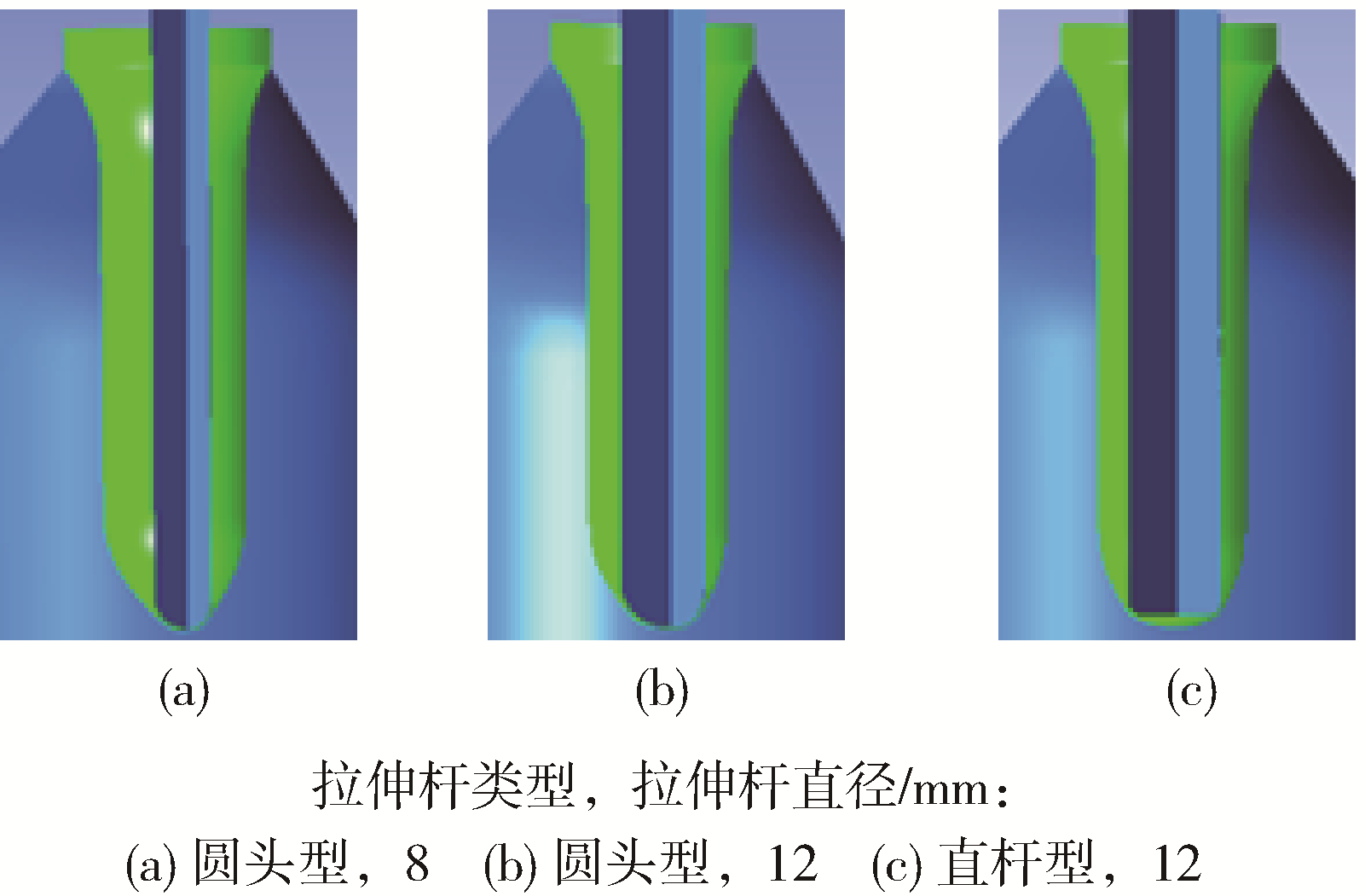

Fig.6. Contact between different stretching rods and parisons

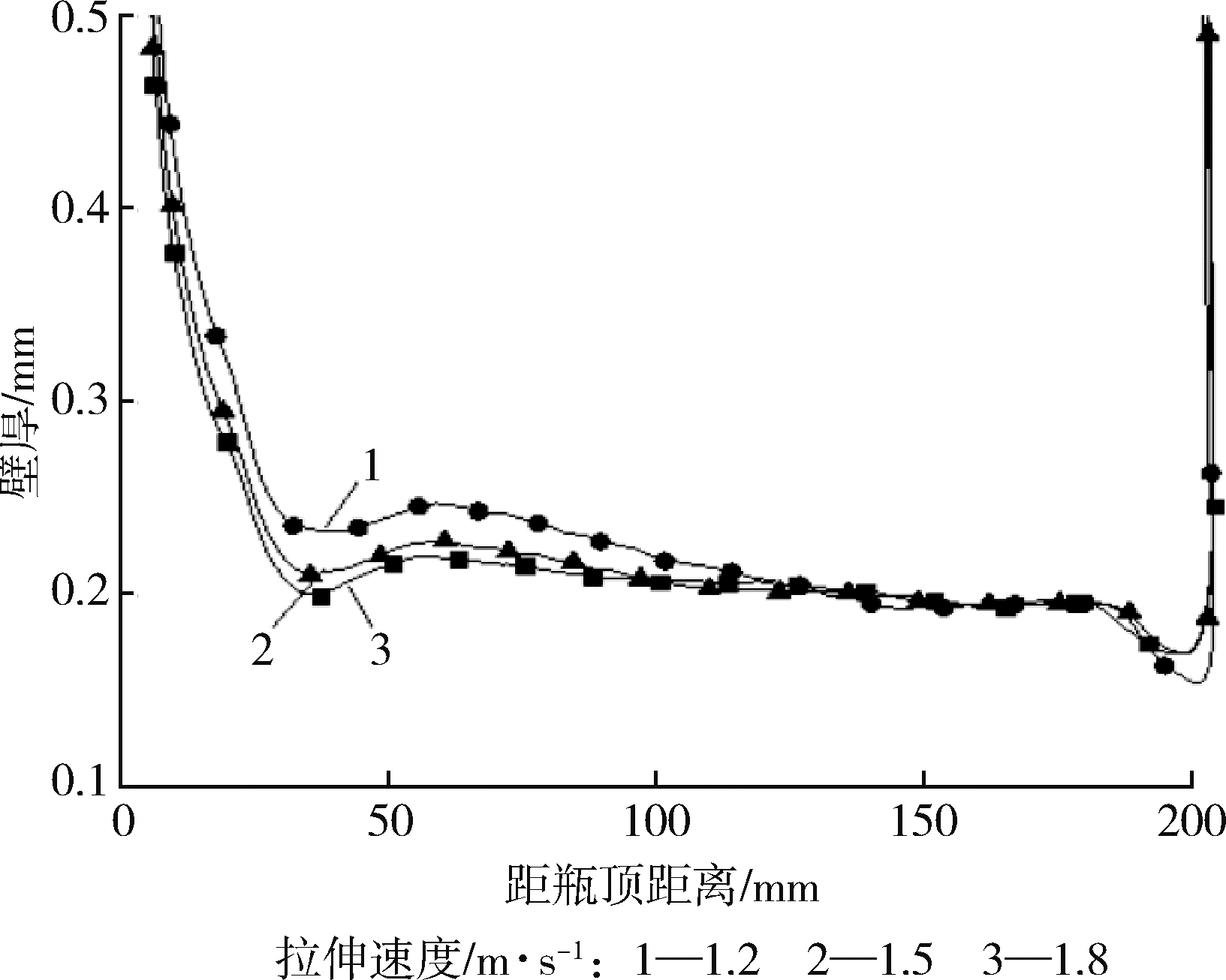

Fig.7. Thickness distribution curves at different stretching speed

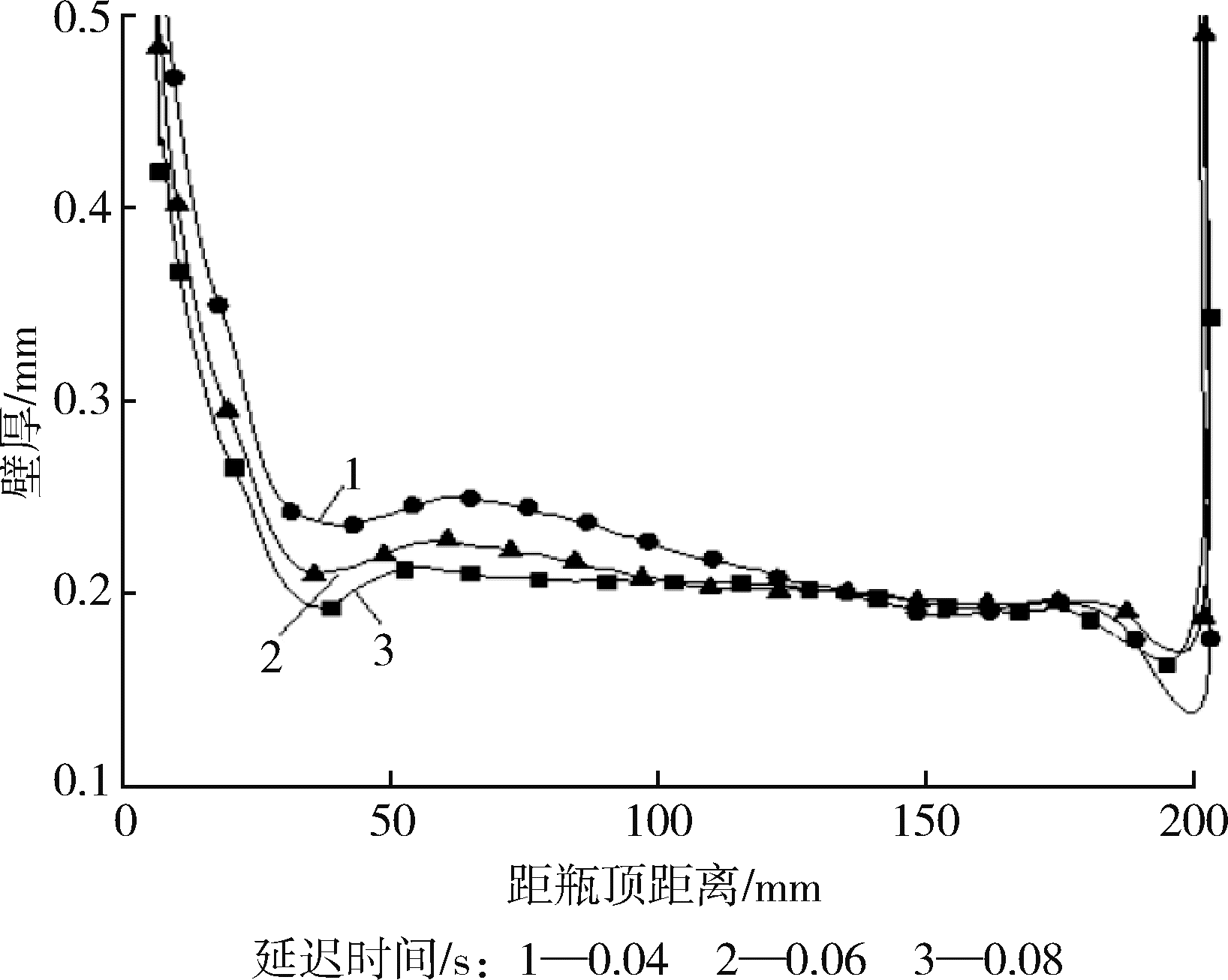

Fig.8. Thickness distribution curves at different delay time

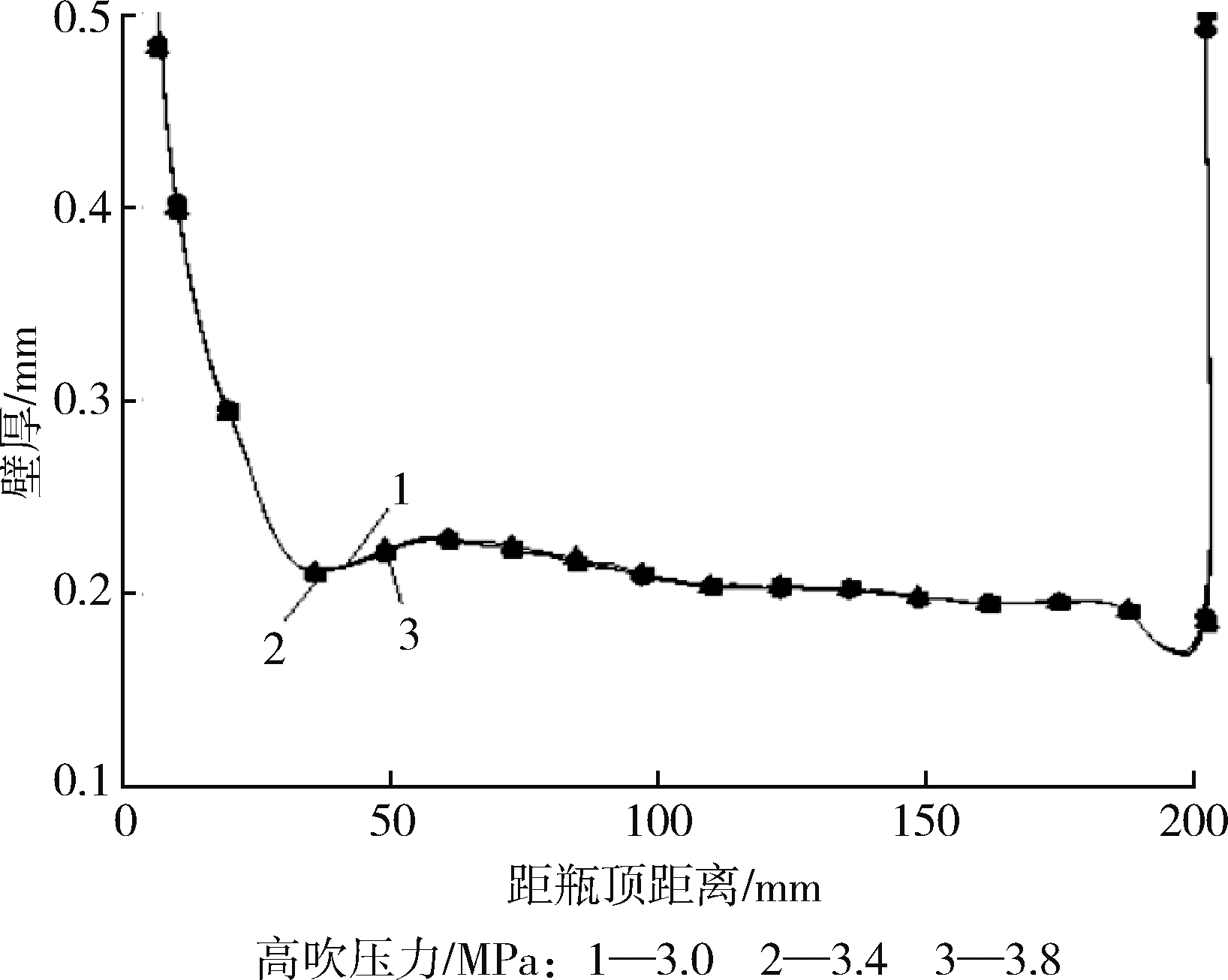

Fig.9. Thickness distribution curves at different high blowing pressure

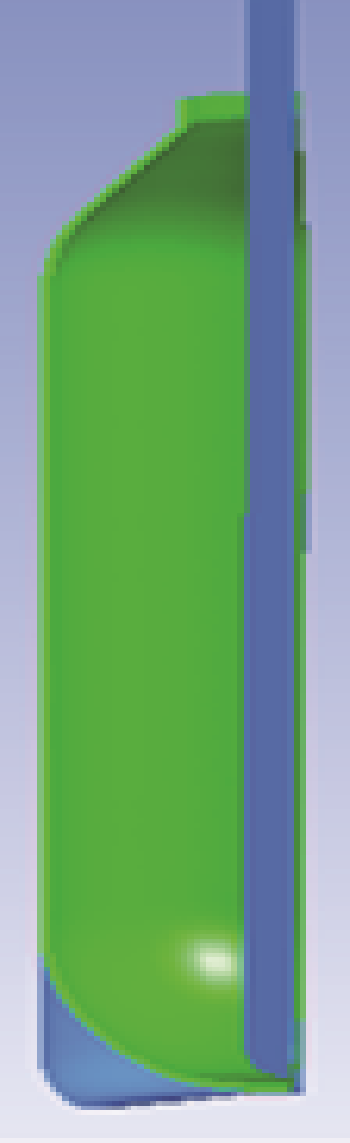

Fig.10. Pre?blown finished molding drawing

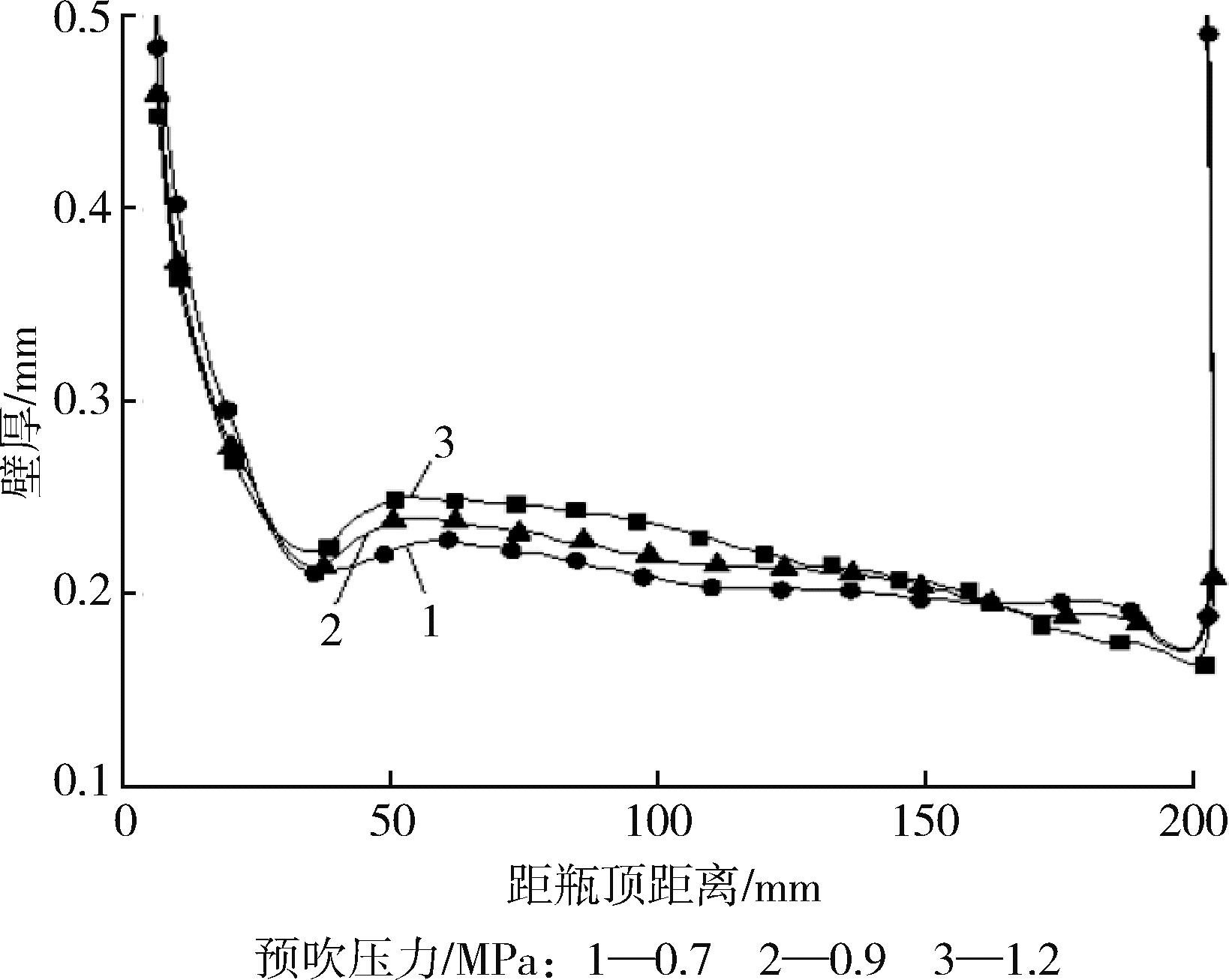

Fig.11. Thickness distribution curves at different pre?blowing pressure

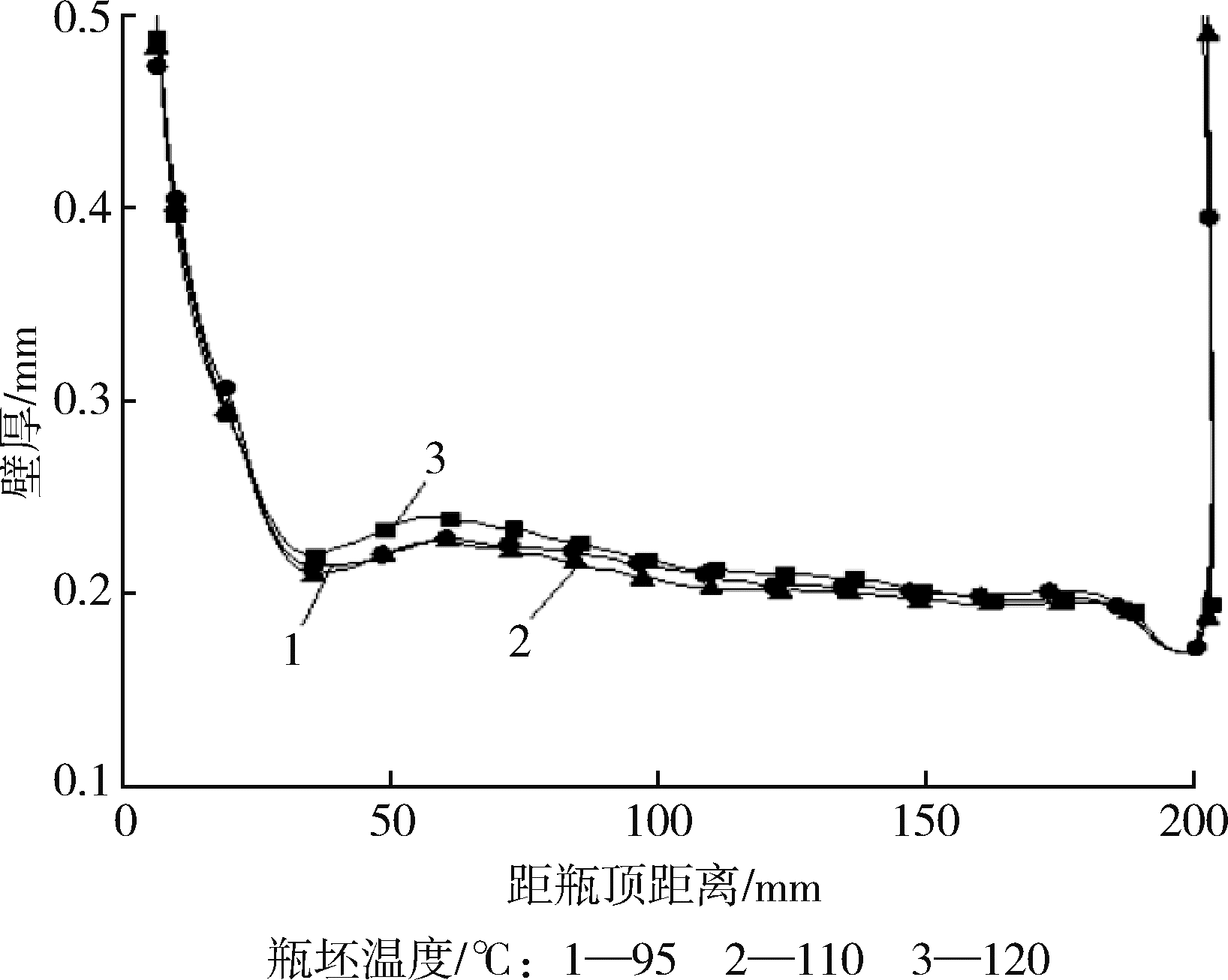

Fig.12. Thickness distribution curves at different temperature of parison

水平	因　　素
水平	拉伸速度（A）/m?s^-1	延迟时间（B）/s	预吹压力（C）/MPa	瓶坯温度（D）/℃
1	1.4	0.04	0.7	100
2	1.6	0.06	0.9	110

Tab.1. Horizontal table of orthogonal test factors

试验序号		A	B	A×B	C	A×C	B×C	D	最小厚度/mm	均方差值
1		1	1	1	1	1	1	1	0.125	0.025
2		1	1	1	2	2	2	2	0.132	0.029
3		1	2	2	1	1	2	2	0.164	0.014
4		1	2	2	2	2	1	1	0.159	0.016
5		2	1	2	1	2	1	2	0.142	0.022
6		2	1	2	2	1	2	1	0.144	0.024
7		2	2	1	1	2	2	1	0.165	0.011
8		2	2	1	2	1	1	2	0.163	0.015
最小壁厚	k₁	0.145	0.136	0.146	0.149	0.149	0.147	0.148
	k₂	0.153	0.163	0.152	0.150	0.150	0.151	0.150
	R	0.008	0.027	0.006	0.001	0.001	0.004	0.002
均方差值	k₁	0.021	0.025	0.020	0.018	0.020	0.020	0.019
	k₂	0.018	0.014	0.019	0.021	0.020	0.020	0.020
	R	0.003	0.011	0.001	0.003	0.000	0.000	0.001

Tab.2. Interactive orthogonal test scheme and test results

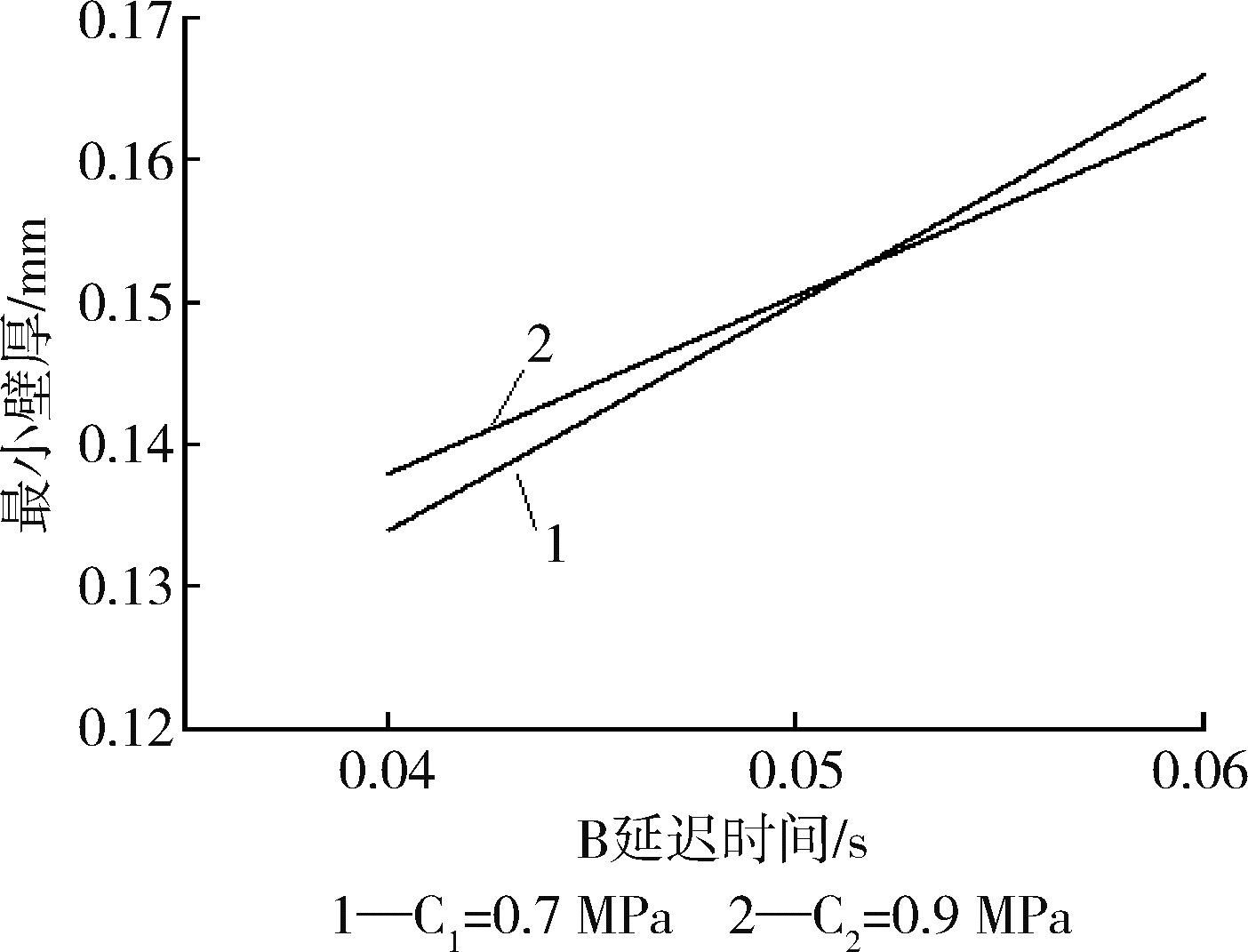

Fig.13. B and C interaction binary figure

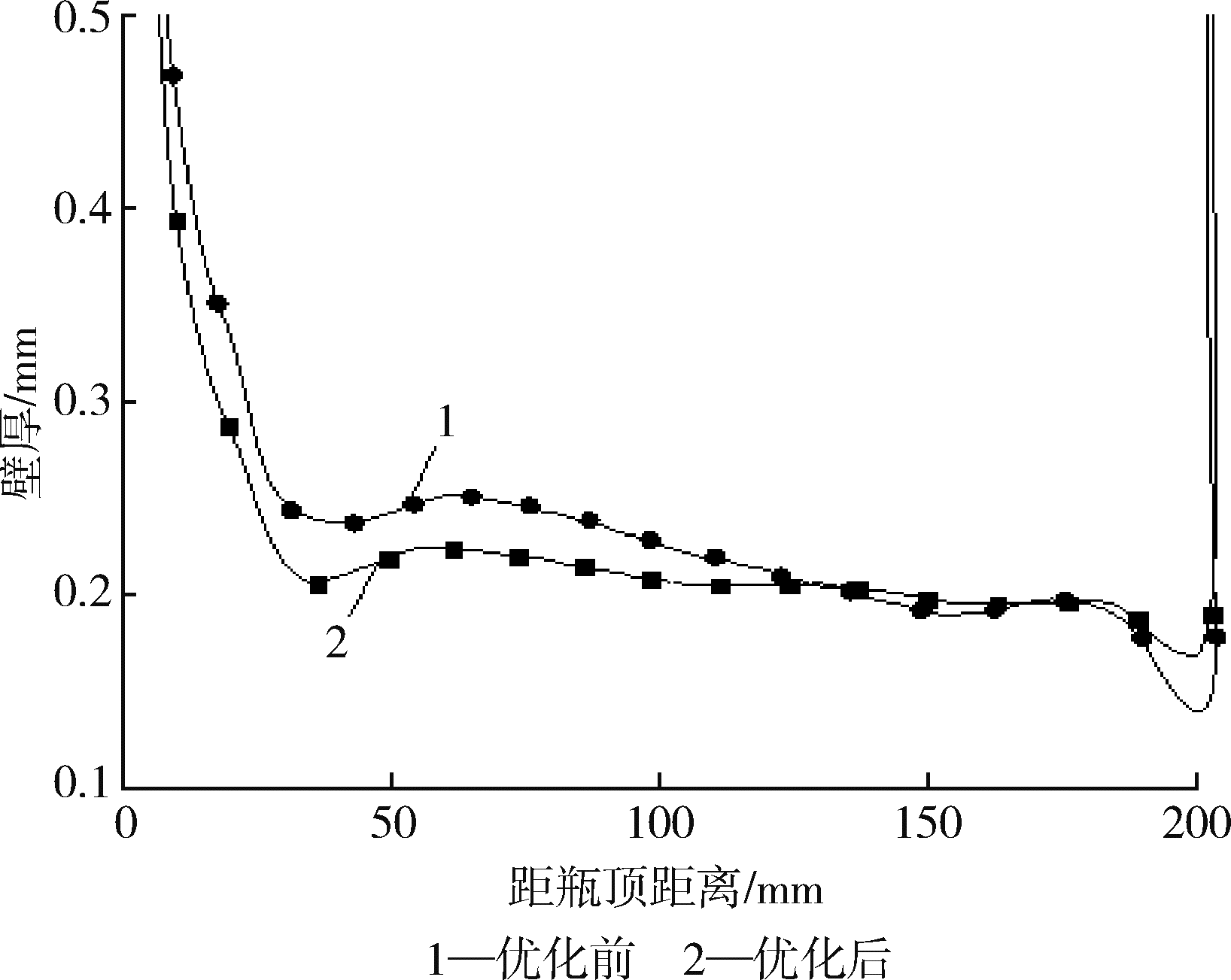

Fig.14. Thickness distribution curves before and after optimization

因素	B₁	B₂
C₁	0.134	0.165
C₂	0.138	0.161

Tab.3. B and C interaction binary table

References 10

1	尹沾松,黄汉雄,刘吉虎. PET拉伸吹塑数值模拟采用的本构方程[J].塑料，2006，(4):62⁃66，56.
	YIN Z S, HUANG H X, LIU J H. Constitutive Equations for Numerical Simulation of PET Stretch Blow Molding[J]. Plastics, 2006, ( 4):62⁃66，56.
2	承善,陈登海,江丙云，等.基于吹塑成型的PET塑料瓶强度分析[J].塑料工业,2018,46(4):76⁃79.
	CHENG S, CHEN D H, JIANG B Y, et al. Strength Analysis of PET Bottle Based on Blow Molding[J]. China Plastics Industry, 2018,46(4):76⁃79.
3	郑泓, 周持兴, 俞炜. 注拉吹成型工艺的计算机模拟[J].中国塑料, 2004(2):50⁃53.
	ZHENG H, ZHOU C X, YU W. Numerical Simulation of Injection⁃Stretch⁃Blow Molding Process[J]. China Plastics, 2004(2):50⁃53.
4	吕超. PET瓶吹塑工艺及瓶坯结构参数的优化研究[D].杭州:浙江大学, 2014.
5	周烨,辛勇.瓶坯尺寸对拉伸吹塑成型PET瓶壁厚分布的影响[J].工程塑料应用,2014,42(4):56⁃61.
	ZHOU Y, XIN Y. Effects of Preform Size on the Thickness Distribution of Stretch⁃Blow PET Molded Bottle[J]. Engineering Plastics Application, 2014,42(4):56⁃61.
6	钱欣，许王定，金杨福. POLYFLOW基础及其在塑料加工中的应用 [M].北京:化学工业出版社, 2010:150⁃151.
7	邹金龙.塑性饮料瓶成型特性分析与结构优化研究[D].杭州:杭州电子科技大学,2013.
8	周烨. 医用PET瓶注拉吹成型研究及工艺优化[D].南昌:南昌大学, 2014.
9	孙川, 吴劲锋, 段维根. PET高瓶颈瓶吹塑工艺的研究[J]. 塑料科技, 2016(6):44⁃49.
	SUN C, WU J F, DUAN W G. Research on Blow Mol⁃ding Process of PET Bottle with High Neck[J]. Plastics Science and Technology, 2016(6):44⁃49.
10	尹沾松.PET拉伸吹塑及相关形变机理研究[D].广州:华南理工大学,2006.
