Study on surface quality optimization of microfoaming injection⁃molded products

doi:10.19491/j.issn.1001-9278.2022.02.004

Abstract

Abstract:

Micro?foaming injection molding experiments were carried out using two gas injection methods， i.e.， a high pressure short time method and a low pressure long time method， with polypropylene and high?purity nitrogen as raw materials. In the experiment with the low pressure and long time as the gas injection method， the relationship between the cooling time and the probability of large bubbles on the product surface was investigated under the conditions of different melt temperatures， injection pressure differences and storage lengths. The results indicated that the probability of large bubbles appearing on the surface of the products obtained from the high?pressure short?time gas injection was high. This seriously affects the quality of products. The probability of large bubbles on the product surface was reduced significantly by using the low?pressure and long?term gas injection. The large bubbles on the product surface could be eliminated completely by prolonging the cooling time. In a certain range， the higher the melt temperature， the greater the injection pressure difference and the longer the storage length， the longer cooling time is needed to eliminate the large bubbles.

Key words: microcellular injection molding, large bubble, gas injection way, cooling time, process parameter

CLC Number:

TQ328.06

ZHAI Yujiao, XIN Chunling, HE Yadong, YAN Baorui, QIAO Linjun. Study on surface quality optimization of microfoaming injection⁃molded products[J]. China Plastics, 2022, 36(2): 19-26.

Figures/Tables 18

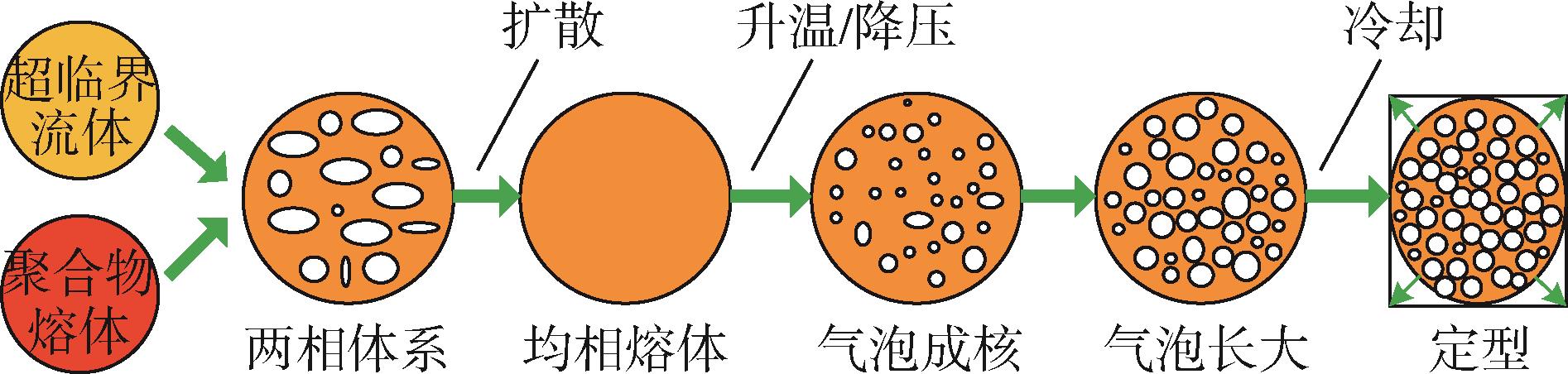

Fig.1. Schematic diagram of microfoam injection technology

Fig.2. Schematic diagram of microfoam injection molding process

注气方式	注气时间/s	注气压差/MPa
注气方式	注气时间/s	水平1	水平2	水平3	水平4
高压短时	5.3	1.5	2.0	2.5	3.0
低压长时	20	0.9	1.0	1.1	1.2

Tab.1. Parameter of gas injection process

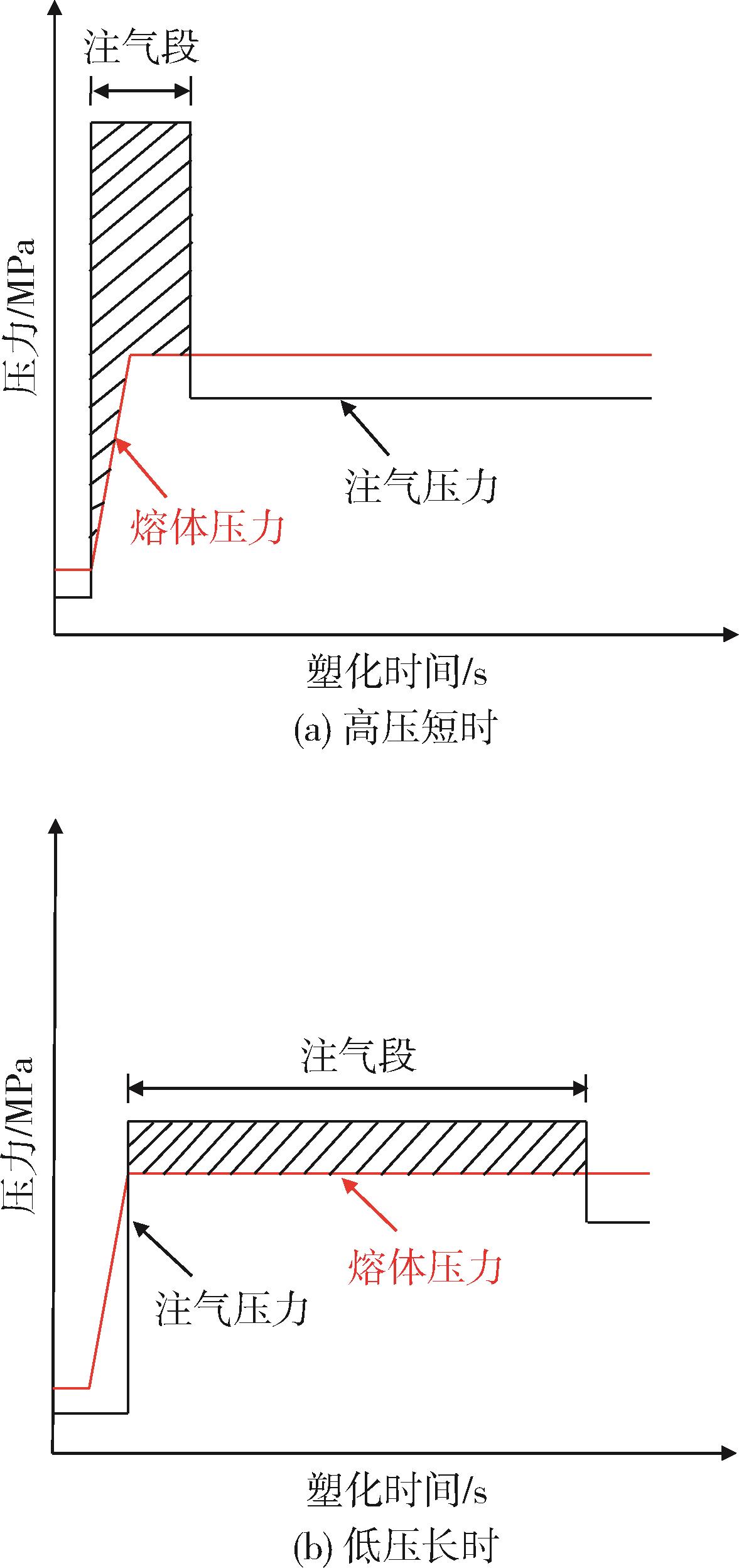

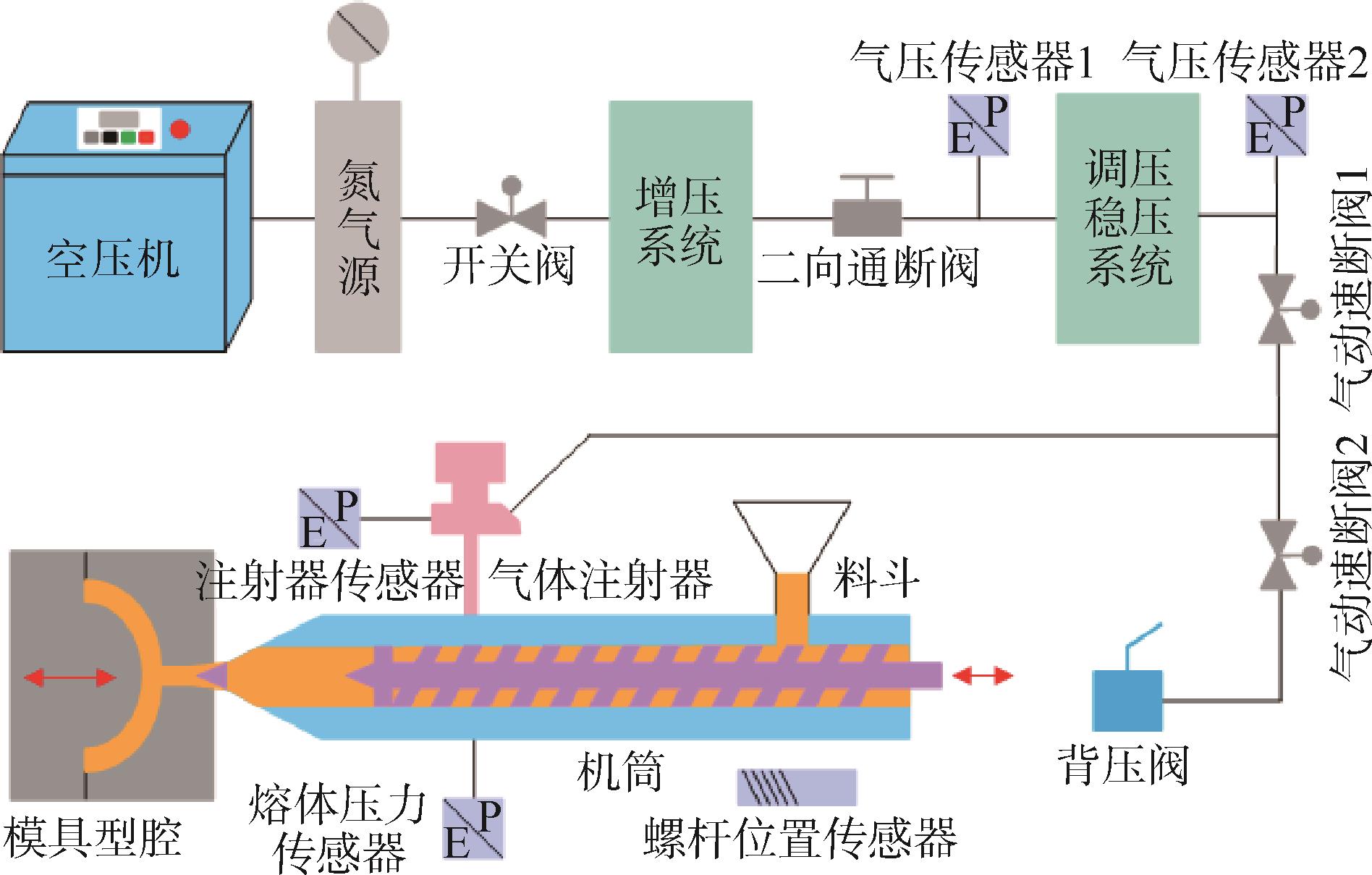

Fig.3. Schematic diagram of gas injection for microfoam injection molding

水平	熔体温度/℃	注气压差/MPa	储料长度/mm
1	180	0.7	90
2	190	0.8	97
3	200	0.9	104
4	210	1.0	111

Tab.2. Setting of process parameters

Fig.4. Microfoam injection molding products

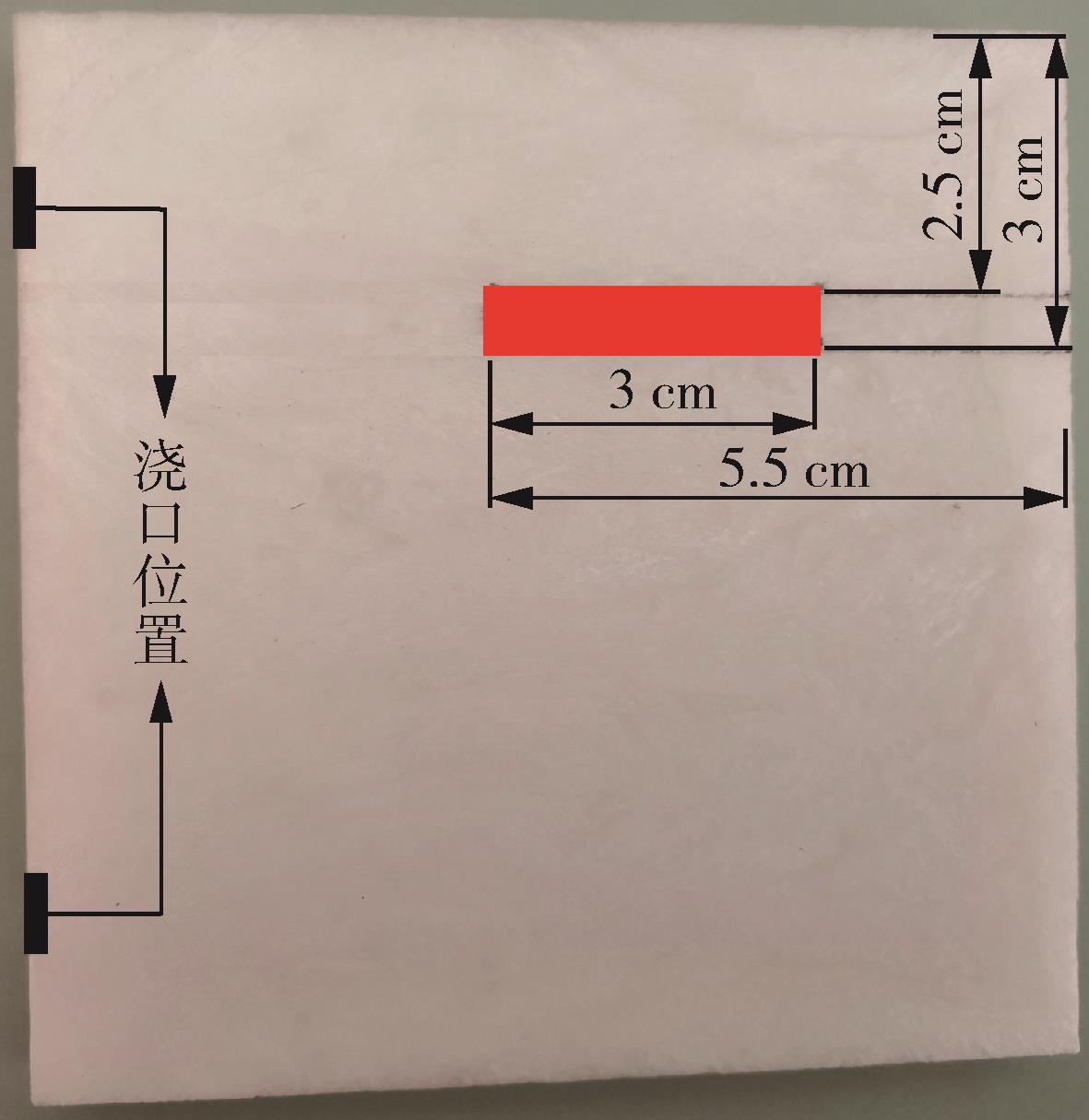

Fig.5. Sampling position

注气方式	无声响	轻微声响	较大爆鸣声
高压短时	0	25	75
低压长时	50	25	25

Tab.3. Comparison of air injection sound

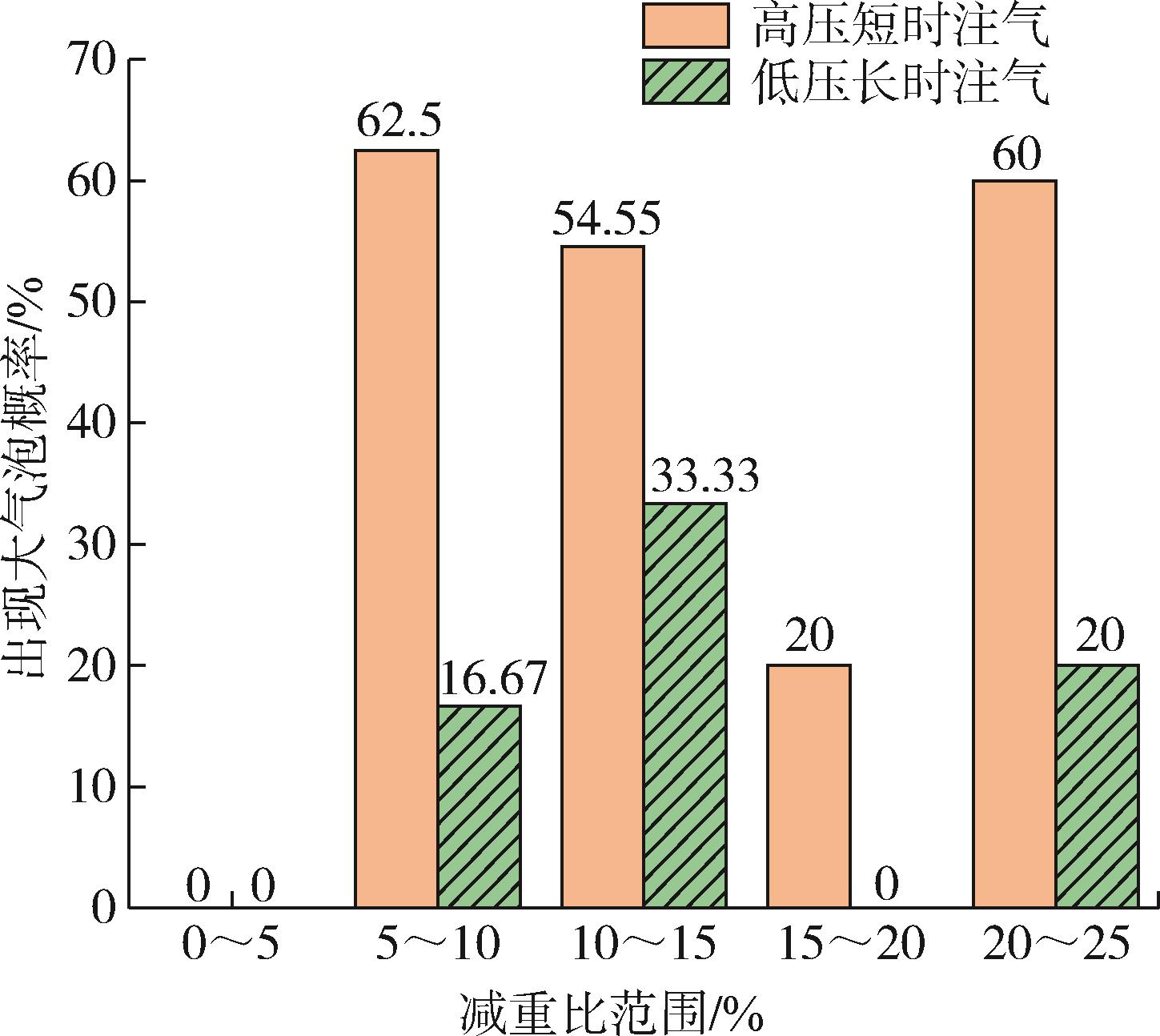

Fig.6. Comparison of probability of large bubbles

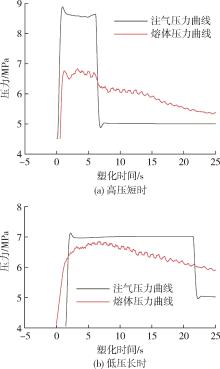

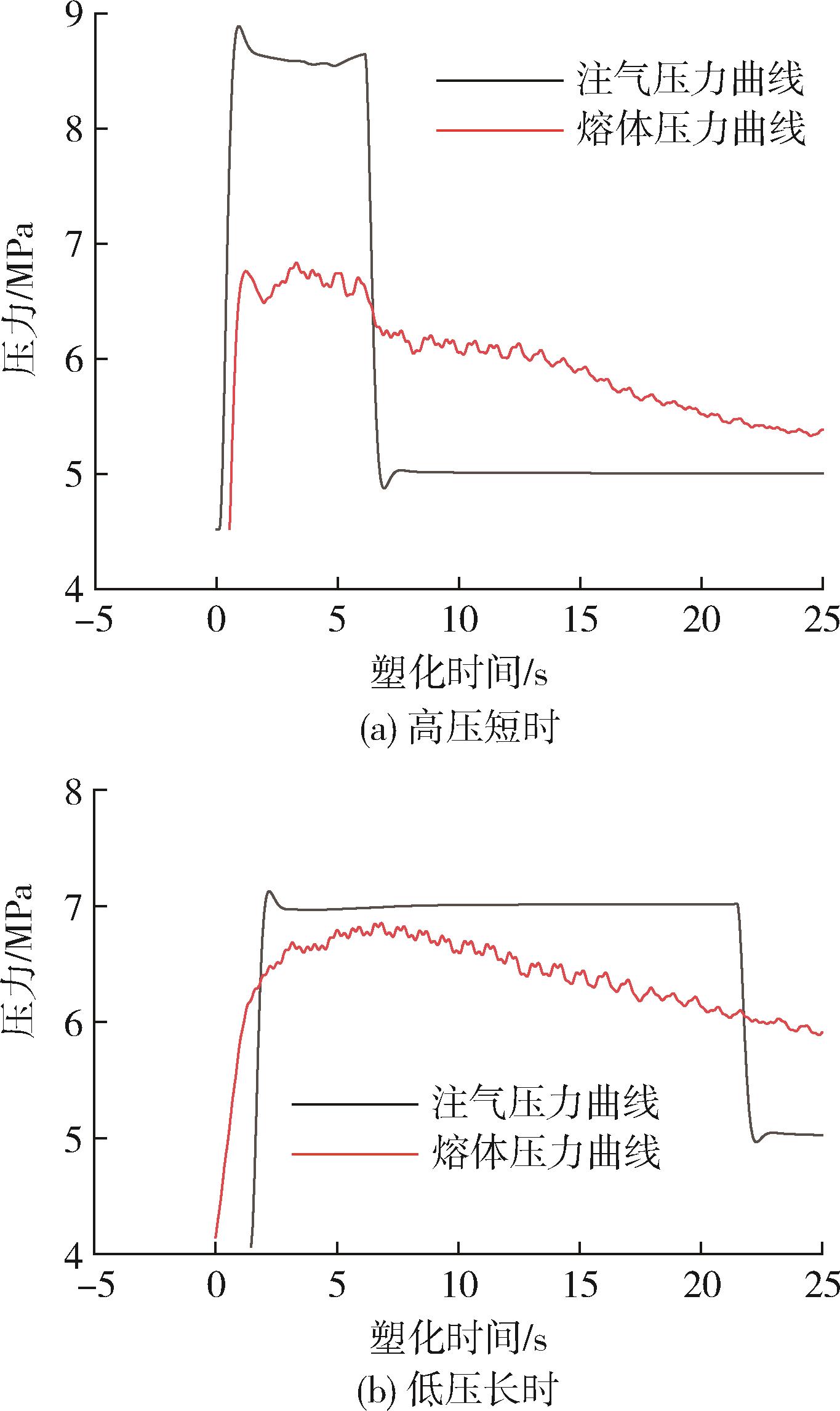

Fig.7. Pressure curve for different gas injection methods

熔体温度/℃	熔体压力/MPa
180	8.5
190	8.0
200	7.5
210	6.7

Tab.4. Melt pressure value

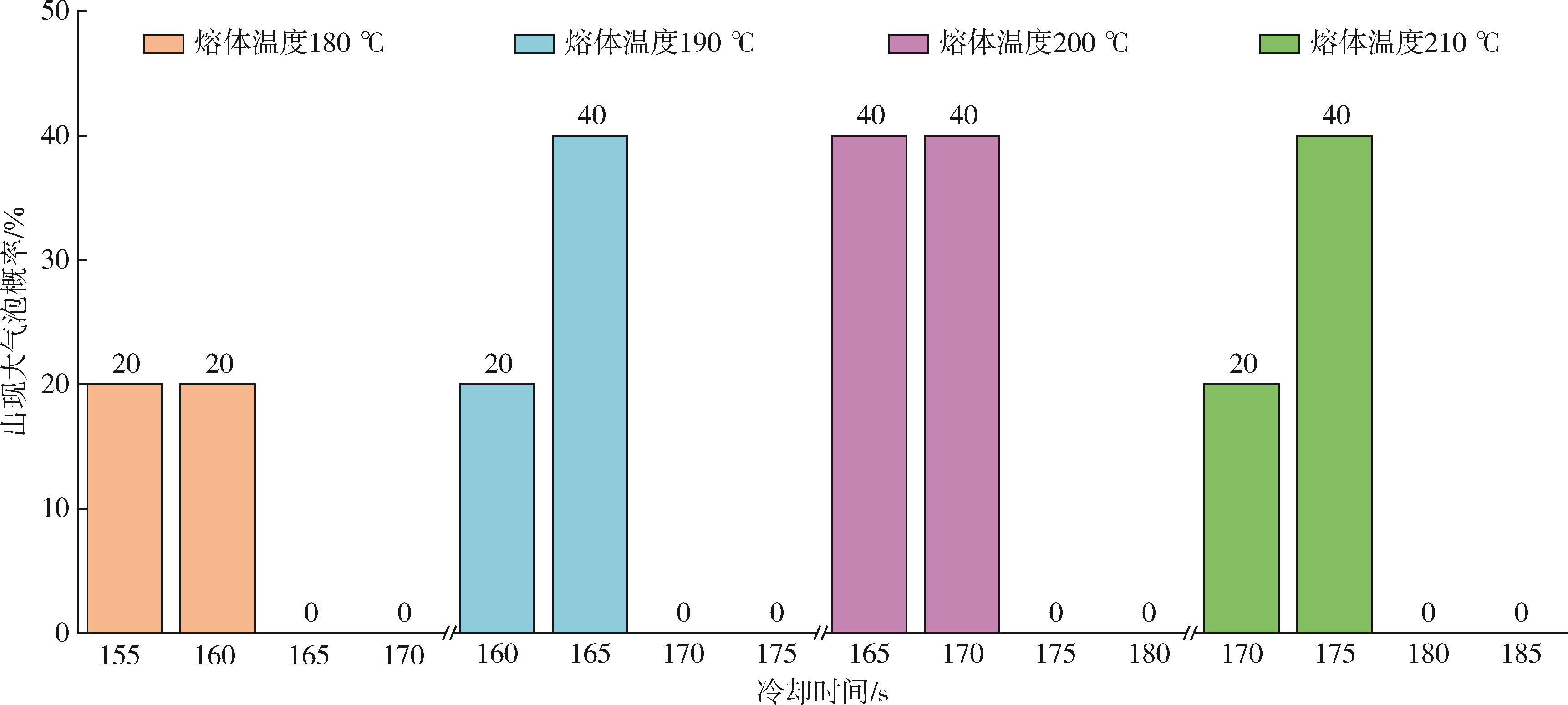

Fig.8. Influence of melt temperature on the relationship between the probability of large bubbles and cooling time

Fig.9. Relationship between the optimal cooling time and melt temperature

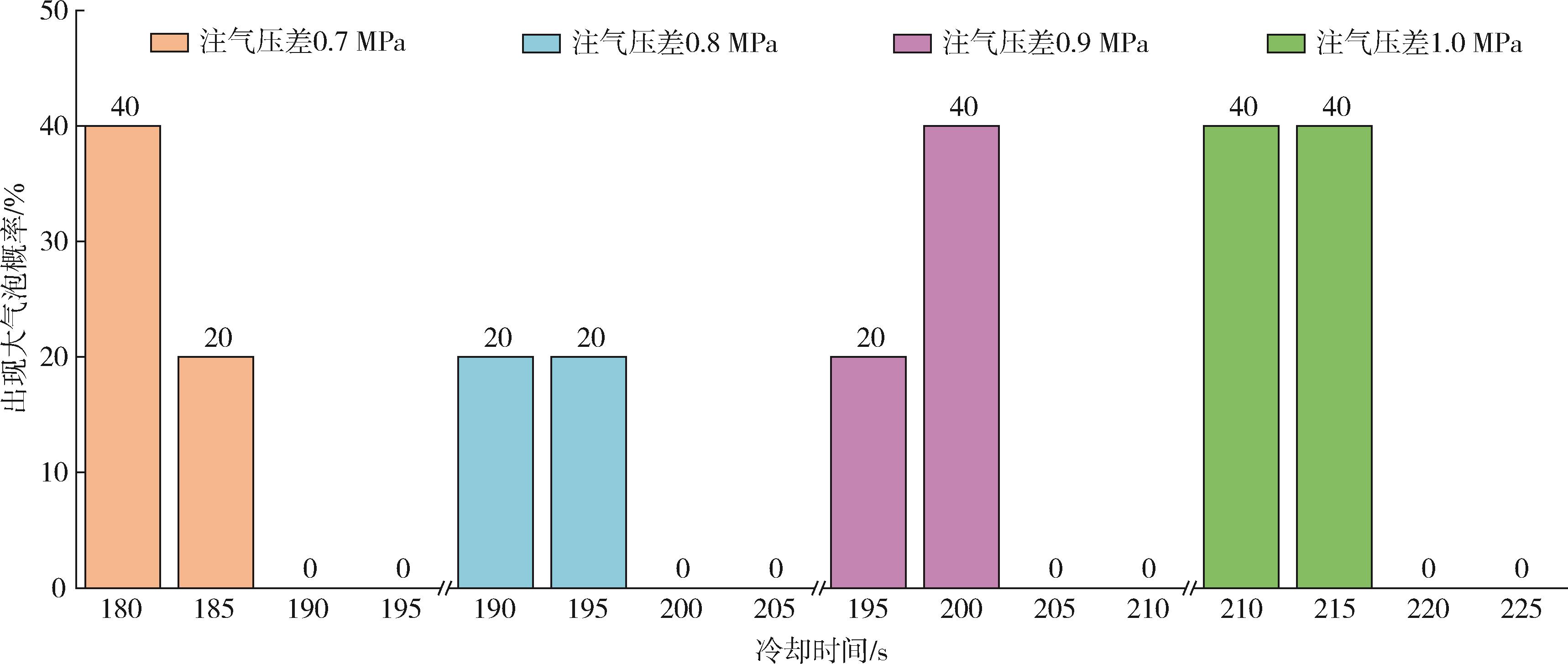

Fig.10. Influence of air pressure difference on the relationship between the probability of large bubbles and cooling time

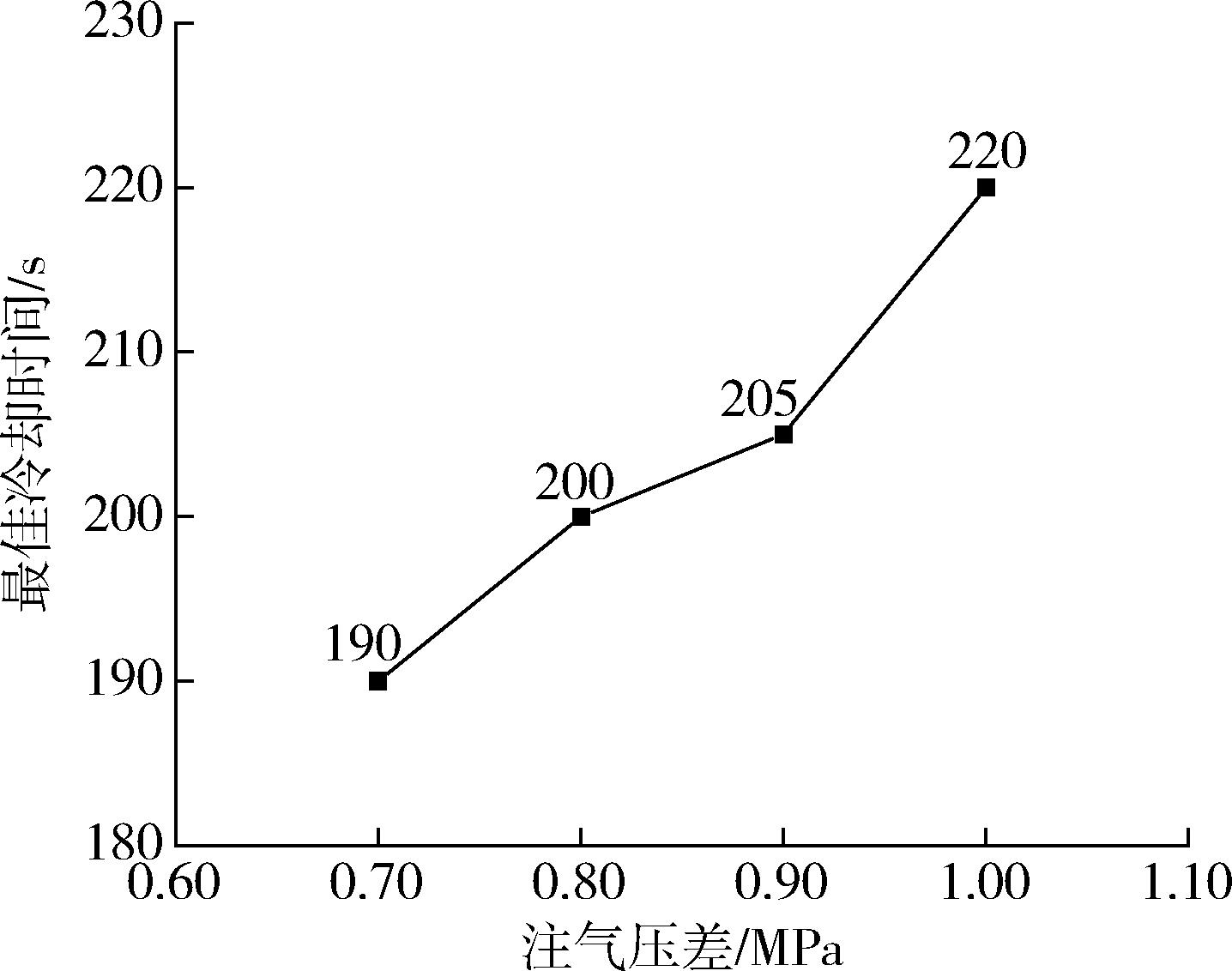

Fig.11. Relationship between the optimal cooling time and air pressure difference

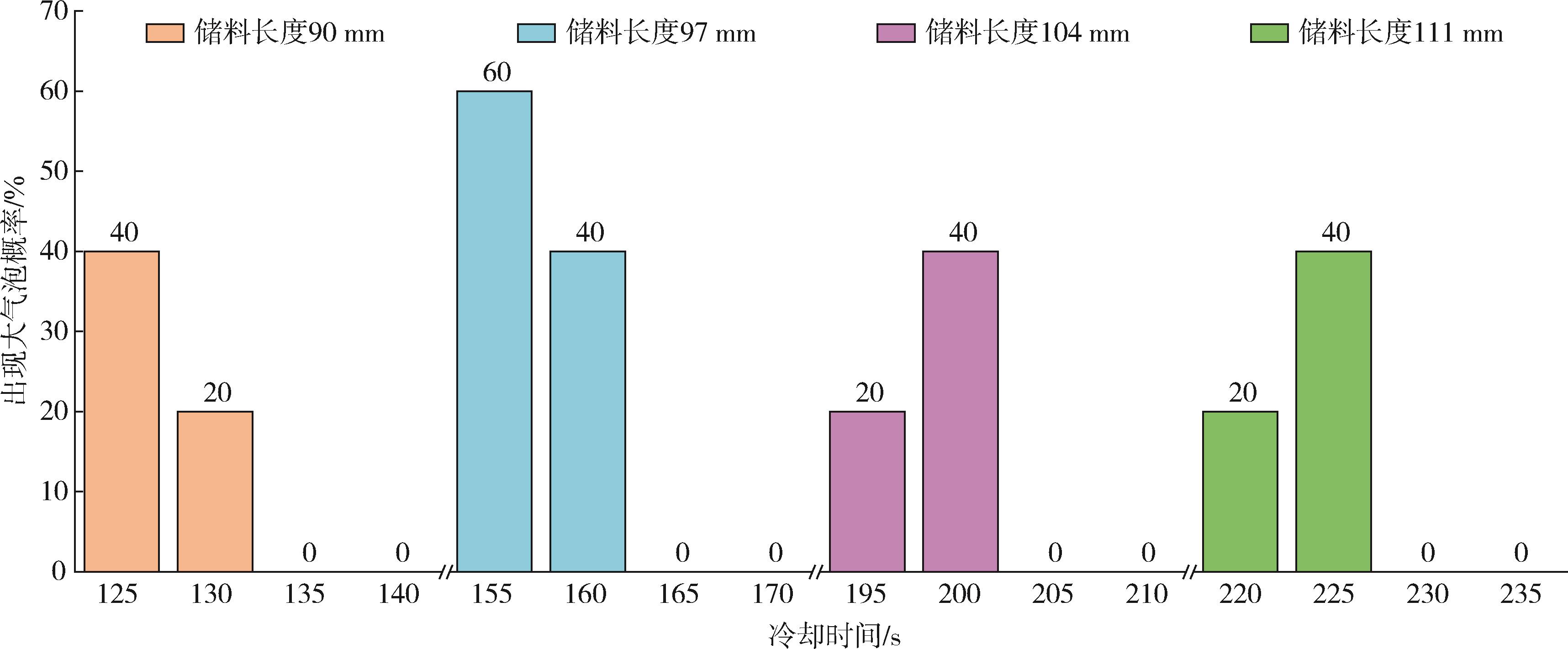

Fig.12. Influence of storage length on the relationship between the probability of large bubbles and cooling time

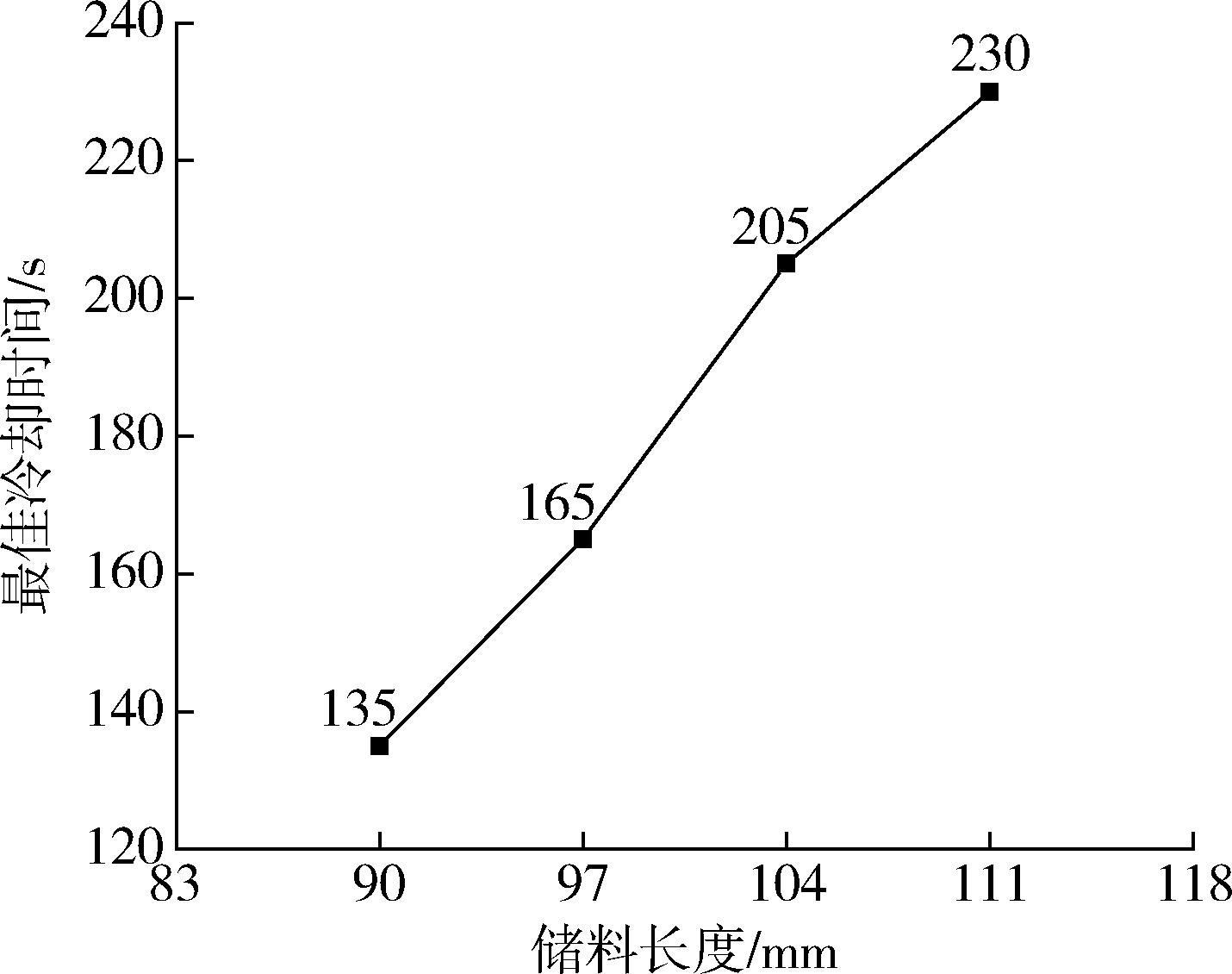

Fig.13. Relationship between the optimal cooling time and storage lengths

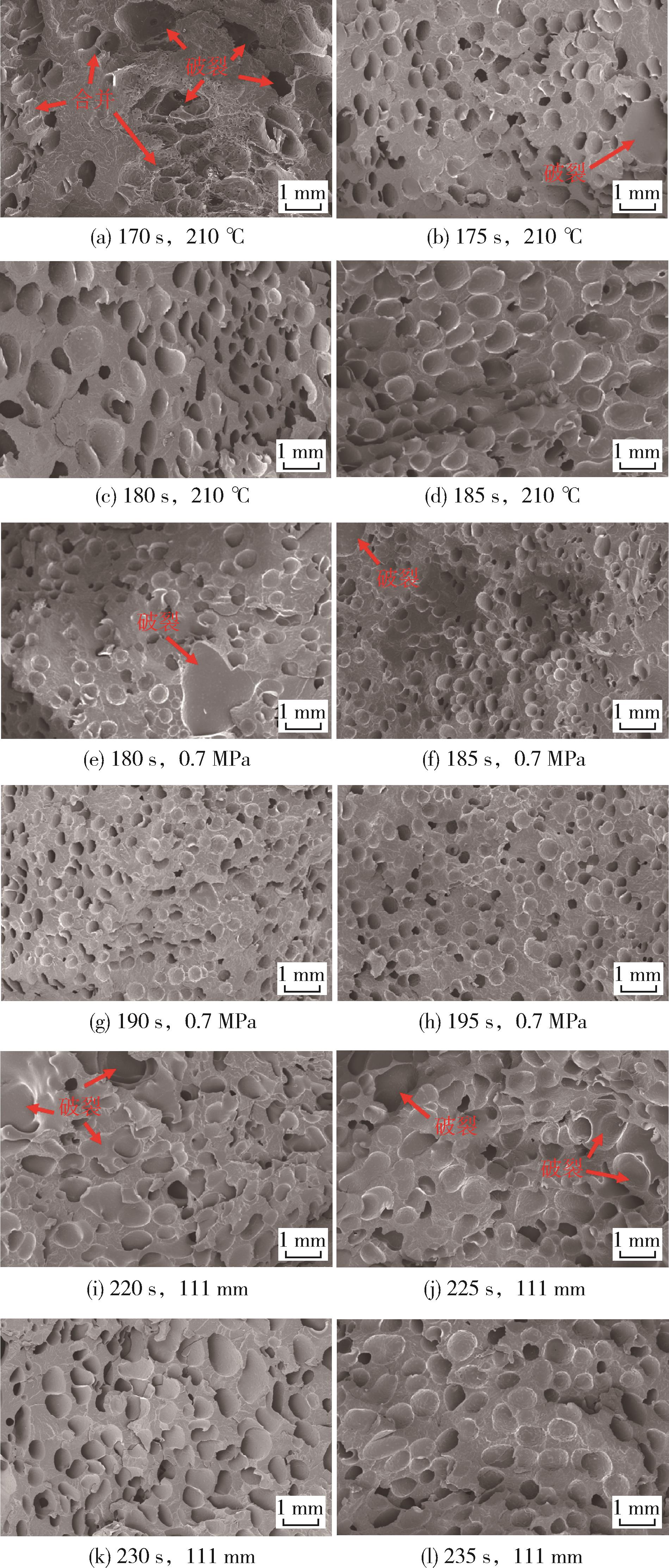

Fig.14. Change of PP section morphology with cooling time

References 15

1	安华亮，信春玲，乔林军，等 . 微发泡注塑注气系统气涌现象的可视化研究［J］. 中国塑料，2019，33（12）：39⁃43.
	AN H L ， XIN C L ， QIAO L J ，et al . Visualization study of gas surge phenomenon in microcellular injection⁃molding gas injection system［J］. China Plastics，2019，33（12）：39⁃43.
2	PARK C B ， BALDWIN D F ，SUH N P . Effect of the pressure drop rate on cell nucleation in continuous processing of microcellular polymers［J］. Polymer Engineering and Science，1995，35（5）：432⁃440.
3	ELDUQUE D ， CLAVERÍA I ， FERNÁNDEZ Á ， et al . Methodology to analyze the influence of microcellular injection molding on mechanical properties with samples obtained directly of an industrial component［J］. Polymers & Polymer Composites，2014， 22（8）：743⁃752.
4	HAYASHI H ， MORI T ， OKAMOTO M ，et al . Polyethyle⁃ne ionomer⁃based nano⁃composite foams prepared by a batch process and Mucell^® injection molding［J］. Materials Science and Engineering： C，2010， 30（1）：62⁃70.
5	胡瑞生，王毅，张翔，等 . 注塑微发泡制品表面质量和发泡形貌的研究进展［J］. 工程塑料应用，2016，44（3）：135⁃140.
	HU R S ， WANG Y ， ZHANG X ，et al . Research progress on surface quality and foam morphology of microcellular injection molded parts［J］. Engineering Plastics Application，2016，44（3）：135⁃140.
6	何亚东 . 聚合物微发泡材料制备技术应用研究进展［J］. 塑料，2004，33（5）：9⁃15.
	HE Y D . Progress of preparation of microcellular polymer foams（MPF）［J］. Plastics，2004，33（5）：9⁃15.
7	MA Z L ， ZHANG G C ， YANG Q ，et al . Microcellular foams of glass⁃fiber reinforced poly（phenylene sulfide） composites generated using supercritical carbon dioxide［J］. Polymer Composites，2015，37（8）：2 527⁃2 540.
8	赵正创，欧阳春发，相旭，等 . 微发泡聚合物材料的研究进展［J］. 化工进展，2016，35（1）：209⁃215.
	ZHAO Z C ， OUYANG C F ， XIANG X ，et al . Research progress in microcellular polymer material［J］. Chemical Industry and Engineering Progress，2016，35（1）：209⁃215.
9	宋吉威，张纯，刘卫，等 . 微发泡聚合物材料研究进展［J］. 塑料科技，2013，41（11）：102⁃106.
	SONG J W ， ZHANG C ， LIU W ，et al . Research progress in microcellular polymer material［J］. Plastics Science and Technology，2013，41（11）：102⁃106.
10	张华，黄汉雄 . 微孔注塑成型研究进展［J］. 塑料科技，2010，38（1）：97⁃102.
	ZHANG H ， HUANG H X . Research progress of microcellular injection molding［J］. Plastics Science and Technology，2010，38（1）：97⁃102.
11	夏青 . 微孔发泡注塑工艺研究［D］. 北京：北京化工大学，2012.
12	张玉霞 . 微孔塑料注射成型技术［M］. 北京：机械工业出版社，2013：190⁃192.
13	乔林军 . 自适应气体注射器及微发泡注气工艺的研究［D］. 北京：北京化工大学，2021.
14	祝首元 . 基于联合仿真的微发泡注塑轻量化制品的性能研究［D］. 北京：北京化工大学，2020.
15	张聪 . 基于超临界 C O 2 制备超轻热塑性聚合物工艺及设备的研究［D］. 青岛：青岛科技大学，2015.
