Preparation and Performance of PMMA/DEAM⁃RGO Nanocomposites

doi:10.19491/j.issn.1001-9278.2021.01.008

Abstract

Abstract:

In this work， the surface of reduced graphene oxide （RGO） was modified with diethylaminoethyl methacrylate （DEAM） and then dispersed in an MMA monomer. The PMMA/DEAM-RGO nanocomposites were prepared by emulsion polymerization， and their structure and properties were investigated using Fourier-transform infrared spectrometer， Raman spectrometer， scanning electron microscope， transmission electron microscope， X-ray diffractometer， differential scanning calorimeter and thermogravimetric analyzer. The results indicated that RGO was completely covered by PMMA with the aid of DEAM and thus achieved a uniform dispersion in the PMMA matrix. The experiments also confirmed that there was a strong interaction between the DEAM amine groups and surface the functional groups on the RGO surface. The modified RGO could act as a physical cross-linking point in the PMMA matrix. This led to an increase in the toughness and strength of PMMA/RGO nanocomposites with an increase in the amount of modified RGO. Moreover， the thermal stability and antistatic properties of the nanocomposites were also improved.

Key words: polymethyl methacrylate, reduced graphene oxide, emulsion polymerization, nanocomposite

CLC Number:

TQ 323.4⁺2

KANG Wei, LIU Xijun, CAO Weiyan, WANG Yuwei, YAN Jie. Preparation and Performance of PMMA/DEAM⁃RGO Nanocomposites[J]. China Plastics, 2021, 35(1): 47-53.

Figures/Tables 13

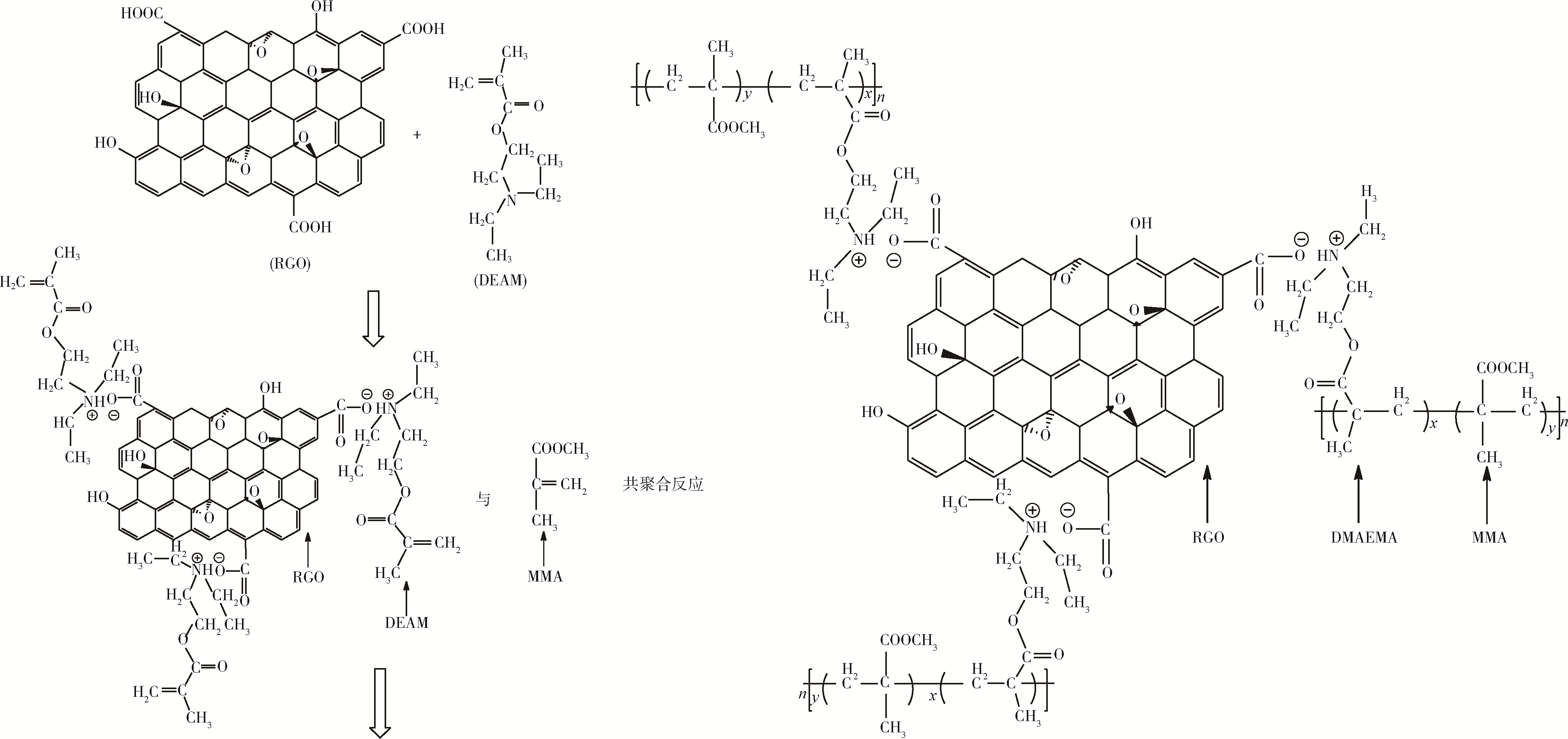

Fig.1. Reaction mechanism

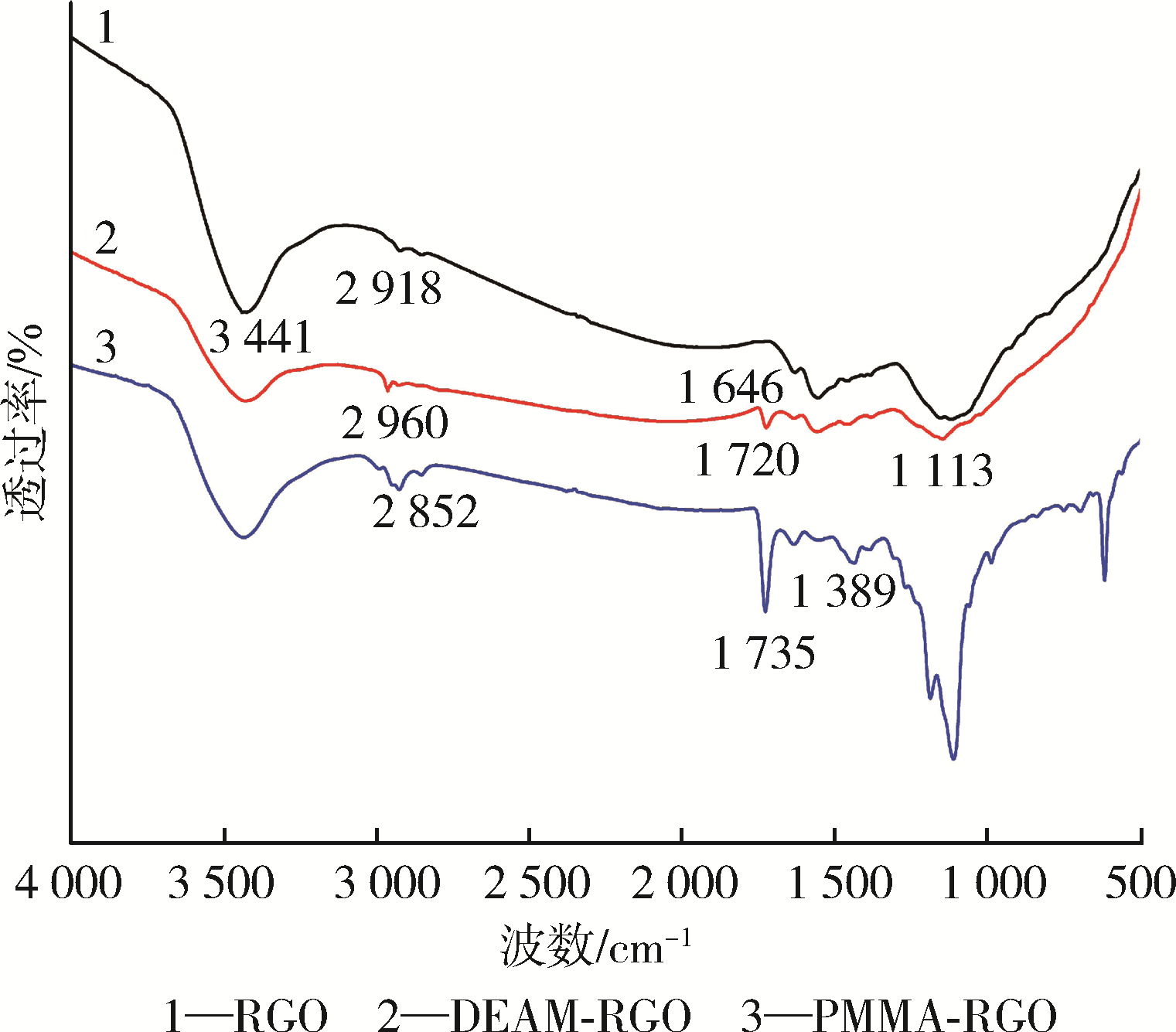

Fig.2. Infrared spectrum of DEAM?RGO

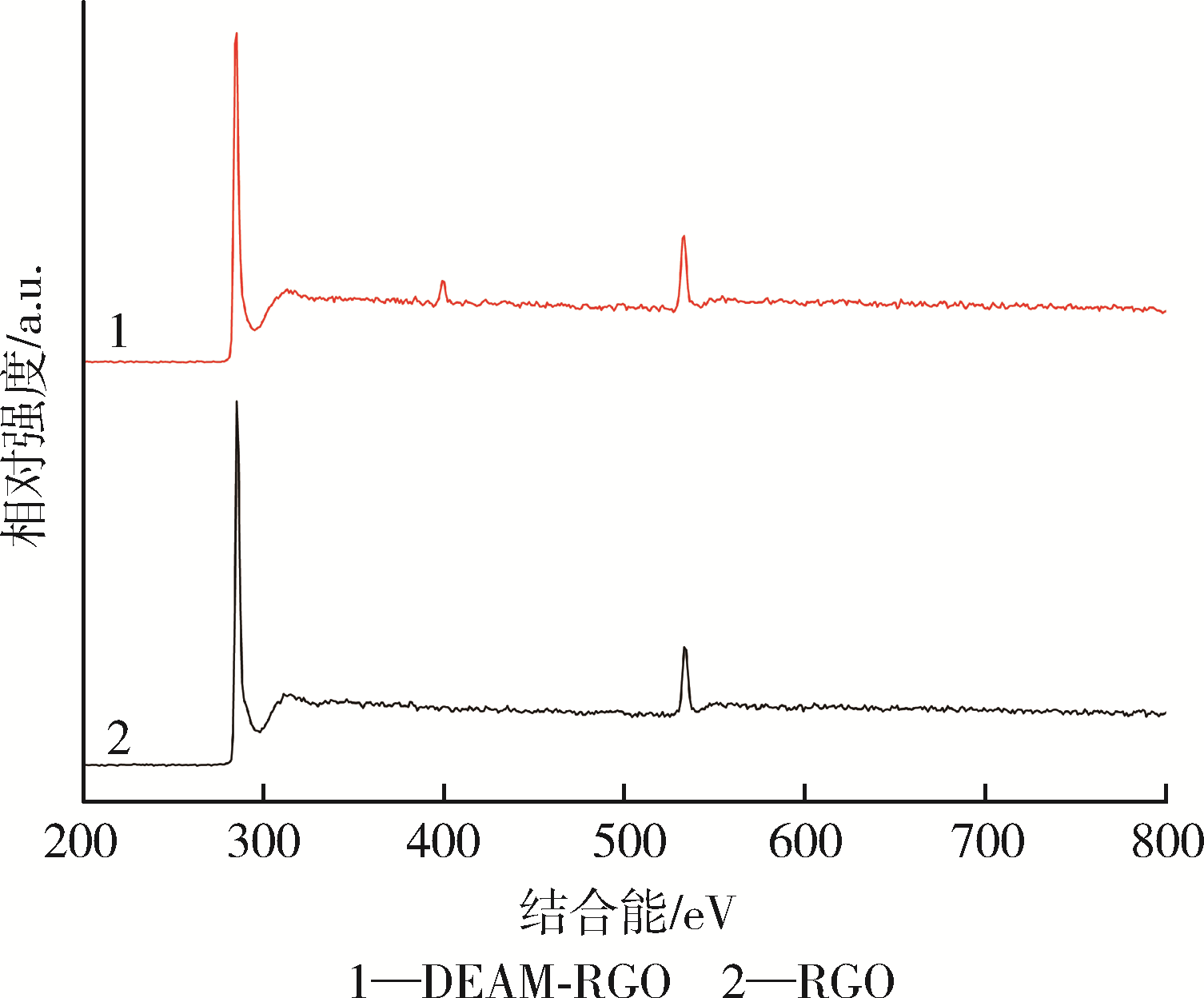

Fig.3. XPS spectrum of DEAM?RGO

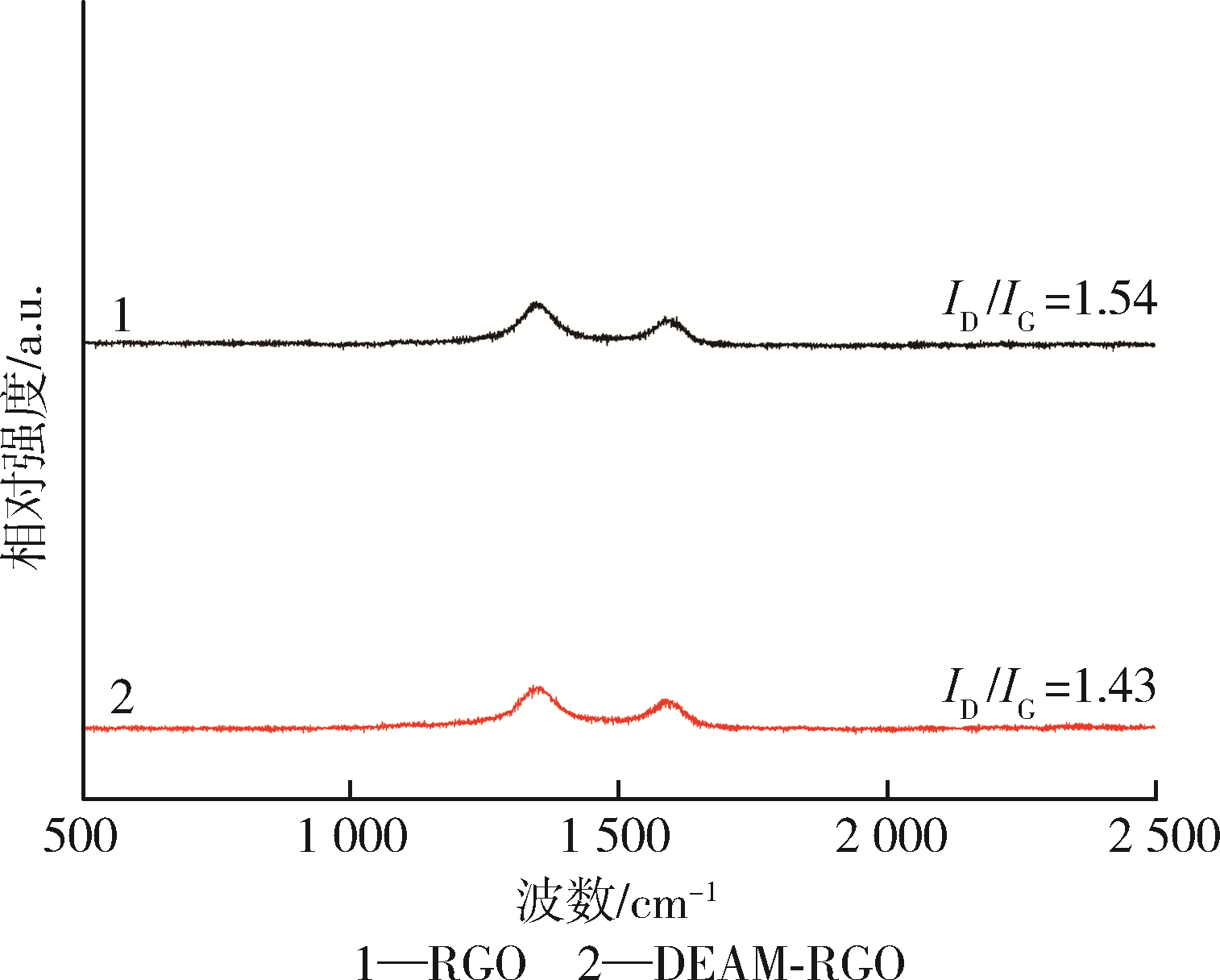

Fig.4. Raman spectrum of DEAM?RGO

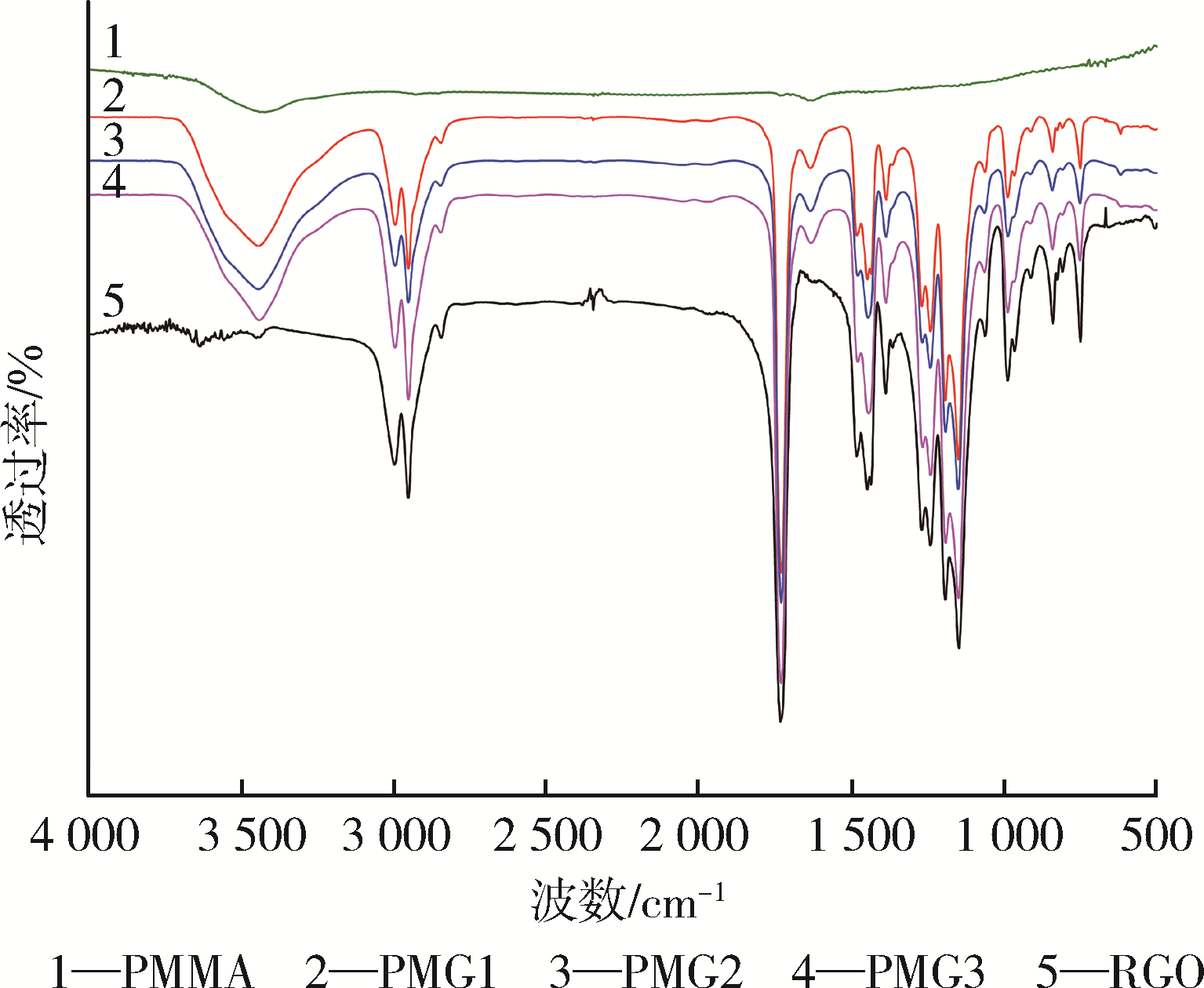

Fig.5. FTIR spectra of PMMA/DEAM?RGO nanocomposites

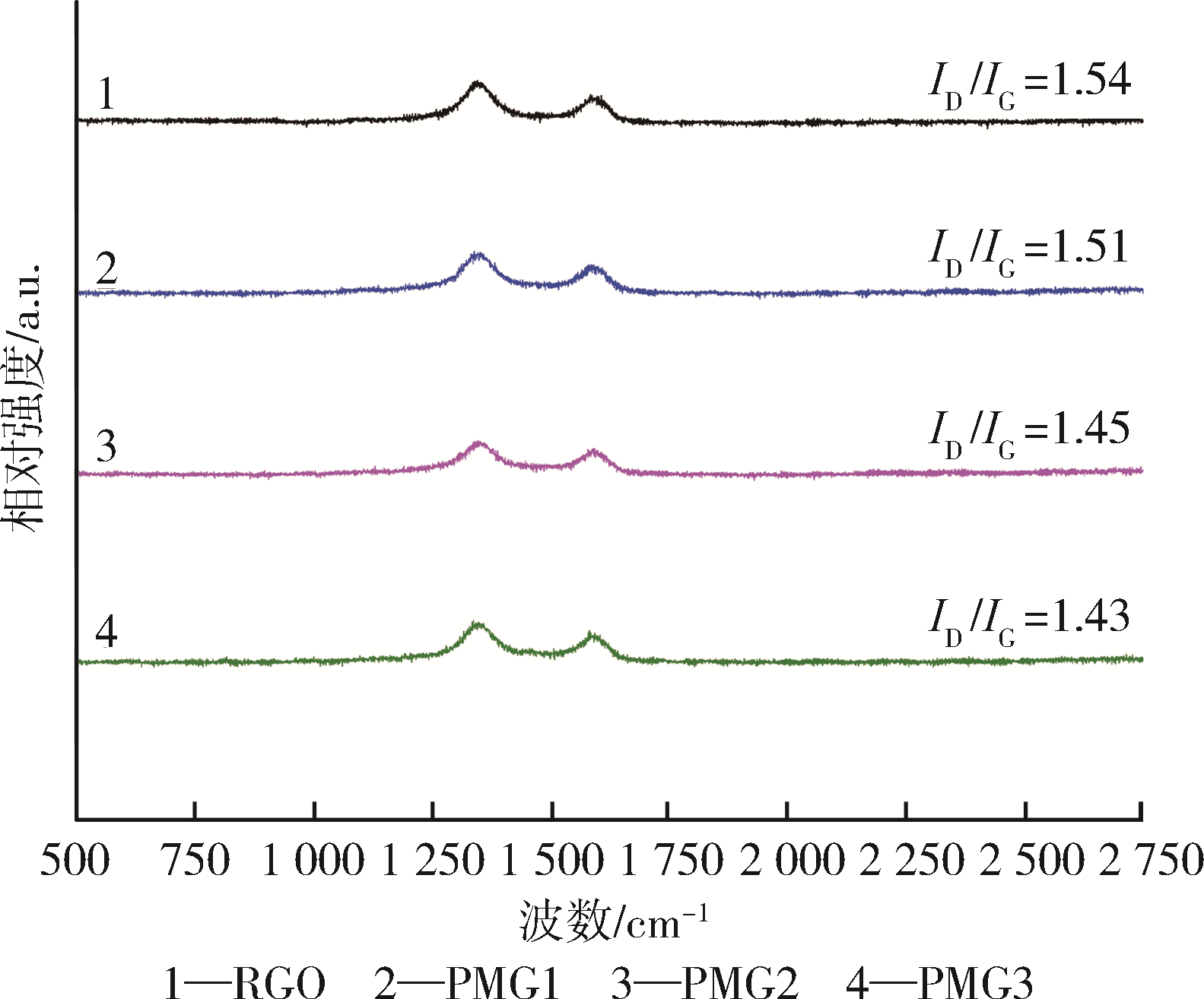

Fig.6. Raman spectrum of PMMA/DEAM?RGO nanocomposites

Fig.7. SEM images of brittle sections of PMMA/DEAM?RGO nanocomposites

Fig.8. TEM images of PMMA/DEAM?RGO nanocomposites

Fig.9. XRD curves of PMMA/DEAM?RGO nanocomposites

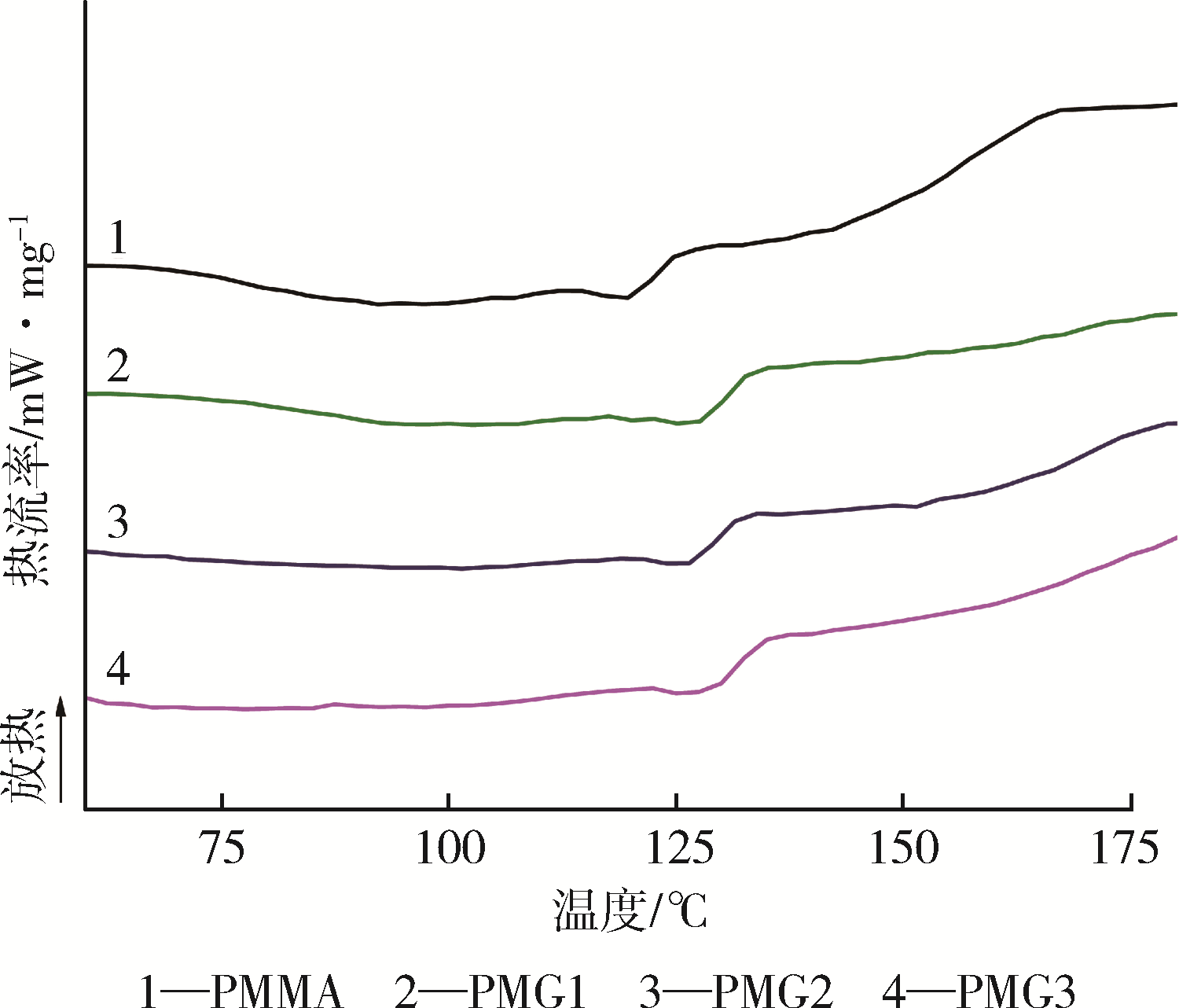

Fig.10. DSC curves of PMMA/DEAM?RGO nanocomposites

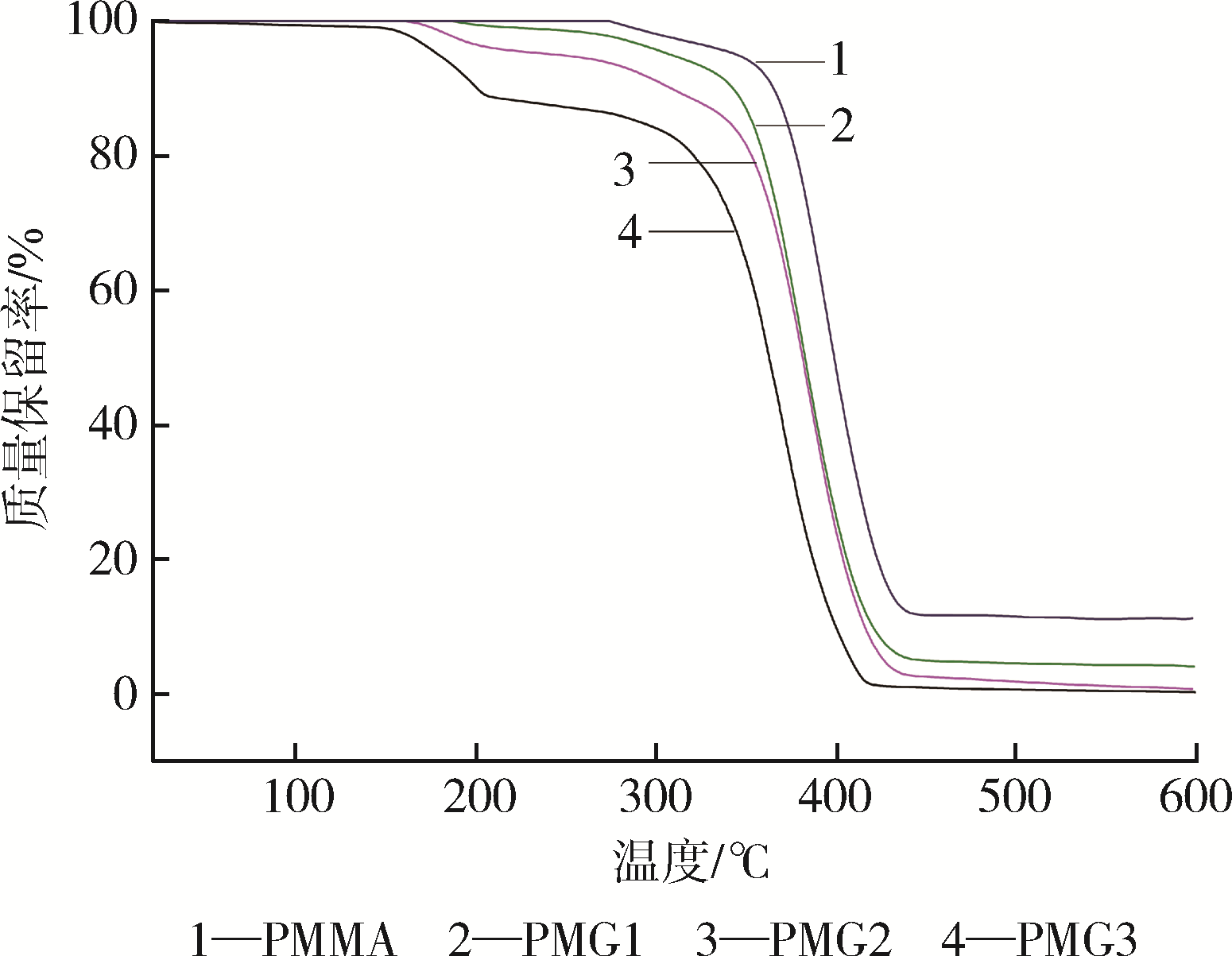

Fig.11. TG curves of PMMA/DEAM?RGO nanocomposites

试样	电导率/S·m^-1
PMMA	10^-14
PMG1	1.02×10^-4
PMG2	3.47×10^-4
PMG3	6.64×10^-3

Tab.1. Conductivity of PMMA/DEAM?RGO nanocomposites

样品	冲击强度/kJ·m^-2	拉伸强度/MPa	断裂伸长率/%
PMMA	4.37	26.48	9.54
PMG1	4.58	38.69	10.82
PMG2	5.50	58.35	19.10
PMG3	6.65	73.47	23.56

Tab.2. The mechanical properties of PMMA/DEAM?RGO nanocomposites

References 10

1	陈丹. 聚酰亚胺取向纳米复合膜的制备、结构与性能研究［D］. 上海：复旦大学，2012.
2	吕伟. 石墨烯的宏量制备、可控组装及电化学性能研究［D］.天津：天津大学，2012.
3	NOVOSELOV K S， GEIM A K， MOROZOV S V， et al. Electric Field Effect in tomically Thin Carbon Films ［J］. Science， 2004， 306（5696）：666⁃669.
4	GEIM A K， NOVOSOLOV K S. The Rise of Graphene ［J］. Nat. Mater. 2007， 6：83⁃191.
5	GEIM A K. Graphene：Status And Prospects［J］.Science，2009， 324（5934）：1 530⁃1 534.
6	KOTOV N A. Carbon Sheet Solutions［J］. Nature， 2006，442：254⁃255.
7	YEUM J H， DNG Y. Synthesis of High Molecular Weight Poly（methyl methacrylate） Microspheres by Suspension Polymerization inThe Presence of Silver Nanoparticles［J］. Colloid Polym Sci2005；283（11）：1 172⁃1 179.
8	胡振鹏，辛萌，郭晓松，等. 改性石墨烯/聚甲基丙烯酸甲酯复合材料的制备与正温度系数性能研究［J］.青岛大学学报（自然科学版），2015，36（6）：661⁃664.
	HU Z P， XIN M， GUO X S， et al.Preparation of Modified Graphene/Polymethyl Methacrylate Composite And Study on Its Positive Temperature Coefficient Performance［J］. Journal of Qingdao University （Natural Science Edition），2015，36（6）：661⁃664.
9	陈琛，王勇，段亚宽. 氧化石墨烯/聚甲基丙烯酸甲酯复合乳液的制备及其摩擦磨损性能研究［J］.化工新型材料，2016，44（11）：114⁃116.
	CHEN S， WANG Y， DUAN Y K.Preparation of Graphene Oxide/Polymethyl Methacrylate Composite Emulsion and Its Friction and Wear Properties［J］.New Chemical Materials，2016，44（11）：114⁃116.
10	周千，刘喜军，崔海师，等.石墨烯在MMA和St中的分散性研究［J］.广东化工，2017，44（07）：3⁃5+2.
	ZHOU Q， LIU X J， CUI H S， et al. Studyonthe Disper Sibility of Graphene in MMA And St［J］.Guang Dong Chemical Industry，2017，44（07）：3⁃5+2.
