Preparation and Characterization of Algae⁃Resistant Biological Packaging Materials

doi:10.19491/j.issn.1001-9278.2021.03.002

Abstract

Abstract:

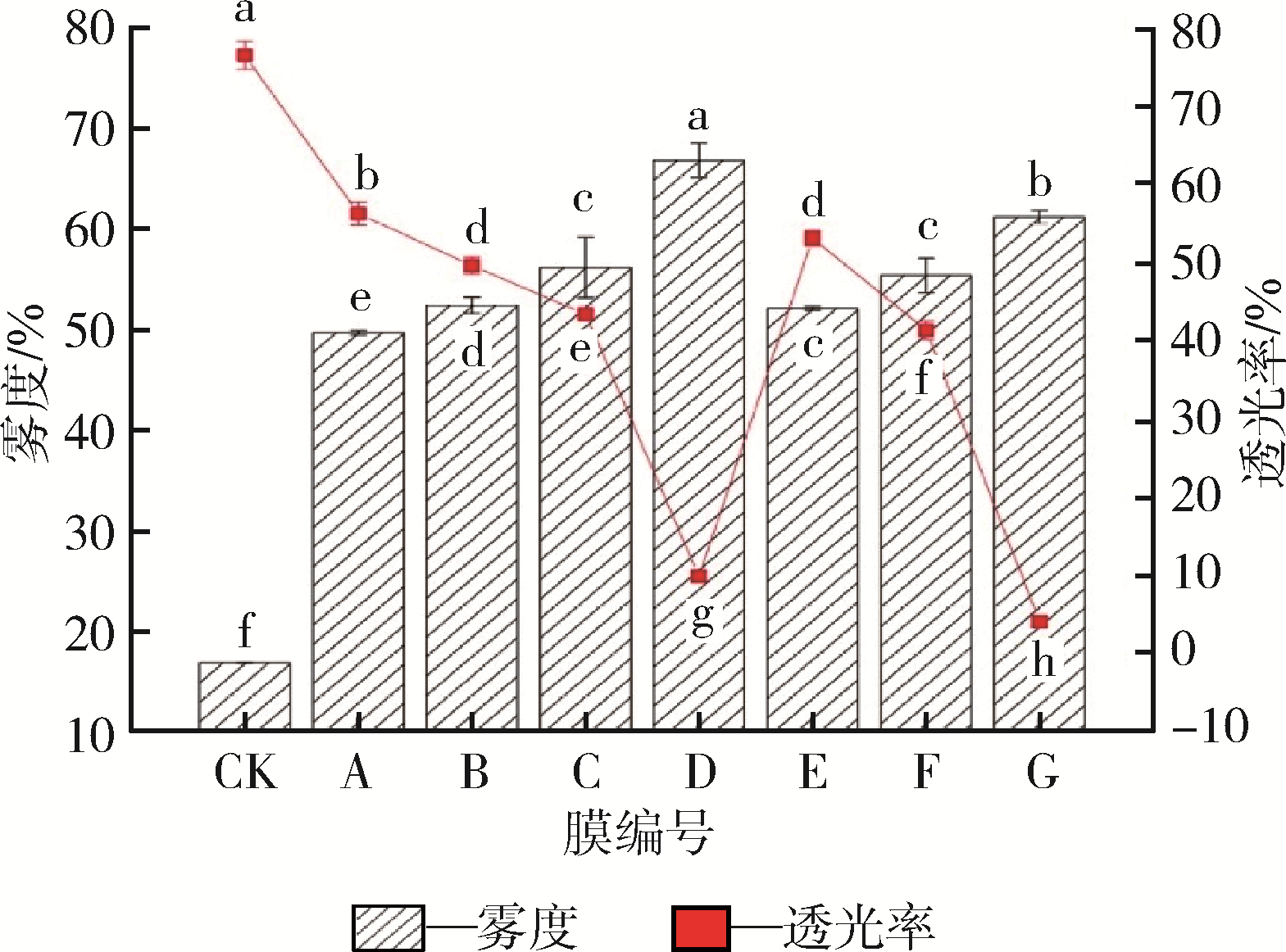

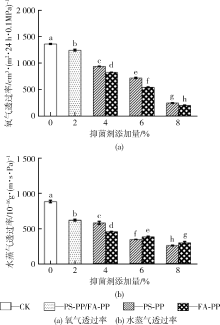

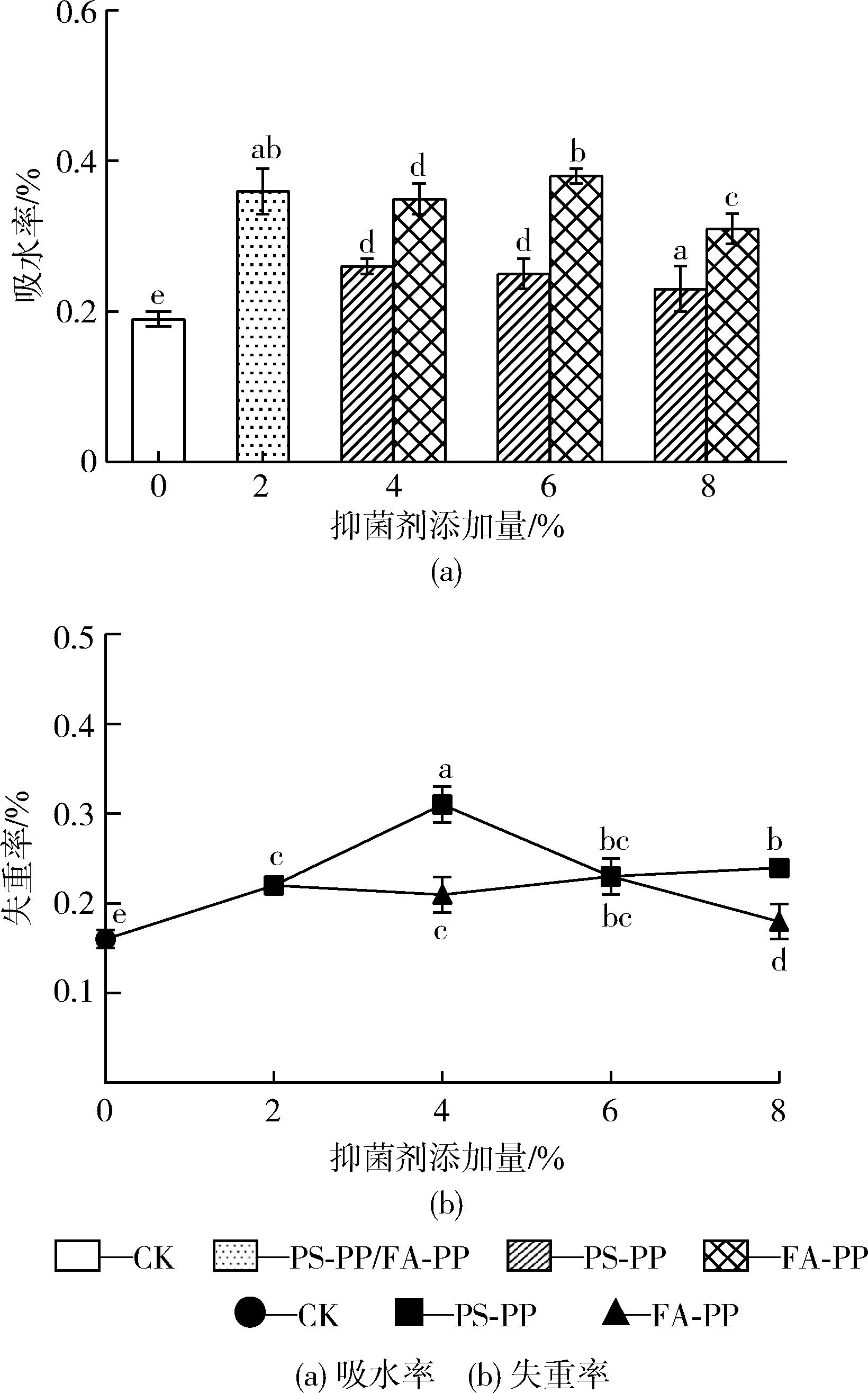

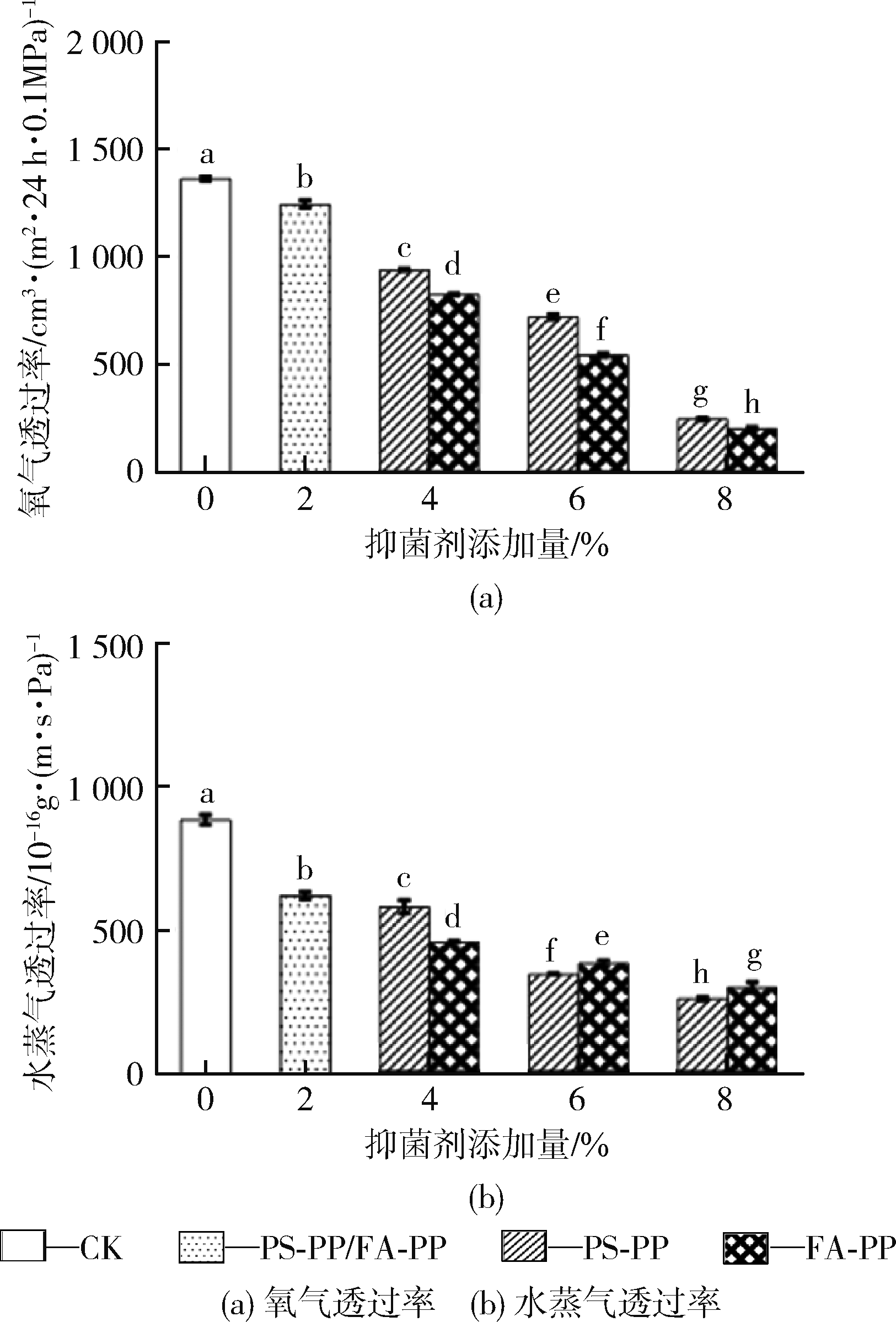

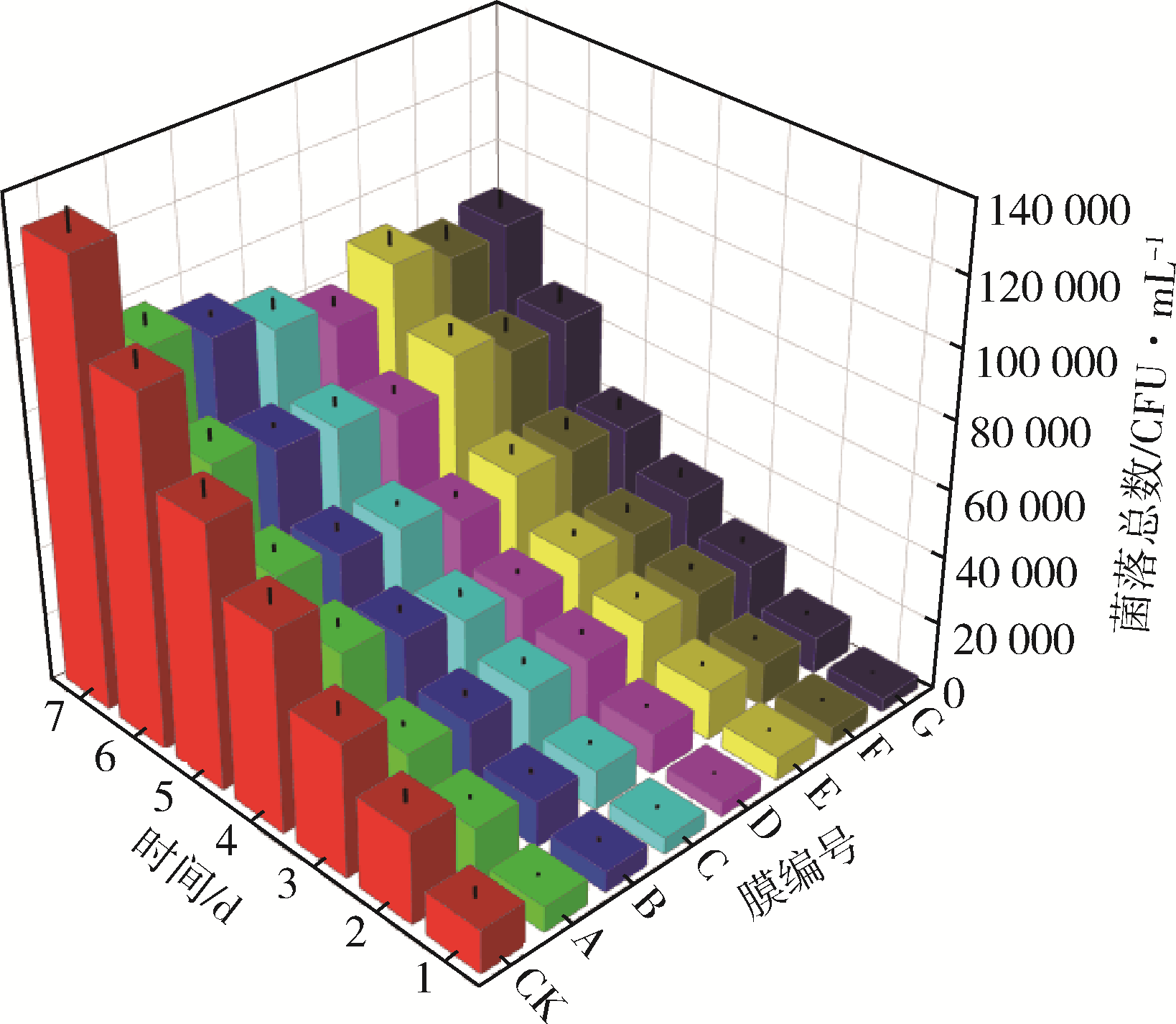

A series of anti-algal polypropylene films were prepared by melt blending and granulation flow using potassium sorbate （PS）， fluoride acid （FA） and salt as bacteriostatic agents， and polyester glycerin as a dispersant. The mechanical and optical performance， permeability， moisture permeability， and hydrophobic and water-resistant properties of the films were evaluated， and their algal microbial inhibition effect was investigated through the determination of the total number of microbial colonies. The results indicated that the film containing 4 wt% PS achieved optimal transverse and longitudinal tensile strength of （21.44±1.63） and （32.03±1.26） MPa， respectively. The optical properties， air permeability and moisture permeability of the films decreased with an increase in the concentration of bacteriostatic agent， but their hydrophobic properties increased. Both PS and FA can inhibit the growth of algae microorganisms. Such an antibacterial effect becomes more significant with an increase in the concentration of antibacterial agent. The films exhibit good antifouling and antibacterial properties.

Key words: polypropylene, potassium sorbate, fluoride acid, salt, polyester glycerin, anti-algal performance

CLC Number:

TQ325.1⁺4

LI Shaojing, YANG Fuxin, YANG Jinghui, CHEN Zuguo, WANG Guanglin. Preparation and Characterization of Algae⁃Resistant Biological Packaging Materials[J]. China Plastics, 2021, 35(3): 8-15.

Figures/Tables 9

References 26

1	马春风，吴博，徐文涛，等.海洋防污高分子材料的进展［J］.高分子通报，2013（9）：87⁃95.
	MA C F， WU B， XU W T， et al. Advances in Marine Antifouling Polymer Materials ［J］. Polymer Bulletin，2013（9）：87⁃95.
2	XIE Q Y，MA C F，LIU C，et al. Poly（dimethylsiloxane）⁃Based Polyurethane with Chemically Attached Antifoulants for Durable Marine Antibiofouling.［J］. ACS Applied Materials & Interfaces，2015，（7）：38.
3	WU Y M，WANG Z W，HU C Y，et al. Influence of Factors on Release of Antimicrobials from Antimicrobial Packaging Materials［J］. Critical Reviews in Food Science and Nutrition，2018，58（7）：1 108⁃1 121.
4	CHEVALIER E，CHAABANI A，ASSEZAT G，et al. Casein/Wax Blend Extrusion for Production of Edible Films as Carriers of Potassium Sorbate：A Comparative Study of Waxes and Potassium Sorbate Effect［J］. Food Packaging and Shelf Life，2018（16）：41⁃50.
5	CAO Y，LI J，LIU J，et al. Synthesis and Antimicrobial Applications of the Inclusion Complexes of β⁃Cyclodextrin Copolymers with Potassium Sorbate［J］. Journal of Applied Polymer Science，2018，135（48）：46885.
6	GAGNAIRE B， FROUIN H， MOREAU K， et al. Effects of Temperature and Salinity on Haemocyte Activities of the Pacific Oyster， Crassostrea Gigas （Thunberg）［J］. Fish Shellfish Immunol， 2006， 20（4）： 536⁃547.
7	MALHAM S K， COTTER E， O'KEEFFE S， et al. Summer Mortality of the Pacific Oyster， Crassostrea Gigas， in the Irish Sea： The Influence of Temperature and Nutrients on Health and Survival［J］. Aquaculture， 2009，
	287（1）： 128⁃138.
8	JIANG W， LI J， GAO Y， et al. Effects of Temperature Change on Physiological and Biochemical Responses of Yesso Scallop， Patinopecten Yessoensis［J］. Aquaculture， 2016， 451： 463⁃472.
9	陈慕雁，杨红生. 贝类生态免疫研究进展［J］. 海洋科学集刊， 2007（1）： 140⁃152.
	CHEN M Y， YANG H S. Progress in Shellfish Ecological Immunity ［J］. Journal of Marine Science， 2007（1）： 140⁃152.
10	姜娓娓. 扇贝和皱纹盘鲍对温度变化的生理响应研究［D］. 青岛：中国科学院海洋研究所， 2017.
11	乔国华.聚甘油脂肪酸酯的合成与应用研究［D］.无锡：江南大学，2009.
12	胡德亮.食品乳化剂［M］. 北京：中国轻工业出版社，2011：53.
13	PENG B，XIONG C Y，HUANG Y，et al. Enzymatic Synthesis of Polyglycerol Fatty Acid Esters and Their Application as Emulsion Stabilizers［J］. Journal of Agricultural and Food Chemistry，2018，66（ 30）： 8 104⁃8 113.
14	JANKUN J，SELMAN S H，SWIERCZ R，et al.Why Drinking Green Tea could Prevent Cancer ［J］ . Nature， 1997 （387）： 561.
15	国家质量技术监督局.塑料薄膜和薄片气体透过性试验方法/压差法［S］.北京：中国标准出版社，2018.
16	国家质量监督检验检疫总局，国家标准化管理委员会. 塑料拉伸性能的测定：第3部分：薄膜和薄片的试验条件［S］.北京：中国标准出版社，2006.
17	卢叶，杨福馨，张恒光.载银抗菌剂/LDPE抗菌薄膜的制备与性能研究［J］.包装工程，2013，34（11）：27⁃30.
	LU Y， YANG F X， ZHANG H G. Preparation and Properties of Silver⁃loaded Antibacterial Agent/LDPE Antibacterial Film ［J］. Packaging Engineering， 2013，34 （11）： 27⁃30.
18	国家质量技术监督局.塑料薄膜和薄片气体透过性试验方法/压差法［S］.北京：中国标准出版社，2000.
19	NAZER A，PAYAJ，BORACHERO M V，et al.Use of Ancient Copper Slags in Portland Cement and Alkali Activated Cement Matrices［J］.Journal of Environmental Management，2016，167：115⁃123.
20	LAZRAK C，KABOUCHI B，HAMMI M，et al. Structural Study of Maritime Pine Wood and Recycled High⁃density Polyethylene （HDPE）Plastic Composite Using Infrared⁃ATR Spectroscopy，X⁃ray Difraction，SEM and Contact Angle Measurements［J］.Case Studies in Construction Materials，2019，10（46）：78⁃80.
21	陈基玉，杨福馨，魏丽娟，等.聚乙烯醇改性无纺布抗菌复合膜的制备及其性能研究［J］.食品与机械，2016，32（12）：124⁃127.
	CHEN J Y， YANG F X， WEI L J， et al. Preparation and Properties of Polyvinyl Alcohol Modified Non⁃woven Antimicrobial Composite Membranes ［J］. Food & Machinery，2016，32（12）：124⁃127.
22	JELLALI R， KROMKAMP J C， CAMPISTRON I， et al. Antifouling Action of Polyisoprene⁃Based Coatings by Inhibition of Photosynthesis in Microalgae［J］. Environ Sci Technol， 2013，47（12）： 6 573⁃6 581.
23	CONESKI P N， WEISE N K， FULMER P A， et al. Development and Evaluation of Self⁃polishing Urethane Coatings with Tethered Quaternary Ammonium Biocides［J］. Progress in Organic Coatings，2013，76（10）： 1 376⁃1 386.
24	American Society for Testing and Materials. Standard Test Method for Haze and Luminous Transmittance of Transparent Plastics：［S］. Philadelphia： Annual Book of ASTM Standards，1997.
25	王光普，赵大红.食品包装材料安全性及检测技术［J］.现代食品，2019（22）：130⁃132.
	WANG G P， ZHAO D H. Safety and Testing Technology of Food Packaging Materials ［J］. Modern Food，2019（22）：130⁃132.
26	SONI B，HASAN E B，SCHILING M W，et al.Transparent Bionanocomposite Films Based on Chitosan and TEMPO⁃oxidized Celulose Nanofibers with Enhanced Mechanical and Barier Properties ［J］.Carbohydrate Polymers，2016，151（4）：779⁃789.

膜编号	PS含量/%	FA含量/%
CK	0	0
A	2	2
B	4	2
C	6	2
D	8	2
E	2	4
F	2	6
G	2	8

膜编号	PS含量/%	FA含量/%
CK	0	0
A	2	2
B	4	2
C	6	2
D	8	2
E	2	4
F	2	6
G	2	8

膜编号	厚度/mm	拉伸强度/MPa		断裂伸长率/%
膜编号	厚度/mm	横向	纵向	横向	纵向
CK	0.03	8.79±0.35^g	21.90±1.28^e	11.72±0.43^d	509.67±3.17^a
A	0.05	13.07±0.62^e	25.51±1.28^c	4.20±0.35^g	49.87±1.42^e
B	0.05	21.44±1.63^a	32.03±1.26^a	6.20±0.40^f	41.93±0.51^f
C	0.06	19.25±0.34^b	22.67±0.82^e	14.60±0.60^c	38.13±1.79^g
D	0.07	16.06±0.81^c	19.30±0.38^f	18.33±2.06^b	25.40±0.72^h
E	0.06	14.86±0.59^d	30.44±0.08^b	8.13±0.06^e	55.23±0.25^d
F	0.07	11.35±0.34^f	21.78±0.97^d	18.60±0.56^b	58.63±0.64^c
G	0.07	10.34±0.52^f	17.15±0.57^g	22.50±0.36^a	62.33±0.58^b

膜编号	厚度/mm	拉伸强度/MPa		断裂伸长率/%
膜编号	厚度/mm	横向	纵向	横向	纵向
CK	0.03	8.79±0.35^g	21.90±1.28^e	11.72±0.43^d	509.67±3.17^a
A	0.05	13.07±0.62^e	25.51±1.28^c	4.20±0.35^g	49.87±1.42^e
B	0.05	21.44±1.63^a	32.03±1.26^a	6.20±0.40^f	41.93±0.51^f
C	0.06	19.25±0.34^b	22.67±0.82^e	14.60±0.60^c	38.13±1.79^g
D	0.07	16.06±0.81^c	19.30±0.38^f	18.33±2.06^b	25.40±0.72^h
E	0.06	14.86±0.59^d	30.44±0.08^b	8.13±0.06^e	55.23±0.25^d
F	0.07	11.35±0.34^f	21.78±0.97^d	18.60±0.56^b	58.63±0.64^c
G	0.07	10.34±0.52^f	17.15±0.57^g	22.50±0.36^a	62.33±0.58^b
