Effect of High Temperature Antioxidant on Structure and Properties of Polyphenylene Sulfide

doi:10.19491/j.issn.1001-9278.2021.04.014

Abstract

Abstract:

Aiming at the oxidation characteristics of polyphenylene sulfide （PPS）， a high temperature antioxidant GA?80 was used to compound with PPS by melt blending with a micro twin?screw extruder. The effect of GA?80 on the morphology， crystallization behavior， thermo?oxygen stability， dynamic oxidation induced temperature and surface element changes of PPS was investigated by field emission scanning electron microscopy， differential scanning calorimeter and X?ray photoelectron spectrometer. The results indicated that GA?80 had good compatibility with the PPS matrix and could be homogeneously dispersed in the matrix without obvious agglomeration. The effect of GA?80 on crystallization changed from inhibition to promotion with an increase in the content of GA?80. The crystallization temperature and crystallinity decreased at first and then tended to increase， whereas the degree of supercooling presented an opposite variation trend. The addition of GA?80 improved the thermal?oxygen stability of PPS， and the dynamic oxidation induced temperature of PPS increased with an increase in the content of GA?80. When the content of GA?80 was 5.0 wt%， the dynamic oxidation induced temperature increased by 19.4 ℃ compared to pure PPS. Moreover， GA?80 could inhibit the combination of S and O elements from the PPS macromolecular chains and environment， respectively， and it could also eliminate the free radicals to improve oxidation resistance.

Key words: polyphenylene sulfide, high temperature antioxidant, crystallization behavior, dynamic oxidation induced temperature, oxidation resistance

CLC Number:

TQ 326.5

XING Jian, ZHANG Shucheng, YU Qin, LI Changlong, XU Zhenzhen. Effect of High Temperature Antioxidant on Structure and Properties of Polyphenylene Sulfide[J]. China Plastics, 2021, 35(4): 79-85.

Figures/Tables 10

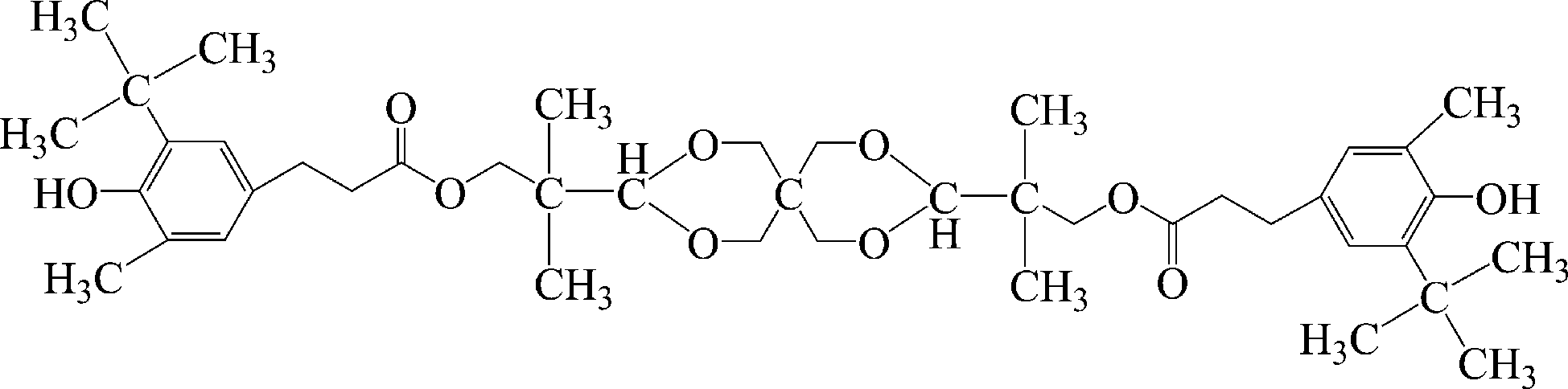

Fig.1. Structural formula of antioxidants GA?80

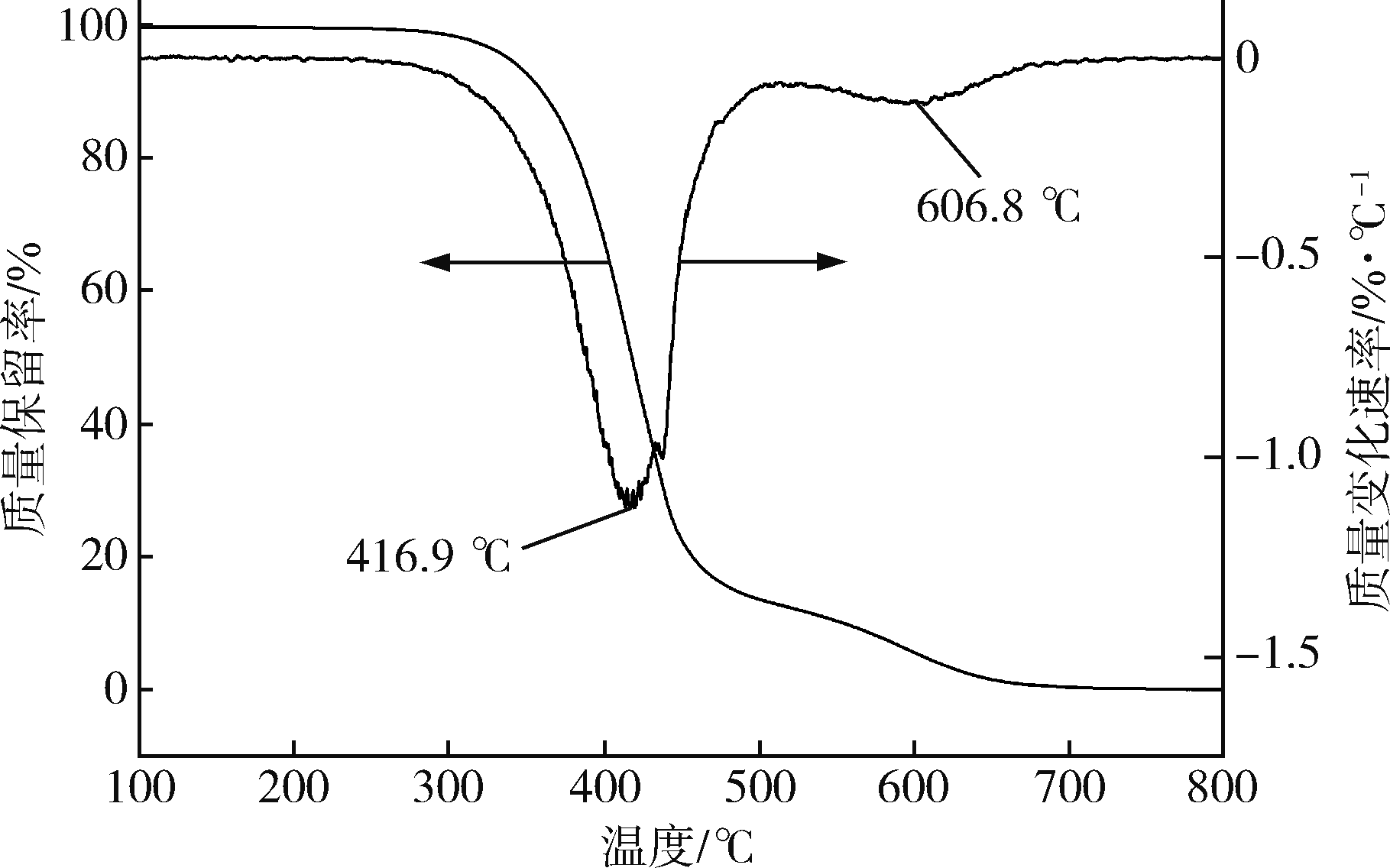

Fig.2. TG and DTG curves of antioxidants GA?80

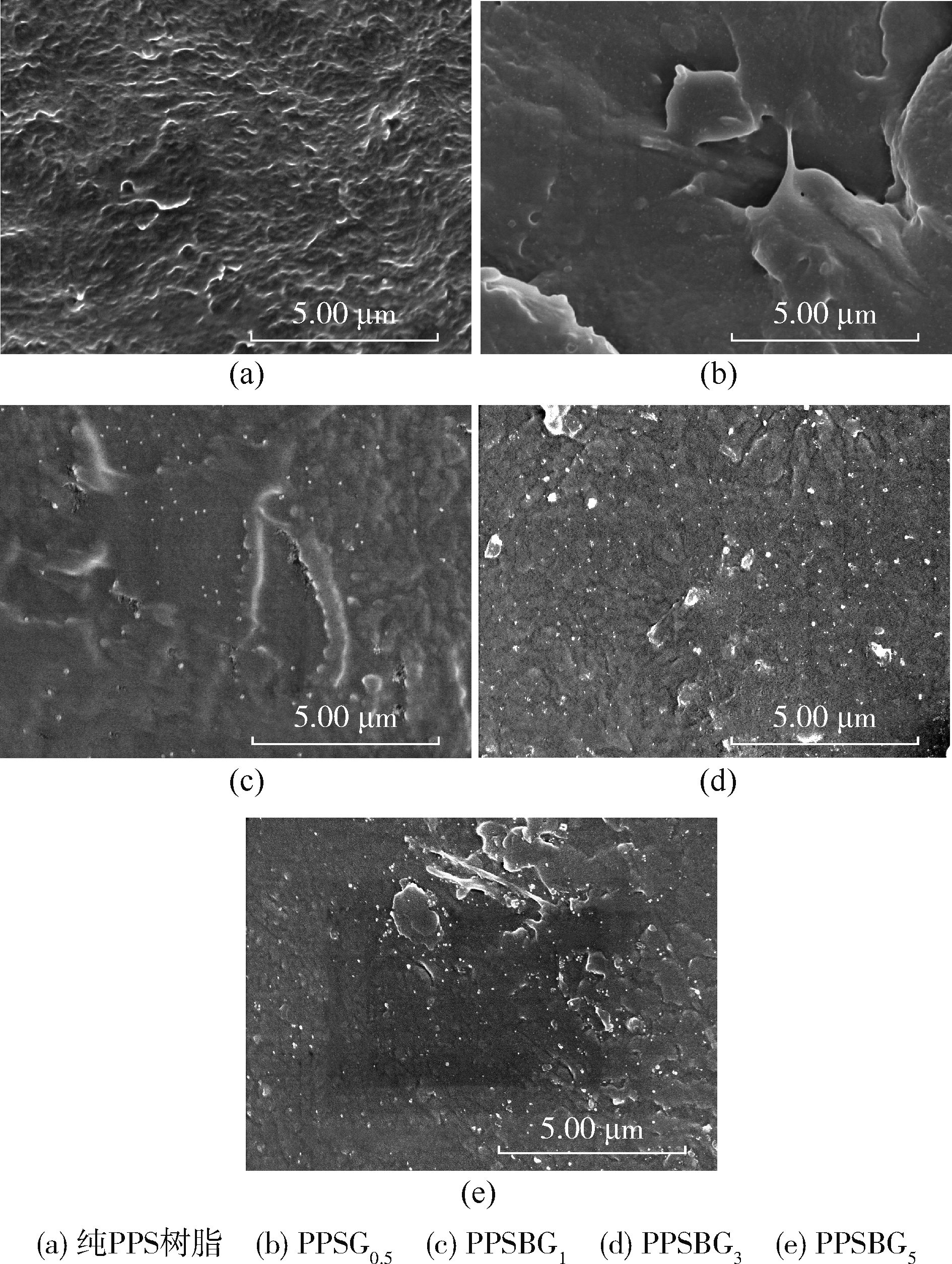

Fig.3. SEM of pure PPS and PPSGx composites

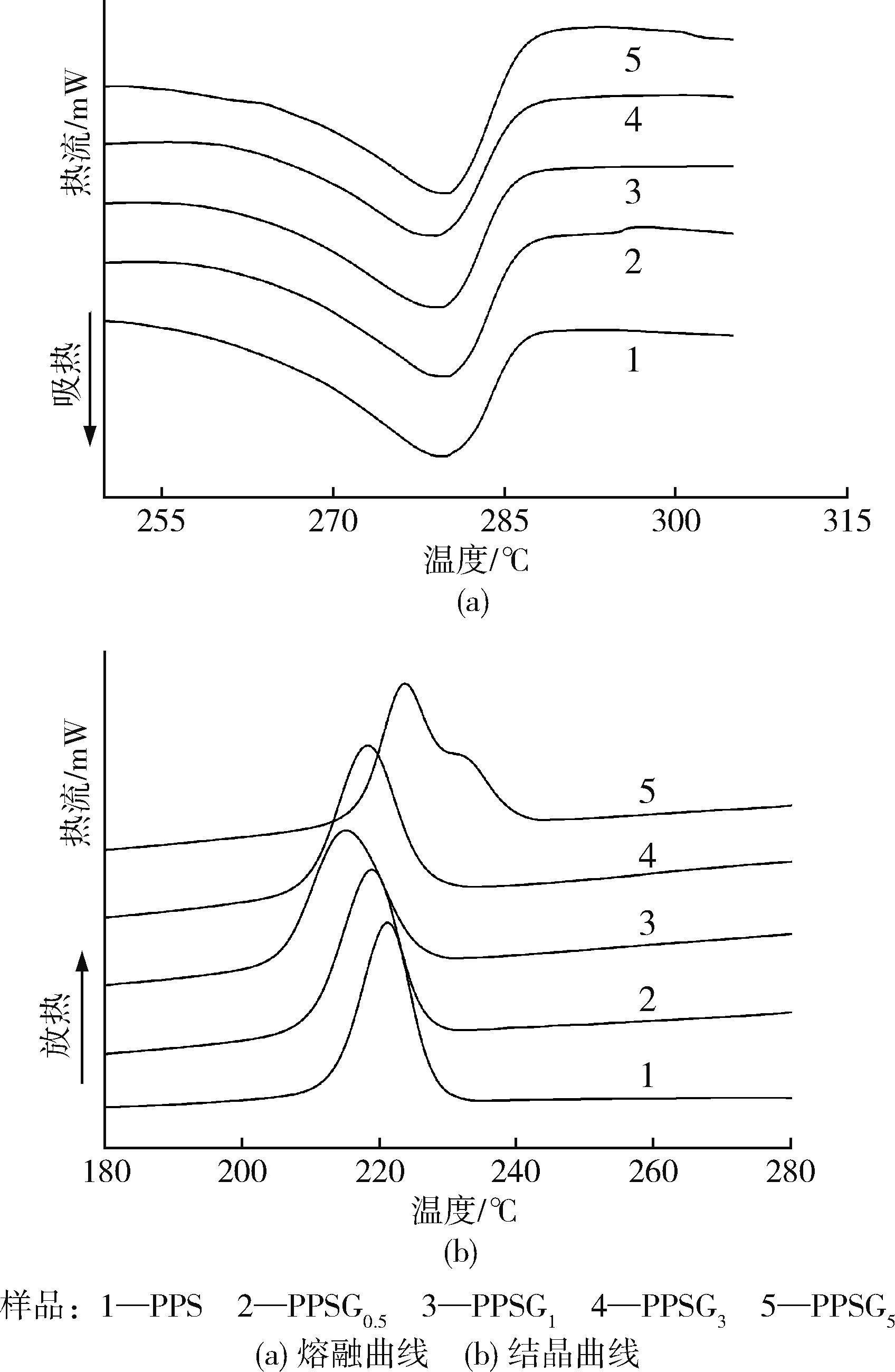

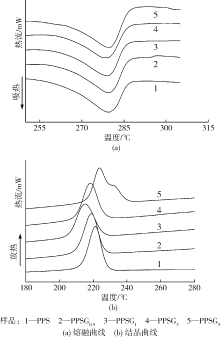

Fig.4. DSC curves of pure PPS and PPSGx composites

样品	T_c/^oC	ΔH_c/J·g^-1	T_m/^oC	ΔH_m/J·g^-1	X_c/%	ΔT/^oC
PPS	221.1	43.6	277.2	36.3	46.8	56.1
PPSG_0.5	218.7	43.2	276.9	34.9	45.3	58.2
PPSG₁	215.9	43.6	275.9	32.9	42.9	60.0
PPSG₃	218.2	41.8	276.0	32.7	43.5	57.8
PPSG₅	223.6	44.5	277.2	39.3	53.4	53.6

Tab. 1. DSC characteristic parameters of PPS and PPSGx composites

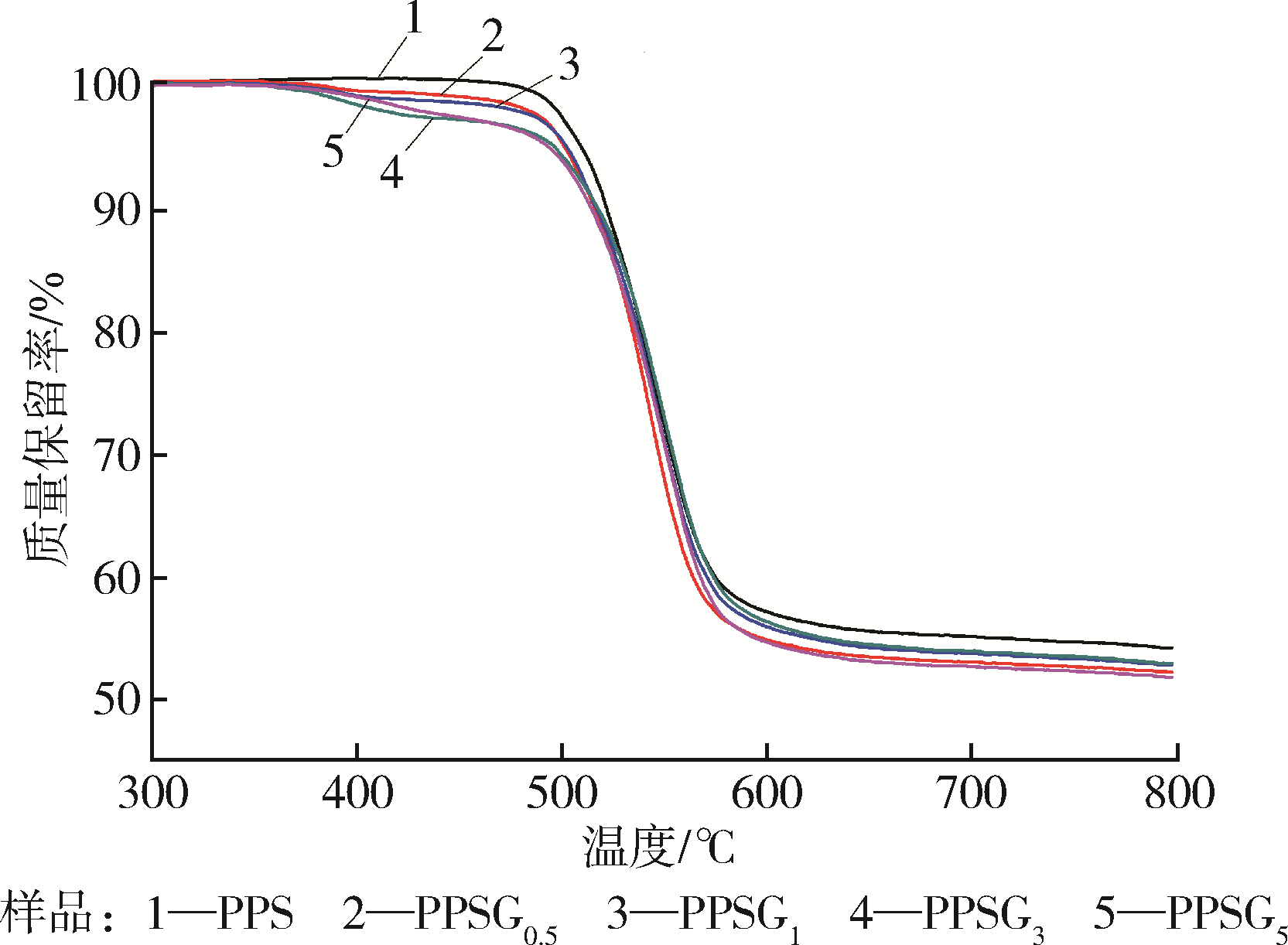

Fig.5. Thermal?oxidation weigh loss curves of PPS and PPSGx composites

样品	T_i /℃	T_5% /℃	T_15% /℃	T_30% /℃
PPS	483.4	510.4	531.2	553.3
PPSG_0.5	395.6	502.5	526.8	547.5
PPSG₁	385.2	503.4	528.7	551.5
PPSG₃	369.5	497.9	530.7	554.3
PPSG₅	379.6	495.5	526.8	551.1

Tab.2. Thermal?oxidation weigh loss parameters of PPS and PPSGx composites

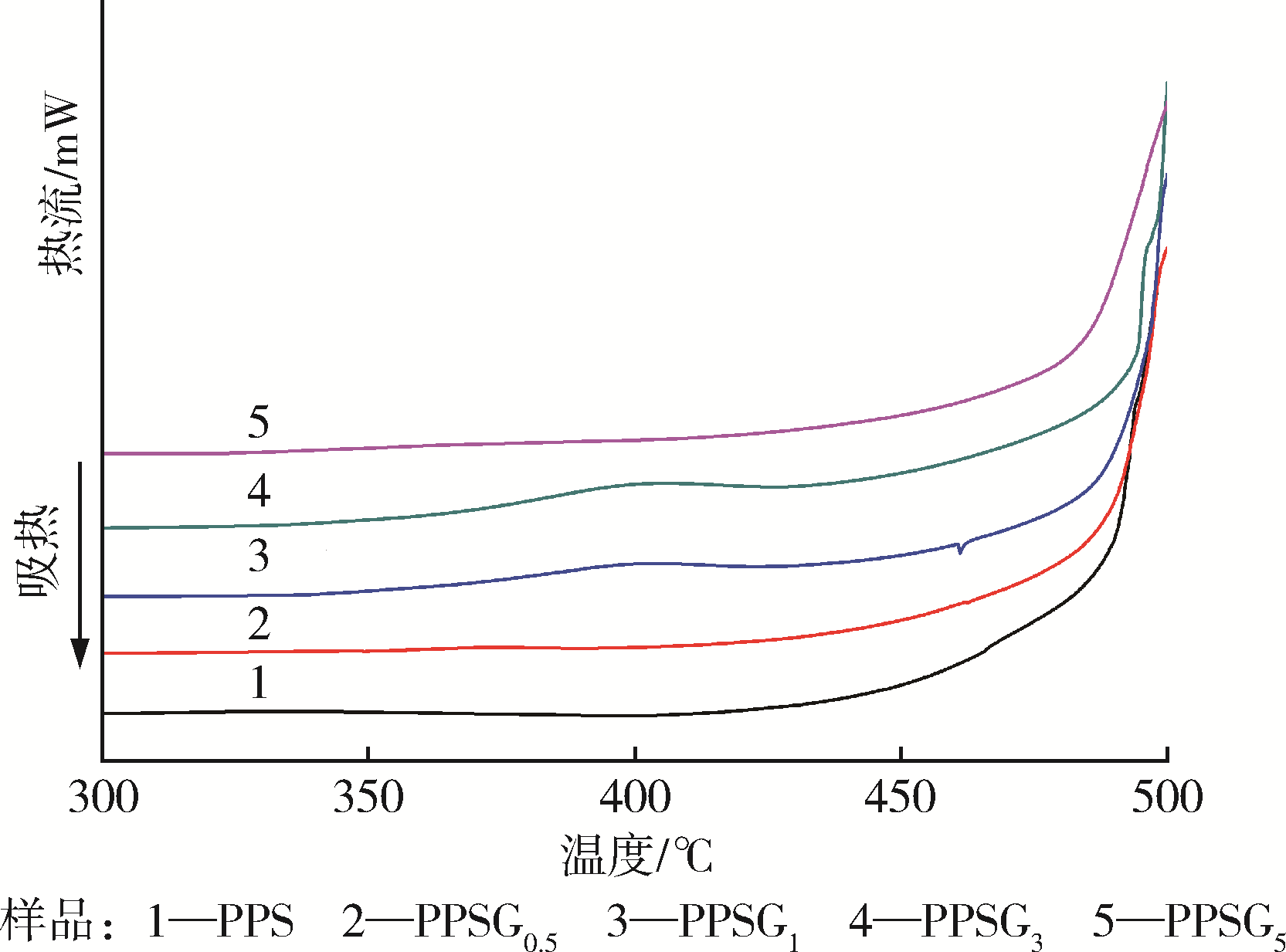

Fig.6. Dynamic oxidation induction temperature curves of PPS and PPSGx composites

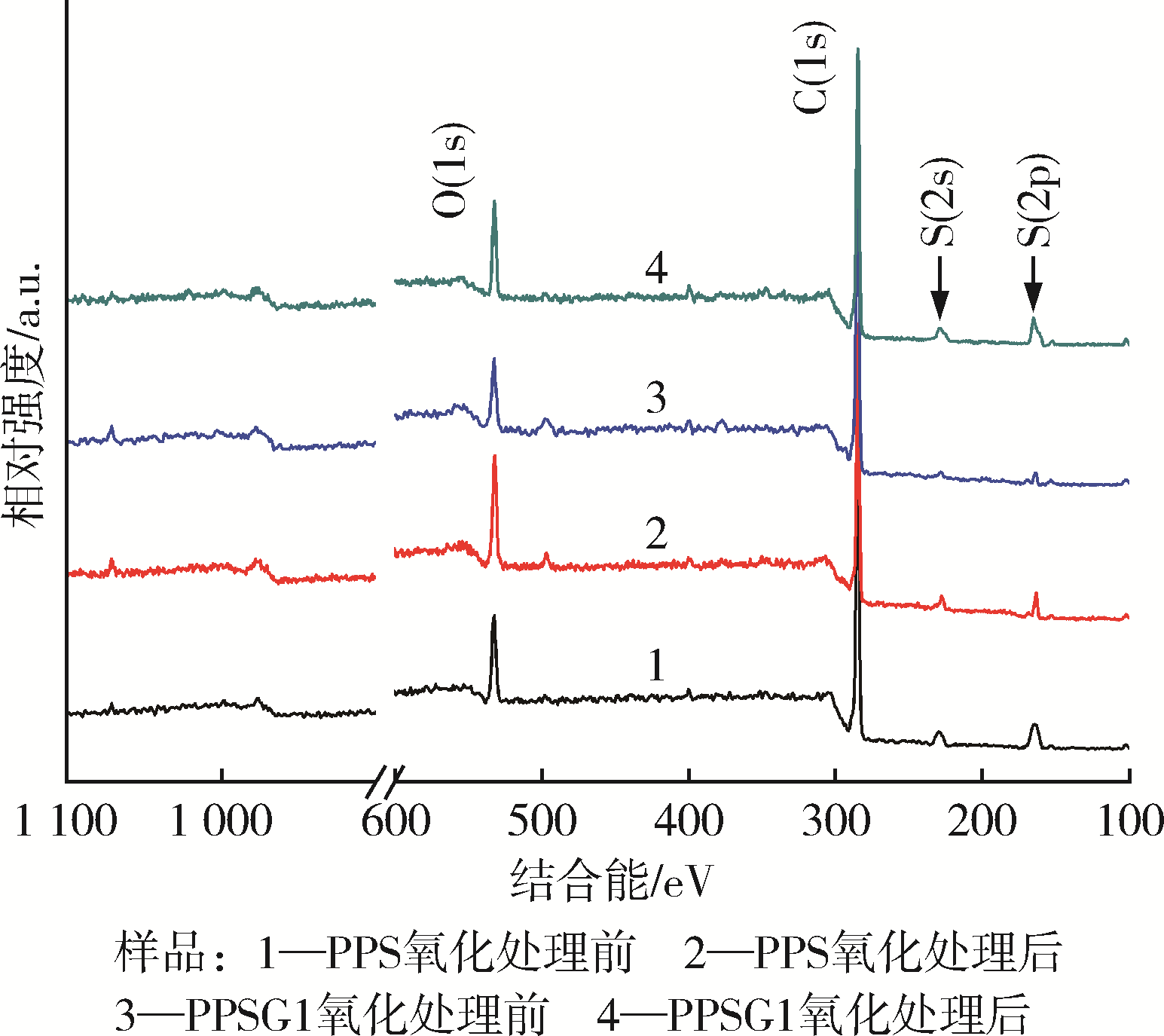

Fig.7. XPS of PPS and PPSGx composites

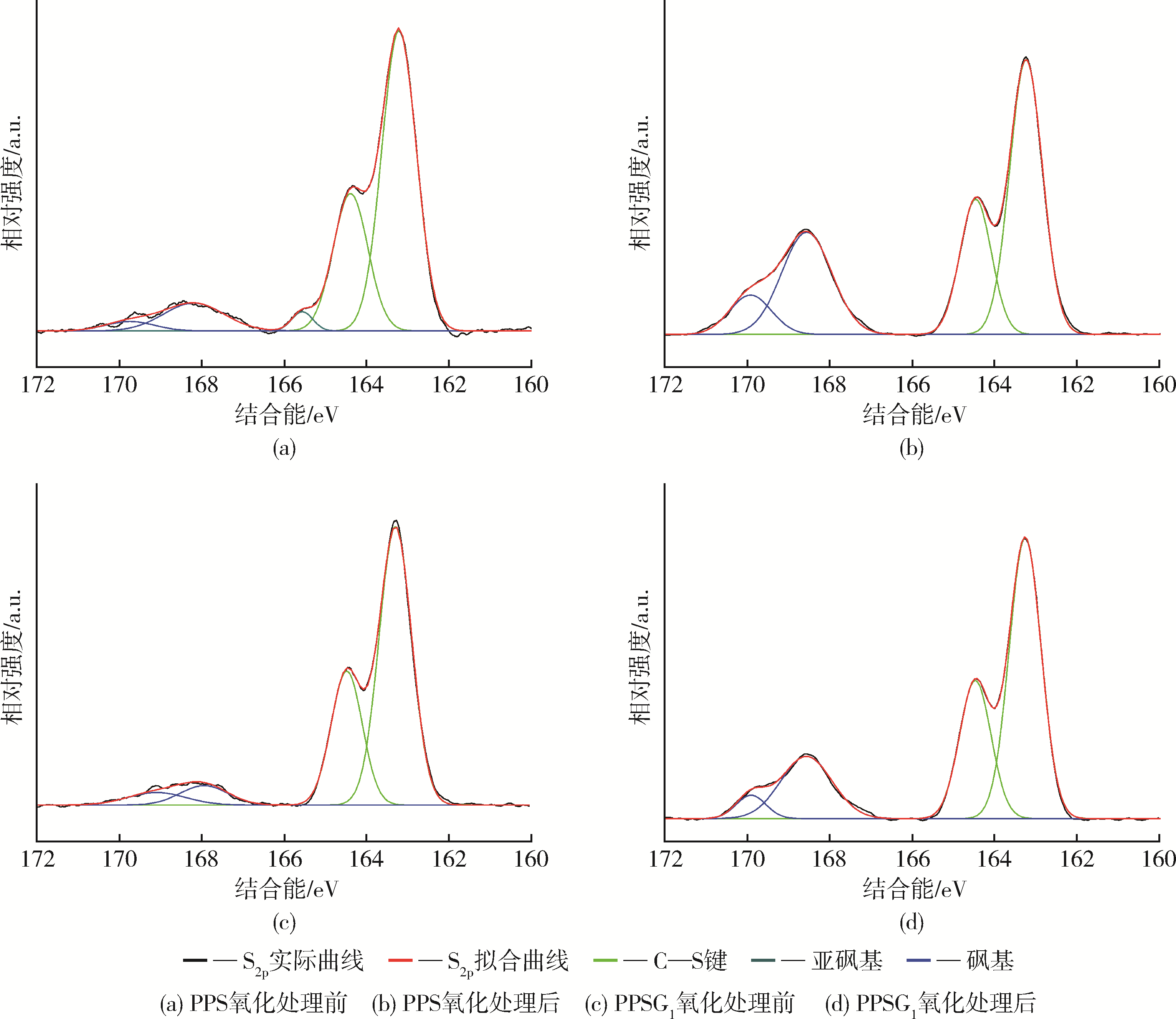

Fig.8. XPS of S2p in PPS and PPSGx composites

References 22

1	ROZY M I F， ITO K， UNE K， et al. A Continuous⁃Flow Exposure Method to Determine Degradation of Polypheny⁃lene Sulfide Non⁃Woven Bag⁃filter Media by NO₂ Gas at High Temperature［J］. Advanced Powder Technology， 2020， 30（12）： 2 881⁃2 889.
2	白媛，马新安，杨家密. 耐高温除尘过滤材料的研发现状及趋势［J］. 棉纺织技术， 2019， 47（10）： 78⁃81.
	BAI Y， MA X A， YANG J. Development Status and Trend of High Temperature Resistance Dust Removing Filter Material ［J］. Cotton Textile Technology， 2020， 47（10）： 78⁃81.
3	张恒，甄琪，王俊南，等. 梯度结构耐高温纤维过滤材料的结构与性能［J］. 纺织学报， 2016， 37（5）： 17⁃22.
	ZHANG H， ZHEN Q， WANG J N， et al. Structure and Performance of High Temperature Resistant Fibrous Filters with Gradient Structure［J］. Journal of Textile Research， 2016， 36（5）： 17⁃22.
4	杨振生，潘浩男，李春利，等. 高性能聚苯硫醚过滤材料研究进展［J］. 化工新型材料， 2019， 47（10）： 216⁃218.
	YANG Z S， PAN H N， LI C L， et al. Progress of PPS Filtration Material with High Performance［J］. New Chemical Materials， 2019， 47（10）： 216⁃218.
5	郑锦维，朱锐钿，周思远，等. 除尘过滤用PPS纤维毡滤料PM2.5及高温过滤特性研究［J］. 化纤与纺织技术，2017，46（3）：23⁃28.
	ZHENG J W， ZHU R T， ZHOU S Y， et al. Research on Filtration Property of PM2.5 and High Temperature of Fiber Filter for Dust Removing Bag［J］. Chemical Fiber & Textile Technology， 2017， 46（3）： 23⁃28.
6	HU Z X， HOU K， GAO J L， et al. Enhanced Photo⁃stability Polyphenylene Sulfide Fiber Via Incorporation of Multi⁃Walled Carbon Nanotubes Using Exciton Quenching［J］. Composites Part A： Applied Science and Manufactu⁃ring， 2020， 129： 105716.
7	LI T， LIU M， DUAN Y F， et al. Performance and Reaction Mechanism for Low⁃Temperature NO_x Catalytic Synergistic Hg0 Oxidation of Catalytic Polyphenylene Sulfide Filter Materials［J］. Asia⁃Pacific Journal of Chemical Engineering， 2020， 15（1）： e2403.
8	张翼. 袋式除尘器滤袋失效原因探讨［J］.环境与发展，2019，（6）：248⁃249.
	ZHANG Y. Discussion on Failure Reasons of Bag Filter Bag［J］. Environment and Development， 2019，（6）：248⁃249.
9	王颖，张静静，金小培，等. 燃煤电厂锅炉除尘器滤袋失效原因分析［J］.纺织导报， 2018，（2）： 68⁃70.
	WANG Y， ZHANG J J， JIN X P， et al. An Analysis on Failure of Filter Bag in Coal⁃Fired Power Plant［J］. China Textile Leader， 2018，（2）： 68⁃70.
10	蔡伟龙，罗祥波，洪丽美，等. 燃煤电厂锅炉袋除尘器用PPS滤料失效原因分析［J］.中国环保产业，2010，（1）： 48⁃50.
	CAI W L， LUO X B， HONG L M， et al. Analysis of Ineffective Reason for Poly （phenylene sulfide） Filter Fabric of Bag Filter in Coal⁃Fired Power Plant［J］. China Environment Protection Industry， 2010，（1）： 48⁃50.
11	CHEN Y， HE H W， WU SH， et al. Mn/Ce Oxides De⁃corated Polyphenylene Sulfide Needle⁃punching Fibrous Felts for Dust Removal and Denigration Application［J］. Polymers， 2020， 12（1）： 168.
12	SUGAMA T. Antioxidants for Retarding Hydrothermal Oxidation of Polyphenylene Sulfide Coating in Geothermal Environments［J］. Materials Letters. 2000， 43（04）： 4 282⁃4 290.
13	LIAN D D， ZHANG R P， LU J J， et al. Performance and Structure Changes of Neat PPS Fiber and Nano Ti⁃SiO₂⁃modified PPS Fiber after Over⁃Temperature Oxidation［J］. High Performance Polymers， 2018， 30（3）： 328⁃338.
14	LI C Y， LI Z H， ZHANG M L， et al. SiC⁃fixed Organophilic Montmorillonite Hybrids for Poly （phenylene sulfide） Composites with Enhanced Oxidation Resistance［J］. RSC Advance， 2017， 74（7）： 46 678⁃46 689.
15	张勇，张蕊萍，戴晋明，等. 抗氧剂改性聚苯硫醚纤维抗热氧化性能的研究进展［J］. 合成纤维工业， 2014， 37（4）： 46⁃49.
	ZHANG Yong， ZHANG R P， DAI J M， et al. Research Progress of Thermal Oxidation Resistance of Polypheny⁃lene Sulfide Fiber Modified with Antioxidants［J］. China Synthetic Fiber Industry， 2014， 37（4）： 46⁃49.
16	LIU Q， LUO W， CHEN Y， et al. Enhanced Mechanical and Thermal Properties of CTAB⁃Functionalized Graphene Oxide⁃Polyphenylene Sulfide Composites［J］. High Performance Polymers， 2016， 29（8）： 889⁃898.
17	GU J W， XIE C， LI H L， et al. Thermal Percolation Behavior of Graphene Nanoplatelets/ Polyphenylene Sulfide Thermal Conductivity Composites［J］. Polymer Compo⁃sites， 2014， 35（6）： 1 087⁃1 092.
18	韩汶欣，任靖屹，连丹丹，等. 聚苯硫醚/槲皮素抗氧化纤维的制备及性能［J］. 工程塑料应用， 2019， 47（6）：32⁃37.
	HAN W X， REN J Y， LIAN D D， et al. Preparation and Properties of Polyphenylene/ Quercetin Sulfide Antioxidant Fibers［J］. Engineering Plastics Application， 2019， 47（6）：32⁃37.
19	苗小培，武鹏，者东海，等. 聚烯烃氧化诱导时间的测试方法［J］. 石油化工， 2017， 47（3）： 295⁃301.
	MIAO X P， WU P， ZHE D H， et al. Research Overview of Test Methods for Oxidation Induction Time of Polyolefin［J］. Petrochemical Technology， 2017， 47（3）： 295⁃301.
20	张勇，张蕊萍，黄玉莲，等. 抗热氧化PPS复合材料的制备及性能研究［J］. 工程塑料应用， 2014， 42（6）： 22⁃25.
	ZHANG Y， ZHANG R P， HUANG Y L， et al. Preparation and Properties of PPS Composites with Anti Thermal Oxidation Resistance［J］. Engineering Plastics Application， 2014， 42（6）： 22⁃25.
21	YANG D， VELAMAKANNI A， BOZOLIU G， et al. Chemical Analysis of Graphene Oxide Films After Heat and Chemical Treatment by X⁃ray Photoelectron and Micro⁃Raman Spectroscopy［J］. Carbon， 2009， 47： 145⁃152.
22	WAGNER C D， RIGGS W M， MUILENBERG G E. Handbook of X⁃ray Photoelectron Spectroscopy［M］.Perkin Elmer Corp， Waltham，1979.
