Preparation of PPS/CF Composites by a Twin⁃rotor Continuous Mixing Extruder

doi:10.19491/j.issn.1001-9278.2020.08.008

Abstract

Abstract:

Carbon fiber (CF)-reinforced poly(phenylene sulfide) (PPS) composites were prepared by a twin-rotor continuous mixing extruder, and their morphology, dynamic mechanical properties, mechanical performance and electrical properties were studied. The results indicated that the mechanical and electrical properties of PPS/CF composites could be improved by appropriately reducing the rotation speed of the extruder rotor and increasing the CF content. The composites achieved the impact strength of 49.94 J/m and the volume resistivity of 60.65 Ω·cm when the rotor speed was set to 200 r/min and the CF content was set as 20 %. These results suggested that the composites had better mechanical and electrical properties than pure PPS.

Key words: polyphenylene sulfide, carbon fiber, twin-rotor continuous mixing extruder, property

CLC Number:

TQ326.5

Dayou DING, Yulu MA, Linsheng XIE, Huihao ZHU, Xiliang SHAN. Preparation of PPS/CF Composites by a Twin⁃rotor Continuous Mixing Extruder[J]. China Plastics, 2020, 34(8): 50-56.

Figures/Tables 11

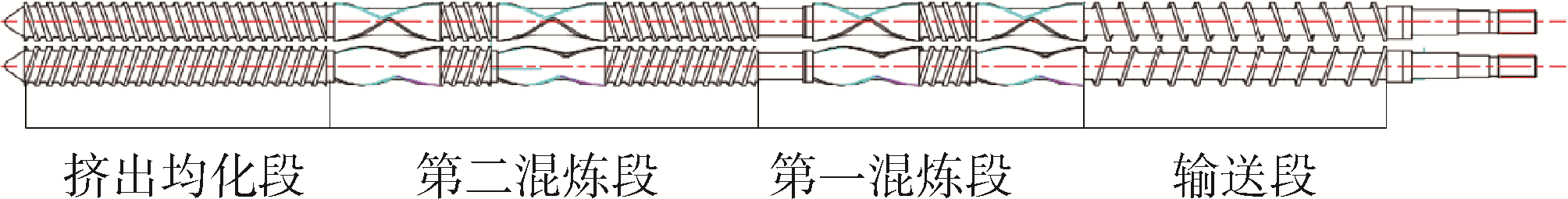

Fig.1. Structure of the double rotors

Fig.2. SEM of sections of PPS/CF composites at different rotor speeds

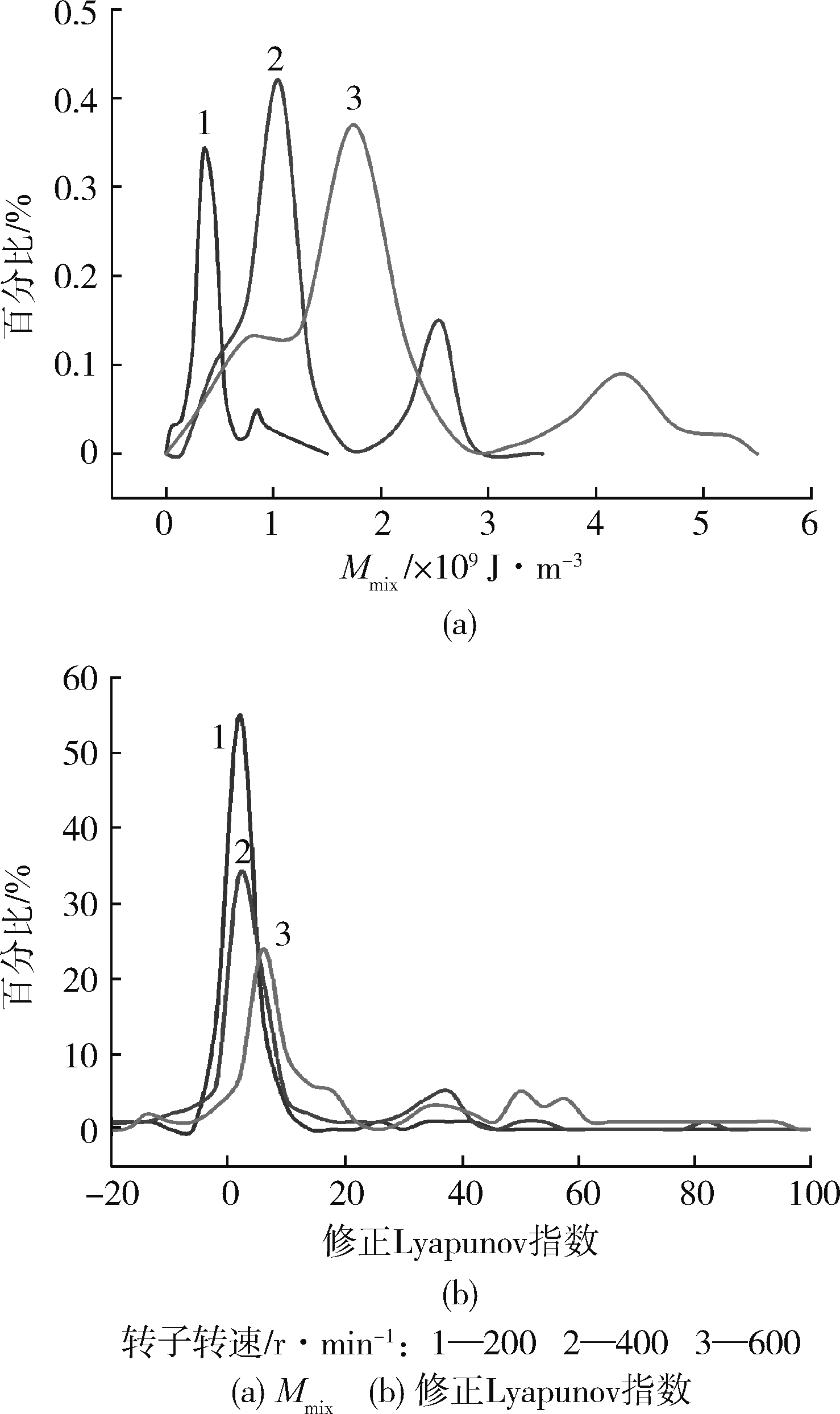

Fig.3. The distribution of Mmix and revised Lyapunov at different rotor speeds

Fig.4. SEM on longitudinal sections of PPS/CF composites with different CF contents

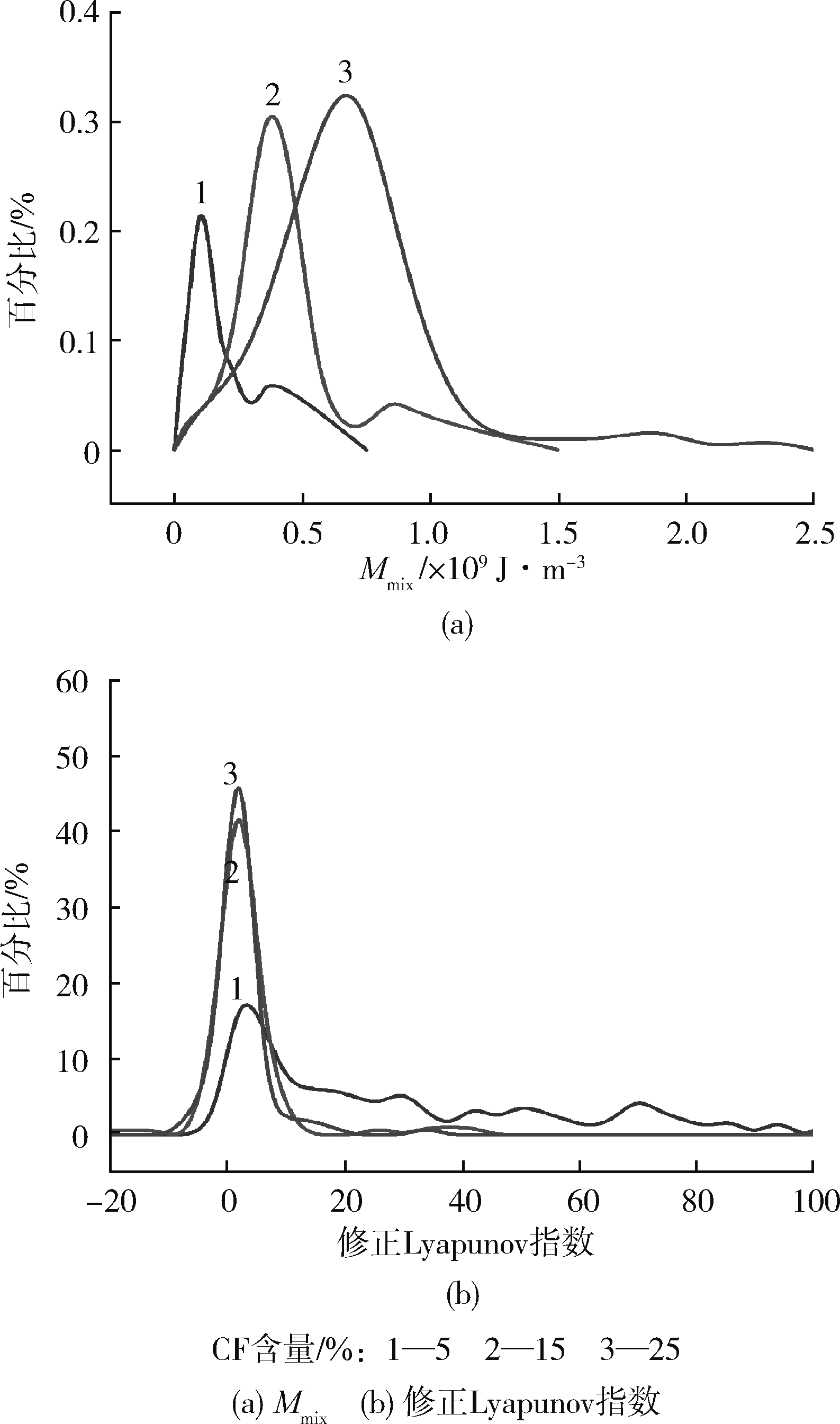

Fig.5. The distribution of Mmix and revised Lyapunov with different CF contents

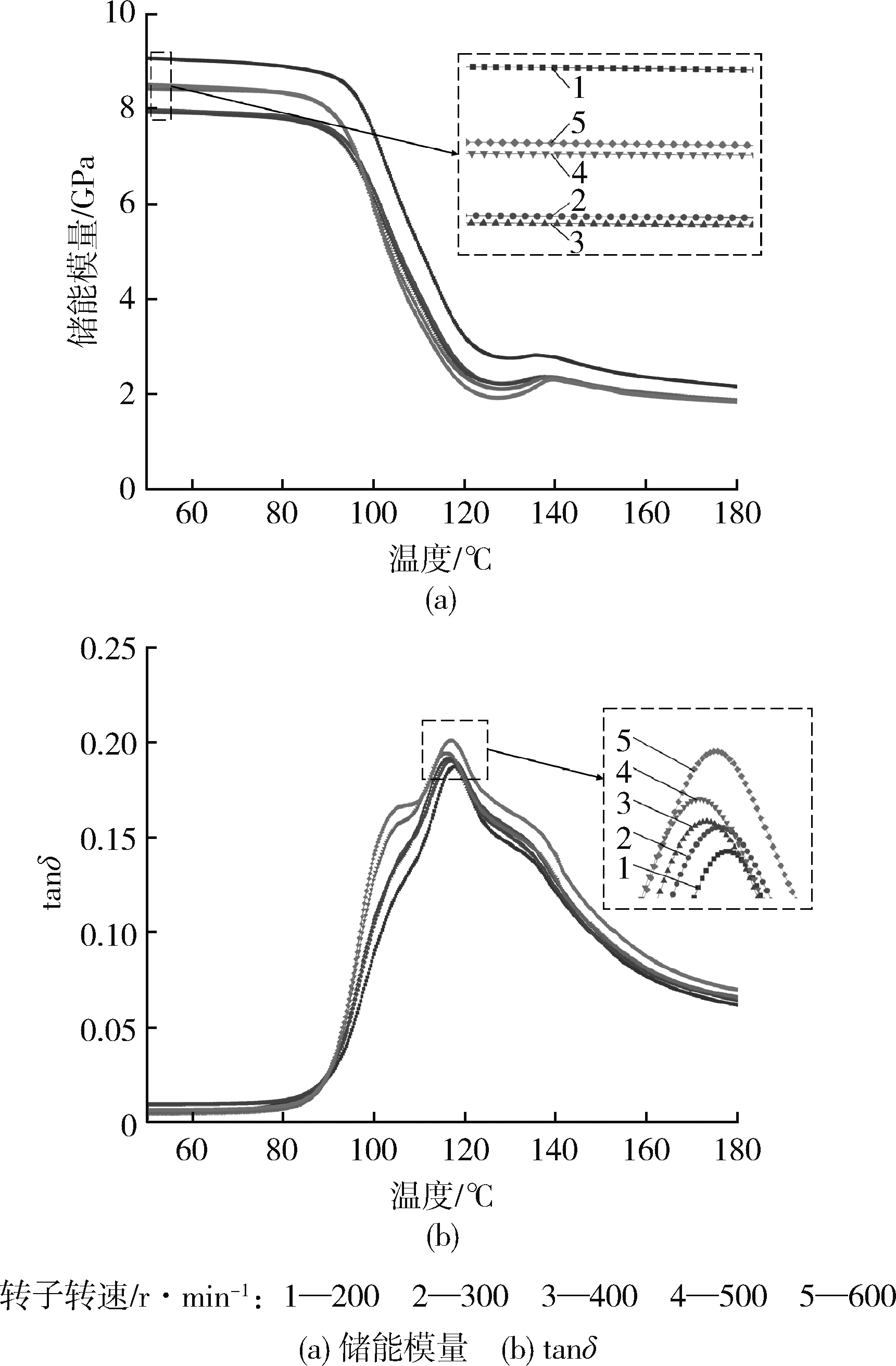

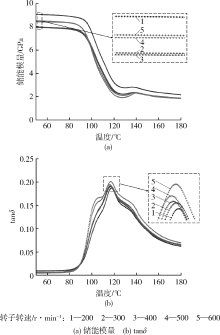

Fig.6. Dynamic mechanical properties of PPS/CF composites at different rotor speeds

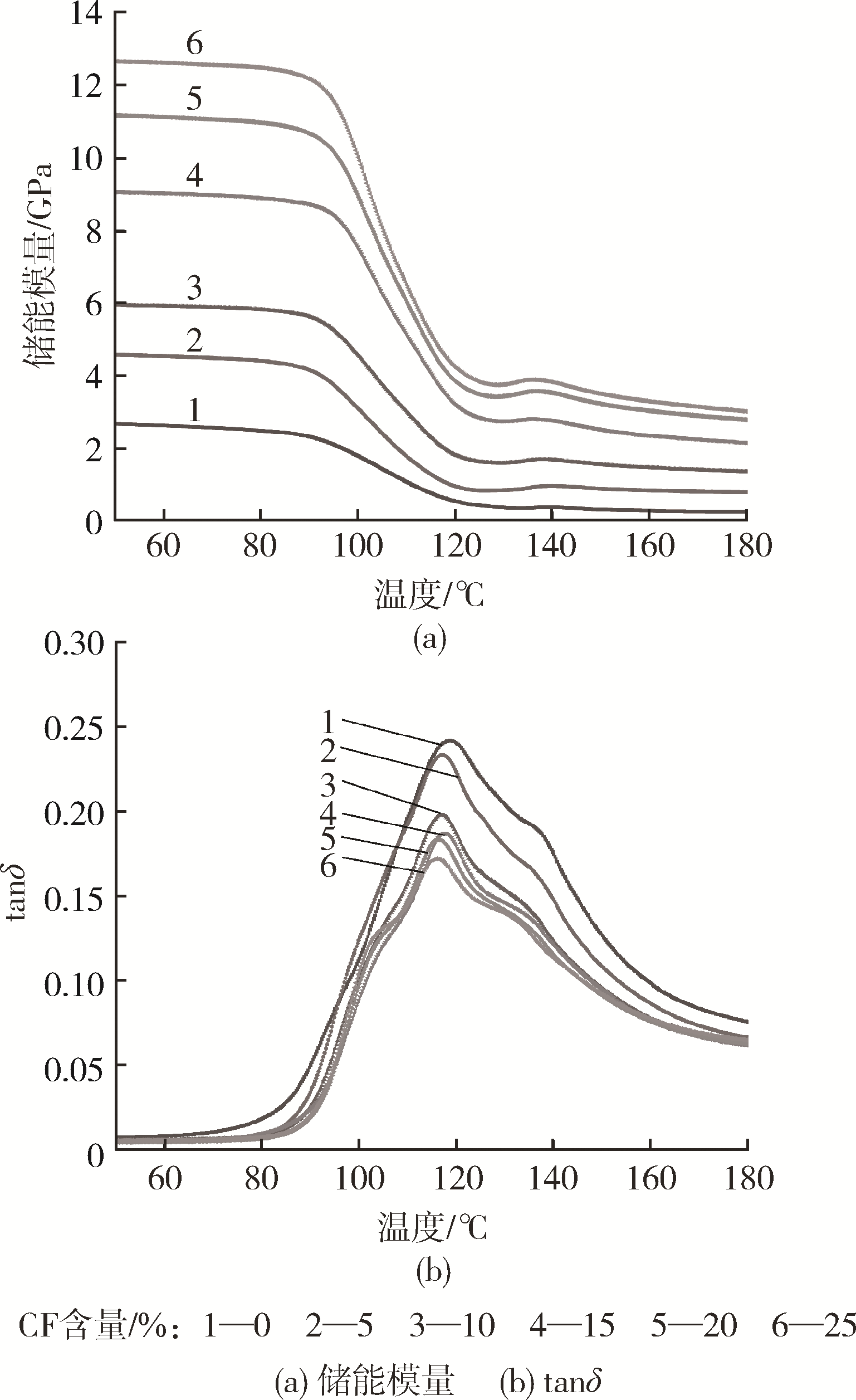

Fig.7. Dynamic mechanical properties of PPS/CF composites with different CF mass fractions

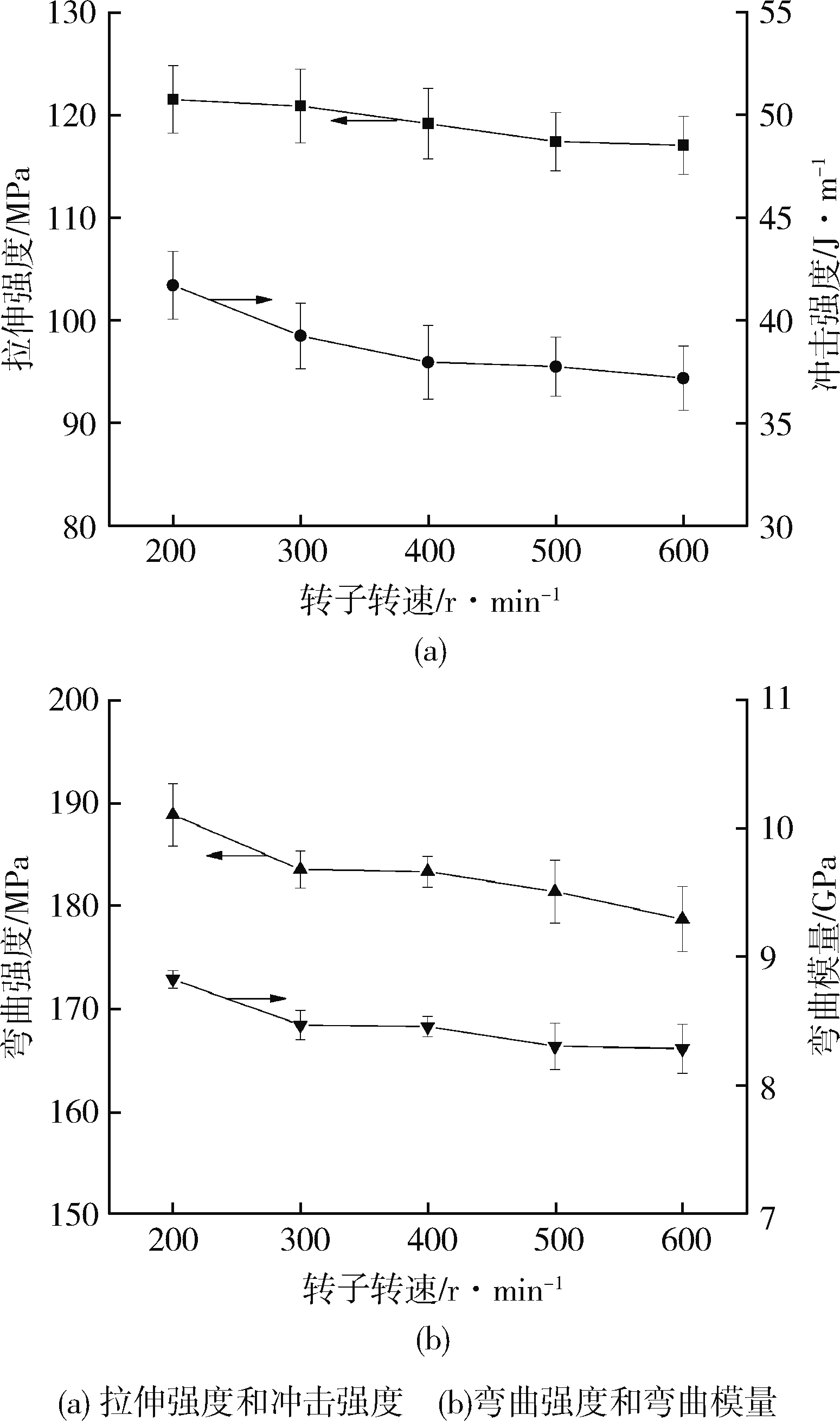

Fig.8. Mechanical properties of PPS/CF composites at different rotor speeds

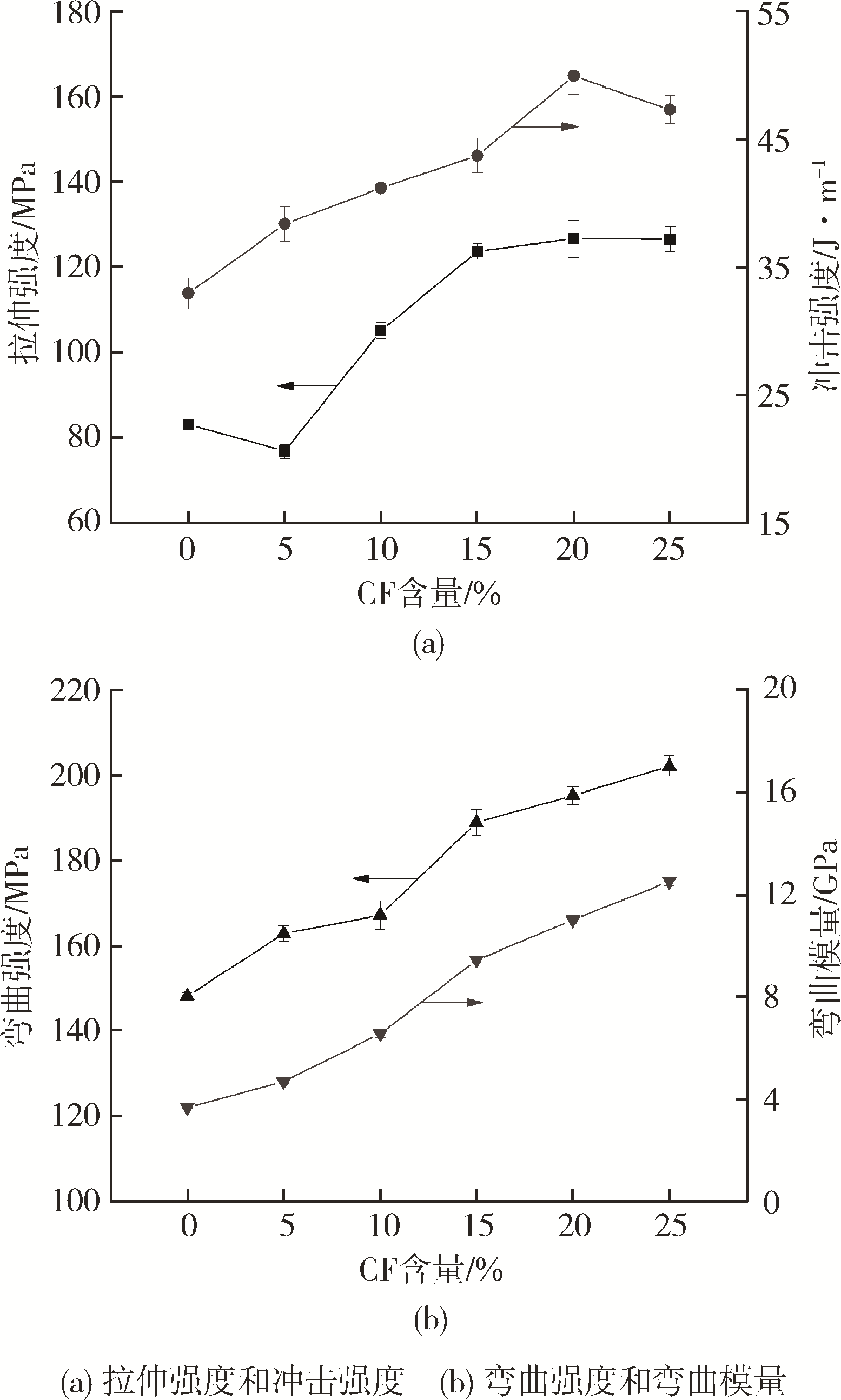

Fig.9. Mechanical properties of PPS/CF composites with different CF contents

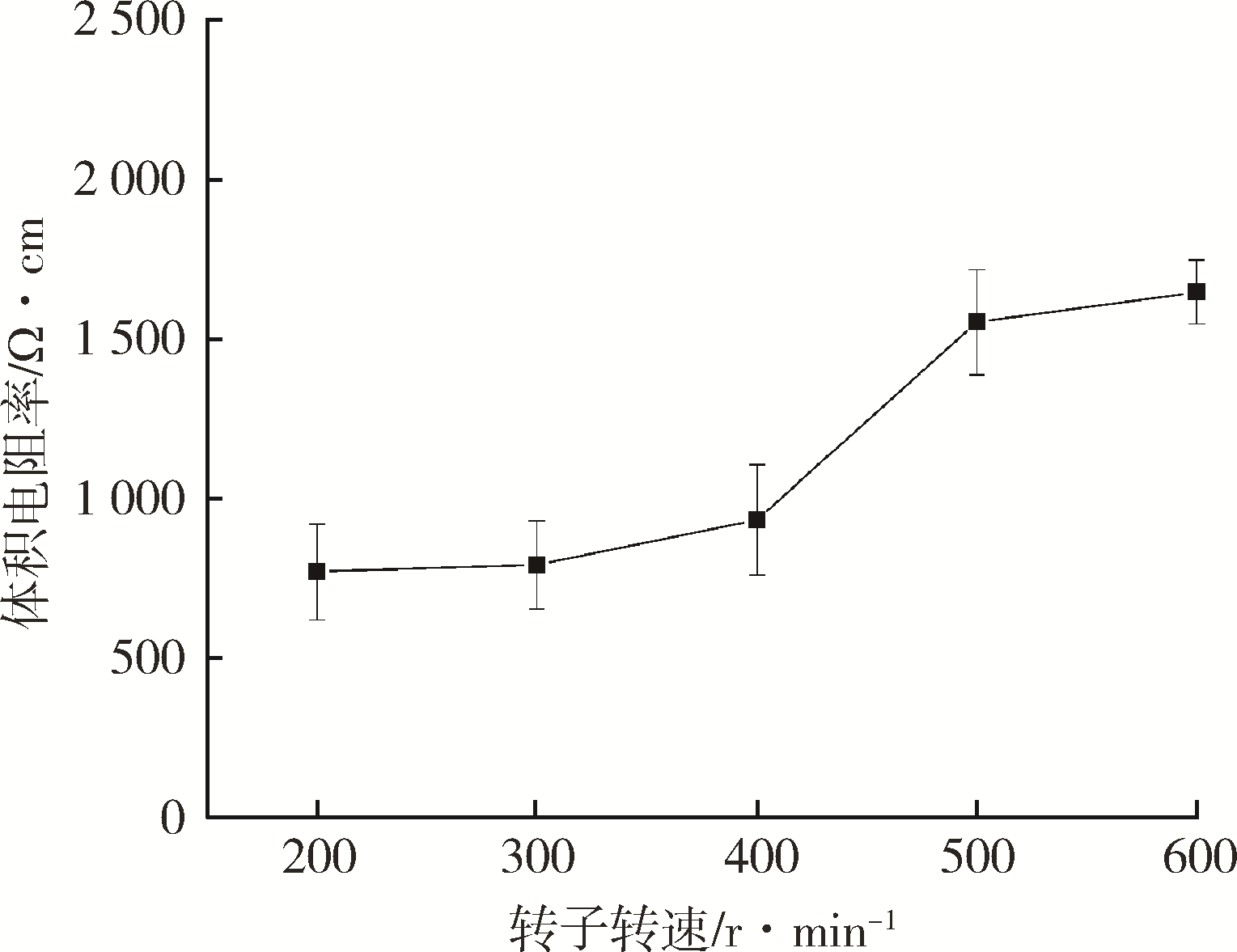

Fig.10. Volume resistivity of PPS/CF composites at different rotor speeds

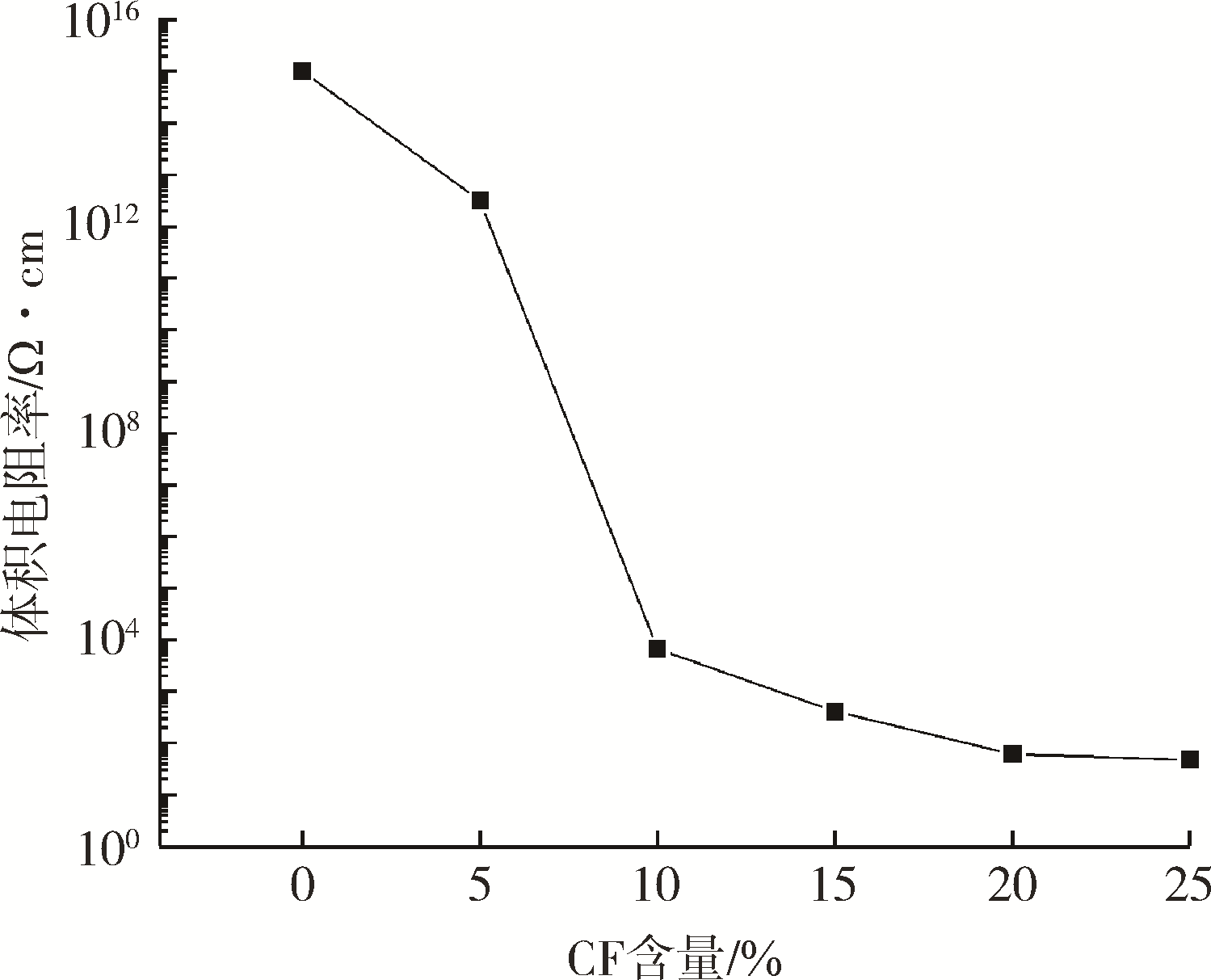

Fig.11. Volume resistivity of PPS/CF composites with different CF contents

References 12

1	STOEFFLER K, ANDJELIC S, LEGROS N, et al. Polyphenylene Sulfide (PPS) Composites Reinforced with Recycled Carbon Fiber[J]. Composites Science and Technology, 2013, 84: 65⁃71.
2	YANG Y, DUAN H, ZHANG S, et al. Morphology Control of Nanofillers in Poly (Phenylene Sulfide): A Novel Method to Realize the Exfoliation of Nanoclay by SiO₂ Via Melt Shear Flow[J]. Composites Science and Technology, 2013, 75: 28⁃34.
3	汪家铭. 聚苯硫醚发展概况及市场分析[J]. 化学工业, 2007, 25(12): 43⁃48.
	WANG J M. Development and Market Analysis of Polyphenylene Sulfide[J]. Chemical Industry, 2007, 25 (12): 43⁃48.
4	JIANG Z, HORNSBY P, MCCOOL R, et al. Mechanical and Thermal Properties of Polyphenylene Sulfide/Multiwalled Carbon Nanotube Composites[J]. Journal of Applied Polymer Science, 2012, 123(5): 2 676⁃2 683.
5	QIAO L, DONG X, YING Y, et al. Toughening Mechanism of PPS/Sr Ferrite Composites by TPU Elastomer[J]. Journal of Applied Polymer Science, 2016, 133(25)：43 564.
6	LEE E S, KIM J S, KIM K Y, et al. Preparation of Polypropylene Composites Reinforced with Long Carbon Fibers and Their Properties[J]. Fibers and Polymers, 2014, 15(12): 2 613⁃2 617.
7	KARSLI N G, AYTAC A. Tensile and Thermomechanical Properties of Short Carbon Fiber Reinforced Polyamide 6 Composites[J]. Composites Part B: Engineering, 2013, 51: 270⁃275.
8	LIANG X Y, LING L C, LV C X, et al. Resistivity of Carbon Fibers/ABS Resin Composites[J]. Materials Letters, 2000, 43(3): 144⁃147.
9	XIE L S, LI P N, MA Y L, et al. A Representation Method for Describing A Deagglomerating Process in Continuous Mixer[J]. Polymer Composites, 2012, 33(4): 476⁃483.
10	谢林生, 马玉录. 双转子连续混炼机中的混沌混合行为研究[J]. 中国塑料, 2009，23(4): 109⁃113.
	XIE L S, MA Y L. Study on Chaotic Mixing Process of A Two⁃rotor Continuous Mixer [J]. China Plastics, 2009，23(4): 109⁃113.
11	王中君, 张艳, 宁诗琪, 等. 碳纤残存长度预测模型的建立与实验验证[J]. 塑料, 2017, 46(1): 101⁃104.
	WANG Z J, ZHANG Y, NING S Q, et al. Established and Experimental Verified of CF Residual Length Prediction Model [J]. Plastics, 2017, 46(1): 101⁃104.
12	ECHEBERRIA J, RODRÍGUEZ N, VLEUGELS J, et al. Hard and Tough Carbon Nanotube⁃reinforced Zirconia⁃toughened Alumina Composites Prepared by Spark Plasma Sintering[J]. Carbon, 2012, 50(2): 706⁃717.
