Effect of maleic⁃anhydride⁃grafted polyethylene content on performance of recycled polyethylene⁃modified asphalt

doi:10.19491/j.issn.1001-9278.2022.06.005

Abstract

Abstract:

A type of complex modifier （CM） comprising recycled polyethylene and maleic?anhydride?grafted polyethylene （PE?g?MAH） with concentrations of 0， 1， 3， 5， 7， and 9 wt % was prepared using a twin?screw extruder. The asphalt modified with 4 wt % CM was prepared， and its softening point， needle penetration， ductility， rotational viscosity， high?temperature storage stability， and rheological properties were investigated. The results indicated that the esters compounds were produced through the chemical reaction between the OH groups in asphalt and the MAH groups in CM. The softening point， ductility， viscosity， high?temperature storage stability， and high and low temperature performance were improved significantly with an increase in PE?g?MAH content. However， its needle penetration and phase angle decreased. Therefore， the CM?modified asphalt with a reasonable PE?g?MAH content can be considered as a good candidate for the asphalt pavement construction in regions， especially suitable for use in the zones with a significant change in temperature. In addition， the improvement of high?temperature storage stability was also analyzed.

Key words: asphalt, recycled polyethyene, polyethyene grafted with maleic anhydride, content, property

CLC Number:

TQ325.1⁺2

ZHANG Wencai, HAO Xiaogang, LI Ping, LIN Hao, PEI Qiang, FENG Gongji, FU Zhaohua, YU Xiaofang. Effect of maleic⁃anhydride⁃grafted polyethylene content on performance of recycled polyethylene⁃modified asphalt[J]. China Plastics, 2022, 36(6): 24-31.

Figures/Tables 12

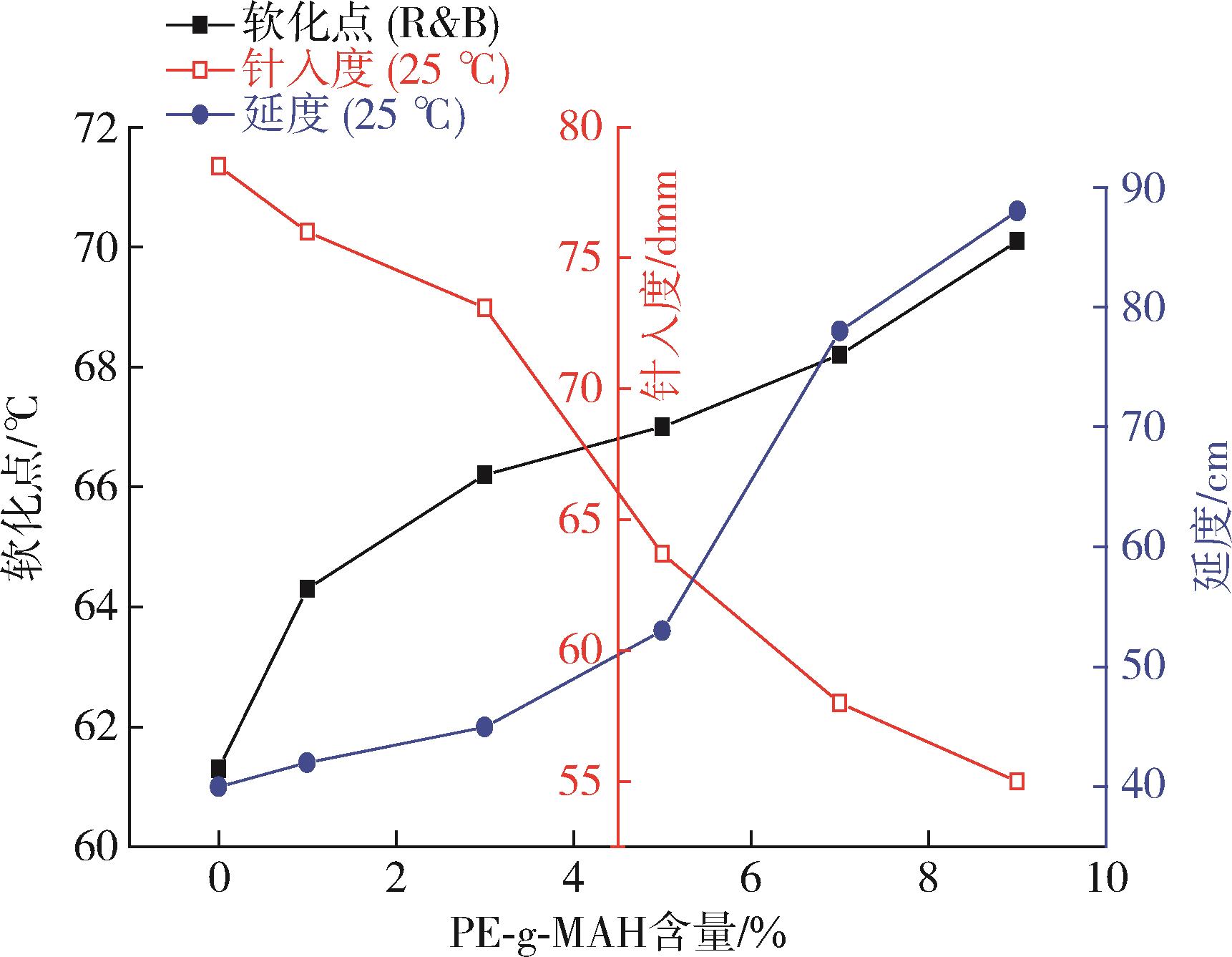

Fig.1. Conventional properties of asphalt modified by CM

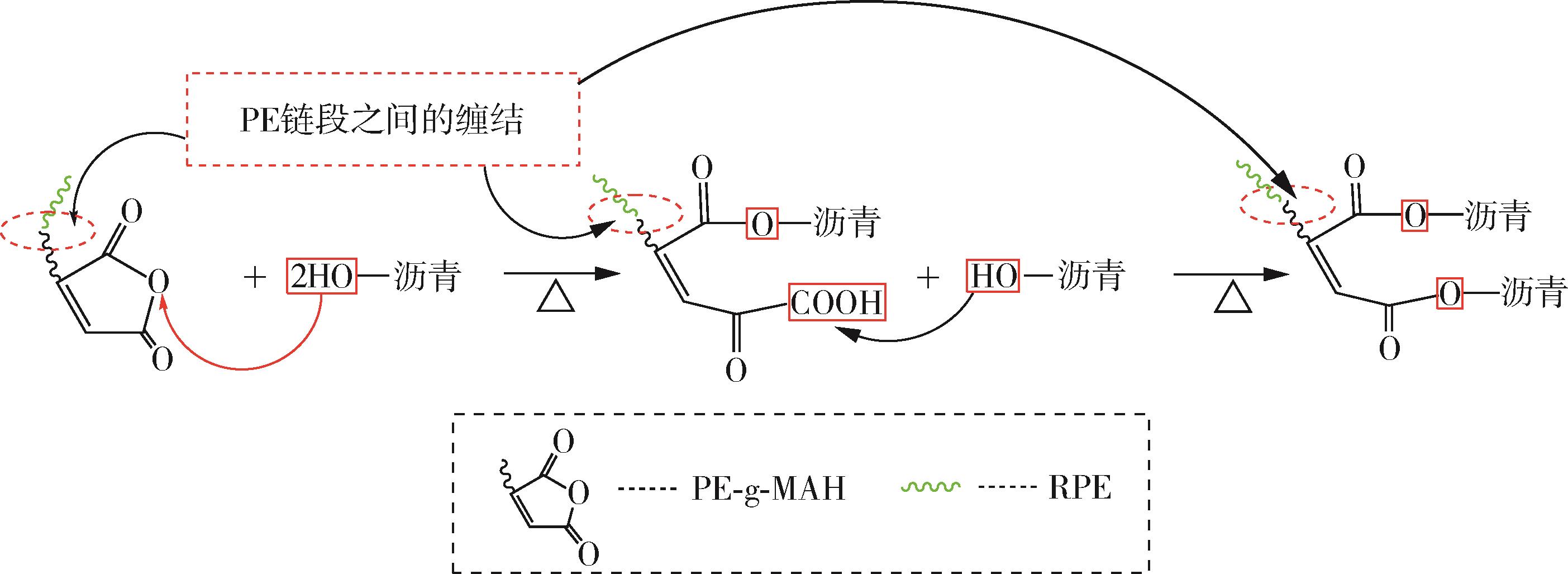

Fig.2. Equations of major chemical reactions

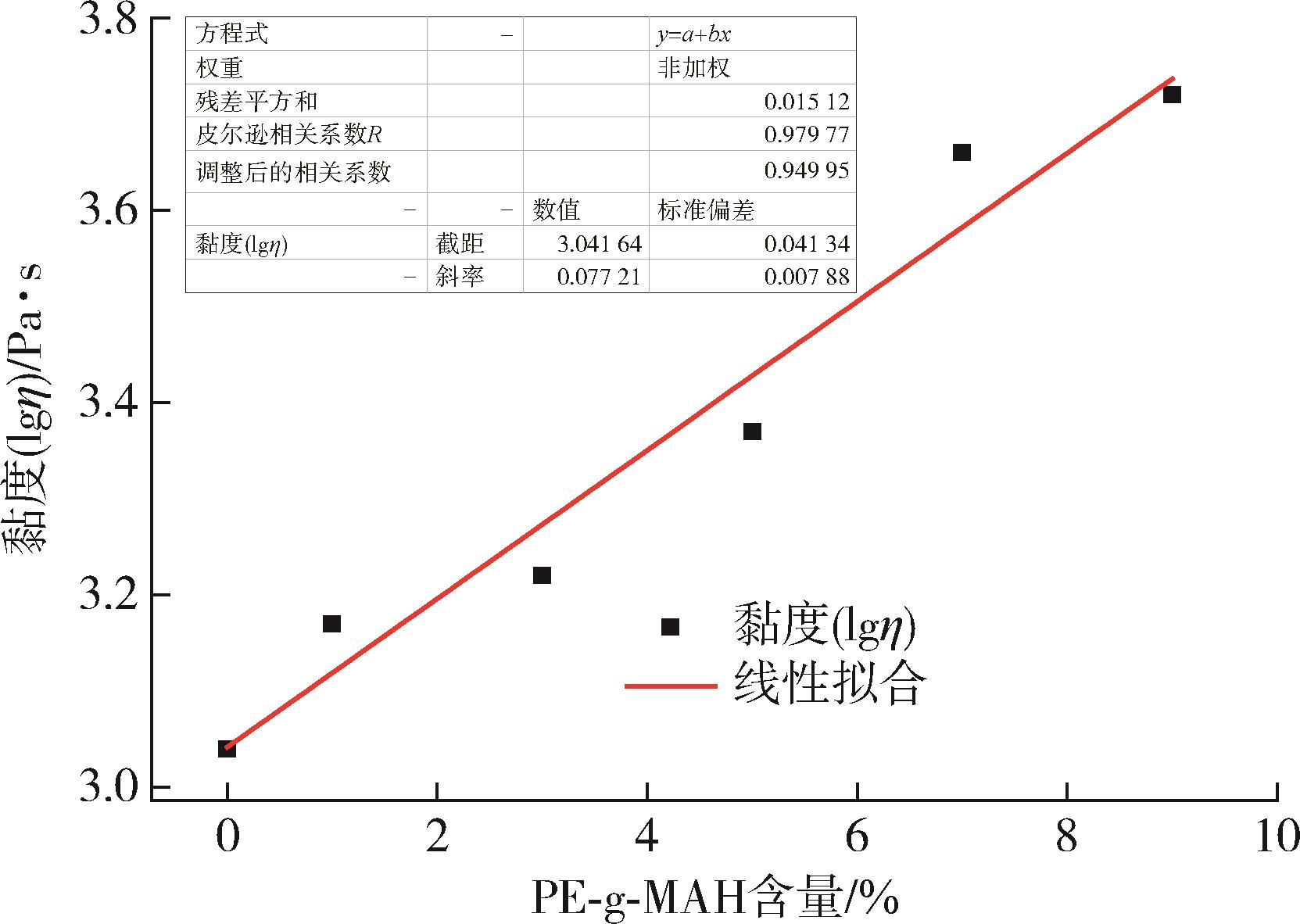

Fig.3. Linear fitting of CM modified asphalt viscosity against PE?g?MAH content

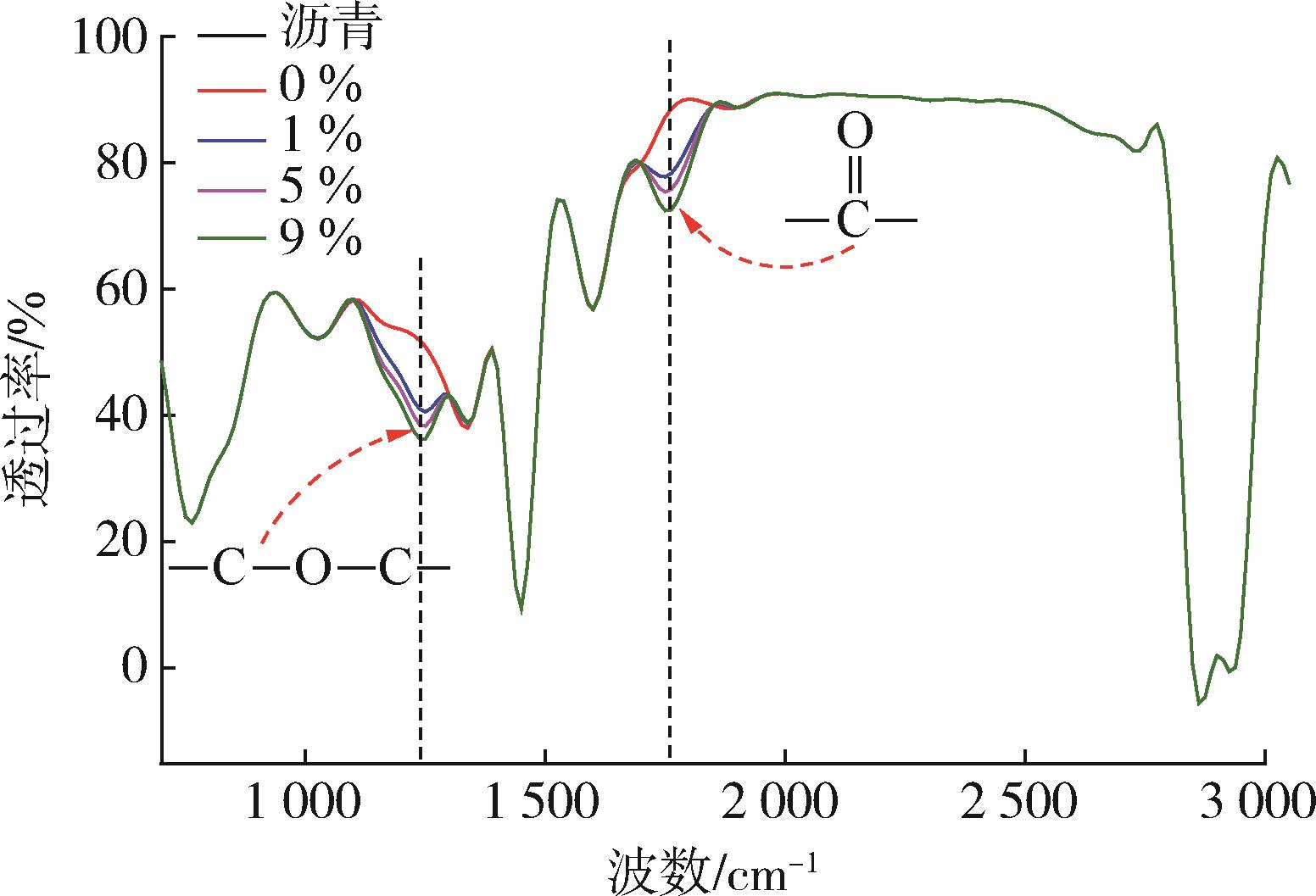

Fig.4. FTIR of CM modified asphalt with diffrent PE?g?MAH content

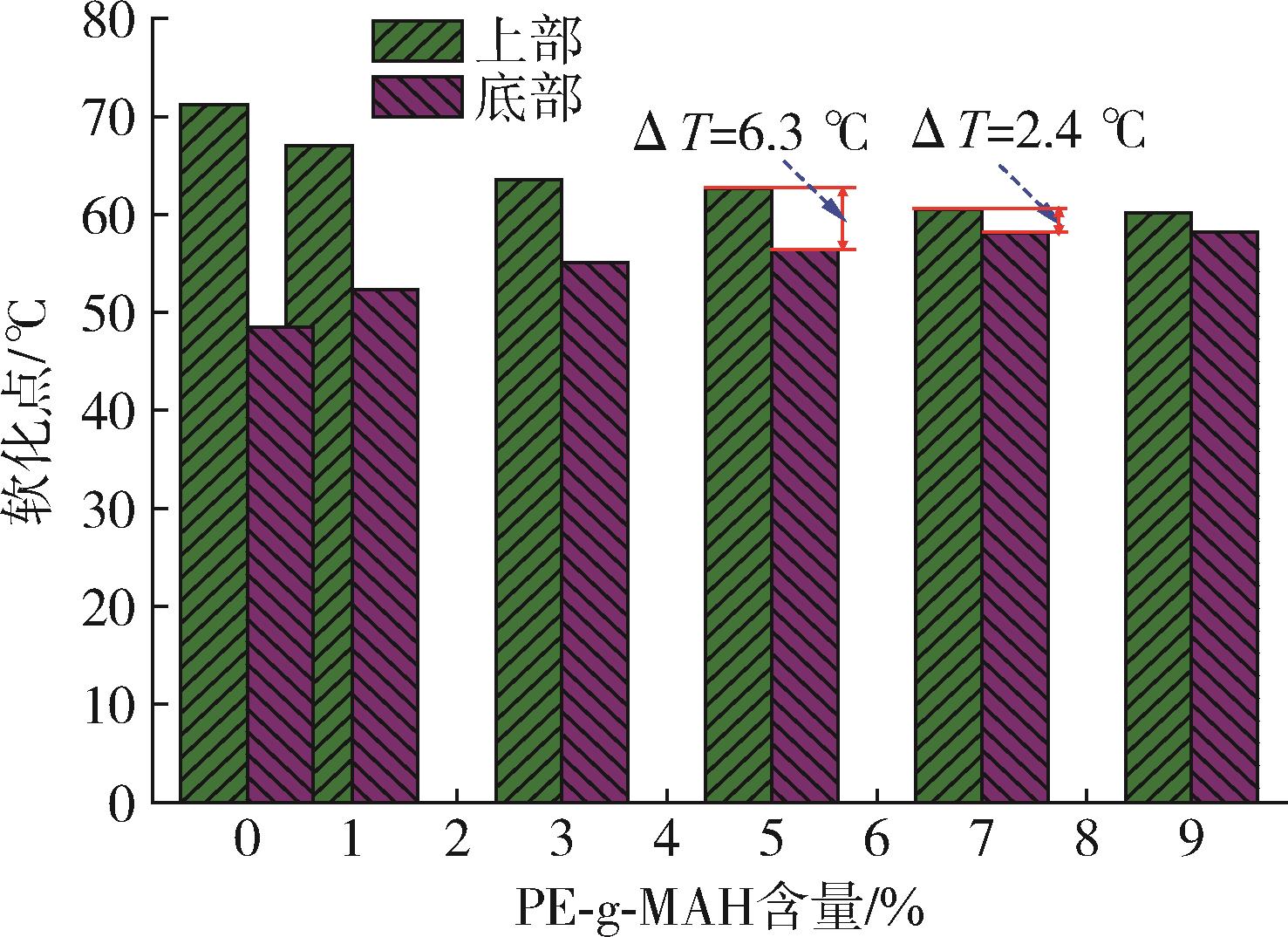

Fig.5. Storage stability of CM modified asphalt was measured by softening point method

Fig.6. SEM morphologies of CM modified asphalt with diffrent PE?g?MAH content

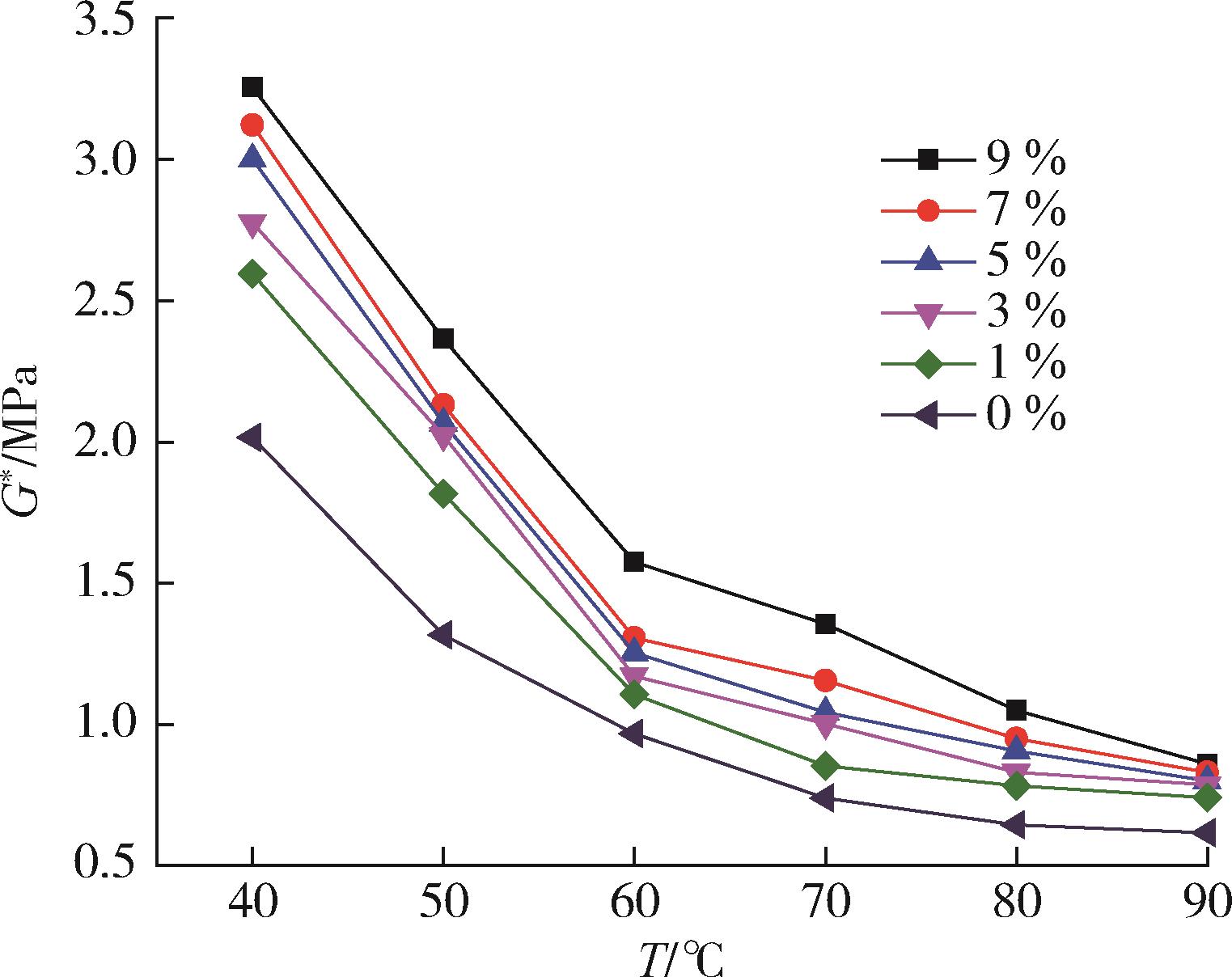

Fig.7. Effect of PE?g?MAH content on complex modulus of CM modified asphalt

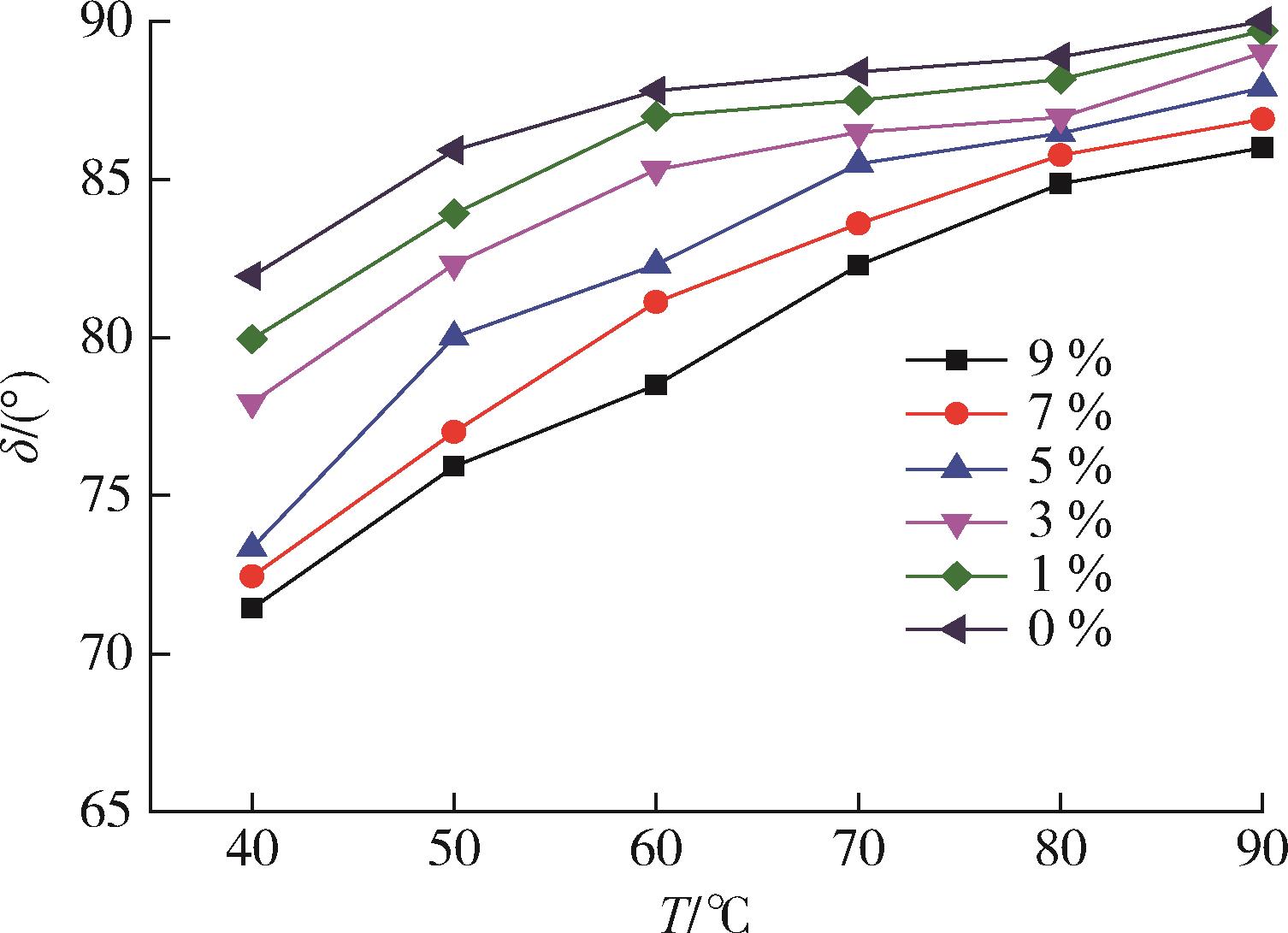

Fig.8. Effect of PE?g?MAH content on phase angle of the modified asphalt

Fig.9. Effect of PE?g?MAH content on fatigue parameter of CM modified asphalt

Fig.10. Effect of PE?g?MAH content on rutting parameter of the modified asphalt

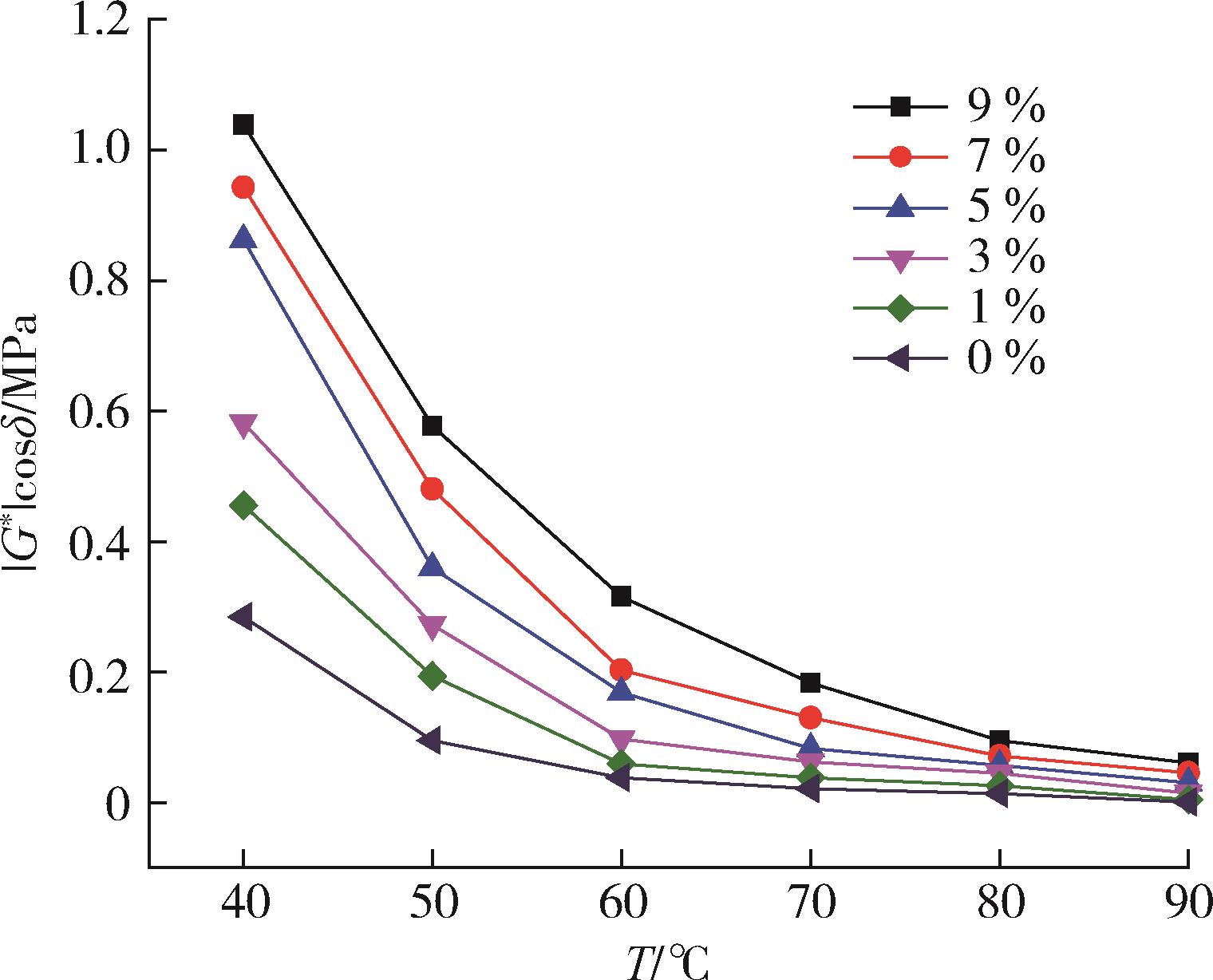

Fig.11. Effect of PE?g?MAH content on elastic modulus of CM modified asphalt

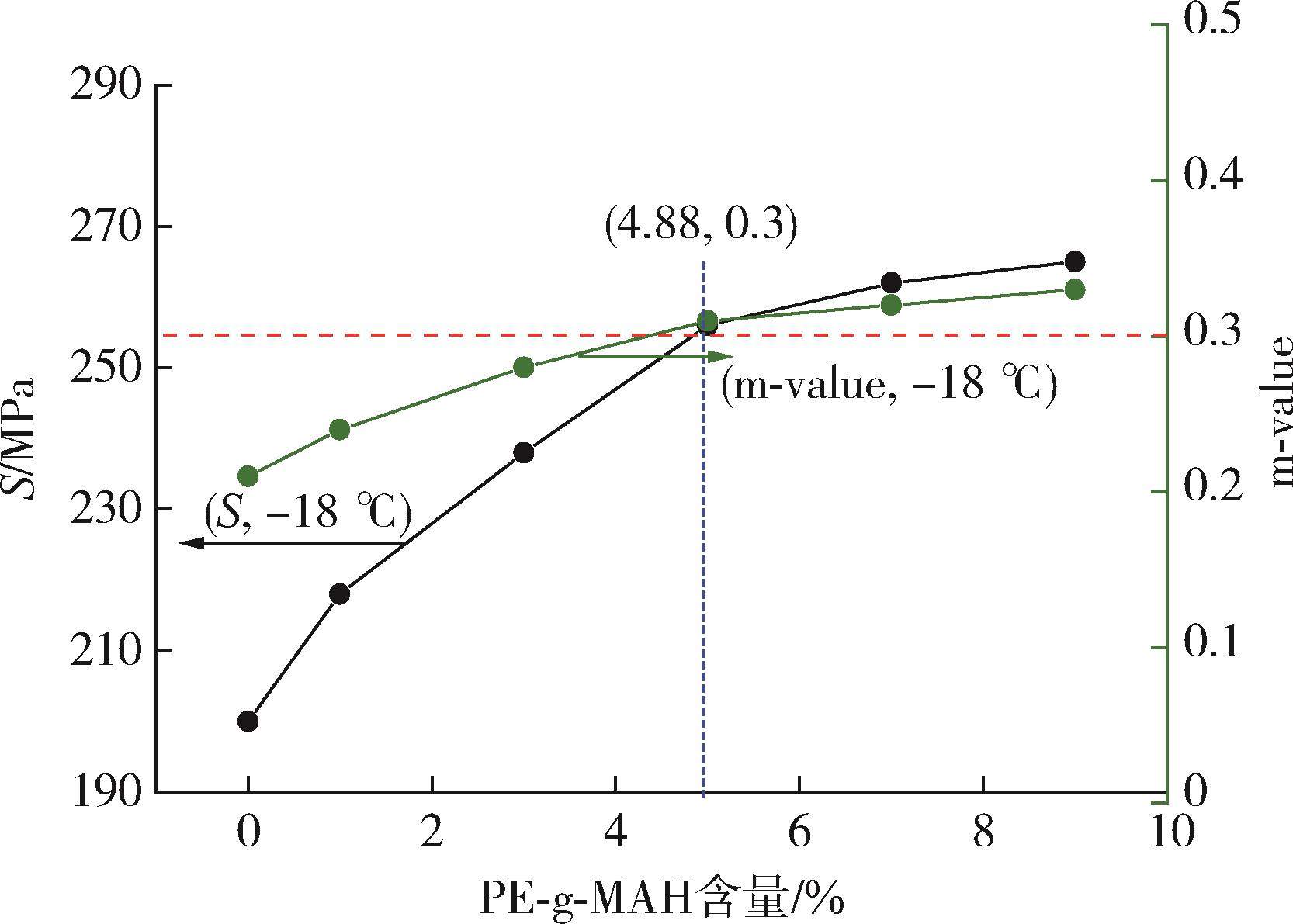

Fig.12. S and m?value of asphalt with different PE?g?MAH content

References 19

1	吴正光，王彤，程壮，等.废旧PE改性沥青混合料路用性能试验研究［J］.公路，2017，62（11）：235⁃238.
	WU Z G， WANG T， CHEN Z，et al. Experimental study on road performance of waste PE modified asphalt mixture［J］. Highway，2017，62（11）：235⁃238.
2	韩丽花，徐笠，李巧玲，等.辽河流域土壤中微（中）塑料的丰度、特征及潜在来源［J］.环境科学，2021，42（04）：1 781⁃1 790.
	HAN L H， XU L， LI Q L，et al.Levels，characteristics，and potential source of micro（meso） plastic pollution of soil in liaohe river basin［J］.Environmental Science， 2021，42（04）：1 781⁃1 790.
3	García⁃Travé G， Tauste R， Moreno⁃Navarro F，et al.Use of reclaimed geomembranes for modification of mechanical performance of bituminous binders［J］. Journal of Materials in Civil Engineering，2016，28（7）.
4	Fang Changqing， Zhang Mengya， Yu Ruien，et al.Effect of preparation temperature on the aging properties of waste polyethylene modified asphalt［J］.Journal of Materials Science & Technology，2015，31（03）：320⁃324.
5	Perviz Ahmedzade， Alexander Fainleib， Taylan Günay，et al.Modification of bitumen by electron beam irradiated recycled low density polyethylene［J］. Construction and Building Materials，2014，69.
6	Ming Liang， Sun Changjun， Yao Zhanyong，et al.Utilization of wax residue as compatibilizer for asphalt with ground tire rubber/recycled polyethylene blends［J］. Construction and Building Materials，2020，230.
7	陈信忠，温贵安，张隐西.沥青的聚合物反应改性［J］.石油沥青，2001（01）：28⁃32.
	CHEN X Z， WEN G A， ZHANG Y X. Modification of asphalt by polymerization reaction［J］.Petroleum Asphalt， 2001（01）：28⁃32.
8	杜雄伟，申峻，王玉高，等.路用煤沥青改性技术的分析与评述［J］.现代化工，2019，39（08）：16⁃22.
	DU X W， SHEN J， WANG Y G，et al.Review and evaluation on modification technologies of coal tar⁃based pitch for road paving［J］.Modern Chemical Industry，2019，39（08）：16⁃22.
9	冯永辉，张蔺峰，刘刚，等.对苯二甲醇改性煤沥青降低毒性多环芳烃含量［J］.太原理工大学学报，2018，49（01）：48⁃54.
	FENG Y H， ZHANG L F， LIU G，et al. Study on reducing toxic PAHs content in coal tar pitch by 1，4⁃benzenedimethanol modification［J］.Journal of Taiyuan University of Technology，2018，49（01）：48⁃54.
10	Ouyang Chunfa， Wang Shifeng， Yong Zhang，et al.Low⁃density polyethylene/silica compound modified asphalts with high⁃temperature storage stability［J］. Journal of Applied Polymer Science，2006，101（1）.
11	Zhang Haiyan， Wu Xiaowei， Cao Dongwei，et al.Effect of linear low density⁃polyethylene grafted with maleic anhydride （LLDPE⁃g⁃MAH） on properties of high density⁃polyethylene/styrene–butadiene–styrene （HDPE/SBS） modified asphalt［J］. Construction and Building Materials，2013，47
12	Vargas María A， Vargas Miguel A， Antonio Sánchez⁃Sólis，et al. Asphalt/polyethylene blends： Rheological properties， microstructure and viscosity modeling［J］. Construction and Building Materials，2013，45.
13	Ma Dechong， Zhao Duijia， Zhao Jingzhe，et al.Functionalization of reclaimed polyethylene with maleic anhydride and its application in improving the high temperature stability of asphalt mixtures［J］. Construction and Building Materials，2016，113.
14	Hesp S A M， Woodhams R T. Asphalt⁃polyolefin emulsion breakdown［J］. Colloid & Polymer Science，1991，269（8）.
15	Shi Yin， Rabin Tuladhar， Feng Shi，et al.Mechanical reprocessing of polyolefin waste： A review［J］. Polymer Engineering & Science，2015，55（12）.
16	Luzana Brasileiro，Moreno⁃NavarroFernando，Tauste⁃Mar⁃tínezRaúl，et al.Reclaimed polymers as asphalt binder modifiers for more sustainable roads： a review［J］. Sustainability，2019，11（3）.
17	黄锦华，陈守明，陈伟三.马来酸酐对SBS改性沥青的性能影响［J］.合成材料老化与应用，2013，42（4）：25⁃29.
	HUANG J H， CHEN S M， CHEN W S.Effects of maleic anhydride on the properties of SBS modified asphalt［J］.Synthetic Materials Aging and Application， 2013，42（4）：25⁃29.
18	Sun Yongtao， Li Zhaomin， Sun Yubao，et al.Viscosity reduction of offshore heavy oil by application of a synthesized emulsifier and its microscopic mechanism during thermal recovery［J］. Petroleum Science and Technology，2021，39（11⁃12）.
19	Nien，Yu⁃Hsun，Yeh，et al.Investigation of flow properties of asphalt binders containing polymer modifiers［J］.Polymer Composites，2008，29（5）.
