Study on application performance of polyethylene/CaSO4 nanoparticle composite flexible packaging

doi:10.19491/j.issn.1001-9278.2022.06.003

Abstract

Abstract:

A new type of green， low?carbon and degradable eco?friendly composite film was prepared by melt co?extrusion based on the composition of 49 wt % polyethylene （PE） and 51 wt % CaSO₄ nanoparticles， and its application performance as flexible packaging was investigated by comparing with the PE/CaCO₃ composite film at the same loading. The application performance， hygienic performance， degradation performance， carbon content of the PE/CaSO₄ composite film were measured using tensile testing machine， high temperature gel chromatograph， xenon lamp sun aging test chamber， and total organic carbon analyzer. The results indicated that the composite film obtained better tensile strength and elongation at break of the PE/CaSO₄ composite film than the PE/CaCO₃ one at the same loading of filler. Its total migration， including water， 4 % acetic acid， 20 % ethanol， 95 % ethanol， isooctane， the consumption of potassium permanganate， and heavy metals did not exceed the limit requirements of national standards. Under accelerated aging conditions， the tensile properties and weight?average molecular weight of the composite film could meet the requirements of photodegradable plastics， and its carbon content was much lower than other plastic films. The promotion and applications of the PE/CaSO₄ composite flexible packaging can offer an important guiding significance for the promotion of national carbon reduction and emission reduction policies.

Key words: calcium sulfate, polyethylene, physical property, sanitary performance, degradation behavior, carbon content

CLC Number:

TQ325.1⁺2

WU Xiongjie, ZHU Dongbo, SUN Jiangbo, GAO Longmei, CHU Yu, CHENG Jinsong, XIE Aidi. Study on application performance of polyethylene/CaSO₄ nanoparticle composite flexible packaging[J]. China Plastics, 2022, 36(6): 10-15.

Figures/Tables 7

References 18

1	陈庆华.无机粉体改性塑料环境友好材料的环境协调性研究［J］.塑料，2004，33（6）：41⁃45，88.
	CHEN Q H.Environment⁃conscious behaviors of environmentlly⁃friendly plastics materials modified by inorganic powder［J］. Plastic，2004，33（6）：41⁃45，88.
2	田浩，薛涛，聂登攀，等.硫酸钙晶须的制备及其在塑料中的应用［J］.塑料，2012，41（1）：47⁃49，112.
	TIAN H， XIE T， NIE P D，et al.Preparation of calcium sulfate whiskers and its application in plastics［J］.Plastic，2012，41（1）：47⁃49，112.
3	尹亚平，周学永，文风.填充碳酸钙光降解塑料制备及性能研究［J］.湖北化工，2002（5），9⁃10.
4	张连红.硫酸钙晶须制备及应用研究［D］.东北大学，2010.
5	杨冰，许颖，王小威等.高填充可降解塑料制品的研究及应用进展［J］.塑料，2014，43（4）：39⁃42.
	YANG B， XU Y， WANG X W，et al.Research and application development of highly loaded degradable plastic products［J］.Plastic，2014，43（4）：39⁃42.
6	许国杨，高俊强，张凯舟，等.无机填料/PP复合材料的力学性能和加工性能［J］.塑料，2010，39（3）：66⁃68.
	XU G Y， GAO J Q， ZHANG G Z，et al.Processability and mechanical property of inorganic filler/PP composites［J］.Plastic，2010，39（3）：66⁃68.
7	国家市场监督管理总局. 塑料购物袋：［S］.北京：中国标准出版社，2020.
8	中华人民共和国国家卫生和计划生育委员会. 食品安全国家标准食品接触材料及制品通用安全要求：［S］.北京：中国标准出版社，2016.
9	中华人民共和国国家卫生和计划生育委员会. 食品安全国家标准食品接触用塑料材料及制品：［S］.北京：中国标准出版社，2016.
10	李彦波.利用鸡蛋壳制备乙酸钙的研究［D］.华中农业大学，2010.
11	吴志超.纳米CaCO3的表面改性及其在PVC中的应用［D］.华东理工大学，2015.
12	谭燕华，欧阳健明，马洁，等.红外光谱法在草酸钙结石研究中的应用［J］. 光谱学与光谱分析，2003，23（4），700⁃704.
13	耿世伟.磷石膏预处理及制硫酸钙晶须的工艺研究［D］.昆明理工大学，2019.
14	中华人民共和国国家质量监督检验检疫总局. 降解塑料的定义、分类、标识和降解性能要求［S］.北京：中国标准出版社，2006.
15	黄亦斐.碳酸钙/聚乙烯复合薄膜加速老化及应用性能研究［D］.南京林业大学，2013.
16	李凤珍，郑鸿元，刘增柱，等.可控光降解聚乙烯薄膜的微生物降解［J］.环境科学，1988，11（1）：6⁃11.
17	The British Standards Institution，Plastics⁃biodegradation of polyolefins in an open⁃air terrestrial environment⁃Specification，PAS 9017：2020 ［S］.BSI Standards Limited，2020.
18	周燕菊，黄雨晴，陈晓红，等.促进低碳产品需求的供应链减排成本分担模型［J］.中国管理科学，2015，23（7）：85⁃92.

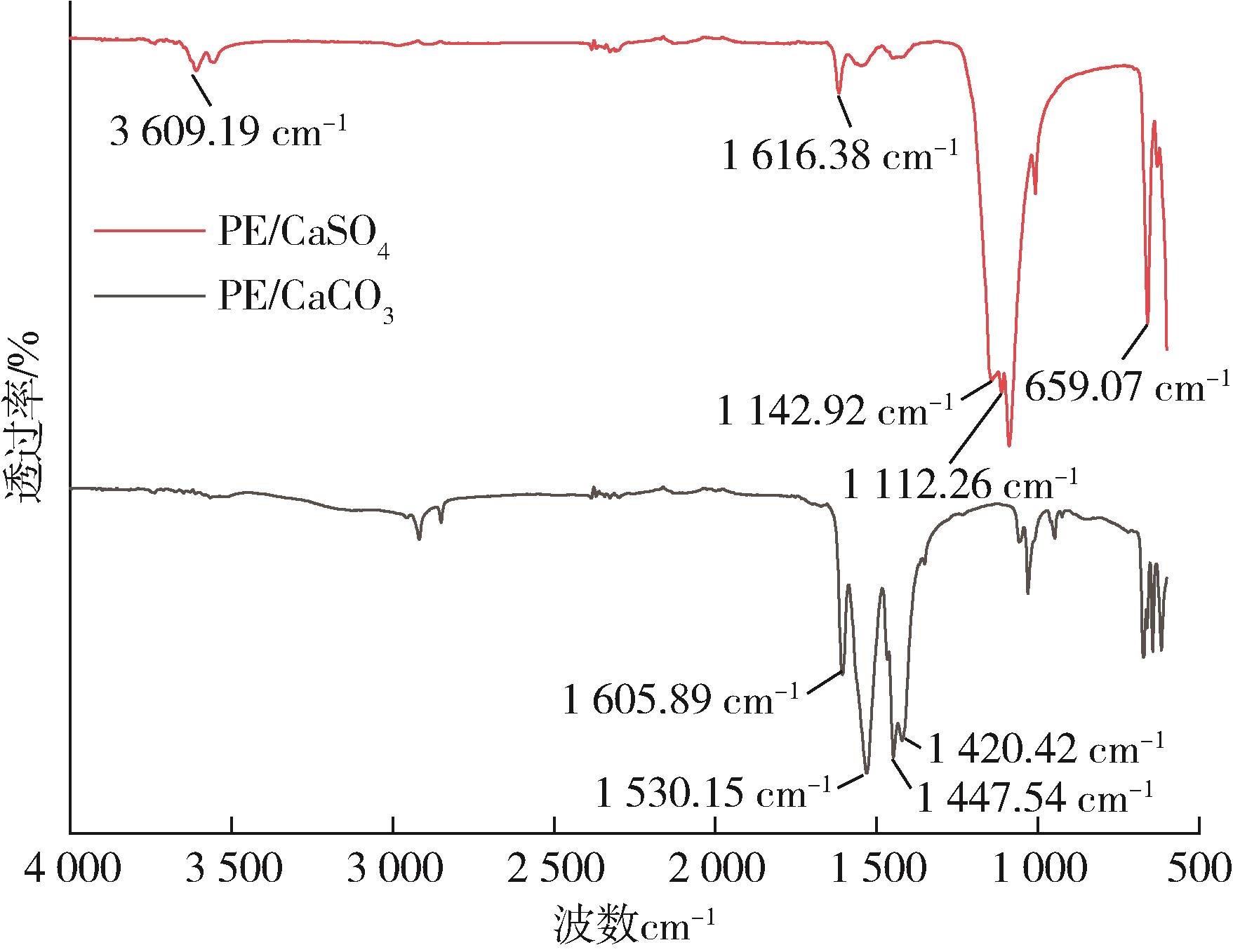

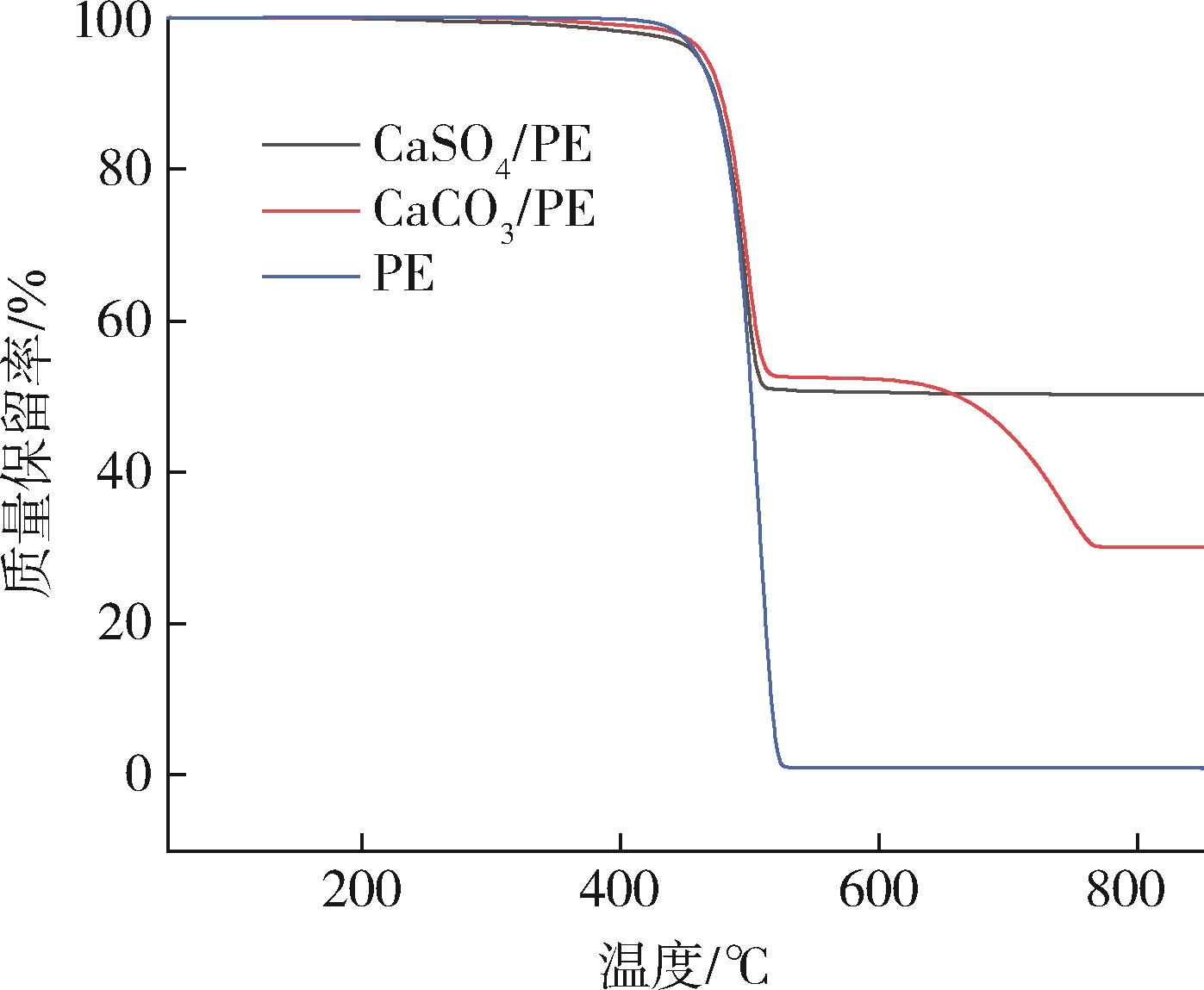

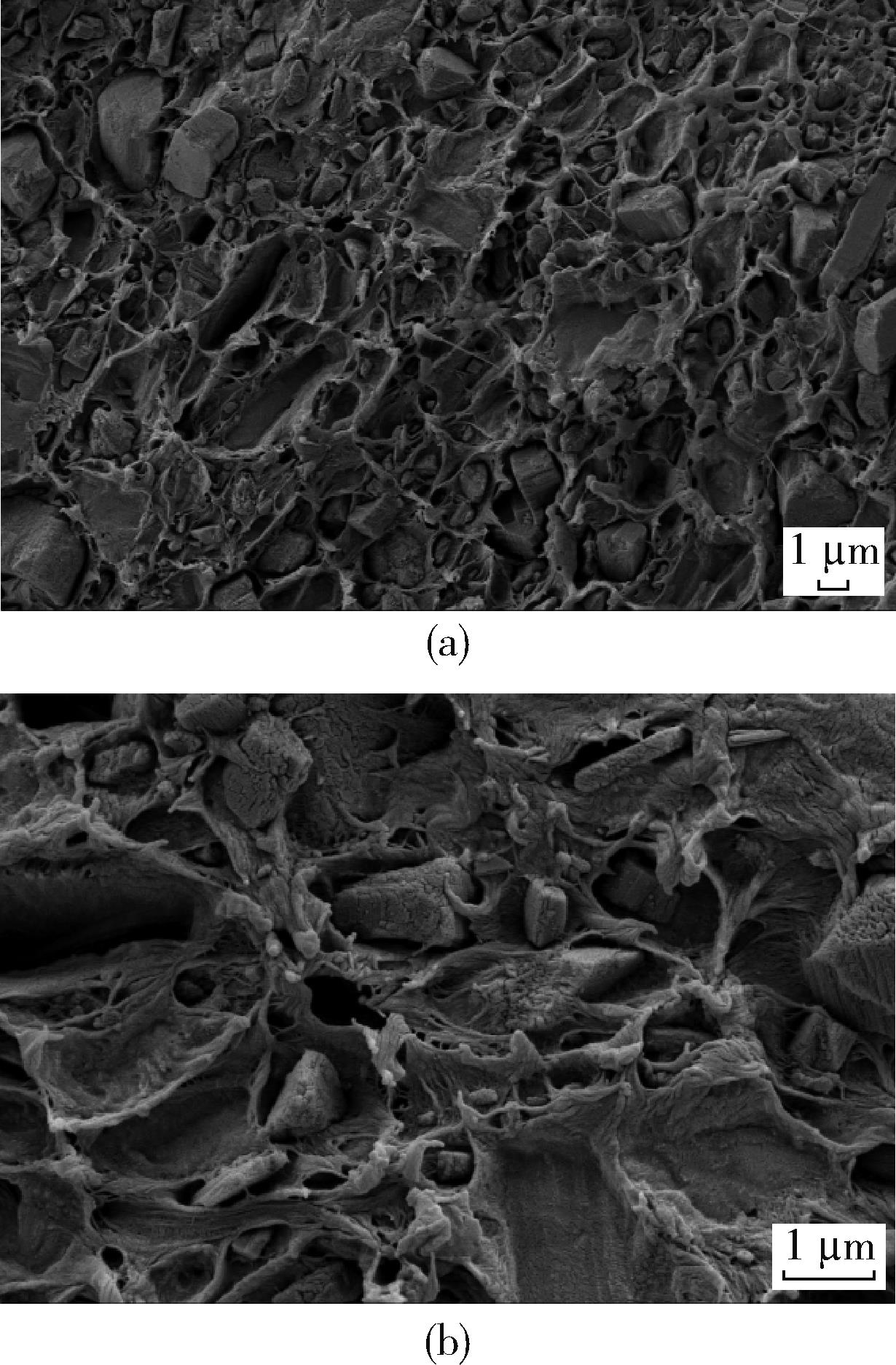

检测项目	PE	PE/CaSO₄	PE/CaCO₃
拉伸强度（纵向）/MPa	63	27	25
拉伸强度（横向）/MPa	45	14	11
断裂伸长率（纵向）/ %	449	393	284
断裂伸长率（横向）/ %	532	511	500

检测项目	PE	PE/CaSO₄	PE/CaCO₃
拉伸强度（纵向）/MPa	63	27	25
拉伸强度（横向）/MPa	45	14	11
断裂伸长率（纵向）/ %	449	393	284
断裂伸长率（横向）/ %	532	511	500

样品	总迁移量（70 ℃，2 h）/mg·dm^-2					高锰酸钾消耗量/mg·kg^-1	重金属/mg·kg^-1
样品	水	4 %乙酸	20 %乙醇	95 %乙醇	异辛烷	高锰酸钾消耗量/mg·kg^-1	重金属/mg·kg^-1
PE	0.78	2.0	1.9	2.4	1.5	0.98	＜1
PE/CaSO₄	5.4	6.7	3.1	4.2	5.8	1.2	＜1
PE/CaCO₃	0.83	142.0	2.3	4.1	4.6	1.1	＜1

样品	总迁移量（70 ℃，2 h）/mg·dm^-2					高锰酸钾消耗量/mg·kg^-1	重金属/mg·kg^-1
样品	水	4 %乙酸	20 %乙醇	95 %乙醇	异辛烷	高锰酸钾消耗量/mg·kg^-1	重金属/mg·kg^-1
PE	0.78	2.0	1.9	2.4	1.5	0.98	＜1
PE/CaSO₄	5.4	6.7	3.1	4.2	5.8	1.2	＜1
PE/CaCO₃	0.83	142.0	2.3	4.1	4.6	1.1	＜1

检测项目	PE/CaSO₄	PE/CaCO₃
拉伸断裂伸长率保留率（纵向）/ %	1.1	1.6
拉伸断裂伸长率保留率（横向）/ %	0.2	0.3
重均相对分子质量下降率/ %	81.5	71.7
光降解后重均相对分子质量＜ 10 000的分子百分含量/ %	33.2	16.1

Study on application performance of polyethylene/CaSO₄ nanoparticle composite flexible packaging

RichHTML

PDF

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 7

References 18

Related Articles 15

Recommended Articles

Metrics

Comments

[1]	LI Guo, ZHU Huihao, MA Yulu, WANG Yu, JI Huajian, XIE Linsheng. Preparation and properties of microporous breathable films with high thermal conductivity [J]. China Plastics, 2022, 36(7): 14-20.
[2]	LEI Yujie, CHEN Minghuan, WANG Jieyao, CHEN Wangzhi, LI Lei. Cross⁃linked foaming process and performance of recycled polyethylene [J]. China Plastics, 2022, 36(6): 124-129.
[3]	ZHU Jingyun, YI Huijun, YAN Wei, LI Dawei. Research and development of polyethylene special materials for compound films [J]. China Plastics, 2022, 36(6): 77-80.
[4]	XIA Yunxia, LI Lei, LUO Zhangsheng, ZHU Qianqin, HE Lijun. Preparation and properties of recycled polyethylene non⁃woven fabrics based on flash evaporation [J]. China Plastics, 2022, 36(5): 14-18.
[5]	WANG Ke, LONG Chunguang. Mechanical and tribological properties of ultra⁃high molecular weight polyethylene/sepiolite fiber composites [J]. China Plastics, 2022, 36(5): 19-23.
[6]	WEN Yuan, MAO Xianpeng, XU Kejie. Effect of sample thickness on tensile properties of polyethylene [J]. China Plastics, 2022, 36(4): 43-46.
[7]	XU Rongxia, WEI Gang, WEI Lilan, WU Jiecui, JIANG Yujiang. Friction and wear properties of PE⁃UHMW modified with nano⁃SiO₂ and PA6 [J]. China Plastics, 2022, 36(4): 47-52.
[8]	LIU Qiang, LU Yahong, WU Hui, MA Yuhao, ZHANG Yupeng, SUN Wenxiao, ZHANG Hong. Microbial degradation of polyethylene plastics [J]. China Plastics, 2022, 36(3): 120-126.
[9]	HENG Yue, XUE Nanxiang, CHEN Zhuangxin, LEI Caihong, XU Ruijie. Dynamic rheological behavior and compatibility of polyethylene/paraffin oil blends [J]. China Plastics, 2022, 36(2): 13-18.
[10]	ZHANG Xuemin, HOU Lin, FENG Jinmao, YAO Zhongliang, ZHONG Mingqiang. Study on natural aging behavior of buried polyethylene water supply pipeline in service [J]. China Plastics, 2022, 36(2): 49-55.
[11]	LI Bo, GONG Jun, JIN Xueyi, MENG Xiaoyu. Effect of carbon nanotube modification method on properties of polyamide 11 [J]. China Plastics, 2022, 36(2): 61-66.
[12]	LI Yongqing, YANG Xiaolong, CHEN Wenjing, YAN Xiaokun, MA Xiuqing. Molecular dynamics simulation of modifier and high⁃density polyethylene intercalate and exfoliate montmorillonite [J]. China Plastics, 2022, 36(2): 67-74.
[13]	WANG Yazhen, LIU Xinyu, DONG Shaobo, LAN Tianyu, ZU Liwu. Compatibilizing effect on performance of PE⁃HD/corn stalk biochar composites [J]. China Plastics, 2022, 36(1): 128-134.
[14]	WANG Zhenchao, ZHANG Ying, PENG Yijuan, YU Xi, ZHANG Qiuju. Research progress on reliability assessment methods of polyethylene pipes fusion joint [J]. China Plastics, 2022, 36(1): 148-159.
[15]	ZHANG Wei, CHEN Jie, LI Chenying, HU Libin, TAN Xiao, CAO Jingying. Applications of halogen⁃free flame⁃retardant polyolefin power cable materials [J]. China Plastics, 2022, 36(1): 184-191.
