Effect of carbon nanotube modification method on properties of polyamide 11

doi:10.19491/j.issn.1001-9278.2022.02.010

Abstract

Abstract:

In this paper， two surface modification methods， acid treatment and polyethyleneimine （PEI） grafting， were employed to modify multi?walled carbon nanotubes （MWCNTs）. The resultant acid?etched MWCNTs （a?MWCNTs） and PEI?grafted MWCNTs （PEI?MWCNTs） were melt blended with polyamide 11 （PA11） to obtain the PA11/a?MWCNTs and PA11/PEI?MWCNTs composites. Their microscopic morphology， dispersibility， thermal stability， crystallinity and mechanical properties were investigated using scanning electron microscope， thermogravimetric analyzer， infrared spectrometer， and differential scanning calorimeter. The results indicated that the PA11/PEI?MWCNTs composites exhibited much better performance. When the content of PEI?MWCNTs was 3 wt%， the composites achieved tensile strength of 62.7 MPa and a Young’s modulus of 1 017 MPa， which are higher than pure PA11 by 37 % and 65 %， respectively. In addition， their degree of crystallinity increased by 14.6 %.

Key words: polyamide 11, polyethyleneimine, multi?walled carbon nanotube, composite material

CLC Number:

TQ328

LI Bo, GONG Jun, JIN Xueyi, MENG Xiaoyu. Effect of carbon nanotube modification method on properties of polyamide 11[J]. China Plastics, 2022, 36(2): 61-66.

Figures/Tables 7

Fig.1. SEM images of carbon nanotubes

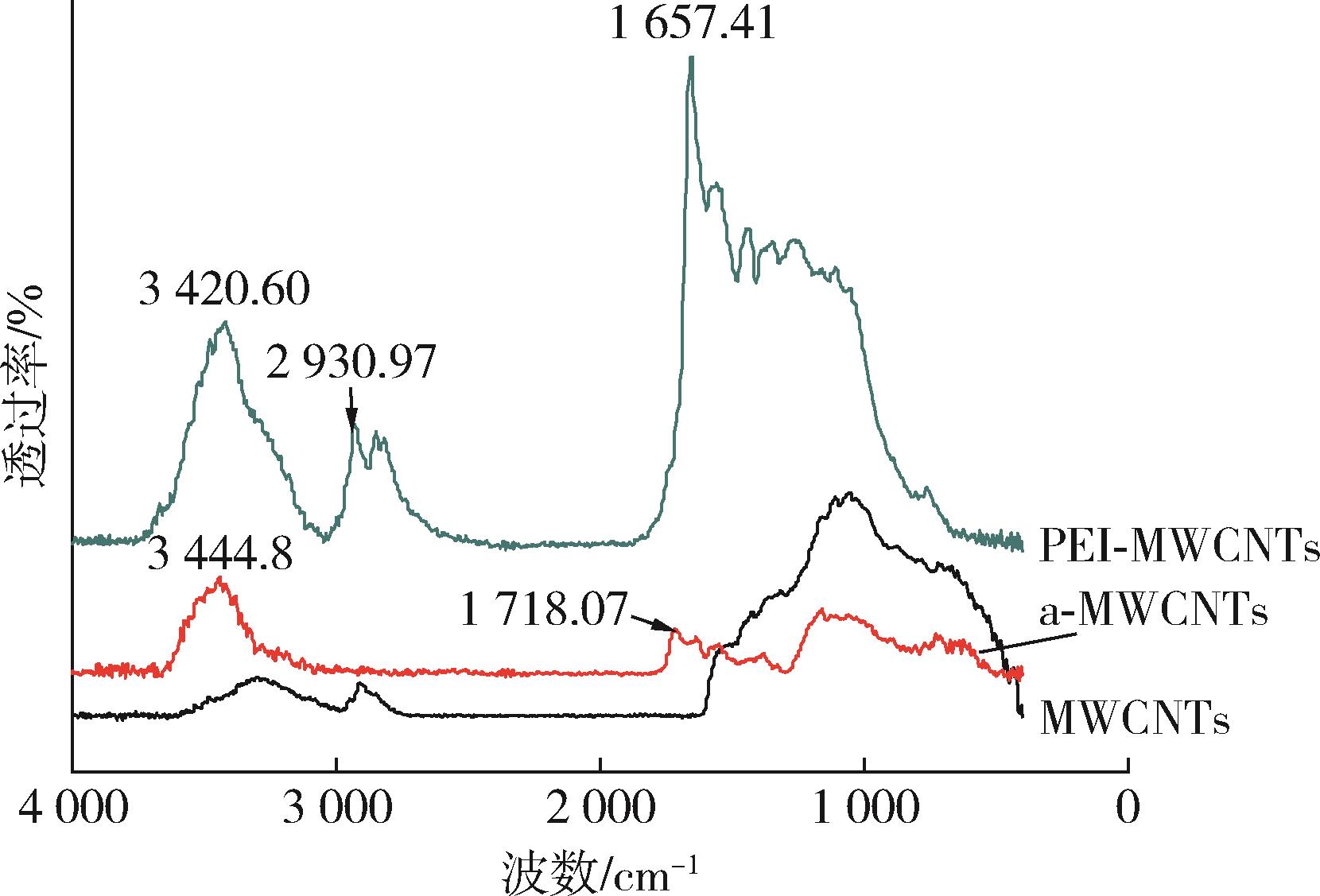

Fig.2. Infrared spectra of carbon nanotubes

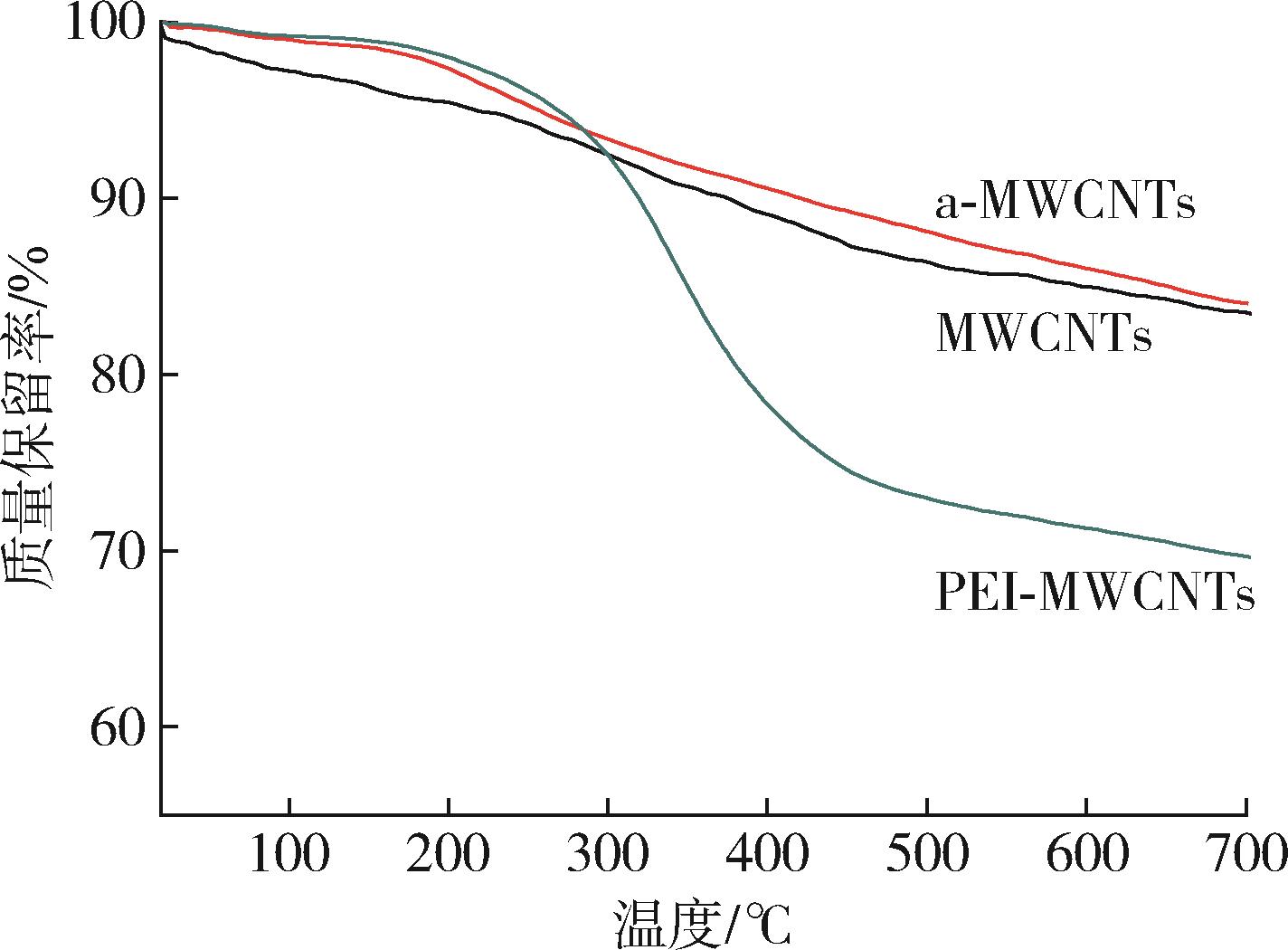

Fig.3. TG curves of carbon nanotubes

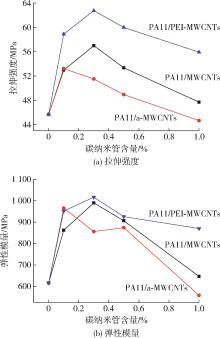

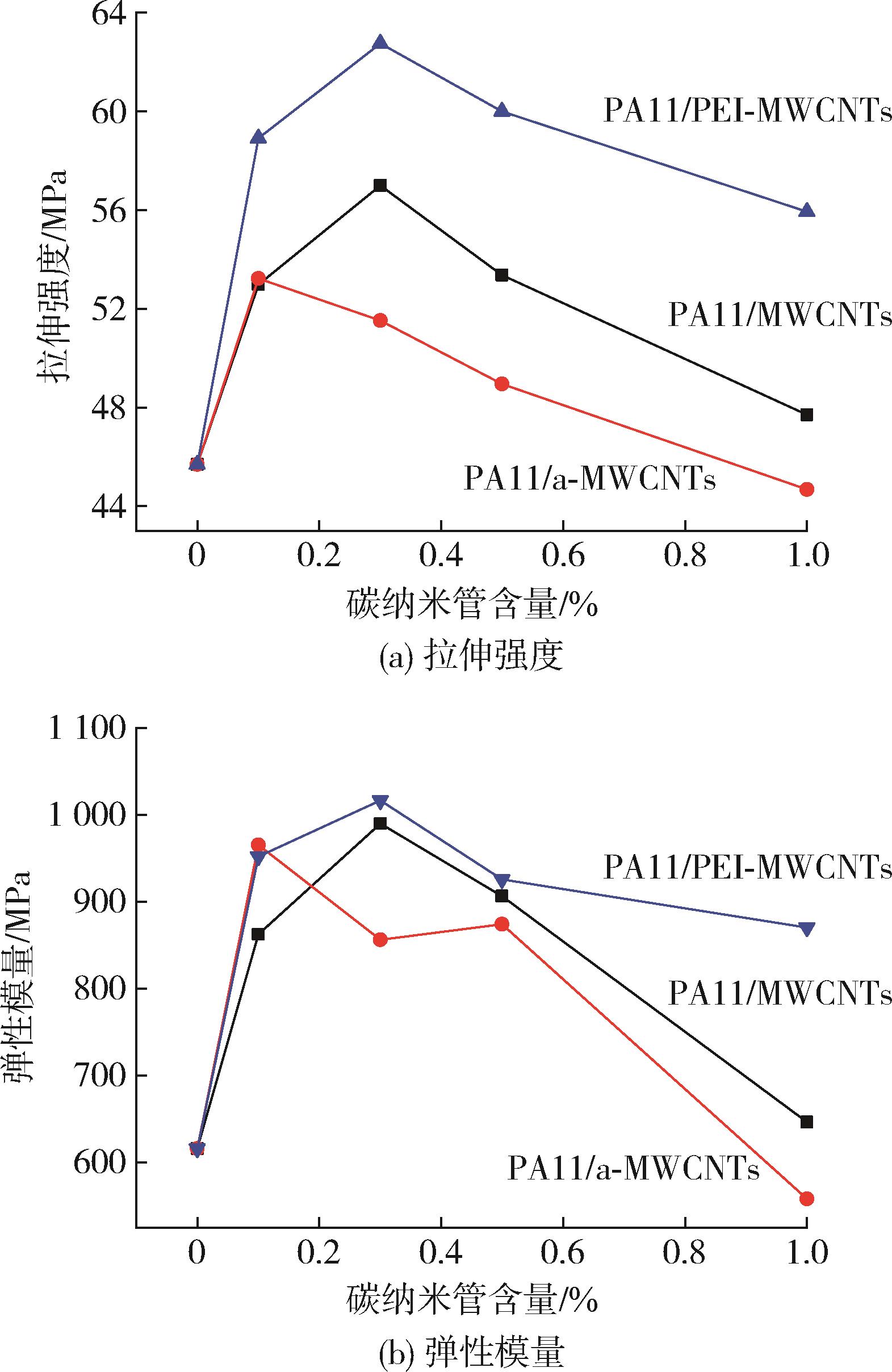

Fig.4. Mechanical properties of the composites

Fig.5. SEM images of the stretched section of the composites

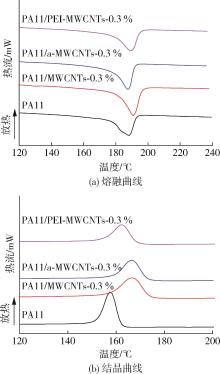

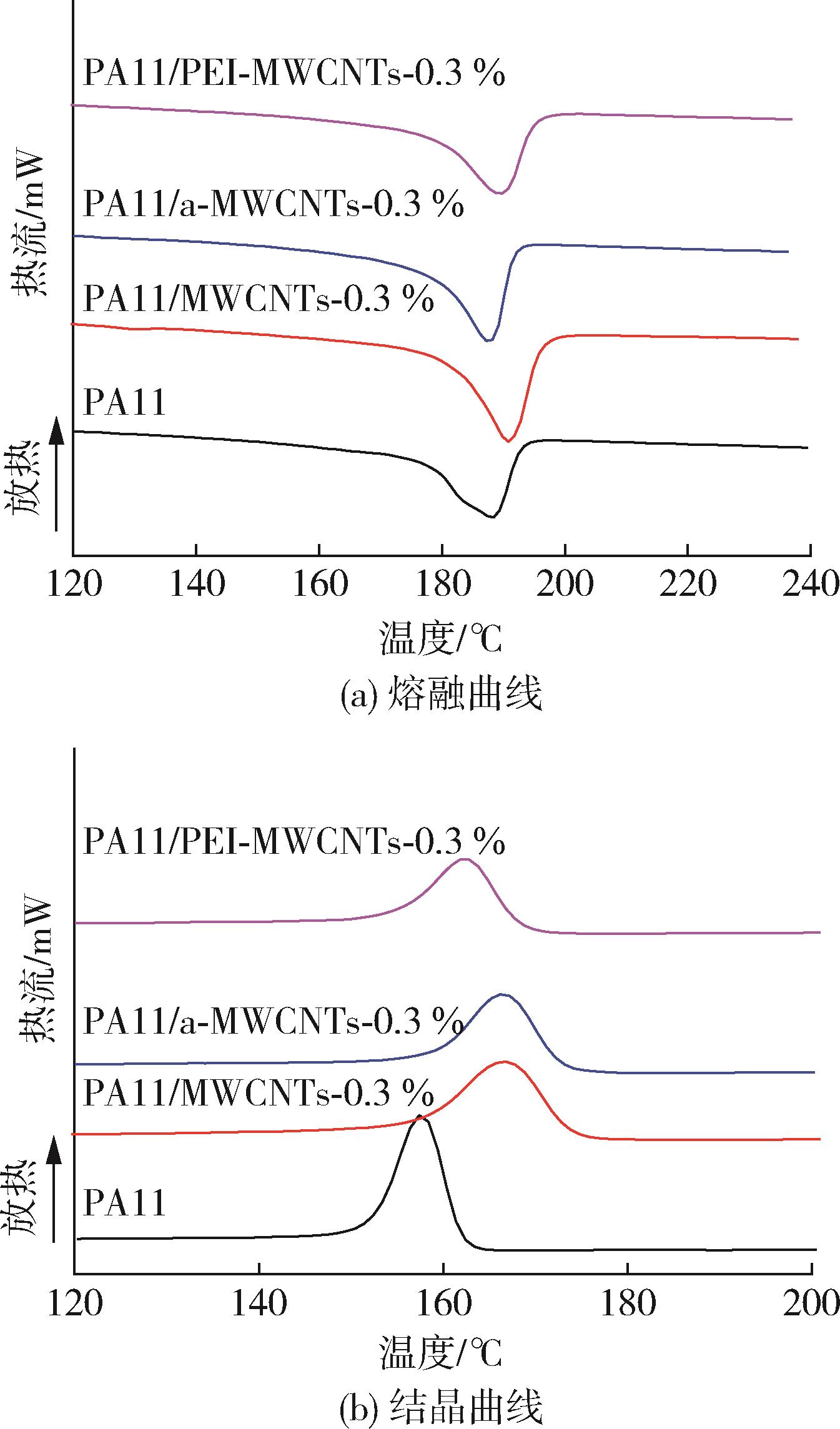

Fig.6. DSC curves of PA11 and different composite materials

样品	熔点/℃	熔融焓/J·g^-1	结晶度/%
PA11	188.2	38.80	20.5
PA11/MWCNTs⁃0.3 %	189.6	48.26	25.5
PA11/a⁃MWCNTs⁃0.3 %	187.5	42.64	24.6
PA11/PEI⁃MWCNTs⁃0.3 %	189.4	42.37	23.5

Tab.1. Crystallization property of PA11 and different composite materials

References 21

1	陈奇海，方良超，霍绍新，等 .PA11的增强增韧改性研究［J］.现代塑料加工应用，2019，31（1）：25⁃28.
	CHEN Q H ， FANG L C ， HUO S X ，et al . Study on strengthening and toughening modification of nylon 11［J］. Modern Plastics Processing and Applications，2019，31（1）：25⁃28.
2	杜惠真，杨飞，张坤玉，等 .等规聚丙烯离聚体增容聚丙烯/PA11共混体系研究［J］.高分子学报，2018（12）：1 539⁃1 547.
	DU H Z ， YANG F ， ZHANG K Y ，et al . Study on compatibilizing polypropylene/nylon 11 blends by Isotactic polypropylene ionomers［J］. Acta Polymerica Sinica，2018（12）：1 539⁃1 547.
3	王丽 .聚酰胺十一的生产工艺流程［J］.山东化工，2018，47（4）：71⁃72.
	WANG L . Production process of polyamide 11［J］. Shandong Chemical Industry，2018，47（4）：71⁃72.
4	DE SALLES MACENA DA CRUZ B， TIENNE L G P ， GONDIM F F ， et al . Influence of the addition of multi‐walled carbon nanotubes on the thermal and mechanical properties of polyamide‐11 before and after aging tests［J］. Journal of Applied Polymer Science， 2020， 138（12）：50071.
5	SHAFIEE M ， ELUSAKIN T ， ENJEMA E . Subsea blowout preventer （BOP）： Design， reliability， testing， deployment， and operation and maintenance challenges［J］. Journal of Loss Prevention in the Process Industries， 2020， 66： 104170.
6	SHAFIEE M ， ELUSAKIN T . Reliability analysis of subsea blowout preventers with condition⁃based maintenance using stochastic Petri nets［J］. Journal of Loss Prevention in the Process Industries， 2020， 63： 104026.
7	LIU Z K ， LIU Y H . A Bayesian network based method for reliability analysis of subsea blowout preventer control system［J］. Journal of Loss Prevention in the Process Industries， 2019， 59： 44⁃53.
8	江海，丁营利，黄冬，等 .聚乳酸/PA11/氯醚弹性体三元共混体系结构与性能研究［J］.化学工业与工程，2021，38（2）：1⁃8.
	JIANG H ， DING Y L ， HUANG D ，et al . Structure and properties of the poly（ lactic acid）/polyamide⁃11/ poly（epichlorohydrin⁃co⁃ethylene oxide） elastomer ternary blends［J］. Chemical Industry and Engineering，2021，38（2）：1⁃8.
9	余晓磊，徐长福，王鑫，等 .反应性增容制备高性能PLA/PA11共混物［J］.塑料，2020，49（3）：28⁃31.
	YU X L ， XU C F ， WANG X ，et al . Reactive compatibilization to prepare high performance PLA/PA11 blends［J］. Plastics，2020，49（3）：28⁃31.
10	蒋芝，陈英红，刘卓 .微型注塑加工条件下聚甲醛/PA11/碳纳米管复合材料的结晶形貌及充填行为［J］.高分子材料科学与工程，2014，30（9）：69⁃73.
	JIANG Z ， CHEN Y H ， LIU Z . Crystallization， morpholo⁃gy and filling behavior of polyoxymethylene /polyamide 11 carbon nanotubes composites under micro injection mol⁃ding conditions ［J］. Polymer Materials Science & Engineering，2014，30（9）：69⁃73.
11	王志强，张云升，张凯，等 .PA11/白炭黑纳米复合材料非等温结晶动力学研究［J］.工程塑料应用，2012，40（5）：70⁃73.
	WANG Z Q ， ZHANG Y S ， ZHANG K ，et al . Study of non⁃isothermal crystallization kinetics of polyamide 11/silica nanocomposites［J］. Engineering Plastics Application，2012，40（5）：70⁃73.
12	雷青娟，王志强，刘春艳 .PA11/HGB复合材料的等温结晶动力学研究［J］.工程塑料应用，2016，44（9）：87⁃91.
	LEI Q J ， WANG Z Q ， LIU C Y . Study on isothermal crystallization kinetics of nylon 11/HGB composites ［J］.Engineering Plastics Application，2016，44（9）：87⁃91.
13	陈春银，赵彩霞，郭威男，等 .PA11/石墨烯氧化物纳米复合材料的动态流变性能［J］.塑料，2012，41（1）：67⁃70.
	CHEN C Y ， ZHAO C X ， GUO W N ，et al . Dynamical rheological behavior of polyamide 11/graphene oxide（GO） nanocomposite［J］. Plastics，2012，41（1）：67⁃70.
14	刘玉婷，李璐，王嘉沛，等 .碳纳米管对炭纤维/聚碳酸酯复合材料界面结合性能的影响［J］.新型炭材料，2021，36（3）：639⁃648.
	LIU Y T ， LI L ， WANG J P ，et al . Effect of carbon nanotubes on interfacial properties of a carbon fiber / polycarbonate composite［J］. New Carbon Materials，2021，36（3）：639⁃648.
15	李柳，黄李金鸿，黄万抚，等 .碳纳米管的改性及在水处理领域中的应用与回收［J］.现代化工，2021，41（7）：95⁃98.
	LI L ， HUANG L J H ， HUANG W F ，et al . Modification of carbon nanotube and its application and recovery in water treatment［J］. Modern Chemical Industry，2021，41（7）：95⁃98.
16	陈守丽，蔡会武，杜月，等 .碳纳米管表面包覆改性研究进展［J］.应用化工，2021，50（5）：1 399⁃1 402.
	CHEN S L ， CAI H W ， DU Y ，et al . Research progress of carbon nanotube surface coating modification［J］. Applied Chemical Industry，2021，50（5）：1 399⁃1 402.
17	罗明洪，夏克坚 .聚乙烯亚胺改性石墨烯载 Pt催化剂的制备及其对甲醇的电催化氧化［J］.化学研究与应用，2017，29（11）：1 680⁃1 685.
	LUO M H ， XIA K J . Preparation of poly（ethyleneimine）⁃functionalized graphene loaded with Pt and its electro⁃oxidation for methanol［J］. Chemical Research and Application，2017，29（11）：1 680⁃1 685.
18	尚尉，于海辉，张晓君 .聚乙烯亚胺改性硅藻土的制备与表征［J］.中国造纸，2017，36（12）：51⁃55.
	SHANG W ， YU H W ， ZHANG X J . Preparation and characterization of polyethy leneimine modified diatomite［J］. China Pulp & Paper，2017，36（12）：51⁃55.
19	李仕友，胡忠清，王越，等 .聚乙烯亚胺改性UiO⁃66⁃NH₂对水中U（Ⅵ）的吸附［J］.化工环保，2020，40（6）：625⁃631.
	LI S Y ， HU Z Q ， WANG Y ，et al . Adsorption of U（Ⅵ）from water by polyethylenimine modified UiO⁃66⁃NH₂ ［J］.Environmental Protection of Chemical Industry，2020，40（6）：625⁃631.
20	于倩倩，杨建军，吴庆云，等 .聚乙烯亚胺修饰氧化石墨烯改性水性聚氨酯的制备及抗菌性能［J］.高分子材料科学与工程，2021，37（2）：124⁃129.
	YU Q Q ， YANG J J ， WU Q Y ，et al . Preparation and antibacterial properties of waterborne polyurethane modified by polyethyleneimine and graphene oxide［J］. Polymer Materials Science & Engineering，2021，37（2）：124⁃129.
21	张冬，孙红娟，彭同江 .PEI接枝改性微晶氧化石墨烯技术研究［J］.西部皮革，2018，40（7）：107⁃109.
	ZHANG D ， SUN H J ， PENG T J . Research on PEI graft modification technology of microcrystalline graphene oxide［J］. West Leather，2018，40（7）：107⁃109.
