Dynamic rheological behavior and compatibility of polyethylene/paraffin oil blends

doi:10.19491/j.issn.1001-9278.2022.02.003

Abstract

Abstract:

Two types of polyethylene （PE） with relatively different molecular weights were blended with paraffin oil （LP） separately to form two blending systems. The effects of temperature and LP content on the dynamic rheological behavior of the blend systems as well as their compatibility and microporous structure were investigated using rotating rheometer， polarizing microscope， differential scanning calorimeter and scanning electron microscope. The results indicated that the energy storage modulus， loss modulus， complex viscosity and relaxation time of PE/LP blend decreased with an increase in temperature and PL content. The compatibility between the two phases in the blend system is strongly associated with to the molecular weight of PE. The Cole?Cole curve based on the PE1 with a low molecular weight and LP system is semicircular， and the slope of the Han curve is 1.36. There is no monotectic point in the phase diagram. When the Cole?Cole curve based on the PE2 and LP system with a larger molecular weight has linear characteristics， the Han curve presented a slope of 1.2. There is an obvious monotectic point in the binary phase diagram， corresponding to the PE mass fraction （φ_m） of 46 wt%. This indicated that the compatibility of the former system was better than that of the latter one， and however both blend systems were molten homogeneous at a high temperature. The PE1/LP blend system was mainly involved in the solid?liquid phase separation. When the mass fraction of PE is lower than φ_m， the liquid?liquid phase separation mainly occurred in the PE2/LP system， resulting in a "honeycomb" porous structure.

Key words: polyethylene, paraffin oil, rheological property, compatibility

CLC Number:

TQ325.1⁺2

HENG Yue, XUE Nanxiang, CHEN Zhuangxin, LEI Caihong, XU Ruijie. Dynamic rheological behavior and compatibility of polyethylene/paraffin oil blends[J]. China Plastics, 2022, 36(2): 13-18.

Figures/Tables 8

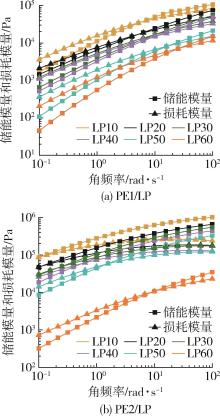

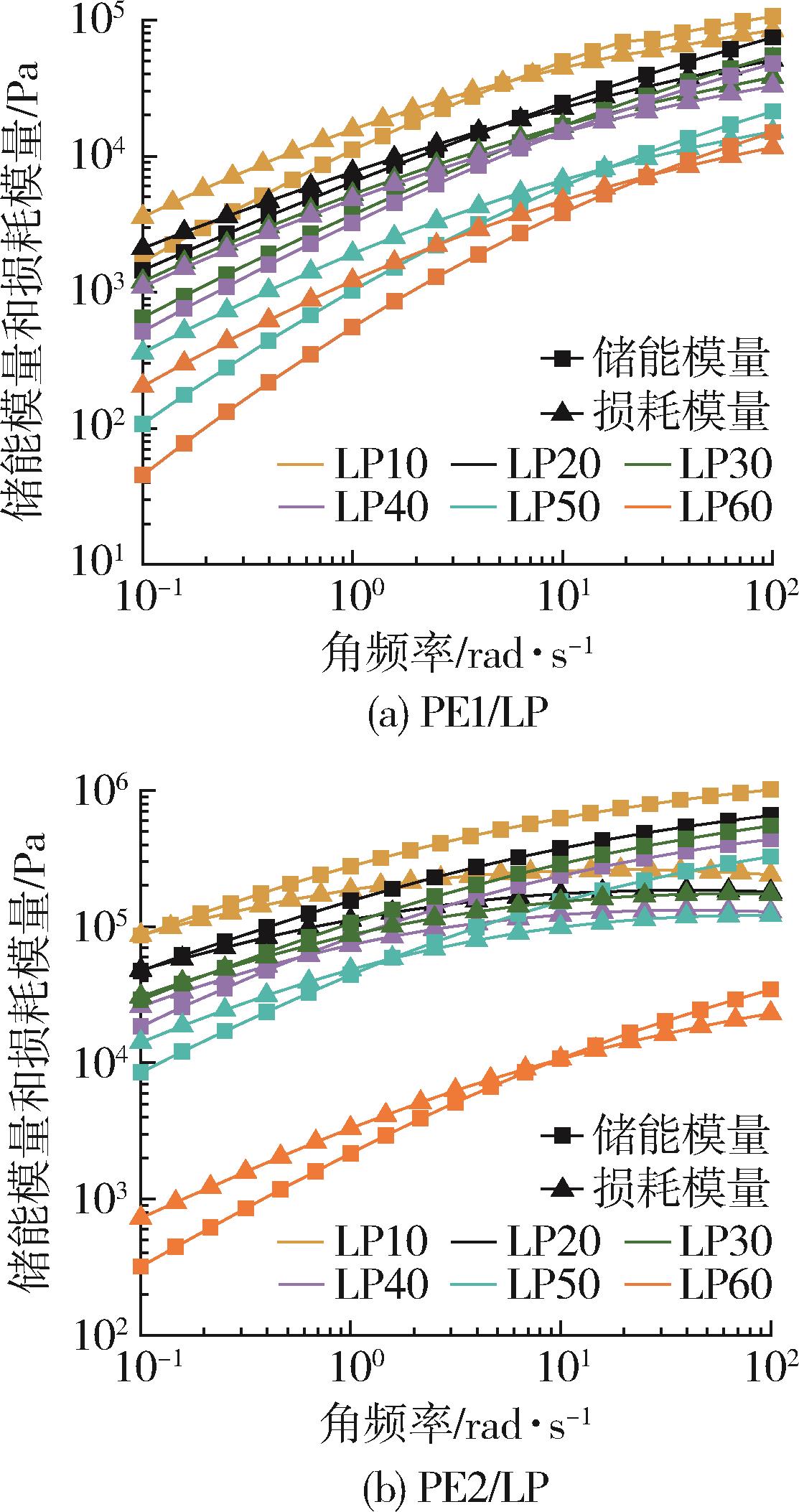

Fig.1. Dynamic frequency scanning curves of PE/LP systems with different LP contents

LP含量/%	共混体系
LP含量/%	PE1/LP	PE2/LP
10	5.2	0.10
20	6.3	0.16
30	8.1	0.25
40	10.0	0.63
50	15.8	1.58
60	25.1	10.00

Tab.1. Crossover frequency of PE/LP blend systemt

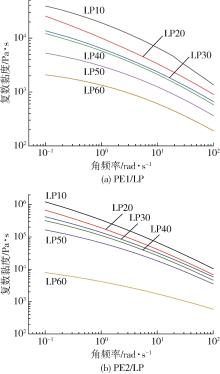

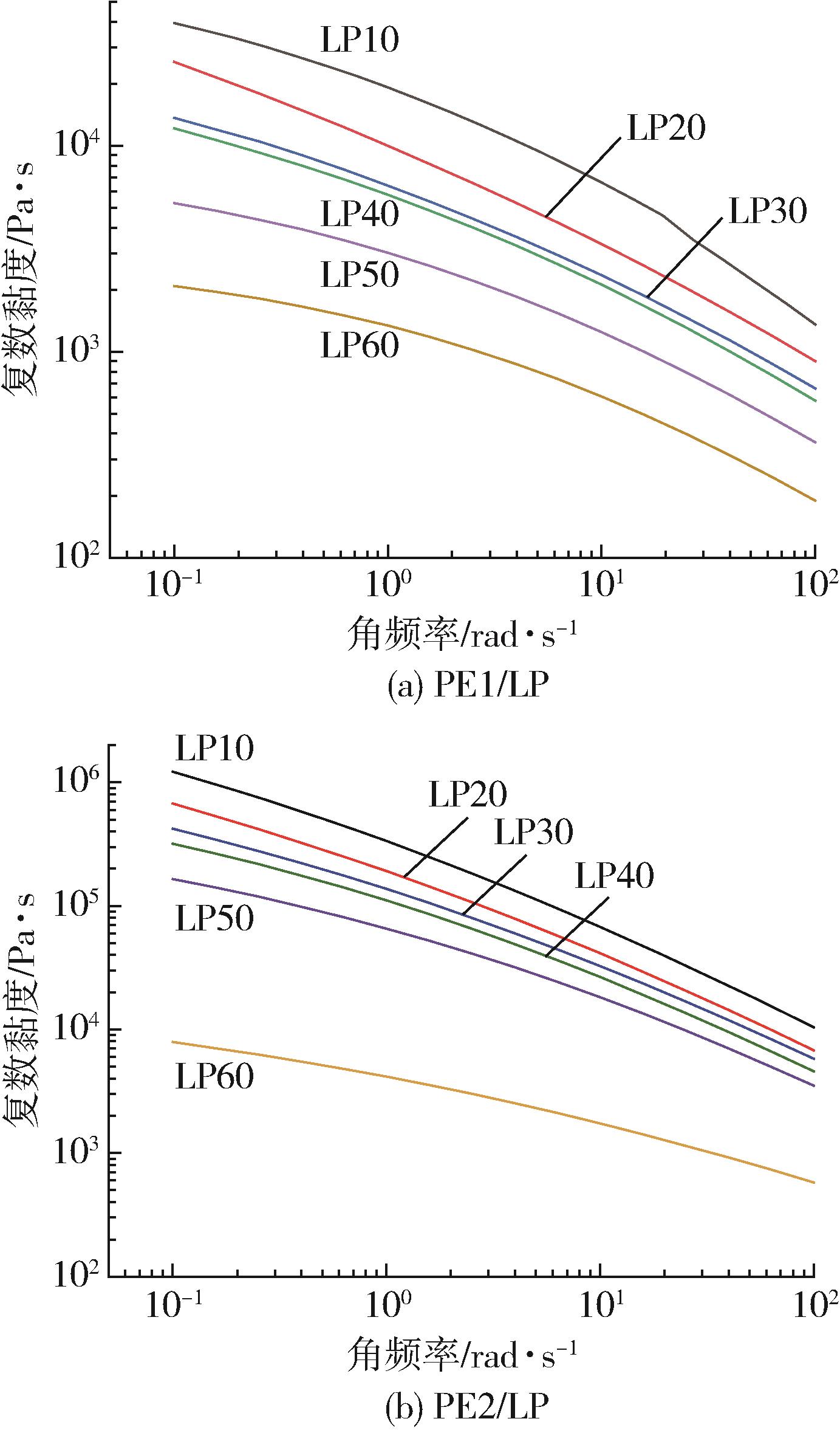

Fig.2. Viscosity curves of PE/LP systems

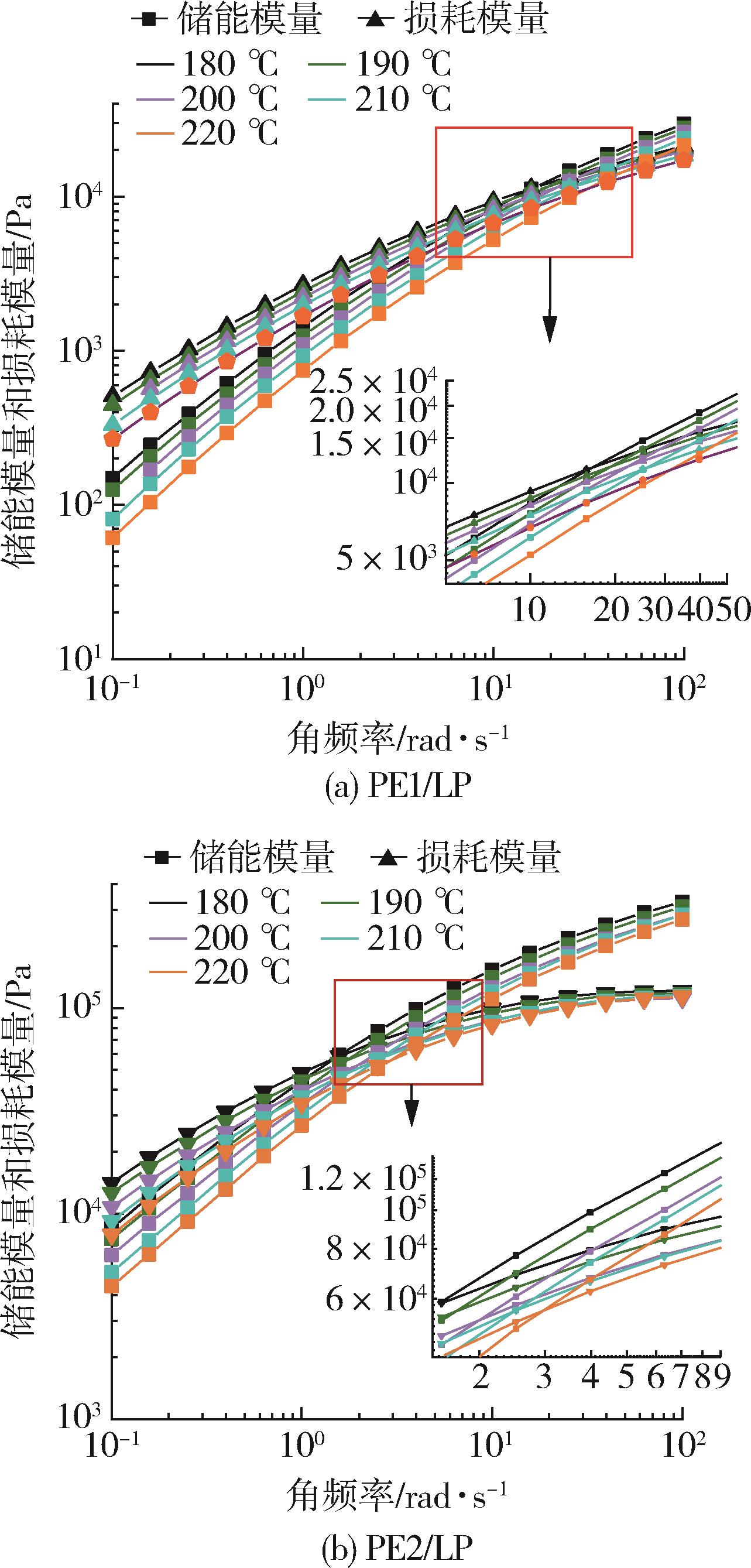

Fig.3. Dynamic frequency scanning curves of PE/LP60 system at different temperature

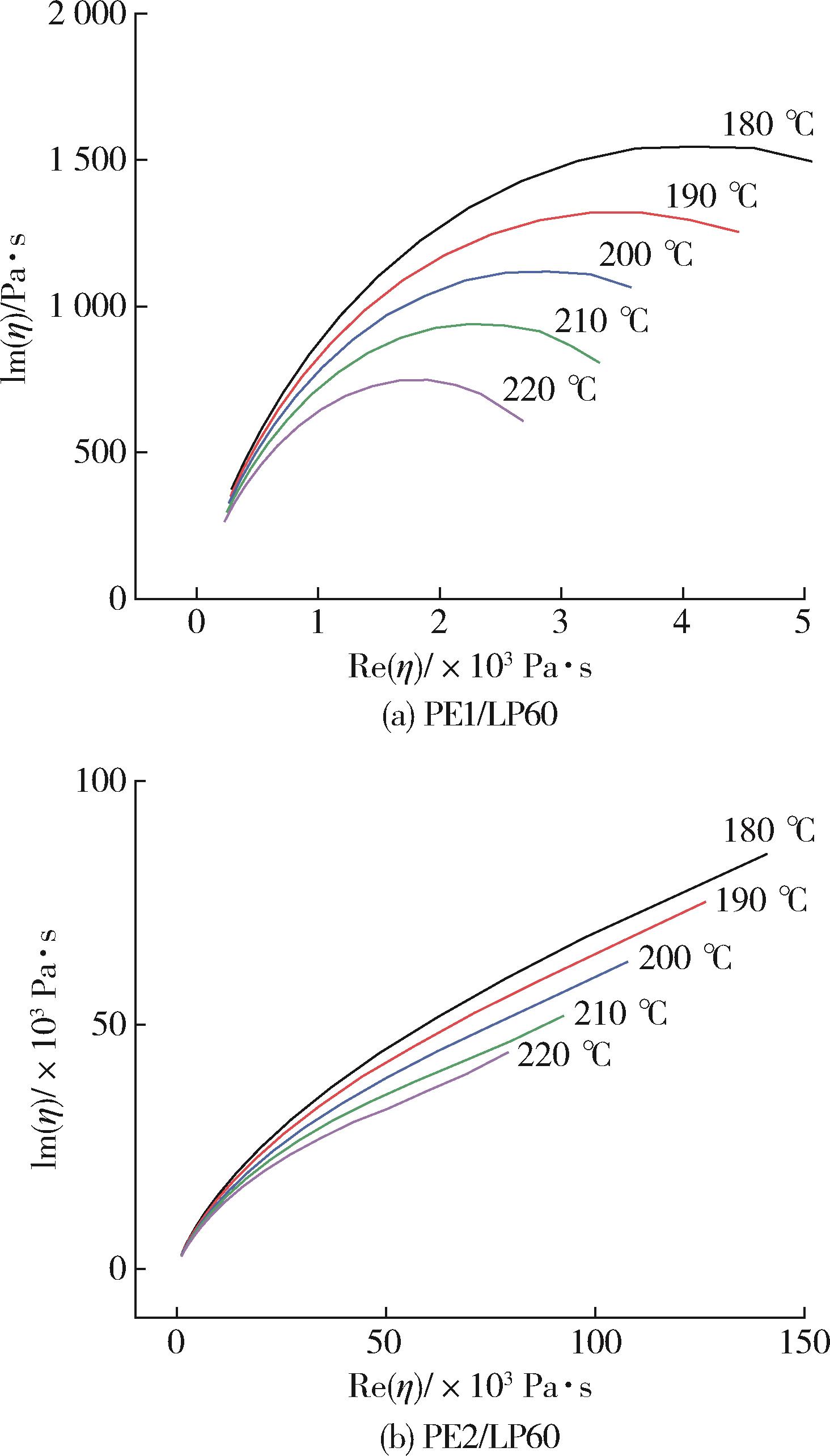

Fig.4. Cole?Cole curves of the blending systems

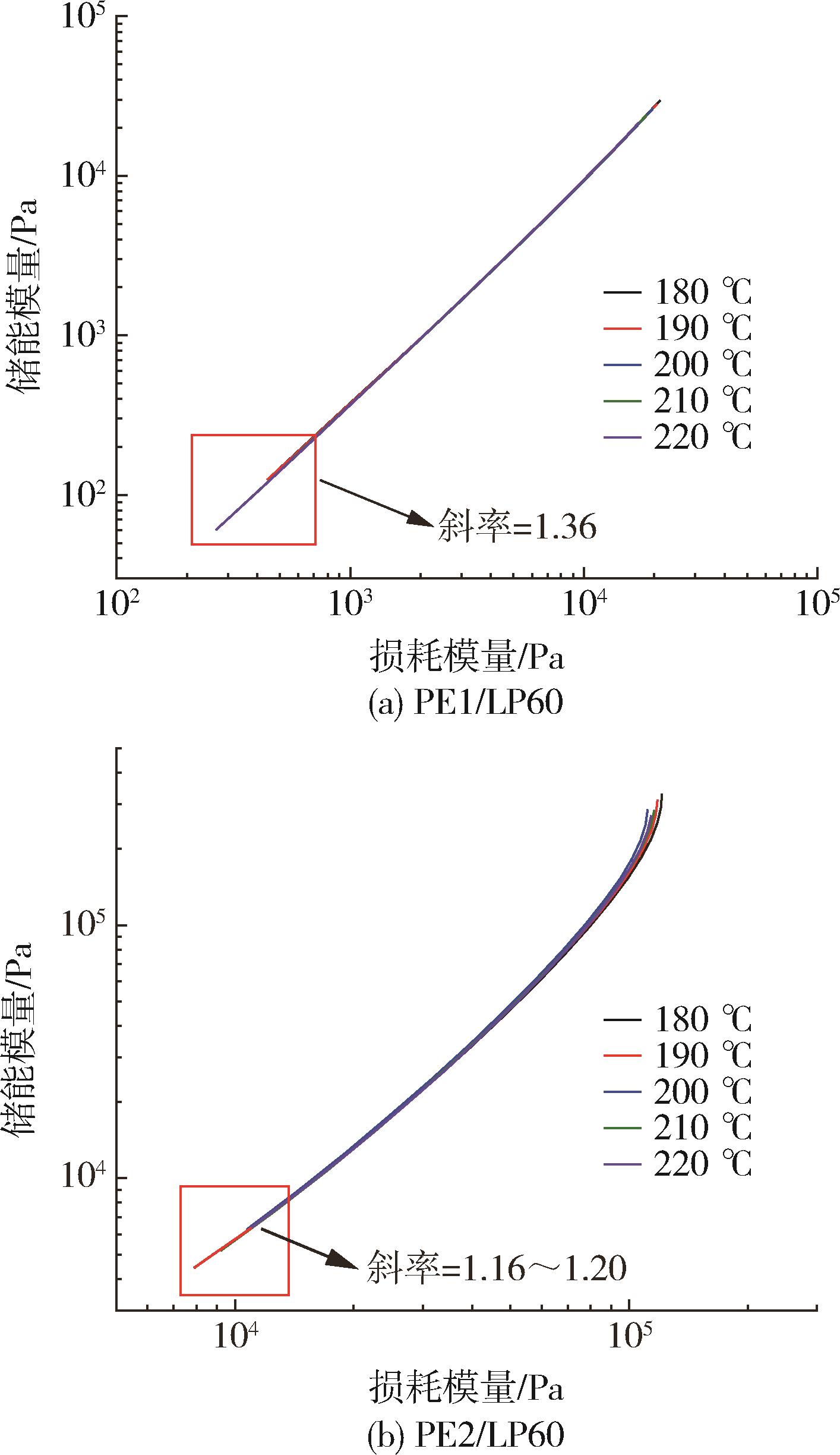

Fig.5. Han curves of the blending systems

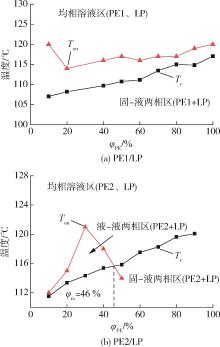

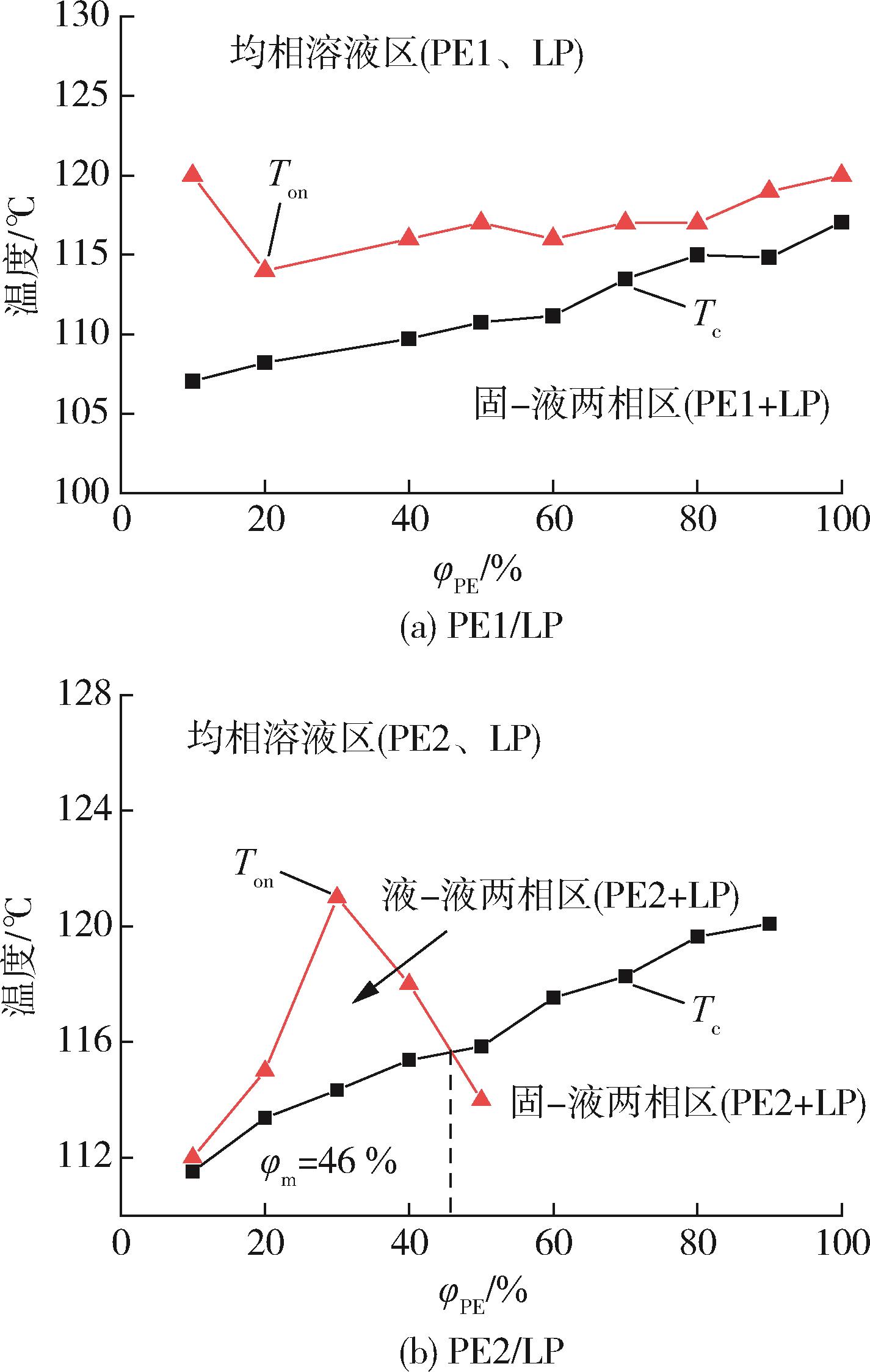

Fig.6. Binary phase diagrams of the blending systems

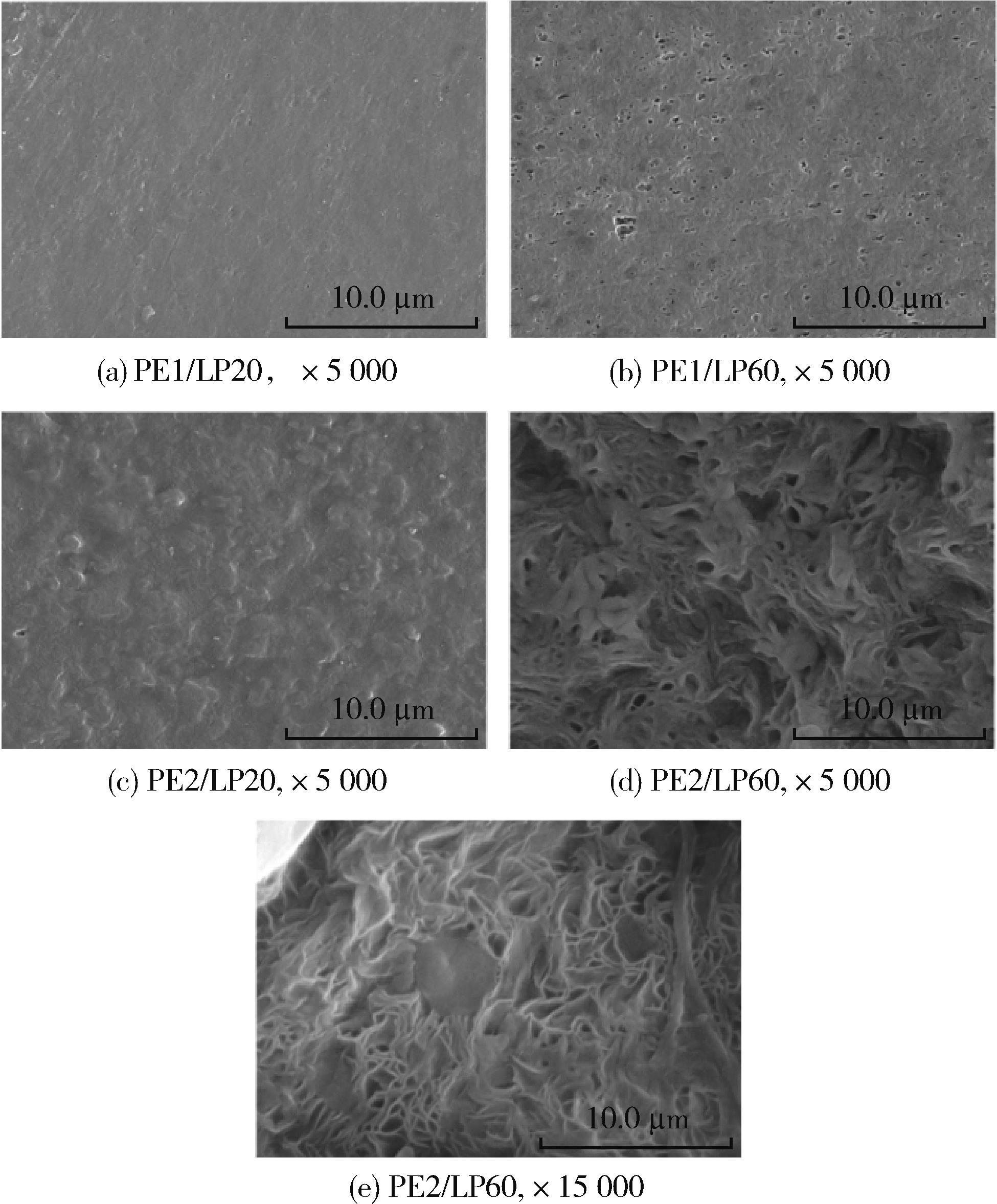

Fig.7. Microstructure of hot?pressed films made of different blends

References 13

1	PARK M J ， KIM C K . Fabrication of polyethylene microporous membranes using triethylolpropane tris（2⁃ethylhexa⁃noate） as a novel diluent by a thermally induced phase separation process［J］. Journal of Membrane Science， 2014， 449： 127⁃135.
2	YANG B ， DING M ， WU J ， et al . In situ tailoring the hie⁃rarchical microstructures in polyethylene films fabricated by thermally induced phase separation via temperature gradient fields［J］. Journal of Materials Science， 2020， 55（24）： 10 922⁃10 941.
3	SHENG L ， DU Y ， ZHANG H ， et al . Effects of cooling process on the solid–liquid phase separation process in ultra⁃high⁃molecular⁃weight polyethylene/liquid paraffin blends［J］. Polymer Bulletin， 2019， 77（1）： 165⁃181.
4	CHEN J ， WANG X ， LIU W . Crystallization kinetics of polyethylene/paraffin oil blend sheets formed by thermally induced phase separation with different molecular weights of polyethylene［J］. Journal of Thermal Analysis and Calorime⁃try， 2014， 118（3）： 1 649⁃1 661.
5	ZHANG C ， ZHU B ， JI G ， et al . Studies on nonisothermal crystallization of ultra⁃high molecular weight polyethylene in liquid paraffin ［J］. Journal of Applied Polymer Science， 2006， 99（5）： 2 782⁃2 788.
6	SHEN L ， PENG M ， QIAO F . Preparation of microporous ultra high molecular weight polyethylene （UHMWPE） by thermally induced phase separation of a UHMWPE/liquid paraffin mixture［J］. Chinese Journal of Polymer Science （English Edition）， 2008， 26（6）： 653⁃657.
7	PARK M J ， NOH S C ， KIM C K . Effects of the phase behavior of the diluent mixture on the microstructure of polyethylene membranes formed by thermally induced phase separation process［J］. Industrial & Engineering Chemistry Research， 2013， 52（31）： 10 690⁃10 698.
8	CHAUDHURI K ， LELE A K . Rheological quantification of the extent of dissolution of ultrahigh molecular weight polyethylene in melt⁃compounded blends with high density polyethylene［J］. Journal of Rheology， 2020， 64（1）： 1⁃12.
9	CHO S ， KIM J M ， BAIG C . Scaling characteristics of rotational dynamics and rheology of linear polymer melts in shear flow ［J］. Macromolecules， 2020， 53（8）： 3 030⁃3 041.
10	邹华维，陈洋，梁梅 . 聚乙烯/超高分子量聚乙烯共混体系相行为的动态流变学研究［J］. 高分子通报， 2014， 2（2）： 130⁃136.
	ZOU H X ， CHEN Y ， LIANG M .Dynamic rheological beha⁃vior of polyethylene/ultra⁃high⁃molecular⁃weight polyethy⁃lene blends［J］. Polymer Bulletin， 2014， 2（2）： 130⁃136.
11	SHAIDULLIN N M ， SALAKHOV I I ， BORISENKO V N ， et al . Structural， rheological， and mechanical pro⁃perties of binary compounds based on high⁃density polyethy⁃lene and linear low⁃density polyethylene ［J］. Russian Journal of Applied Chemistry， 2020， 93（8）： 1 179⁃1 187.
12	钱晨，杨斌，章于川，等 . 聚丙烯⁃乙丙橡胶共混体系相分离的流变学表征方法［J］. 高分子材料科学与工程， 2014， 30（7）： 97⁃104.
	QIAN C ， YANG B ， ZHANG Y C ，et al .Rheological cha⁃racterization of phase separation in polypropylene/ethylene⁃propylene⁃diene terpolymer blends［J］.Polymer Materials Science & Engineering： 2014， 30（7）： 97⁃104.
13	HAN C D . On the use of time⁃temperature superposition in multicomponent/multiphase polymer systems ［J］. Polymer， 1992， 34（12）： 2 533⁃2 539.
