Molecular dynamics simulation of modifier and high⁃density polyethylene intercalate and exfoliate montmorillonite

doi:10.19491/j.issn.1001-9278.2022.02.011

Abstract

Abstract:

To study the effects of modifiers and high?density polyethylene （PE?HD）/organo?modified montmorillonite （OMMT） composites on the intercalation and exfoliation of montmorillonite， a molecular dynamics method was employed to simulate the arrangement of different loadings of octadecyl trimethyl ammonium chloride cations （OTAC⁺） in the montmorillonite （MMT） and its influence on the intercalation of OMMT. A material model for the PE?HD/OMMT composites was constructed， and the MS Perl script was written to extract the interaction energy among OTAC⁺， MMT and PE?HD to study the effect of the barrel temperature of the twin?screw extruder on the exfoliation of MMT at 463 K. The simulation results indicated that the MMT slices appeared as lateral?monolayer， lateral?bilayer， and pseudotrilayer in sequence with an increase in the loading of OTAC⁺. Meanwhile， the increase of the OTAC⁺ loading resulted in an increase in the layer spacing of MMT， and however MMT was not exfoliated. In the simulation time of 90~95 ps， the interaction energy between the top and bottom of MMT in the PE?HD/OMMT composite model varied from -24.53 to 3.54 kcal/mol， indicating the successful exfoliation of MMT， leading to an MMT layer spacing of 91 ? at that time.

Key words: molecular dynamics, simulation, modifier, high?density polyethylene, montmorillonite, intercalation, exfoliation

CLC Number:

TQ314

LI Yongqing, YANG Xiaolong, CHEN Wenjing, YAN Xiaokun, MA Xiuqing. Molecular dynamics simulation of modifier and high⁃density polyethylene intercalate and exfoliate montmorillonite[J]. China Plastics, 2022, 36(2): 67-74.

Figures/Tables 10

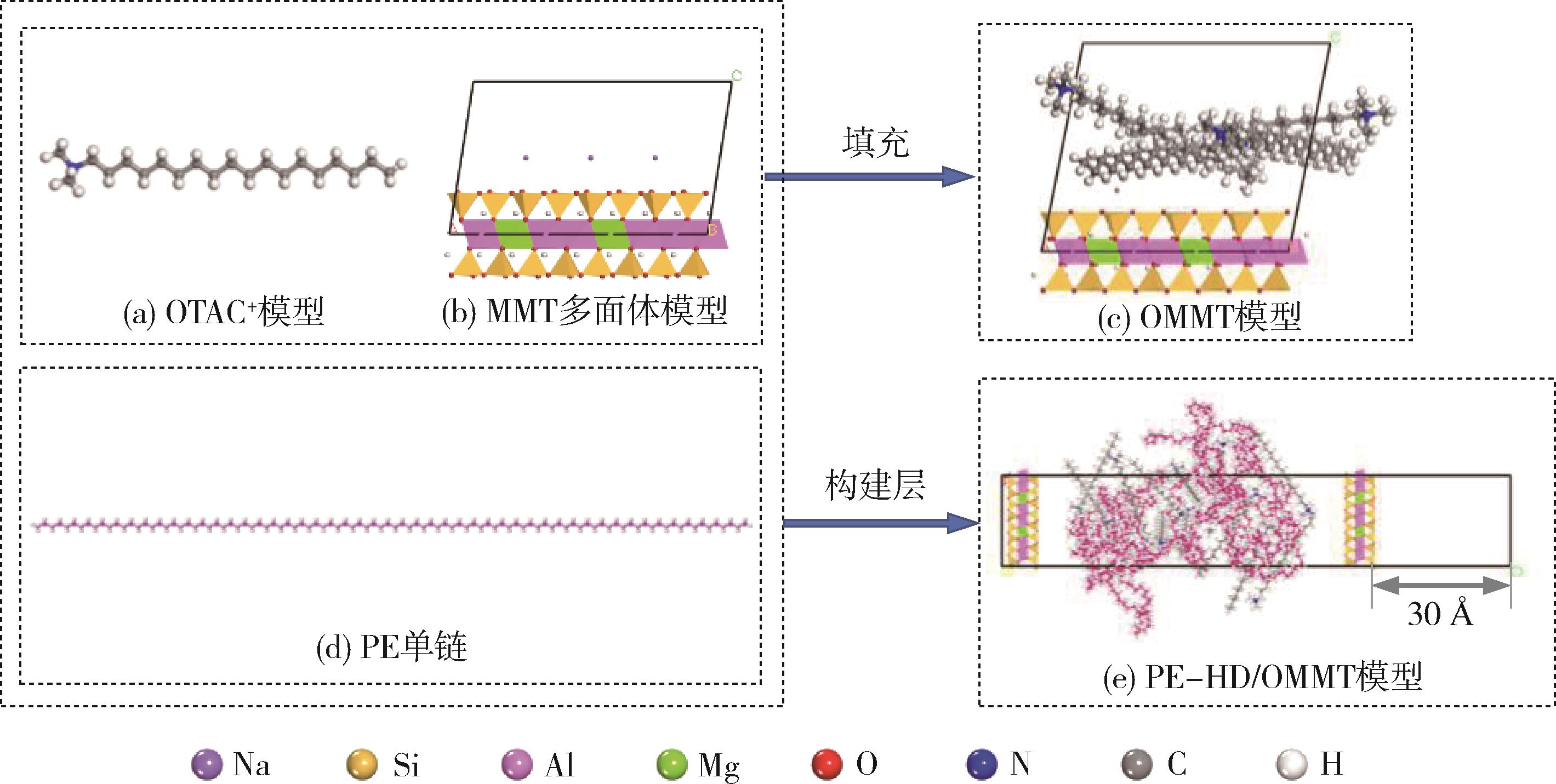

Fig.1. Model of OMMT and PE?HD/OMMT composite material

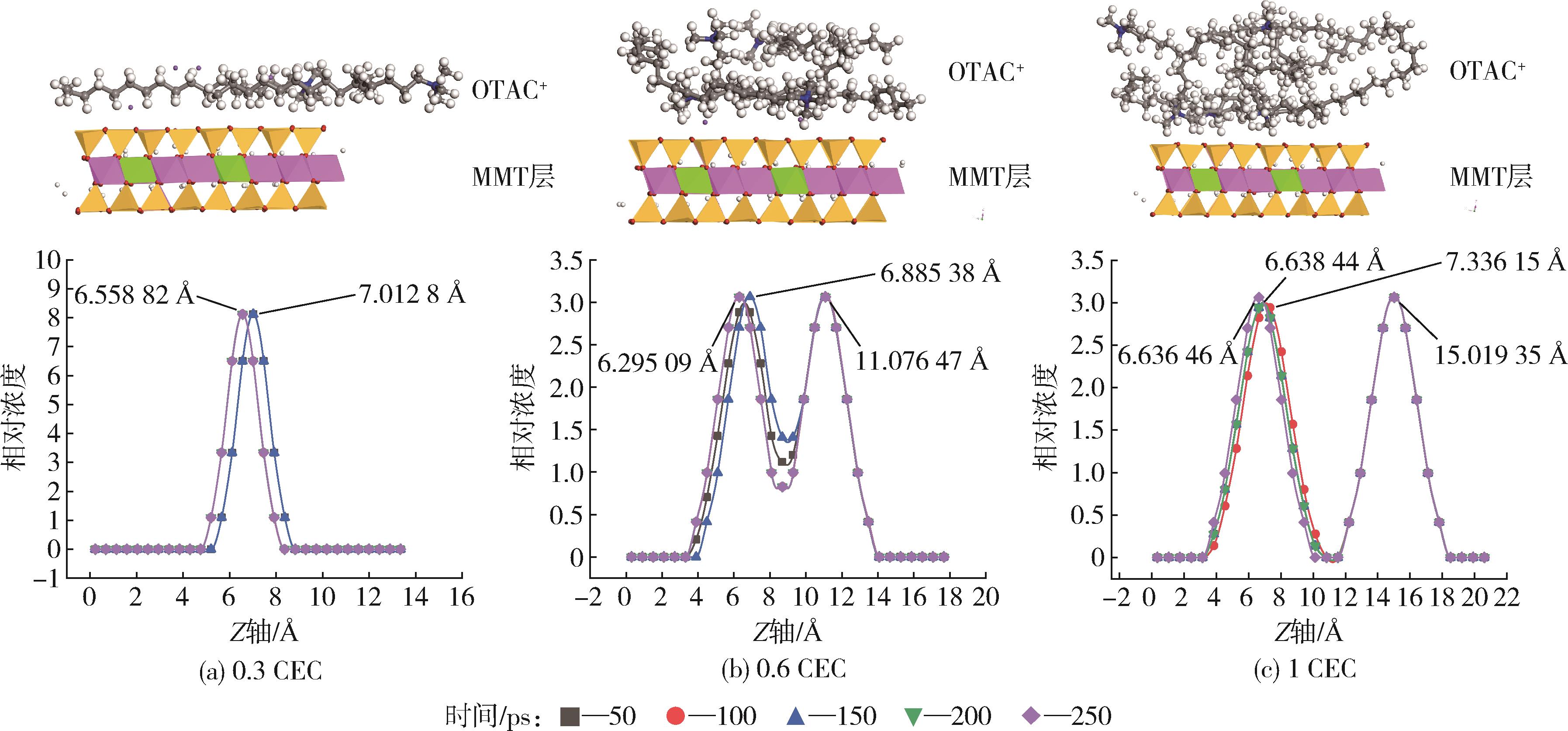

Fig.2. Distribution of N atom concentration

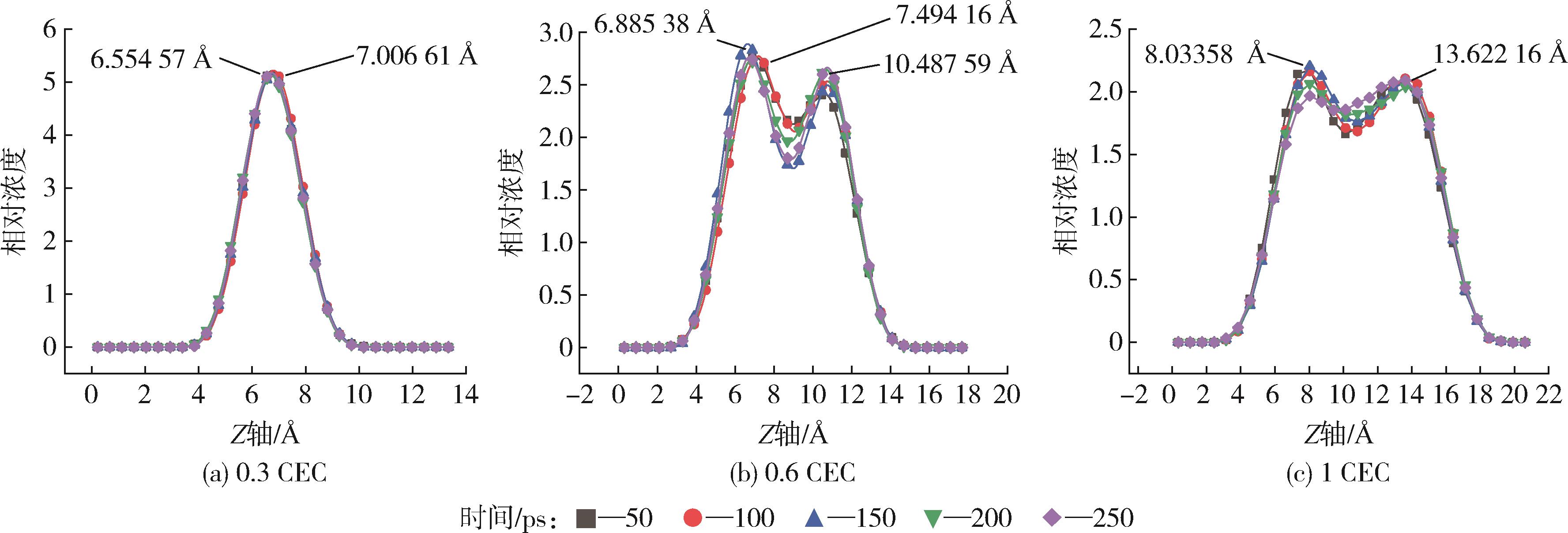

Fig.3. Distribution of C atom concentration

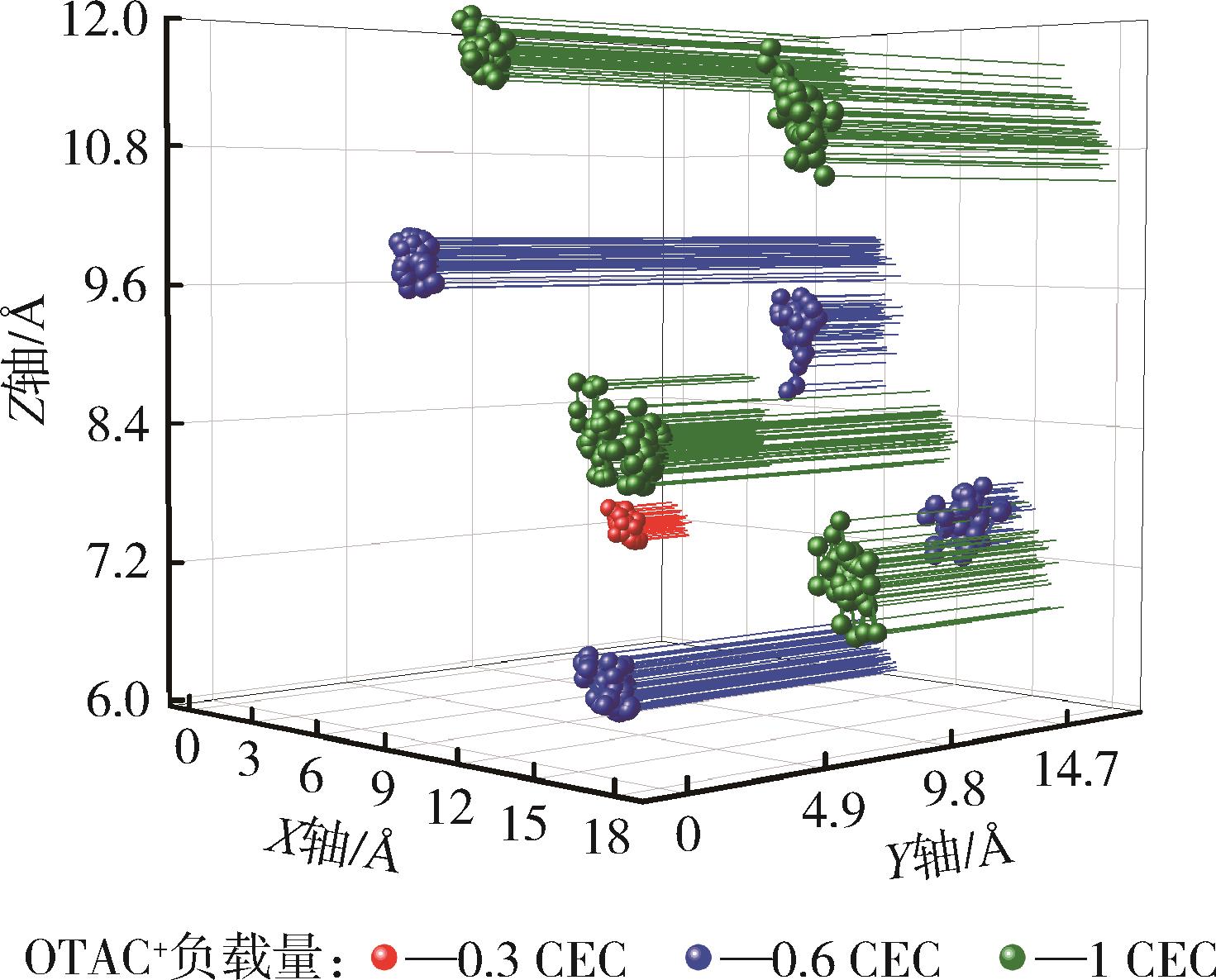

Fig.4. Three?dimensional motion trajectory of N atom

Fig.5. Three?dimensional motion trajectory of C atom

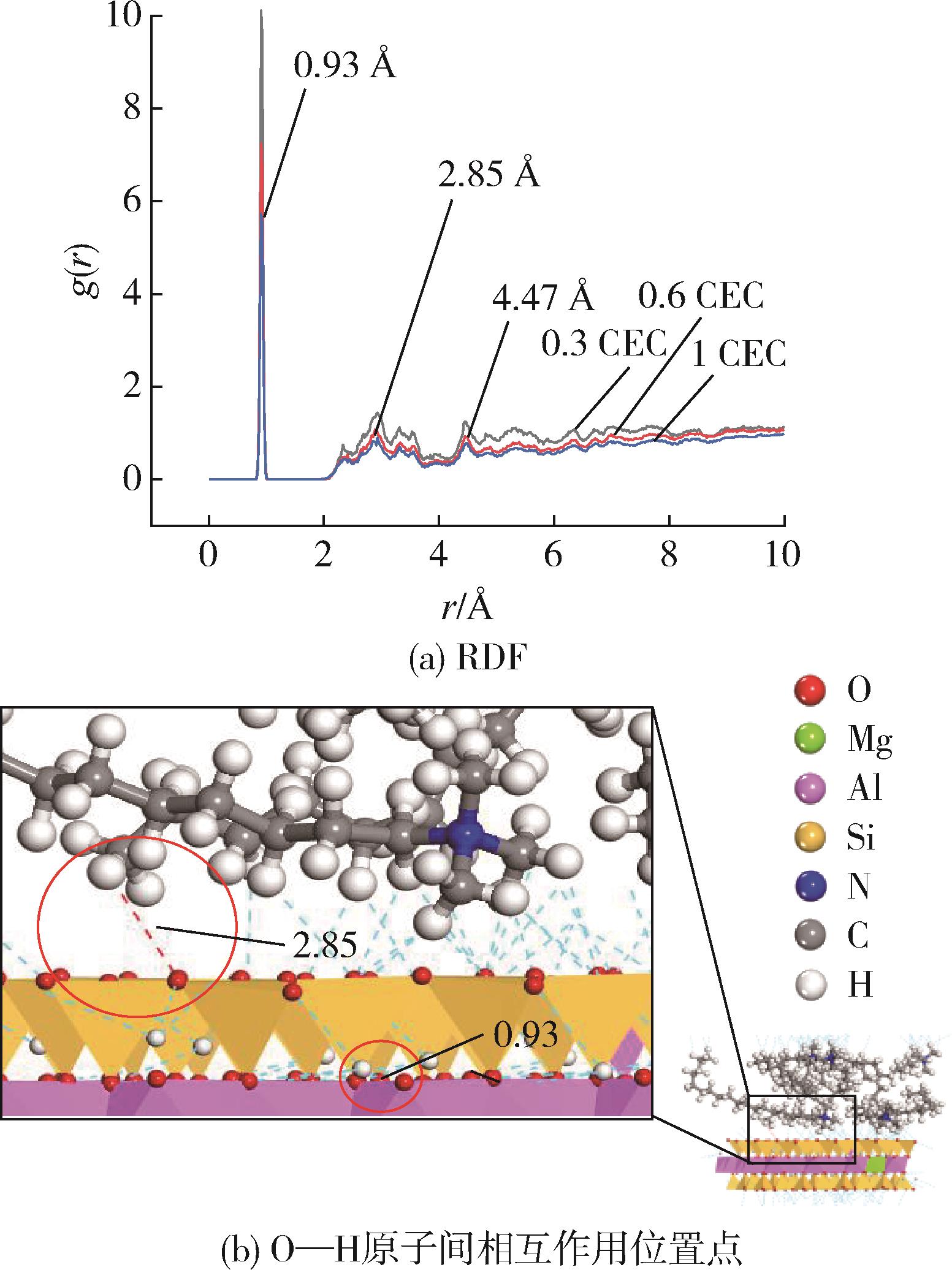

Fig.6. Radial distribution function of OMMT model

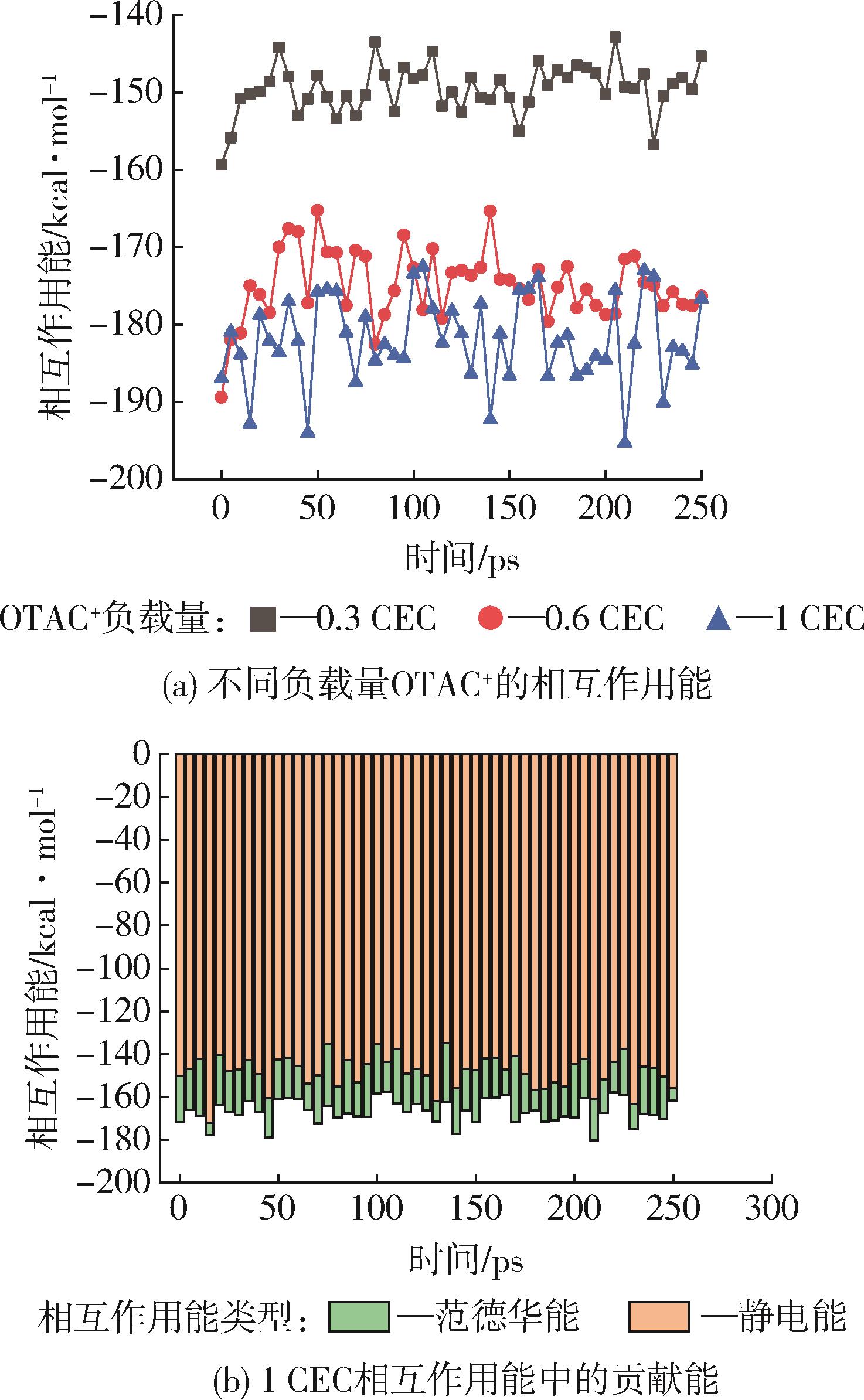

Fig.7. Interaction energy of OMMT model

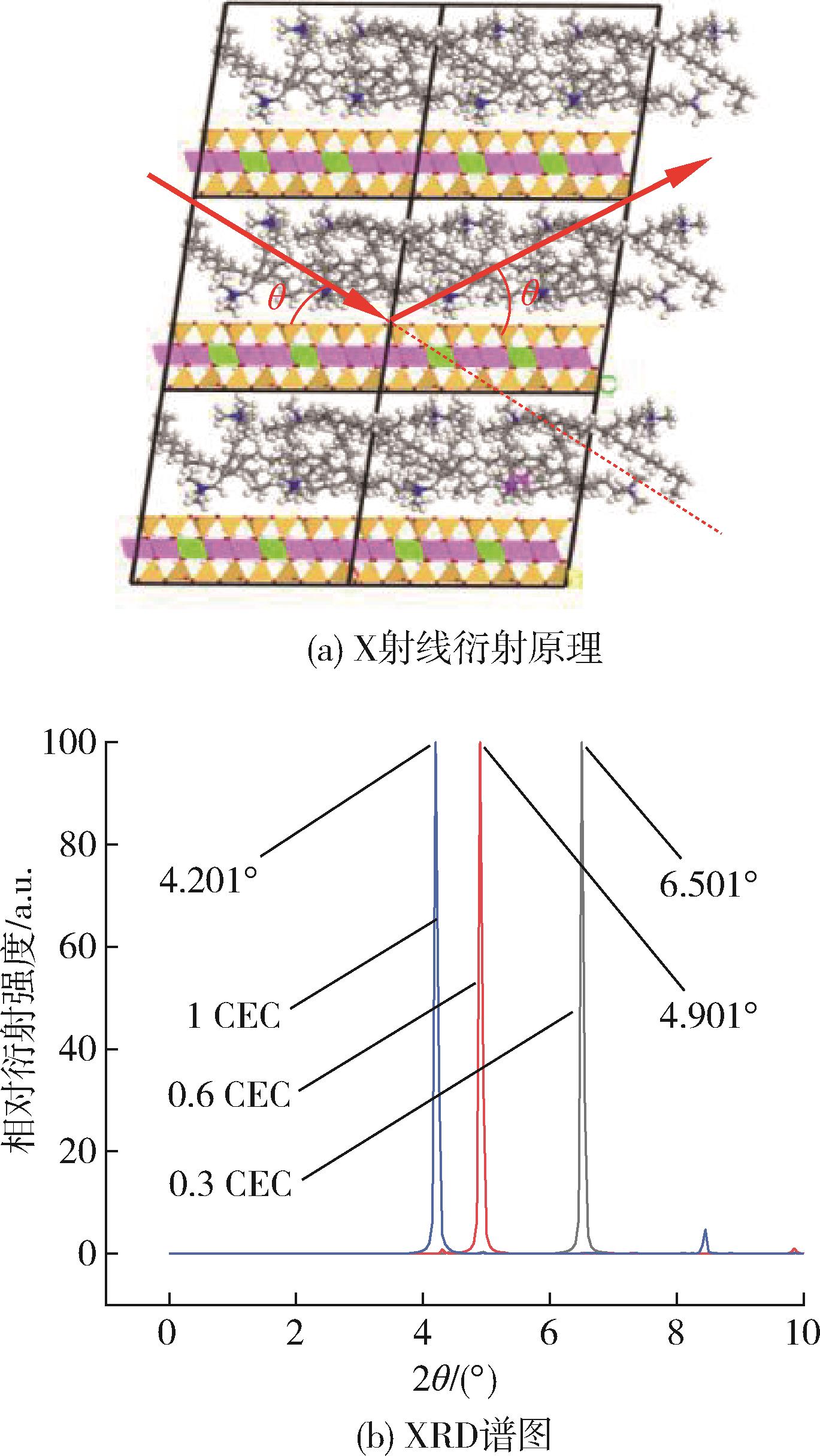

Fig.8. XRD spectra of OMMT model with different loading of OTAC+

Fig. 9. θ variation with system and time

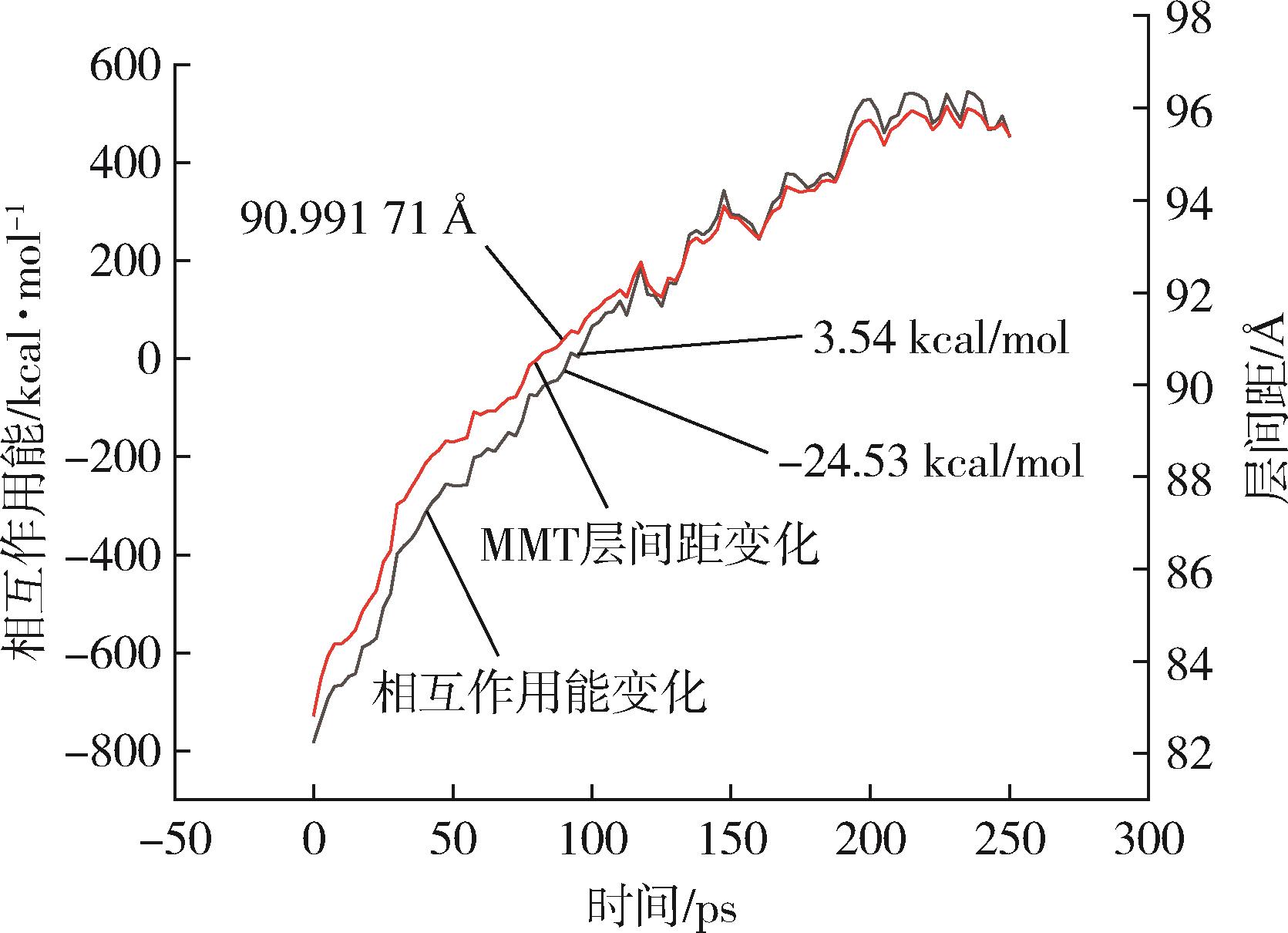

Fig.10. Interaction energy between top layer and bottom layer MMT and layer spacing change with time

References 25

1	王小英，刘博，汤玉峰，等 .累托石/聚合物纳米复合材料的新进展［J］.无机材料学报，2012，27（2）：113⁃121.
	WANG X Y ， LIU B ， TANG Y F ，et al . New progress on rectorite/polymer nanocomposites［J］. Journal of Inorganic Materials， 2012， 27（2）： 113⁃121.
2	闫存极 .聚酯⁃蒙脱土纳米复合材料分子模拟研究［D］.北京：中国石油大学， 2004.
3	张艳 . PET/MMT纳米复合材料计算机仿真［D］.郑州：郑州大学， 2010.
4	国家辉 .聚乙烯/蒙脱土纳米复合材料结构形态与介电性能仿真［D］.哈尔滨：哈尔滨理工大学， 2014.
5	李丽丽 .聚乙烯/纳米蒙脱土微观形态与力⁃电性能仿真及实验研究［D］.哈尔滨：哈尔滨理工大学， 2018.
6	李丽丽，张晓虹，王玉龙，等 .基于聚乙烯/蒙脱土纳米复合材料微观结构的力学性能模拟［J］.物理学报， 2016， 65（19）： 213⁃224.
	LI L L ， ZHANG X H ， WANG Y L ，et al . Simulation of mechanical properties based on microstructure in polyethy⁃lene/montmorillonite nanocomposites［J］. Acta Physica Sinica， 2016， 65（19）： 213⁃224.
7	WANG Y ， ZHANG X ， LI L ， et al . Influence of interfacial interaction on the mechanical properties of amorphous PE/MMT nanocomposites［J］. AIP Advances， 2019， 9（12）： 125201.
8	师琳琳 . 铀酰在钠蒙脱石（001）面上吸附行为的分子模拟［D］.太原：太原理工大学， 2015.
9	王进，王军霞，曾凡桂，等 . 蒙脱石晶体结构构型及其XRD、IR的分子模拟［J］. 矿物学报， 2011， 31（1）： 133⁃138.
	WANG J ， WANG J X ， ZENG F G ， et al . Molecular si⁃mulations of crystal structure conformation， X⁃Ray Diffraction and infra⁃red spectrum in montmorillonites［J］. Acta Mineralogica Sinica， 2011， 31（1）： 133⁃138.
10	赵红华，江舒棋，葛源源，等 . 不同阳离子基蒙脱石吸附水分子的分子动力学模拟分析［J］. 中国科学：技术科学， 2019， 49（6）： 703⁃715.
	ZHAO H H ， JIANG S Q ， GE Y Y ， et al . Molecular dynamics simulation of water molecules adsorption by diffe⁃rent cations based montmorillonite［J］. Scientia Sinica（Technologica）， 2019， 49（6）： 703⁃715.
11	CHEN H ， LI Y ， ZHOU Y ， et al . Self⁃Assembly of alkylammonium chains on montmorillonite： effect of interlayer cations， CEC， and chain length［J］. Russian Journal of Physical Chemistry A， 2017， 91（13）： 2 621⁃2 628.
12	QIU J ， LI G ， LIU D ， et al . Effect of layer charge density on hydration properties of montmorillonite： molecular dynamics simulation and experimental study［J］. Internatio⁃nal Journal of Molecular Sciences， 2019， 20（16）： 3997.
13	QIU J ， LIU D ， WANG Y ， et al . Comprehensive characterization of the structure and gel property of organo⁃montmorillonite： effect of layer charge density of montmorilloni⁃te and carbon chain length of alkyl ammonium［J］. Mine⁃rals， 2020， 10（4）：378.
14	PENG C ， WANG G ， QIN L ， et al . Molecular dynamics simulation of NH₄⁃montmorillonite interlayer hydration： structure， energetics， and dynamics［J］. Applied Clay Science， 2020， 195： 105657.
15	HEINZ H ， KOERNER H ， ANDERSON K L ， et al . Force field for mica⁃type silicates and dynamics of octade⁃cylammonium chains grafted to montmorillonite［J］. Chemistry of Materials， 2005， 17（23）： 5 658⁃5 669.
16	HEINZ H ， LIN T J ， MISHRA R ， et al . Thermodynamically consistent force fields for the assembly of inorganic， organic， and biological nanostructures： the interface force field［J］. Langmuir： the ACS Journal of Surfaces and Colloids， 2013， 29（6）：1 754⁃1 765.
17	TZU J ， HEINZ H . Accurate force field parameters and pH resolved surface models for hydroxyapatite to understand structure， mechanics， hydration， and biological interfaces［J］. The Journal of Physical Chemistry C， 2016， 120（9）： 4 975⁃4 992.
18	漆宗能，尚文宇 . 聚合物/层状硅酸盐纳米复合材料理论与实践［M］. （第1版）北京：化学工业出版社， 2002：5.
19	ZENG Q ， YU A ， LU G ， et al . Molecular dynamics simu⁃lation of organic⁃inorganic nanocomposites： layering behavior and interlayer structure of organoclays［J］. Chemistry of Materials， 2003， 15（25）： 4 732⁃4 738.
20	陈达 . 碳纳米管/聚乙烯复合材料的力学性能研究［D］.广州：华南理工大学， 2014.
21	郭睿 . 聚乙烯/二氧化硅纳米复合材料微观结构与电学性能仿真［D］. 哈尔滨：哈尔滨理工大学， 2019.
22	LIU X ， LI X ， LIU J ， et al . Study of high density polyethyle⁃ne （HDPE） pyrolysis with reactive molecular dynamics［J］. Polymer Degradation and Stability， 2014， 104： 62⁃70.
23	ZHU J ， HE H ， GUO J ， et al . Arrangement models of alkylammonium cations in the interlayer of HDTMA⁺ pi⁃llared montmorillonites［J］. Chinese Science Bulletin， 2003， 48（4）： 368⁃372.
24	BAI H ， ZHAO Y ， ZHANG X ， et al . Correlation of exfoliation performance with interlayer cations of montmori⁃llonite in the preparation of two dimensional nanosheets［J］. Journal of the American Ceramic Society， 2019， 102： 3 908⁃3 922.
25	马文迅 . 液相激光辐照剥离石墨烯模拟及实验研究［D］.镇江：江苏大学， 2020.
