Evaluation on anti⁃yellowing enhancement of PE⁃HD using a low yellowing compound antioxidant system

doi:10.19491/j.issn.1001-9278.2022.01.011

Abstract

Abstract:

The enhancement effect of BASF low yellowing compound antioxidant system A on the anti?yellowing of PE?HD was evaluated， and their anti?yellowing， anti?oxygen and processing stability were investigated intensively. The results indicated that BASF antioxidant system A had a better anti?yellowing effect than normal antioxidant systems. After using the recommended dosage and double dosage， the yellowing degree of the product was low， and its yellow index changed little after multiple extrusion. However， its anti?oxidation effect was poor. The problem of yellowing can be resolved through reducing the content of antioxidant 1010.

Key words: high?density polyethylene, low yellowing, antioxidant

CLC Number:

TQ325.1⁺2

WANG Lin. Evaluation on anti⁃yellowing enhancement of PE⁃HD using a low yellowing compound antioxidant system[J]. China Plastics, 2022, 36(1): 73-77.

Figures/Tables 11

样品	1010含量/ %	168含量/ %	1076含量/ %	HA含量/ %	A含量/ %
1^＃	—	—	—	—	0.14
2^＃	—	—	—	—	0.28
3^＃	0.1	0.2	—	0.1	—
4^＃	—	0.2	0.1	0.1	—
5^＃~8^＃	1^＃~4^＃样品的2次造粒
9^＃~12^＃	1^＃~4^＃样品的3次造粒
13^＃	5000s无添加

Tab.1. Experimental formula

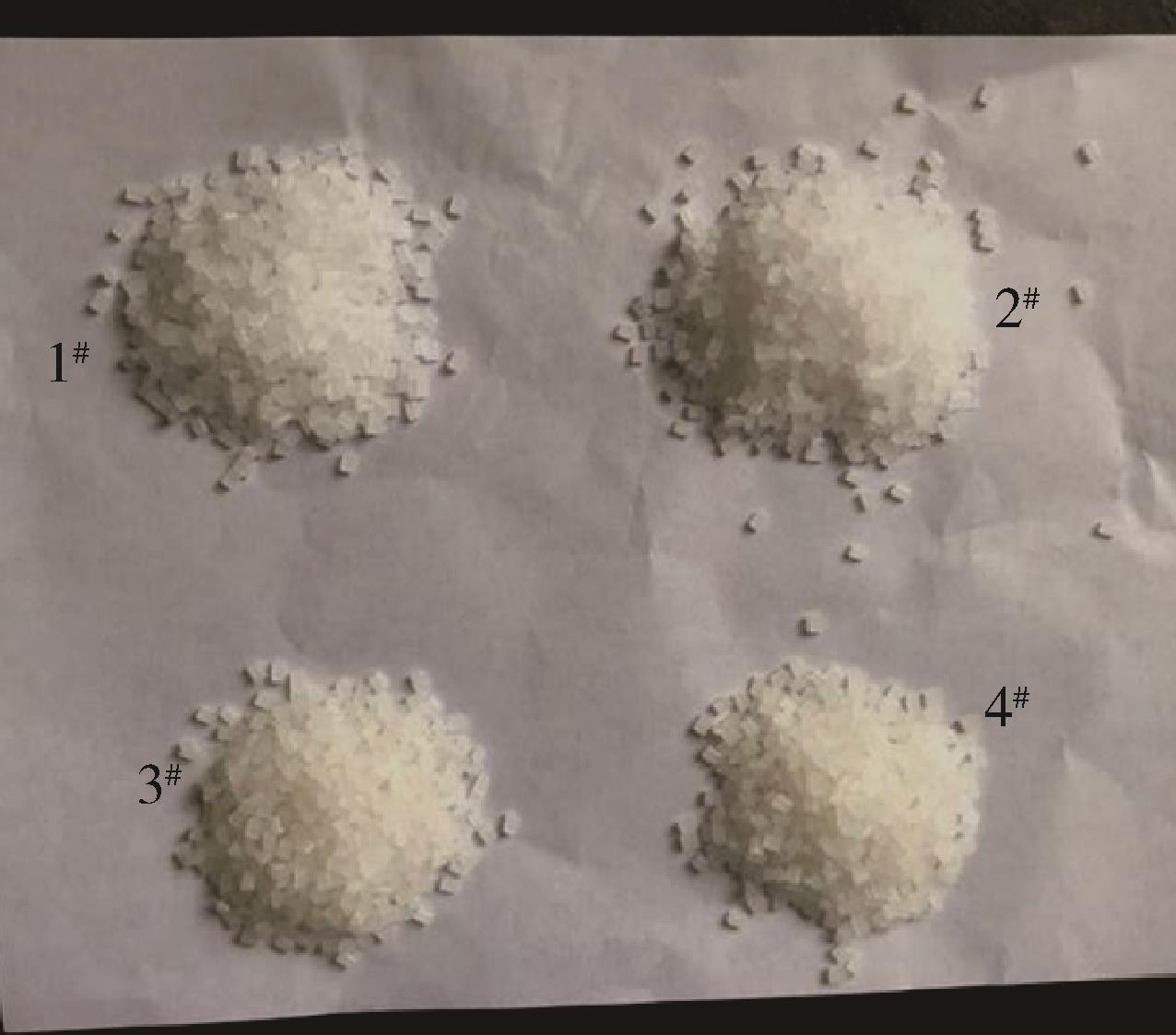

Fig.1. Particle color after extrusion

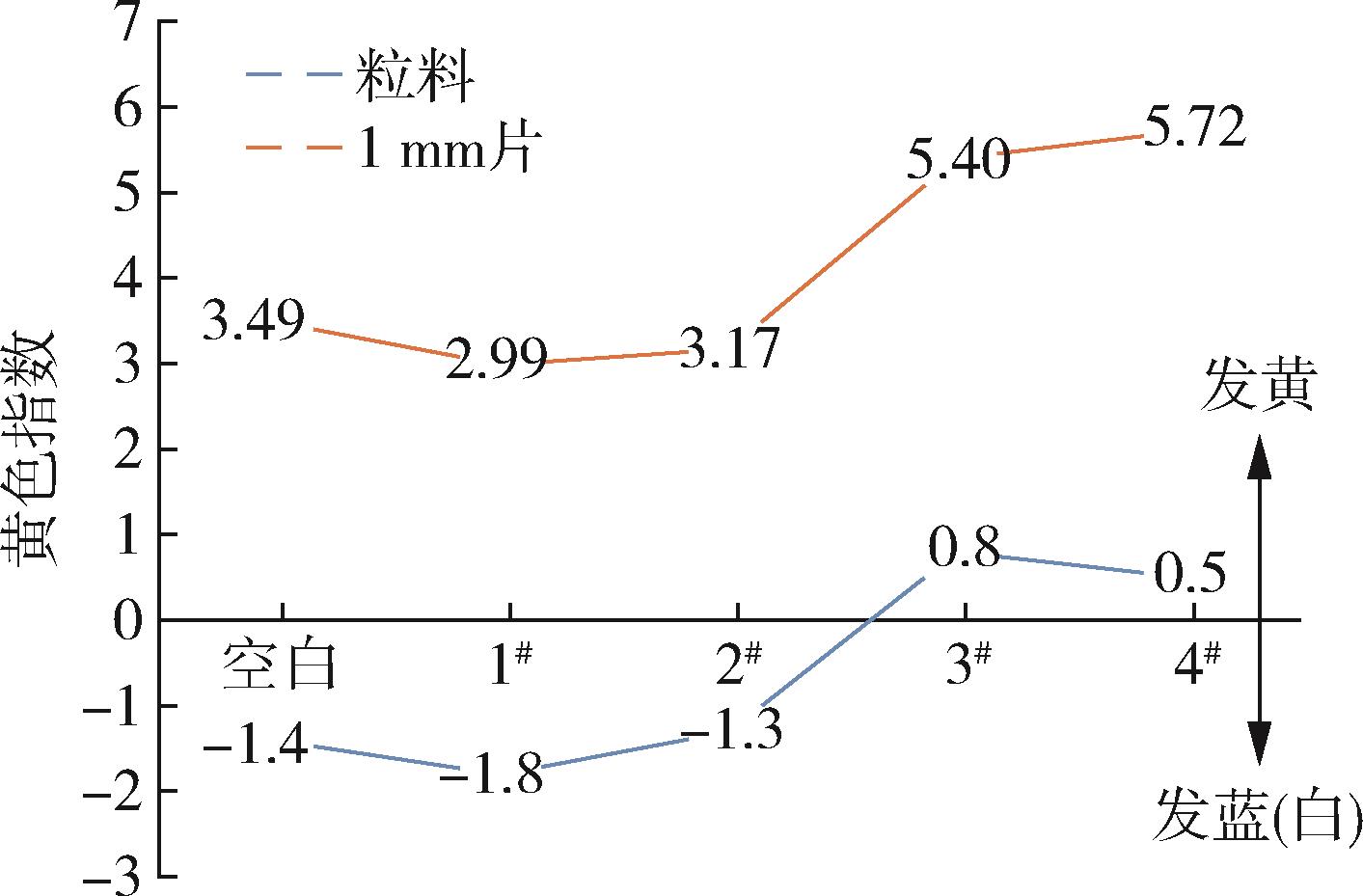

Fig.2. Yellow index of sample

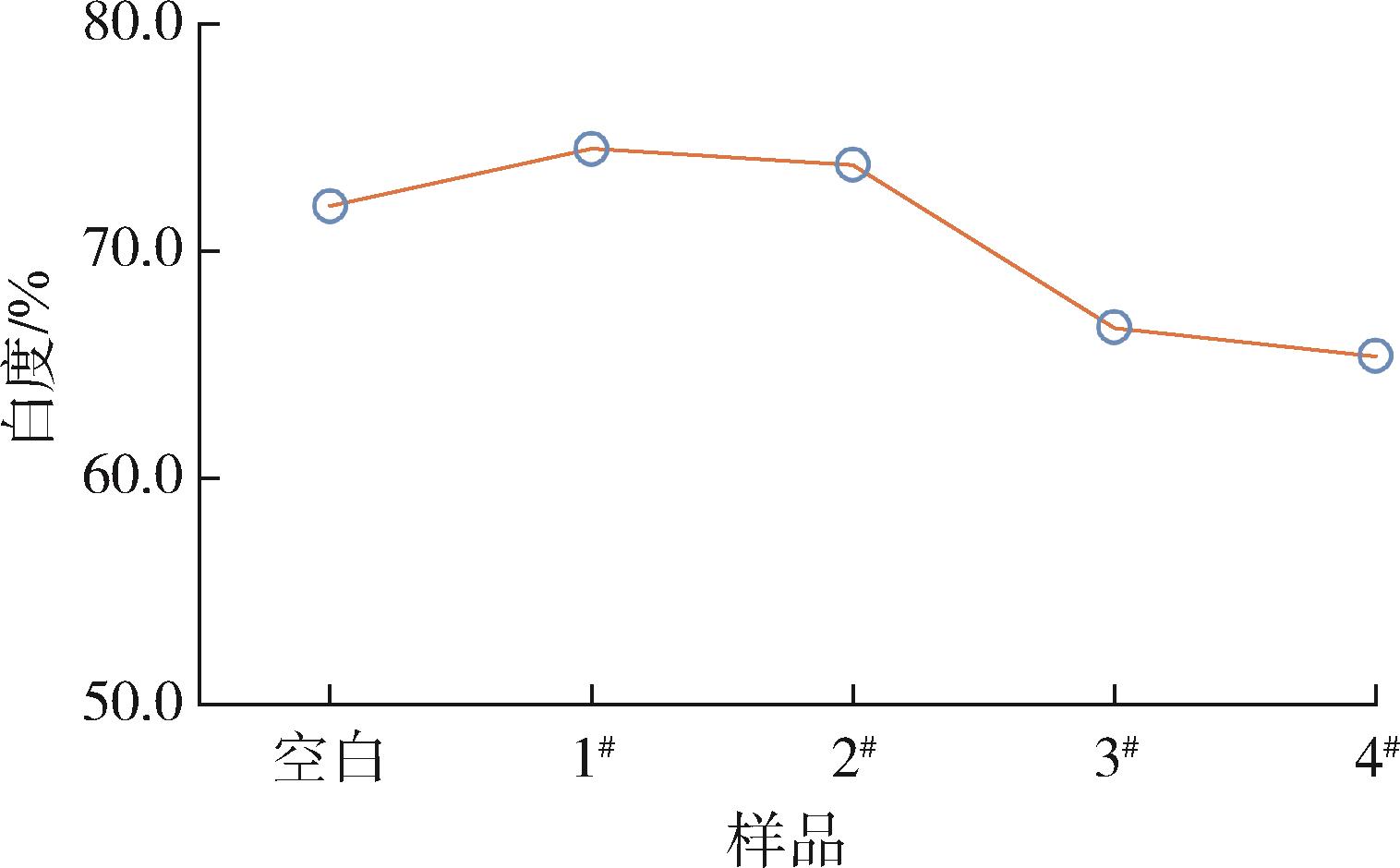

Fig.3. Test result of whiteness

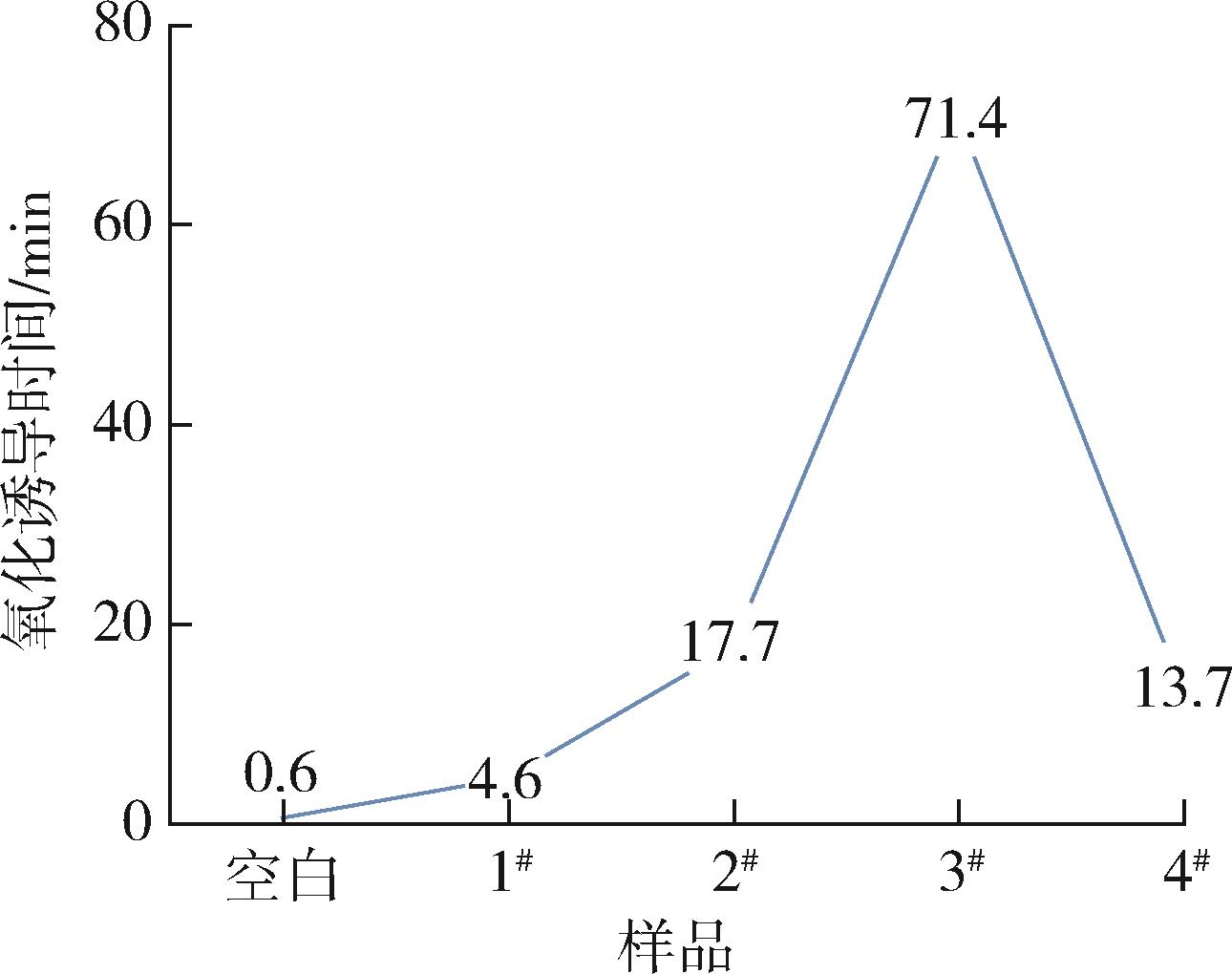

Fig.4. Oxidation induction time after primary extrusion

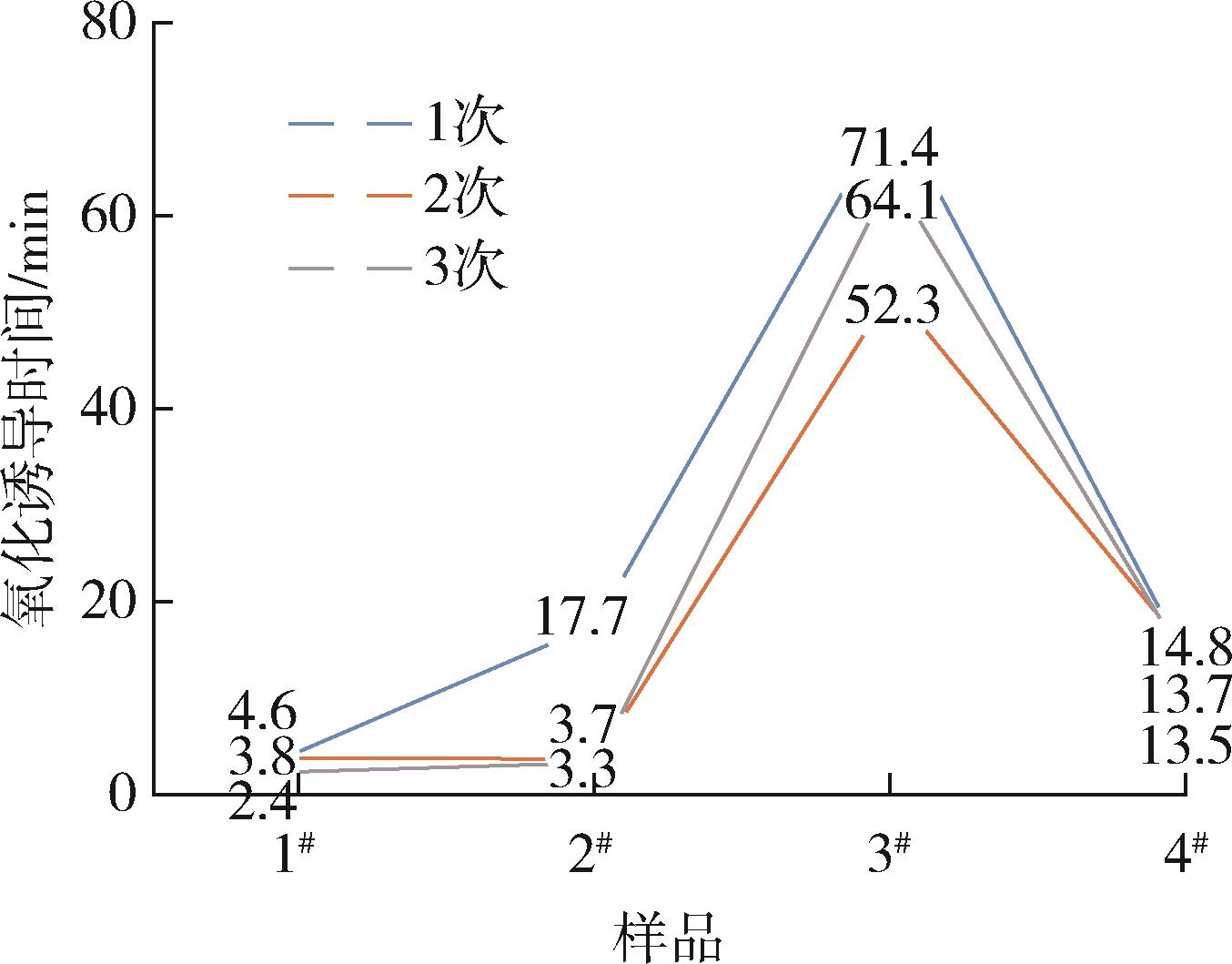

Fig.5. Oxidation induction time after multiple extrusion

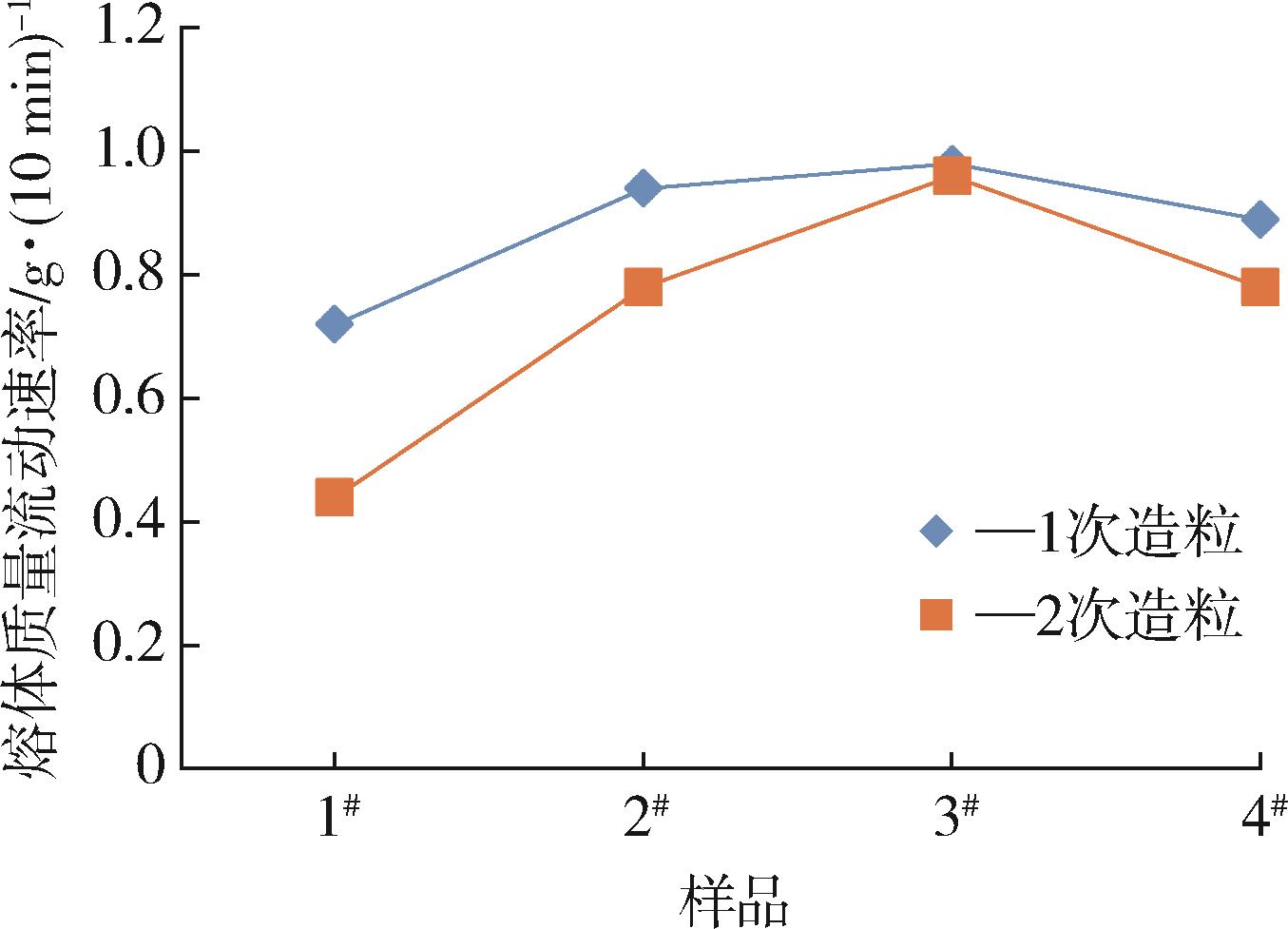

Fig.6. Melt mass flow rate after extrusion

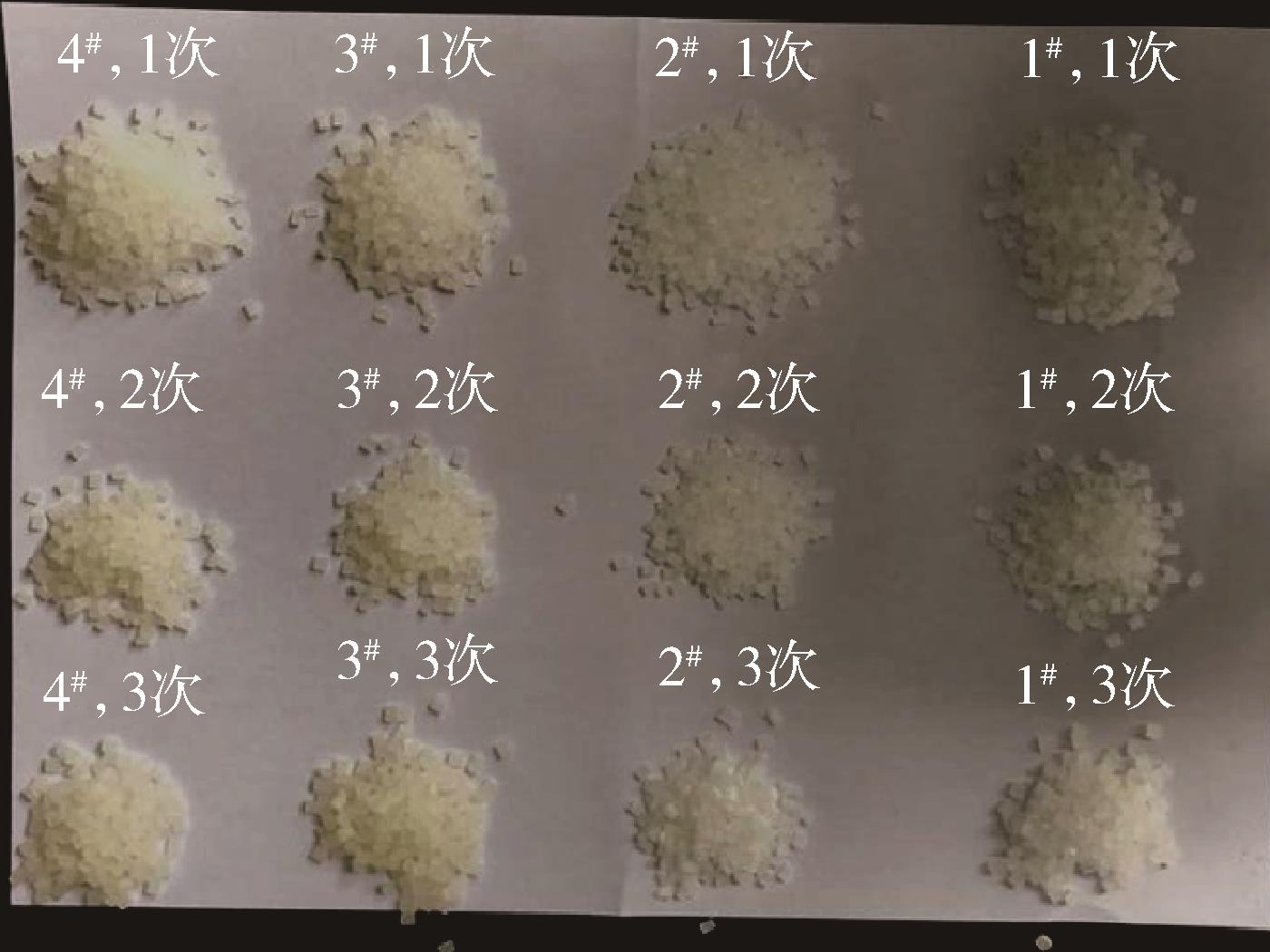

Fig.7. Particle color after multiple extrusion

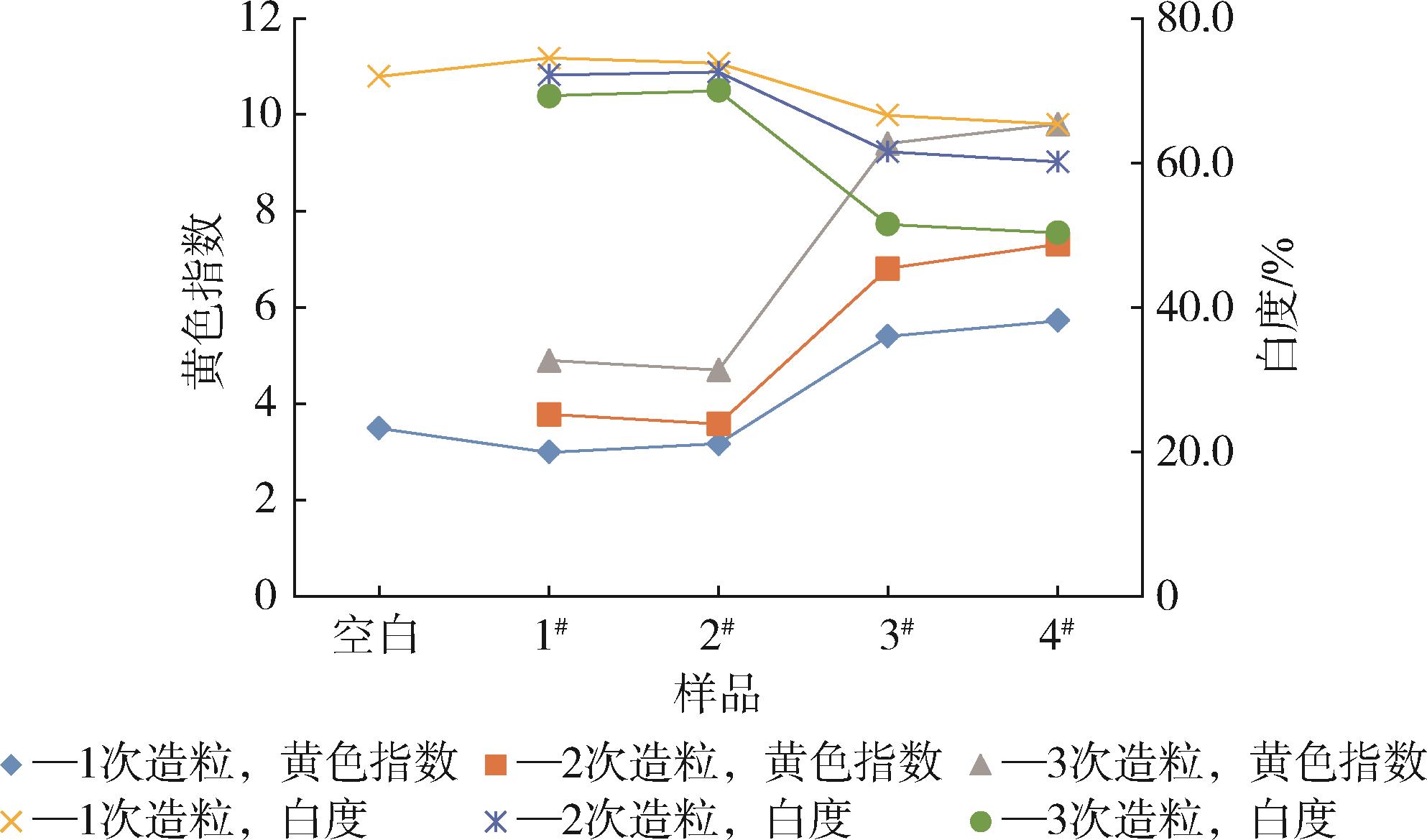

Fig.8. Yellow index and whiteness after multiple extrusion

样品编号	1010含量/%	168含量/%	HA含量/%	A含量/%
14^＃	-	-	-	0.2
15^＃	0.05	0.10	0.05	-
16^＃	0.03	0.06	0.03	-
空白	-	-	-	-

Tab.2. Formulation design

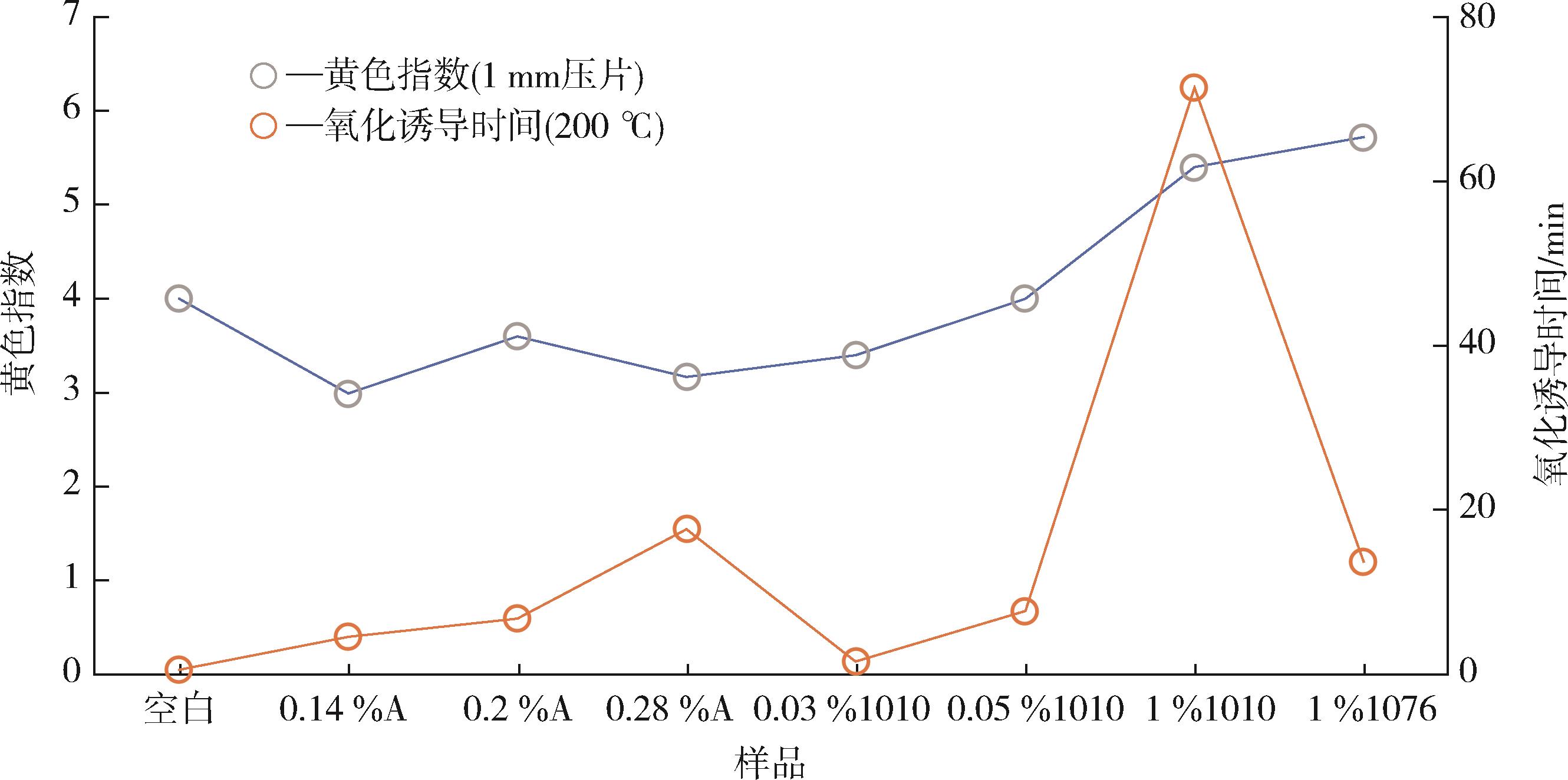

Fig.9. Oxidation induction time and yellow index of different formulations
