Study on Plasticization Performance of Micro Injection Molding Machine with Disc Screw

doi:10.19491/j.issn.1001-9278.2021.05.018

Abstract

Abstract:

The plasticizing process of a rotating disc screw in the disc-screw micro injection molding machine was simula-ted by using the COMSOL Multiphysics finite element simulation software. The phase change of polymer flow and the heat transfer in the cavity were analyzed during the rotation of the screw. The analysis and simulation results indicated that the heating temperature had greater impact on the plasticizing performance under the premise of the same screw structure， and however the rotate speed had a smaller impact on the plasticizing performance. Base on these simulation results， this paper provides a reference for the structural optimization of the disc screw.

Key words: finite element simulation, micro injection molding, plasticization, disc screw

CLC Number:

TQ320.66

KONG Xiaoya, ZHANG Xiang, ZHU Jianxiao, HOU Chuanyu, GUAN Guotao, YAN Zhenhao, LI Qian. Study on Plasticization Performance of Micro Injection Molding Machine with Disc Screw[J]. China Plastics, 2021, 35(5): 113-118.

Figures/Tables 10

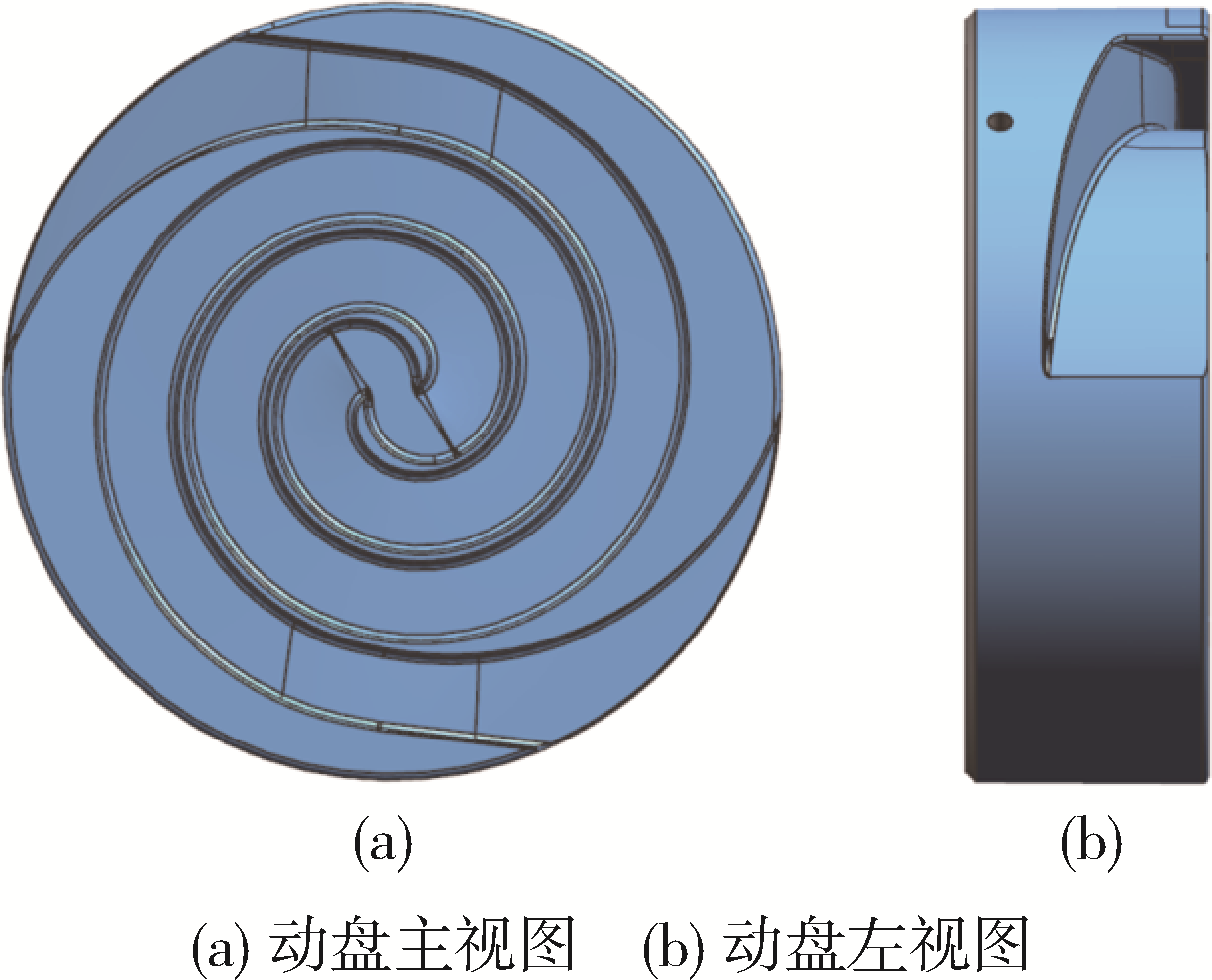

Fig.1. The geometry of the moving disc

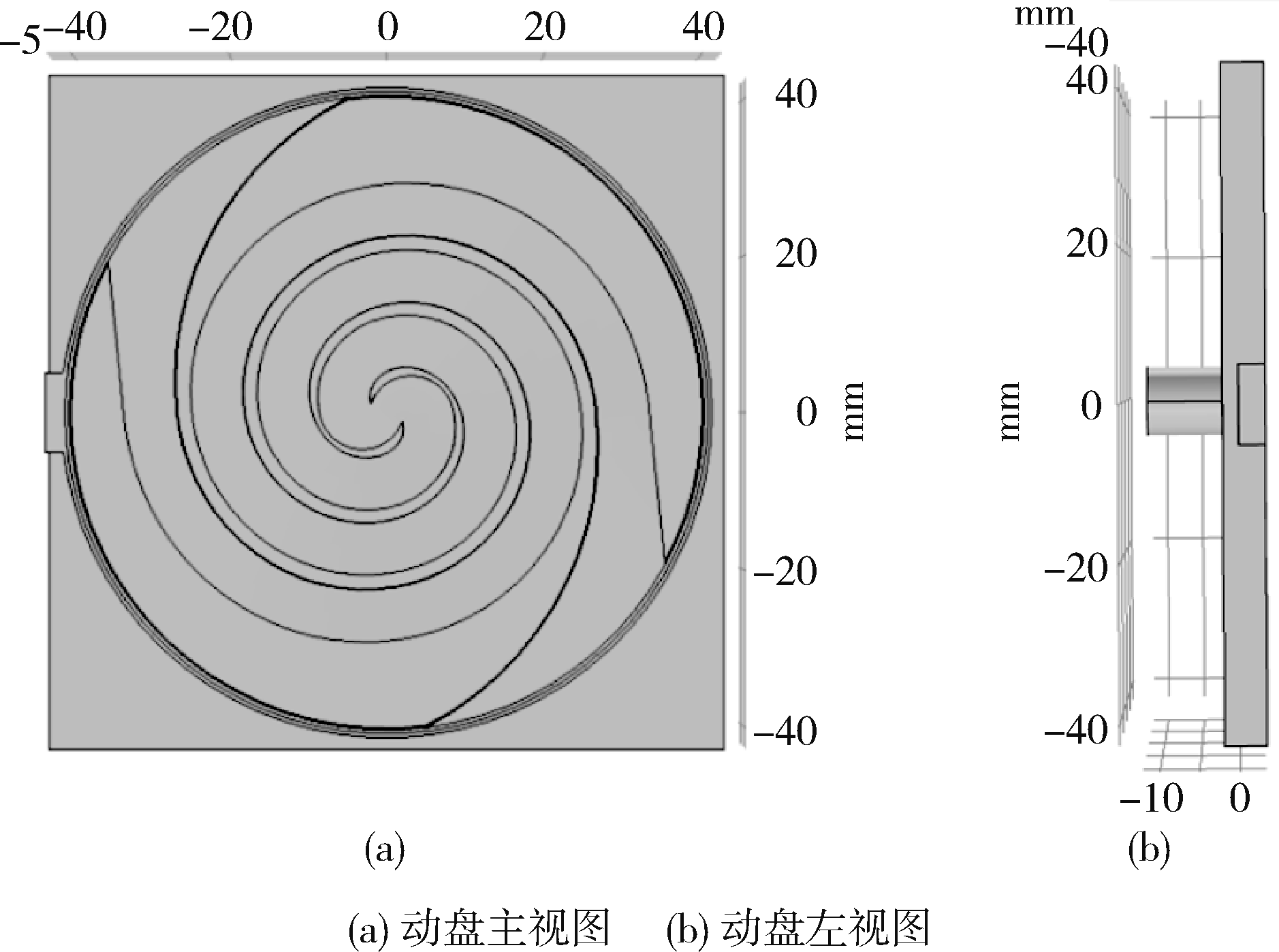

Fig.2. Finite element model

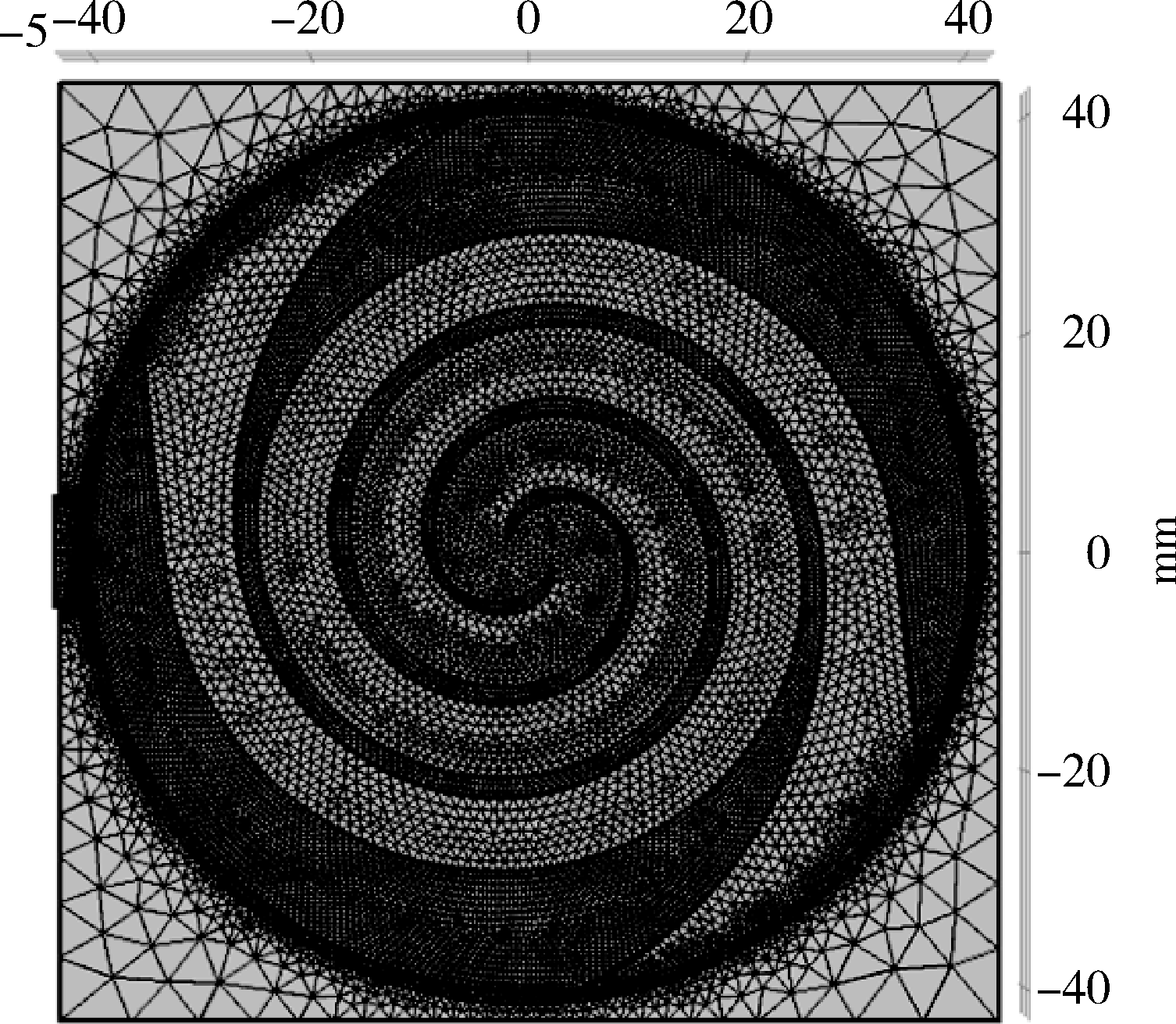

Fig.3. Meshing model

工艺参数	转速/r·s^-1	温度/℃
1	10	180
2	20	190
3	30	200
4	40	210
5	50	220
6	60	230
7	70	240
8	80	250

Tab.1. Process parameters

Fig.4. Fluid flow velocity

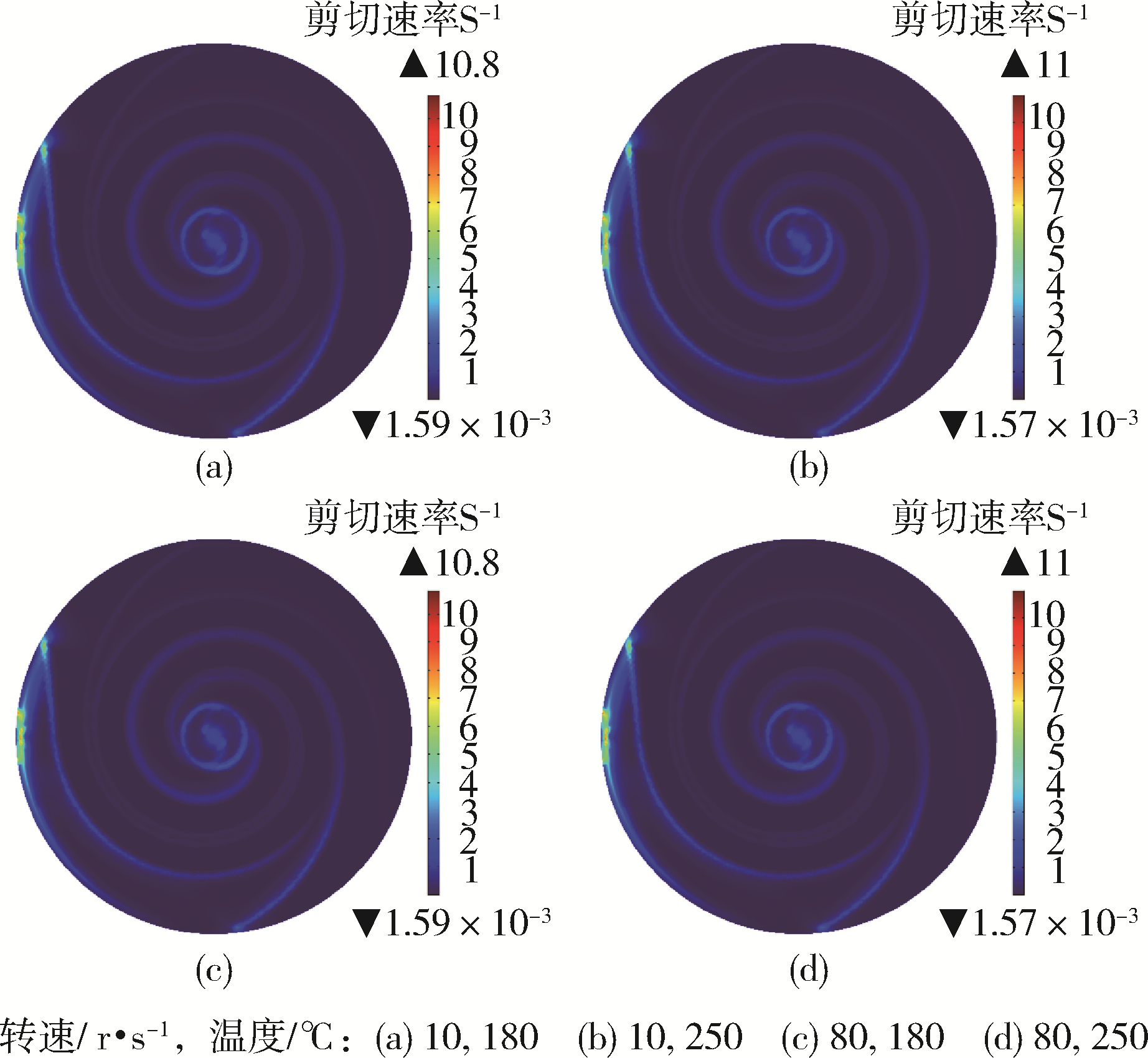

Fig.5. Fluid shear rate

Fig.6. Fluid pressure distribution

Fig.7. Fluid phase transition distribution

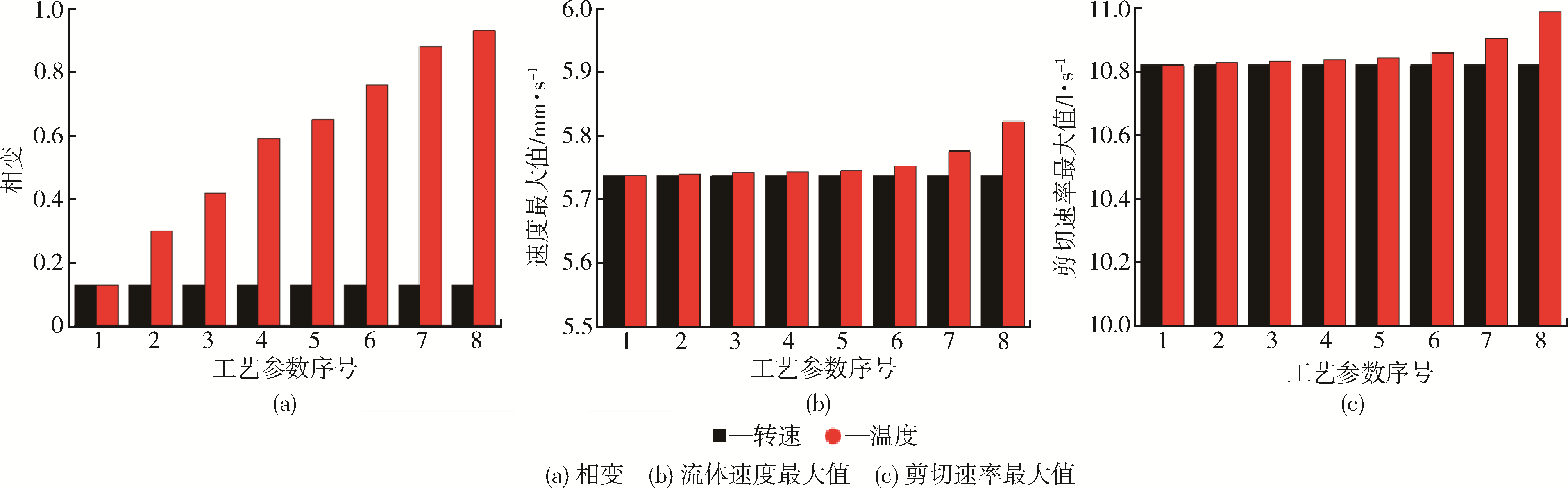

Fig.8. Effects of process parameters on phase transition, velocity and shear rate

References 18

1	王凯，张亚军，金志明，等. 微型注塑机研究进展［J］. 现代塑料加工应用， 2019， 31（5）：61⁃64.
	WANG K， ZHANG Y J， JIN Z M， et al. Research Pro⁃gress of Micro Injection Molding Machine［J］. Modern Plastics Processing and Applications， 2019， 31（5）：61⁃64.
2	徐正立，林承洋，黄金凤. 碟式塑化之微小成形机之原理与实务应用［C］//先进成型与材料加工技术国际研讨会. 先进成型技术学会，华中科技大学， 2010.
3	浙江大学. 注射与塑化轴线成直角的微型注塑机：CN201611046303.2［P］. 2017⁃05⁃10．
4	株式会社新兴塞尔比克.注塑成型装置及注塑成型装置用蜗形轮盘：CN200580009544.3［P］.2005⁃03⁃24．
5	株式会社新兴塞尔比克．注射成型机的螺旋件：201130050318.8［P］.2011⁃03⁃17．
6	YANKOV V I， MAKAROV V A. Isothermal Flow of a Non⁃Newtonian Fluid Through the Channel of a Volute⁃type Disk Pump under Conditions of Complex Shear［J］. Journal of Engineering Physics， 1981， 40：133⁃138.
7	KREIN H L ， PLUMTREE A ， RUDIN A. Hydrodynamic Analysis of Negative Flow in a Spiral Disc Extruder［J］. Polymer Engineering & Science， 1985， 25（10）：596⁃603.
8	KREIN H L ， PLUMTREE A ， RUDIN A. Hydrodynamic Analysis of a Spiral Disc Extruder［J］. Polymer Engineering & Science， 1985， 25（10）：589⁃595.
9	胡秀吉，朱复华. 用端面阿基米德螺槽代替螺杆输送熔融塑料的可行性估计［J］. 北京化工学院学报， 1987， 14（2）：53⁃64.
	HU X J， ZHU F H. The Possibility of Using Archimedean Channel for Conveying Melting Polymers［J］. Journal of Beijing Institute of Chemical Technology， 1987， 14（2）：53⁃64.
10	吕富珍. 微成型碟式塑化单元的数值模拟及其应用研究［D］. 杭州：浙江大学，2017.
11	毛晨. 端面螺杆物料输送特性仿真研究及熔体输送阶段参数优化设计［D］. 杭州：浙江大学，2018.
12	张洪波，鉴冉冉，林士冬，等. 注塑机塑化能力影响因素研究［J］. 中国塑料， 2016， 30（2）：99⁃103.
	ZHANG H B， JIAN R R， LIN S D， et al. Study on Influencing Factors of Plasticizing Capacity of Injection Molding Machines［J］. China Plastics， 2016， 30（2）：99⁃103.
13	李翱，江波，许澍华. 串联式磨盘螺杆挤出机设计原理［J］. 塑料， 2004， 33（2）：83⁃86.
	LI H， JIANG B， XU P H. Design Principles of Series Disc⁃screw Extruder［J］. Plastics， 2004， 33（2）：83⁃86.
14	牟文杰. 关于盘式组合挤出机的理论分析［J］. 中国塑料， 1997， 11（6）：77⁃81.
	MU W J. Theoretical Analysis on Diskpack Extruder［J］. China Plastics， 1997， 11（6）：77⁃81.
15	喻选，辛勇. 聚合物剪切流变特性及其结晶行为研究［J］. 塑料工业， 2017， 45（12）：74⁃77，95.
	YU X， XIN Y. Study on the Rheological Properties and Crystallization Behavior of Polymer［J］. China Plastics Industry， 2017， 45（12）：74⁃77， 95.
16	张劲军，张帆，黄启玉，等. 绝热搅拌槽内流体平均剪切速率的一种计算方法［J］. 工程热物理学报， 2002， 23（6）：703⁃706.
	ZHANG J J， ZHANG F， HUANG Q Y， et al. An App⁃roach to Estimating the Average Shear Rate in an Adiabatic Stirred Vessel［J］. Journal of Engineering Thermophysics， 2002， 23（6）：703⁃706.
17	宋本生，辛勇. 熔体温度对聚丙烯注塑制品结晶和力学性能的影响［J］. 塑料工业， 2016， 44（3）：59⁃62.
	SONG B S， XIN Y. Effect of Melt Temperature on the Crystallization and Mechanical Properties of Polypropy⁃lene Injection Product［J］. China Plastics Industry， 2016， 44（3）：59⁃62.
18	徐涛，于杰，金志浩. 熔体流动性对聚丙烯材料结晶度和力学性能的影响［J］. 中国塑料， 2000， 14（5）：29⁃31.
	XU T， YU J， JIN Z H. Effect of Melt Flowability on Crystallinity and Mechanical Properties of Polyprooylene［J］. China Plastics， 2000， 14（5）：29⁃31.
