Study on Relationship between Molecular Orientation and Dynamic Viscoelasticity of Polycarbonate

doi:10.19491/j.issn.1001-9278.2021.09.013

Abstract

Abstract:

Bisphenol?A polycarbonate （PC） plates were prepared through precision injection molding. Based on the relationship between residual flow?induced stresses and molecular orientation， an optical birefringence method was used to investigate the average molecular orientation of the PC plates， and their dynamic mechanical properties were also studied. The experimental results indicated that the plate samples near the gate had a larger molecular orientation than those far from the gate. There is a certain relationship between the orientation and dynamic viscoelasticity. When the loss modulus （tan δ） was selected to be 1， the larger the birefringence， the smaller the dynamic viscosity. This means that the samples with large orientation have small viscosity. When the storage modulus at the end of the glassy platform was selected， the elasticity of the PC plates increased with an increase in orientation， although the dependency was not obvious due to the interference from free volume.

Key words: polycarbonate, molecular orientation, viscoelasticity, storage modulus, loss modulus

CLC Number:

TQ323.4⁺1

LUO Fei, LI Cuijuan, LIU Zhuojia, LIU Yuxin, SHI Suyu, DANG Xudan, LIU Chuntai, ZHAO Yongtao. Study on Relationship between Molecular Orientation and Dynamic Viscoelasticity of Polycarbonate[J]. China Plastics, 2021, 35(9): 81-86.

Figures/Tables 9

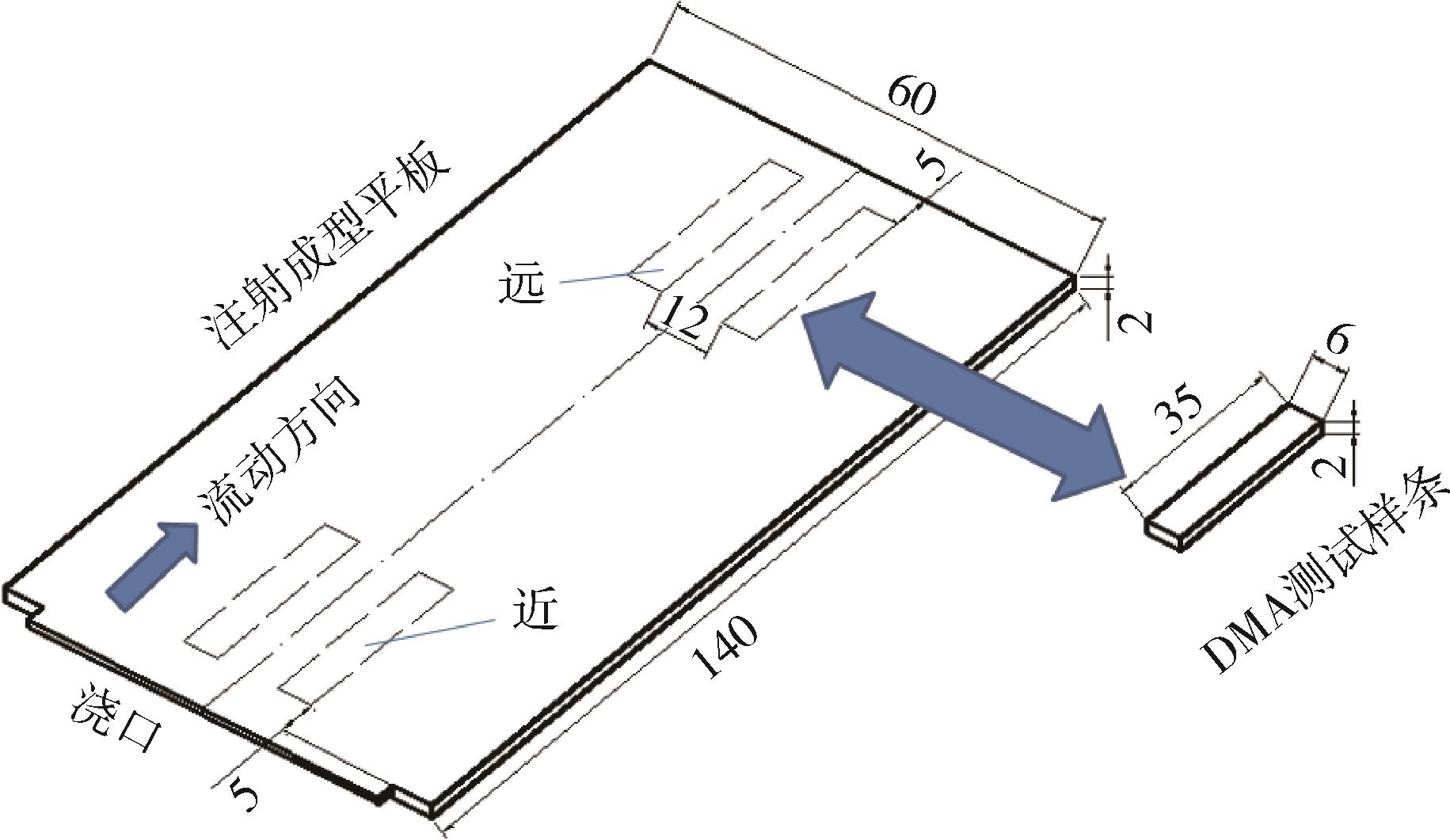

Fig.1. Schematic diagram of the PC samples for DMA and birefringence measurement.

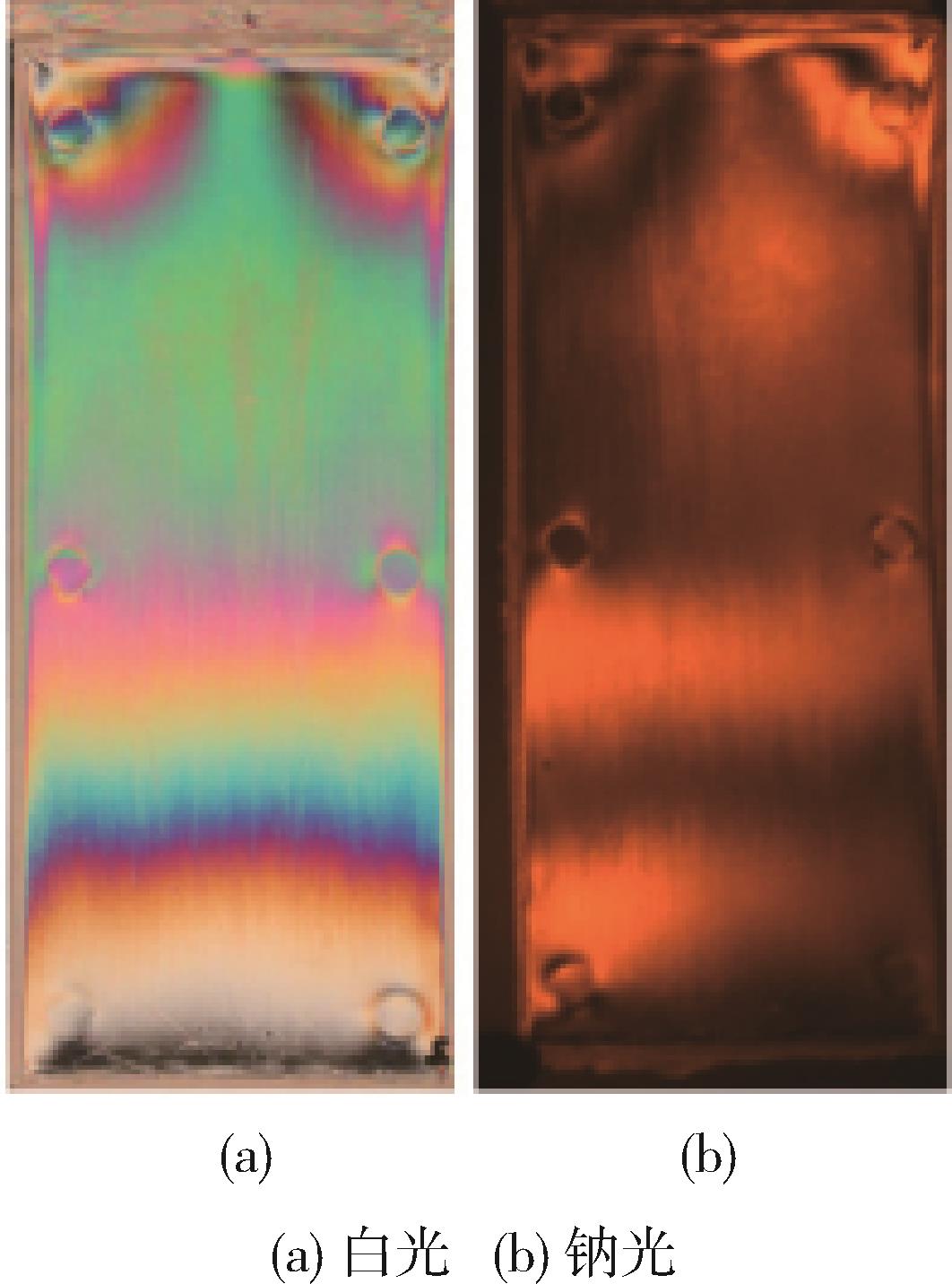

Fig.2. The typical birefringence image of PC molded plates

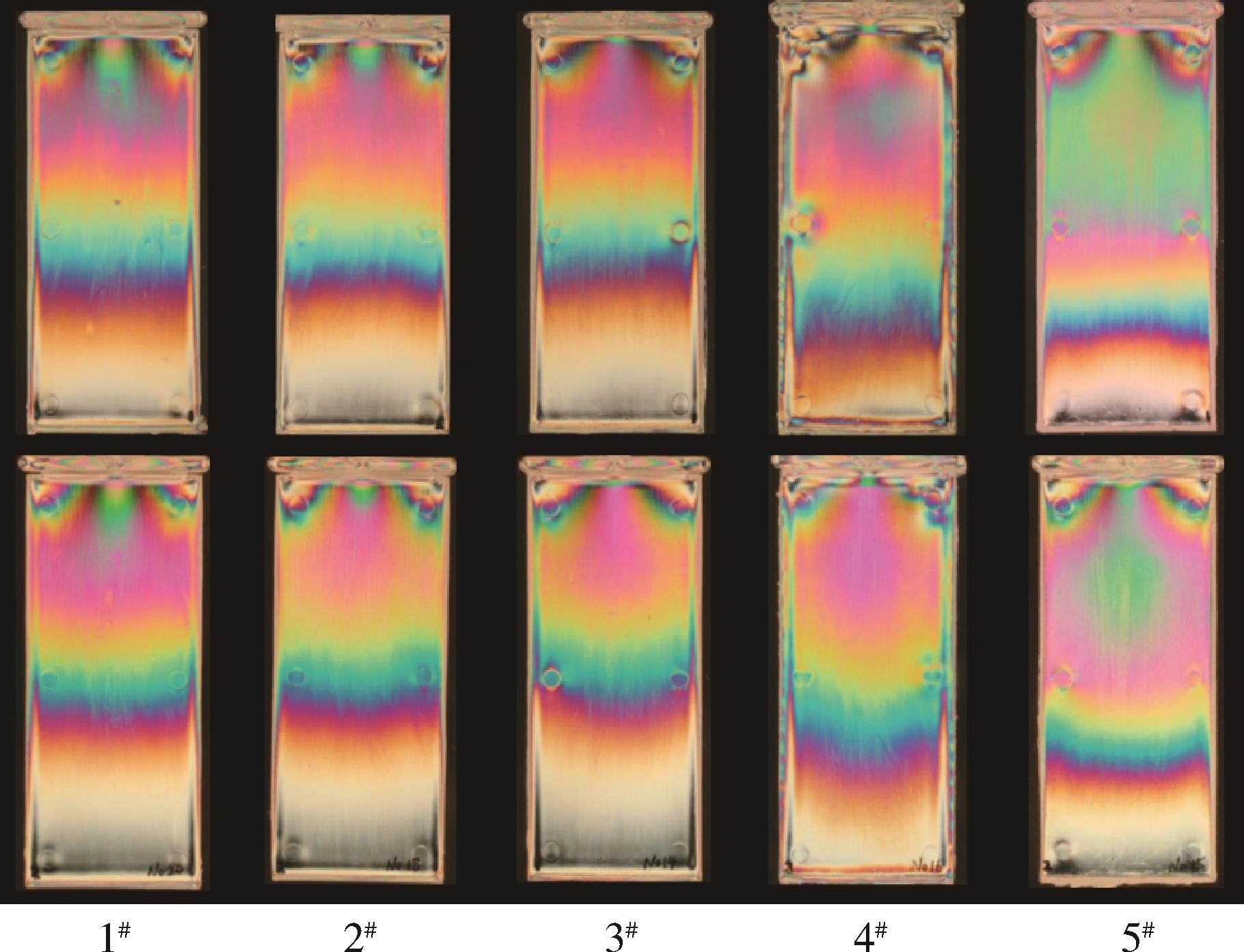

Fig.3. The planar birefringence of PC molded plates

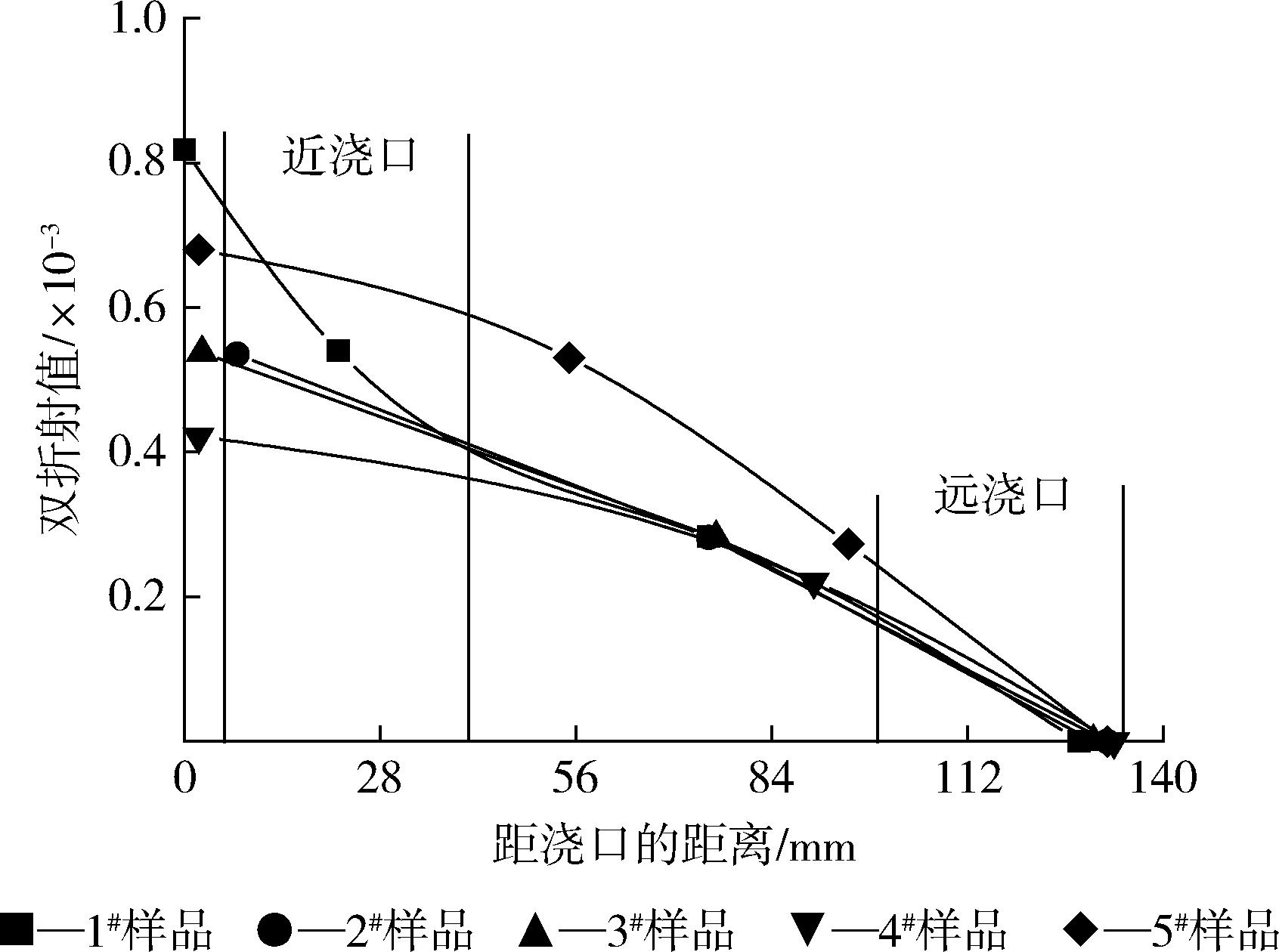

Fig.4. The planar birefringence of PC molded plates

Fig.5. The temperature dependent of loss modulus and tanδ curves of PC samples

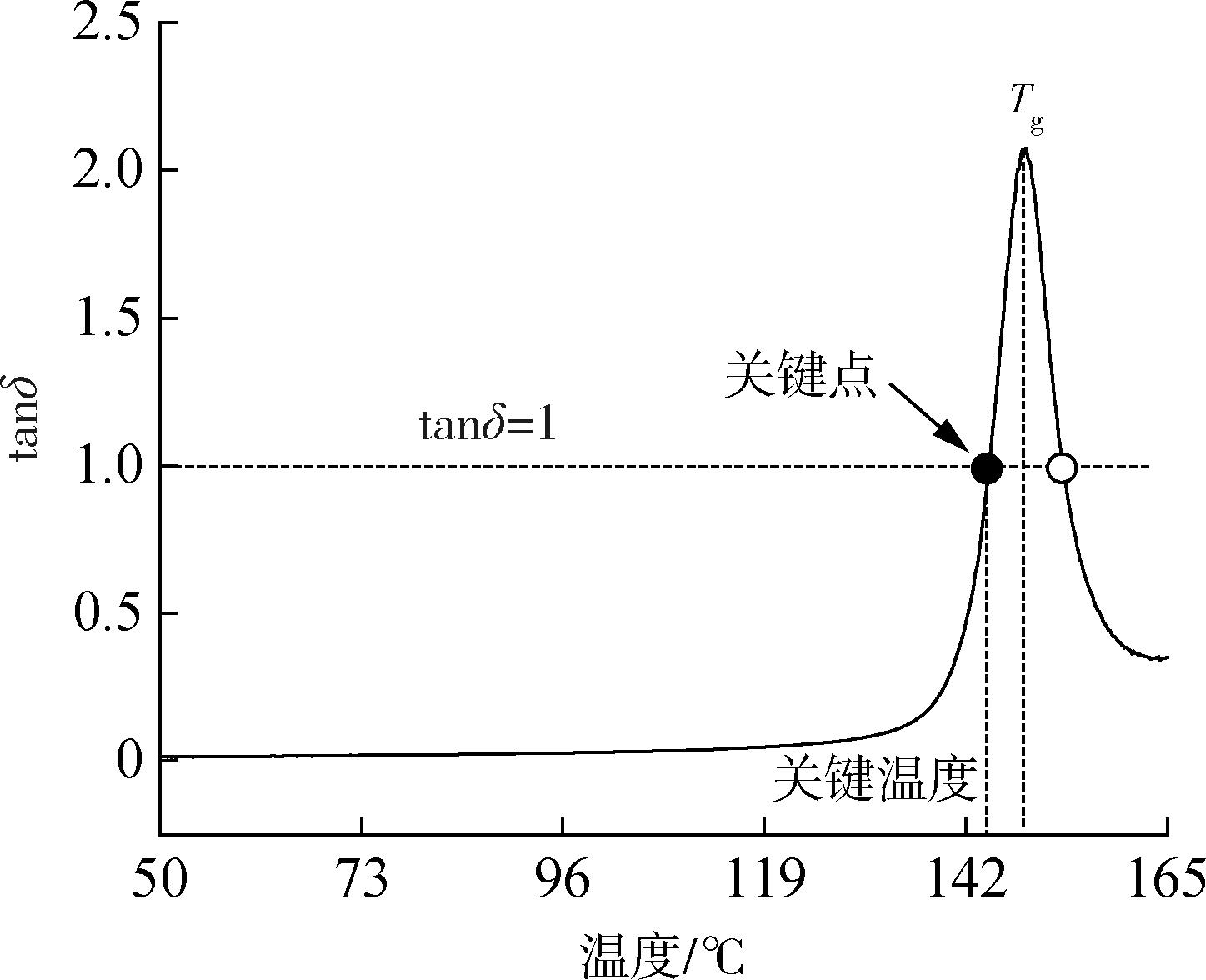

Fig.6. Typical tanδ?temperature curve and the threshold point of PC

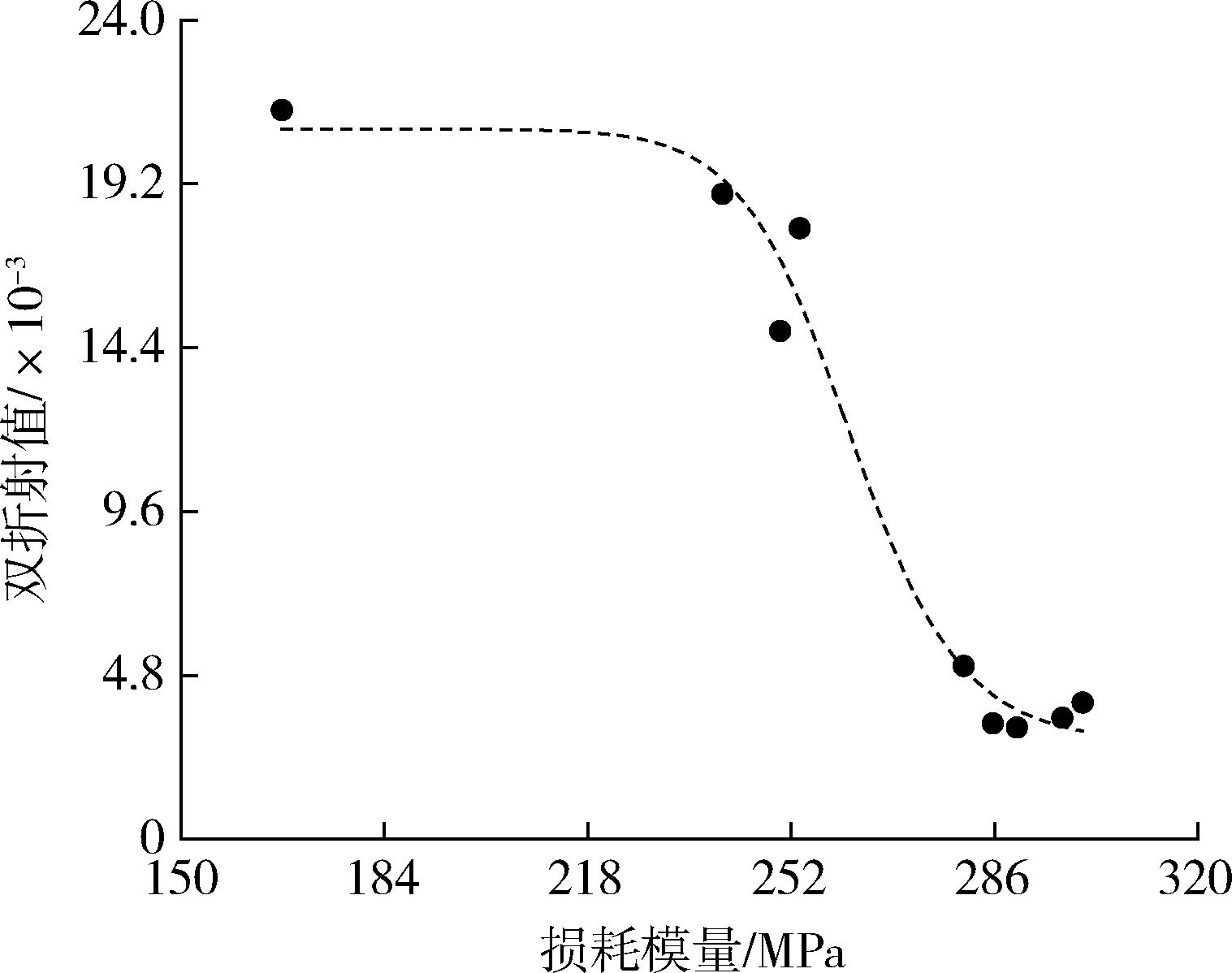

Fig.7. The relationship between birefringence and loss modulus of PC molded samples

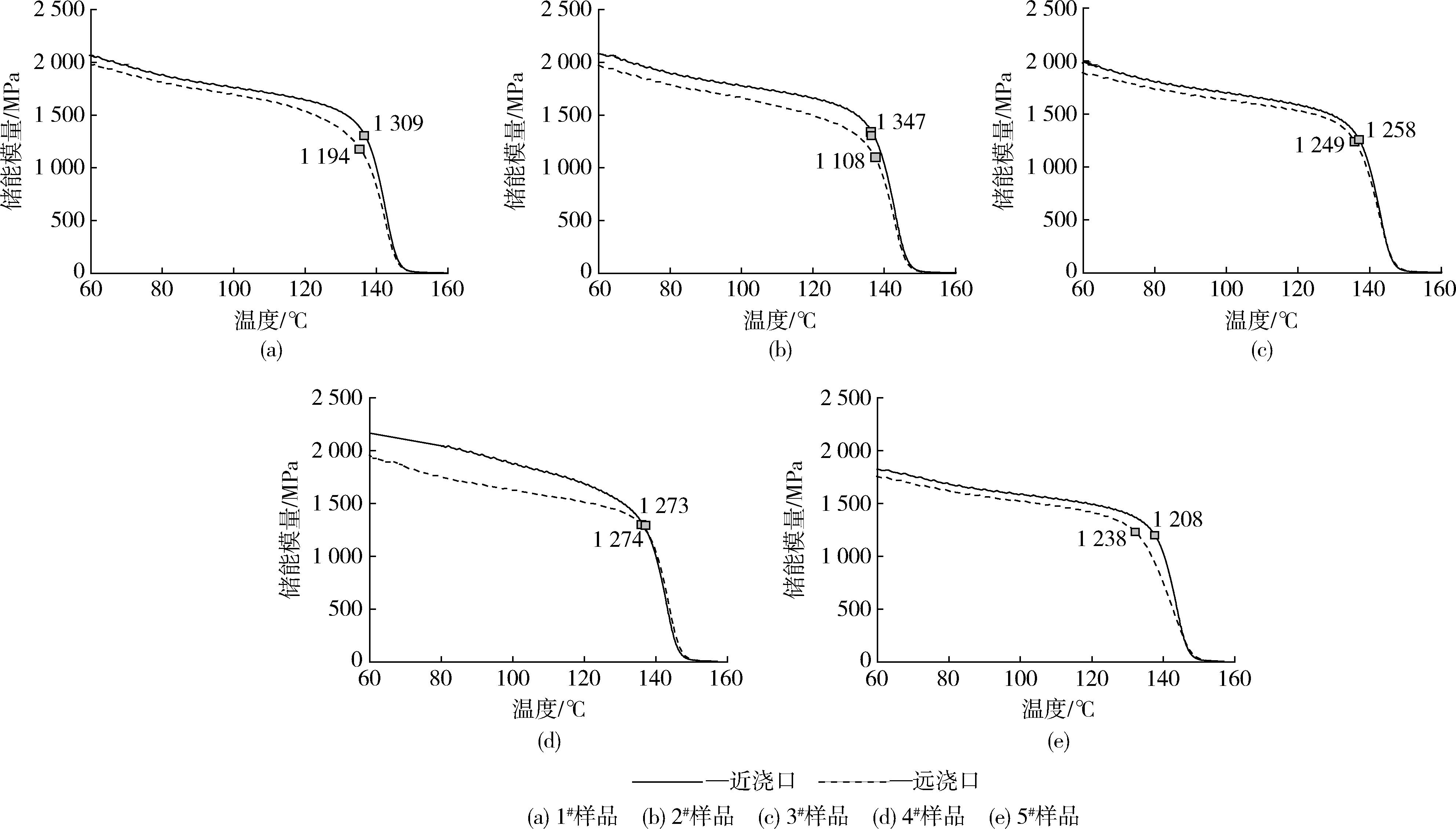

Fig.8. The temperature dependent of storage modulus curves of PC samples

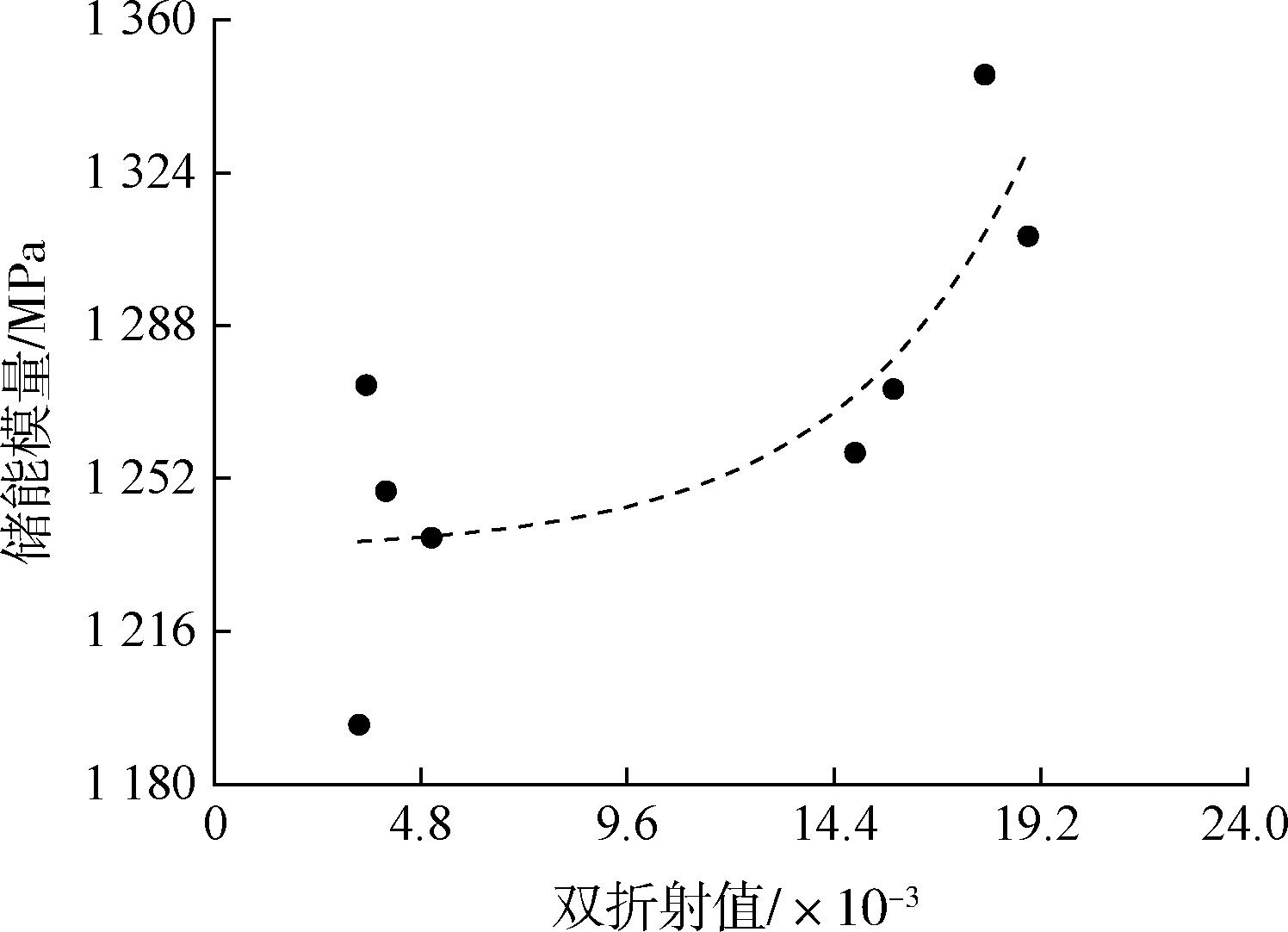

Fig.9. The relationship between birefringence and storage modulus of PC molded sample

References 15

1	NARAYAN S， ANAND L. Fracture of Amorphous Polymers： A Gradient⁃Damage Theory［J］. Journal of the Mechanics and Physics of Solids， 2021， 146：104164.
2	XU Y， WAN W ， DUNNE F P E. Microstructural Fracture Mechanics： Stored Energy Density at Fatigue Cracks［J］. Journal of the Mechanics and Physics of Solids， 2021， 146： 104209.
3	HUSZAR M， BELBLIDIA F， DAVIES H M， et al. Sustainable Injection Moulding： The Impact of Materials Selection and Gate Location on Part Warpage and Injection Pressure［J］. Sustainable Materials and Technologies， 2015， 5（1）： 1⁃8.
4	赵苗，辛勇.注塑制品翘曲变形的研究进展［J］. 中国塑料， 2012， 26（4）： 66⁃71.
	ZHAO M， XIN Y. Research Progress in Warpage of Injection Molded Parts［J］. China Plastics， 2012， 26（4）： 66⁃71.
5	李艳辉，高玉波.聚碳酸酯在高应变率下的动态力学性能研究［J］. 兵器装备工程学报， 2019， 40（10）： 195⁃199.
	LI Y H， GAO Y B. Study on Dynamic Mechanical Properties of Polycarbonate at High Strain Rates［J］. Journal of Ordnance Equipment Engineering， 2019， 40（10）： 195⁃199.
6	王江波，高光发，杜忠华，等. 一种弹芯用聚碳酸酯的动态力学性能研究及本构关系［J］. 振动与冲击， 2019， 38（5）： 7⁃12.
	WANG J B， GAO G F， DU Z H， et al. Dynamic State Performance and Constitutive Relation of Polycarbonate for Bullet Cores［J］.Journal of Vibration and Shock， 2019， 38（5）： 7⁃12.
7	彭浩轩，牟让科，葛宇静，等. 聚碳酸酯/丙烯腈⁃丁二烯⁃苯乙烯材料中低应变率动态拉伸力学性能［J］. 科学技术与工程， 2020， 20（10）： 3 823⁃3 827.
	PENG H X， MOU R K， GE Y J， et al. Dynamic Tensile Mechanical Proerty of PC/ABS Material under Medium and Low Strain Rates［J］. Science Technology and Engineering， 2020， 20（10）： 3 823⁃3 827.
8	CHO K S， KIM J W， BAE J， et al. Effect of Temporary Network Structure on Linear and Nonlinear Viscoelasticity of Polymer Solutions［J］. Korea ⁃ Australia Rheology Journal， 2015， 27（2）： 151⁃161.
9	KOLBUK D， SAJKIEWICZ P， KOWALEWSKI T A. Optical Birefringence and Molecular Orientation of Electrospun Polycaprolactone Fibers by Polarizing⁃Interference Microscopy ［J］. European Polymer Journal， 2012， 48（2）： 275⁃283.
10	李阳，赵朋，李德群，等. 三维塑料注射成形热残余应力及收缩模拟［J］.高分子材料科学与工程， 2010，26（10）：159⁃162.
	LI Y， ZHAO P， LI D Q， et al. 3D Simulation of Residual Thermal Stress and Shrinkage in Plastic Injection Molding［J］. Polymer Materials Science and Engineering， 2012， 48（2）： 275⁃283.
11	MARCHESE G， ATZENI E， SALMI A， et al. Microstructure and Residual Stress Evolution of Laser Powder Bed Fused Inconel 718 under Heat Treatments［J］. Journal of Materials Engineering and Performance， 2021， 30（1）： 565⁃574.
12	ISAYEV A I. Orientation Development in the Injection Molding of Amorphous Polymers ［J］. Polymer Engineering & Science， 1983， 23（5）： 271⁃284.
13	ROMO⁃URIBE A. On the Molecular Orientation and Viscoelastic Behaviour of Liquid Crystalline Polymers： The Influence of Macromolecular Architecture［J］. Proceedings Mathematical Physical & Engineering Sciences， 2001， 457（2005）： 207⁃229.
14	HERMANS J. The Viscosity of Concentrated Solutions of Rigid Rodlike Molecules （Poly⁃γ⁃Benzyl⁃L⁃Glutamate in M⁃Cresol）［J］. Journal of Colloid Science， 1962， 17（7）： 638⁃648.
15	李思良.塑料熔体压缩弹性及其振动的研究［J］. 中国塑料， 1999， 13（5）： 40⁃43.
	LI S L. Compress Elasticity and Oscillation of Melt［J］. China Plastic， 1999， 13（5）： 40⁃43.
