Study on Forming Process of 3D Printing Polymer Through Non⁃solvent Induced Phase Separation

doi:10.19491/j.issn.1001-9278.2021.11.011

Abstract

Abstract:

Based on the principle of non-solvent induced phase separation， a self-made controllable humidity and gas-assisted 3D printer was used to conduct the 3D printing of high-temperature-resistant special engineering plastics with a high precision and a low cost at ordinary temperatures. Taking polyetherimide as a special engineering plastic example， the effects of extrusion pressure， nozzle diameter， printing speed， relative humidity of printing environment， and printing layer on the forming quality were investigated. The results indicated that the width of extruded wire was related to the printing speed and relative humidity of the printing environment， and it decreased with an increase in printing speed and relative humidity. The printing layer height was related to the wire height of extrusion slurry. When the printing layer height was about equal to the wire height of extrusion slurry， the forming quality was optimal. The optimal printing parameters were obtained from a multilayer deposition experiment， achieving the green body with a good surface quality and a precision.

Key words: three-dimensional printing, non?solvent induced phase separation, polyetherimide, forming process

CLC Number:

TQ 323.7

ZHANG Liyan, GAO Lijie, MA Haopeng, MA Jubiao, YANG Weimin, JIAO Zhiwei, YU Yuan. Study on Forming Process of 3D Printing Polymer Through Non⁃solvent Induced Phase Separation[J]. China Plastics, 2021, 35(11): 71-76.

Figures/Tables 13

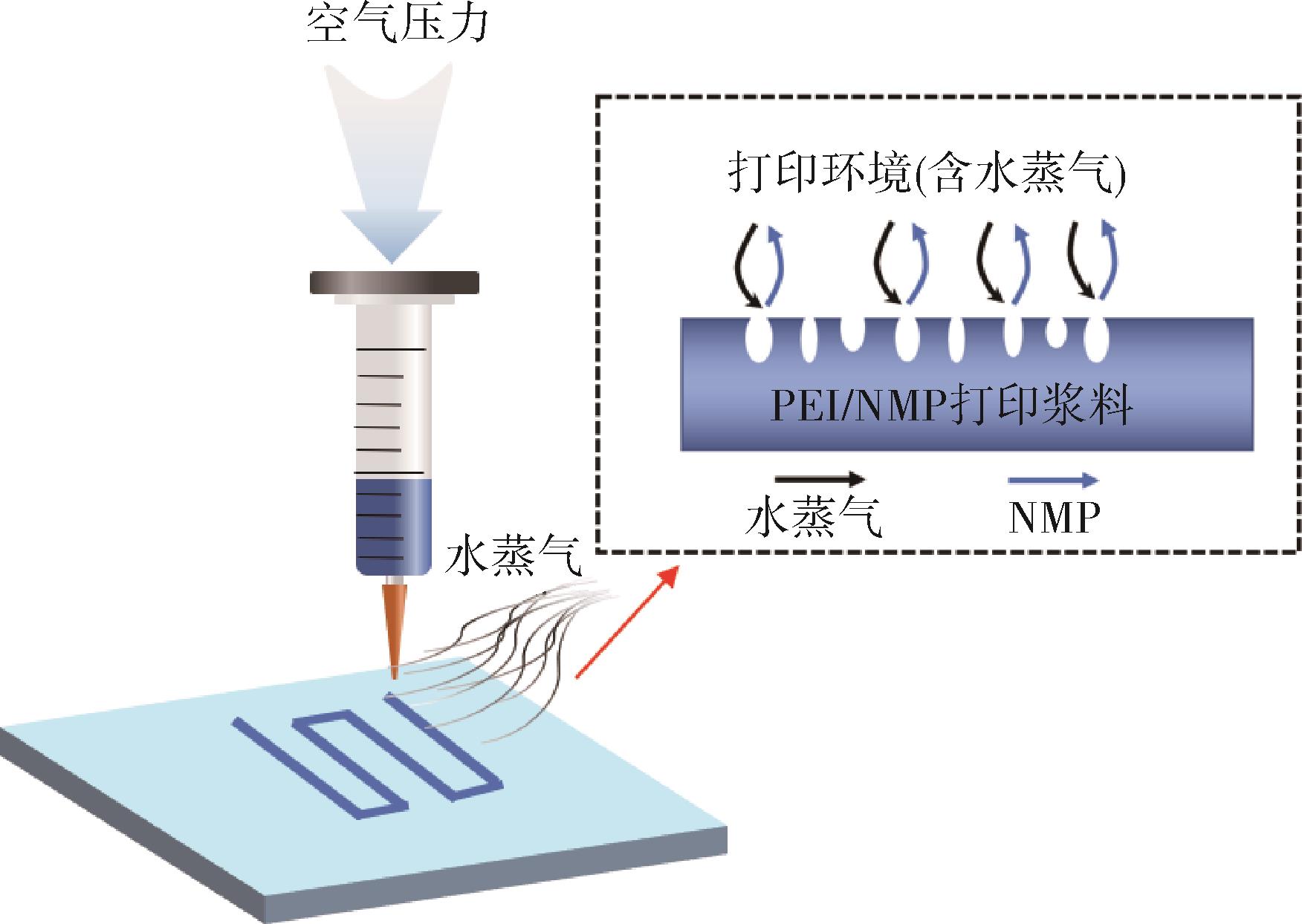

Fig.1. Schematic diagram of 3D printing principle of non?solvent induced phase separation

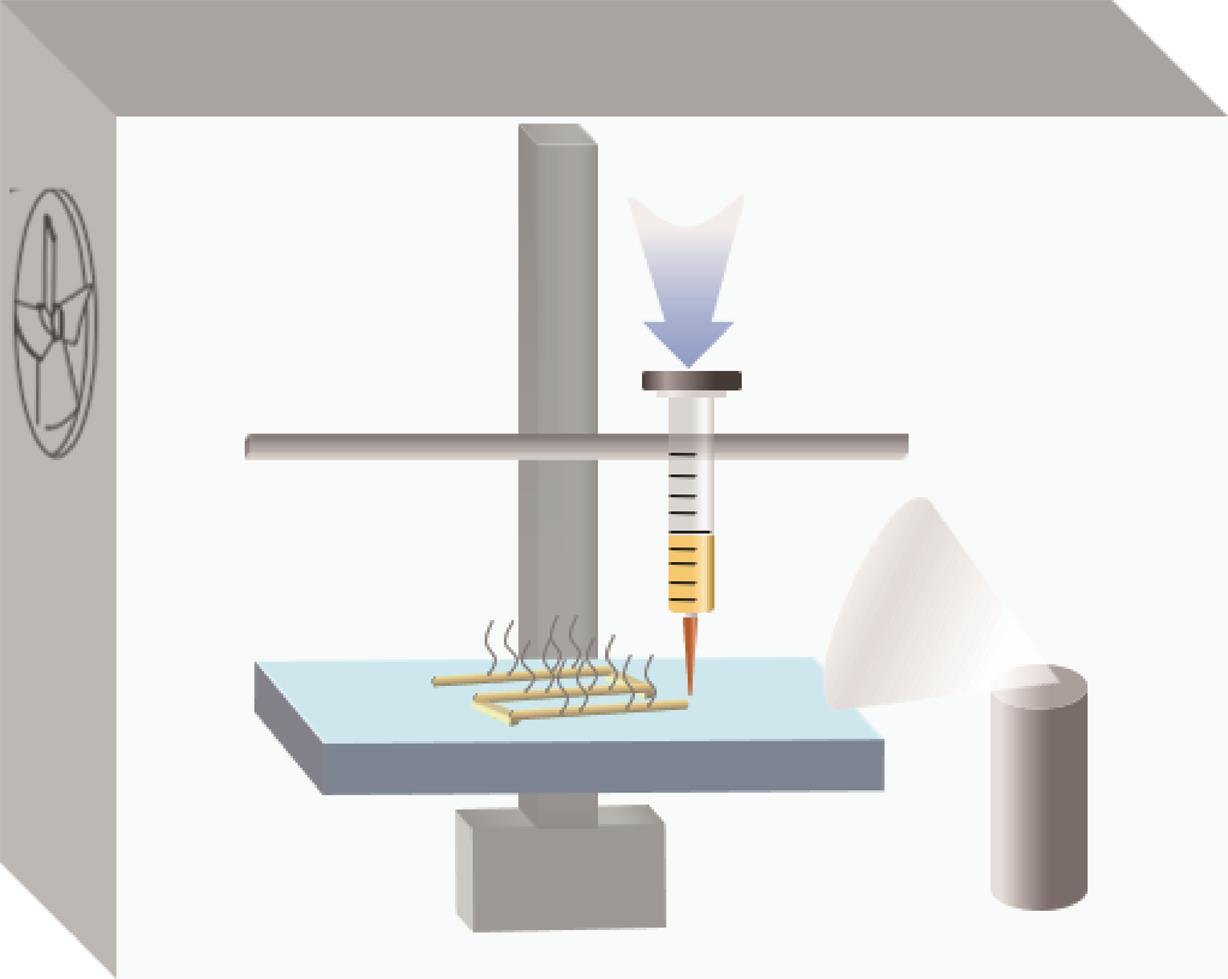

Fig.2. Schematic diagram of controllable humidity gas assisted 3D printer

喷头直径/ mm	挤出压力/MPa
喷头直径/ mm	0.1	0.2	0.3	0.4	0.5
0.41	0	0	0.001 0	0.001 9	0.003 7
0.60	0.000 9	0.002 1	0.004 3	0.007 6	0.010 6
0.84	0.003 3	0.007 0	0.011 6	0.016 7	0.022 5

Tab.1. Effect of extrusion pressure and nozzle diameter on slurry flow rate

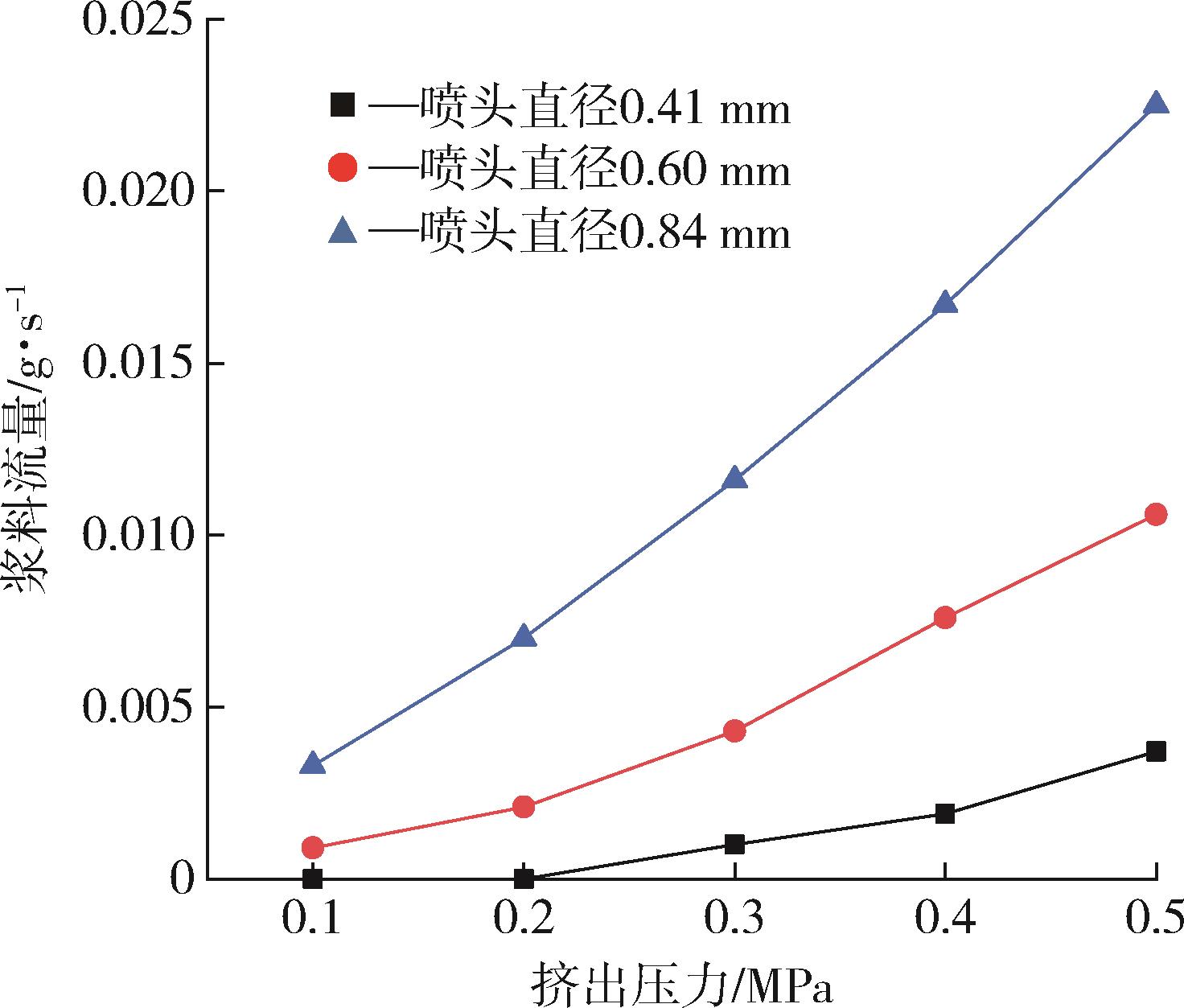

Fig.3. Relationship between extrusion pressure and nozzle diameter and slurry flow rate

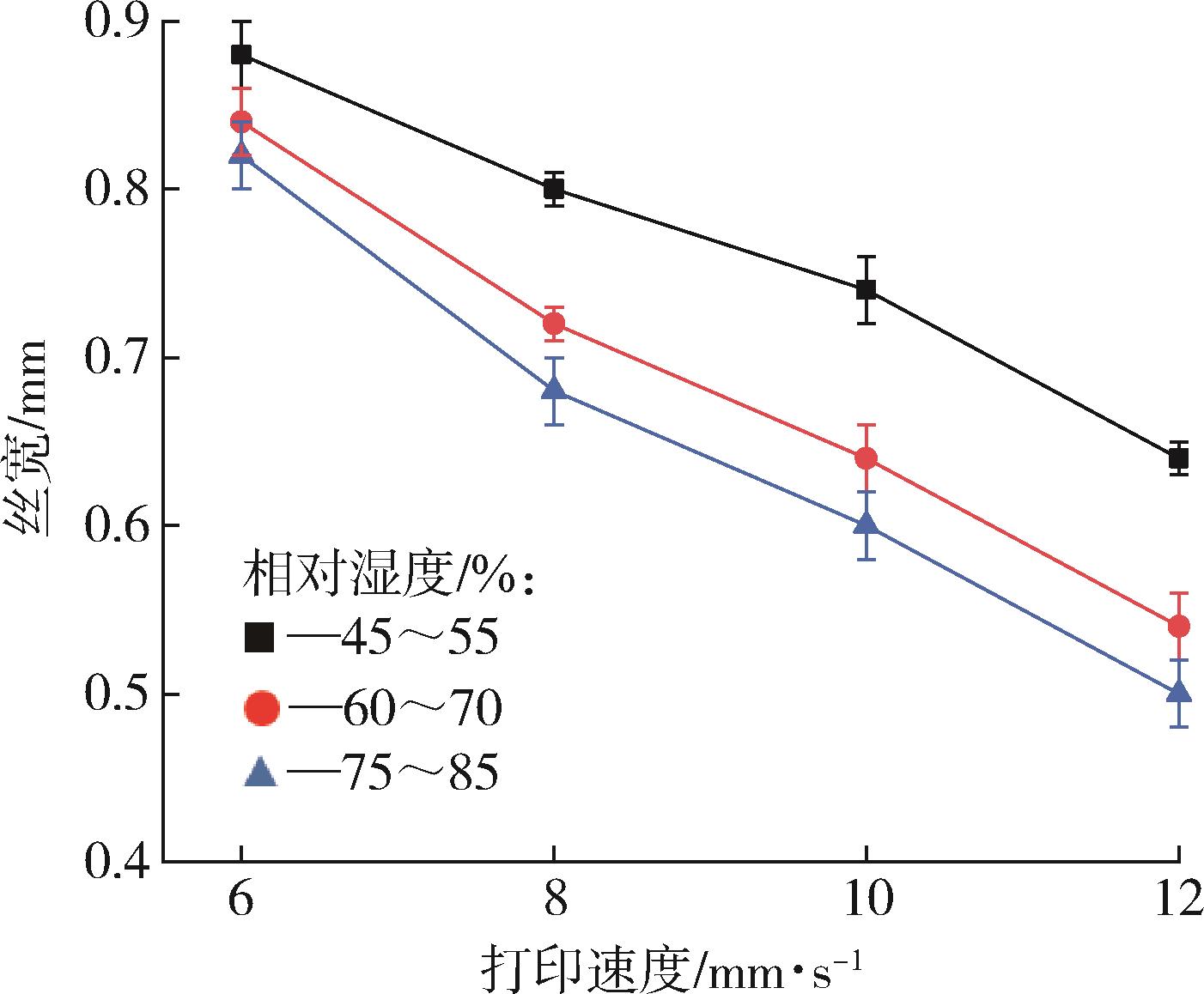

Fig.4. Effect of printing speed and environmental relative humidity on wire width

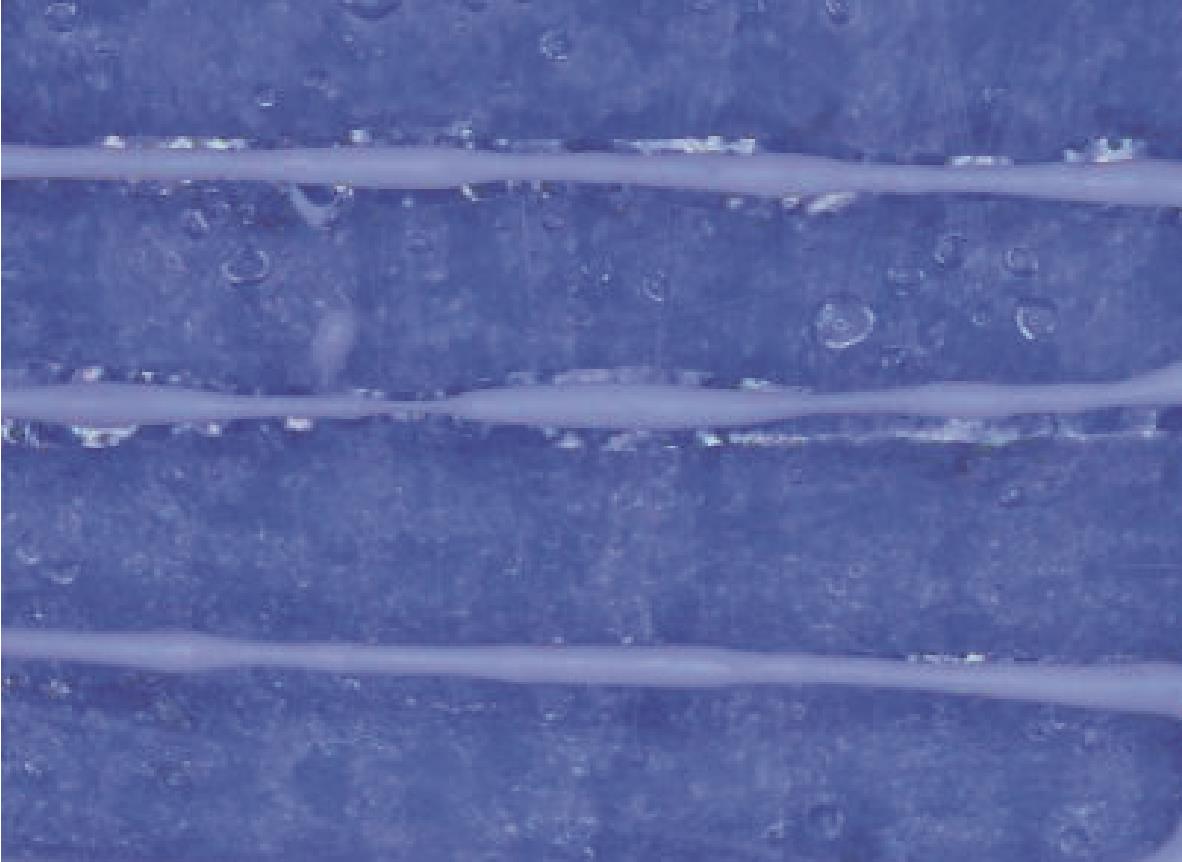

Fig.5. Deposition of PEI wire at printing speed greater than 12 mm/s

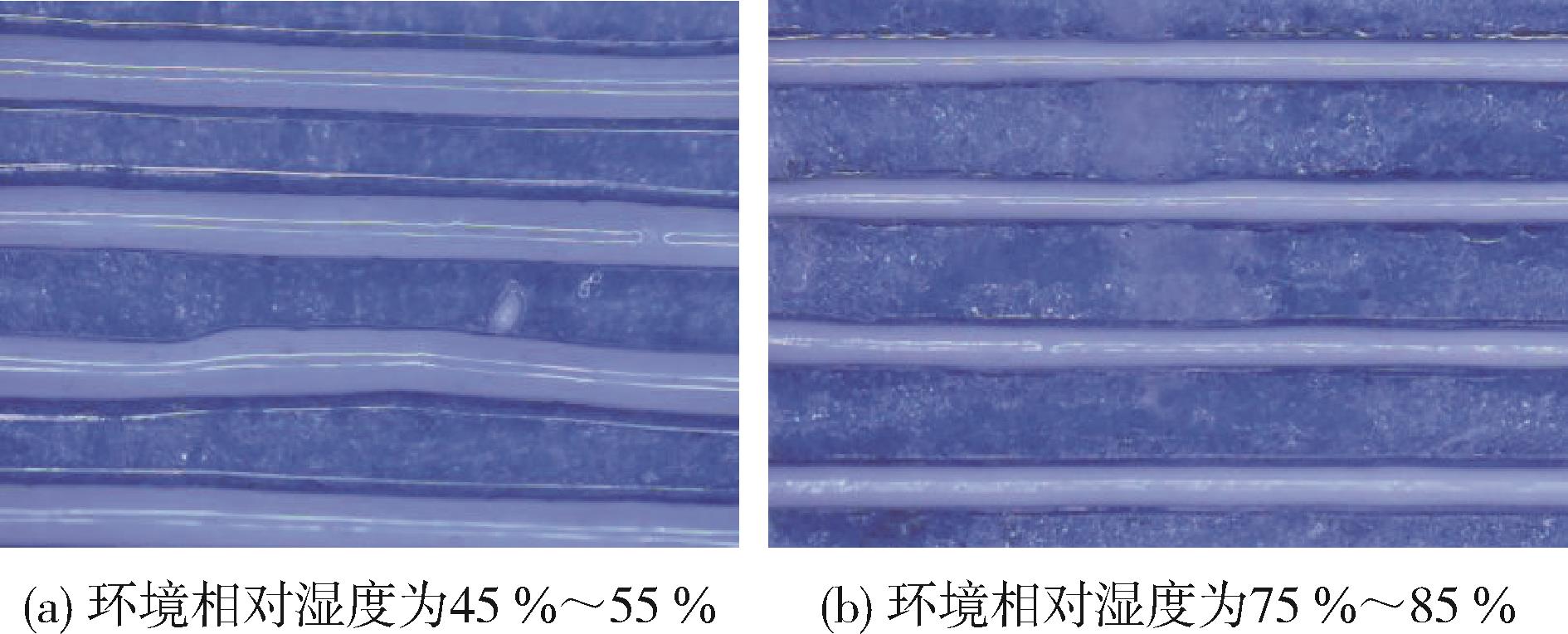

Fig.6. Deposition of PEI wire under different environmental humidity

Fig.7. Effect of printing speed and environmental relative humidity on wire thickness

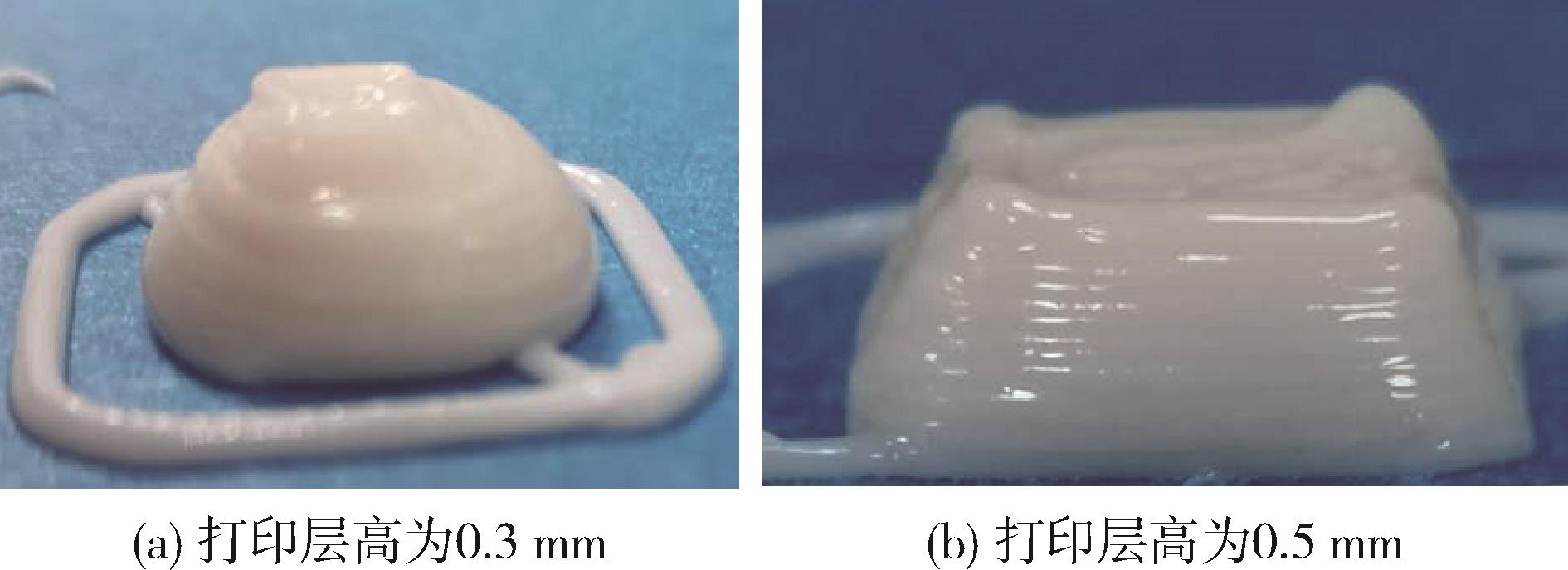

Fig.8. Prismatic green bodies with different printing layer heights

打印参数	打印速度/ mm·s^-1	打印环境相对湿度/%	打印层高/ mm
第一组	10	65~70	0.48
第二组	12	65~70	0.46
第三组	10	75~80	0.50
第四组	12	75~80	0.48

Tab.2. Setting of printing parameters

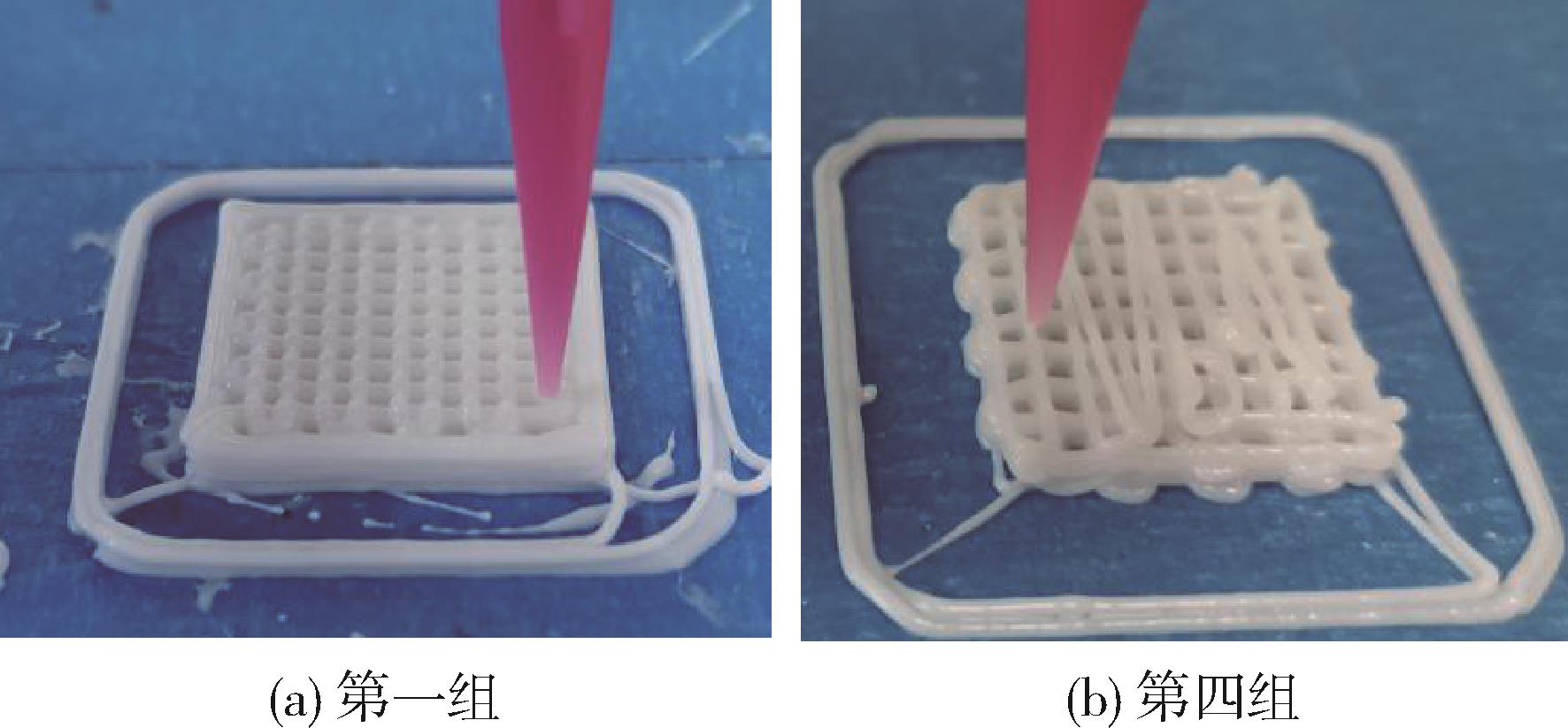

Fig.9. PEI porous grid green bodies under different printing parameters

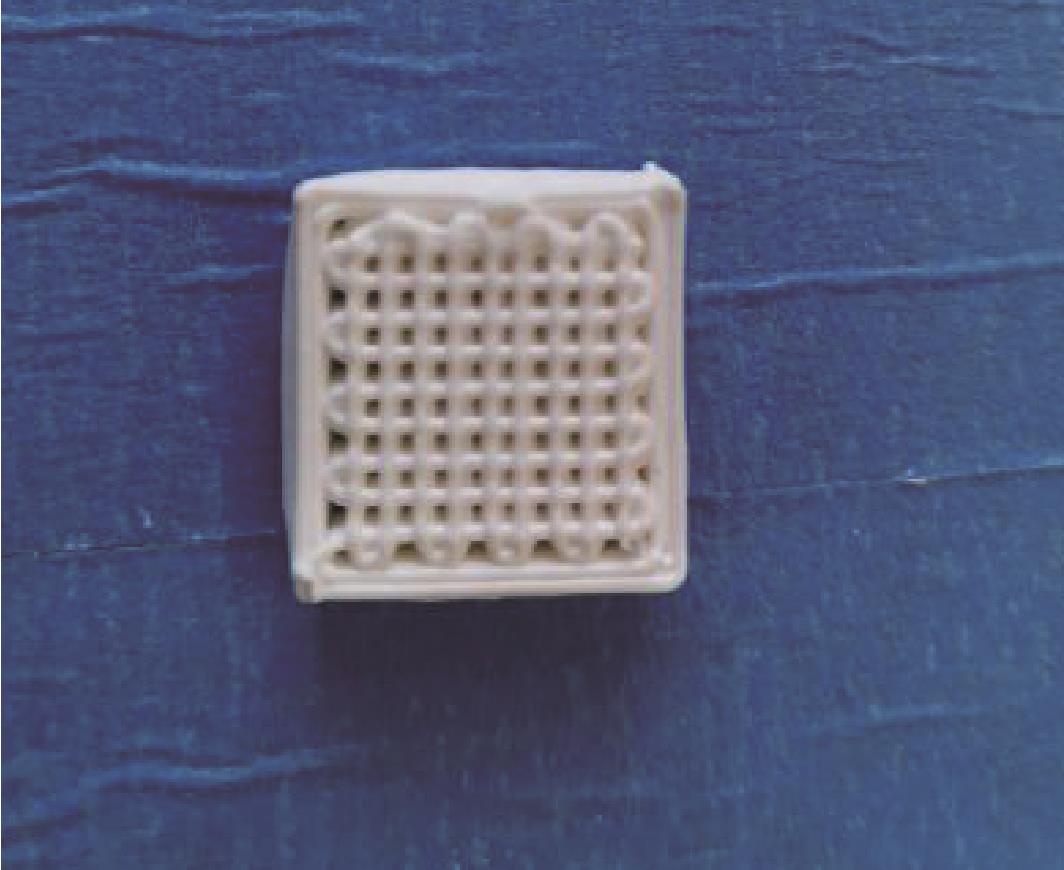

Fig.10. PEI porous grid green body formed under optimal printing parameters

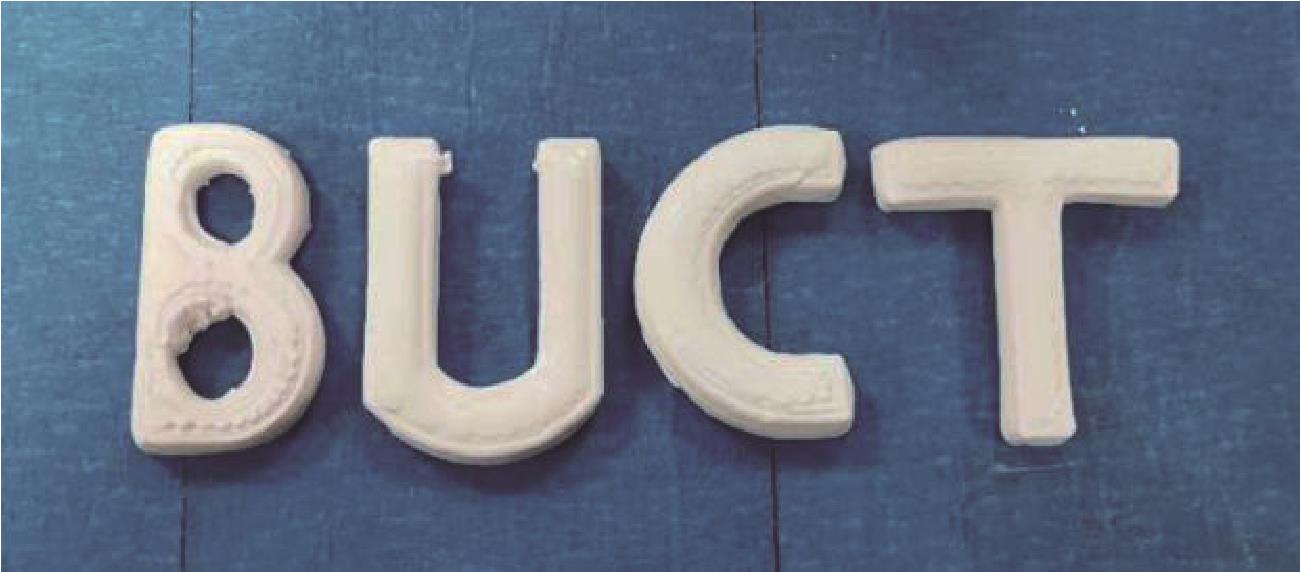

Fig.11. PEI green bodies formed under optimal printing parameters

References 15

1	PHAM D T， GAULT R S. A Comparison of Rapid Prototyping Technologies［J］. International Journal of Machine Tools and Manufacture，1998，38（10）： 1 257⁃1 287.
2	BRANS K. 3D Printing， A Maturing Technology［J］. IFAC Proceedings Volumes， 2013， 46（7）： 468⁃472.
3	GROSSIN D， MONTON A， NAVARRETE⁃SEGADO P， et al. A Review of Additive Manufacturing of Ceramics by Powder Bed Selective Laser Processing （Sintering / Melting）： Calcium Phosphate， Silicon Carbide， Zirconia， Alumina， and Their Composites［J］. Open Ceramics， 2021，5.
4	OLAKANMI E O. Selective Laser Sintering/Melting （SLS/SLM） of Pure Al， Al–Mg， and Al–Si Powders： Effect of Processing Conditions and Powder Properties［J］. Journal of Materials Processing Tech， 2013， 213（8）： 1 387⁃1 405.
5	DUDEK P. FDM 3D Printing Technology in Manufactu⁃ring Composite Elements［J］. Archives of Metallurgy and Materials， 2013， 58（4）： 1 415⁃1 418.
6	MOHAMED O A， MASOOD S H， BHOWMIK J L. Optimization of Fused Deposition Modeling Process Parameters： A Review of Current Research and Future Prospects［J］. Advances in Manufacturing， 2015， 3（1）：42⁃53.
7	杨卫民，马昊鹏，焦志伟，等. 一种基于固相析出分离工艺的聚合物3D打印成型方法：中国， CN110142957A［P］. 2019⁃08⁃20.
8	马昊鹏，高丽洁，焦志伟，等. 非溶剂致相分离3D打印/复印成型技术研究［J］.中国塑料，2020，34（12）：1⁃7.
	MAN H P， GAO L J， JIAO Z W， et al. Research on Non⁃solvent Induced Phase Separation Technology for 3D Prin⁃ting/Copying Forming［J］. China Plastics，2020，34（12）：1⁃7.
9	焦志伟，马昊鹏，李飞，等. 一种基于增材制造工艺的高性能陶瓷材料制备方法：中国， CN107140985A［P］. 2017⁃09⁃08.
10	杨卫民，王修磊，马昊鹏，等. 一种多孔电极制备装置：中国，CN210851058U［P］. 2020⁃06⁃26.
11	钱明球. 聚醚酰亚胺的研发现状与应用前景［J］.合成技术及应用，2011，26（3）：30⁃33.
	QIAN M Q.Research and Application Progress of Poly⁃（ether imines）［J］.Synthesis Technology and Application，2011，26（3）：30⁃33.
12	LUTZOW K， WEIGEL T， LENDLEIN A. Poly（ether imide） Scaffolds as Multifunctional Materials for Potential Applications in Regenerative Medicine［J］. Blackwell Publishing Inc， 2006， 30（10）：764⁃769.
13	BAKERI G， ISMAIL A F， RAHIMNEJAD M， et al. Analysis of Polyetherimide/N⁃Methyl⁃2⁃Pyrrolidone / Nonsolvent Phase Separation Behavior［J］. Journal of Polymer Research， 2014， 21（4）：1⁃7.
14	REZABRIGI E， WOOD⁃ADAMS P M， DREW R. Production of Porous Polylactic Acid Monoliths Via Nonsolvent Induced Phase Separation［J］. Polymer， 2014， 55（26）：6 743⁃6 753.
15	GUILLEN G R， PAN Y， LI M， et al. Preparation and Characterization of Membranes Formed by Nonsolvent Induced Phase Separation： A Review［J］. Ind Eng Chem Res， 2011， 50（7）：3 798⁃3 817.
