Preparation and properties of composite proton exchange membranes with high proton conductivity and dimensional stability

doi:10.19491/j.issn.1001-9278.2022.08.010

Abstract

Abstract:

A UiO?66?NH₂/PAMPS hybrid filler was prepared through the in?situ polymerization of 2?acrylamide?2?methylpropanesulfonic acid in a porous metal organic framework （UiO?66?NH₂）. The resultant filler was then added to the sulfonated poly（ether ether ketone）（SPEEK） to fabricate nanocomposite membranes. The properties of the nanofillers and membranes were investigated. The ordered pore networks of metal organic framework components in UiO?66?NH₂/PAMPS provided fast proton diffusion pathways， and the sulfonic acid groups in PAMPS offered additional sites for proton transfer. This resulted in a significant improvement in proton conductivity of the nanocomposite membranes. The experimental results indicated that there is a strong electrostatic interaction between the filler and matrix， preventing the swelling of the nanocomposite membranes. When the filler content was 6 wt%， the proton conductivity of the nanocomposite membrane containing 6 wt% filler increased from 0.040 S/cm to 0.057 S/cm in water， which was 42.5 % higher than that of SPEEK as a control. Its swelling ratio decreased from 29 % to 23 %.

Key words: proton exchange membrane, sulfonated poly（ether ether ketone）, metal organic framework, 2?acrylamide?2?methylpropanesulfonic acid

CLC Number:

TQ325

WANG Qian, YANG Kangning, ZHAI Shaoxiong, YIN Likun, HE Shaojian, LIN Jun. Preparation and properties of composite proton exchange membranes with high proton conductivity and dimensional stability[J]. China Plastics, 2022, 36(8): 62-68.

Figures/Tables 10

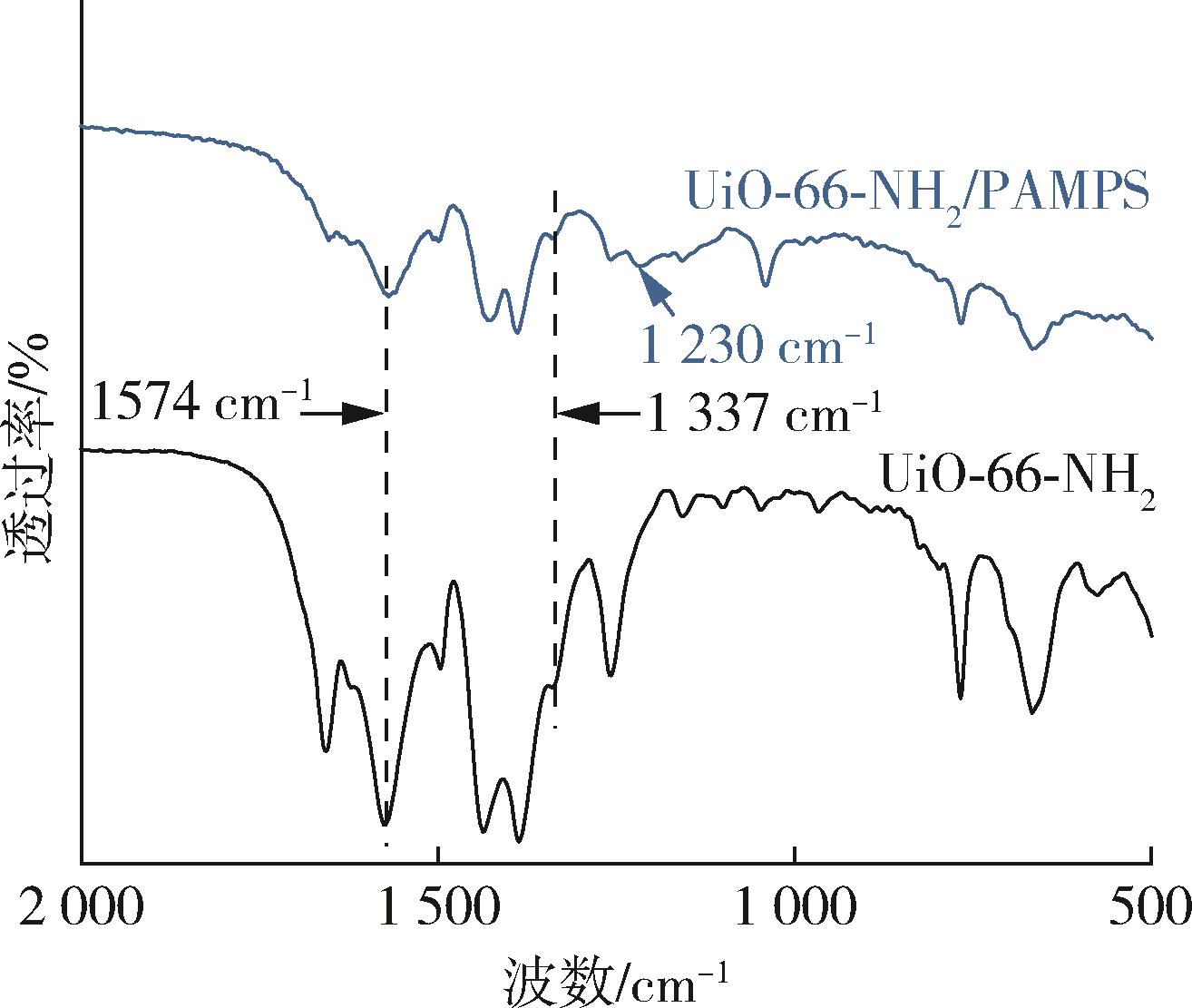

Fig.1. FTIR spectra of UiO?66?NH2 and UiO?66?NH2/PAMPS

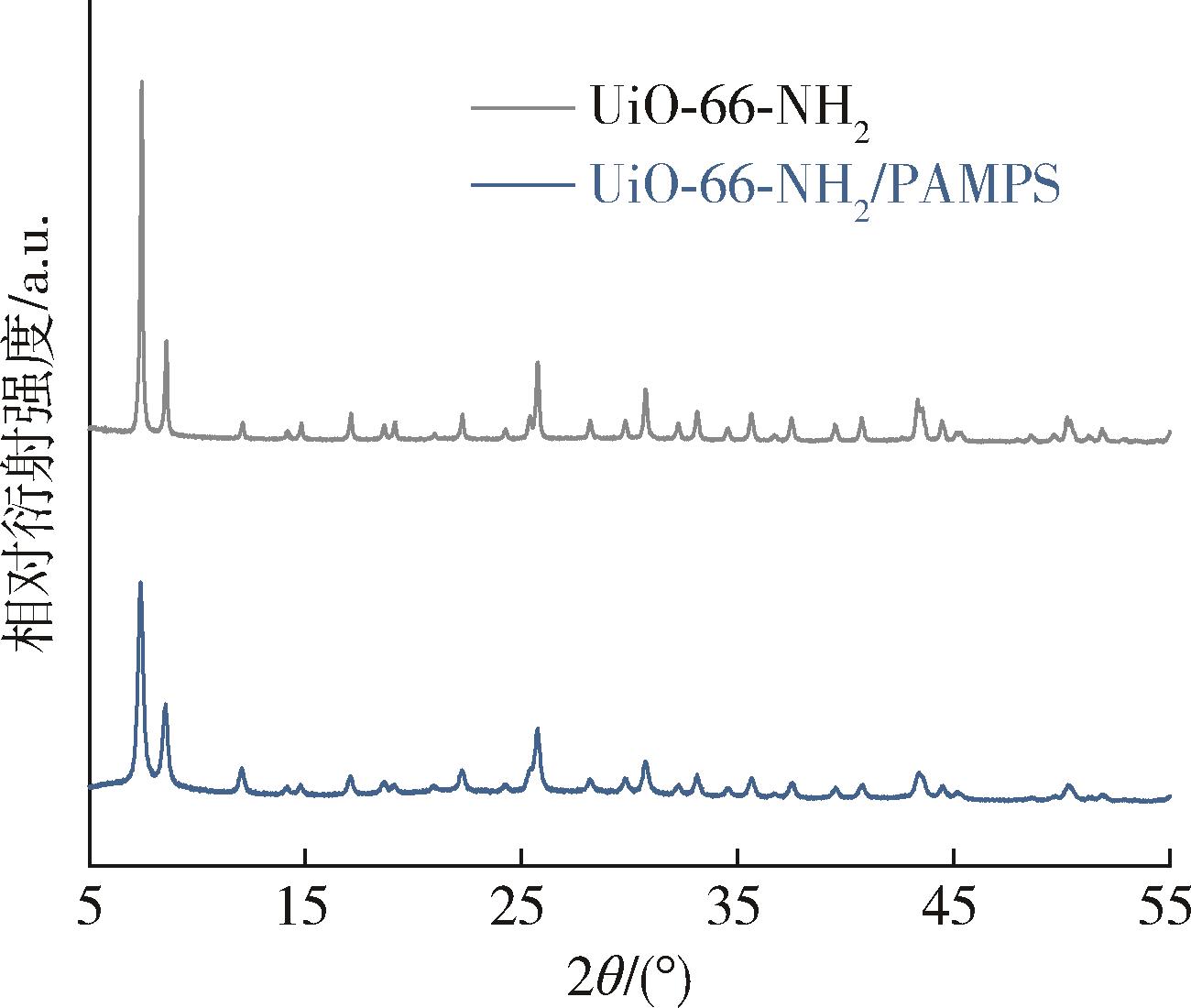

Fig.2. XRD patterns of UiO?66?NH2 and UiO?66?NH2/PAMPS

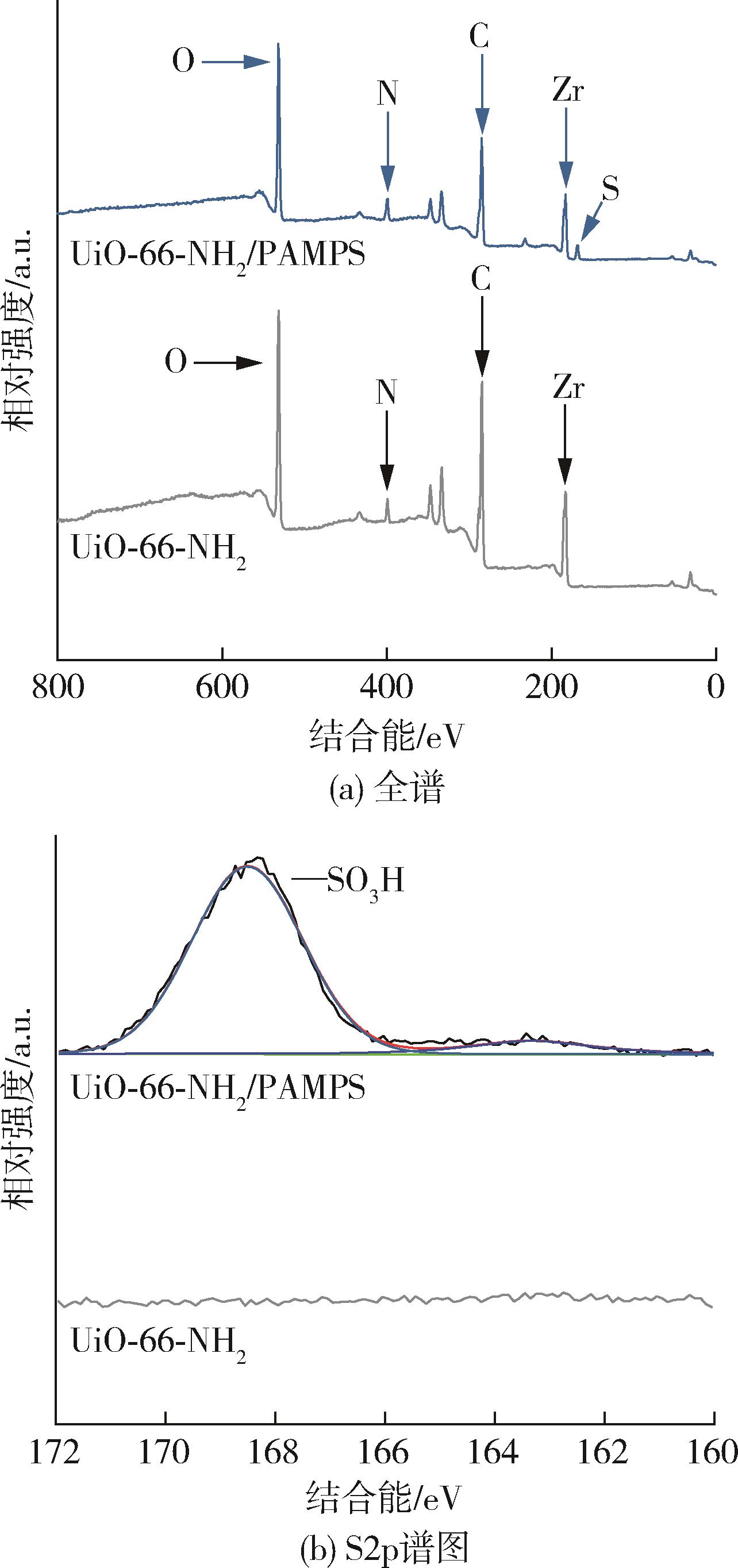

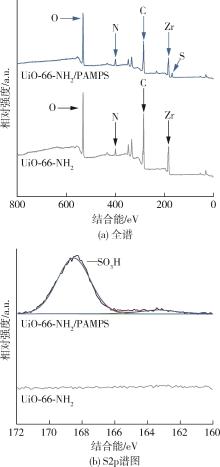

Fig.3. XPS spectra of UiO?66?NH2 and UiO?66?NH2/PAMPS

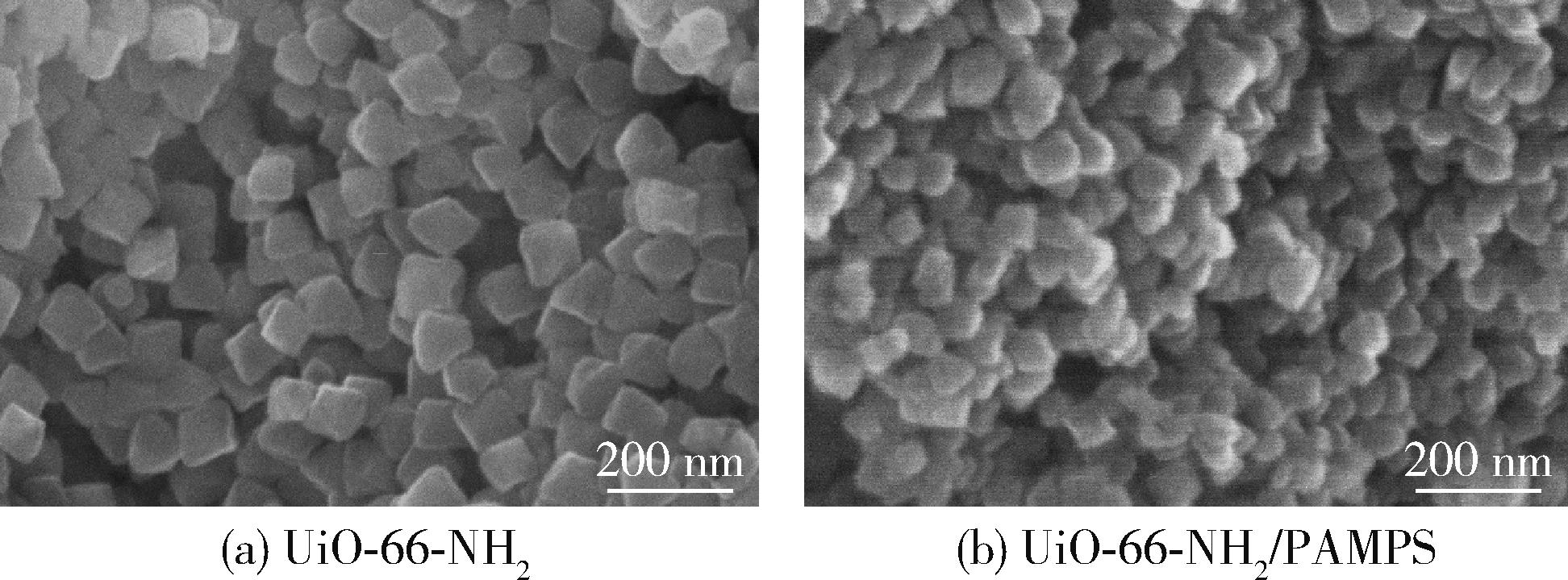

Fig.4. SEM images of the nano?particles

Fig.5. SEM images of the membranes

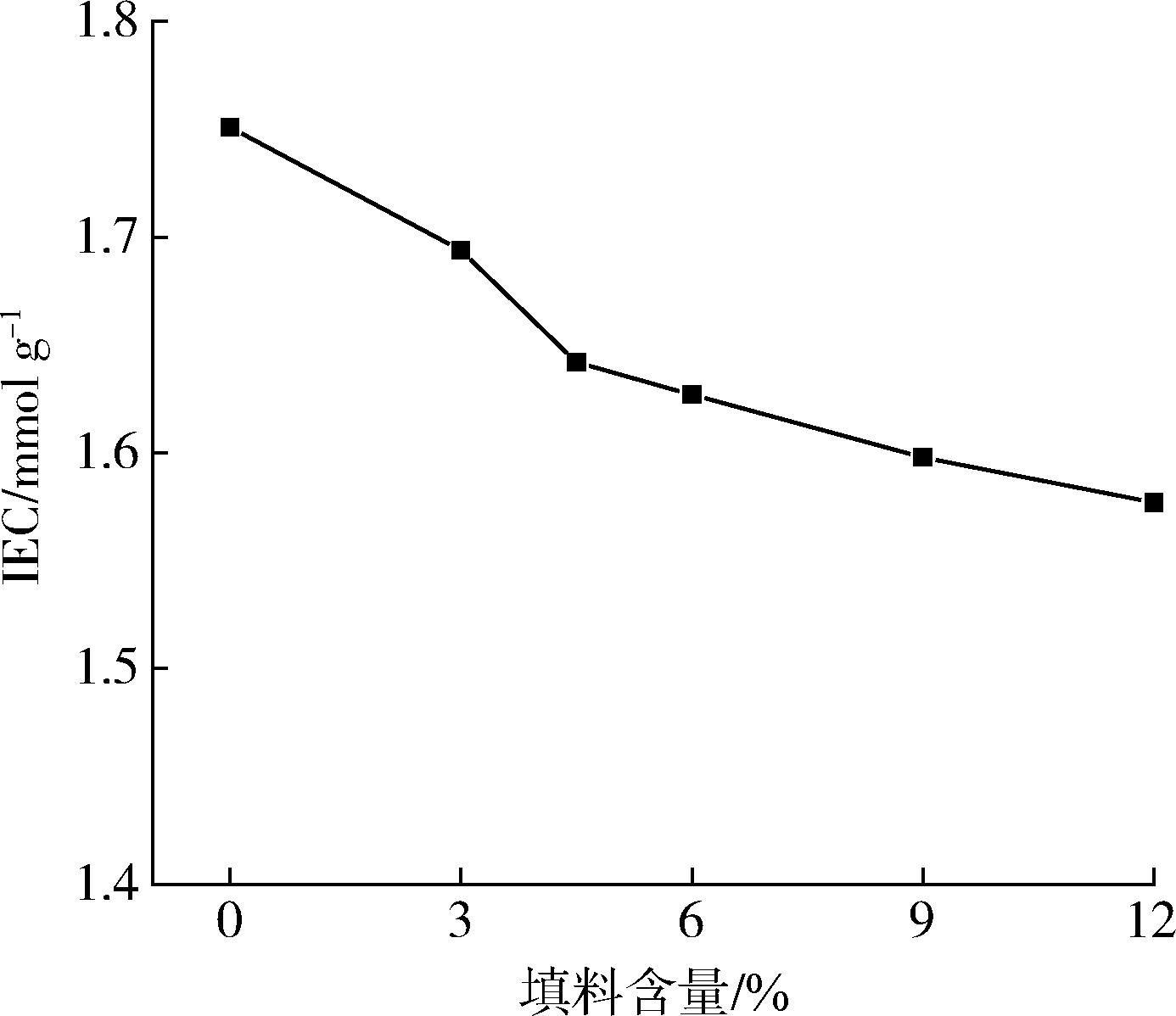

Fig.6. IEC of SPEEK and nanocomposite membranes

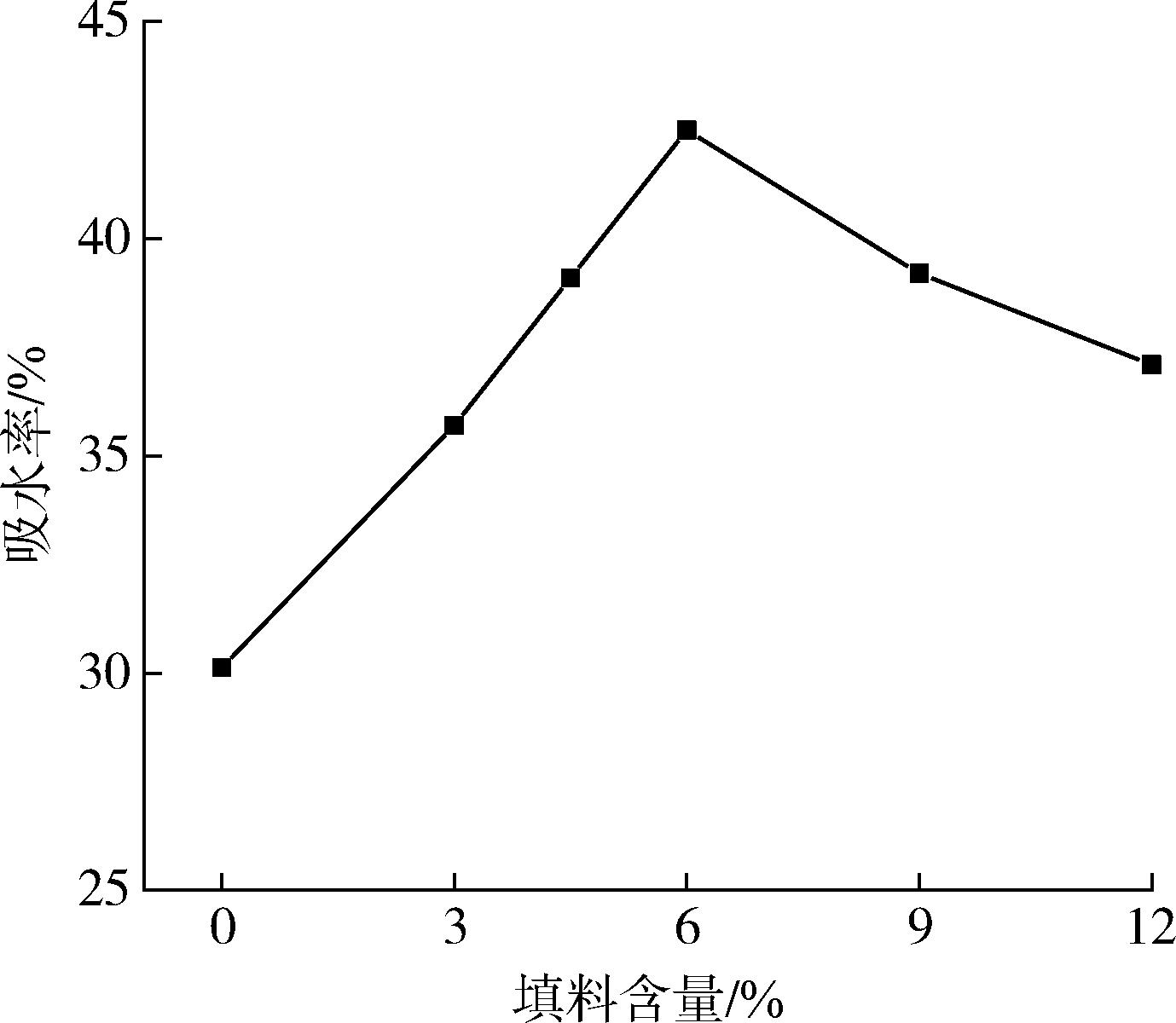

Fig.7. Water absorption rate of SPEEK and composite membranes

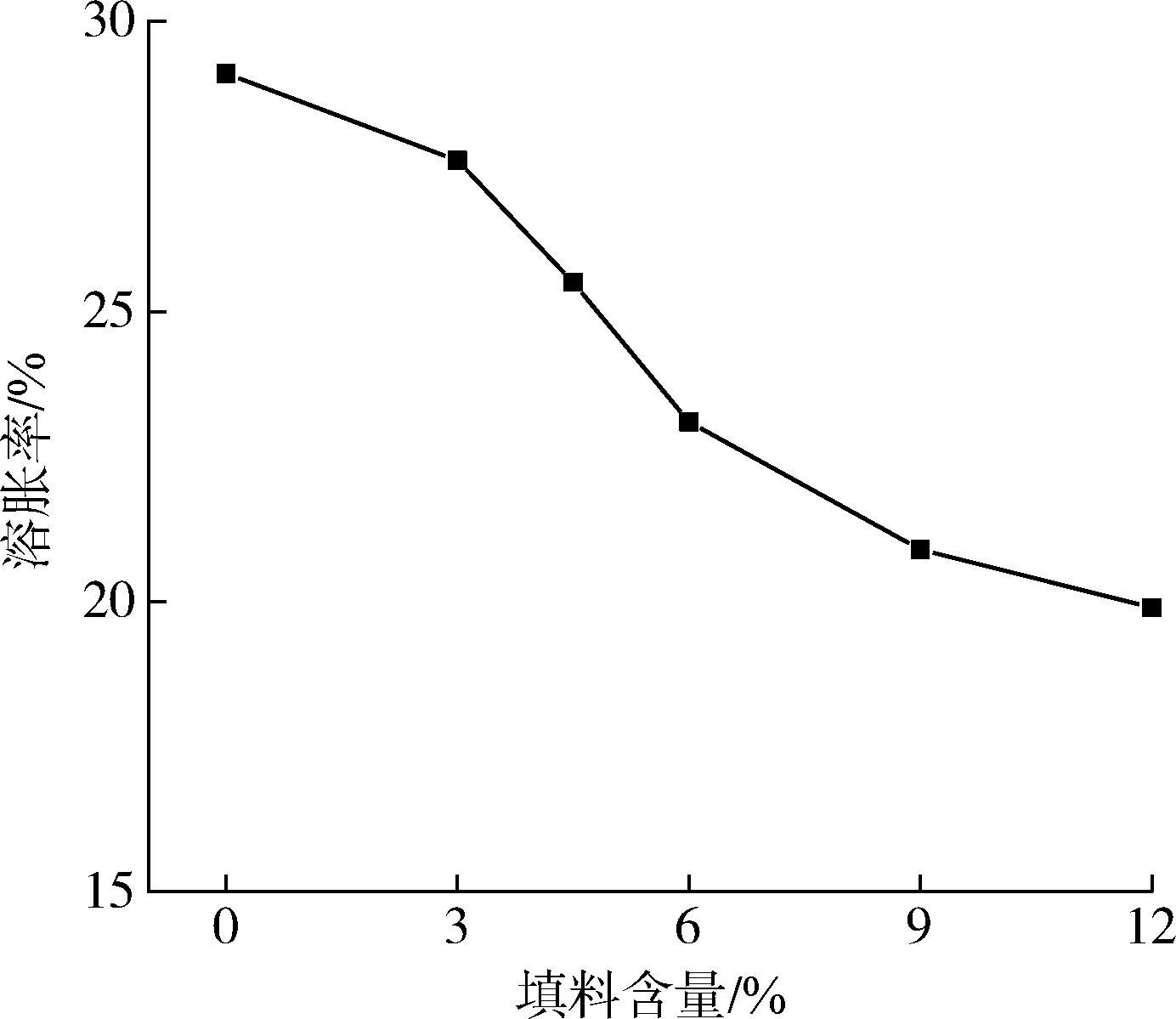

Fig.8. Swelling ratio of SPEEK and composite membranes

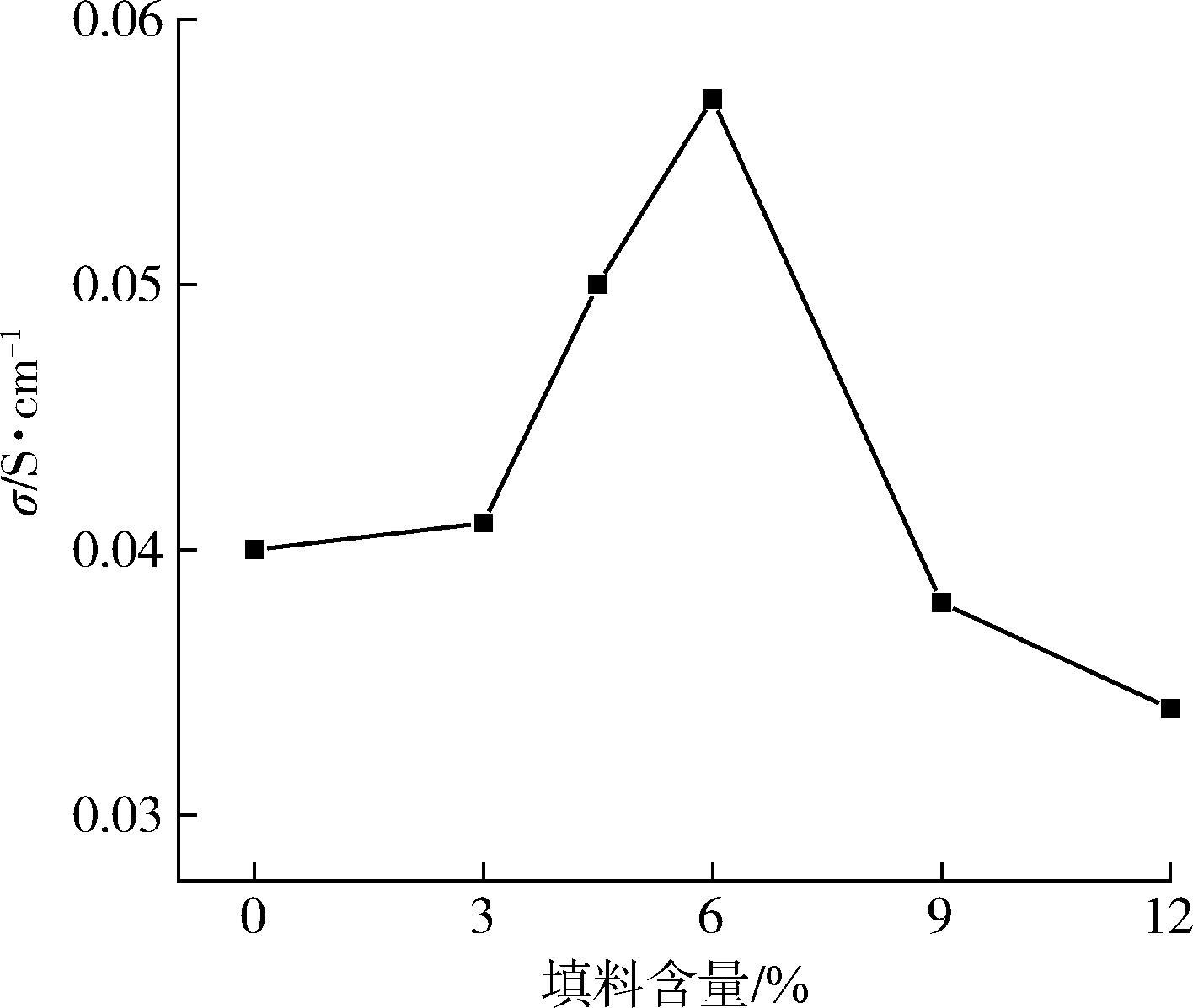

Fig.9. σ of SPEEK and composite membranes

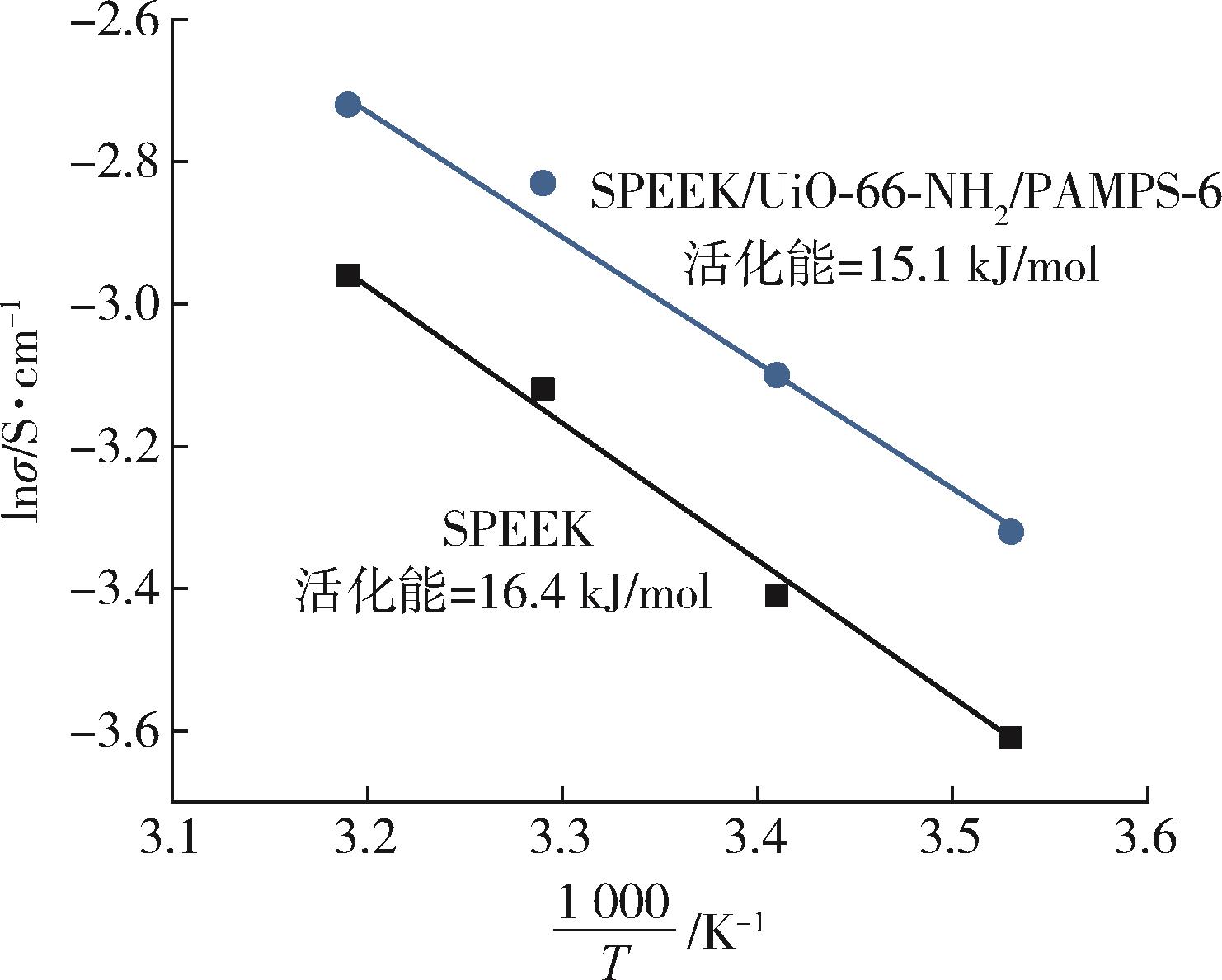

Fig.10. Activation energy of SPEEK and SPEEK/UiO?66?NH2/PAMPS?6 membrane

References 21

1	Liu Q.， Li X.K.， Zhang S.H.， et al. Novel sulfonated N⁃heterocyclic poly（aryl ether ketone ketone）s with pendant phenyl groups for proton exchange membrane performing enhanced oxidative stability and excellent fuel cell properties ［J］. Journal of Membrane Science， 2022， 641： 119926.
2	Yuan Q.， Fu Z.， Wang Y.， et al. Coaxial electrospun sulfonated poly （ether ether ketone） proton exchange membrane for conductivity⁃strength balance ［J］. Journal of Membrane Science， 2020， 595： 117516.
3	Feng Q.， Yuan X.Z.， Liu G.Y.， et al. A review of proton exchange membrane water electrolysis on degradation mechanisms and mitigation strategies ［J］. Journal of Power Sources， 2017， 366： 33⁃55.
4	He G.， Li Z.， Zhao J.， et al. Nanostructured ion⁃exchange membranes for fuel cells： recent advances and perspectives ［J］. Advanced Materials， 2015， 27（36）： 5 280⁃5 295.
5	Yue X.， He Q.， Lim H.D.， et al. Hierarchical structural designs of ion exchange membranes for flow batteries ［J］. Journal of Materials Chemistry A， 2019， 7（10）： 5 794⁃5 802.
6	Sun F.， Qin L.L.， Zhou J.， et al. Friedel⁃Crafts self⁃crosslinking of sulfonated poly（etheretherketone） composi⁃te proton exchange membrane doped with phosphotungstic acid and carbon⁃based nanomaterials for fuel cell applications ［J］. Journal of Membrane Science， 2020， 611： 118381.
7	Li P.， Dang J.C.， Wu W.J.， et al. Nanofiber composite membrane using quantum dot hybridized SPEEK nanofiber for efficient through ⁃plane proton conduction ［J］. Journal of Membrane Science， 2020， 609： 118198.
8	Lu Y.， Liu Y.， Li N.， et al. Sulfonated graphitic carbon nitride nanosheets as proton conductor for constructing long⁃range ionic channels proton exchange membrane ［J］. Journal of Membrane Science， 2020， 601： 117908.
9	Ran J.， Wu L.， He Y.， et al. Ion exchange membranes： New developments and applications ［J］. Journal of Membrane Science， 2017， 522： 267⁃291.
10	Zhang Y.X.， Wang H.X.， Liu B.， et al. An ultra⁃high ion selective hybrid proton exchange membrane incorporated with zwitterion⁃decorated graphene oxide for vanadium redox flow batteries ［J］. Journal of Materials Chemistry A， 2019， 7（20）： 12 669⁃12 680.
11	Shukla A.， Dhanasekaran P.， Nagaraju N.， et al. A faci⁃le synthesis of graphene nanoribbon⁃quantum dot hybrids and their application for composite electrolyte membrane in direct methanol fuel cells ［J］. Electrochimica Acta， 2019， 297： 267⁃280.
12	Mileo P.G.M.， Yuan S.， Ayala S.，et al. Structure of the Polymer Backbones in polyMOF materials ［J］. Journal of the American Chemical Society， 2020， 142（24）： 10 863⁃10 868.
13	Otake K.I.， Kitagawa H.. Control of proton⁃conductive behavior with nanoenvironment within metal⁃organic materials ［J］. Small， 2021， 17（22）： 2006189.
14	Sun H.， Tang B.， Wu P.. Rational design of S⁃UiO⁃66@GO hybrid nanosheets for proton exchange membranes with significantly enhanced transport performance ［J］. ACS Applied Materials & Interfaces， 2017， 9（31）： 26 077⁃26 087.
15	Escorihuela J.， Narducci R.， Compañ V.， et al. Proton conductivity of composite polyelectrolyte membranes with metal⁃organic frameworks for fuel cell applications ［J］. Advanced Materials Interfaces， 2018， 6： 1801146.
16	Zhang Q.S.， Jiang X.， Kirillov A.M.， et al. Covalent construction of sustainable hybrid UiO⁃66⁃NH₂@Tb⁃CP material for selective removal of dyes and detection of metal ions ［J］. ACS Sustainable Chemistry & Engineering， 2019， 7（3）： 3 203⁃3 212.
17	Zeng Z.， Sorescu D.C.， White D.L.， et al. Heterogeneous frowth of UiO⁃66⁃NH₂ on oxidized single⁃walled carbon nanotubes to form "beads⁃on⁃a⁃string" composites ［J］. ACS Applied Materials & Interfaces， 2021， 13（13）： 15 482⁃15 489.
18	Ru C.， Li Z.， Zhao C.， et al. Enhanced proton conductivity of sulfonated hybrid poly（arylene ether ketone） membranes by incorporating an amino⁃sulfo bifunctionalized metal⁃organic framework for direct methanol fuel cells ［J］. ACS Applied Materials & Interfaces， 2018， 10（9）： 7 963⁃7 973.
19	Huang H.， Ma Y.， Jiang Z.， et al. Spindle⁃like MOFs⁃derived porous carbon filled sulfonated poly （ether ether ketone）： a high performance proton exchange membrane for direct methanol fuel cells ［J］. Journal of Membrane Science， 2021， 636： 119585.
20	Zhai S.X.， Lu Z.R.， Ai Y.N.， et al. Highly selective proton exchange membranes for vanadium redox flow batteries enabled by the incorporation of water⁃insoluble phosphotungstic acid⁃metal organic framework nanohybrids ［J］. Journal of Membrane Science， 2022， 645： 120214.
21	Zhang Y.， Wang H.， Yu W.， et al. Sulfonated poly（ether ether ketone）⁃based hybrid membranes containing polydopamine⁃decorated multiwalled carbon nanotubes with acid⁃base pairs for all vanadium redox flow battery ［J］. Journal of Membrane Science， 2018， 564： 916⁃925.
