Thermal and mechanical properties of calcium sulfate whiskers modified PE⁃HD/PA6 composites

doi:10.19491/j.issn.1001-9278.2022.11.006

Abstract

Abstract:

Glycidyl methacrylate （GMA）⁃grafted calcium sulfate whiskers （CSW） was synthesized via chemical modification of CSW with GMA， and its structure and GMA loading were analyzed using Fourier⁃transform infrared spectroscopy and thermogravimetric analysis （TGA）. The CSW and GMA⁃grafted CSW were melt⁃blended with high⁃density polyethylene （PE⁃HD） and polyamide 6 （PA6） to form the PE⁃HD/PA6/CSW composites. The composites were investigated using scanning electron microscopy， differential scanning calorimetry， TGA， and universal testing machine. The results indicated that the PE⁃HD/PA6/GMA⁃grafted CSW composite with a bridge structure exhibited better crystallinity， thermal stability， and mechanical properties. As the length of CSW was greater than the diameter of PA6， the CSW penetrated the PA6 phase to insert into the PE⁃HD phase in the composites， resulting in the formation of the bridge structure. The GMA⁃grafted CSW generated a heterogeneous nucleation effect on the composites， promoting the crystallization process of PA6 and improving its crystallinity accordingly.

Key words: calcium sulfate whisker, modification, high?density polyethylene, polyamide 6, composite

CLC Number:

TQ325.1⁺2

ZHANG Zhaoyang, TANG Gan, KE Xue, WANG Xin, JIANG Xueliang, LIU Fangjun, YOU Feng. Thermal and mechanical properties of calcium sulfate whiskers modified PE⁃HD/PA6 composites[J]. China Plastics, 2022, 36(11): 35-40.

Figures/Tables 9

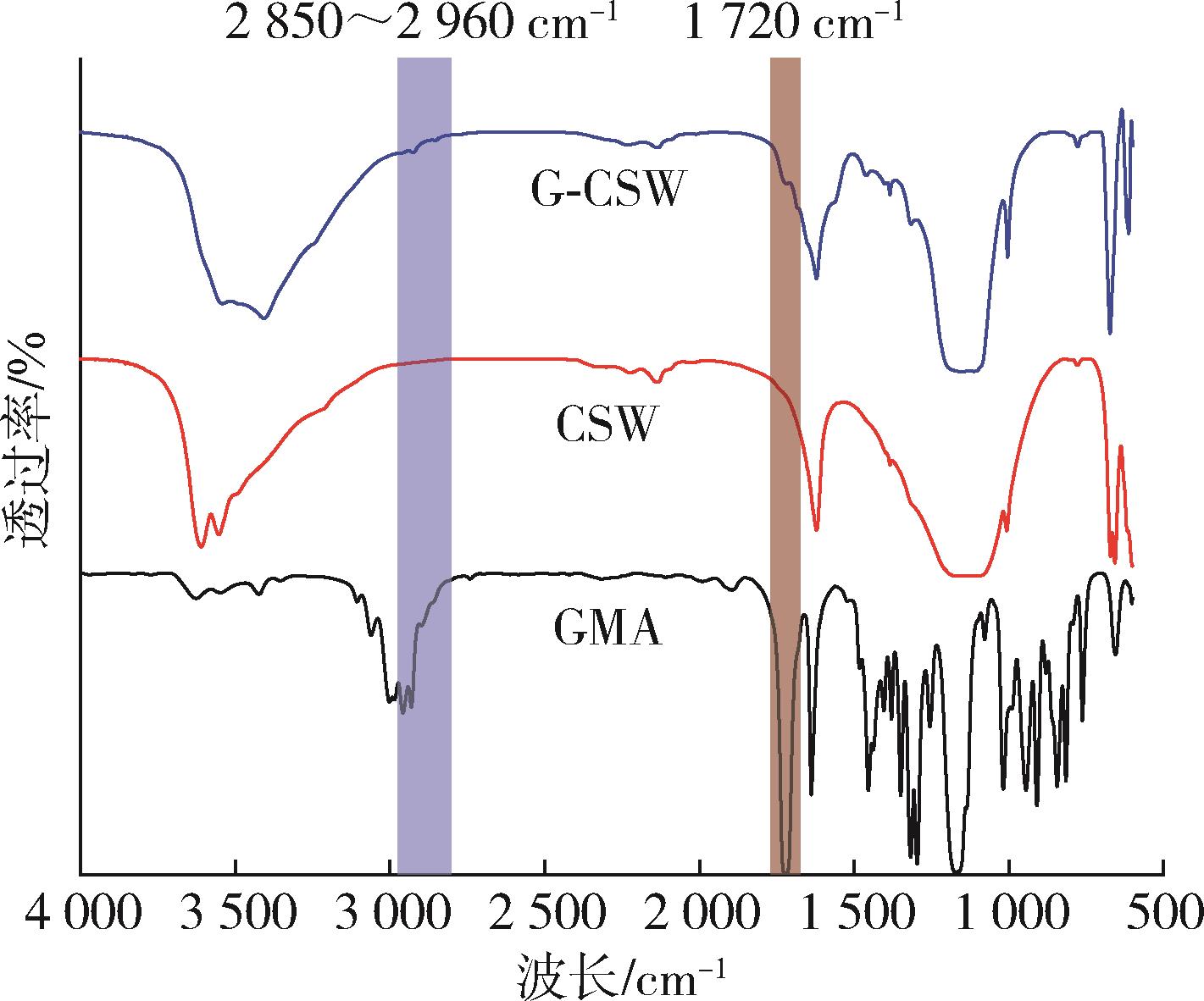

Fig.1. FTIR spectra of GMA， CSW and G⁃CSW

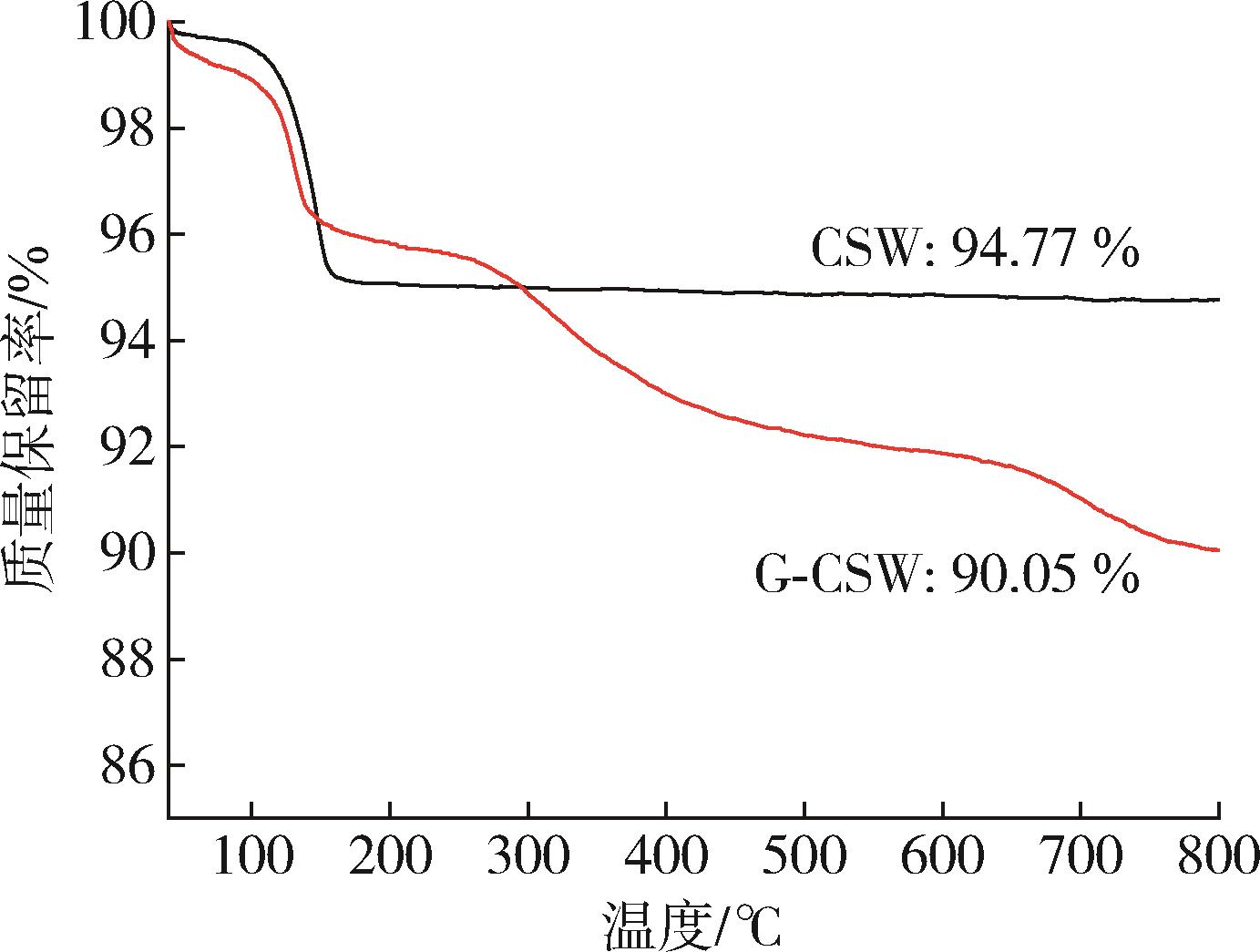

Fig.2. TG curves of CSW and G⁃CSW

Fig.3. Cross⁃sectional morphologies of the composites

样品	平均粒径/μm
PE⁃HD/PA6（85/15）	3.285
PE⁃HD/PA6/CSW（85/15/10）	3.097
PE⁃HD/PA6/G⁃CSW（85/15/10）	3.700

Tab.1. Average particle size of PA6 particles in PE⁃HD/PA6/CSW three⁃phase system

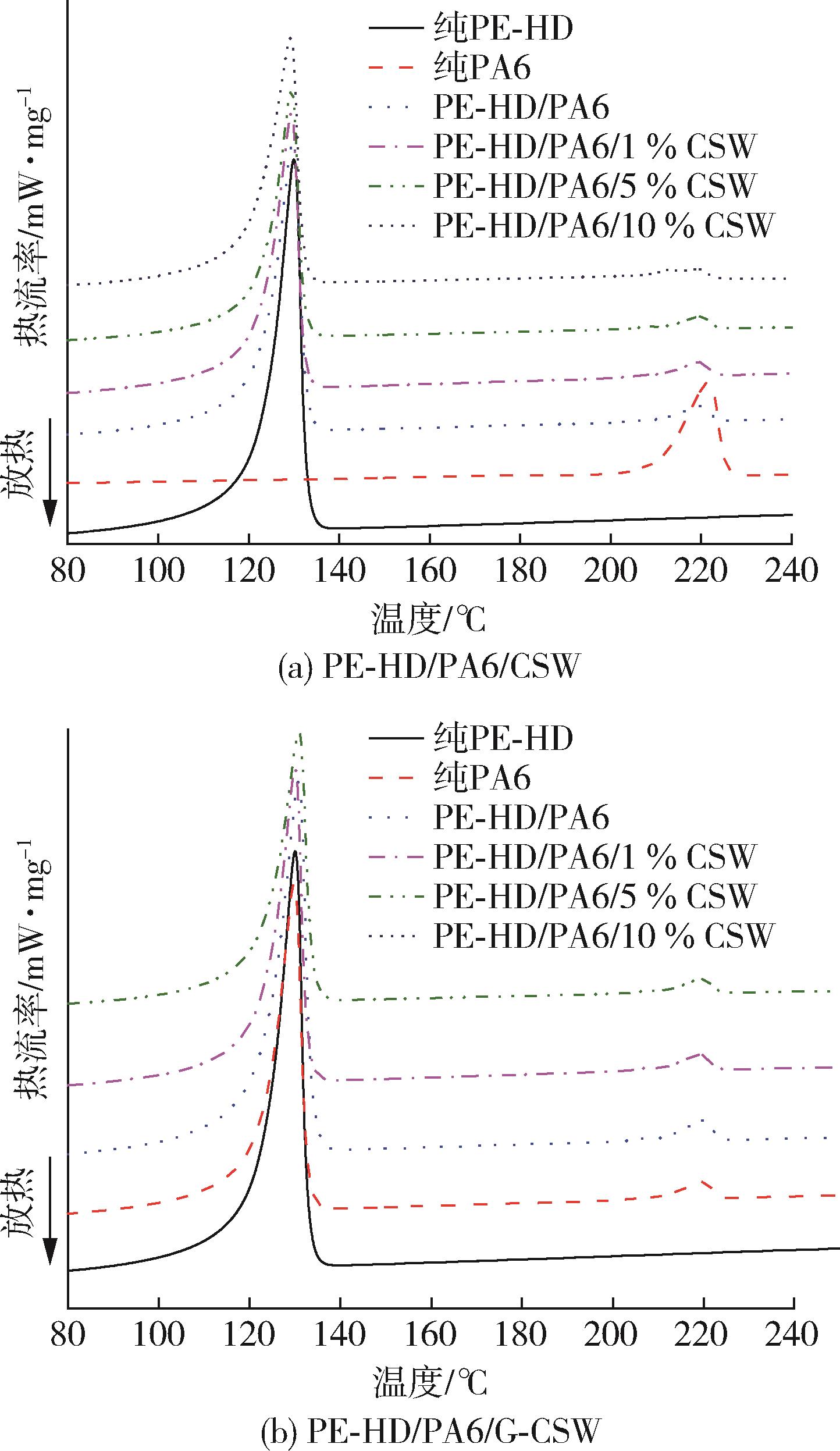

Fig.4. DSC curves of the samples

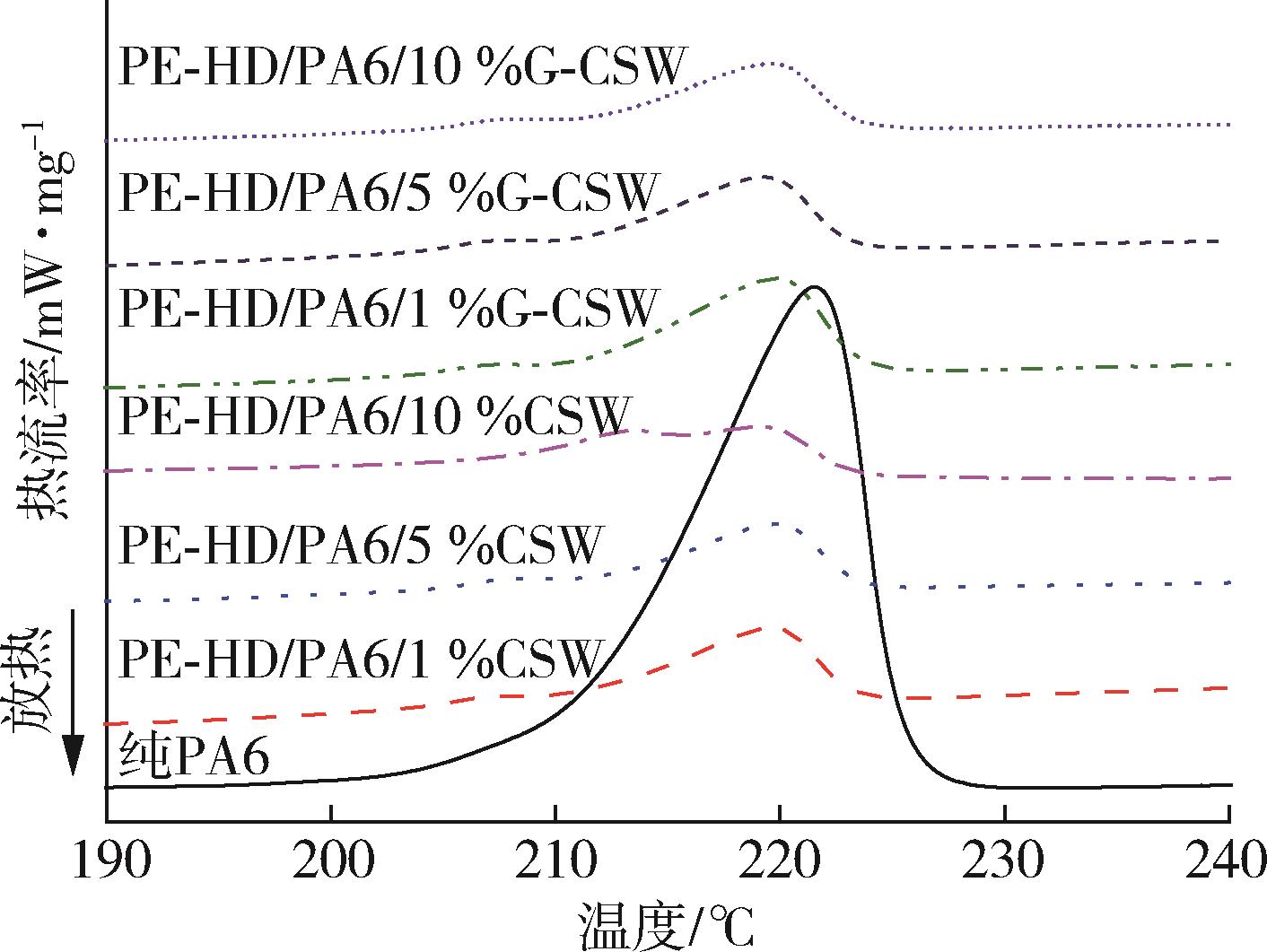

Fig.5. PA6 melting peaks of PE⁃HD/PA6/CSW composites with different CSW contents

样品	熔融焓/J·g^-1	结晶度/%
纯PA6	49.04	25.81
PE⁃HD/PA6	48.21	25.40
PE⁃HD/PA6/1 %CSW	45.34	23.84
PE⁃HD/PA6/5 %CSW	42.39	22.33
PE⁃HD/PA6/10 %CSW	44.22	23.25
PE⁃HD/PA6/1 %G⁃CSW	55.91	29.42
PE⁃HD/PA6/5 % G⁃CSW	46.95	24.71
PE⁃HD/PA6/10 % G⁃CSW	45.26	23.83

Tab.2. Crystallinity of PA6 in three⁃phase composites with different CSW contents

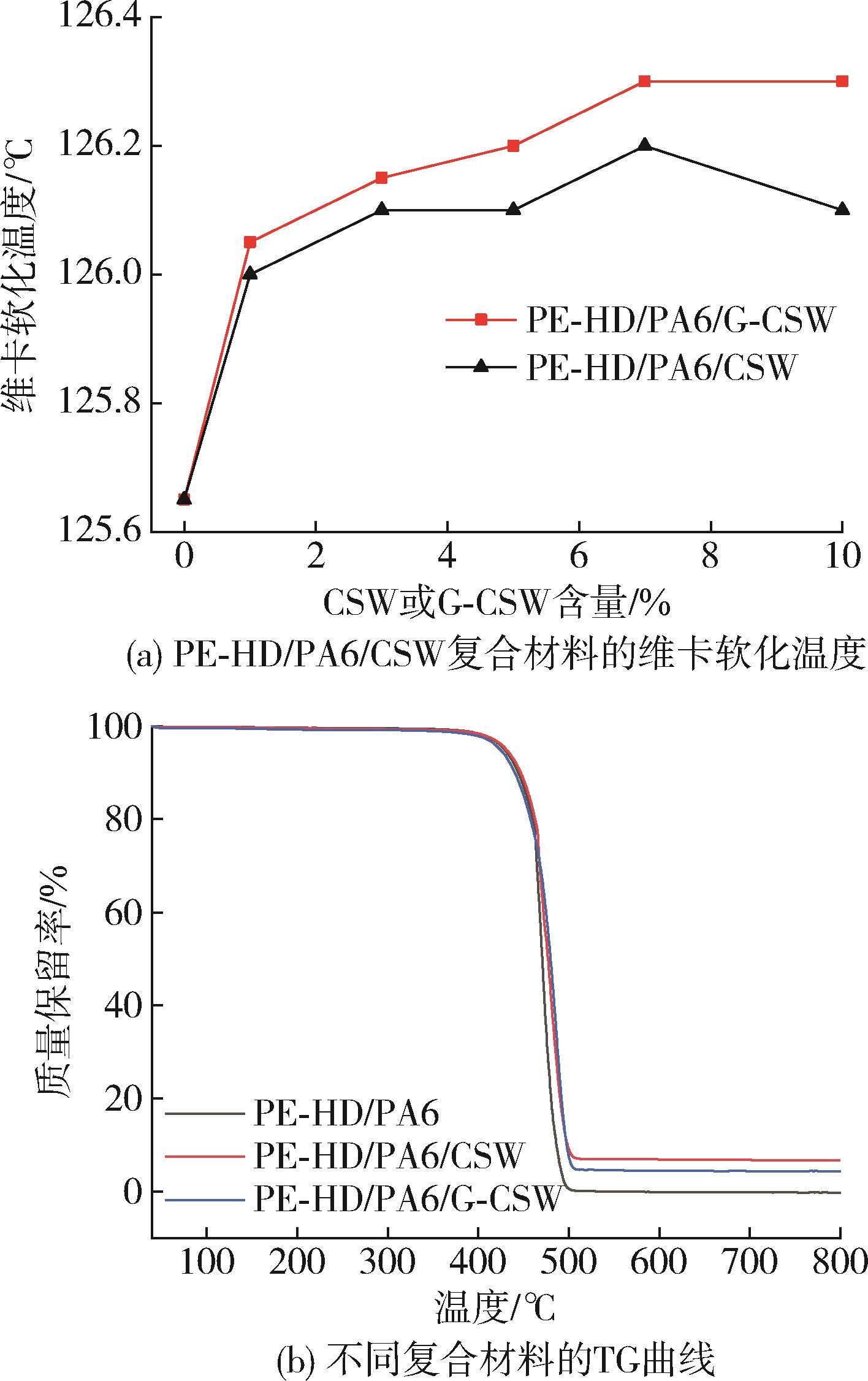

Fig.6. Vicat softening temperature and TG curves of the composites

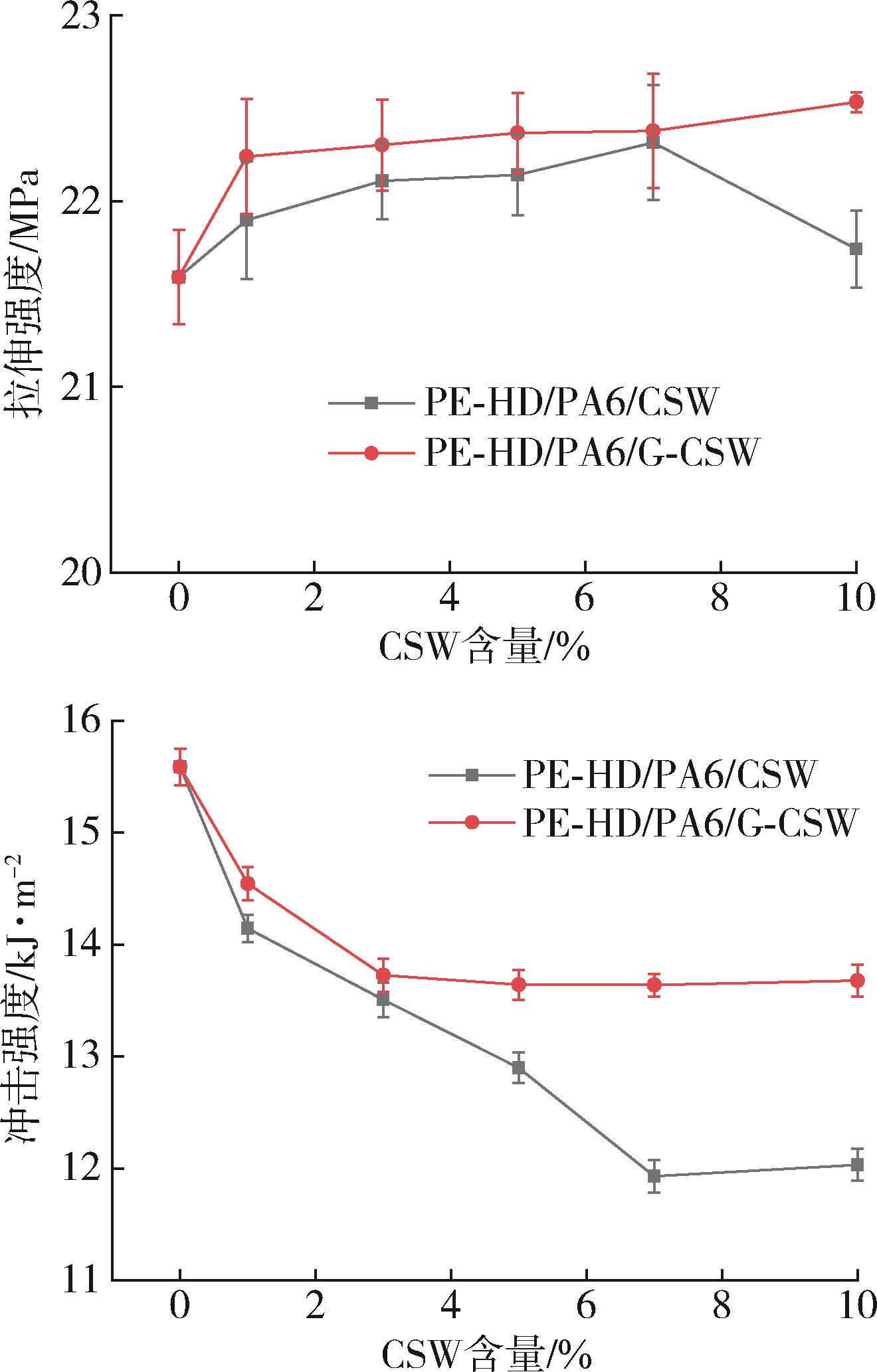

Fig.7. Mechanical properties of the samples

References 16

1	LIU T， HUANG A， GENG L H， et al. Ultra⁃strong， tough and high wear resistance high⁃density polyethylene for structural engineering application： A facile strategy towards using the combination of extensional dynamic oscillatory shear flow and ultra⁃high⁃molecular⁃weight polyethyle⁃ne［J］. Composites Science and Technology， 2018， 167： 301⁃312.
2	梅涛，迟姚玲，易玉峰，等. 高密度聚乙烯热解生成聚乙烯蜡及产品的性质研究［J］. 石油炼制与化工， 2011， 42（11）： 66⁃69.
	MEI T， CHI Y L， YI Y F， et al. Study of the preparation and properties of polyethylene wax from pyrolysis of high density polyethylene［J］. China Petroleum Processing Petrochemical Technology， 2011， 42（11）： 66⁃69.
3	LI D W， ZHOU L W， WANG X， et al. Effect of crystallinity of polyethylene with different densities on breakdown strength and conductance property［J］. Materials， 2019， 12（11）：1 746⁃1 758.
4	MICHAEL D R， KEVIN W， ROBERT M R， et al. Fatigue strength of polyethylene after sterilization by gamma irradiation or ethylene oxide［J］. Clinical orthopedics and related research， 1996， 333： 87⁃95.
5	张军华，杨晓明.稻塑复合地板基体材料的性能研究［J］. 科学技术创新， 2021， 4：193⁃194.
	ZHANG J H， YANG X M. Research on properties of base material of rice⁃plastic composite floor［J］. Scientific and technological innovation， 2021， 4： 193⁃194.
6	Huang X Y， Kim C， Jiang P K. Effects of high⁃dose gamma ray irradiation on the physicochemical properties and water⁃treeing deterioration of cross⁃linked polyethylene cable insulation［J］. IEEE Electrical Insulation Magazine， 2011， 27（4）： 17⁃25.
7	PAWEL I， DOMINIK R， KRZYSZTOF K， et al. Modification of low⁃density polyethylene with antistatic and flame retardant additives［J］. Przemysl Chemiczny， 2020， 99（10）： 1 442⁃1 445.
8	ZHENG L Y， LAU K， ZHAO L X， et al. Mechanical and thermal properties of nano⁃Al₂O₃/nylon 6 composites［J］. Chemical Engineering Communications， 2010， 197（3）： 343⁃351.
9	LIU B X， HU G S， ZHANG J T， et al. Non⁃isothermal crystallization， yellowing resistance and mechanical properties of heat⁃resistant nylon 10T/66/titania dioxide/glass fibre composites［J］. RSC Advances， 2019， 9（13）： 7 057⁃7 064.
10	FENG J X， ZHANG G J， MACLNNIS K， et al. Formation of microporous membranes by biaxial orientation of compatibilized PP/nylon 6 blends［J］. Polymer， 2017， 123： 301⁃310.
11	田丽. HDPE板材耐热改性配方的研究［J］. 河北化工， 2008， 31（2）： 30⁃31，34.
	TIAN L. HDPE plate heat⁃resisting modified formula research［J］. Hubei Chemical Industry， 2008， 31（2）： 30⁃31，34.
12	Zhang X H， Wang L. Study of Calcium Sulfate Whiskers［J］. Asian Journal of Chemistry， 2014， 26（1）： 17⁃20.
13	YUAN W J， LI Y H， XU S A. Synthesis of a new titanate coupling agent for the modification of calcium sulfate whisker in poly（vinyl chloride） composite［J］. Materials， 2016， 9（8）：625⁃637.
14	GUO Z H， LI Z Q， LIU J S， et al. Ex⁃situ method for toughening glass/epoxy composites by interlaminar films made of polyether ketone cardo and calcium sulfate whisker［J］. Journal of Reinforced Plastics and Composites， 2014， 33（21）： 1 966⁃1 975.
15	Jang B Z， Liau J Y， Hwang L R， et al. Structure⁃property relationships in thermoplastic particulate⁃and ceramic whisker⁃modified epoxy resins［J］. Journal of reinforced plastics and composites， 1989， 8（4）： 312⁃333.
16	杨学莉，于磊，张秀成，等. 硫酸钙晶须填充PBS的力学性能与热稳定性［J］. 塑料， 2015， 44（2）：48⁃51.
	YANG X L， YU L， ZHANG X C， et al. Mechanical properties and thermal stability of calcium sulfate whiskers filled PBS［J］. Plastics， 2015， 44（2）： 48⁃51
