Design of injection mold for dust box cover of sweeping robot

doi:10.19491/j.issn.1001-9278.2022.11.020

Abstract

Abstract:

This paper analyzed the design process of an injection mold for the dust box cover of a sweeping robot in terms of the characteristics of the product and injection mold using antistatic acrylonitrile butadiene styrene copolymer （ABS） as a raw material. To meet the requirements of appearance， structure， and production capacity for the dust box cover of the sweeping robot， the mold was designed by adopting the layout of the first mock examination and two holes. The pouring system of converting the hot runner to the cold runner of the single nozzle mold and the side gate feeding form were also employed for the mold. This improved the molding yield and appearance quality of the product. This mold was designed with an inclined top core pulling mechanism of the front mold and a secondary core pulling mechanism of the slider to take off the reverses in two directions simultaneously. An inclined top core pulling mechanism of the rear mold combined with the ordinary slider core pulling mechanism was also adopted to complete the demolding， solving the demolding problem of the hole position reverses in different directions of the product and the sticking force problem of the ring deep rib position of the product. Through the actual production verification， the structural design of the mold was reasonable， and the product molding was stable， which met the requirement of production.

Key words: sweeping robot dust box cover, sliding block secondary core?pulling mechanism, hot runner, front die inclined top core pulling mechanism, after die oblique top retraction core pulling mechanism

CLC Number:

TQ320.66⁺2

ZHAO Liping, ZHANG Yanhua, YU Weibin, ZHANG Weihe. Design of injection mold for dust box cover of sweeping robot[J]. China Plastics, 2022, 36(11): 133-139.

Figures/Tables 10

Fig.1. Structure of dust box covers of sweeping robots

Fig.2. Mold assembly drawing

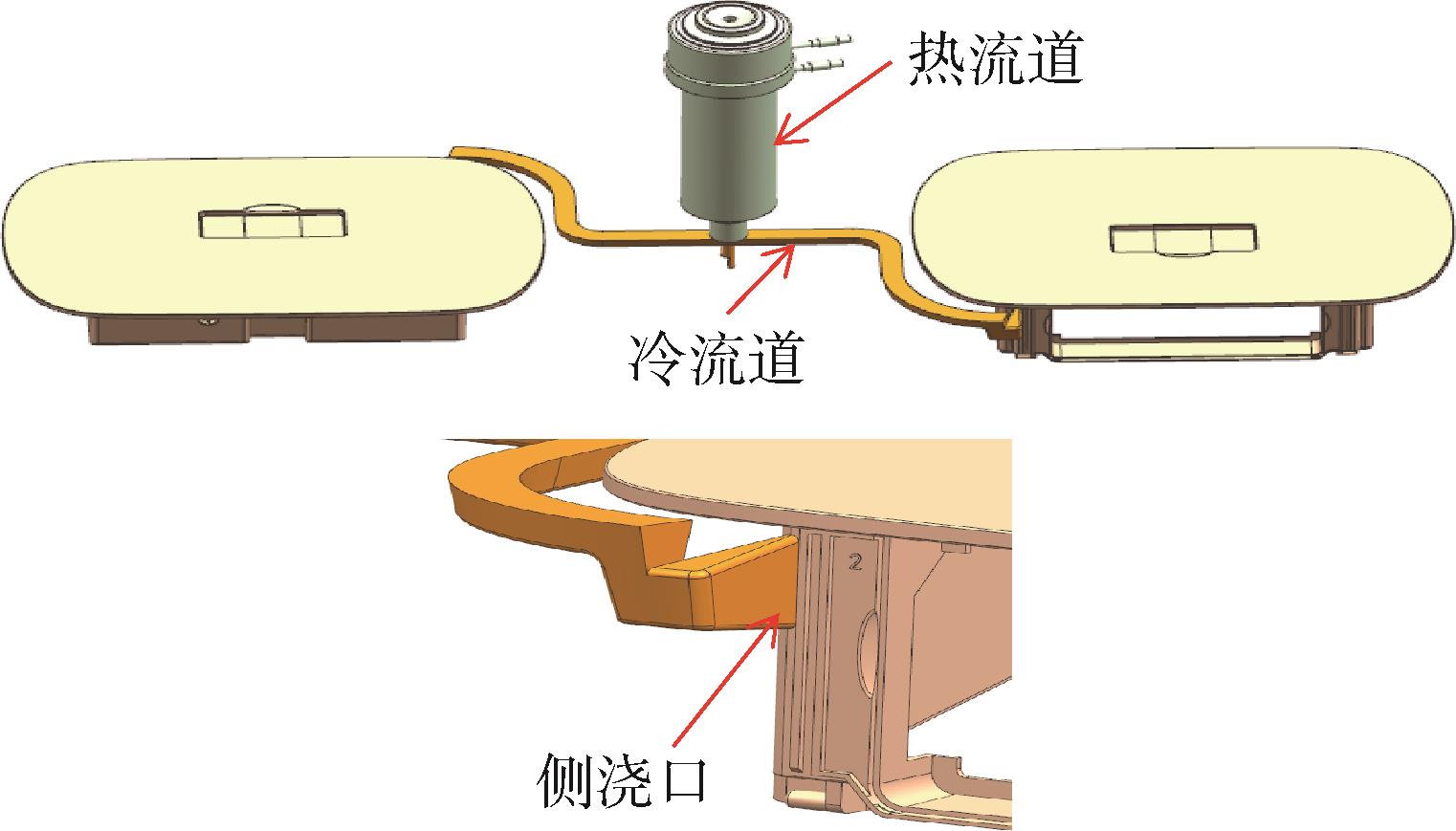

Fig.3. Gating system

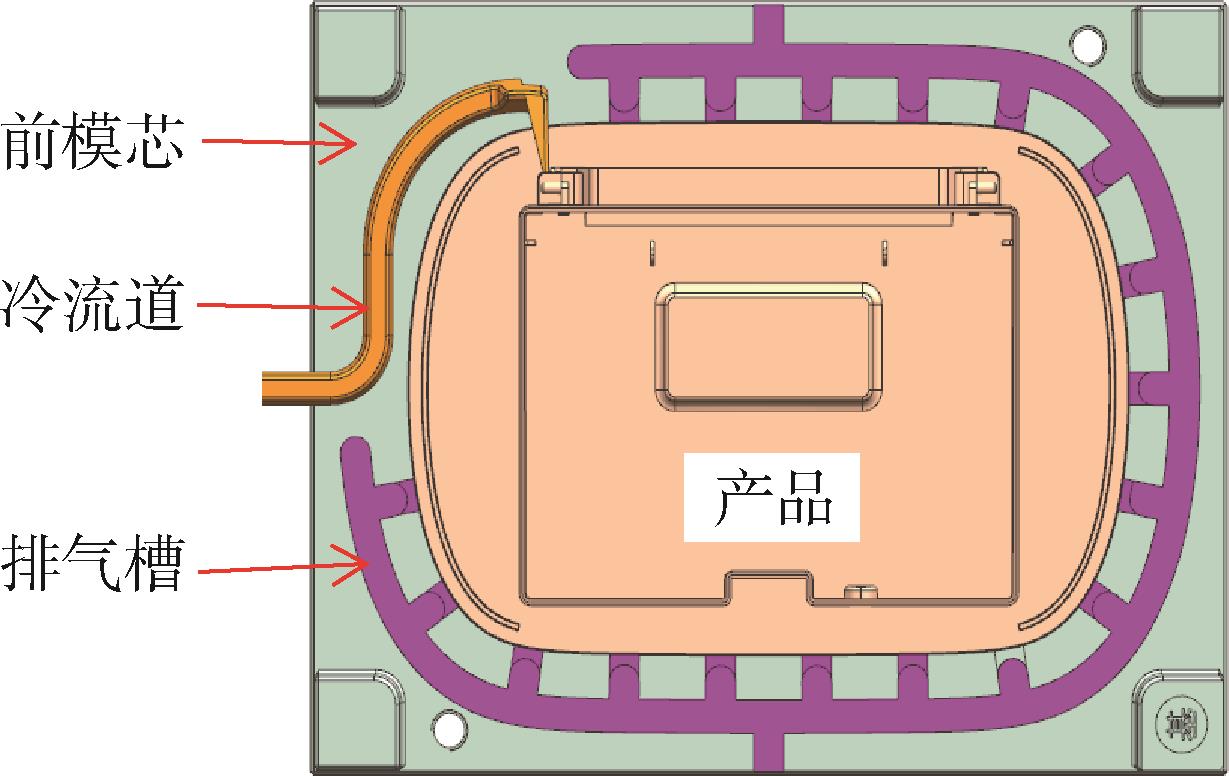

Fig.4. Die core exhaust system

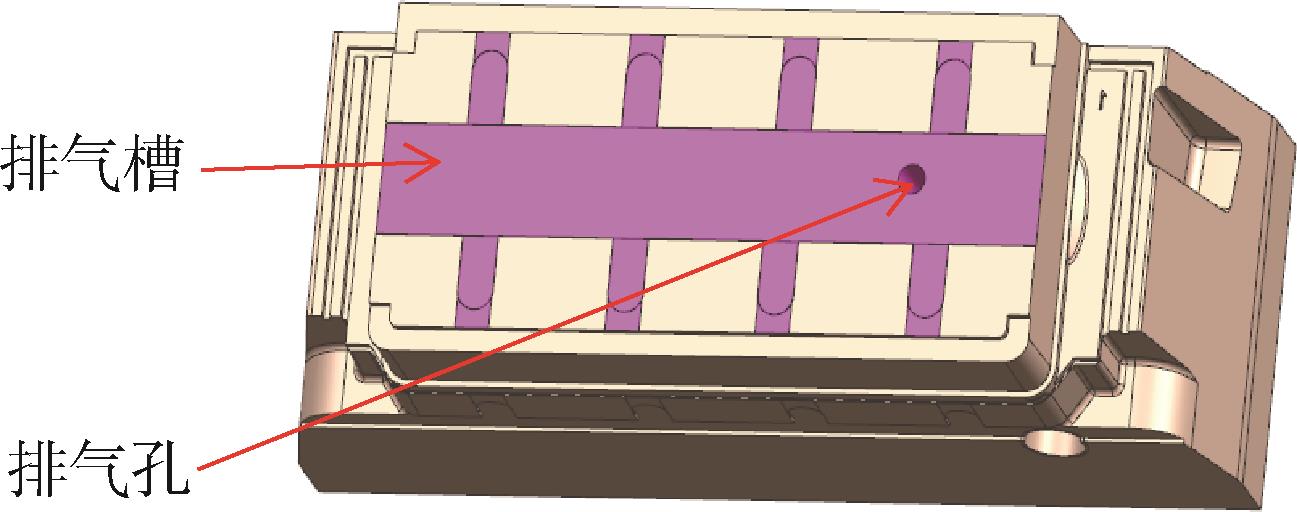

Fig.5. Slider exhaust system

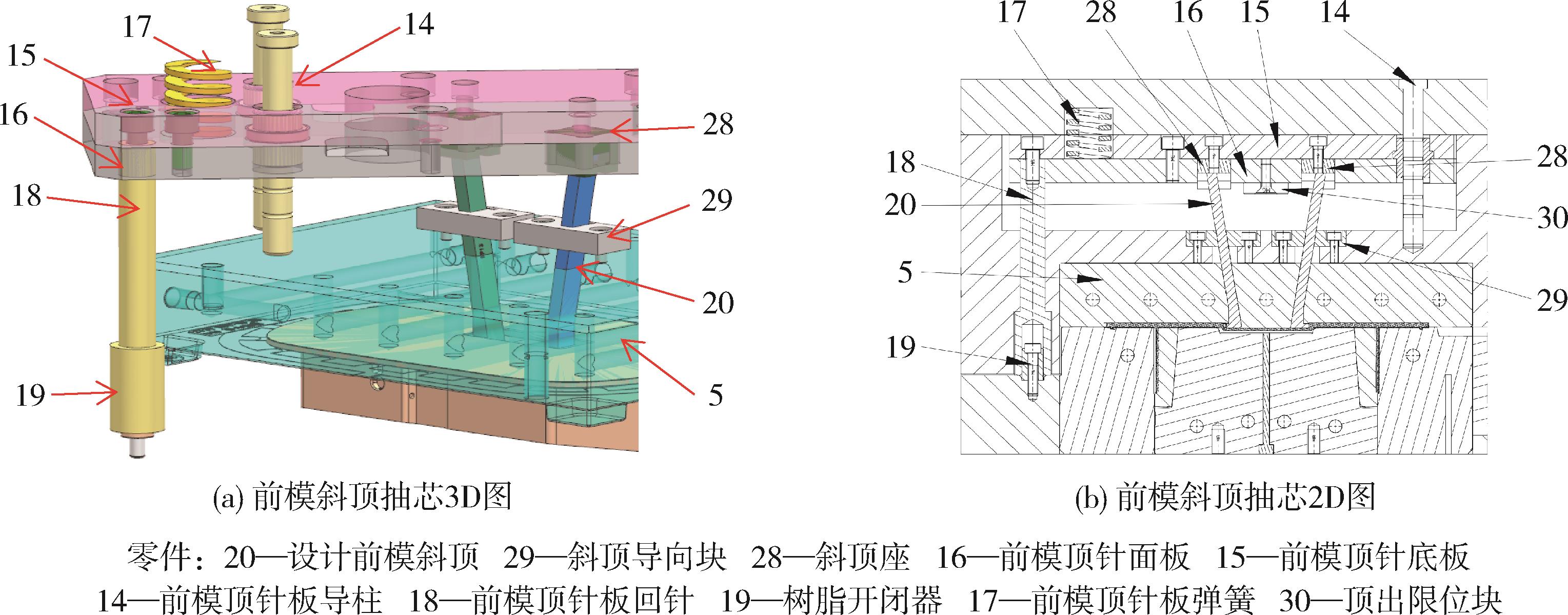

Fig.6. Front mold inclined top core pulling mechanism

Fig.7. Slider secondary core pulling mechanism

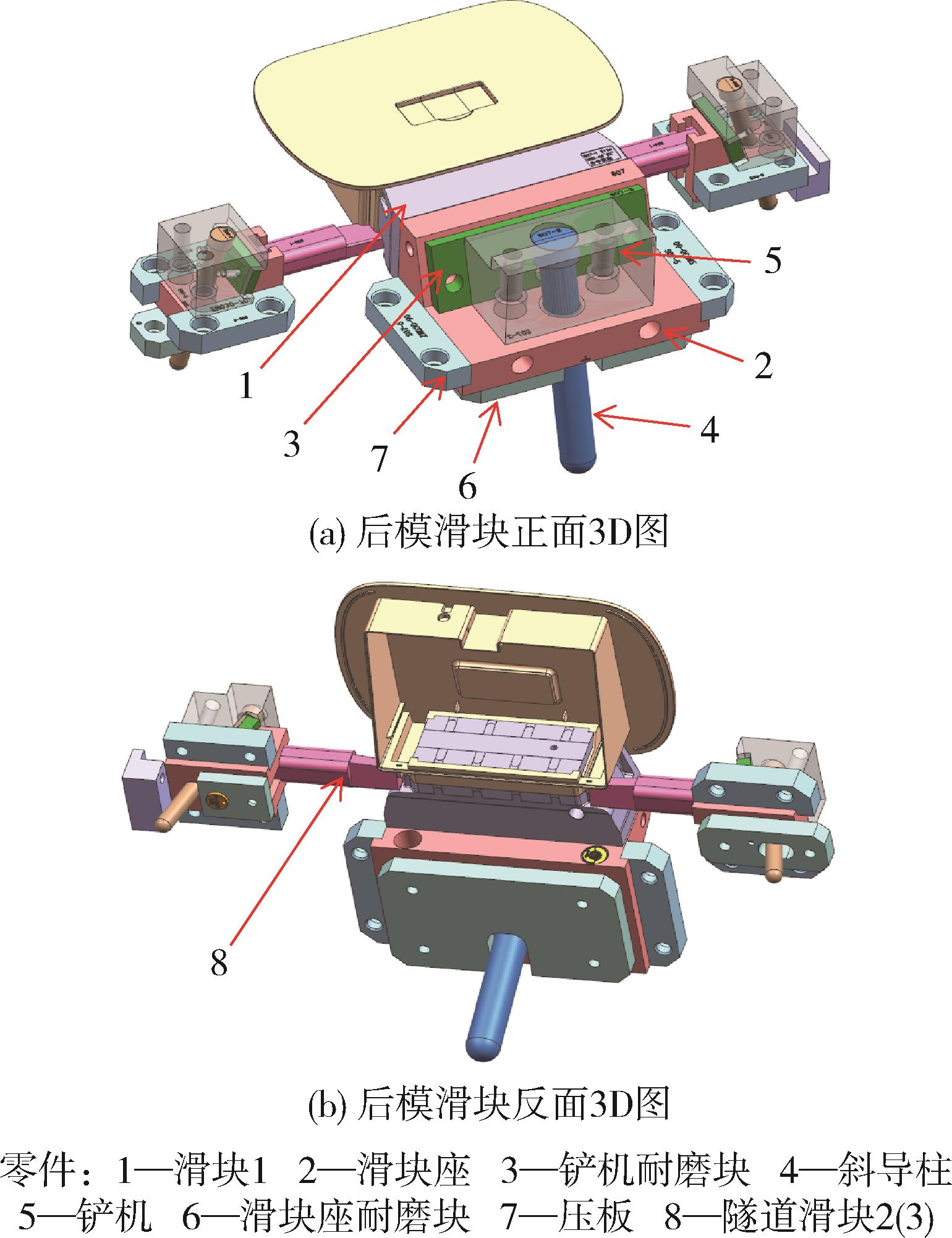

Fig.8. Rear mold slider structure

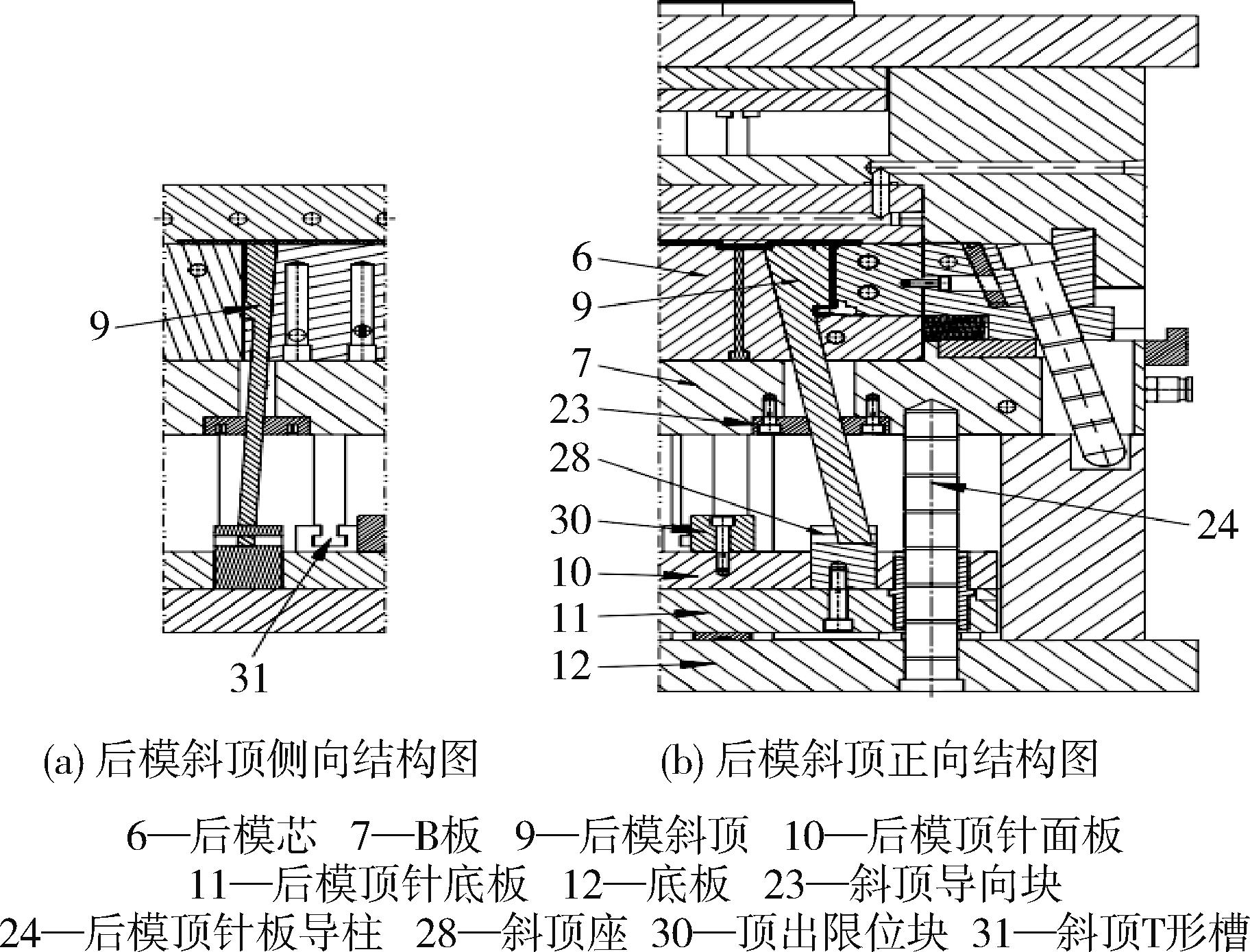

Fig.9. Inclined roof structure of rear formwork

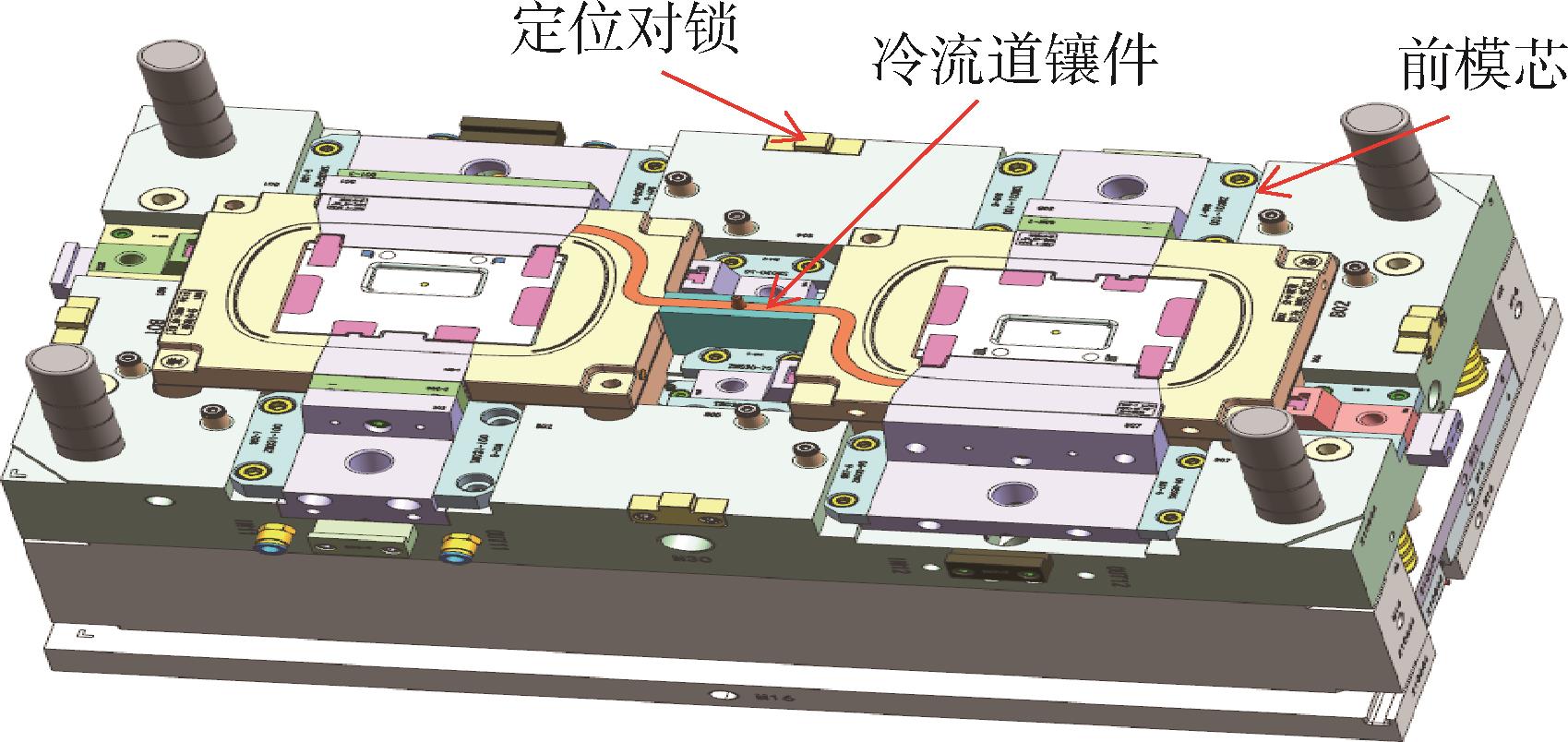

Fig.10. Combined structure of rear formwork
