Structure design and process parameter optimization of active mixing nozzle based on PDMS/SiC functional gradient composite

doi:10.19491/j.issn.1001-9278.2023.02.011

Abstract

Abstract:

Taking the mixture of high⁃viscose polydimethylsiloxane （PDMS） and silicon carbide （SiC） powders as an example， the active mixing nozzle was designed and optimized through hydrodynamic simulation. The influence of different screw structures on the mixing effect of active mixing nozzle was analyzed through simulation. The bidirectional quad⁃screw structure was selected to explore the effect of structural parameters such as screw length， screw and cavity clearance on the mixing effect. The screw length and the gap between screw and cavity were determined to be 12 and 0.2 mm， respectively. The rotation speed and inlet speed of the structure were optimized， and the rotation speed and inlet speed were determined to be 60 r/min and as 1 mm/s， respectively. In addition， the structure can be mixed effectively under different material volume ratio based on the analysis results. Through printing samples， it was confirmed that the effective mixing of composite materials could be realized by using the active mixing nozzle.

Key words: active mixing nozzle, screw structure, functionally gradient composite, structural design, parameter optimization

CLC Number:

TQ320.5

LI Chuanmin, YANG Jianjun, LI Yang, WANG Luowei. Structure design and process parameter optimization of active mixing nozzle based on PDMS/SiC functional gradient composite[J]. China Plastics, 2023, 37(2): 71-76.

Figures/Tables 11

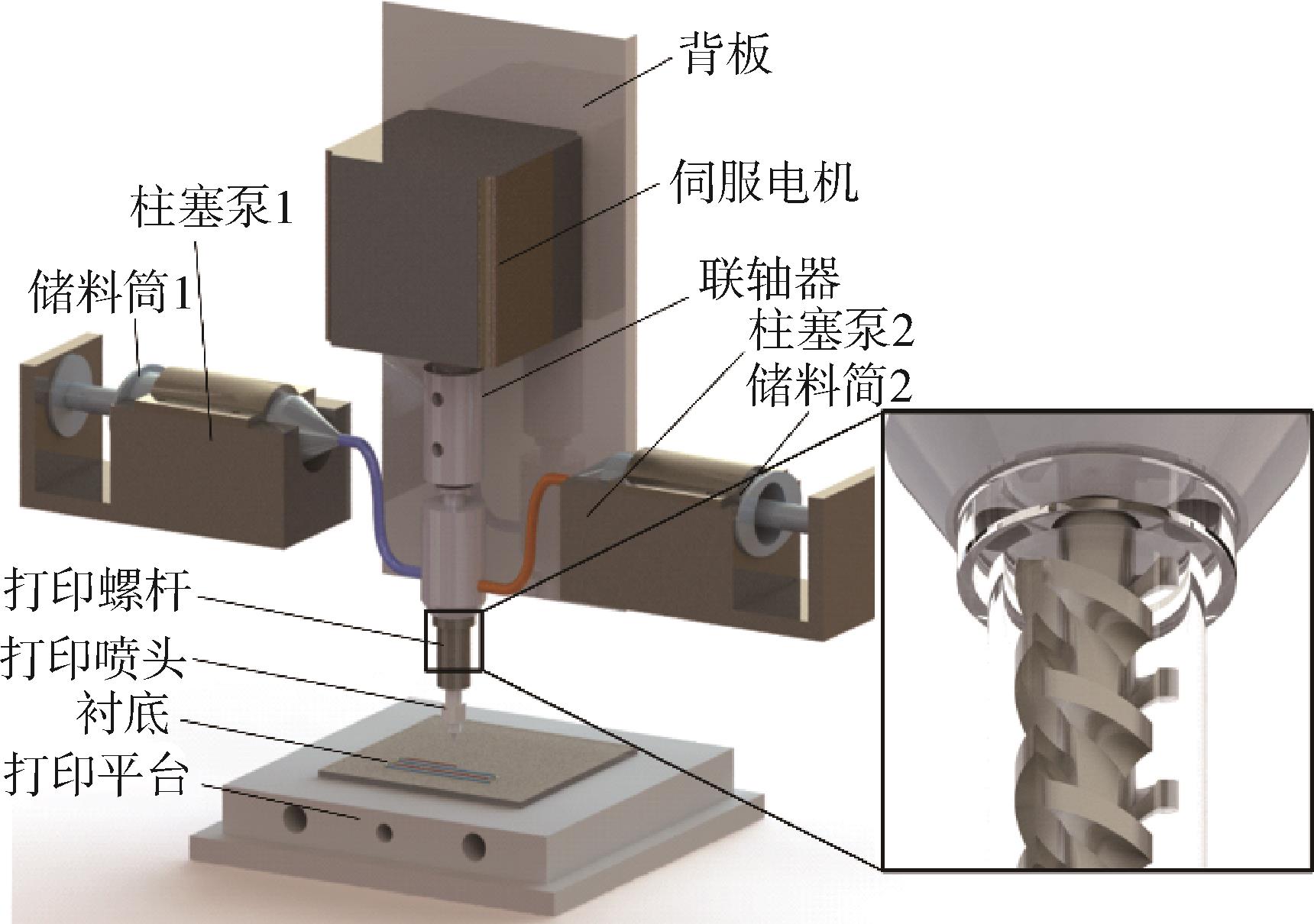

Fig.1. Active mixing nozzle device

材料	密度/kg·m^-3	黏度/cp
100 %PDMS	1 040.0	3 500
50 %PDMS+50 %SiC	1 680.5	32 300

Tab.1. Parameters of the materials

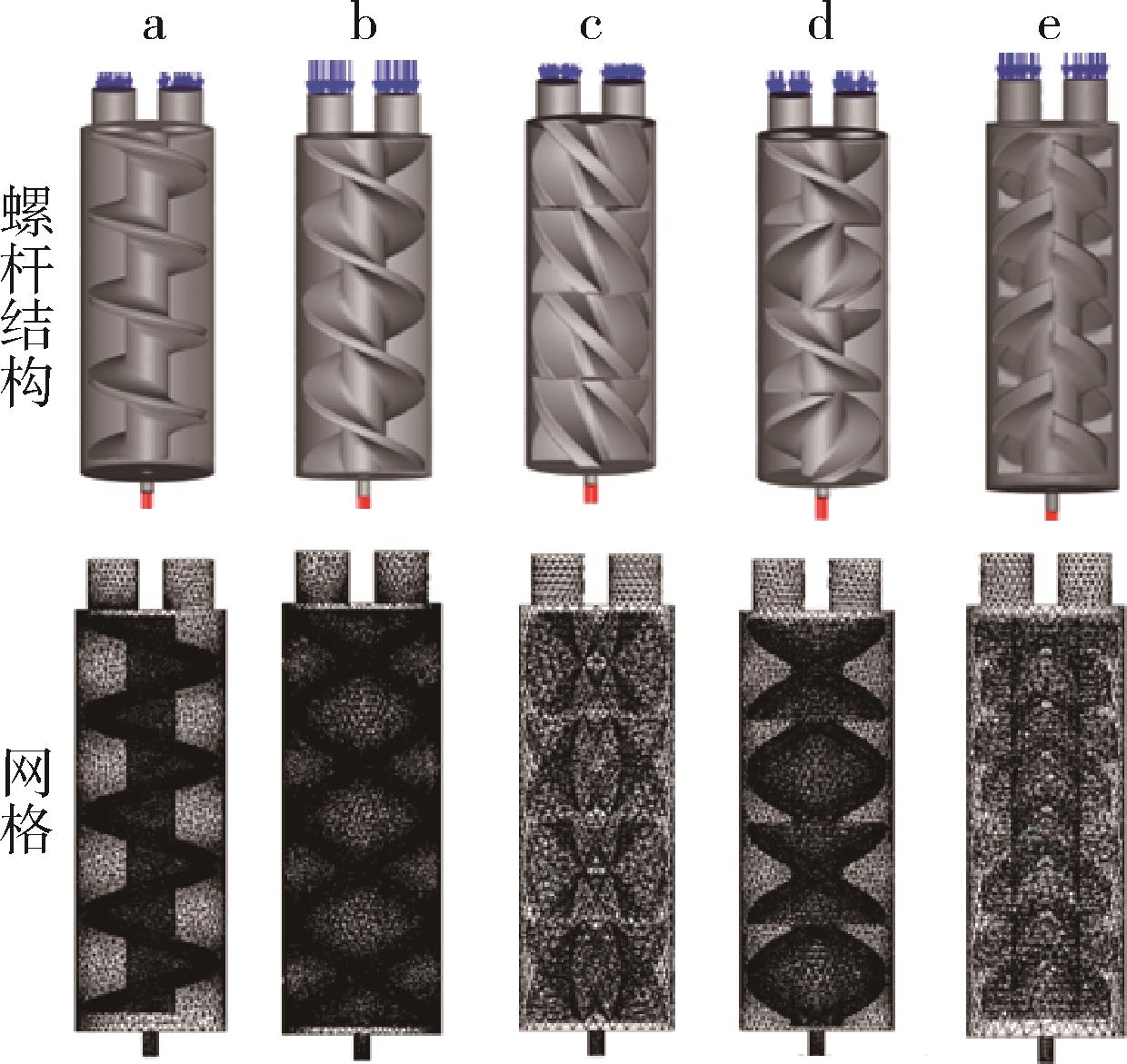

Fig.2. Screw structures and meshs

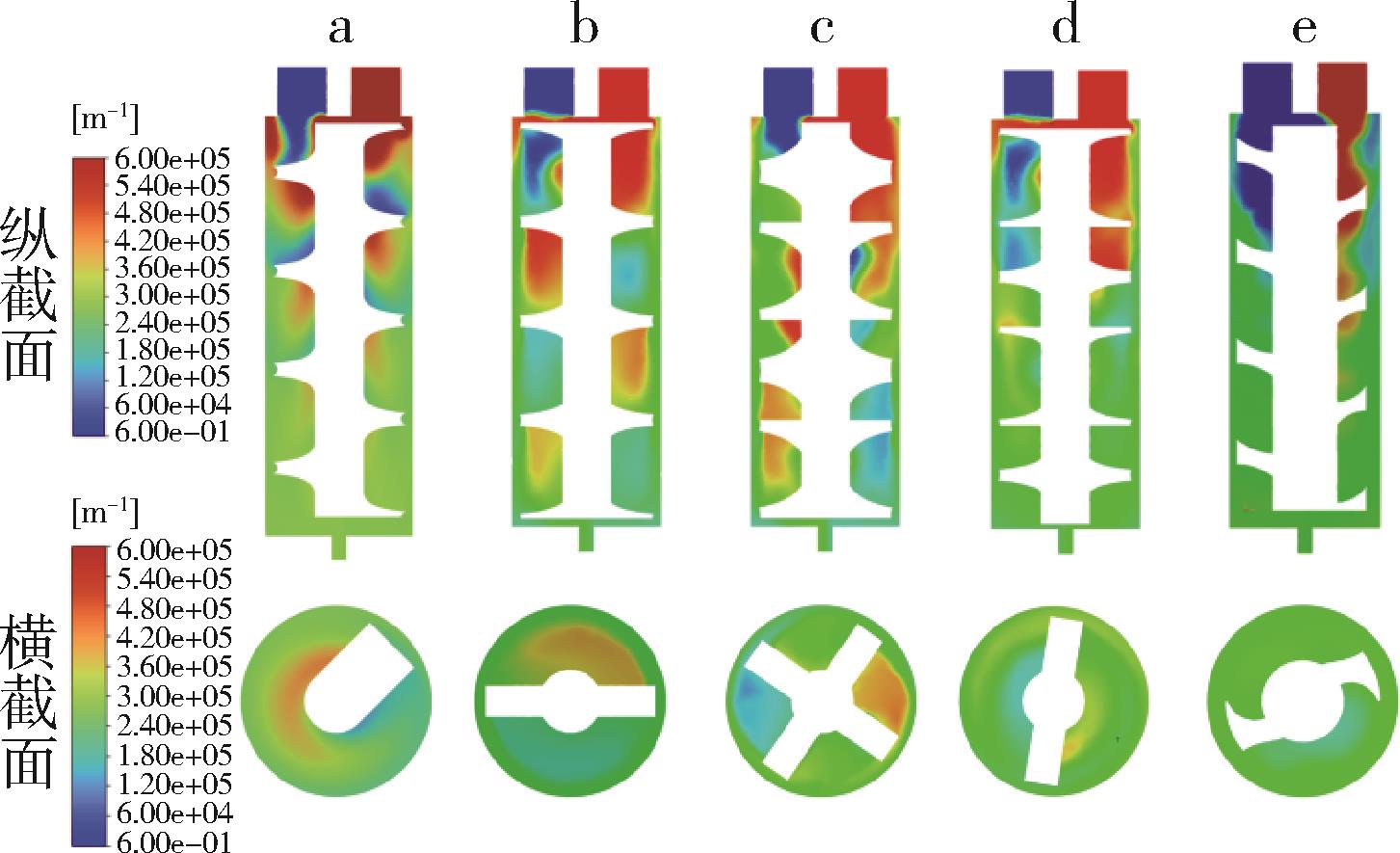

Fig.3. Mixed cloud images of longitudinal and transverse section interfacial density of various types of the screws

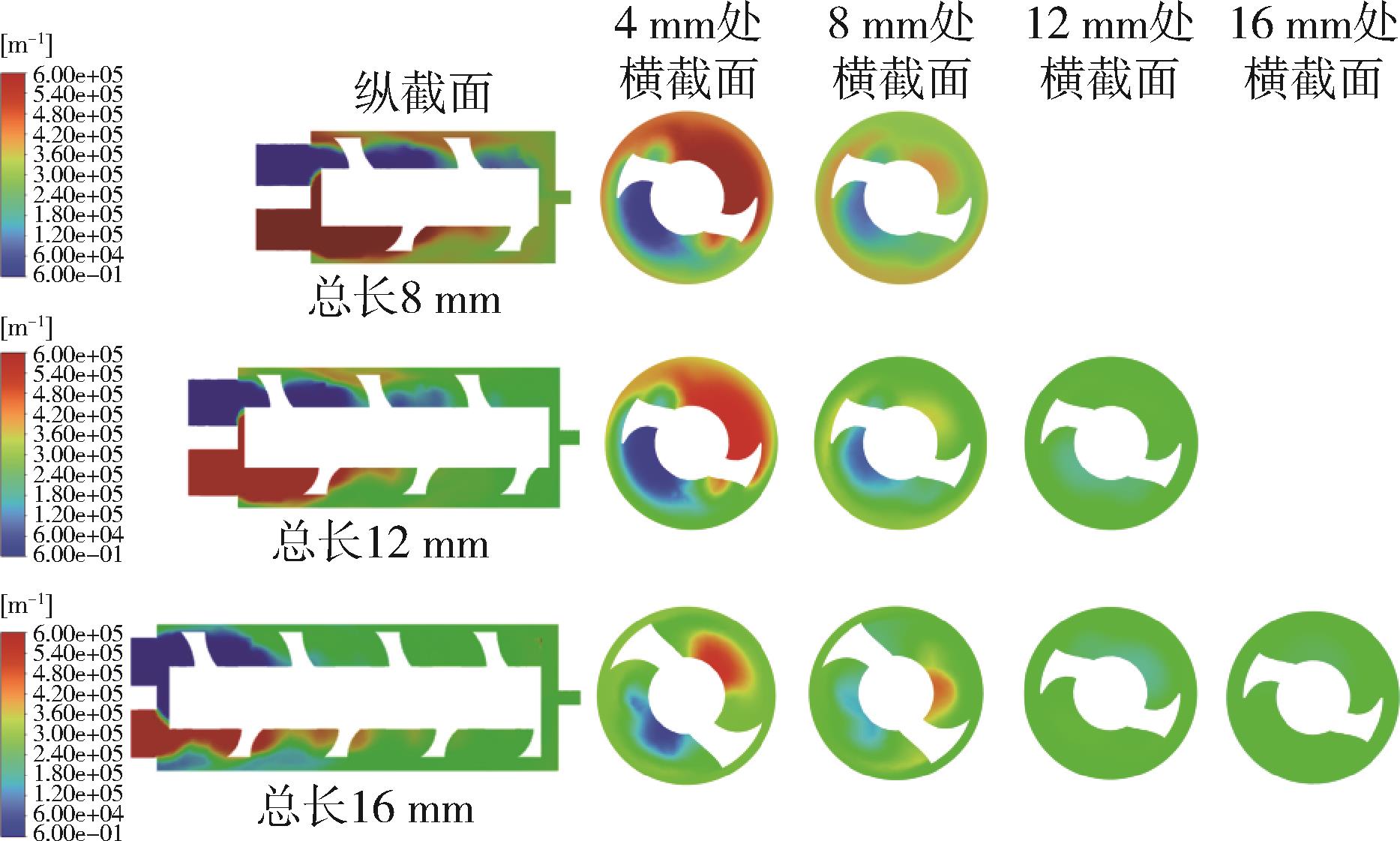

Fig.4. Mixed cloud images for interfacial density of screws with different lengths

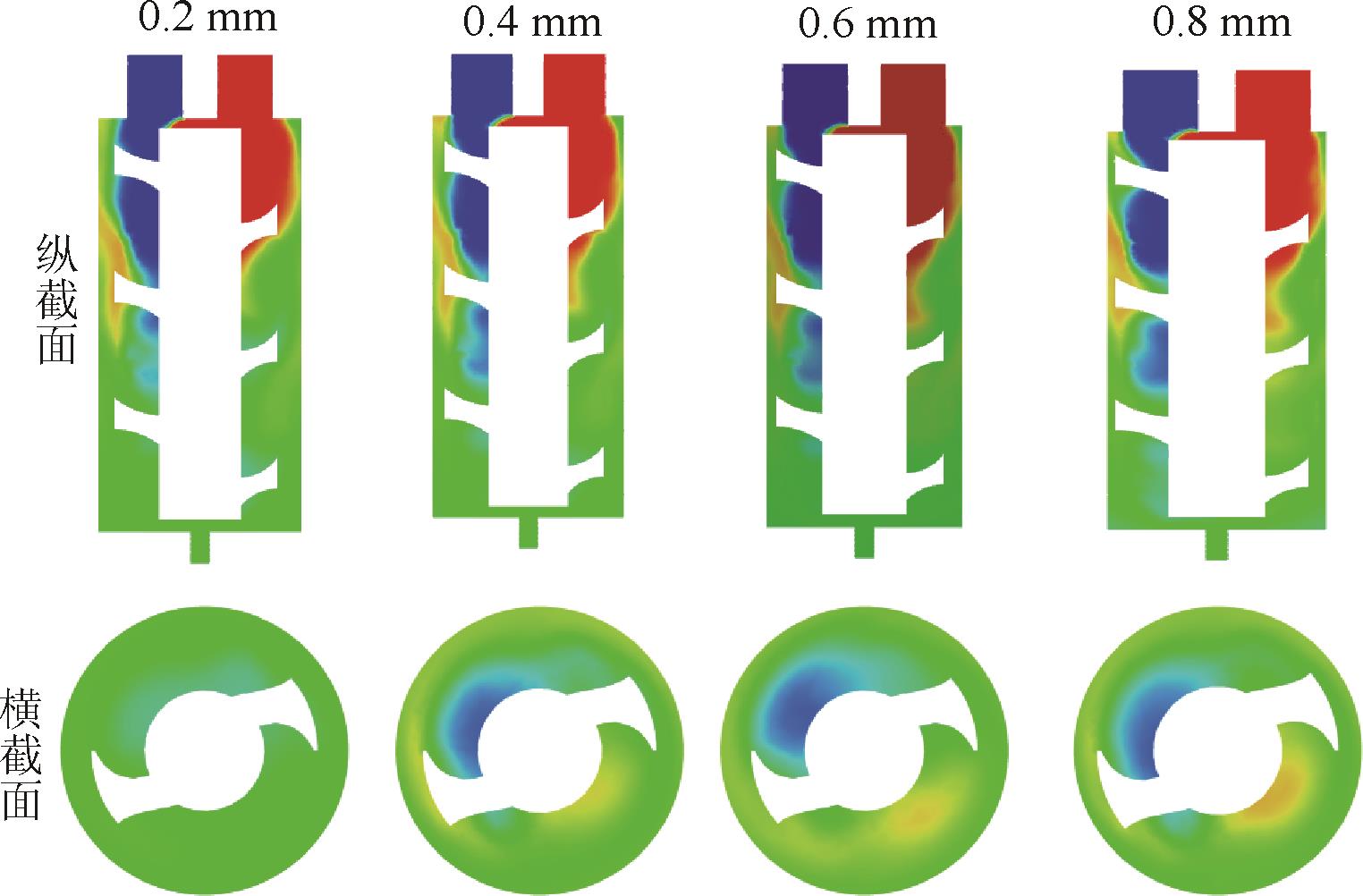

Fig.5. Mixed cloud image of interfacial density at different spacings

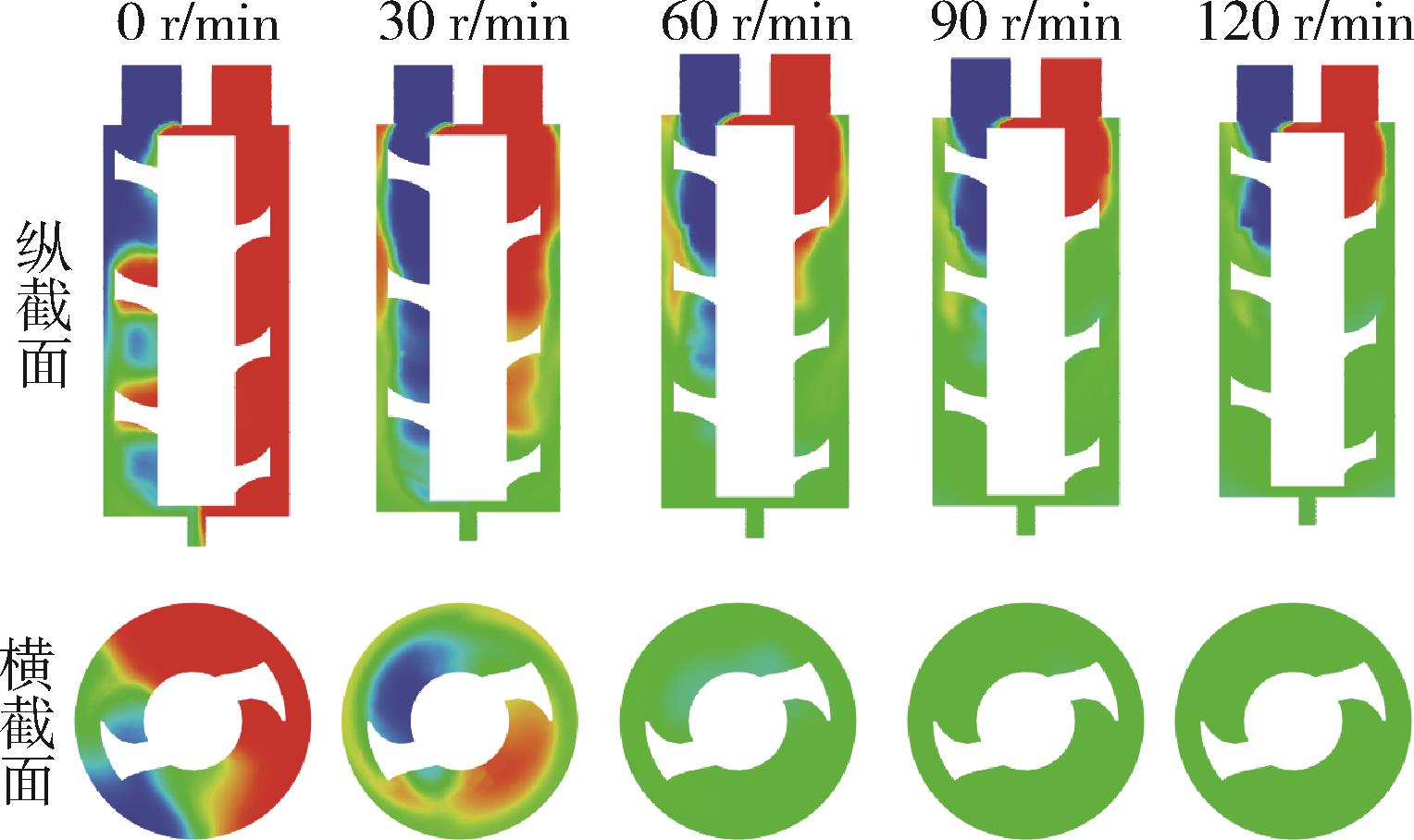

Fig.6. Mixed cloud images of interfacial density at different speeds

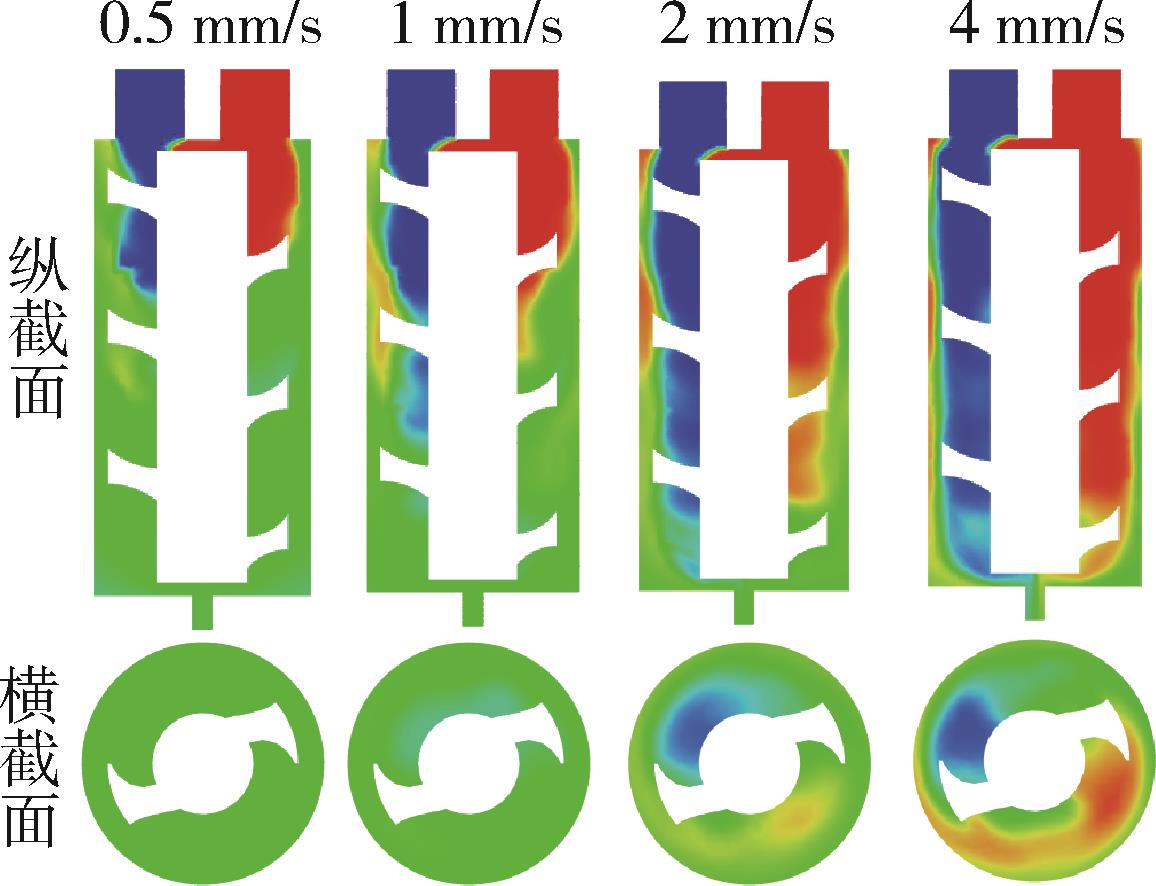

Fig.7. Mixed cloud images of interfacial density at different inlet velocities

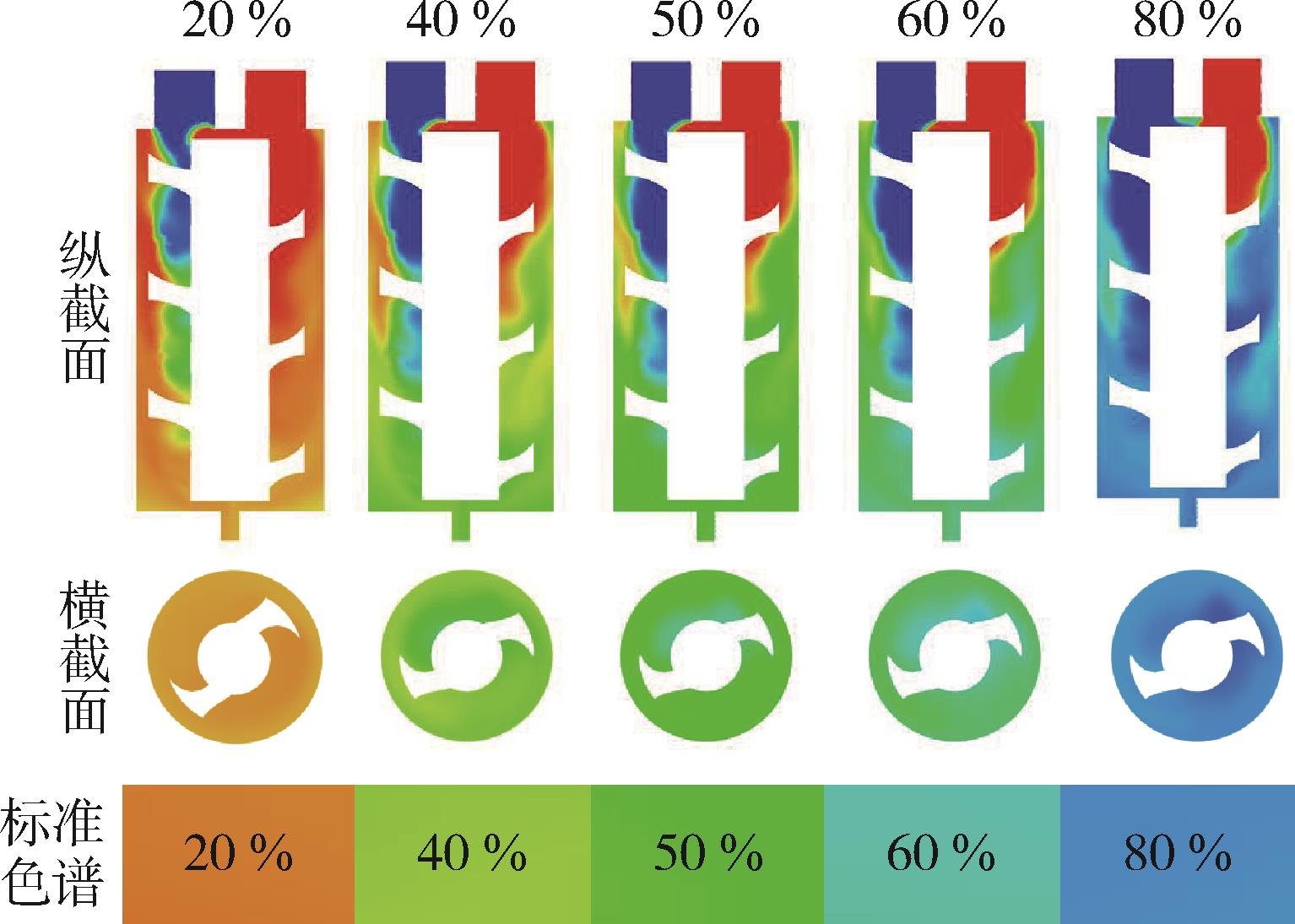

Fig.8. Mixed cloud image of interfacial density under different material ratio and standard chromatograms

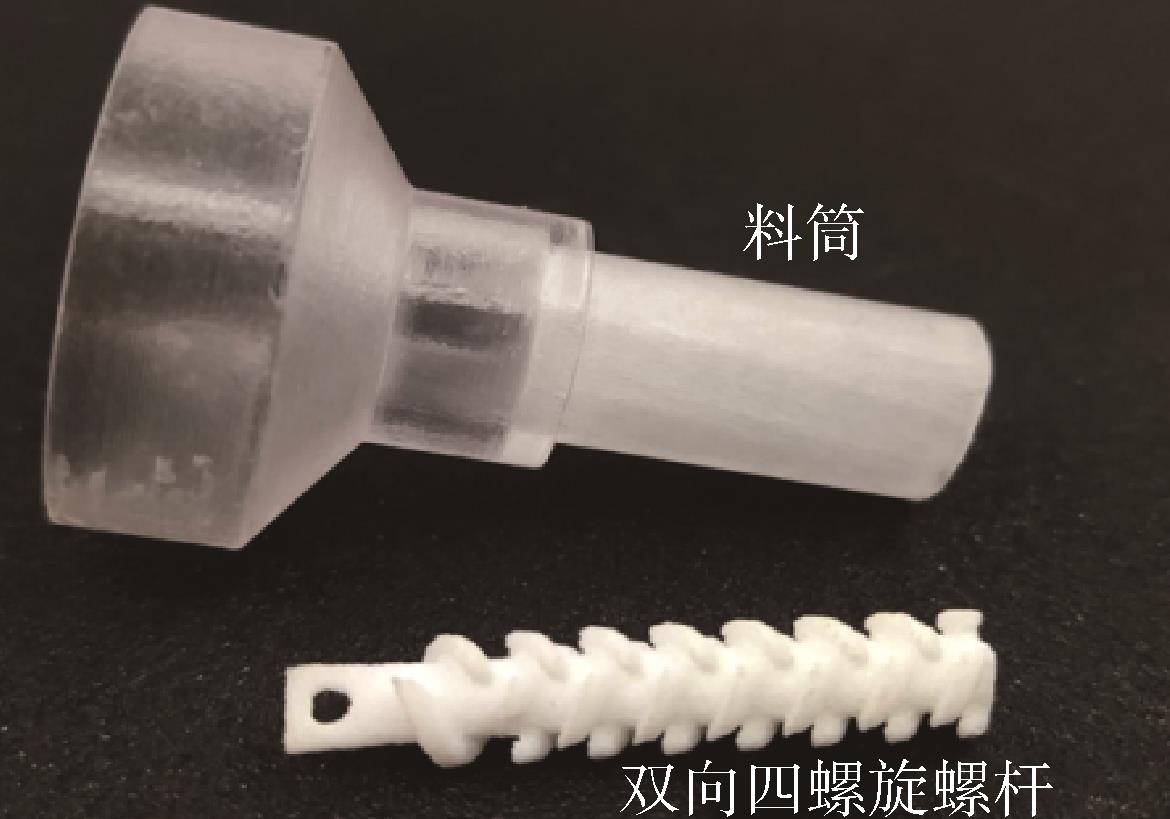

Fig.9. Physical photograph of screw structure

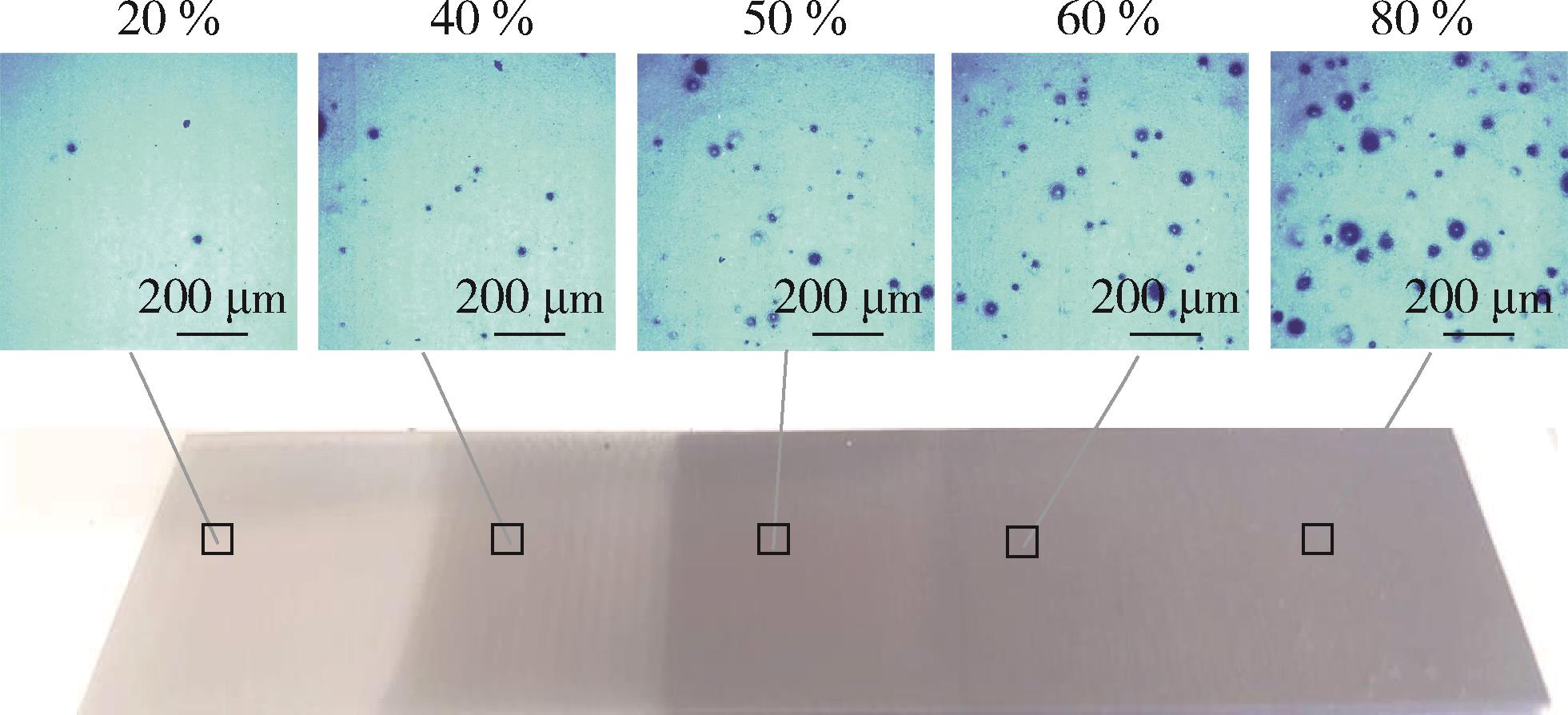

Fig.10. Print samples and their microscopic morphology

References 17

1	BLANC L， DELCHAMBRE A， LAMBERT P. Flexible medical devices： review of controllable stiffness solutions［J］. Actuators，2017， 6（3）： 23⁃30.
2	DYLLA⁃SPEARS R， YEE T D， SASAN K， et al. 3D printed gradient index glass optics［J］. Science advances， 2020， 6（47）： 7429.
3	KHALIL S， NAM J， SUN W. Multi‐nozzle deposition for construction of 3D biopolymer tissue scaffolds［J］. Rapid Prototyping Journal， 2005， 11（1）： 9⁃17.
4	GOULAS A， ZHANG S， MCGHEE J R， et al. Fused fila⁃ment fabrication of functionally graded polymer composites with variable relative permittivity for microwave devices［J］. Materials & Design， 2020， 193： 108871.
5	JOSEPH V S， CALAIS T， STALIN T， et al. Silicone/epoxy hybrid resins with tunable mechanical and interfacial properties for additive manufacture of soft robots［J］. App⁃lied Materials Today， 2021， 22： 100979.
6	GOLOBIC A M， DURBAN M D， FISHER S E， et al. Active mixing of reactive materials for 3D printing［J］. Advanced Engineering Materials， 2019， 21（8）： 1900147.
7	ORTEGA J M， GOLOBIC M， SAIN J D， et al. Active mixing of disparate inks for multimaterial 3D printing［J］. Advanced Materials Technologies， 2019， 4（7）： 1800717.
8	PEI E， LOH G H， HARRISON D， et al. A study of 4D printing and functionally graded additive manufacturing［J］. Assembly Automation， 2017， 37（2）： 147⁃153.
9	Skylar⁃Scott M A， Mueller J， Visser C W， et al. Voxelated soft matter via multimaterial multinozzle 3D printing［J］. Nature， 2019， 575（7 782）： 330⁃335.
10	宋银宝，杨建军，李传敏.PDMS/SiC功能梯度复合材料性能与制造精度研究［J］.中国塑料，2022， 36（7）： 30⁃36.
	SONG Y B， YANG J J， LI C M. Research on properties and manufacturing accuracy of PDMS/SiC functional gra⁃dient composites ［J］. China Plastics， 2022， 36（7）： 30⁃36.
11	OBER T J， FORESTI D， LEWIS J A. Active mixing of complex fluids at the microscale［J］. Proceedings of the National Academy of Sciences， 2015， 112（40）： 12 293⁃12 298.
12	PELZ J S， KU N， SHOULDERS W T， et al. Multi⁃material additive manufacturing of functionally graded carbide ceramics via active， in⁃line mixing［J］. Additive Manufacturing， 2021， 37： 101647.
13	IDASZEK J， COSTANTINI M， KARLSEN T A， et al. 3D bioprinting of hydrogel constructs with cell and material gradients for the regeneration of full⁃thickness chondral defect using a microfluidic printing head［J］. International Society for Biofabrication， 2019， 11（4）： 044101.
14	Zhou L， Gao Q， Fu J， et al. Multimaterial 3D printing of highly stretchable silicone elastomers［J］. ACS Applied Materials & Interfaces， 2019， 11（26）： 23 573⁃23 583.
15	任礼，白海清，贾仕奎，等. 单螺杆挤出式3D打印机优化设计与温度场分析［J］.塑料工业，2020， 48（12）： 90⁃95.
	REN L， BAI H Q， JIA S K， at el. Optimization design and temperature field analysis of single screw extruder 3D printer ［J］. Plastics industry， 2020， 48（12）： 90⁃95.
16	Ren L Q， Song Z Y， Liu H L， et al. 3D printing of materials with spatially non linearly varying properties［J］. Materials & Design， 2018， 156： 470⁃479.
17	蔡义强，褚忠，罗业波，等. 基于Fluent的注塑模随形冷却水道传热研究［J］.塑料工业， 2022， 50（1）： 82⁃85.
	CAI Y Q， CHU Z， LUO Y B， et al. Study on heat transfer of injection mold with shape cooling channel based on fluent ［J］. Plastics Industry， 2022， 50（1）： 82⁃85.
