Mold design for oblique orifice air chamber in automotive heat exchanging system

doi:10.19491/j.issn.1001-9278.2023.09.015

Abstract

Abstract:

According to the design characteristics and production requirements of the mold for an oblique orifice air chamber in the automotive heat exchange system. A more detailed molding process scheme was proposed for the PA66/30 %GF plastic parts， which included the characteristic process analysis of plastic parts， structural design， working principle， and product pre⁃variation technology. The core technologies for the three⁃time slider mechanism of the inclined orifice air chamber mold and product pre⁃variation were intensively studied， and the structural design and application investigation of the molding process for the plastic parts were conducted. Through verifying the preform of the orifice chamber repeatedly， the optimal mathematical model of the orifice chamber was designed， and an orifice chamber mold was developed to directly meet the requirement of production assembly. The research results indicated that the developed mold was more compact with fewer molding defects， which improved productivity and stable operation significantly through three slider designs. Owing to the use of an open mold design solution for the PA66/30 %GF parts， the product was converted from a metal part to a plastic part. This significantly reduced the material costs and obtained a lightweight design for automotive parts. As a result， the overall weight of the vehicle was reduced and the fuel economy was improved.

Key words: forming process, triple slider mechanism, working principle, product pre?variation

CLC Number:

TQ320.66⁺2

YE Weiwen, CHEN Zhensen, JIANG Bingchun, WU Guangming. Mold design for oblique orifice air chamber in automotive heat exchanging system[J]. China Plastics, 2023, 37(9): 102-108.

Figures/Tables 16

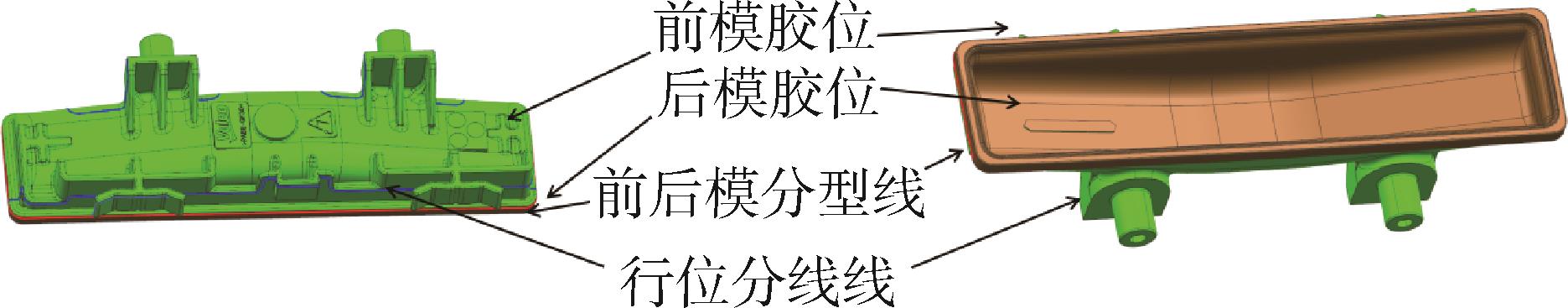

Fig.1. 3D view of circulating air chamber Q2

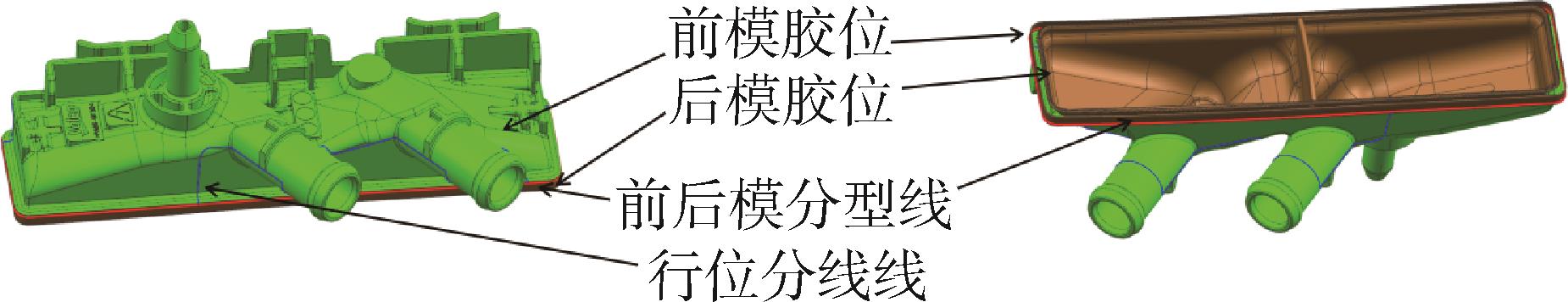

Fig.2. 3D View of oblique tube air chamber Q1

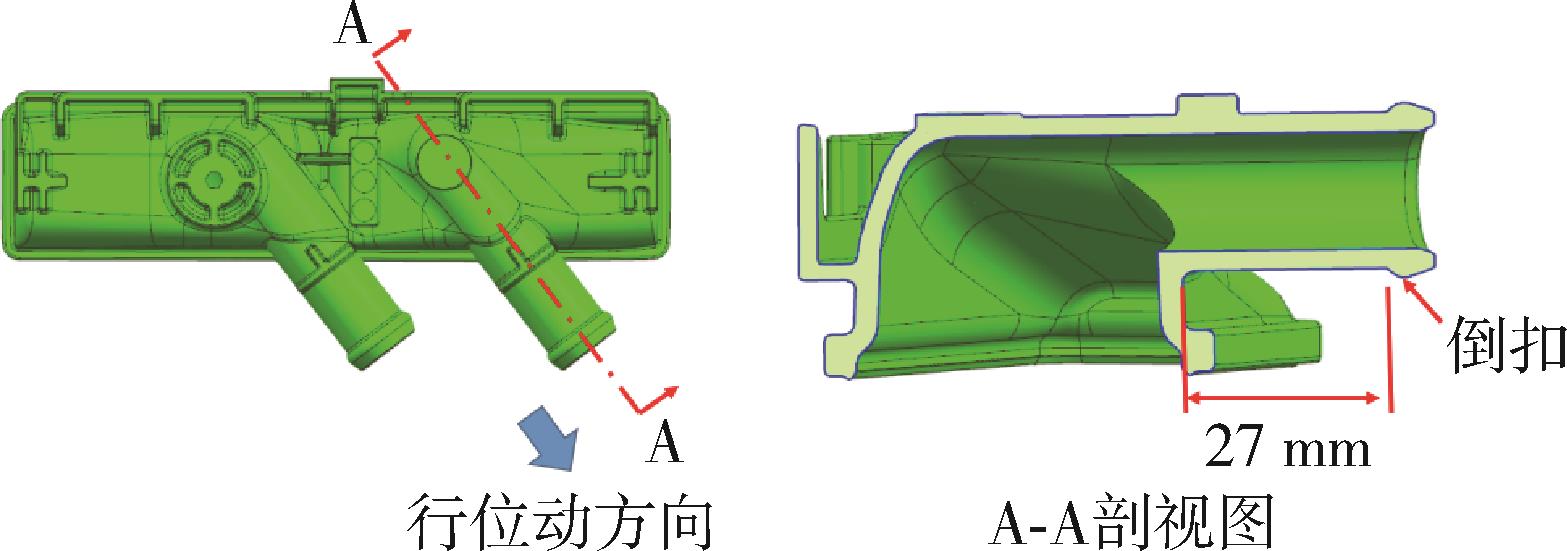

Fig.3. Cross⁃sectional view of the oblique orifice air chamber Q1

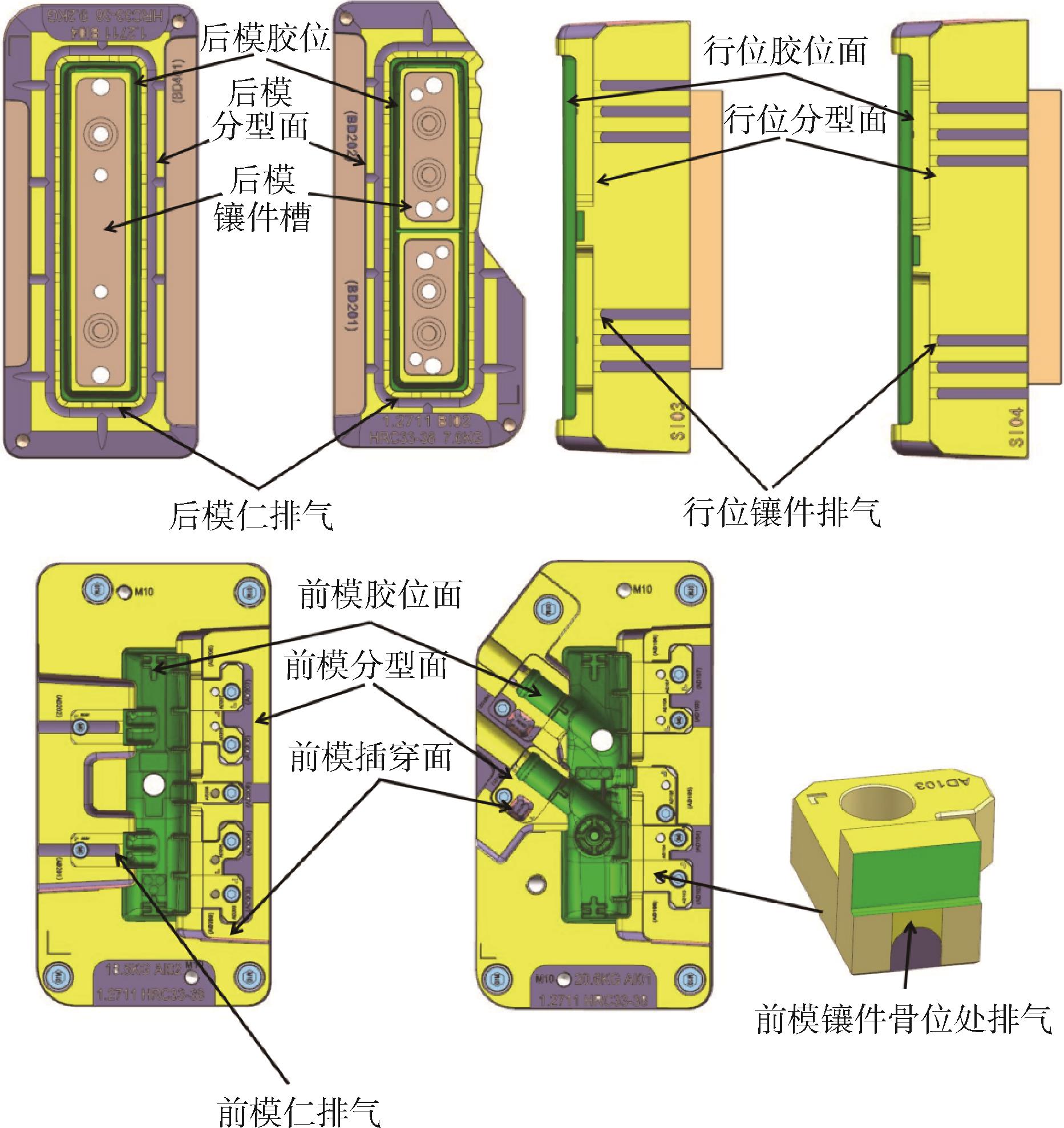

Fig.4. Parting surface and exhaust

Fig.5. Overall structure of the mould in 2D

Fig.6. Three⁃time slide mechanism

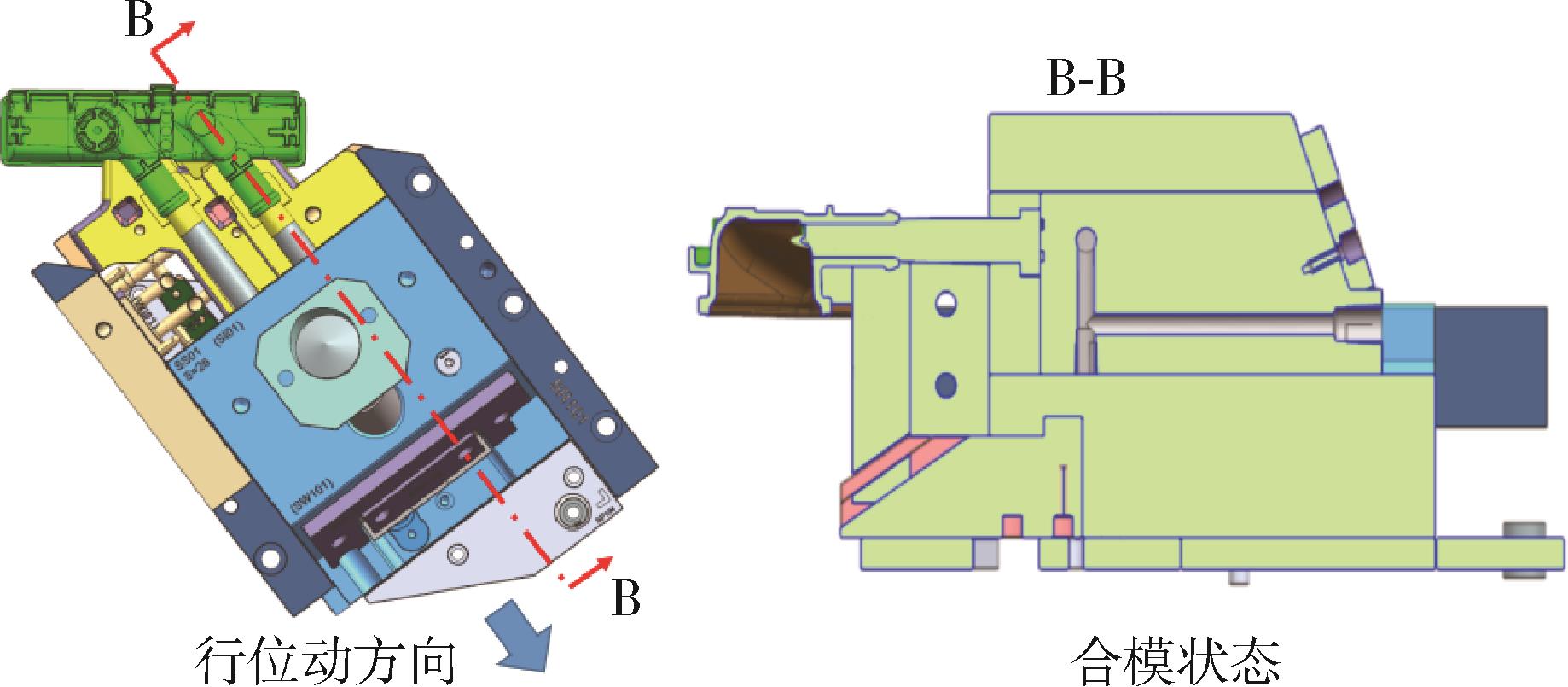

Fig.7. Original closed mould state

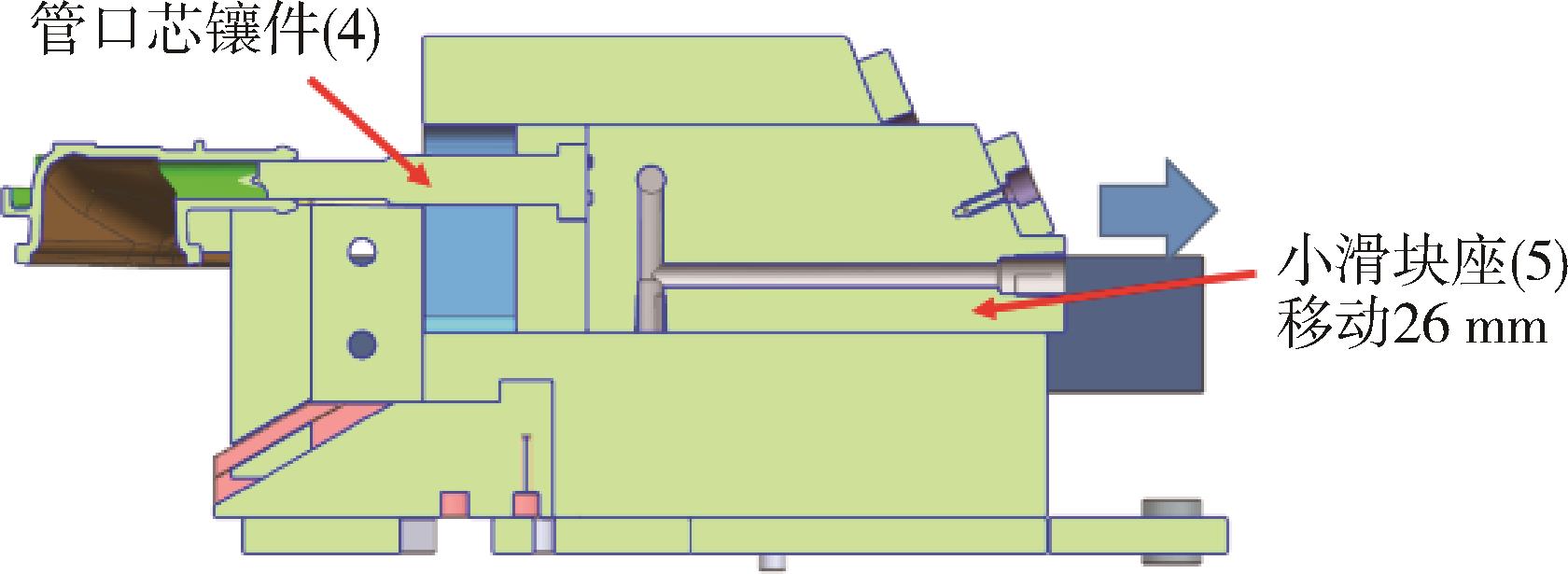

Fig.8. State of the first movement

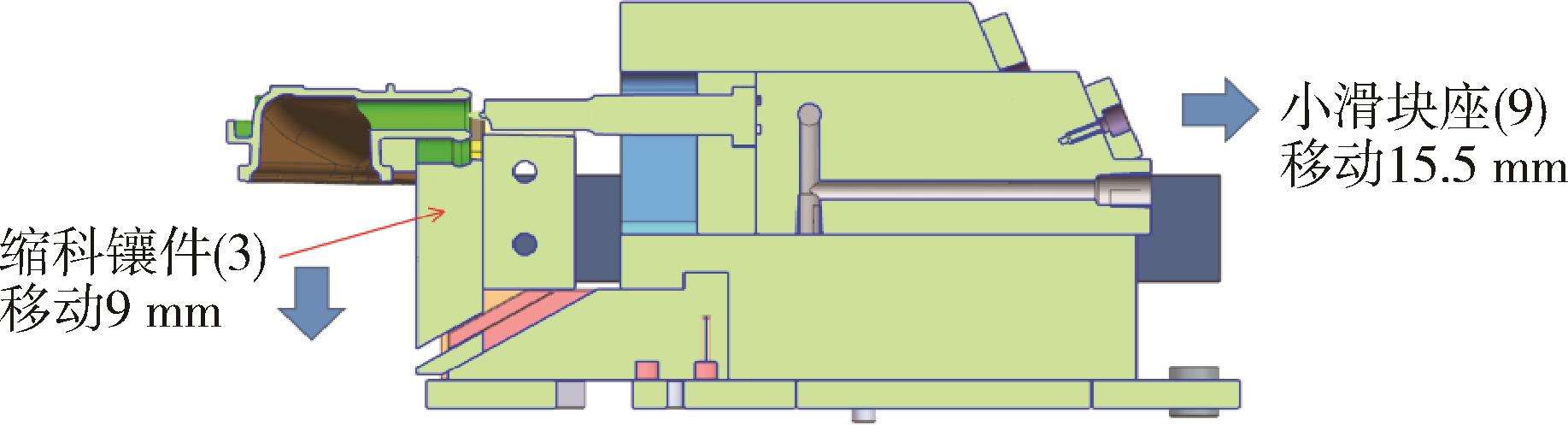

Fig.9. State of the second movement

Fig.10. State of the third movement

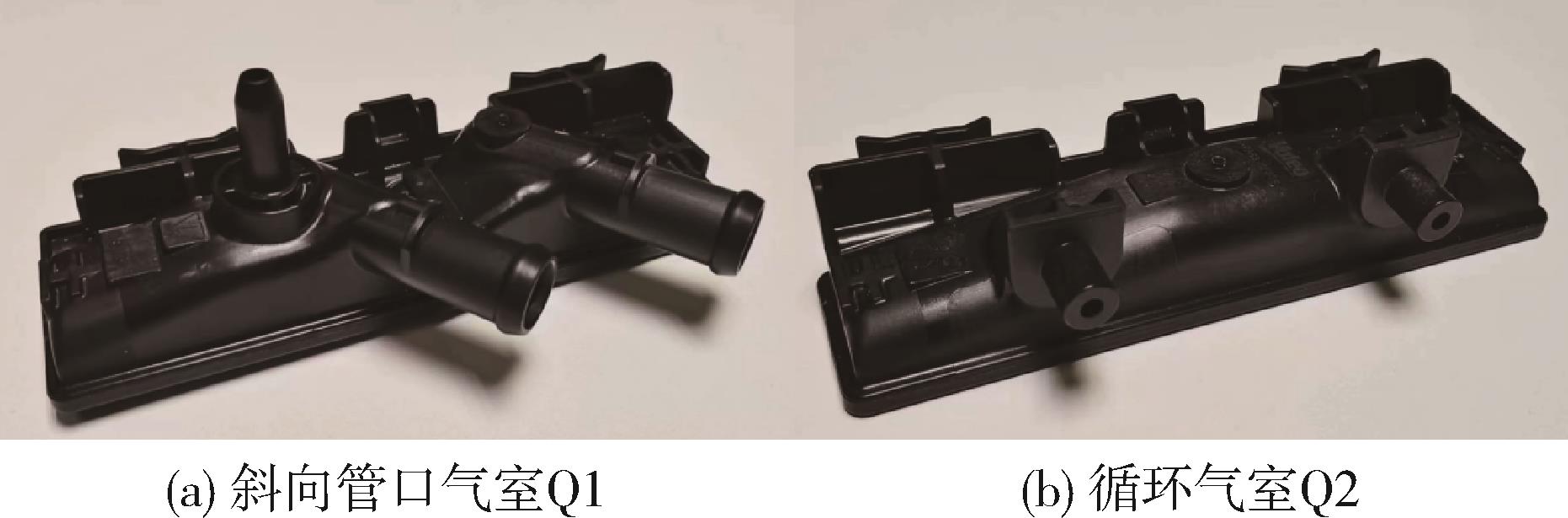

Fig.11. Physical picture of the air chamber

Fig.12. Pouring system （hot runner）

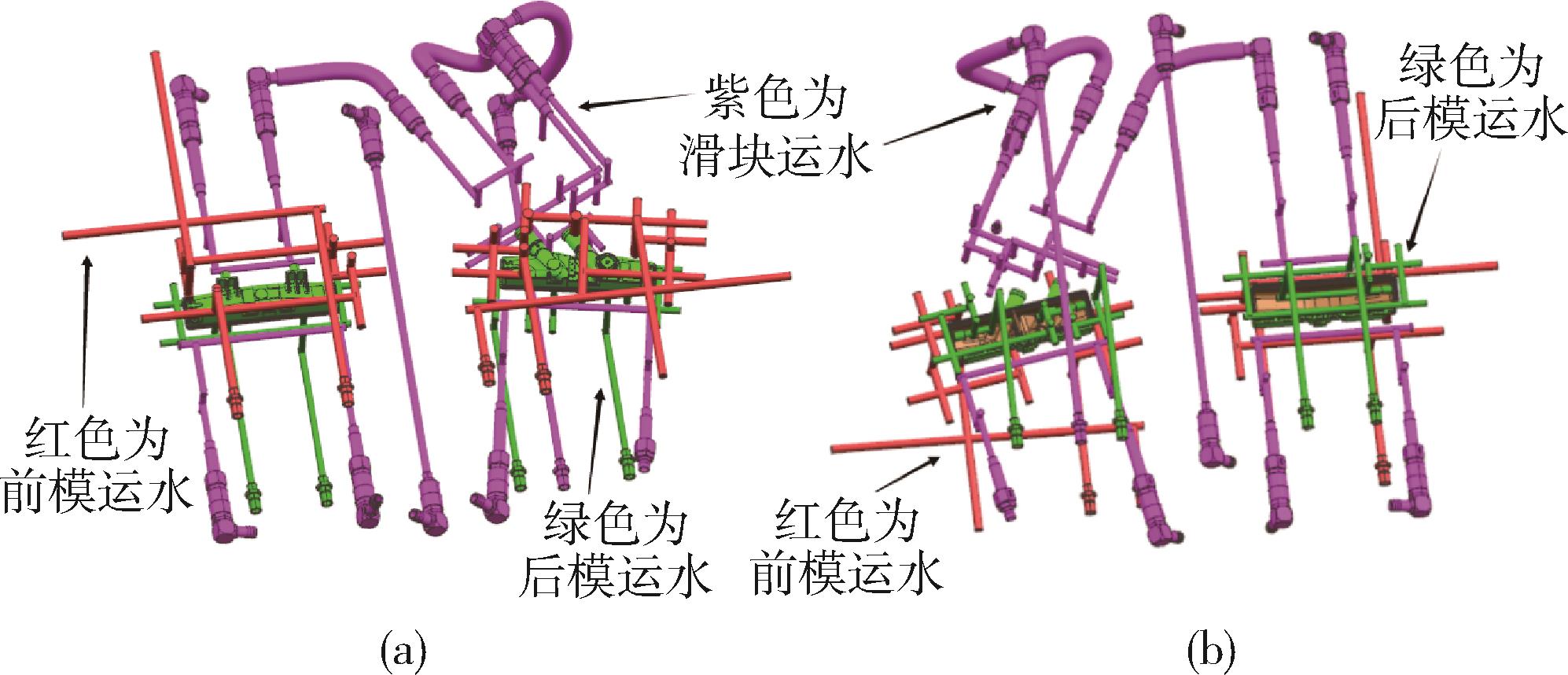

Fig.13. Cooling system

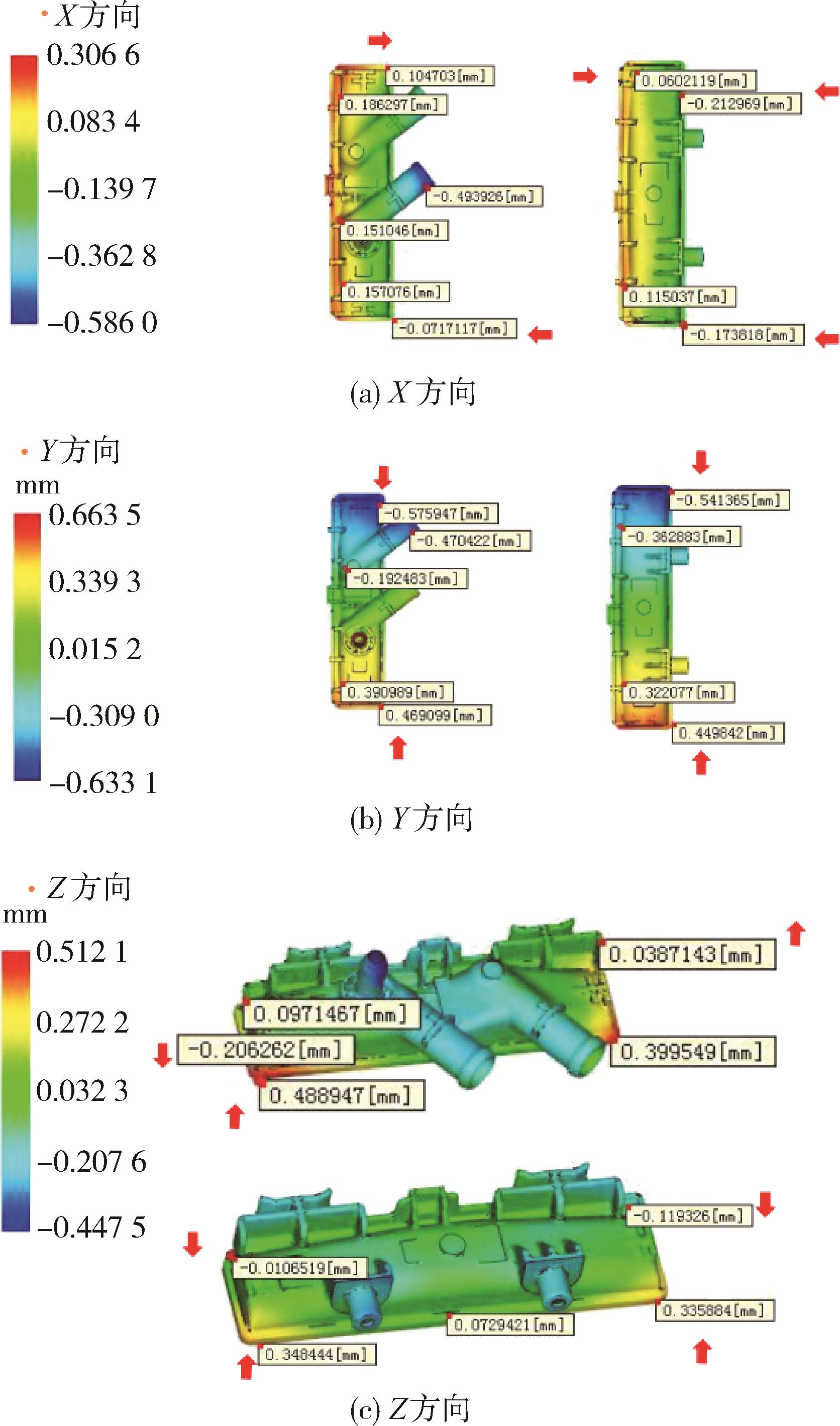

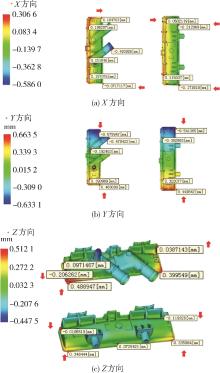

Fig.14. Moldflow X，Y，Z direction variant data of oblique tube air chamber Q1 and recirculation air chamber Q2

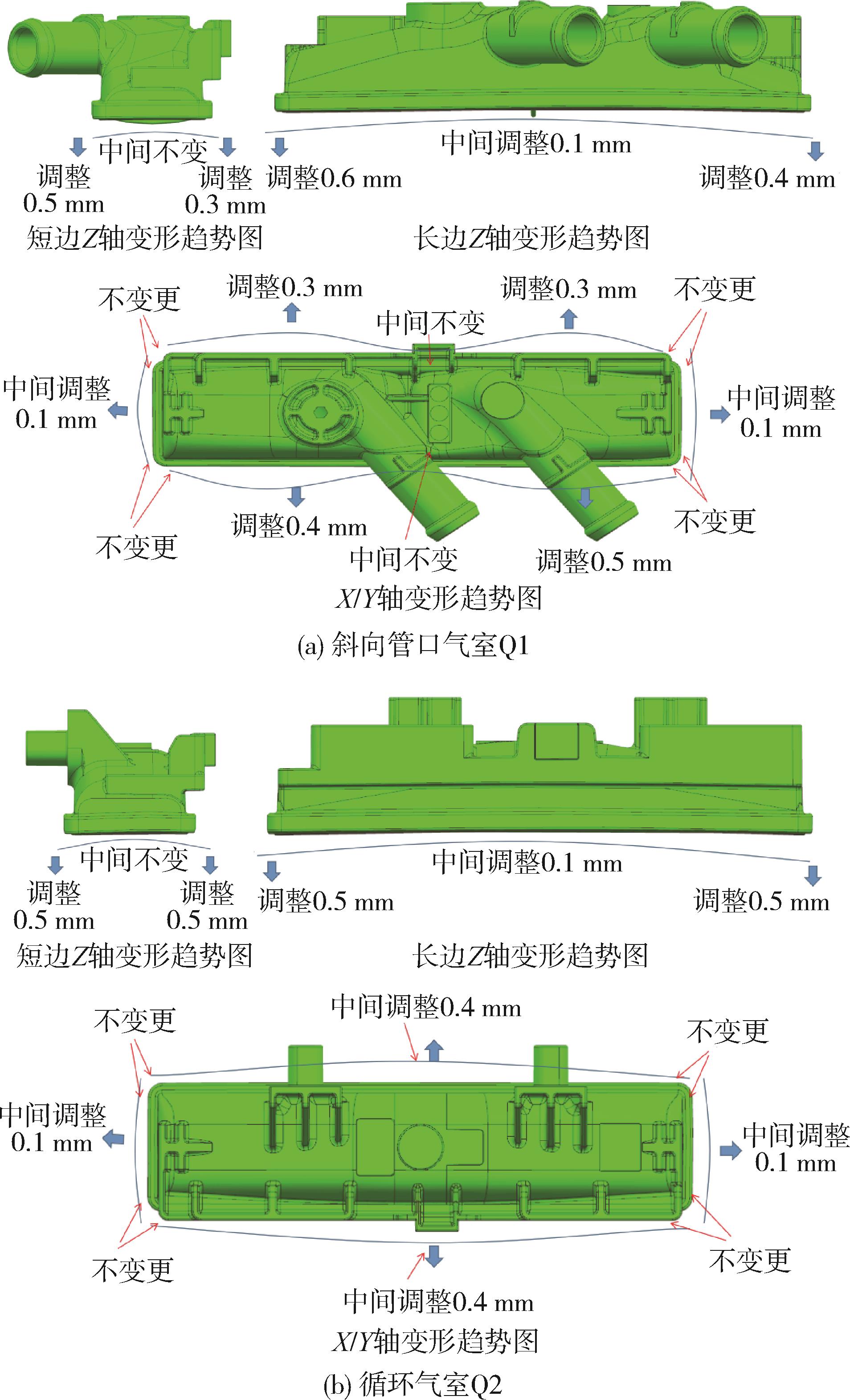

Fig.15. First pre⁃variation design data

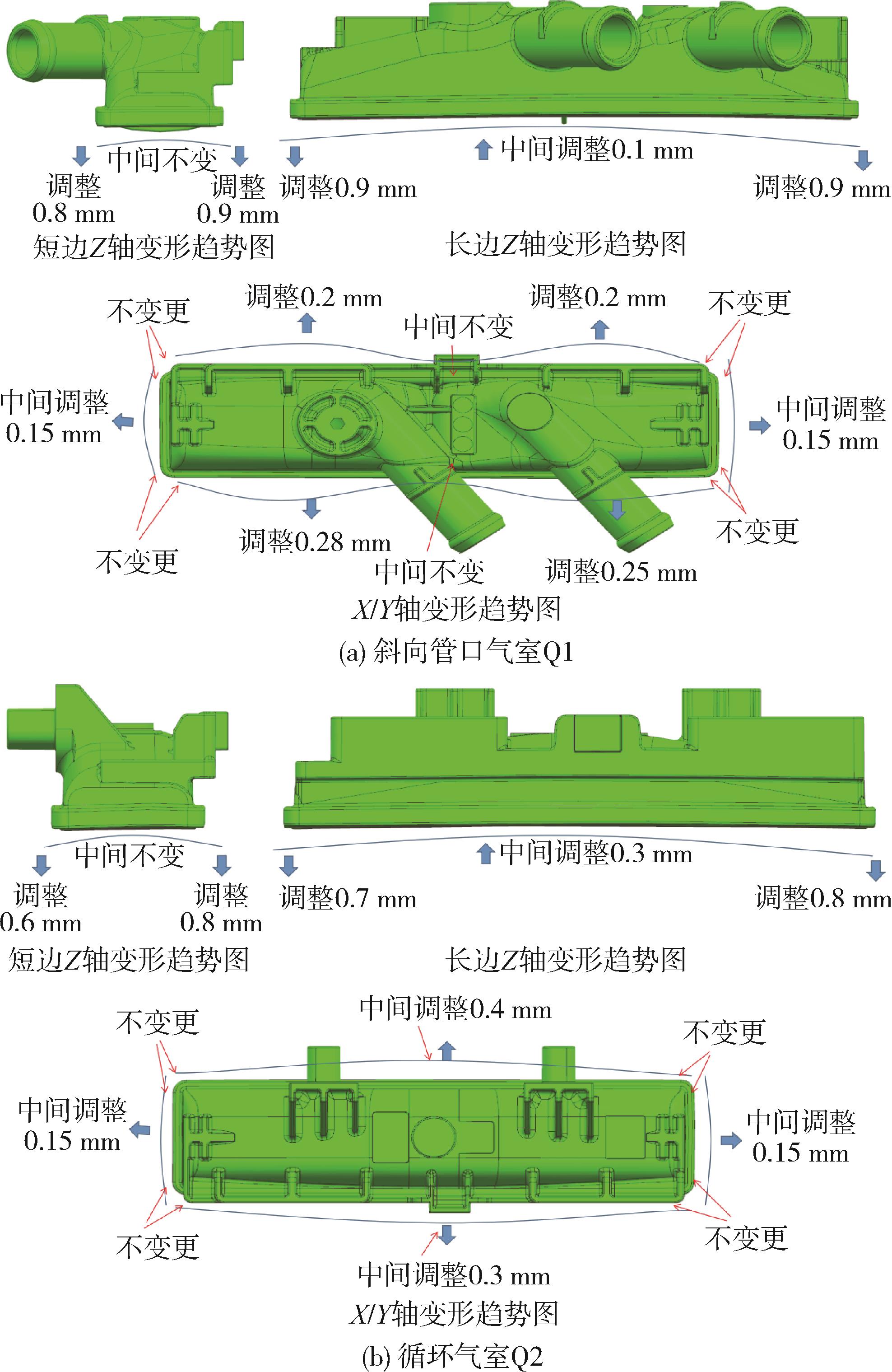

Fig.16. Final pre⁃variation product diagram
