Preparation and process parameter optimization of instant edible films

doi:10.19491/j.issn.1001-9278.2025.08.006

Abstract

Abstract:

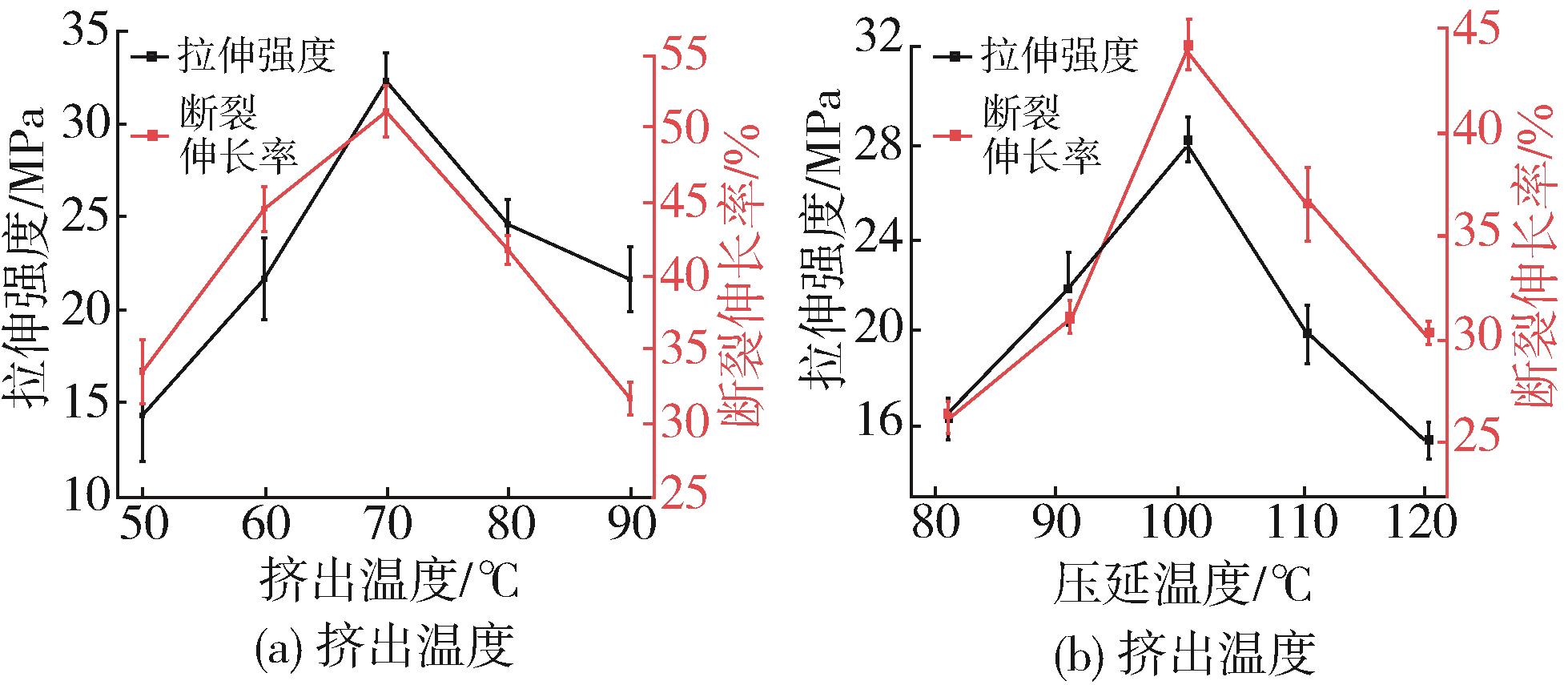

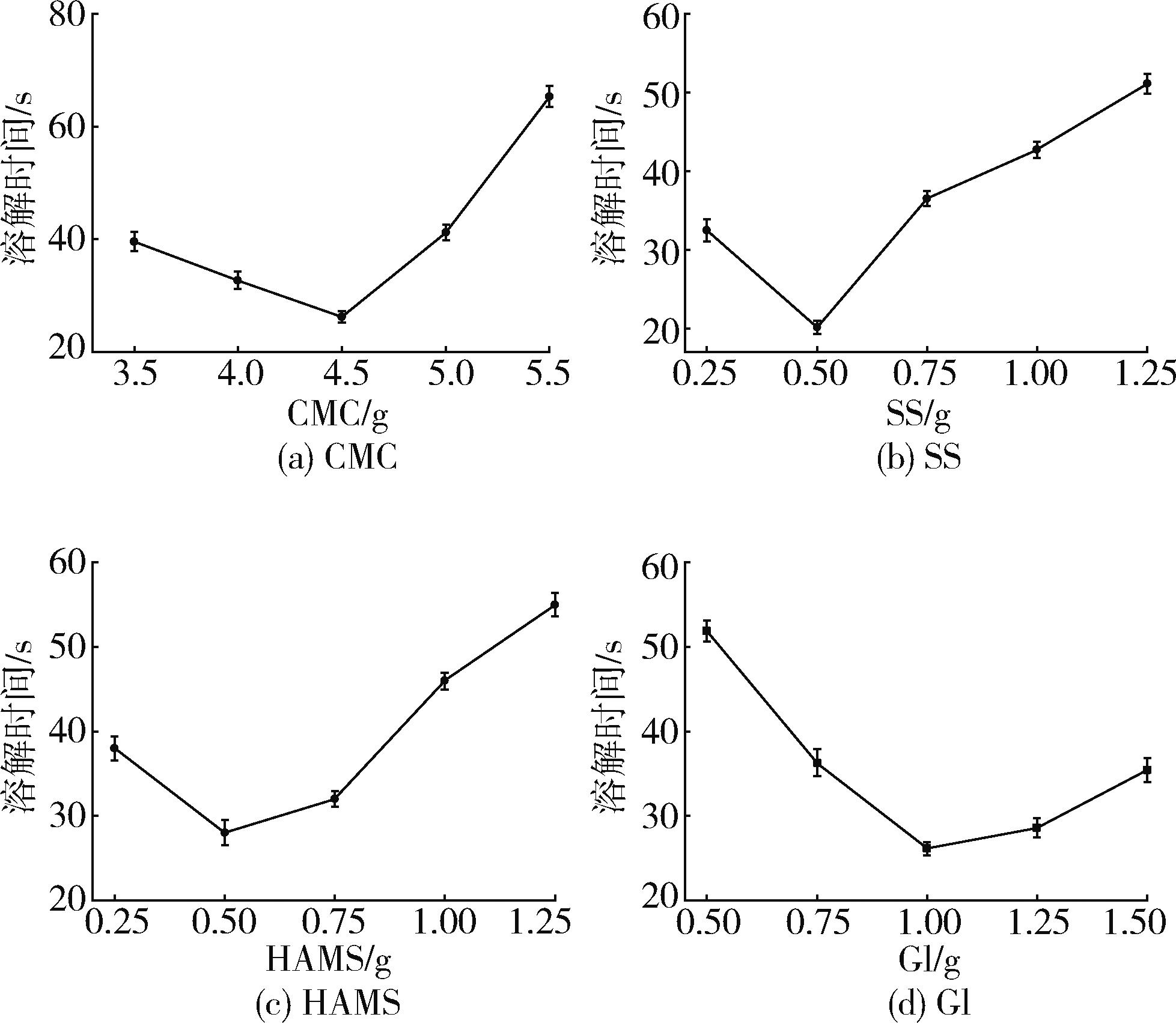

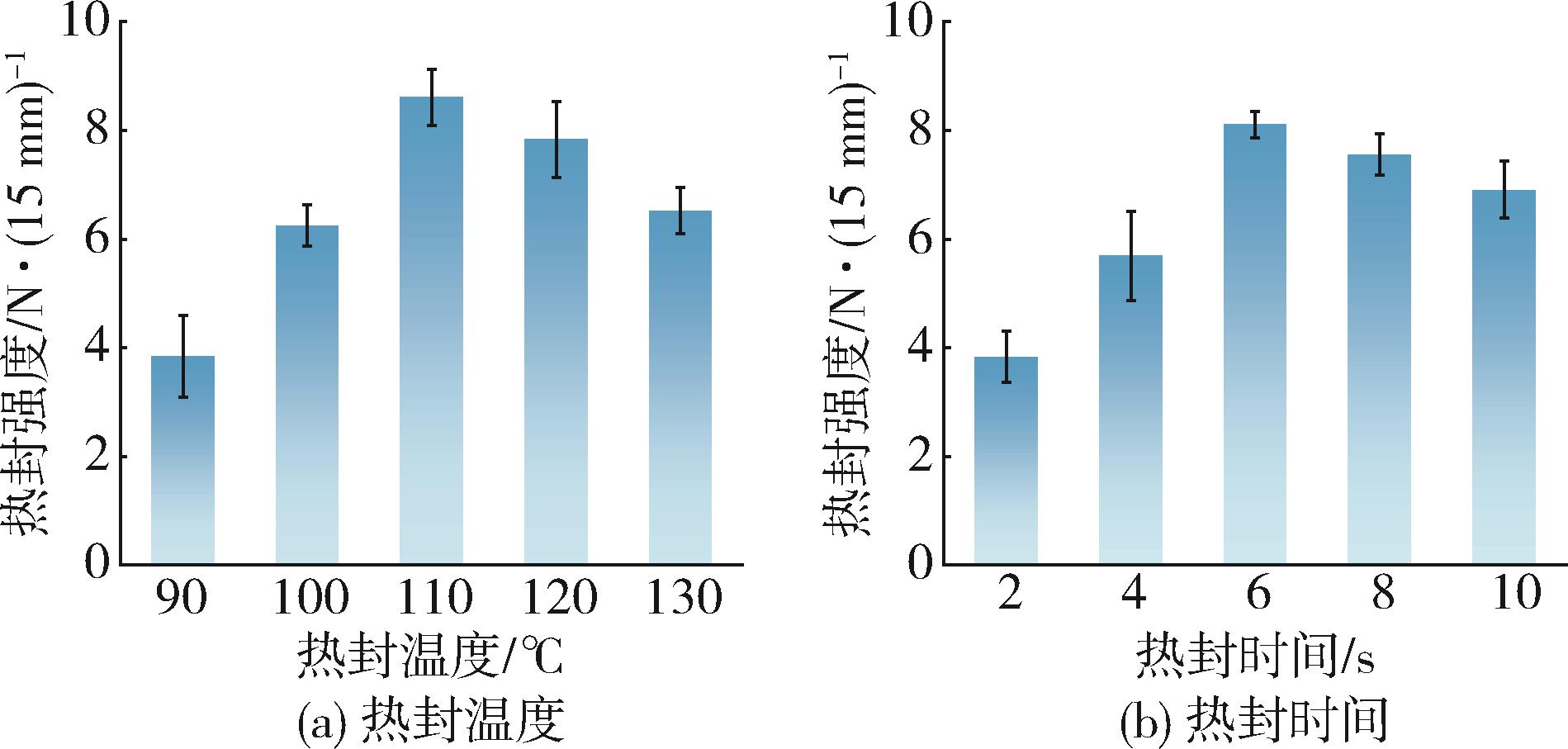

This study developed an instant edible film using carboxymethyl cellulose sodium （CMC）， high⁃amylose maize starch （HAMS）， and soluble starch （SS） as the matrix， with glycerol （Gl） as a plasticizer. The material ratios were first optimized based on dissolution time， followed by film preparation via twin⁃screw extrusion， calendering， and automated packaging. Key process parameters， including extrusion temperature， rolling temperature， and heat⁃sealing conditions， were systematically evaluated for their effects on film properties. The optimal formulation （0.50 g HAMS， 0.50 g SS， 1.25 g Gl， and 4.00 g CMC） achieved the shortest dissolution time （18.86 s）. Film properties were maximized at an extrusion temperature of 70 ℃ and a rolling temperature of 100 ℃. Furthermore， heat⁃sealing at 110°C for 6 s yielded the highest sealing strength （8.61±0.52） N/（15 mm）.

Key words: edible film, instant, screw extrusion, rolling, heat sealing

CLC Number:

TQ320.7

FU Fengmei, JIN Yi, WEI Jiayu, QIU Tong, LUO Qingying, LIU Yaowen. Preparation and process parameter optimization of instant edible films[J]. China Plastics, 2025, 39(8): 34-40.

Figures/Tables 9

References 27

[1]	Zhu Jie， Li Xiaoxi， Chen Huang， et al. Structural changes and triacetin migration of starch acetate film contacting with distilled water as food simulant ［J］. Carbohydrate Polymers， 2014， 104： 1⁃7.
[2]	Groh Ksenia J.， Backhaus Thomas， Carney⁃Almroth Bethanie， et al. Overview of known plastic packaging⁃associated chemicals and their hazards ［J］. Science of the Total Environment， 2019， 651： 3 253⁃3 268.
[3]	李亚飞，李旭冉，孙悦，等. 可食性复合膜在食品包装中的应用进展［J］. 山东化工， 2022， 51（21）： 76⁃79，82.
	LI Y F， LI X R， SUN Y， et al. Application of edible composite films in food packaging ［J］. Shandong Chemical Industry， 2022， 51（21）： 76⁃79，82.
[4]	张雨婷. 多糖基食品接触材料的制备和性能表征［D］. 西安：西北农林科技大学， 2023.
[5]	张静贤. 微晶纤维素/淀粉基复合包装膜制备及性能研究［D］. 无锡：江南大学， 2022.
[6]	江军，刘思佳，李志雄，等. 绿豆蛋白对魔芋葡甘聚糖基山茶油乳液膜结构和性能的影响［J］. 食品科学技术学报， 2024：1⁃11.
	JIANG J， LIU S J， LI Z X， et al. Effects of mung bean protein on structure and properties of konjac glucomannan⁃based camellia oil emulsion films. Journal of Food Science and Technology， 2024：1⁃11.
[7]	程月. 挤出吹塑法制备淀粉/明胶可食性膜及其性能研究［D］. 泰安：山东农业大学， 2021.
[8]	Thiet Anh Dinh， Yen Nhi Le， Nhat Quyen Pham， et al. Fabrication of antimicrobial edible films from chitosan incorporated with guava leaf extract ［J］. Progress in Organic Coatings， 2023， 183： 107772.
[9]	Nazir Sadaf， Idrees Ahmed Wani. Development and characterization of an antimicrobial edible film from basil seed （Ocimum basilicum L.） mucilage and sodium alginate ［J］. Biocatalysis and Agricultural Biotechnology， 2022， 44： 102450.
[10]	Benjamin Michael Plumier， Akkurt Serife， Laetitia Marie Bonnaillie， et al. Effect of alkaline pH values on physical and functional properties of edible films made from calcium caseinates ［J］. International Dairy Journal， 2024， 151：105851.
[11]	Plachikkattu Parambil Akhila， Kappat Valiyapeediyekkal Sunooj， Sneh Punia Bangar， et al. Assessing the impact of plasma⁃activated water⁃assisted heat⁃moisture treatment on the extrusion⁃recrystallization process of hausa potato starch ［J］. Carbohydrate Polymers， 2024， 335： 122081.
[12]	赵恩靓，贾文倩，王一宁，等. 改性纳米纤维素/玉米醇溶蛋白可食膜的制备及性能研究［J］. 包装工程， 2023， 44（17）： 1⁃8.
	ZHAO E J， JIA W Q， WANG Y N， et al. Preparation and properties of edible film from modified nanocellulose and zein［J］. Packaging Engineering， 2023， 44（17）： 1⁃8.
[13]	Dong Yitong， Rao Zhilu， Liu Yanchun， et al. Soluble soybean polysaccharide/gelatin active edible films incorporated with curcumin for oil packaging ［J］. Food Packaging and Shelf Life， 2023， 35： 101039.
[14]	A Espinel Villacrés Ricardo， Flores Silvia K， Gerschenson Lía N， et al. Biopolymeric antimicrobial films： study of the influence of hydroxypropyl methylcellulose， tapioca starch and glycerol contents on physical properties ［J］. Materials Science and Engineering： C， 2014， 36： 108⁃117.
[15]	赵珺，何珊，李俊博，等. 壳聚糖/玉米醇溶蛋白复合膜的制备及表征［J］. 中国调味品. 2023， 48（01）： 53⁃57，63.
	ZHAO J， HE SH， LI J B， et al. Preparation and characterization of chitosan/zein composite membrane ［J］. Chinese condiment， 2023， 48（01）： 53⁃57，63.
[16]	Ghanbarzadeh Babak， Almasi Hadi. Physical properties of edible emulsified films based on carboxymethyl cellulose and oleic acid ［J］. International Journal of Biological Macromolecules， 2011， 48（1）： 44⁃49.
[17]	Su Junfeng， Zhen Huang， Yuan Xiaoyan， et al. Structure and properties of carboxymethyl cellulose/soy protein isolate blend edible films crosslinked by Maillard reactions ［J］. Carbohydrate Polymers， 2010， 79（1）： 145⁃153.
[18]	Yue Cheng， Zhai Xiaosong， Wu Yuhao， et al. Effects of natural wax types on the physicochemical properties of starch/gelatin edible films fabricated by extrusion blowing ［J］. Food Chemistry， 2023， 401： 134081.
[19]	Pyo Minsu， Kim Dongyeon， Lee Eui⁃Jong， et al. Heat rolling as a post⁃treatment technique to enhance the integrity of electrospun nanofibrous membranes ［J］. Journal of Water Process Engineering， 2023， 53： 103693.
[20]	Xing Wu， Zeng Liu， Shu He， et al. Development of an edible food packaging gelatin/zein based nanofiber film for the shelf⁃life extension of strawberries ［J］. Food Chemistry， 2023， 426： 136652.
[21]	Wang Haodong， Li Shaowei， Wang Sai， et al. Development of controlled⁃release antioxidant poly （lactic acid） bilayer active film with different distributions of α⁃tocopherol and its application in corn oil preservation ［J］. Food Chemistry， 2024， 439： 138094.
[22]	Sawyer Wyatt Smith， Xue Zhang， Emily M. Little，et al. Efficacy of a carboxymethylcellulose （CMC）⁃based edible film with propylene glycol to control ham mite populations that infest dry cured ham ［J］. Journal of Stored Products Research， 2023， 103： 102162.
[23]	Chang Liu， Jiao Huang， Zheng Xuejing， et al. Heat sealable soluble soybean polysaccharide/gelatin blend edible films for food packaging applications ［J］. Food Packaging and Shelf Life， 2020， 24： 100485.
[24]	Das Madhusweta， Chowdhury Tanima. Heat sealing property of starch based self⁃supporting edible films ［J］. Food Packaging and Shelf Life， 2016， 9： 64⁃68.
[25]	Nase Michael， Gromann Lukas， Rennert Mirko， et al. Adhesive properties of heat-sealed EVAc/PE films in dependence on recipe， processing， and sealing parameters ［J］. Journal of Adhesion Science and Technology， 2014， 28（12）：1 149-1 166.
[26]	Ilhan Ilknur， Turan Deniz， Gibson Ian， et al. Understanding the factors affecting the seal integrity in heat sealed flexible food packages： A review ［J］. Packaging Technology and Science， 2021， 34（6）： 321⁃337.
[27]	Morris Barry A. Application of modeling to speed flexible package development ［J］. Journal of Plastic Film & Sheeting， 2013， 29（3）： 249⁃270.

水平	因素
水平	A（HAMS）/g	B （SS）/g	C（GI）/g	D（CMC）/g
1	0.25	0.25	0.75	4.00
2	0.50	0.50	1.00	4.50
3	0.75	0.75	1.25	5.00

水平	因素
水平	A（HAMS）/g	B （SS）/g	C（GI）/g	D（CMC）/g
1	0.25	0.25	0.75	4.00
2	0.50	0.50	1.00	4.50
3	0.75	0.75	1.25	5.00

	A（HACS）/g	B（SS）/g	C（GI）/g	D（CMC）/g	溶解时间/s
1	1	1	1	1	26.87
2	1	2	2	2	24.54
3	1	3	3	3	28.31
4	2	1	2	3	31.51
5	2	2	3	1	18.86
6	2	3	1	2	24.21
7	3	1	3	2	29.48
8	3	2	1	3	32.44
9	3	3	2	1	26.52
K₁	79.72	87.86	83.52	72.25	—
K₂	74.58	75.84	82.57	78.23	—
K₃	88.44	79.04	76.65	92.26	—
k₁	26.57	29.29	27.84	24.08	—
k₂	24.86	25.28	27.52	26.01	—
k₃	29.48	26.35	25.55	30.75	—
R	4.62	4.01	2.29	6.67	—

	A（HACS）/g	B（SS）/g	C（GI）/g	D（CMC）/g	溶解时间/s
1	1	1	1	1	26.87
2	1	2	2	2	24.54
3	1	3	3	3	28.31
4	2	1	2	3	31.51
5	2	2	3	1	18.86
6	2	3	1	2	24.21
7	3	1	3	2	29.48
8	3	2	1	3	32.44
9	3	3	2	1	26.52
K₁	79.72	87.86	83.52	72.25	—
K₂	74.58	75.84	82.57	78.23	—
K₃	88.44	79.04	76.65	92.26	—
k₁	26.57	29.29	27.84	24.08	—
k₂	24.86	25.28	27.52	26.01	—
k₃	29.48	26.35	25.55	30.75	—
R	4.62	4.01	2.29	6.67	—
