Injection mold design for an automotive storage box plastic part

doi:10.19491/j.issn.1001-9278.2025.10.020

Abstract

Abstract:

This study presents the design of a high⁃precision injection mold for a complex automobile storage box component. To meet the part's strict technological requirements， a single⁃cavity structure and a tailored gating scheme were adopted， complemented by a dedicated mold balancing device for smooth operation. Two design schemes were compared to determine the optimal parting surface location， resulting in a two⁃parting⁃plane structure and a long⁃stroke， two⁃stage core⁃pulling system. The first parting plane （PL1） offers two key advantages： firstly， it facilitates the early removal of the fixed mold core insert to prevent the part from adhering to the stationary side； secondly， it employs an angled pin mechanism for the initial breakaway of the core to overcome high pellet packing forces. A hydraulic cylinder then executes a second core⁃pulling stage to achieve reverse withdrawal. This approach guarantees cylinder stability during the final ejection phase， leading to marked improvements in both production efficiency and product quality.

Key words: automobile storage box, type surface, spacing priority opening, core extraction mechanism, cylinder, die balancing device

CLC Number:

TQ320.66⁺2

ZHAO Liping, YANG Zhanpeng, CHEN Yinghua, CHENG Yu, HUANG Qiye, QIN Ruiliang. Injection mold design for an automotive storage box plastic part[J]. China Plastics, 2025, 39(10): 129-134.

Figures/Tables 7

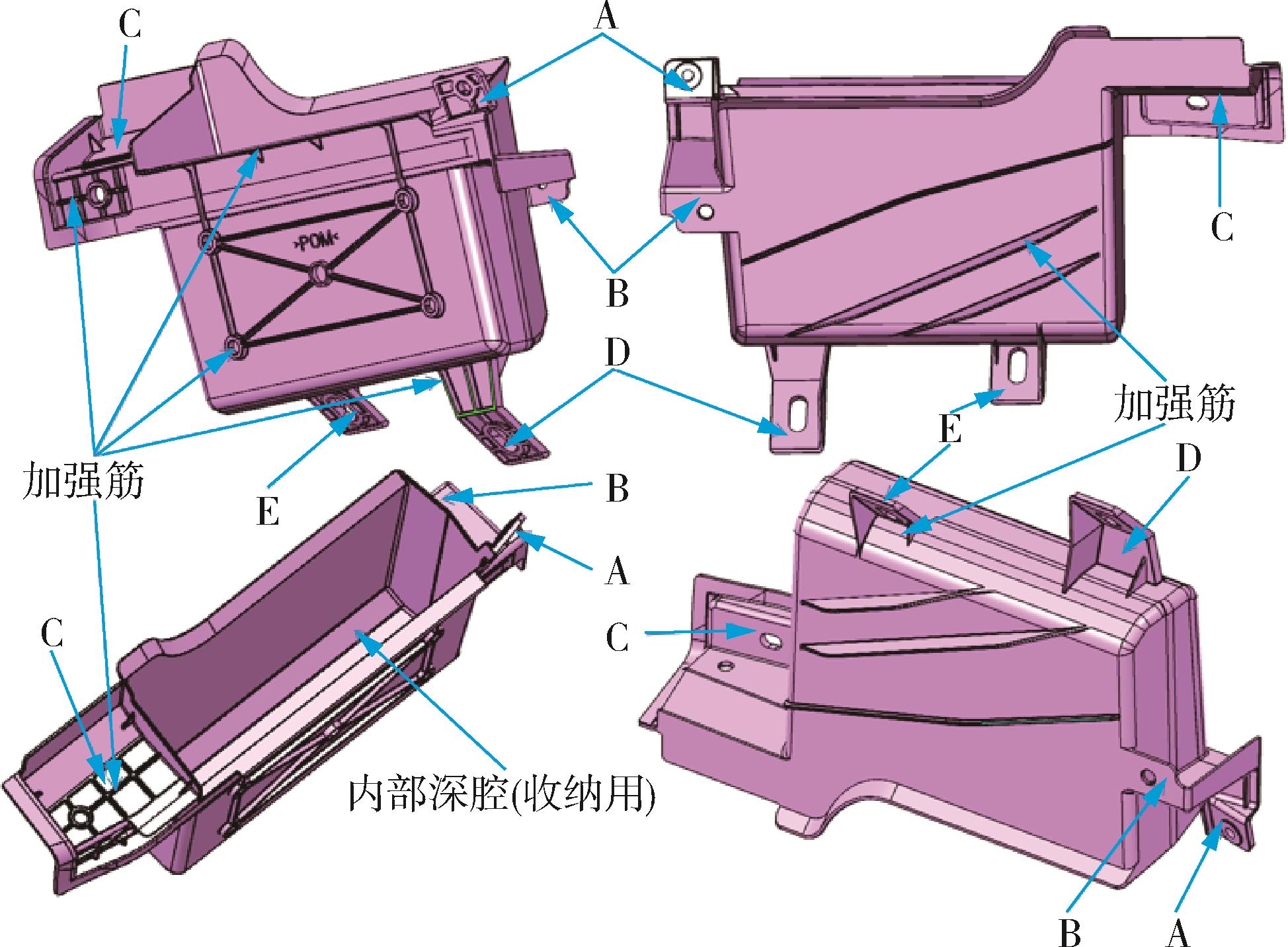

Fig.1. 3D diagram of the structure of plastic parts

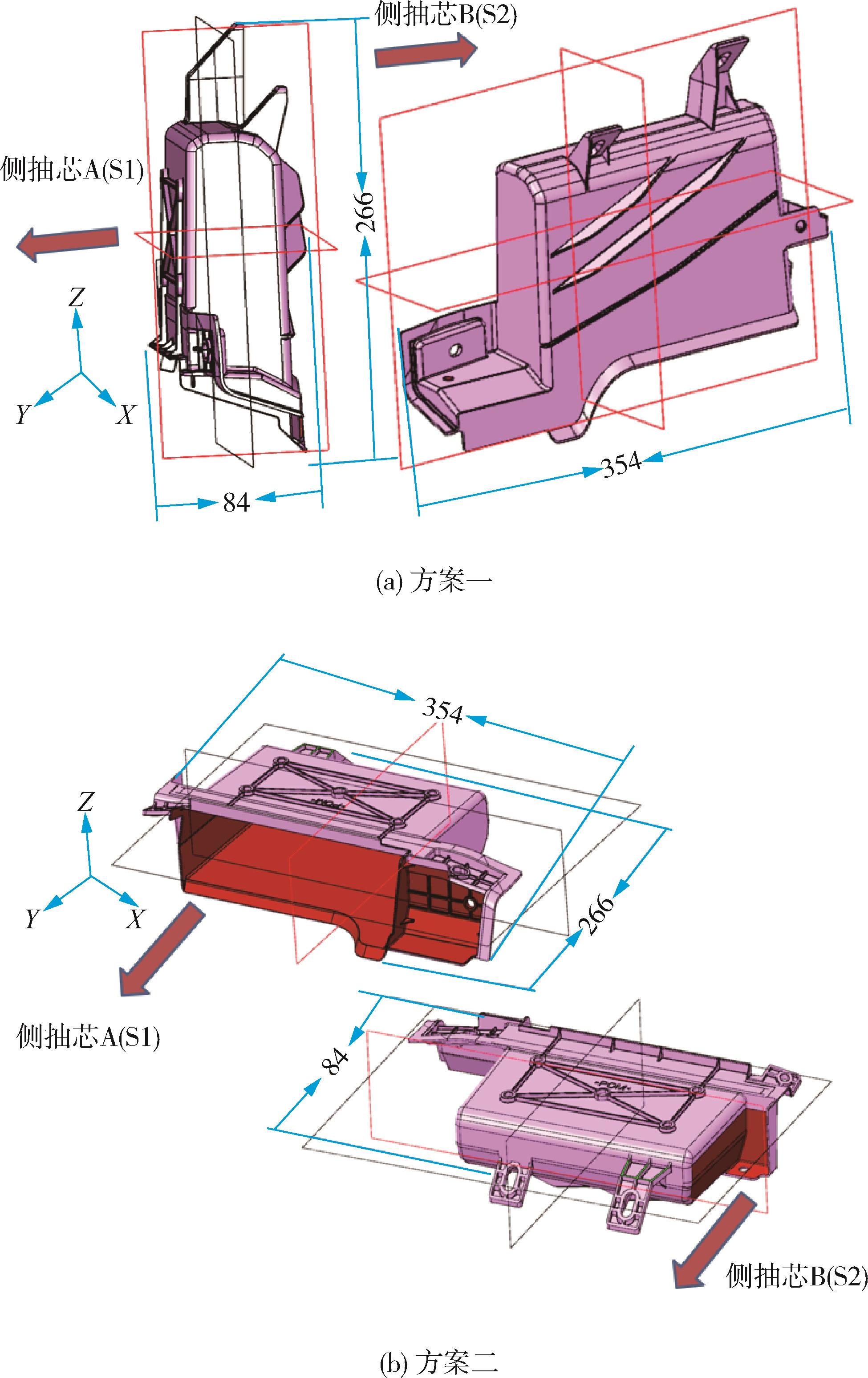

Fig.2. A schematic diagram of the subtyping scheme

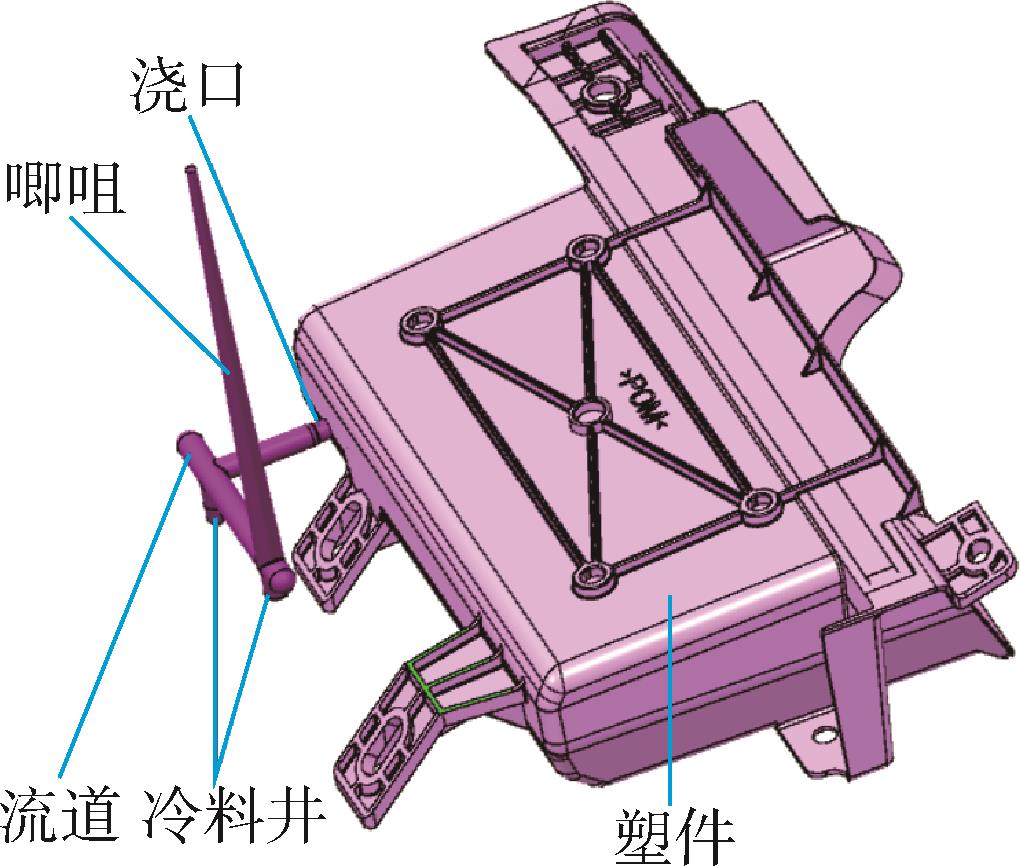

Fig.3. 3D diagram of feeding glue

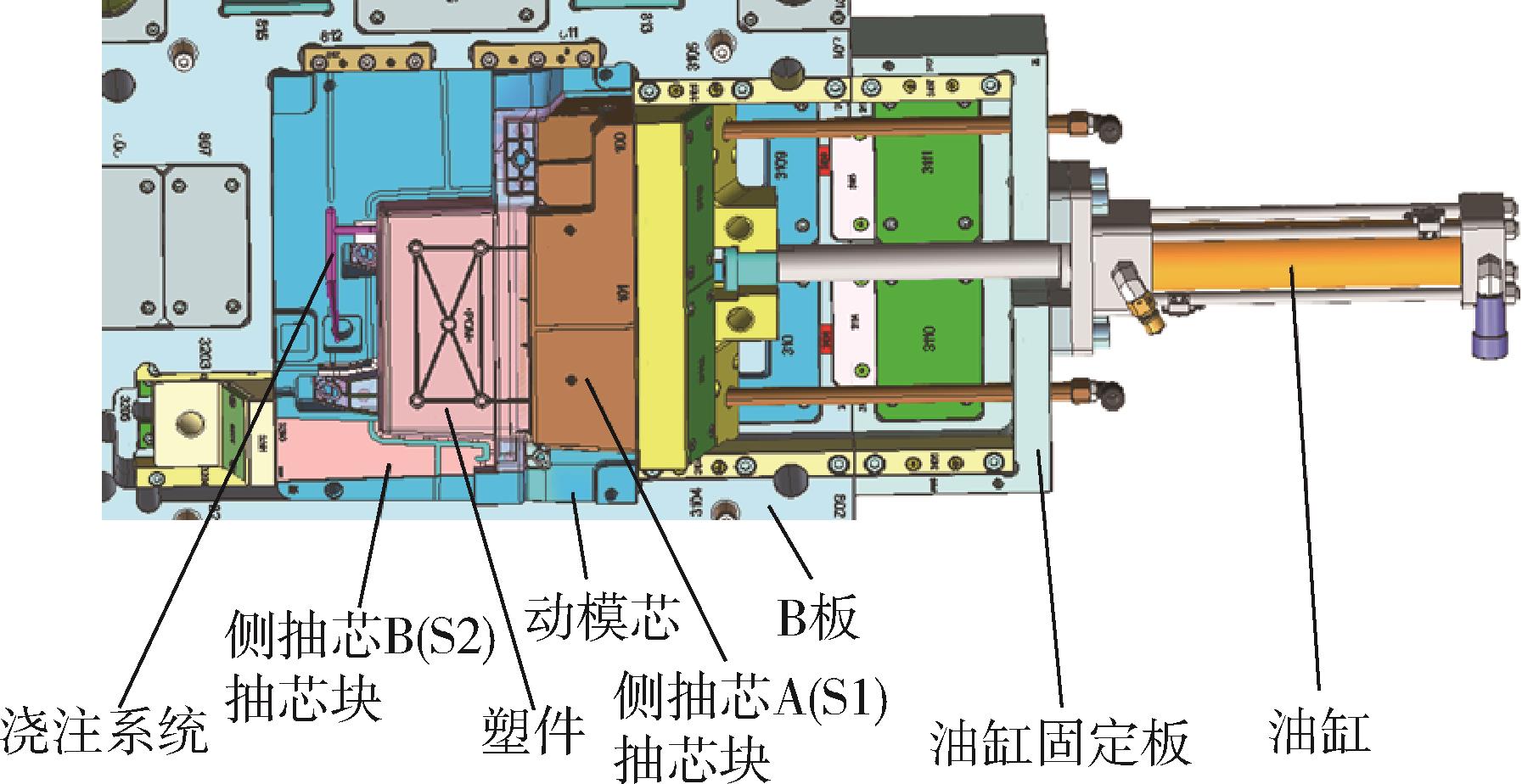

Fig.4. 3D schematic diagram of the core pumping mechanism layout

Fig.5. 3D schematic diagram of sequential parting and core pulling states

Fig.6. 3D schematic of the exhaust system， insert， and thimbl

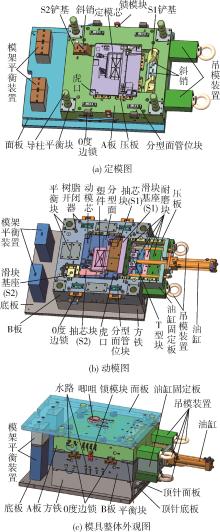

Fig.7. Schematic diagram of the mould 3D

References 10

[1]	张维合. 注塑模具设计实用手册［M］. 北京：化学工业出版社，2019：65⁃78.
[2]	简发萍，王浩，郑得庆，等.窄腔内倒扣产品多次顺序抽芯注塑模设计［J］.塑料工业，2024，52（7）：77⁃82.
	JIAN F P， WANG H， ZHENG D Q， et al. Design of injection moulds with multi⁃sequential core pulling for parts with undercuts in the narrow cavities［J］. Plastic Industry，2024，52（7）：77⁃82.
[3]	曹洋，宁雪梅，秦剑，等.复杂多特征SR3薄壁塑料壳体多向抽芯注塑模具设计［J］.塑料工业，2022，50（S1）：76⁃81.
	CAO Y， NING X M， QIN J，et al.Design of injection mould for complex and multi⁃feature SR3 thin⁃walled plastic shell［J］. Plastics Industry，2022，50（S1）：76⁃81.
[4]	梅益，吴巧，鄢天灿，等.HD8.257.96拨动件多向侧抽芯注塑模具设计［J］.塑料科技，2019，47（7）：94⁃98.
	MEI Y， WU Q， YAN T C，et al.Multi⁃directional side core injection mold design of HD8.257.96 Toggle parts［J］. Plastic Science and Technology，2019，47（7）：94⁃98.
[5]	赵利平，张艳华，于维斌，等.扫地机器人尘盒盖注塑模具设计［J］.中国塑料，2022，36（11）：133⁃139.
	ZHAO L P， ZHANG Y H， YU W B，et al.Design of injection mold for dust box cover of sweeping robot［J］. China Plastics，2022，36（11）：133⁃139.
[6]	赵利平，秦瑞亮，彭新华.薄壁深腔小脱模斜度箱体塑件注塑模具设计［J］.工程塑料应用，2023，51（9）：102⁃107.
	ZHAO L P， QIN R L， PENG X H.Injection mold design of thin wall deep cavity small release angle box plastic parts［J］. Engineering Plastics Application，2023，51（9）：102⁃107.
[7]	尹甜甜，杨茜，李辉.多向抽芯的三次分型注塑模具设计［J］.塑料科技，2022，50（10）：95⁃98.
	YIN T T， YANG Q， LI H.Design of three step parting injection mold with multi⁃directional core pulling［J］. Plastic Science and Technology，2022，50（10）：95⁃98.
[8]	熊毅，冯啸霖.外侧整圈倒扣产品多向顺序抽芯注射模具［J］. 塑料工业，2021，49（8）：81⁃86.
	XIONG Y，FENG X L， Multi⁃direction sequential core⁃pulling injection mold for inverted product with outer circle［J］. Plastics Industry，2021，49（8）：81⁃86.
[9]	简发萍，郑得庆，陈小红，等.曲面分型多方位斜向抽芯注塑模设计［J］.塑料工业，2022，50（1）：94⁃98.
	JIAN F P， ZHENG D Q， CHEN X H， et al. Design of injection mold with curved surface parting and multi direc⁃ tional oblique core pulling［J］. Plastic Industry， 2022，50 （1）： 94⁃98.
[10]	姜炳春，李振豪，赵利平.碎纸机收纳桶塑件的注塑模具设计［J］.工程塑料应用，2024，52（9）：104⁃111.
	JIANG B C， LI Z H， ZHAO L P. Design of injection mould for paper shredder storage barrel plastic parts［J］. Engineering Plastics Application，2024，52（9）：104⁃111.
