Mold design for a split⁃type air conditioner indoor unit base

doi:10.19491/j.issn.1001-9278.2025.11.020

Abstract

Abstract:

This paper reports the structural analysis and injection mold design for a split⁃type air conditioner indoor unit base. A novel mold with ejector mechanisms integrated into both the stationary and moving halves was developed. To facilitate the release of long， high bars and counteract vacuum formation during mold opening， an ejector mechanism was specifically designed for the stationary mold. Various complex features on the part necessitated multiple specialized mechanisms： a slant⁃pin⁃driven slider was designed for the external rib and bottom wall features； a double⁃bevel⁃wedge⁃driven slider was implemented for the undercut on the bottom wall； and additional sliders were employed to demold the V⁃shaped groove above the vent and the three undercuts below it. For the small cylindrical hole in the upper right corner and the outlet pipes on both sides， which have high draft angles， differently structured angle⁃pin mechanisms were designed. An angled⁃lifter mechanism was utilized for the ribs within the vent. To ensure high⁃quality molding， a hot runner system with a cylindrical gate was adopted. Furthermore， a conformal cooling channel layout was designed to maintain uniform mold temperature.

Key words: split type air conditioner indoor unit base, plastic mold, hot runner, fixed mould push rod, release mechanism

CLC Number:

TQ320.66⁺2

LI Linghua. Mold design for a split⁃type air conditioner indoor unit base[J]. China Plastics, 2025, 39(11): 131-136.

Figures/Tables 12

Fig.1. Product diagram

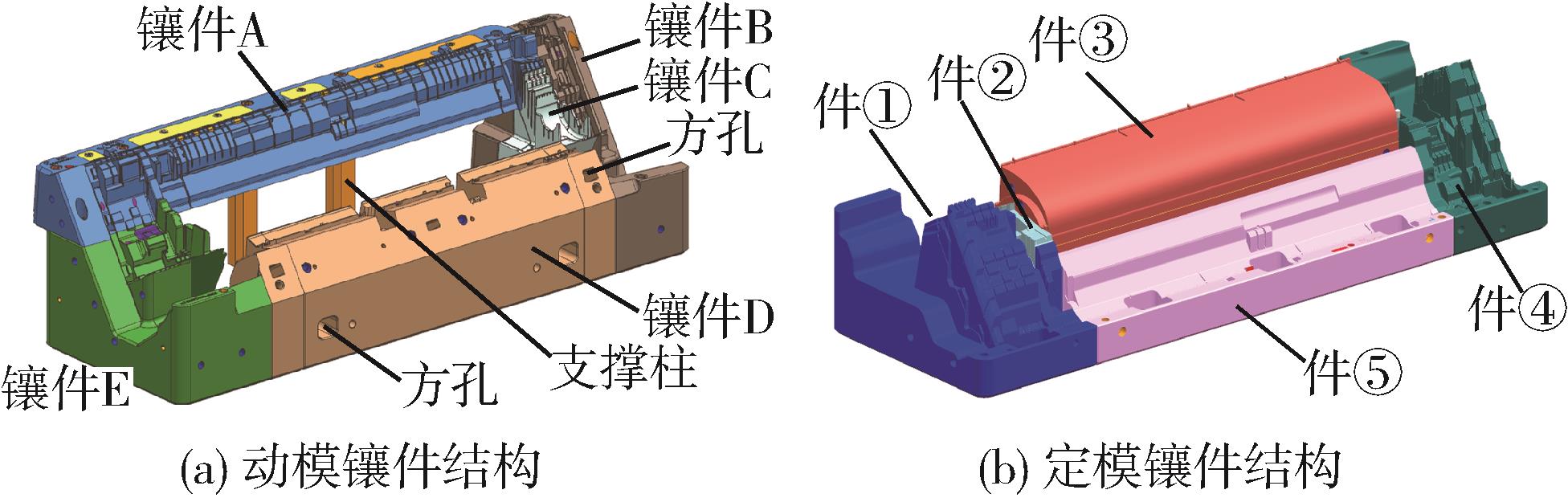

Fig.2. Dynamic and fixed mold insert design

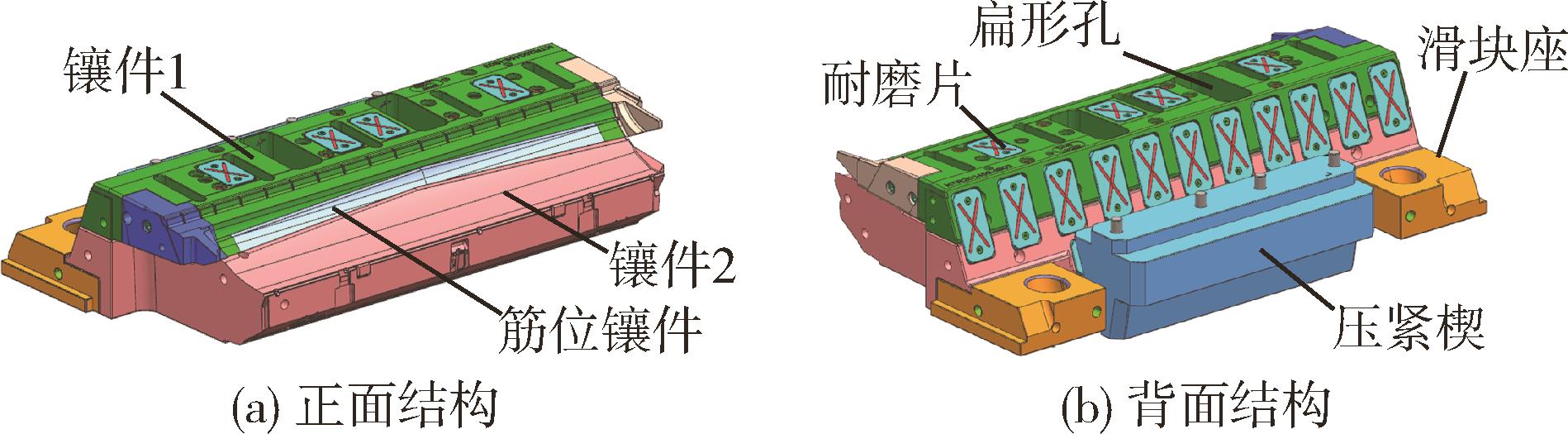

Fig.3. Mold release mechanism for the upper and lower holes of the vent

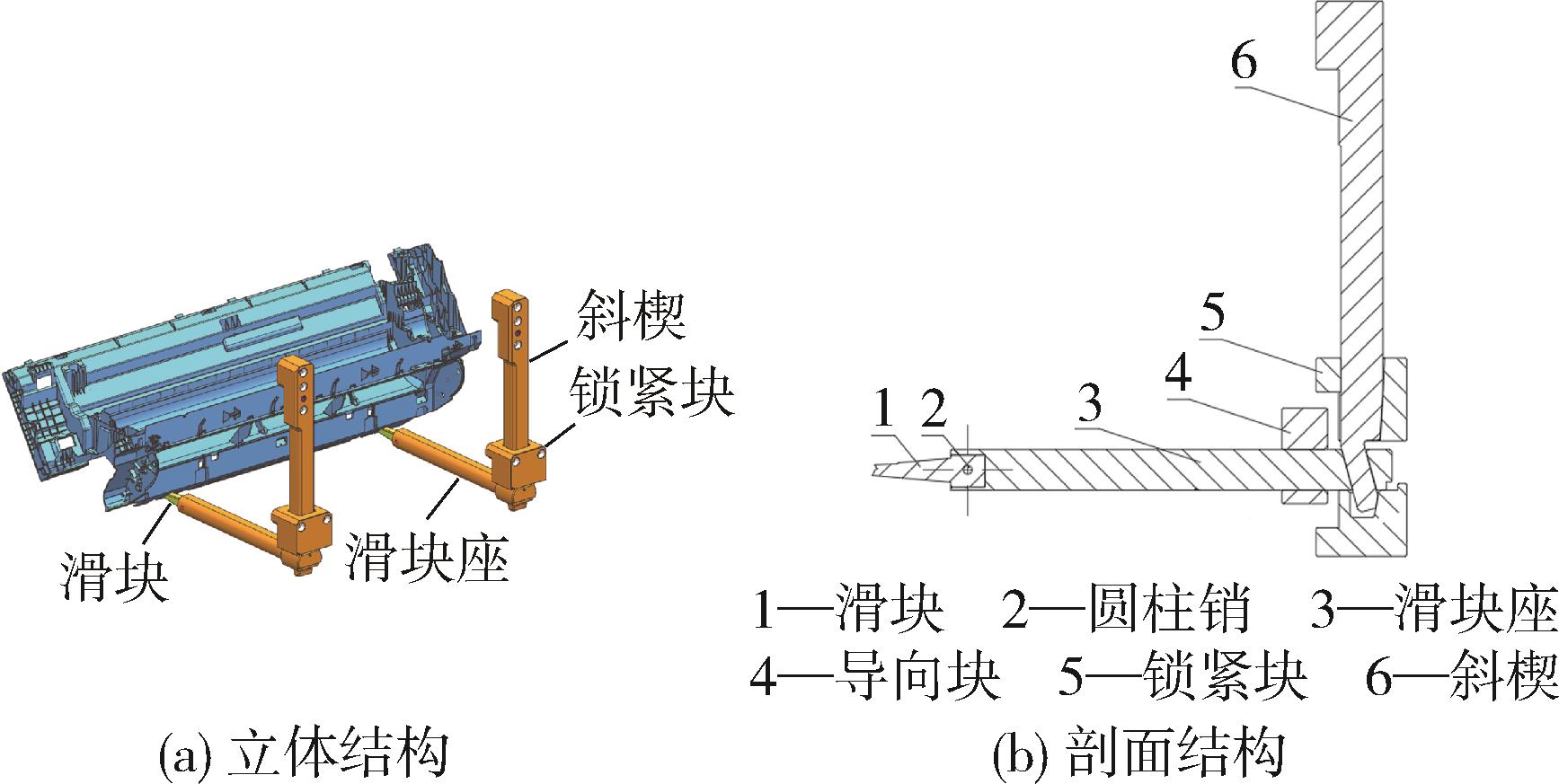

Fig.4. Bottom wall and external reinforcement position release mechanism

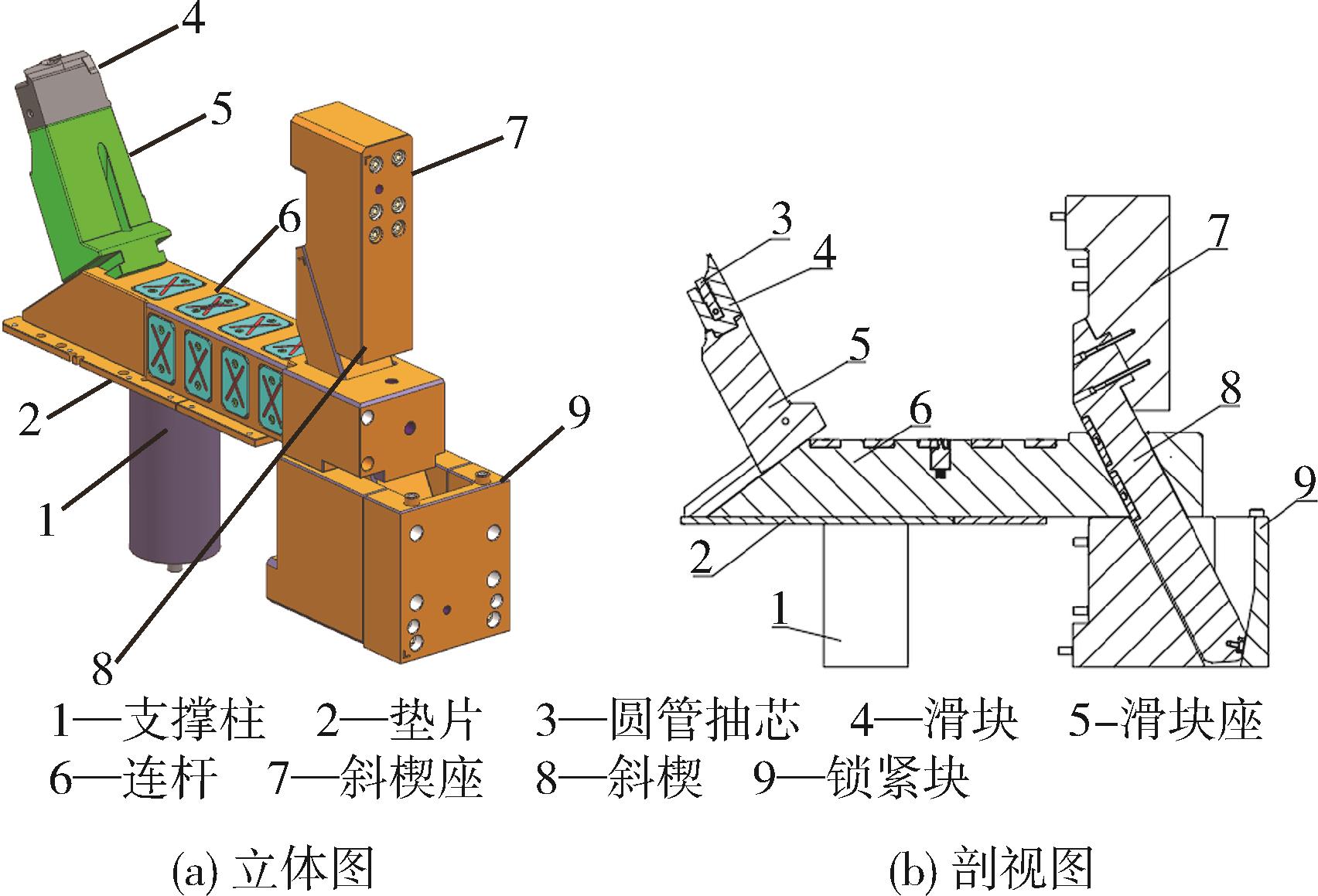

Fig.5. Bottom wall buckle release mechanism

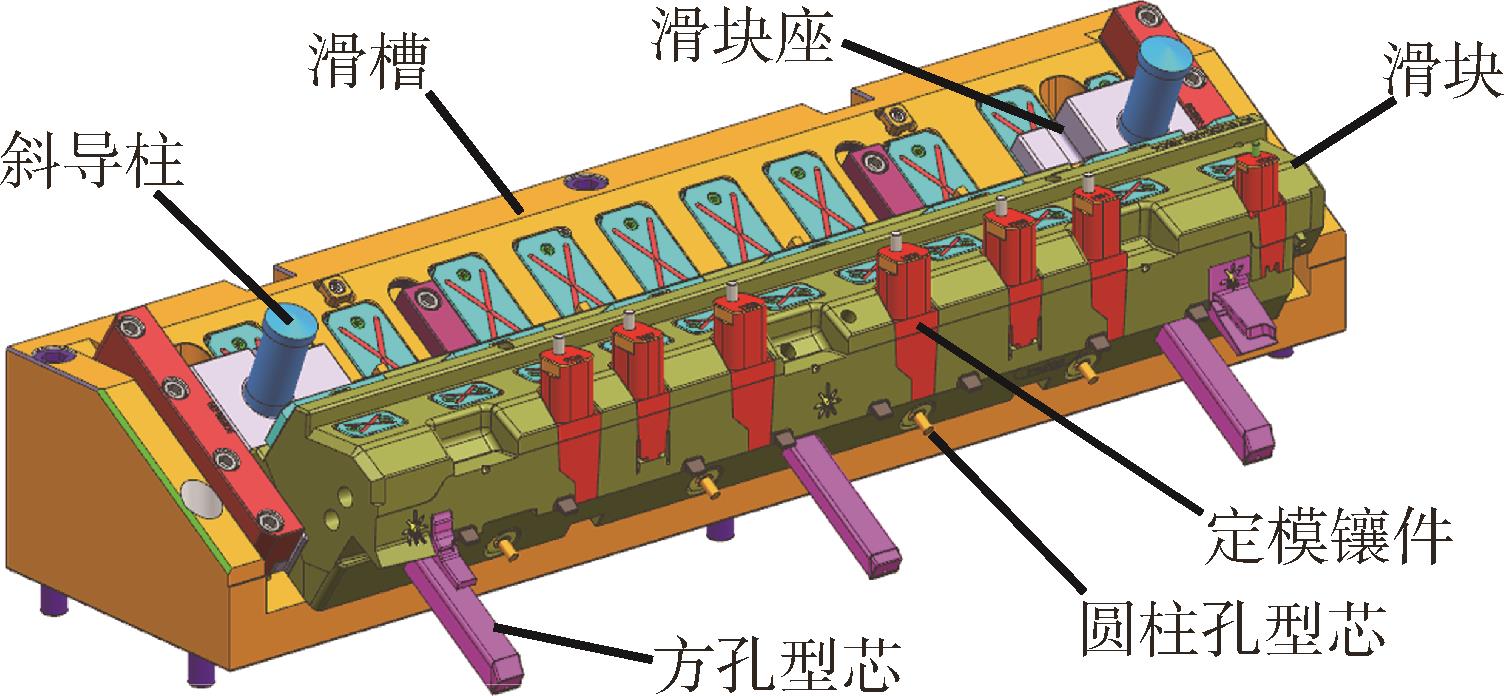

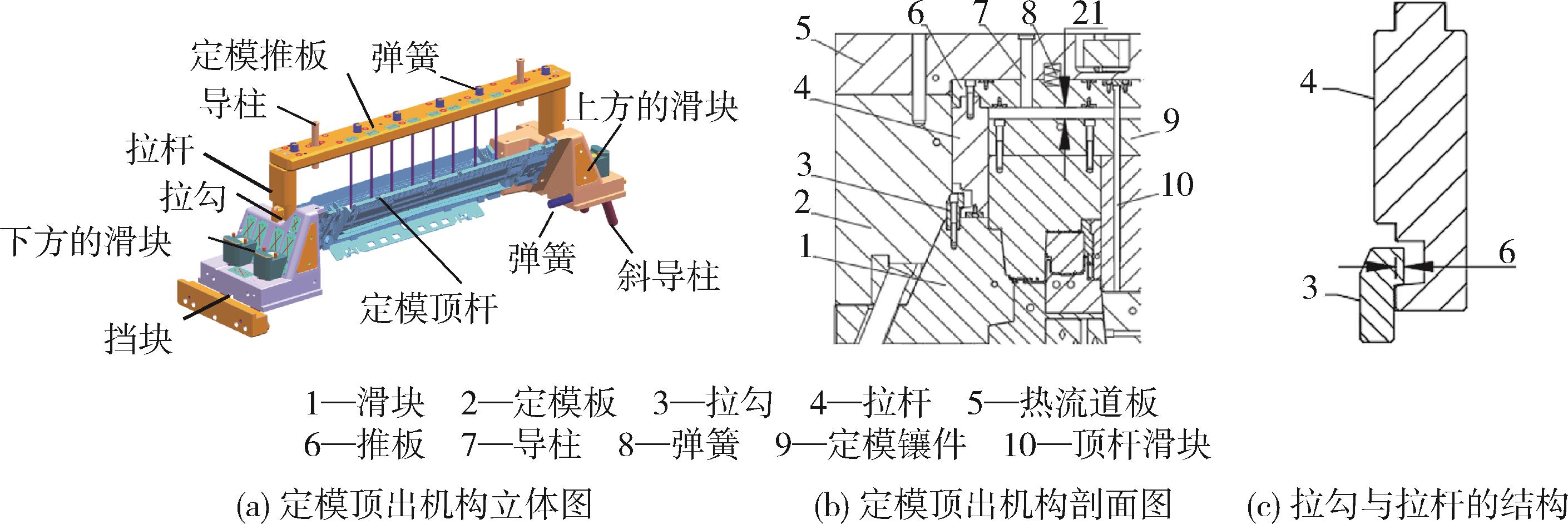

Fig.6. The mold ejection structure and the slider mechanism at both ends of the product

Fig.7. Cylindrical hole release mechanism

Fig.8. Outlet pipe demolding mechanism

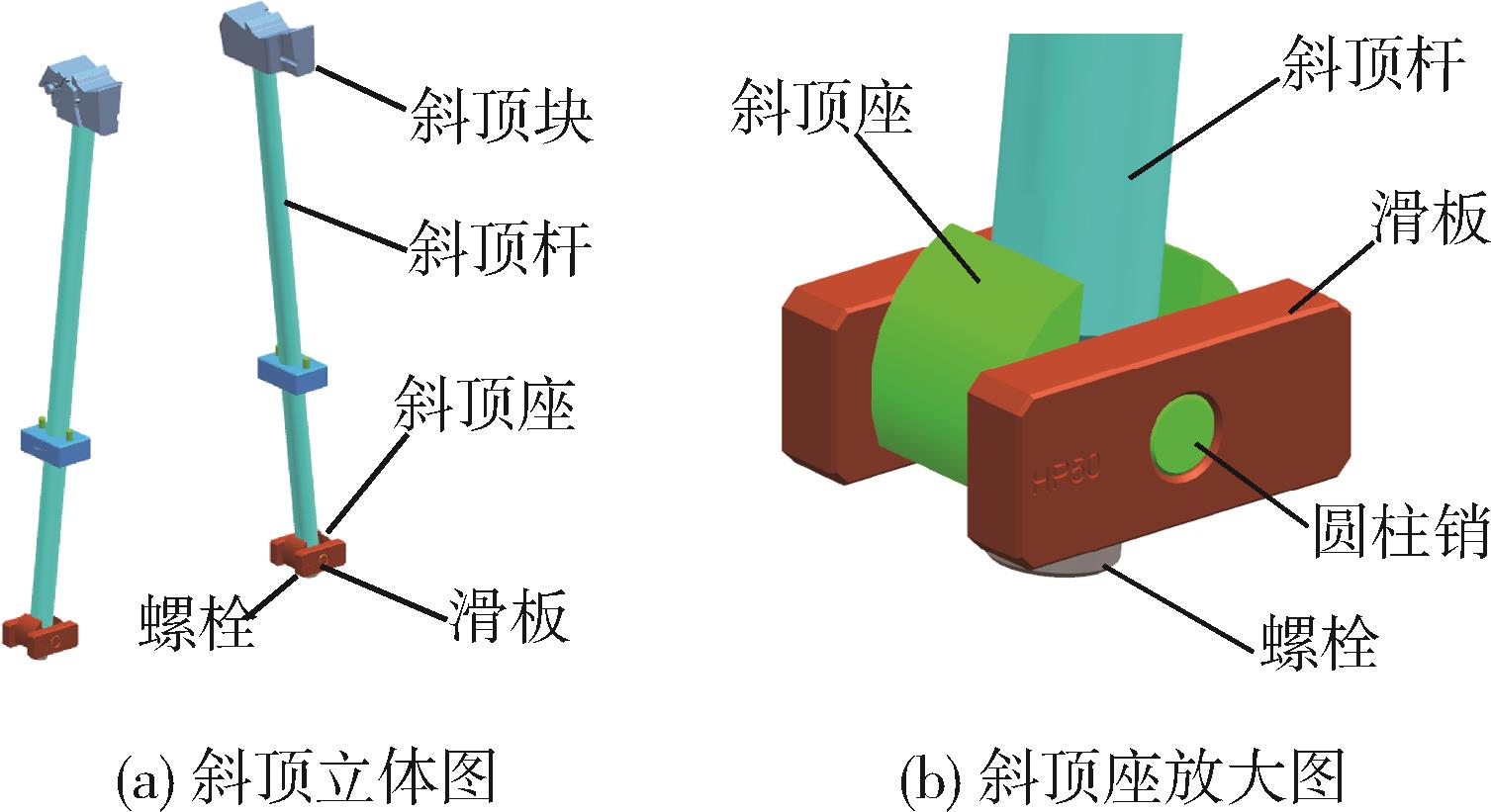

Fig.9. Inclined top release mechanism

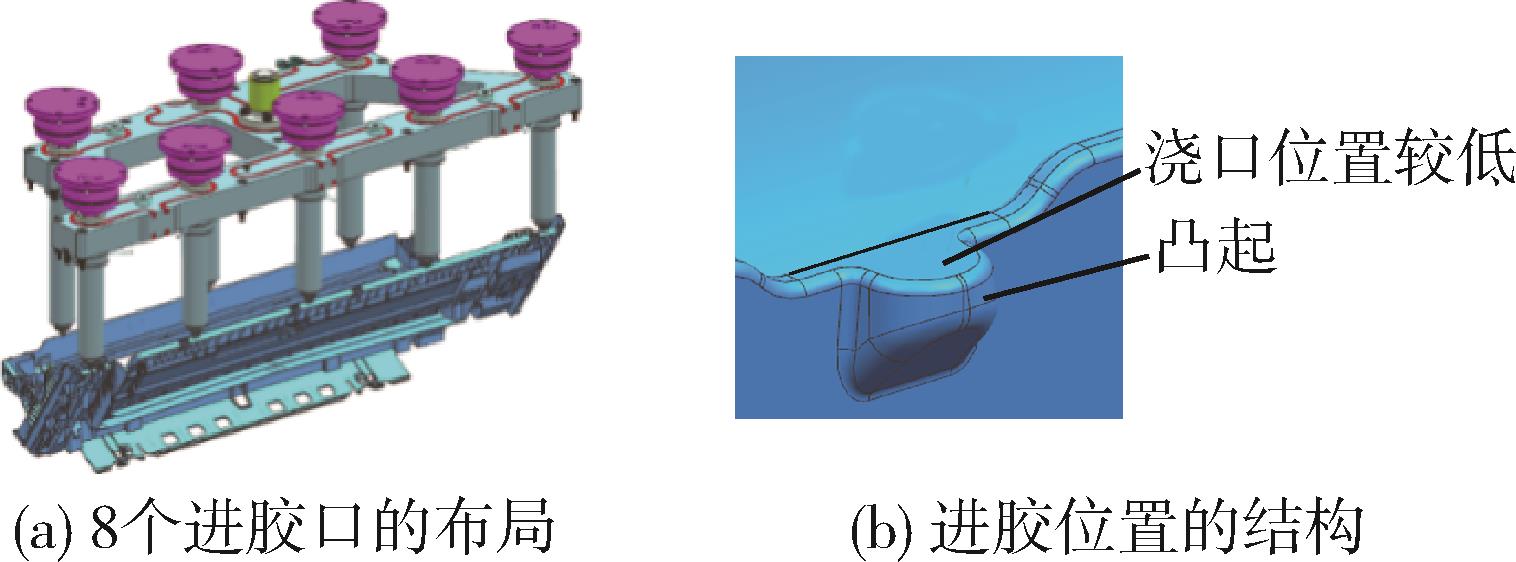

Fig.10. Gating system design

Fig.11. Cooling system design

Fig.12. Sectional view of the mold
