Preparation and performance of biaxially oriented modified zirconia/polypropylene composite dielectric films

doi:10.19491/j.issn.1001-9278.2025.12.006

Abstract

Abstract:

Nano⁃zirconia （nano⁃ZrO₂） was surface⁃grafted with amino groups （NH₂） and then melt⁃blended with polypropylene⁃g⁃maleic anhydride （PP⁃g⁃MAH） and polypropylene （PP） to form composite pellets. These pellets were processed into dielectric films via casting followed by biaxial orientation. The grafting reaction between the NH₂ groups on ZrO₂ and the anhydride groups of PP⁃g⁃MAH improved the dispersion and compatibility of the nanoparticles within the PP matrix. The resulting NH₂⁃ZrO₂/PP⁃g⁃MAH/PP composite films exhibited enhanced dielectric， thermal， and mechanical properties. Specifically， at a test frequency of 1 kHz and with 2.5 wt% NH₂⁃ZrO₂ content， the composite film achieved a dielectric constant of 4.46， significantly higher than that of pure PP （2.25）， along with high breakdown strength of 492 MV/m and a low dielectric loss of only 0.002 5. These results demonstrated that the applied modification strategy effectively yielded a composite film with a high dielectric constant and breakdown voltage while significantly suppressing dielectric loss.

Key words: zirconia, polypropylene, compatibilizer, dielectric constant, breakdown field strength

CLC Number:

TQ325.

GUO Jiang, XU Mengyi, HUANG Xiang, HAO Hao, YOU Feng, LI Chenjian, JIANG Xueliang. Preparation and performance of biaxially oriented modified zirconia/polypropylene composite dielectric films[J]. China Plastics, 2025, 39(12): 33-38.

Figures/Tables 8

Fig.1. Preparation process of NH2⁃ZrO2

Fig.2. FTIR spectra of ZrO2 and NH2⁃ZrO2

Fig.3. Reaction process of PP⁃g⁃MAH grafting nano⁃ZrO2

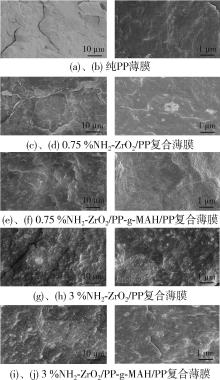

Fig.4. Cross⁃section SEM images of the PP and composite film

Fig.5. Thermogravimetric curve

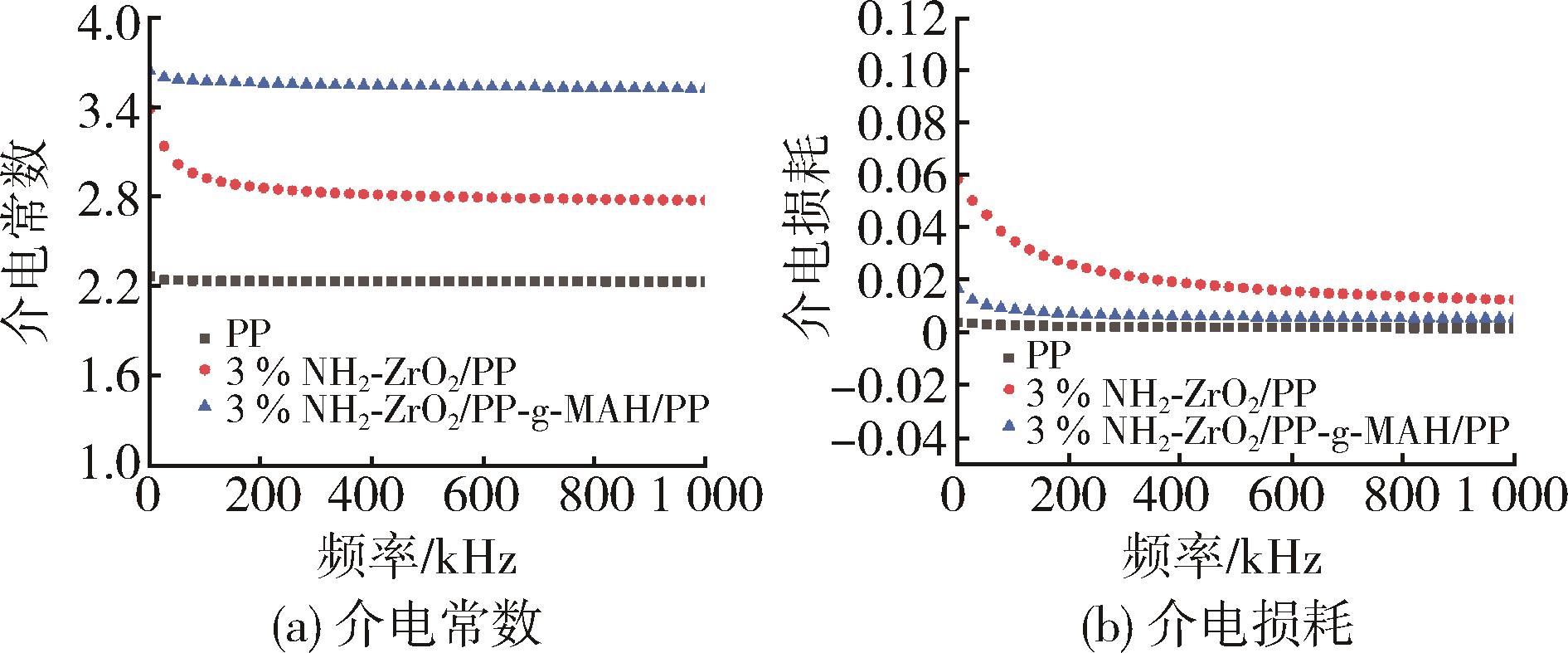

Fig.6. Dielectric constant and loss curves with variation frequencies of PP， 3 %NH2⁃ZrO2/PP and 3 %NH2⁃ZrO2/PP⁃g⁃MAH/PP composite film

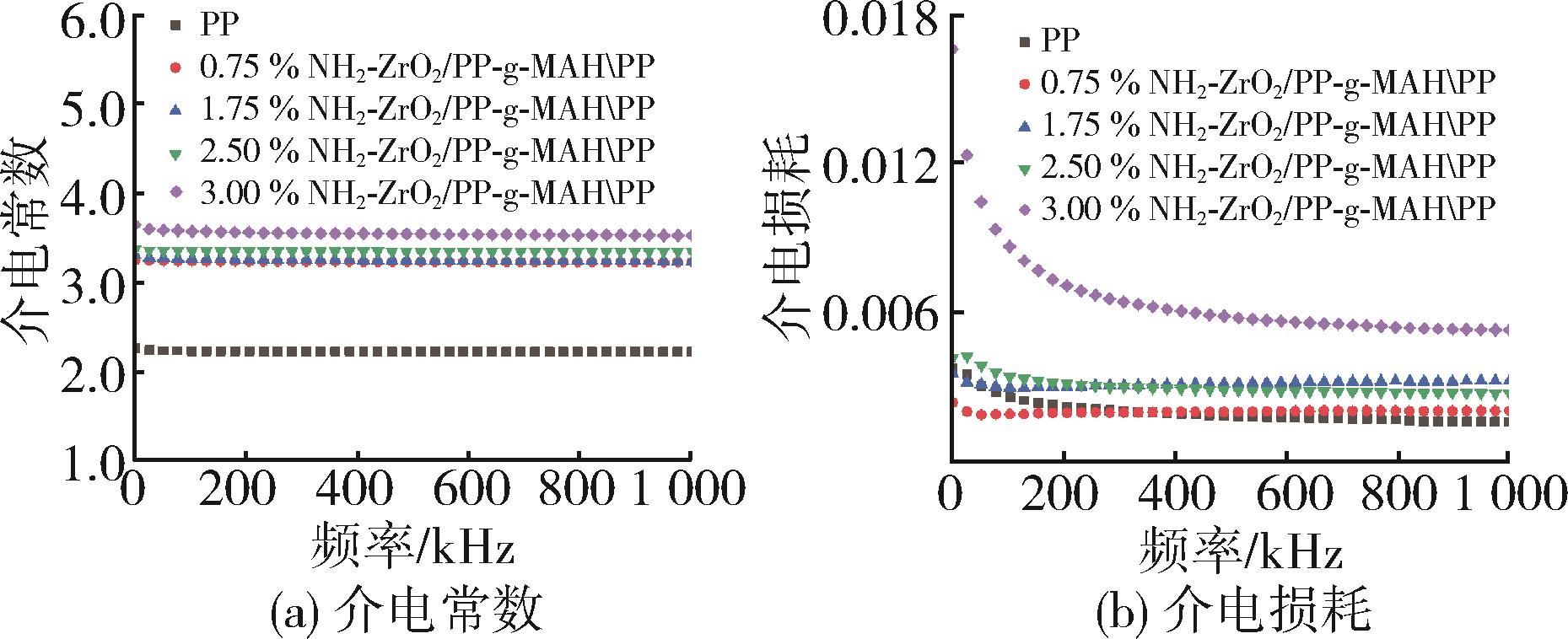

Fig.7. Dielectric constant and loss curves with variation frequencies of 0.75 %~3.00 %NH2⁃ZrO2/PP⁃g⁃MAH/PP composite film

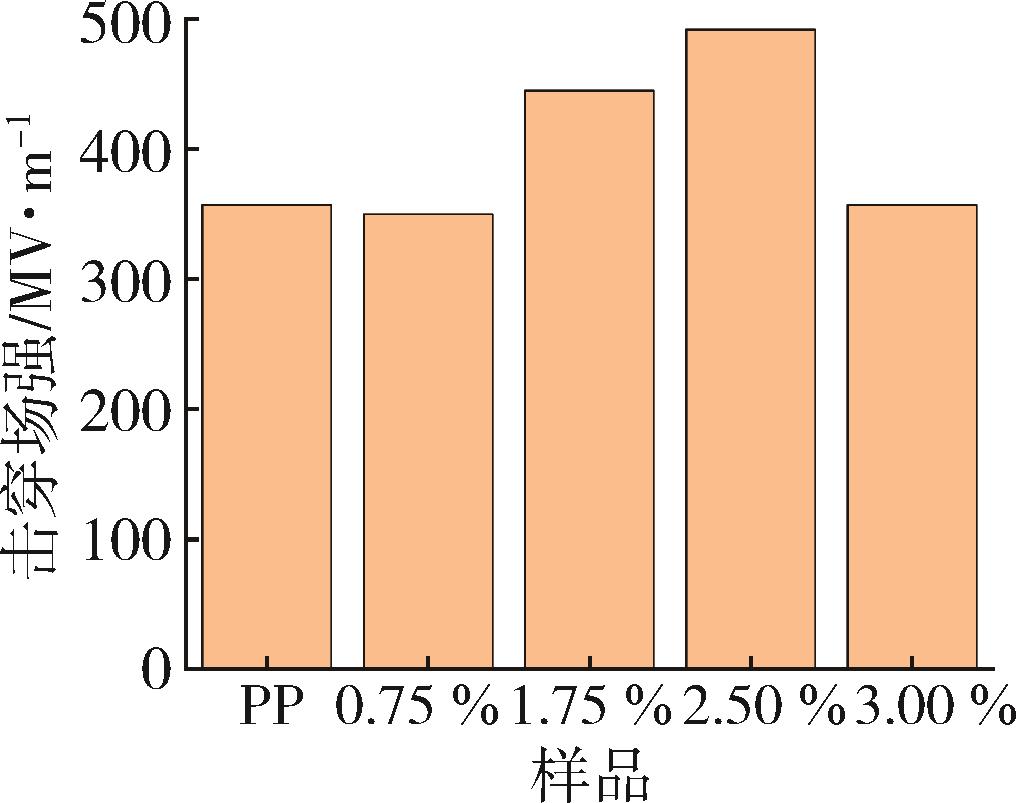

Fig.8. Breakdown field strength of PP and 0.75 %~3 %NH2⁃ZrO2/PP⁃g⁃MAH/PP composite film
