聚乳酸增韧及结晶改性研究进展

doi:10.19491/j.issn.1001-9278.2020.08.017

中国塑料 ›› 2020, Vol. 34 ›› Issue (8): 113-120.DOI: 10.19491/j.issn.1001-9278.2020.08.017

• 综述 • 上一篇

聚乳酸增韧及结晶改性研究进展

吴保钩¹, 马丕明¹(), 徐鹏武¹, 张勇², 王如寅³

^1.江南大学化学与材料工程学院，江苏无锡 214122
^2.上海交通大学化学化工学院，上海 200240
^3.道达尔科碧恩聚乳酸有限公司，上海，200001

收稿日期:2020-02-28 出版日期:2020-08-26 发布日期:2020-08-26
基金资助:
国家自然科学基金(51873082)

Research Progress in Toughening and Crystalline Modification of Poly(lactic acid)

Baogou WU¹, Piming MA¹(), Pengwu XU¹, Yong ZHANG², Ruyin WANG³

^1.School of Chemical and Material Engineering, Jiangnan University, Wuxi 214122, China
^2.School of Chemistry and Chemical Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
^3.Total Corbion PLA Co, Ltd, Shanghai 200001, China

Received:2020-02-28 Online:2020-08-26 Published:2020-08-26
Contact: Piming MA E-mail:p.ma@jiangnan.edu.cn

摘要/Abstract

摘要：

综述了近期在聚乳酸（PLA）材料的成核结晶、立构复合、增韧与耐热改性方面的工作，重点探讨了成核剂化学结构、快速立构复合技术、反应性增容和退火等技术对PLA材料力学性能的影响，并对PLA材料的应用和发展方向进行了展望。

关键词: 聚乳酸, 成核结晶, 立构复合, 增韧改性, 耐热改性

Abstract:

This paper reviewed the latest research progress in the modification of poly(lactic acid) PLA for nucleation?induced crystallization, stereocomplexation, toughening and heat resistance. The effects of the chemical structure of nucleating agents, rapid stereocomplexation, reactive compatibilization and annealing technology on the physical and mechanical properties of PLA were discussed. Moreover, the applications and development of PLA were prospected.

Key words: poly(lactic acid), nucleation?induced crystallization, stereocomplexation, toughening, heat resistance

中图分类号:

TQ321

吴保钩, 马丕明, 徐鹏武, 张勇, 王如寅. 聚乳酸增韧及结晶改性研究进展[J]. 中国塑料, 2020, 34(8): 113-120.

Baogou WU, Piming MA, Pengwu XU, Yong ZHANG, Ruyin WANG. Research Progress in Toughening and Crystalline Modification of Poly(lactic acid)[J]. China Plastics, 2020, 34(8): 113-120.

图/表 6

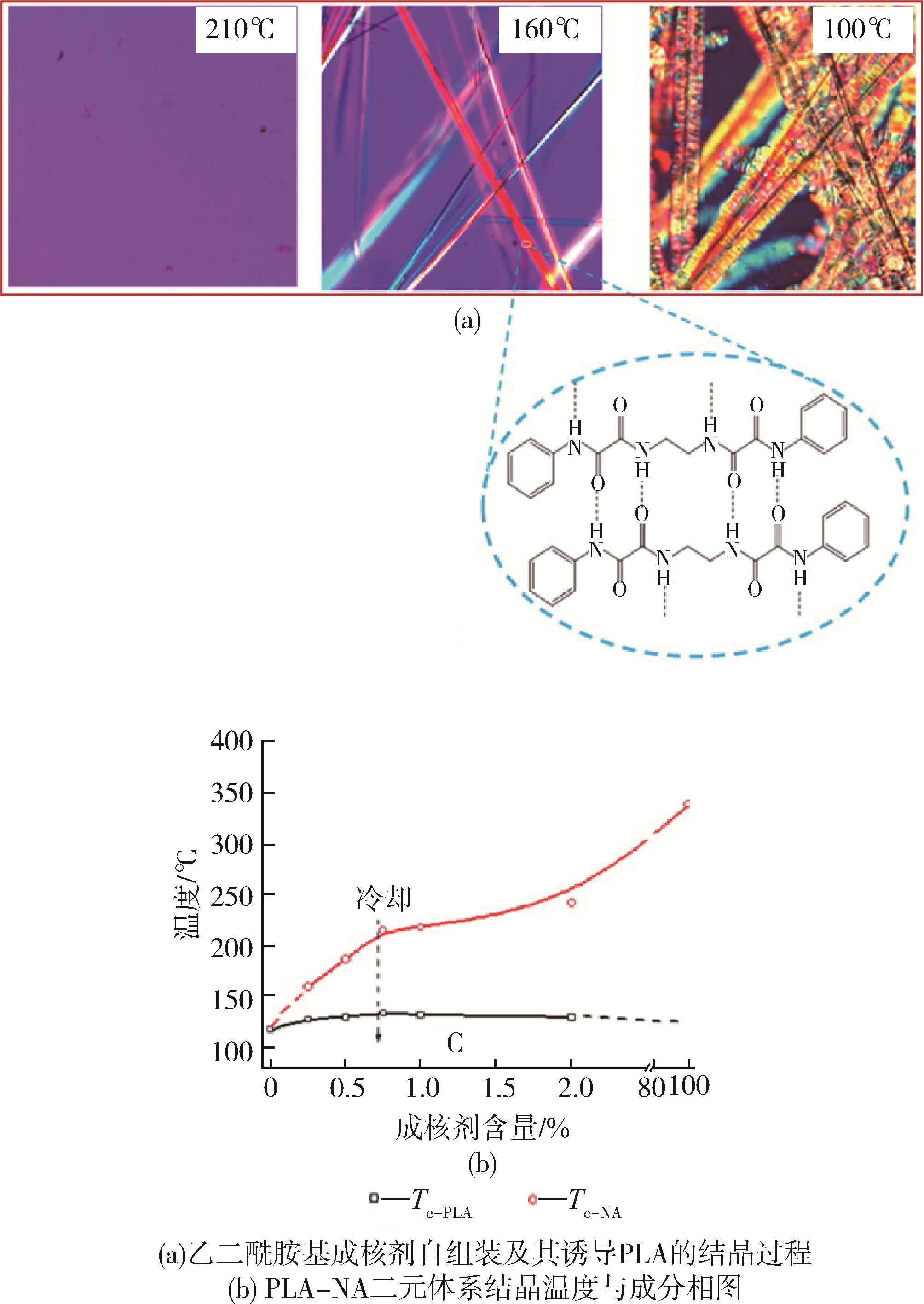

图1 乙二酰胺基化合物在PLA熔体中组装过程并诱导PLA结晶相图

Fig.1 The self?assembly of the NA and the crystallization phase diagram of PLA

图2 NCC诱导下PLA立构复合晶体的形貌和成核活性

Fig. 2 Crystal morphology and nucleation activity analysis of NCC?g?PLLA/PDLA blends

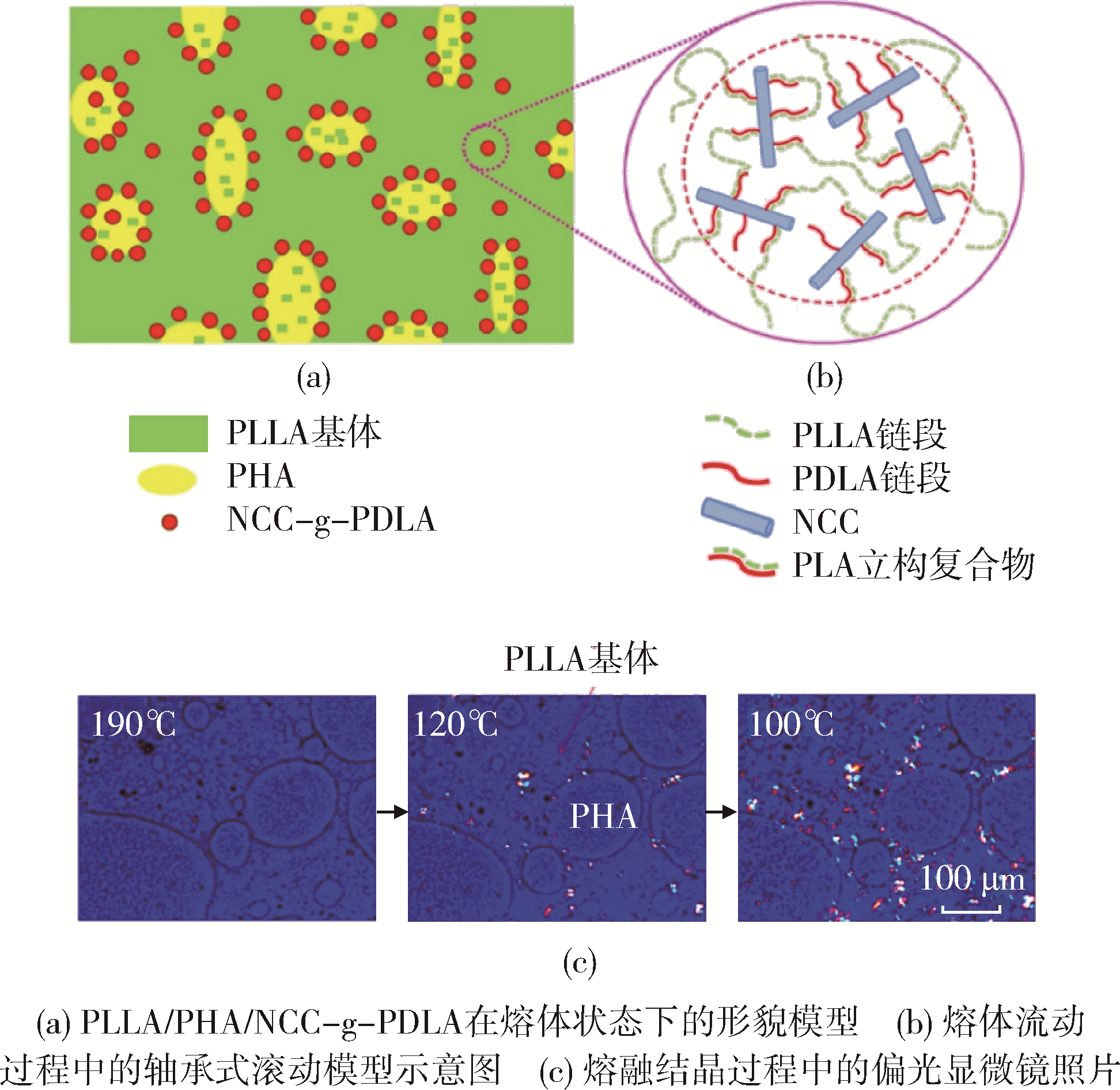

图3 PLA/PHA/NCC?g?PDLA的熔体流动过程中的轴承式滚动模型示意图及偏光显微照片

Fig. 3 Schematic illustration of a proposed core?shell?like structure and the POM images of the PLLA/PHA/NCC?g?PDLA

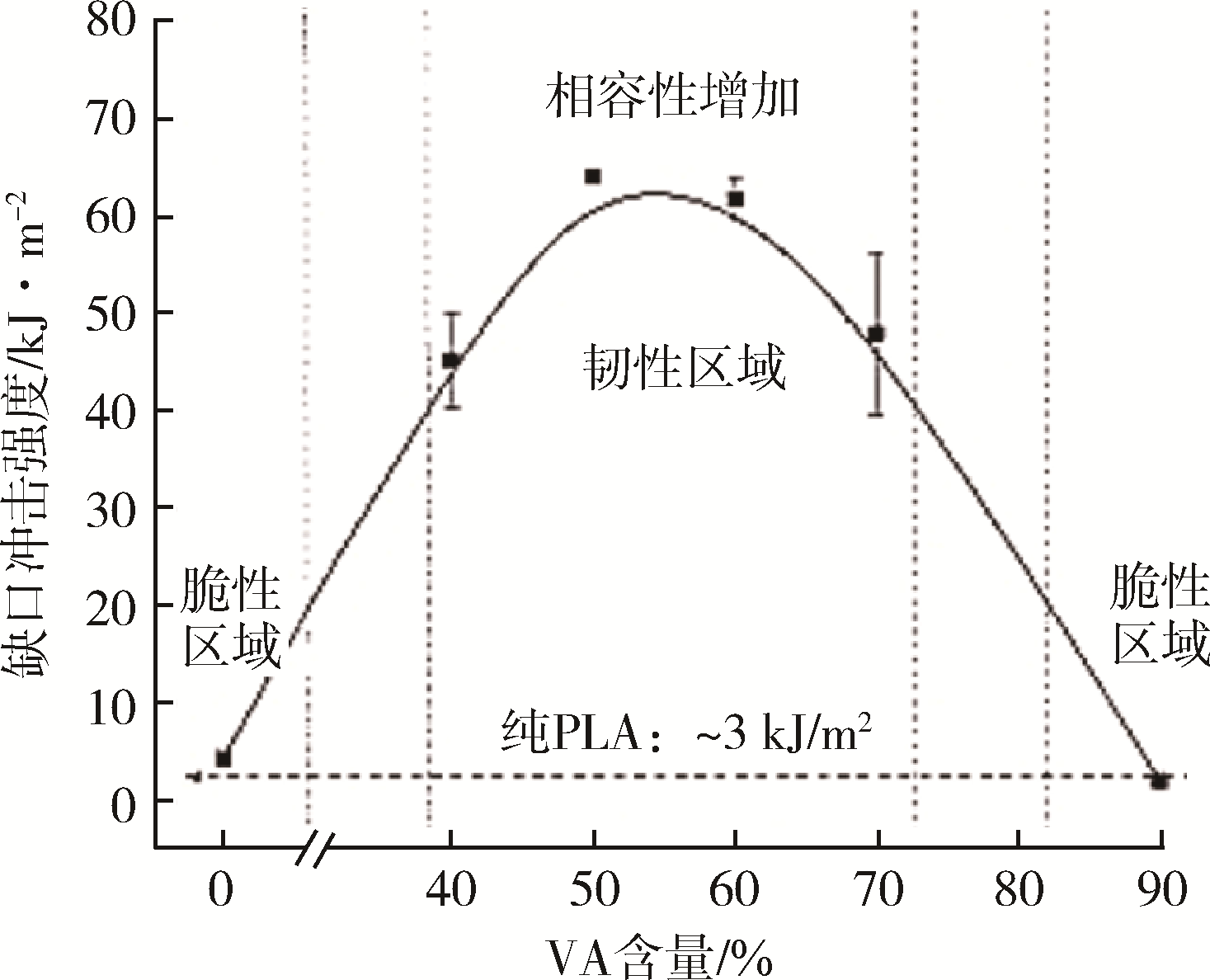

图4 PLA/EVA共混物冲击韧性与VA含量的关系曲线（PLA与EVA的质量比为80/20）

Fig.4 Impact strength of the PLA/EVA (80/20) blends as a function of VA content in the EVA copolymers

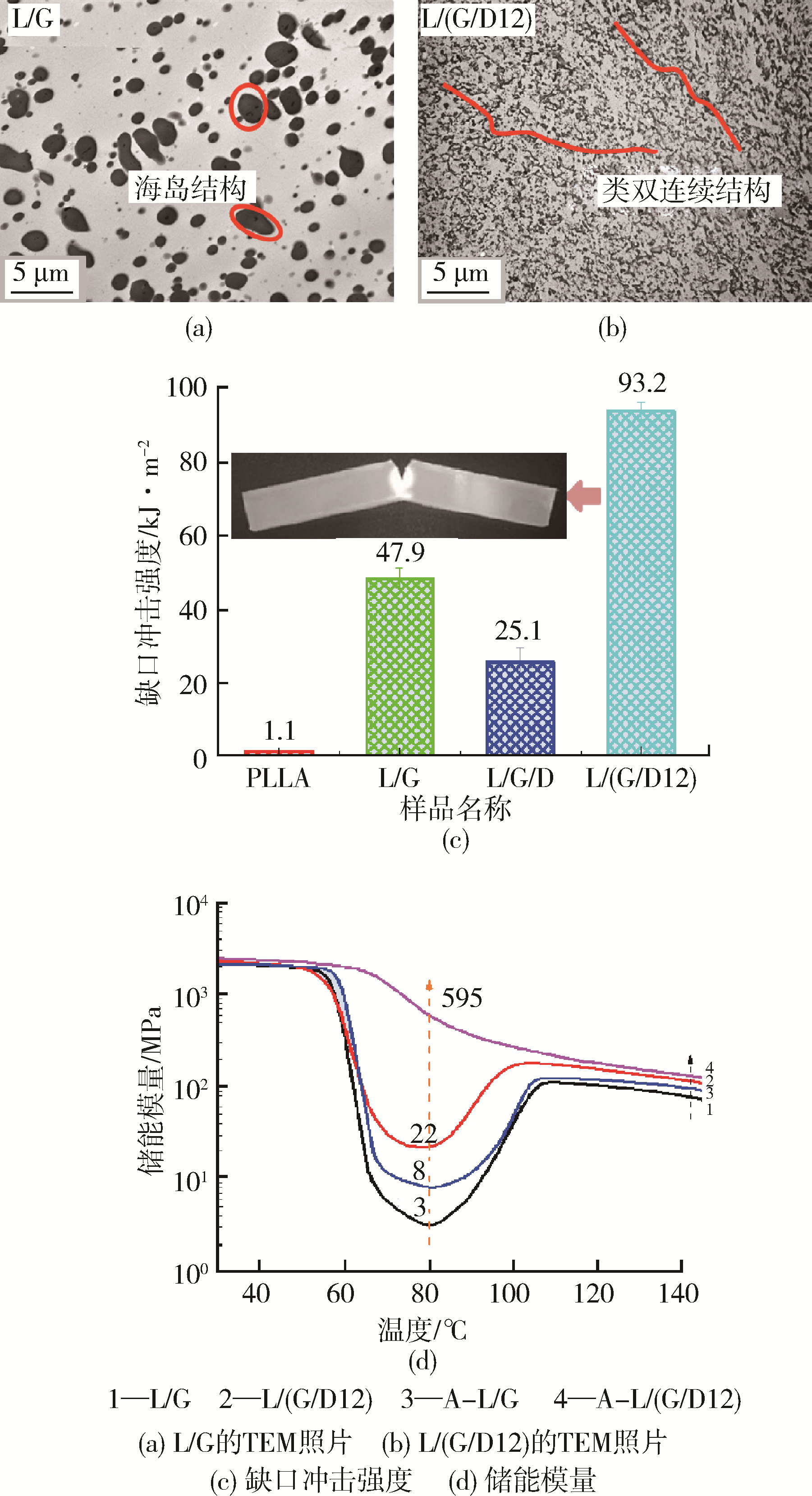

图5 PLA基纳米复合材料的形貌、韧性和耐热性能

Fig.5 Morphology, notched impact strength and storage modulus of PLA?based nanocomposites

全国塑料制品标准化技术委员会(TC48)

参考文献 45

1	陈学思，陈国强，陶友华，等. 生态环境高分子的研究进展[J].高分子学报，2019，50(10):1 068⁃1 082.
	CHEN X S, CHEN G Q, TAO Y H, et al. Research Progress in Eco⁃Polymers[J]. Acta Polymerica Sinica, 2019, 50(10): 1 068⁃1 082.
2	MICHALSKI A, BRZEZINSKI M, LAPIENIS G, et al. Star⁃Shaped and Branched Polylactides: Synthesis, Characterization, and Properties[J]. Progress in Polymer Science, 2019, 89(2): 159⁃212.
3	GROSS A R. Biodegradable Polymers for the Environment[J]. Science, 2002, 297(5582): 803⁃807.
4	RHIM J W, PARK H M, HA C S. Bio⁃Nanocomposites for Food Packaging Applications[J]. Progress in Polymer Science, 2013, 38(10): 1 629⁃1 652.
5	NAMPOOTHIRI K M, NAIR N R, JOHN R P. An Overview of the Recent Developments in Polylactide (PLA) Research[J]. Bioresource Technology, 2010, 101(22): 8 493⁃8 501.
6	MA P, SHEN T, XU P, et al. Superior Performance of Fully Biobased Poly(lactide) via Stereocomplexation⁃Induced Phase Separation: Structure Versus Property[J]. ACS Sustainable Chemistry & Engineering, 2015, 3(7): 1 470⁃1 478.
7	LI H, HUNEAULT M A. Effect of Nucleation and Plasticization on the Crystallization of Poly(lactic acid)[J]. Polymer, 2007, 48(23): 6 855⁃6 866.
8	LIU G, ZHANG X, WANG D. Tailoring Crystallization: Towards High⁃Performance Poly(lactic acid)[J]. Advanced Materials, 2014, 26(40): 6 905⁃6 911.
9	ZHANG R, ZHA L, HU W. Intramolecular Crystal Nucleation Favored by Polymer Crystallization: Monte Carlo Simulation Evidence[J]. The Journal of Physical Chemistry B, 2016, 120(27): 6 754⁃6 760.
10	YIN H Y, WEI X F, BAO R Y, et al. High⁃Melting⁃Point Crystals of Poly(l⁃lactic acid) (PLLA): The Most Efficient Nucleating Agent to Enhance the Crystallization of PLLA[J]. CrystEngComm, 2015, 17(11): 2 310⁃2 320.
11	XIE Q, HAN L, SHAN G, et al. Polymorphic Crystalline Structure and Crystal Morphology of Enantiomeric Poly(lactic acid) Blends Tailored by a Self⁃Assemblable Aryl Amide Nucleator[J]. ACS Sustainable Chemistry & Engineering, 2016, 4(5): 2 680⁃2 688.
12	BAI H, ZHANG W, DENG H, et al. Control of Crystal Morphology in Poly(l⁃lactide) by Adding Nucleating agent[J]. Macromolecules, 2011, 44(6): 1 233⁃1 237.
13	FAN Y, ZHU J, YAN S, et al. Nucleating Effect and Crystal Morphology Controlling Based on Binary Phase Behavior Between Organic Nucleating Agent and Poly(l⁃lactic acid)[J]. Polymer, 2015, 67(12): 63⁃71.
14	MA P, XU Y, WANG D, et al. Rapid Crystallization of Poly(lactic acid) by Using Tailor⁃Made Oxalamide Derivatives as Novel Soluble⁃Type Nucleating Agents[J]. Industrial & Engineering Chemistry Research, 2014, 53(32): 12 888⁃12 892.
15	MA P, DESHMUKH Y S, WILSENS C H, et al. Self⁃Assembling Process of Oxalamide Compounds and Their Nucleation Efficiency in Bio⁃Degradable Poly(hydroxyalkanoate)s[J]. Scientific Reports, 2015, 5(1): 13280.
16	MA P, XU Y, SHEN T, et al. Tailoring the Crystallization Behavior of Poly(l⁃lactide) with Self⁃Assembly⁃Type Oxalamide Compounds as Nucleators: 1. Effect of Terminal Configuration of the Nucleators[J]. European Polymer Journal, 2015, 70(9): 400⁃411.
17	SHEN T, XU Y, CAI X, et al. Enhanced Crystallization Kinetics of Poly(lactide) with Oxalamide Compounds as Nucleators: Effect of Spacer Length Between the Oxalamide Moieties[J]. RSC Advances, 2016, 6(54): 48 365⁃48 374.
18	MA P, YU Q, SHEN T, et al. Strong Synergetic Effect of Fibril⁃Like Nucleator and Shear Flow on the Melt Crystallization of Poly(l⁃lactide)[J]. European Polymer Journal, 2017, 87(2): 221⁃230.
19	IKADA Y, JAMSHIDI K, TSUJI H, et al. Stereocomplex Formation Between Enantiomeric Poly(lactides)[J]. Macromolecules, 1987, 20(4): 904⁃906.
20	TSUJI H, IKADA Y. Stereocomplex Formation Between Enantiomeric Poly(lactic acids). 9. Stereocomplexation from the Melt[J]. Macromolecules, 1993, 26(25): 6 918⁃6 926.
21	HAN L, SHAN G, BAO Y, et al. Exclusive Stereocomplex Crystallization of Linear and Multiarm Star⁃Shaped High⁃Molecular⁃Weight Stereo Diblock Poly (lactic acid)s[J]. The Journal of Physical Chemistry B, 2015, 119(44): 14 270⁃14 279.
22	MA P, LV P, XU P, et al. Design of Bio⁃Based Conductive and Fast Crystallizing Nanocomposites with Controllable Distribution of Multiwalled Carbon Nanotubes via Interfacial Stereocomplexation[J]. Chemical Engineering Journal, 2018, 336(6): 223⁃232.
23	MA P, JIANG L, XU P, et al. Rapid Stereocomplexation Between Enantiomeric Comb⁃Shaped Cellulose⁃g⁃Poly(l⁃lactide) Nanohybrids and Poly(d⁃lactide) from the Melt[J]. Biomacromolecules, 2015, 16(11): 3 723⁃3 729.
24	XIONG Z, ZHANG X, WANG R, et al. Favorable Formation of Stereocomplex Crystals in Poly(l⁃lactide)/Poly(d⁃lactide) Blends by Selective Nucleation[J]. Polymer, 2015, 76(26): 98⁃104.
25	JIANG L, LV P, MA P, et al. Stereocomplexation Kinetics of Enantiomeric Poly(l⁃lactide)/Poly(d⁃lactide) Blends Seeded by Nanocrystalline Cellulose[J]. RSC Advances, 2015, 5(87): 71 115⁃71 119.
26	MA P, SHEN T, LIN L, et al. Cellulose⁃g⁃Poly(d⁃lactide) Nanohybrids Induced Significant Low Melt Viscosity and Fast Crystallization of Fully Bio⁃based Nanocomposites[J]. Carbohydrate Polymers, 2017, 155(1): 498⁃506.
27	XU P, LV P, WU B, et al. Smart Design of Rapid Crystallizing and Nonleaching Antibacterial Poly(lactide) Nanocomposites by Sustainable Aminolysis Grafting and in Situ Interfacial Stereocomplexation[J]. ACS Sustainable Chemistry & Engineering, 2018, 6(10): 13 367⁃13 377.
28	WANG R, WANG S, ZHANG Y, et al. Toughening Modification of PLLA/PBS Blends via in Situ Compatibilization[J]. Polymer Engineering and Science, 2009, 49(1): 26⁃33.
29	丁正亚，王蕾，王标兵. 酯交换反应对PLA/PBS共混物性能的影响[J].工程塑料应用，2018，46(3):128⁃131.
	DING Z Y, WANG L, WANG B B. Influences of Transesterification on Properties of PLA/PBS Blends[J]. Engineering Plastics Application, 2018, 46(3): 128⁃131.
30	MA P, CAI X, ZHANG Y, et al. In⁃Situ Compatibilization of Poly(lactic acid) and Poly(butylene adipate⁃co⁃terephthalate) Blends by Using Dicumyl Peroxide as a Free⁃Radical Initiator[J]. Polymer Degradation and Stability, 2014, 102(4): 145⁃151.
31	MA P, HRISTOVA B D, GOOSSENS J, et al. Toughening of Poly(lactic acid) by Ethylene⁃co⁃Vinyl Acetate Copolymer with Different Vinyl Acetate Contents[J]. European Polymer Journal, 2012, 48(1): 146⁃154.
32	WU B, XU P, YANG W, et al. Super‐Toughened Heat⁃Resistant Poly(lactic acid) Alloys by Tailoring the Phase Morphology and the Crystallization Behaviors[J]. Journal of Polymer Science, 2020, 58: 500⁃509.
33	CHEN Y, CHEN K, WANG Y, et al. Biobased Heat⁃Triggered Shape⁃Memory Polymers Based on Polylactide/Epoxidized Natural Rubber Blend System Fabricated via Peroxide⁃Induced Dynamic Vulcanization: Co⁃Continuous Phase Structure, Shape Memory Behavior, and Interfacial Compatibilization[J]. Industrial & Engineering Chemistry Research, 2015, 54(35): 8 723⁃8 731.
34	CHEN Y, YUAN D, XU C. Dynamically Vulcanized Biobased Polylactide/Natural Rubber Blend Material with Continuous Cross⁃Linked Rubber Phase[J]. ACS Applied Materials & Interfaces, 2014, 6(6): 3 811⁃3 816.
35	XU P, MA P, CAI X, et al. Selectively Cross⁃Linked Poly(lactide)/Ethylene⁃Glycidyl Methacrylate⁃Vinyl Acetate Thermoplastic Elastomers with Partial Dual⁃Continuous Network⁃Like Structures and Shape Memory Performances[J]. European Polymer Journal, 2016, 84(11): 1⁃12.
36	MA P, XU P, ZHAI Y, et al. Biobased Poly(lactide)/Ethylene⁃co⁃Vinyl Acetate Thermoplastic Vulcanizates: Morphology Evolution, Superior Properties, and Partial Degradability[J]. ACS Sustainable Chemistry & Engineering, 2015, 3(9): 2 211⁃2 219.
37	MA P, XU P, LIU W, et al. Bio⁃based Poly(lactide)/Ethylene⁃co⁃Vinyl Acetate Thermoplastic Vulcanizates by Dynamic Crosslinking: Structure Vs. Property[J]. RSC Advances, 2015, 5(21): 15 962⁃15 968.
38	WANG Y, CHIAO S, HUNG T. F,et al. Improvement in Toughness and Heat Resistance of Poly(lactic acid)/Polycarbonate Blend Through Twin⁃Screw Blending: Influence of Compatibilizer Type[J]. Journal of Applied Polymer Science, 2012, 125(2): 1 402⁃1 412.
39	DENG L, XU C, WANG X, et al. Supertoughened Polylactide Binary Blend with High Heat Deflection Temperature Achieved By Thermal Annealing Above the Glass Transition Temperature[J]. ACS Sustainable Chemistry & Engineering, 2018, 6(1): 480⁃490.
40	WU B, ZENG Q, NIU D, et al. Design of Supertoughened and Heat⁃Resistant PLLA/Elastomer Blends by Controlling the Distribution of Stereocomplex Crystallites and the Morphology[J]. Macromolecules, 2019, 52(3): 1 092⁃1 103.
41	DENG S, BAI H, LIU Z, et al. Toward Supertough and Heat⁃Resistant Stereocomplex⁃Type Polylactide/Elastomer Blends with Impressive Melt Stability via in Situ Formation of Graft Copolymer During One⁃Pot Reactive Melt Blending[J]. Macromolecules, 2019, 52(4): 1 718⁃1 730.
42	肖云超，刘淑强，吴改红，等. 聚乳酸纤维吸湿排汗运动面料的制备与性能研究[J].丝绸，2015，52(5):6⁃10.
	XIAO Y C, LIU S Q, WU G H, et al. Preparation and Properties of PLA Fiber Sportswear Fabric with Moisture Absorption and Sweat Discharging Properties[J]. Joural of Silk, 2015, 52(5): 6⁃10.
43	LOU C, YAO C, CHEN Y, et al. Manufacturing and Properties of PLA Absorbable Surgical Suture[J]. Textile Research Journal, 2008, 78(11): 958⁃965.
44	宋树鑫，梁敏，王治洲，等. 改性聚乳酸薄膜对阿拉善双峰驼肉的自发气调保鲜[J].食品工业，2017，38(5):81⁃86.
	SONG S X, LIANG M, WANG Z Z, et al. Preservation Effect of Modified Poly(l⁃lactic acid) Film on the Alxa Bactrian Camel Meat in Equilibrium Modified Atmosphere Packaging[J]. The Food Industry, 2017, 38(5): 81⁃86.
45	付田霞，战孟娇，王新现. 聚乳酸的改性及其在食品包装领域的应用研究进展[J].包装工程，2009，30(12):111⁃123.
	FU T X, ZHAN M J, WANG X X. Research Progress of Modification of Poly(lactic acid) and Its Application in Food Packaging Field[J]. Packaging Engineering, 2009, 30(12): 111⁃123.
