表面结构对金属/塑料复合注射成型界面结合强度的影响

doi:10.19491/j.issn.1001-9278.2020.04.009

中国塑料 ›› 2020, Vol. 34 ›› Issue (4): 49-53.DOI: 10.19491/j.issn.1001-9278.2020.04.009

表面结构对金属/塑料复合注射成型界面结合强度的影响

陈俊祥¹, 傅南红², 王瑞雪¹, 党开放¹, 杨卫民¹, 谢鹏程¹()

^1.北京化工大学机电工程学院，北京 100029
^2.宁波长飞亚塑料机械制造有限公司，浙江宁波 315000

收稿日期:2019-11-07 出版日期:2020-04-26 发布日期:2020-04-26
基金资助:
宁波市科技创新2025重大专项(2018B10021);宁波市科技创新2025重大专项(2018B10082)

Effect of Surface Structure on Interfacial Bonding Strength of Metal⁃Plastic Composite Injection⁃Molded Parts

Junxiang CHEN¹, Nanhong FU², Ruixue WANG¹, Kaifang DANG¹, Weimin YANG¹, Pengcheng XIE¹()

^1.College of Mechanical and Electrical Engineering, Beijing University of Chemical Technology, Bejing 100029, China
^2.Zhafir Ningbo Plastic Machinery Manufacturing Co, Ltd, Ningbo 315000, China

Received:2019-11-07 Online:2020-04-26 Published:2020-04-26
Contact: Pengcheng XIE E-mail:xiepc@mail.buct.edu.cn

摘要/Abstract

摘要：

通过一种简易化学清洗和腐蚀的方式，在金属表面获得微米级孔洞，并采用复合注射成型将金属和聚合物结合。通过溶液处理金属铝片时间变化得到不同尺度的表面微结构，研究表面微观结构对界面结合强度的影响规律。结果表明，经过盐酸处理过的金属铝表面表现出密集的微米级孔洞，随着腐蚀时间的增加，金属表面微孔孔径和微孔密度先增大后减小，界面结合剪切强度在孔径和孔密度的共同影响下先增大后减小，最大值为10.24 MPa；这一金属表面处理方式在汽车内饰、建筑装饰、电子产品外壳等领域提供工程化应用理论基础。

关键词: 表面处理, 微孔, 复合注射成型

Abstract:

In this study, micro?scale pores were obtained on the metal surface by a simple chemical cleaning and etching method, and then a polymer was bonded with the resultant metal through composite injection molding. The surface microstructure was achieved at different scales by changing the dipping time of aluminum sheets in solution, and the influence of surface microstructure on the interface bonding strength was investigated. The results indicated that there were dense micro?sized pores on the surface of aluminum sheets after treated with hydrochloric acid. With an increase of corrosion time, the pore diameter and pore density of the metal surface increased at first and then tended to decrease. The interfacial bonding strength was found to increase at first and then decrease as a result of the combining effect of pore size and pore density, and it reached a maximum value of 10.24 MPa. This surface treatment method provides a theoretical foundation for engineering applications in the fields of automotive interiors, architectural decoration and electronic product enclosures.

Key words: surface treatment, microporous, composite injection molding

中图分类号:

TQ 320.66

陈俊祥, 傅南红, 王瑞雪, 党开放, 杨卫民, 谢鹏程. 表面结构对金属/塑料复合注射成型界面结合强度的影响[J]. 中国塑料, 2020, 34(4): 49-53.

Junxiang CHEN, Nanhong FU, Ruixue WANG, Kaifang DANG, Weimin YANG, Pengcheng XIE. Effect of Surface Structure on Interfacial Bonding Strength of Metal⁃Plastic Composite Injection⁃Molded Parts[J]. China Plastics, 2020, 34(4): 49-53.

图/表 10

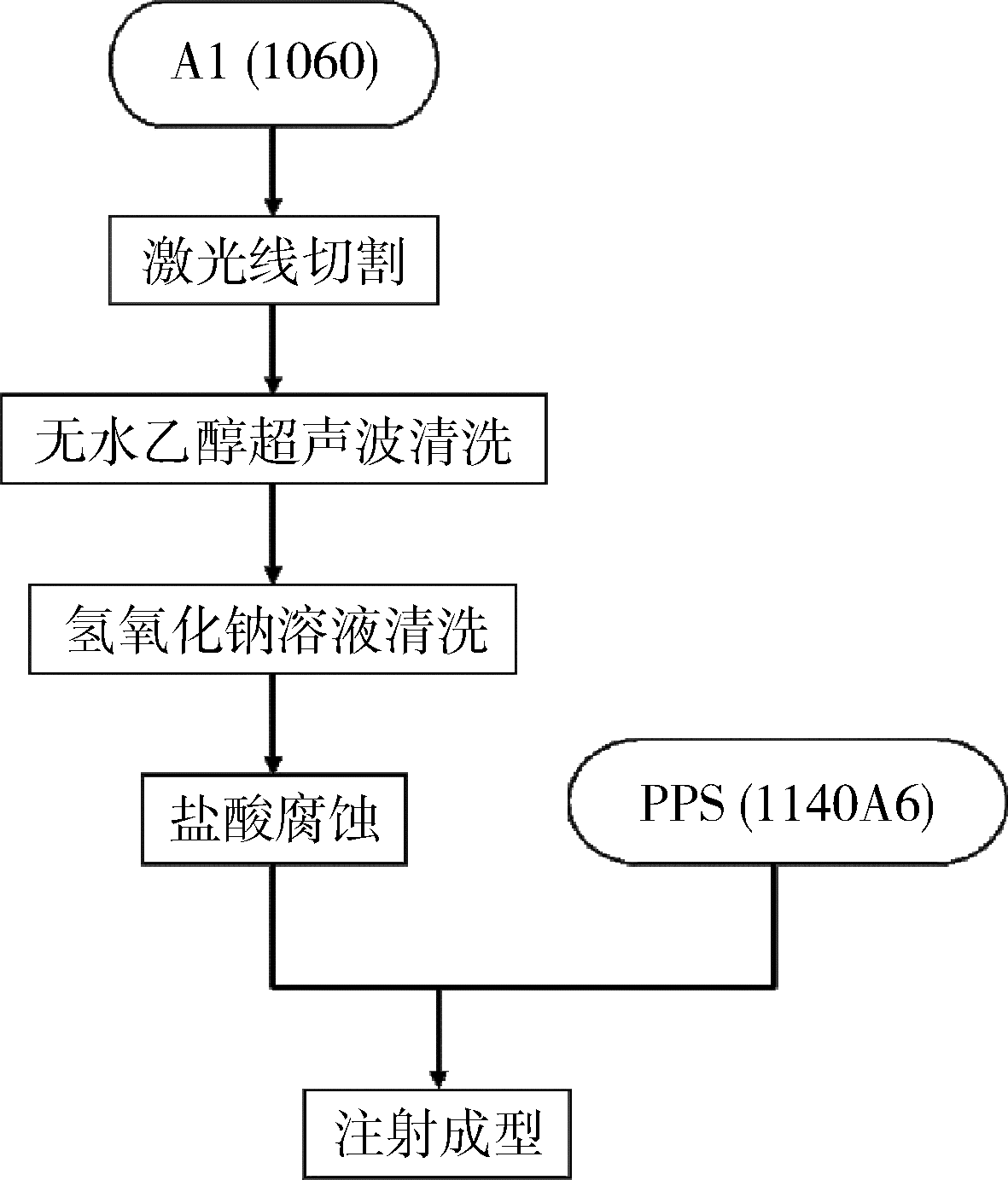

图1 工艺流程图

Fig.1 Process flow chart

模具

温度/℃

注射

温度/℃

注射压力/

MPa

注射速度/

cm³·s^-1

保压压力/

MPa

表1 注射参数

Tab. 1 Injection molding parameters

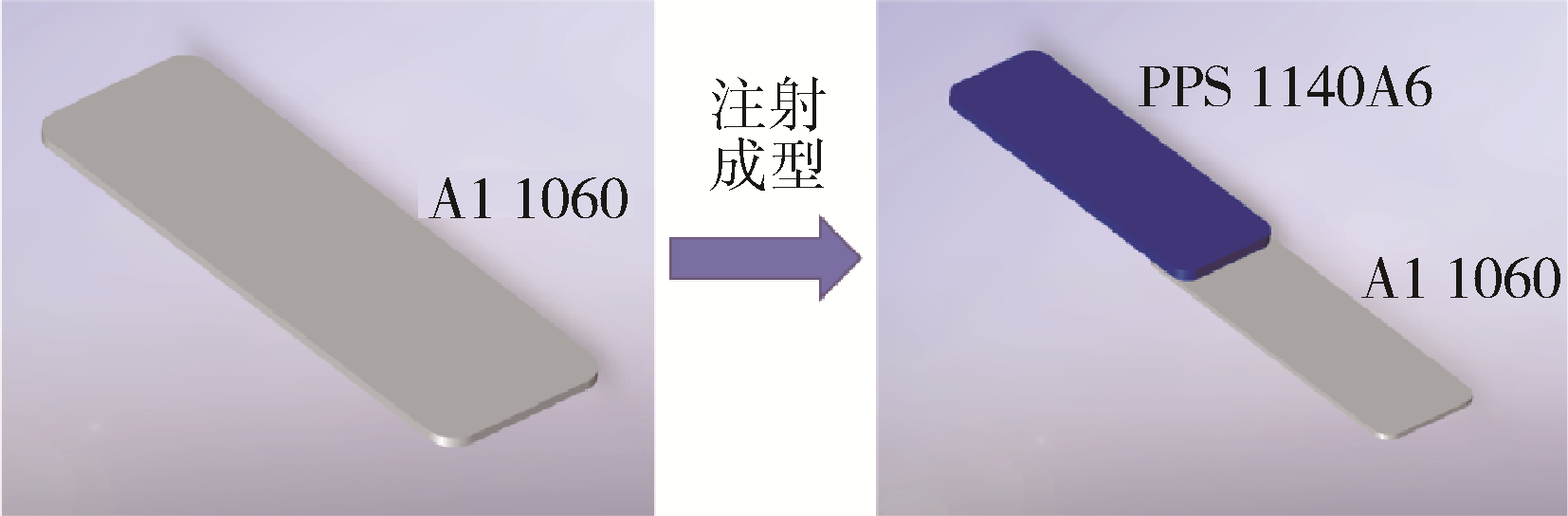

图2 聚合物?金属结构示意图

Fig.2 Schematic diagram of polymer?metal structure

图3 拉伸测试仪器

Fig.3 Tensile test instrument

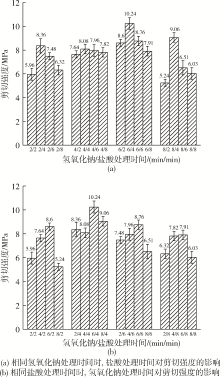

图4 剪切强度测试结果

Fig.4 Results of shear strength test

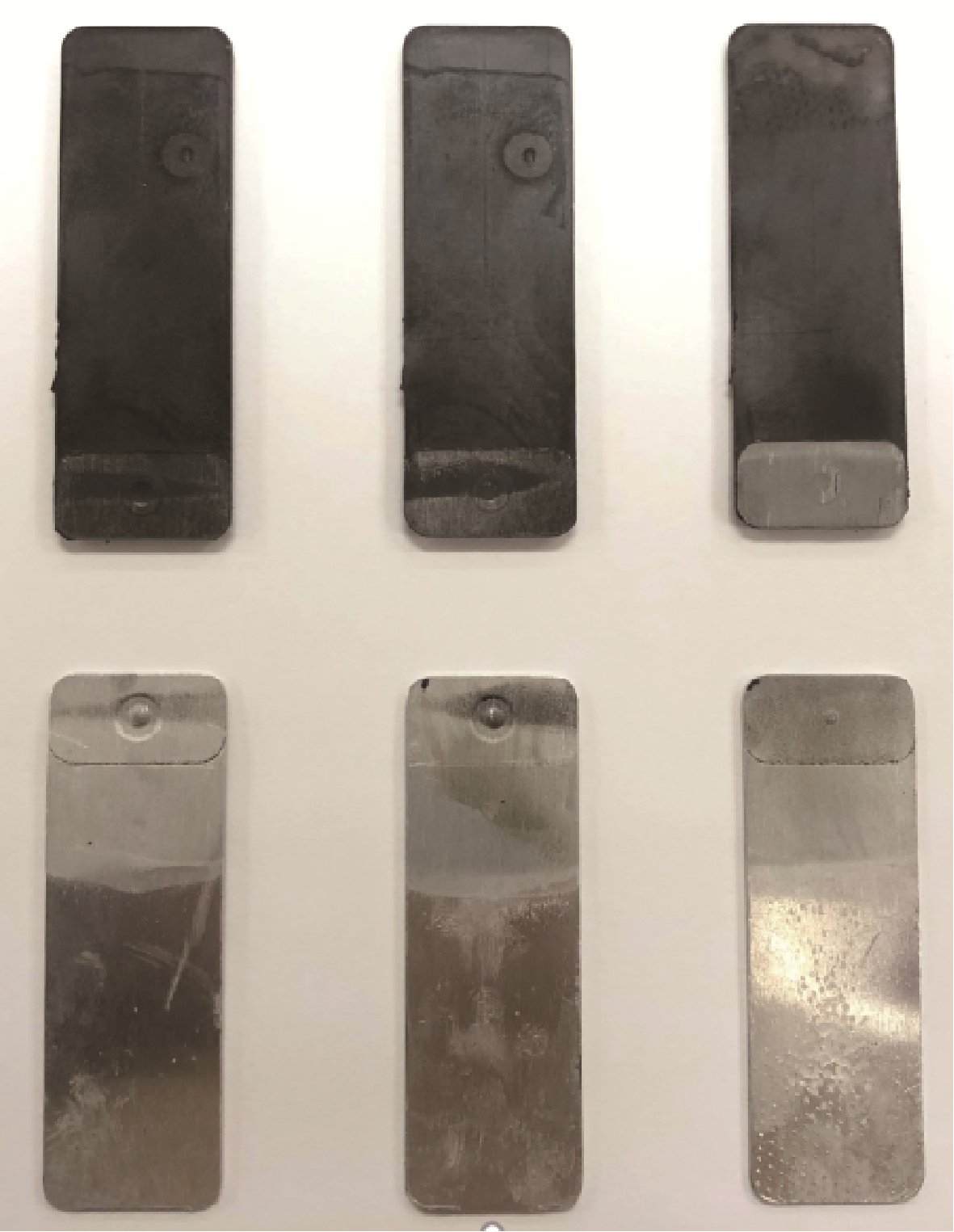

图5 拉伸测试后金属和聚合物结合面形态

Fig.5 Metal and polymer bonding surface morphology after tensile testing

图6 氢氧化钠溶液处理后的SEM照片

Fig.6 Electron micrograph of sodium hydroxide solution treatment

图7 氢氧化钠、盐酸铝片表面的SEM照片

Fig. 7 Scanning electron micrograph of the surface of sodium hydroxide and aluminum hydroxide

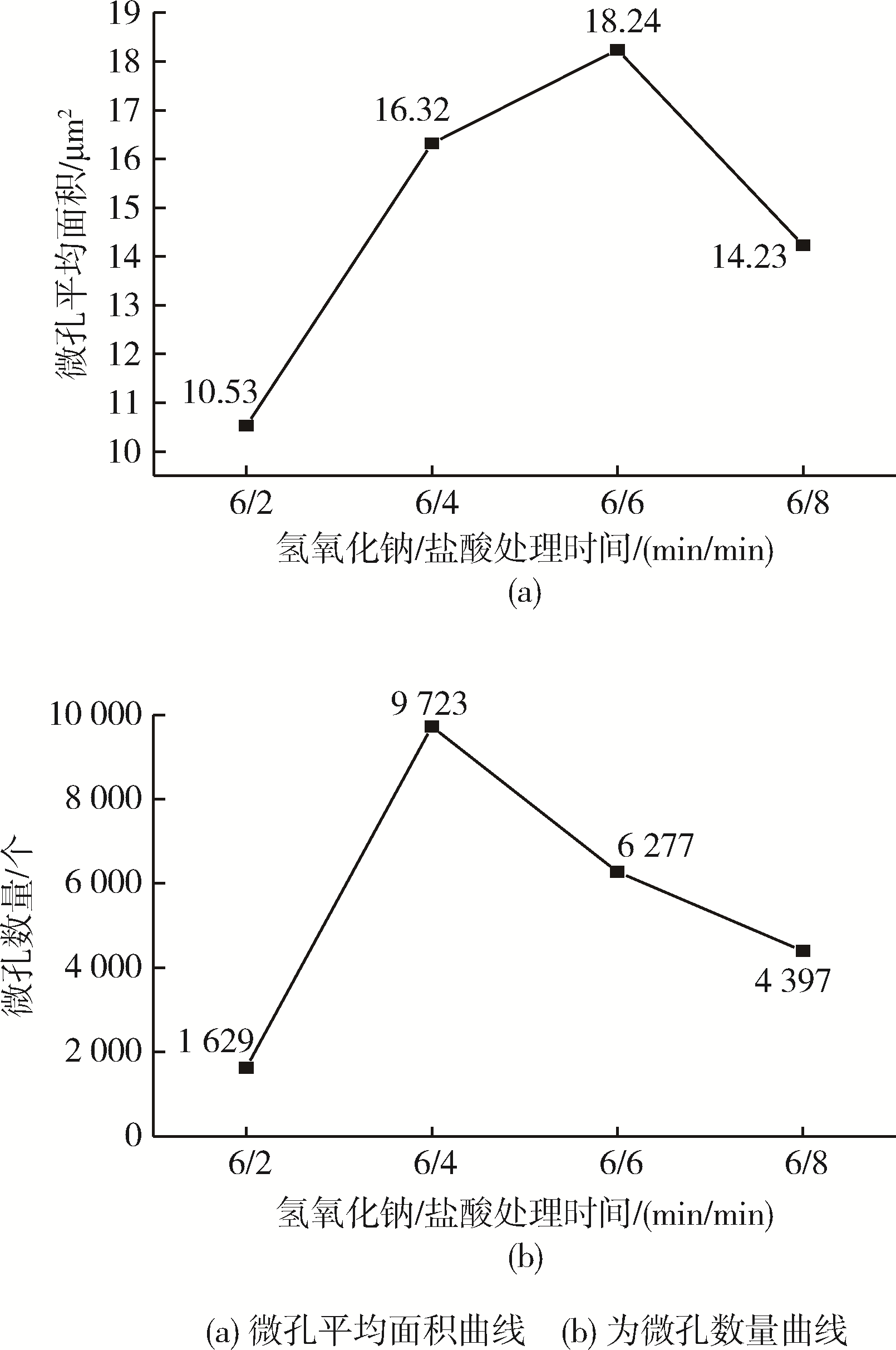

图8 微孔面积和数量曲线

Fig.8 Micropore area and quantity curve

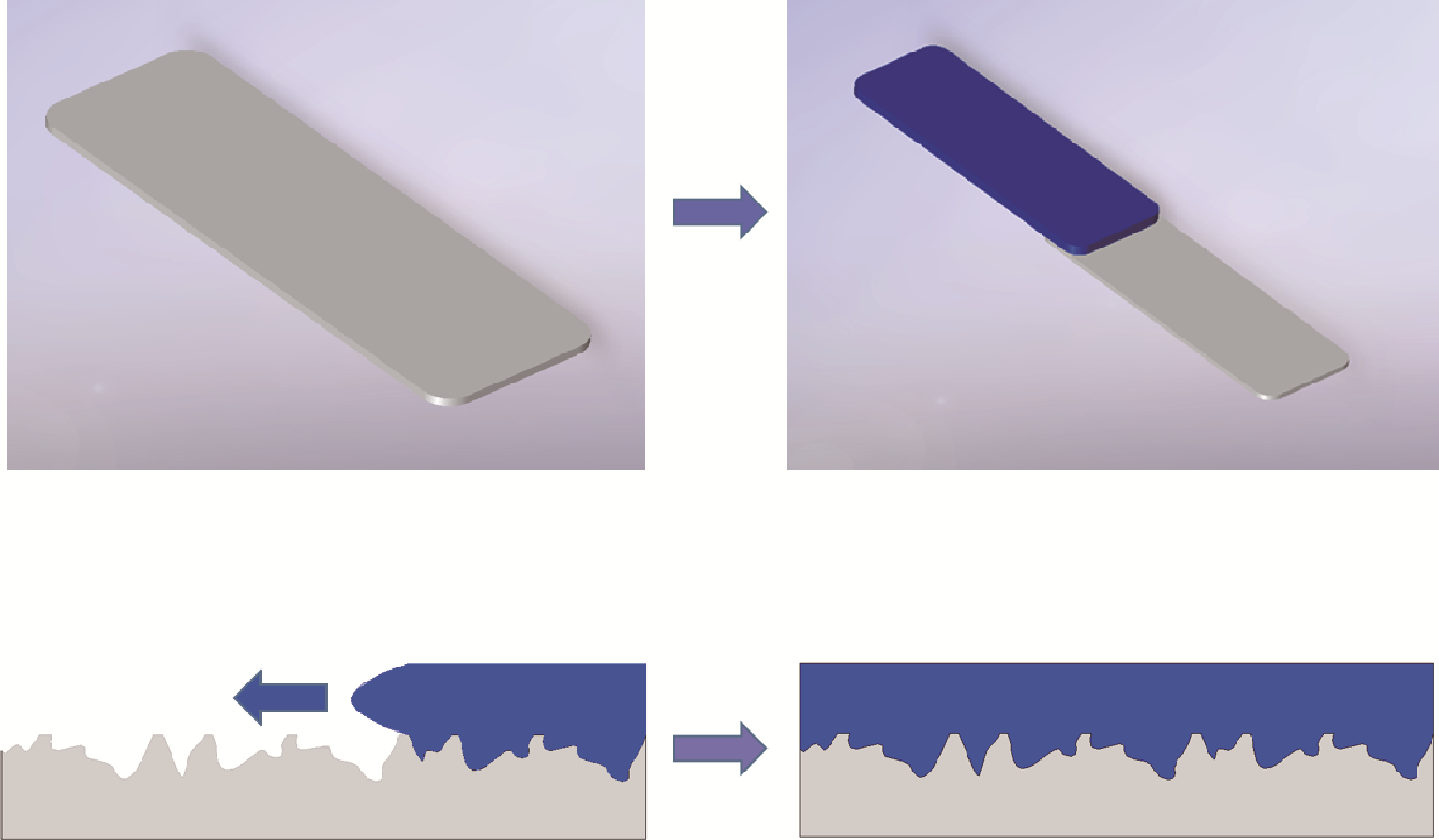

图9 物理栓接示意图

Fig.9 Physical bolting diagram
