分子筛协同有机磷酸盐改性聚丙烯性能的研究

doi:10.19491/j.issn.1001-9278.2020.05.001

中国塑料 ›› 2020, Vol. 34 ›› Issue (5): 1-8.DOI: 10.19491/j.issn.1001-9278.2020.05.001

• 材料与性能 • 下一篇

分子筛协同有机磷酸盐改性聚丙烯性能的研究

李超, 童闯闯, 孟鑫, 辛忠()

华东理工大学化工学院产品工程系，上海 200237

收稿日期:2019-12-25 出版日期:2020-05-26 发布日期:2020-05-26
基金资助:
国家自然科学基金项目(21776079)

Study on Properties of Polypropylene Modified with Combination of Zeolites and Organic Phosphate Salt

Chao LI, Chuangchuang TONG, Xin MENG, Zhong XIN()

Production Engineering Department，School of Chemical Engineering, East China University of Science and Technology, Shanghai 200237，China

Received:2019-12-25 Online:2020-05-26 Published:2020-05-26
Contact: Zhong XIN E-mail:xzh@ecust.edu.cn

摘要/Abstract

摘要：

采用直接混合法制得等规聚丙烯（iPP）/分子筛体系和iPP/有机磷酸盐成核剂（NA11）/分子筛体系，研究不同种类分子筛在不同含量下对iPP结晶温度及力学性能的影响，进而研究不同分子筛在低含量下协同有机磷酸盐对iPP体系成核性能的影响，从动力学角度解释了提升原因。结果表明，单独添加分子筛制得的iPP体系，随着分子筛含量的增加，结晶性能和力学性能得到显著提升，不同分子筛对iPP性能的影响不同，ZSM?5型分子筛在含量为5 %（质量分数，下同）以上具有促进iPP β晶型生成的效果；采用直接混合法制得的不同分子筛复配有机磷酸酯钠盐NA11成核剂可提升iPP的力学性能；特别是当0.1 % NA11和0.1 % 4A型分子筛一起添加到iPP中时，可在保证iPP具有较好刚性的同时兼具有良好的韧性，使iPP的弯曲模量提高35.2 %、冲击强度提高14.4 %，从而达到促进iPP材料刚韧平衡的效果。

关键词: 聚丙烯, 分子筛, 有机磷酸酯钠盐成核剂, 力学性能, 结晶性能

Abstract:

Isotactic polypropylene (iPP)/zeolite and iPP/phosphate sodium nucleating agent (NA11)/zeolite compounds were prepared by a direct mixing method, and the effects of the type and content of zeolite on their crystallization temperature and mechanical properties were investigated. Furthermore, the synergistic effect from zeolite and organophosphates on the nucleation performance of the compounds was studied, and a kinetic analysis was performed for the crystalline improvement of iPP. The results indicated that the addition of zeolite improved the crystallization and mechanical properties of iPP significantly, and the type of zeolite was found to influence the performance of iPP. The ZSM?5?type zeolite could promote the formation of β?form crystal of iPP at the concentration over 5 wt%. The combination of zeolite and NA11 could further improve the mechanical properties of the compounds, and good rigidity and toughness were achieved for the compounds containing 0.1 wt% NA11 and 0.1 wt% 4A?type zeolite. The compounds gained an increase in flexural modulus by 35.2 % and in impact strength by 14.4 % compared to pure iPP, indicating a good balance between rigidity and toughness.

Key words: polypropylene, zeolite, organic phosphate sodium salt nucleator, mechanical property, crystalline property

中图分类号:

TQ325.1⁺4

李超, 童闯闯, 孟鑫, 辛忠. 分子筛协同有机磷酸盐改性聚丙烯性能的研究[J]. 中国塑料, 2020, 34(5): 1-8.

Chao LI, Chuangchuang TONG, Xin MENG, Zhong XIN. Study on Properties of Polypropylene Modified with Combination of Zeolites and Organic Phosphate Salt[J]. China Plastics, 2020, 34(5): 1-8.

图/表 8

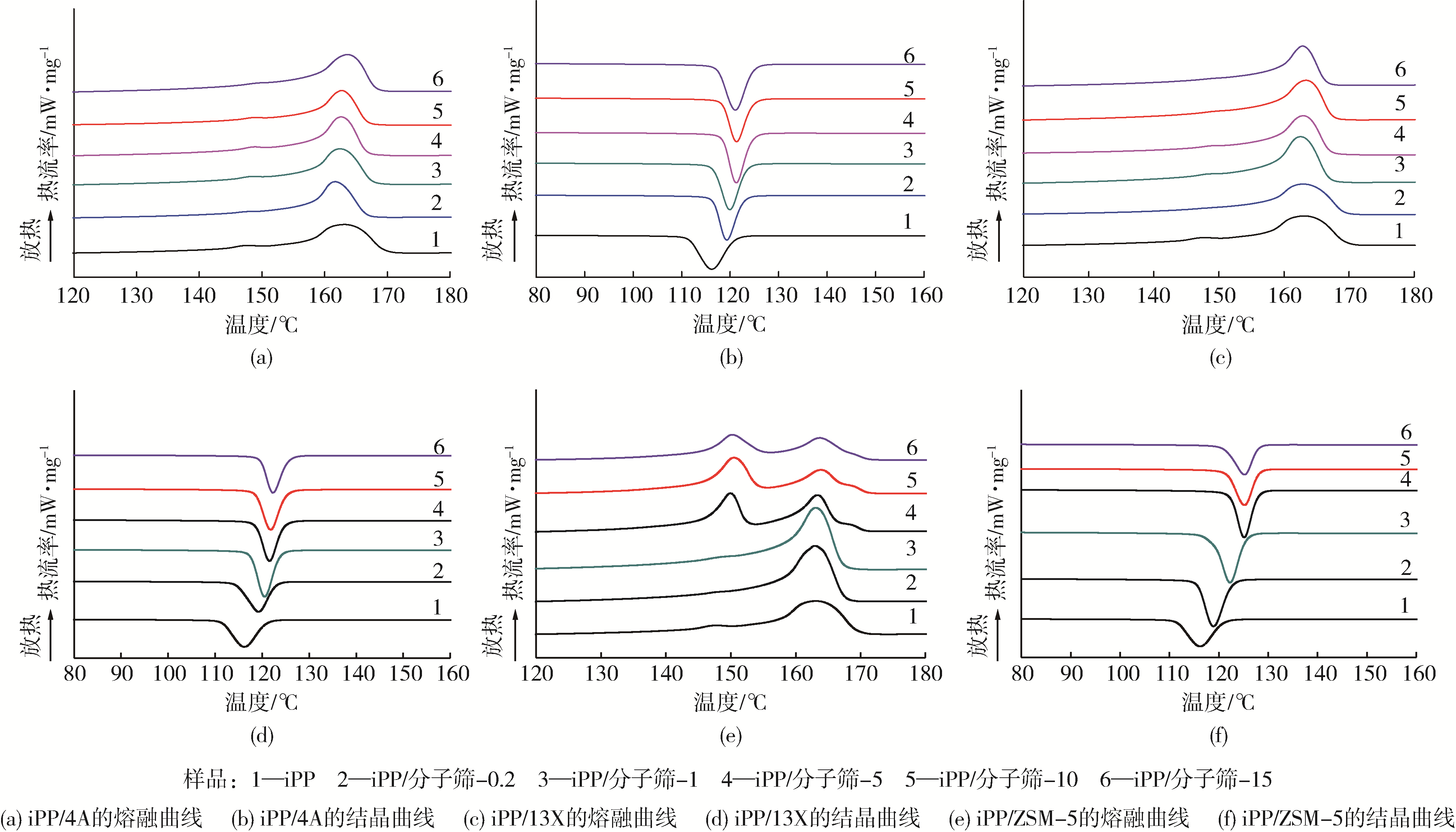

图1 不同分子筛改性PP体系的DSC曲线

Fig.1 DSC curves of PP/zeolite system

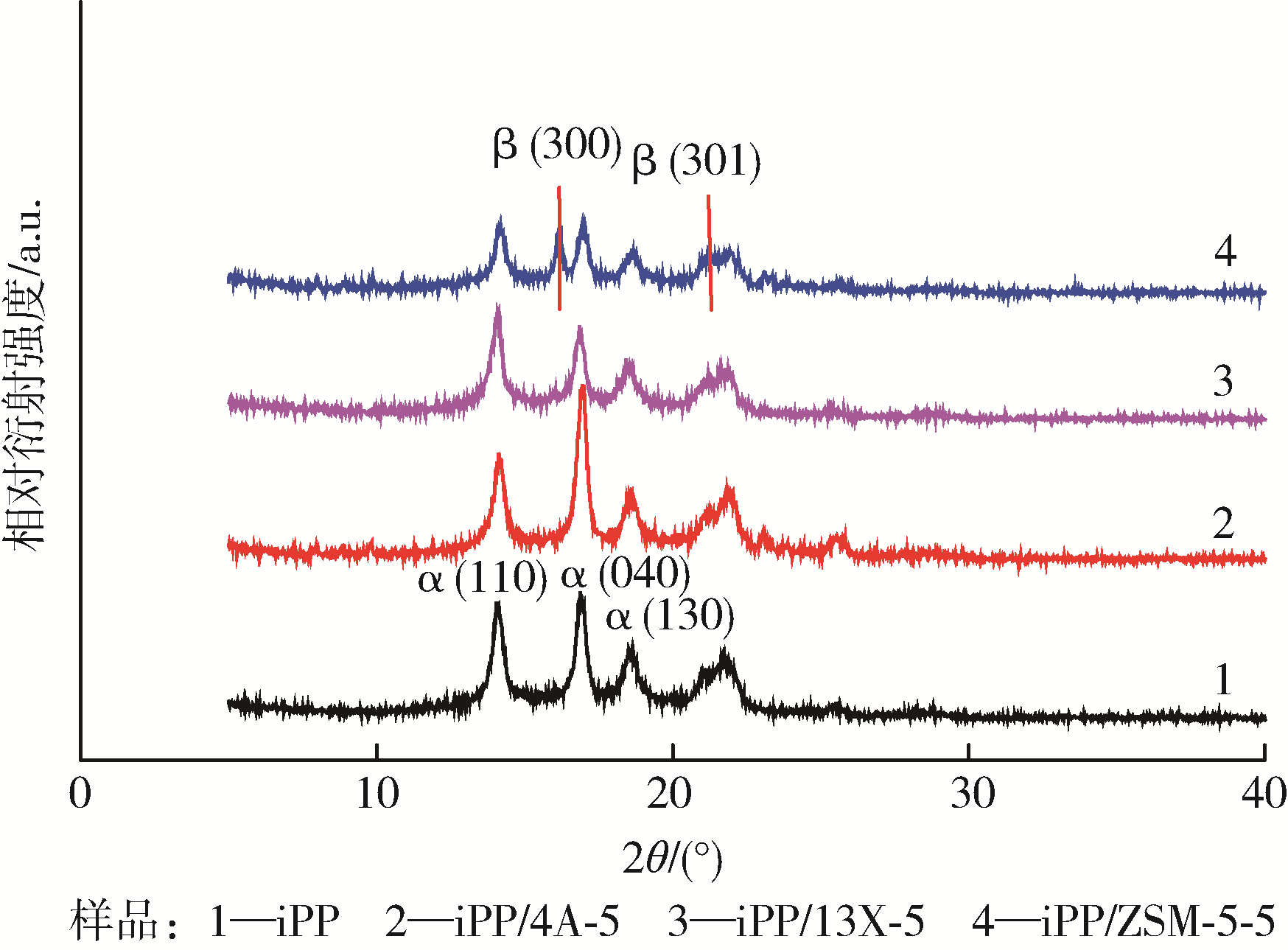

图2 不同分子筛在5 %含量下改性PP体系的XRD曲线

Fig.2 XRD patterns of PP/zeolite?5 system

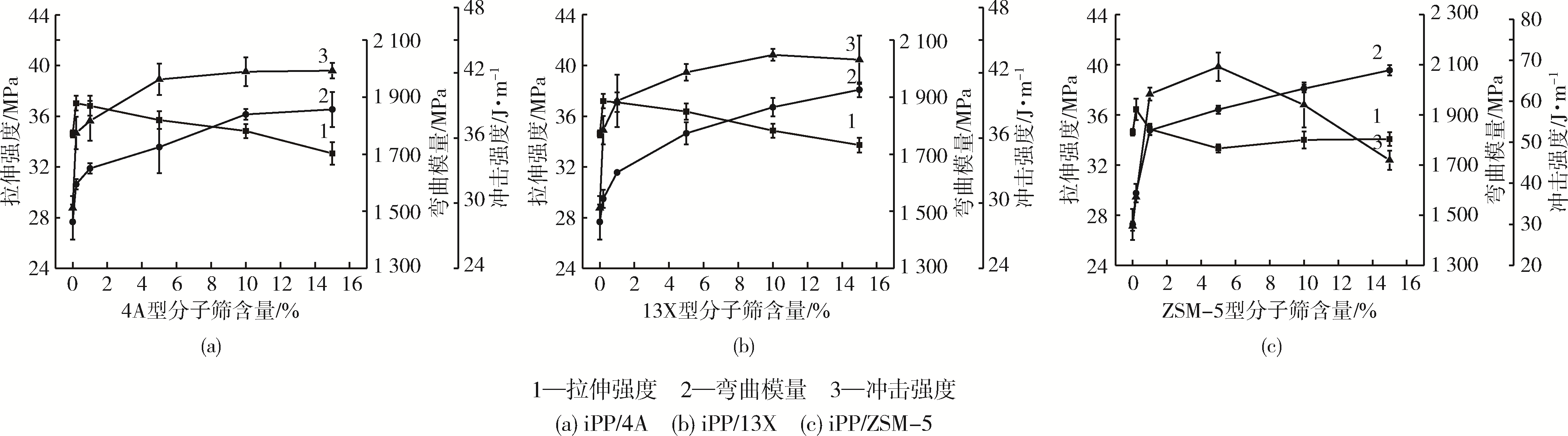

图3 不同分子筛对iPP体系力学性能的影响

Fig.3 Mechanical properties of PP/zeolite system

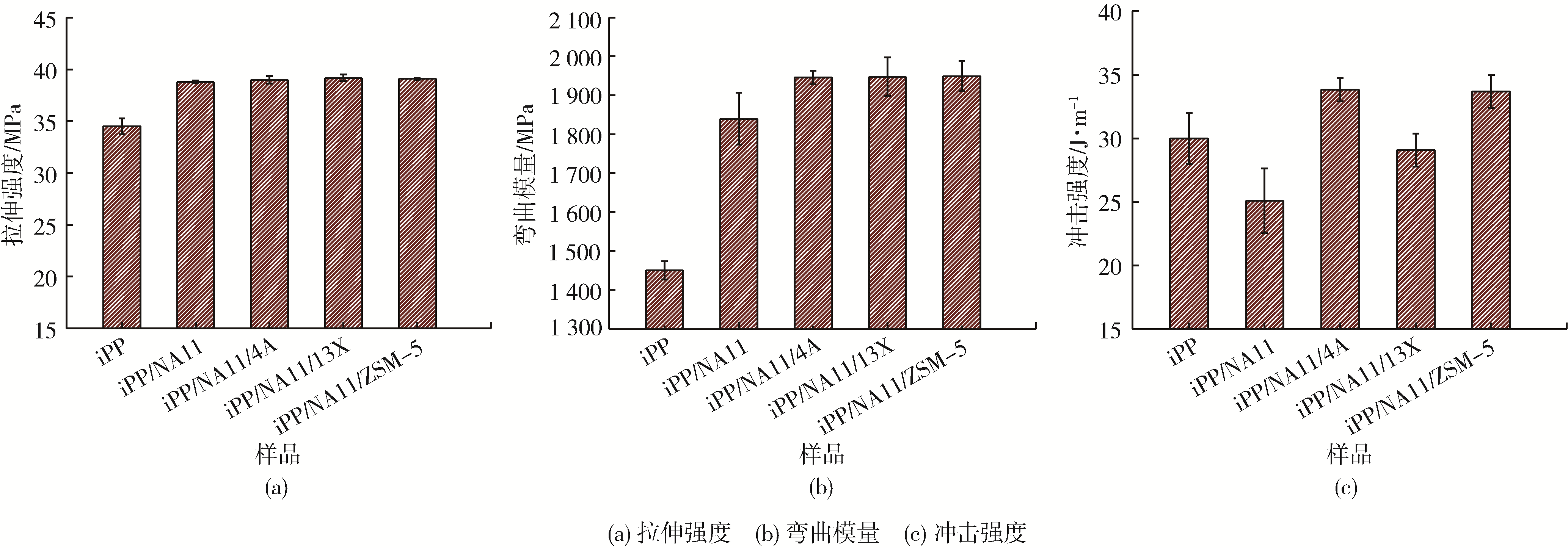

图4 分子筛复合NA11对iPP体系力学性能的影响

Fig.4 Mechanical properties of iPP/NA11/zeolites systems

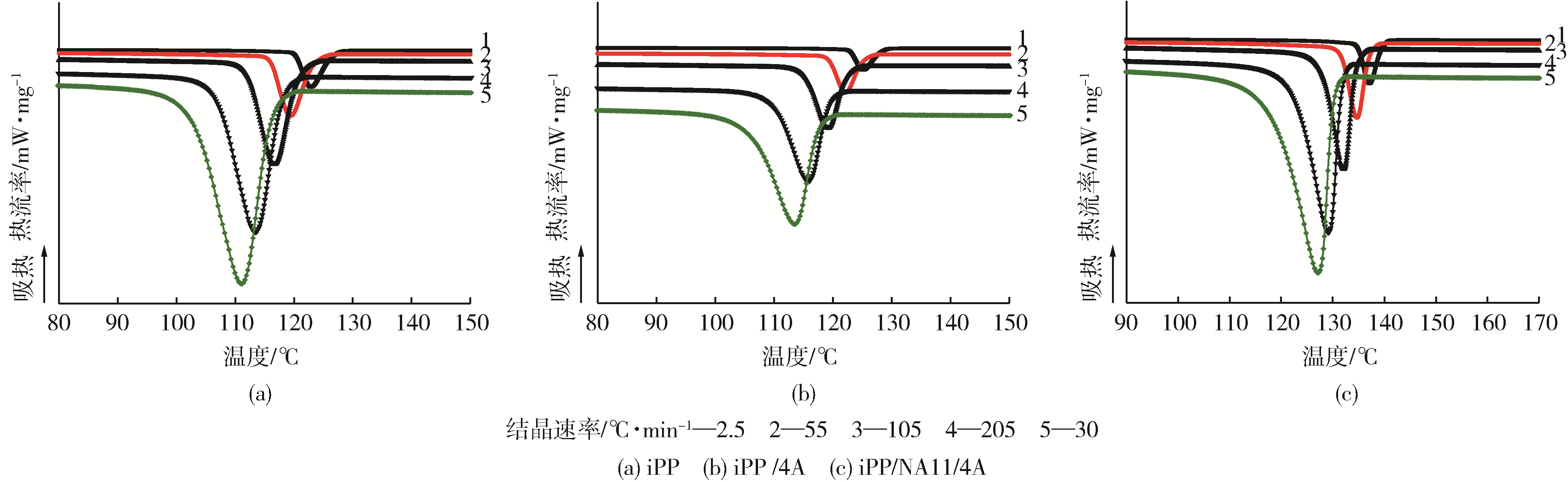

图5 iPP、iPP /4A及iPP/NA11/4A的非等温结晶DSC曲线

Fig.5 DSC curves for non?isothermal crystallization of iPP，iPP /4A and iPP/NA11/4A

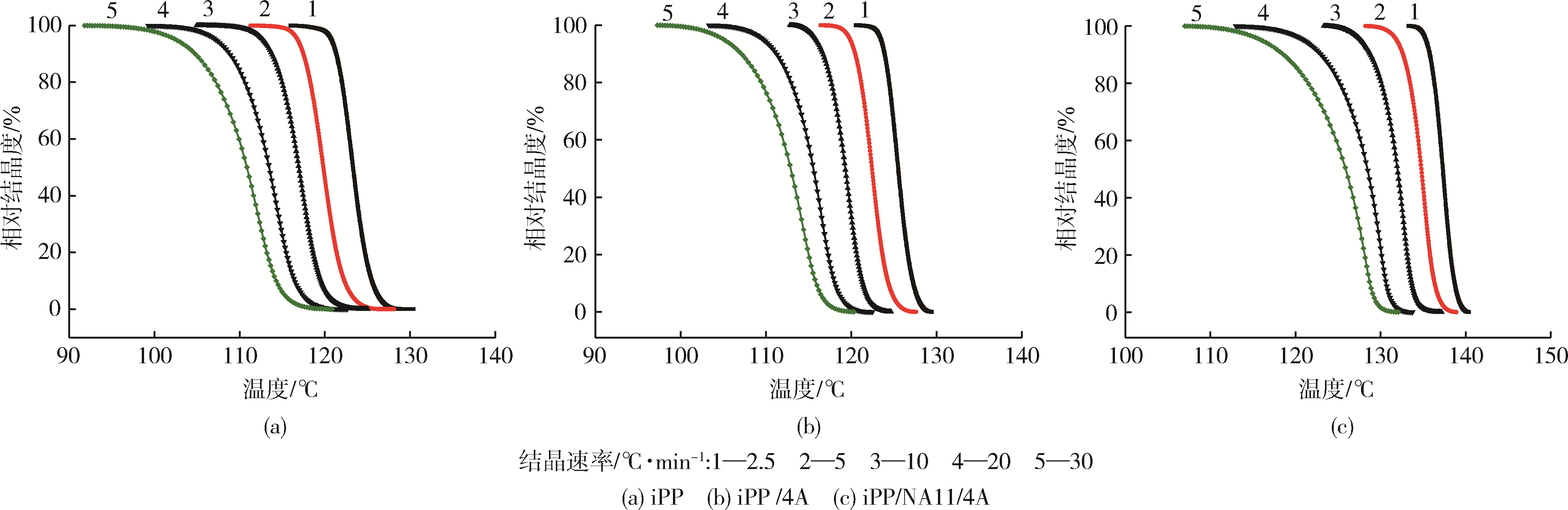

图6 iPP、iPP /4A和iPP/NA11/4A的相对结晶度曲线

Fig.6 Relative degree of crystallinity of iPP,iPP /4A and iPP/NA11/4A

样品	降温速率/ ℃·min^-1	结晶峰温度/℃	起始结晶温度/℃	半结晶时间/min
iPP	2.5	122.80	126.20	2.97
	5	119.43	123.09	1.77
	10	116.65	120.41	0.90
	20	113.42	117.51	0.53
	30	111.13	115.23	0.39
iPP/4A	2.5	125.09	127.79	1.66
	5	122.02	124.97	1.11
	10	119.22	121.99	0.60
	20	115.85	118.71	0.39
	30	113.37	116.68	0.29
iPP/NA11/4A	2.5	132.76	135.40	1.35
	5	130.28	133.02	0.94
	10	127.49	130.36	0.62
	20	124.43	127.46	0.33
	30	122.53	125.59	0.25

表1 非等温结晶参数

Tab.1 Non?isothermal crystallization parameters

图7 iPP、iPP /4A和iPP/NA11/4A的Friedman曲线

Fig.7 Friedman plots of iPP, iPP/4A and iPP/NA11/4A

参考文献 22

1	ZHAO S C, QIN W, XIN Z, et al. In Situ Generation of A Self⁃dispersed β⁃nucleating Agent With Increased Nucleation Efficiency In Isotactic Polypropylene, Polymer, 2018, 151:84⁃91.
2	BHATIA A, JAYARATNE V N, SIMON G P, et al. Nucleation of Isotactic Polypropylene With Metal Monoglycerolates [J]. Polymer, 2015, 59: 110⁃116.
3	张晓东, 王智勇, 孙海涛. 我国聚丙烯供需现状及未来发展分析[J].云南化工, 2014, 41(3):9⁃12.
	ZHANG X D, WANG Z Y, SUN H T. Supply and Demand Status and Future Development of Polypropylene in China[J]. Yunnan Chemical Industry, 2014, 41 (3): 9⁃12.
4	谭捷.我国聚丙烯供需现状及未来发展分析[J].塑料助剂, 2019, 4(5):12⁃18.
	TAN J. China's Polypropylene Supply and Demand Status and Future Development Analysis [J]. Plastic Auxiliaries, 2019, 4 (5): 12⁃18.
5	METIN D, TIHMINLIOGLU F. The Effect of Interfacial Interactions on the Mechanical Properties of Polypropy⁃lene/Natural Zeolite Composites[J]. Composites, Part A, 2004, 35(1):23⁃32.
6	范新素. 聚丙烯成核剂的筛选及分子筛作为辅助成核剂的研究[D]. 太原：太原理工大学, 2005.
7	陈南春, 余石金. 红辉沸石作为聚丙烯添加剂的初步研究[J]. 中国非金属矿工业导刊, 2002(2):13⁃15.
	CHEN N C, YU S J. A Preliminary Study on Rubite as Polypropylene Additive [J]. China Nonmetallic Minerals Industry Guide, 2002 (2): 13⁃15.
8	江娟. 分子筛负载氧化锌改性聚丙烯结构与性能的研究[D].广州：中山大学, 2010.
9	辛忠，孟鑫，陈伟杰，等.分子筛/磷酸酯钠盐协同调控高刚抗氧聚丙烯及制备方法：中国，201611113687.5 [P]. 2016⁃12⁃07.
10	桂权德，辛忠. 有机磷类成核剂作用下聚丙烯结晶行为及其力学性能[J]. 高分子材料科学与工程,2003,19 (4): 117⁃120.
	GUI Q D, XIN Z. The Effect of Organic Phosphorus Nucleating Agent on Crystallization Behaviors and Mechanical Properties of Polypropylene [J]. Polymer Materials Science and Engineering, 2003, 19 (4): 117⁃120.
11	MENG X, GONG W G, CHEN W J, et al. Isothermal and Non⁃isothermal Crystallization of Isotactic Polypropy⁃lene in the Presence of an α Nucleating Agent and Zeolite 13X [J]. Thermochimica Acta, 2018, 667:9⁃18.
12	TAMMY L S, DIVAKARAN M, LONG K B，et al. The Mechanism of Action of Sugar Acetals as Nucleating Agents for Polypropylene[J], Macromolecules, 1994, 27 (31): 47⁃55.
13	石行波,王艳芳,陈商涛，等.不同形貌CaCO₃负载β成核剂对PP性能的影响[J].中国塑料, 2018, 32(10):113⁃116.
	SHI X B, WANG Y F, CHEN S T, et al. Effect of CaCO₃ Loaded β Nucleating Agent with Different Morphologies on PP Performance [J], China Plastics, 2018, 32 (10): 113⁃116.
14	祝宝东,张爽,朱泓宇，等. β成核剂含量和退火处理对改性聚丙烯力学性能的影响[J].中国塑料, 2015, 29(4):93⁃97.
	ZHU B D, ZHANG S, ZHU H Y, et al. Effects of β⁃nucleating Agent Content and Annealing Treatment on Mechanical Properties of Modified Polypropylene [J]，China Plastics, 2015, 29 (4): 93⁃ 97.
15	杨垚丁. 原位制备的β晶成核剂己二酸锌在抗冲聚丙烯中的成核性能[D].上海：华东理工大学, 2018.
16	ZHAO S C, LIU K, ZHOU S, et al. A Novel Self⁃dispersed β Nucleating Agent for Isotactic Polypropylene and Its Unique Nucleation Behavior and Mechanism, Polymer, 2017, 132: 69⁃78.
17	李东, 刘金玉, 李吉春. 聚烯烃用有机成核剂的合成研发进展[J]. 聚合物与助剂, 2006(5):43⁃44.
	LI D, LIU J Y, LI J C. Progress in the Synthesis of Organic Nucleating Agents for Polyolefins [J], Polymers and Auxiliaries, 2006, 5: 43⁃44.
18	张广平, 俞建勇, 辛忠,等. 有机磷酸酯成核剂在聚丙烯中成核的有效性[J]. 石油化工, 2003, 32 (9):771⁃774.
	ZHANG G P，YU J Y，XIN Z, et al. Effectiveness of Organic Phosphates as a Nucleating Agent for Polypropylene [J]. Petrochemical Technology, 2003, 32(9):771⁃774.
19	辛忠.小分子调控大分子结晶——理论与实践[M].广州：华东理工大学出版社.2016:83⁃89.
20	姜艳峰,安彦杰，李瑞，等.成核剂对聚丙烯结晶行为的研究[J].中国塑料, 2017, 31(10):26⁃32.
	JIANG Y F, AN Y J, LI R, et al. Studies on the Crystallization Behavior of Polypropylene by Nucleating Agents [J]. China Plastics, 2017, 31 (10): 26⁃32.
21	LI C, TONG C, MRNG X, et al. Effect of Nucleating Agent Supported on Zeolite via the Impregnation on the Crystallization Ability of Isotactic Polypropylene and Its Mechanism. Polymer Advanced Technology, 2019, 30(26): 74⁃85.
22	VYAZOVKIN S. Modification of the Integral Iso⁃conversional Method to Account for Variation in the Activation Energy[J]. Journal of Computational Chemistry, 2001, 22(2):178⁃183.
