Surlyn对PET及其共混体系流变与结晶性能的影响

doi:10.19491/j.issn.1001-9278.2020.07.007

中国塑料 ›› 2020, Vol. 34 ›› Issue (7): 44-48.DOI: 10.19491/j.issn.1001-9278.2020.07.007

Surlyn对PET及其共混体系流变与结晶性能的影响

姜璨¹, 陈鹏², 韩硕¹, 陈士宏¹, 叶志殷¹, 王向东¹()

^1.北京工商大学化学与材料工程学院，北京 100048
^2.威海维赛新材料科技有限公司，山东威海 264200

收稿日期:2020-05-30 出版日期:2020-07-26 发布日期:2020-07-26
基金资助:
国家重点研发计划项目资助(2016YFB0302203)

Effects of Surlyn on the Rheological and Crystallization Behaviors of PET and Its Composites

Can JIANG¹, Peng CHEN², Shuo HAN¹, Shihong CHEN¹, Zhiyin YE¹, Xiangdong WANG¹()

^1.School of Chemical and Material Engineering, Beijing Technology and Business University, Beijing 100048, China
^2.Visight Advanced Material Co, Ltd, Weihai 264200, China

Received:2020-05-30 Online:2020-07-26 Published:2020-07-26
Contact: Xiangdong WANG E-mail:wangxd@th.btbu.edu.cn

摘要/Abstract

摘要：

通过熔融共混法制备了聚对苯二甲酸乙二醇酯 (PET)/聚酰胺6 (PA6)/Surlyn与PET/均苯四甲酸酐 (PMDA)/Surlyn共混材料，研究了Surlyn对共混体系的形貌以及共混体系中PET流变性能与结晶性能的影响。并使用扫描电子显微镜观察了PET/PA6/Surlyn共混物的低温淬断断面，使用旋转流变仪与差示扫描量热仪研究共混物的流变性能与结晶性能。结果表明，Surlyn可以提高PET/PA6/Surlyn共混体系的熔体强度，促进共混体系中PET的结晶，使PET结晶温度提高10 ℃，过冷度与结晶半高宽显著下降，明显改善PET的流变性能与结晶性能，而对于PMDA扩链后的PET，Surlyn对其结晶性能的影响影响较小；Surlyn可以降低PA6分散相的粒径，提高PET与PA6两相之间的相容性。

关键词: 聚对苯二甲酸乙二醇酯, Surlyn, 流变, 结晶

Abstract:

Polyethylene terephthalate (PET)/polyamide 6 (PA6)/Surlyn composites and PET/ pyromellitic dianhydride (PMDA)/Surlyn composites were prepared by a melt blending method. The effects of Surlyn on morphology of composites, crystallization and rheological behavior of PET were investigated. The morphology of PET/PA6/Surlyn composites were observed by scanning electron microscope (SEM), and the result showed that Surlyn could decrease the diameter of PA6 dispersion phase particles and improve the compatibility of PET and PA6 phase. A rotational rheometer and a differential scanning calorimeter (DSC) was used to study the rheological and crystallization behavior of PET. And the result indicated that Surlyn could enhance the melt strength of PET/PA6/Surlyn composites significantly. Moreover, Surlyn could act as nucleating agent in PET/PA6/Surlyn composites to promote the crystallization temperature and accelerate the crystallization rate of PET considerably. And the rheological and crystallization properties of PET were improved. While Surlyn has no significant effects on the crystallization behavior of the PET that chain extended by PMDA.

Key words: polyethylene terephthalate, Surlyn, rheological, crystallization

中图分类号:

TQ 323.4⁺2

姜璨, 陈鹏, 韩硕, 陈士宏, 叶志殷, 王向东. Surlyn对PET及其共混体系流变与结晶性能的影响[J]. 中国塑料, 2020, 34(7): 44-48.

Can JIANG, Peng CHEN, Shuo HAN, Shihong CHEN, Zhiyin YE, Xiangdong WANG. Effects of Surlyn on the Rheological and Crystallization Behaviors of PET and Its Composites[J]. China Plastics, 2020, 34(7): 44-48.

图/表 8

样品编号	PET/份	PA6/份	Surlyn/份	PMDA/份
0	100	0	0	0
1	80	20	0	0
2	80	20	2	0
3	80	20	4	0
4	80	20	6	0
5	80	20	8	0
6	100	0	0	0.75
7	100	0	1	0.75
8	100	0	2	0.75

表1 实验配方

Tab.1 Formula of the experiments

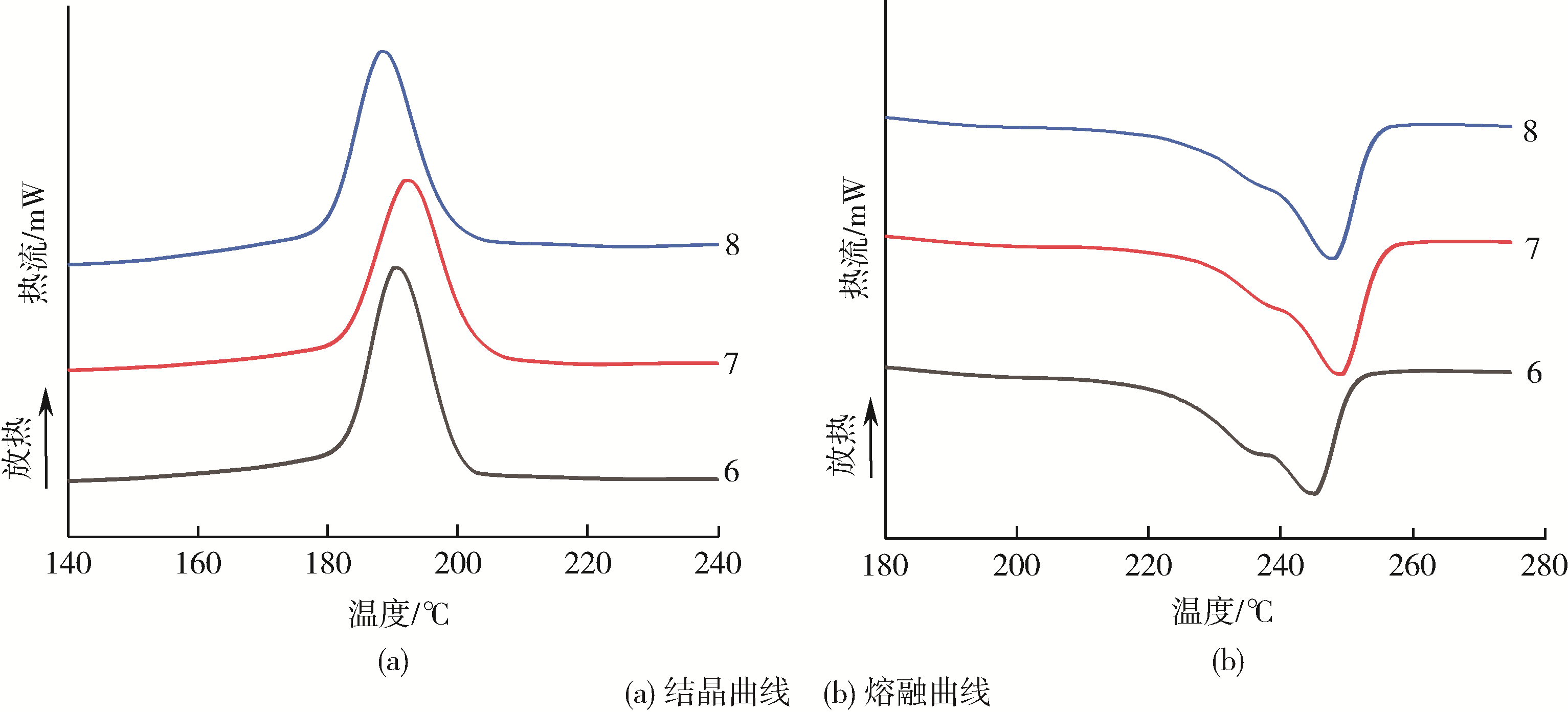

图1 PET/PMDA/Surlyn共混物样品的DSC曲线

Fig.1 DSC curves of PET/PMDA/Surlyn composites

样品编号	T_c/°C	T_c,onset/℃	ΔW/℃	T_m/℃	ΔT/℃	χ_c/%
6	190.5	200.0	10.3	244.9	54.4	31.0
7	192.2	202.3	11.7	249.0	56.8	32.2
8	188.3	198.5	10.9	247.5	59.2	33.2

表2 PET/PMDA/Surlyn共混体系中PET的热性能参数

Tab.2 Thermal properties of various PET samples

图2 PET/PA6/Surlyn共混物的淬断面SEM照片

Fig.2 SEM images of various PET samples cryogenic fractured surfaces

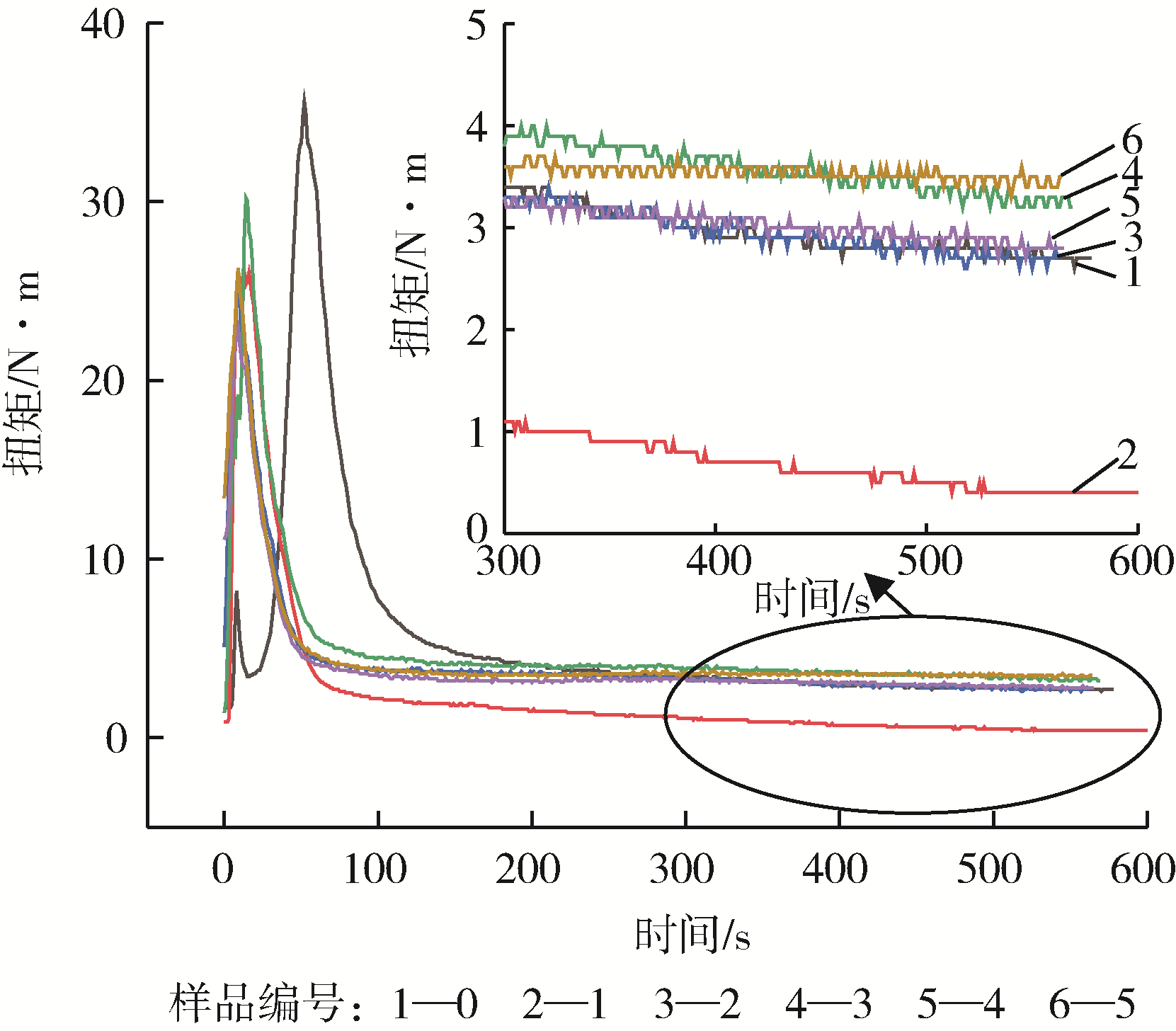

图3 不同PET样品的扭矩曲线

Fig.3 Torque curves of the PET samples

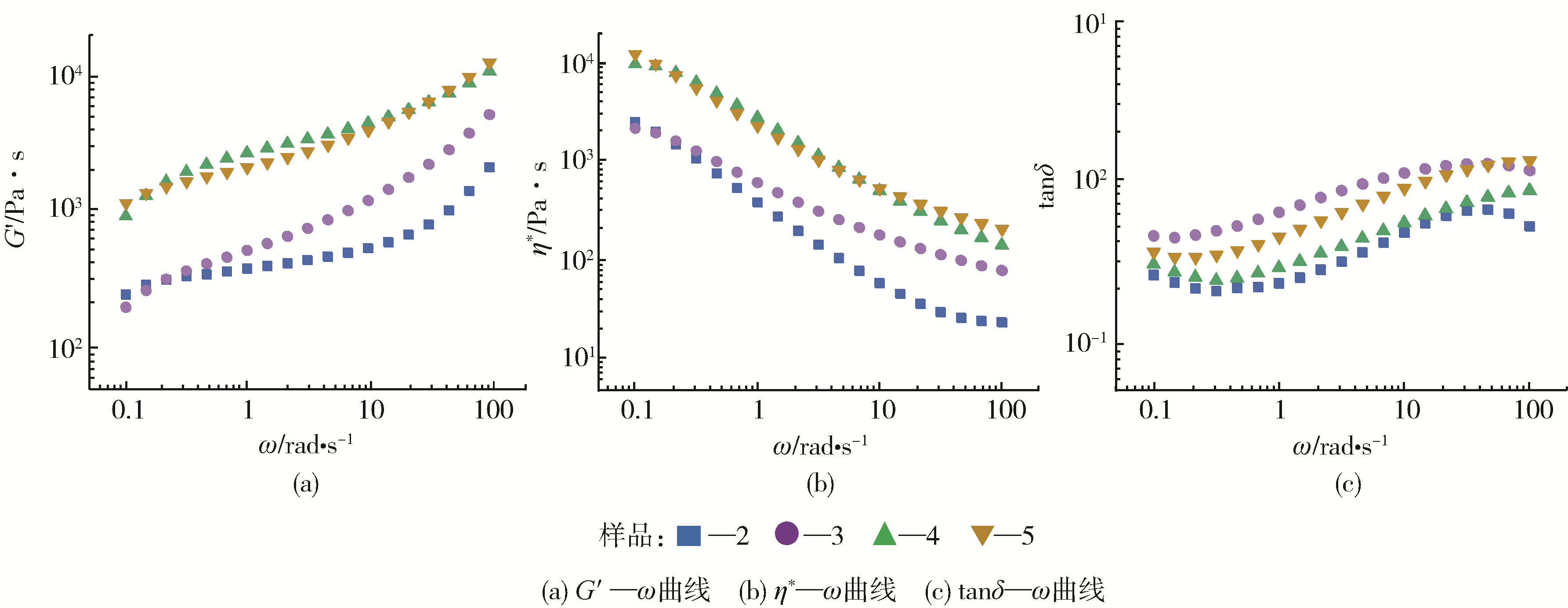

图4 共混体系的动态流变曲线

Fig.4 Rheological behavior of various PET samples

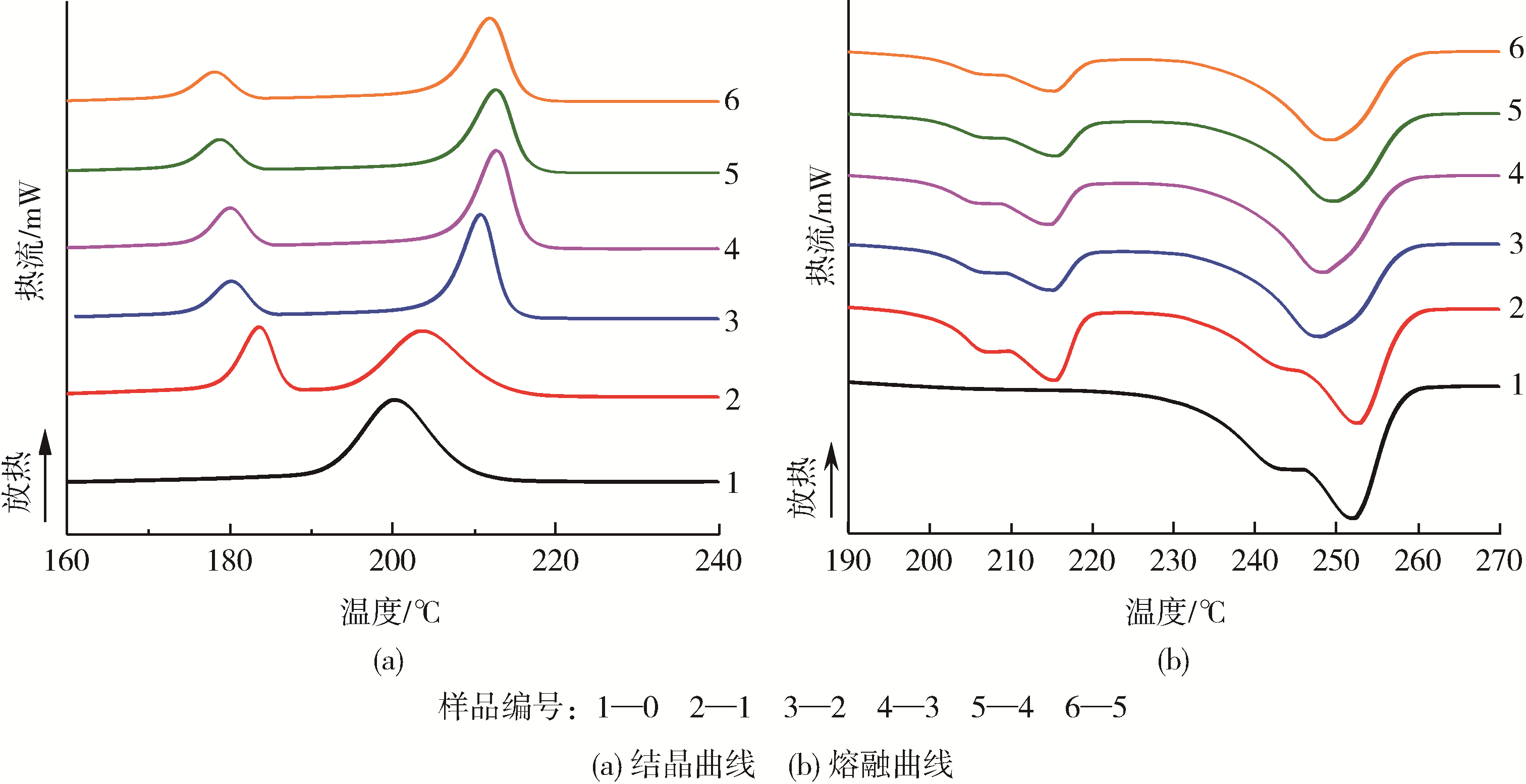

图5 PET/PA6/Surlyn共混物样品的DSC曲线

Fig.5 DSC curves of PET/PA6/Surlyn composites

样品编号	T_c/°C	ΔW/°C	T_m/°C	ΔT/°C	χ_c/%
0	200.1	10.4	251.8	51.7	31.5
1	203.8	10.3	252.5	48.7	29.8
2	210.8	4.8	248.2	37.4	24.7
3	212.7	5.0	248.6	35.8	25.2
4	212.7	5.5	250.1	37.4	23.4
5	211.9	5.7	249.7	37.7	24.4

表3 PET/PA6/Surlyn共混物样品中PET的热性能参数

Tab.3 Thermal properties of the PET samples

参考文献 11

1	刘本刚, 粟宇豪, 等. 扩链剂对聚对苯二甲酸乙二醇酯流变性能和发泡性能影响[J]. 中国塑料, 2015, 29 (5):54⁃59.
	LIU B G, SHU Y H, et al. Effect of Chain Extender on the Rheological Properties and Foaming Behavior of PET[J].China Plastics,2015, 29 (5):54⁃59.
2	LIU H M, WANG X D, LIU W, et al. Reactive Modification of Poly (Ethylene Terephthalate) and Its Foaming Behavior [J]. Cellular Polymers, 2014, 33: 189⁃212.
3	WANG W B, YU K S, ZHOU H F, et al. The Effect of Compatibilization on the Properties and Foaming Behavior of Poly (Ethylene Terephthalate)/Poly (Ethylene⁃Octene) Blends [J]. Cellular Polymers, 2017, 36: 313⁃332.
4	BOCZ K, MOLNáR B, MAROSI G, et al. Preparation of Low⁃Density Microcellular Foams from Recycled PET Modified by Solid State Polymerization and Chain Extension [J]. Journal of Polymers and the Environment, 2018, 27(2): 343⁃351.
5	CHEN P, WANG W, WANG Y, et al. Crystallization⁃Induced Microcellular Foaming of Poly (Lactic Acid) with High Volume Expansion Ratio [J]. Polymer Degradation and Stability, 2017, 144: 231⁃240.
6	KWON D E, PARK B K, Y⁃WLEE. Solid⁃State Foaming of Acrylonitrile⁃Butadiene⁃Styrene/Recycled Polyethylene Terephthalate Using Carbon Dioxide as a Blowing Agent [J]. Polymers, 2019, 11(291): 1⁃10.
7	ZHAO G, PAN Z, WANG J, et al. Toughening and Compatibilization of Acrylonitrile⁃Butadiene⁃Styrene/Poly (Ethylene Terephthalate) Blends [J]. Journal of Macromolecular Science, Part B, 2011, 50(5): 821⁃830.
8	SRITHEP Y, L⁃STURNG. Microcellular Injection Molding of Recycled Poly (Ethylene Terephthalate) Blends with Chain Extenders and Nanoclay [J]. Journal of Polymer Engineering, 2014, 34(1): 5⁃13.
9	LIU Y, WIRASAPUTRA A, JIANG Z, et al. Fabrication of Improved Overall Properties of Poly (Ethylene Terephthalate) by Simultaneous Chain Extension and Crystallization Promotion [J]. Journal of Thermal Analysis and Calorimetry, 2018, 133(3): 1 447⁃1 454.
10	TANG S, XIN Z. Structural Effects of Ionomers on the Morphology, Isothermal Crystallization Kinetics and Melting Behaviors of PET/Ionomers [J]. Polymer, 2009, 50(4): 1054⁃1061.
11	JIANG C, HAN S, CHEN S H, et al. Crystallization⁃Induced Microcellular Foaming Behaviors of Chain⁃Extended Polyethylene Terephthalate [J]. Cellular Polymers, 2020.
