双螺杆湿法制粒关键质量属性调控机理模拟研究

doi:10.19491/j.issn.1001-9278.2022.06.016

中国塑料 ›› 2022, Vol. 36 ›› Issue (6): 100-107.DOI: 10.19491/j.issn.1001-9278.2022.06.016

双螺杆湿法制粒关键质量属性调控机理模拟研究

刘政¹, 刘振峰², 周国发¹()

^1.南昌大学资源环境与化工学院，南昌 330031
^2.宜春万申制药机械有限公司，江西宜春 336000

收稿日期:2022-01-08 出版日期:2022-06-26 发布日期:2022-06-27
通讯作者: 周国发，男，教授，研究领域：聚合物成型理论与技术，ndzgf@163.com
E-mail:ndzgf@163.com
基金资助:
国家自然科学基金资助项目(21464009)

Simulation study on regulation mechanism of key quality attributes of twin⁃screw wet granulation

LIU Zheng¹, LIU Zhenfeng², ZHOU Guofa¹()

^1.School of Resources Environment and Chemical Engineering，Nanchang University，Nanchang 330031，China
^2.Yichun Wanshen Pharmaceutical Machinery Co，Ltd，Yichun 336000，china

Received:2022-01-08 Online:2022-06-26 Published:2022-06-27
Contact: ZHOU Guofa E-mail:ndzgf@163.com

摘要/Abstract

摘要：

针对我国造粒工艺存在关键质量属性（粒径分布均匀性、颗粒表观质量和制粒收率）难以调控的行业共性问题，基于Edinburgh Elastic?Plastic Adhesion接触模型，构建了连续异向啮合双螺杆高剪切湿法制粒过程的仿真方法，模拟研究了过程参数?粒径分布均匀性和收率的协同耦合演化规律，以此诠释了双螺杆湿法制粒关键质量属性的调控机理。结果表明，连续异向啮合双螺杆高剪切湿法制粒机能制备表面光滑的球化颗粒，粒径与粉体喂料速度呈正关联关系，而与螺杆转速呈负关联关系，制粒收率与粉体喂料速度、螺杆转速均呈现先增后减的演化规律；在粉体喂料速度为360 kg/h或螺杆转速为1 400 r/min时，制粒收率处于最佳状态，其最优制粒收率值分别为87.9 %和83.91 %；制粒粒径主要受控于颗粒平均停留时间和持有颗粒质量，且呈正关联关系，以此提出了通过粉体失重喂料装置螺杆和异向啮合双螺杆高剪切湿法制粒机螺杆的变频转速控制，在线实时调控合格颗粒粒径和收率的技术方法。

关键词: 湿法制粒, 双螺杆, 关键质量属性, 调控机理, 模拟

Abstract:

Aiming at the common industrial problem in a difficulty to control the key qualities， including the uniformity of particle size distribution， the apparent quality of particle， and granulation yield for the granulation process in China， a simulation method of the continuous counter?rotating twin?screw high?shear wet granulation process was constructed on the basis of the Edinburgh Elastic?Plastic Adhesion contact model. The cooperative coupling evolution mechanism of process parameters. i.e.， ? particle size distribution uniformity and yield， was simulated， and the regulation mechanism of key qualities for twin?screw wet granulation was analyzed. The simulation results indicated that the continuous counter?rotating twin?screw high?shear wet granulator could prepare spheroidized particles with a smooth surface. The particle size was positively correlated with the feed speed of powder but negatively correlated with the screw speed. The granulation yield， powder feeding speed， and screw speed presented an evolution law that the yield increased at first and then decreased with an increase in powder feeding speed and screw speed. When the powder feeding speed was 360 kg/h or the screw speed was 1 400 r/min， the granulation yield exhibited an optimal status along with optimal granulation yields of 87.9 % and 83.91 %. The particle size was mainly controlled by the average residence time and holding up mass of particles， showing a positive correlation. A technical method for on?line real?time regulation was proposed. In this method， the size and yield of qualified particles were controlled by the frequency conversion speed control of the screw for the powder weight loss feeding device and continuous counter?rotating twin?screw high?shear wet granulator.

Key words: wet granulation, twin screw, key quality attributes, regulation mechanism, simulation

中图分类号:

TQ320.66⁺3

刘政, 刘振峰, 周国发. 双螺杆湿法制粒关键质量属性调控机理模拟研究[J]. 中国塑料, 2022, 36(6): 100-107.

LIU Zheng, LIU Zhenfeng, ZHOU Guofa. Simulation study on regulation mechanism of key quality attributes of twin⁃screw wet granulation[J]. China Plastics, 2022, 36(6): 100-107.

图/表 20

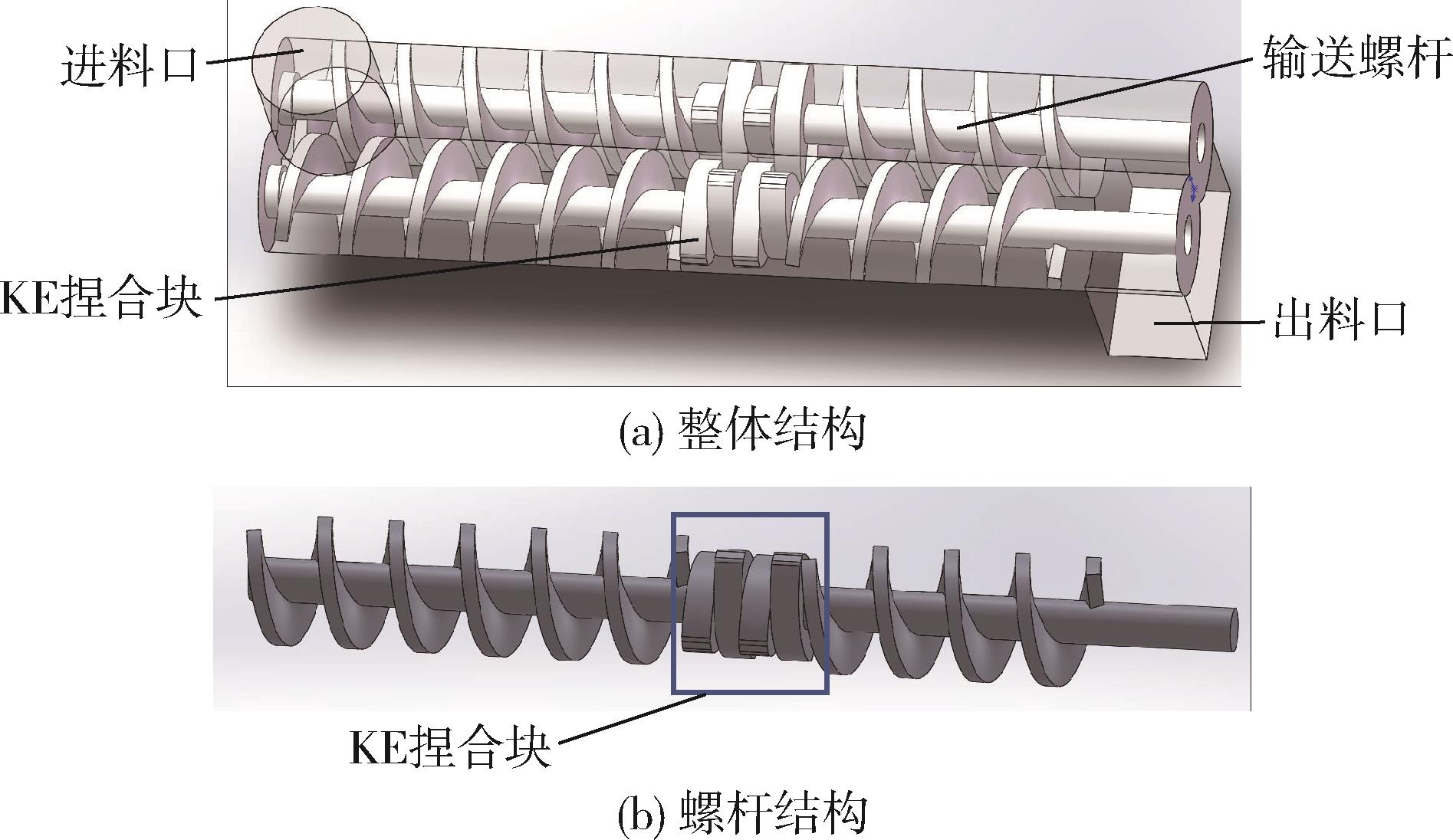

图1 异向啮合双螺杆制粒机简化模型

Fig.1 Simplified model of the counter?rotating twin?screw granulator

密度/

kg•m ^-3

泊松比

剪切模量/

恢复

系数

静摩擦

因数

动摩擦

因数

2×10⁶

表1 粉体物性参数

Tab.1 Powder physical parameters

黏附力强度/N

表面能/

J•m^-2

表2 EEPA模型参数

Tab.2 EEPA model parameters

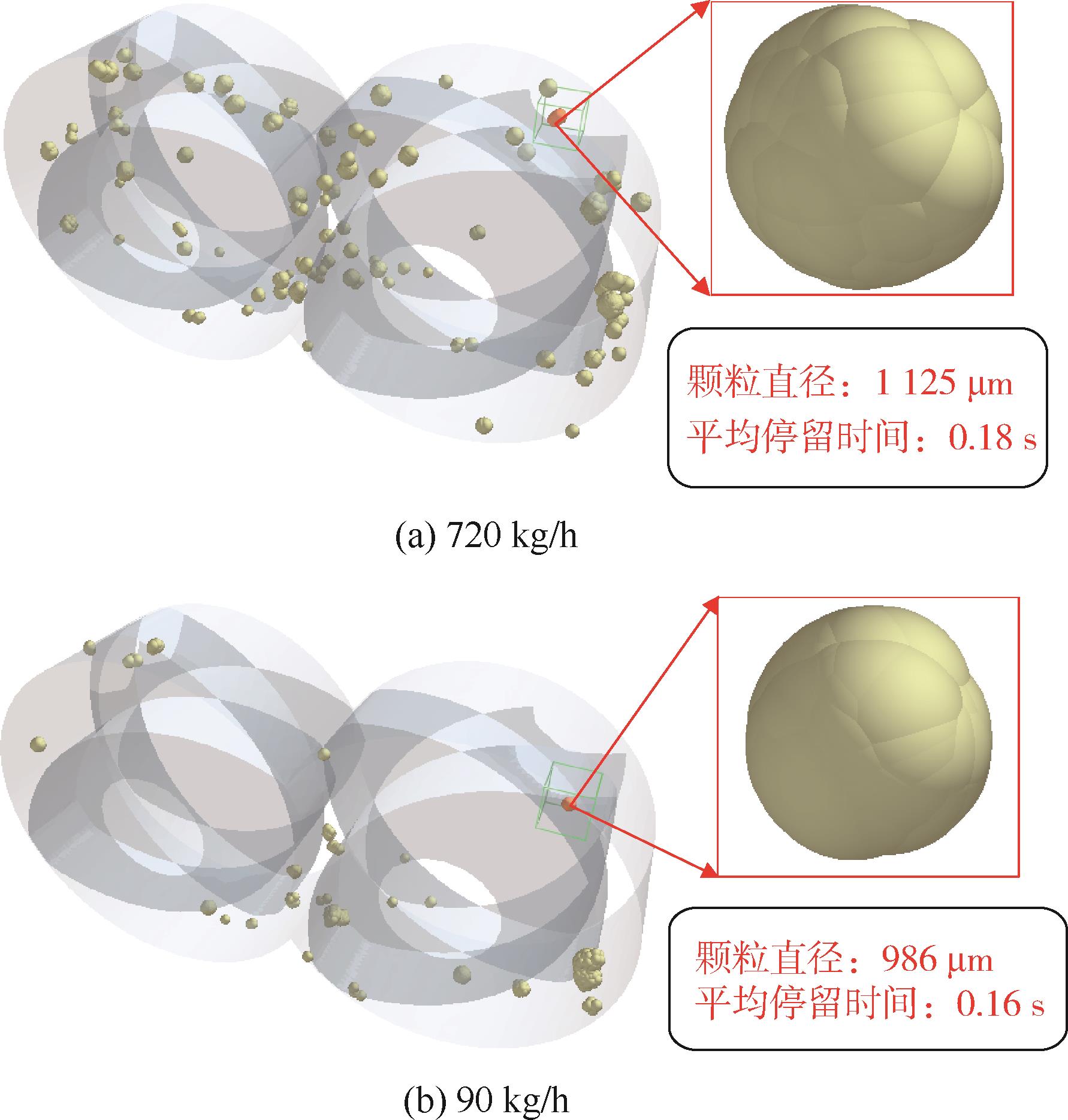

图2 粉体喂料速度对制粒三维形貌与粒径分布影响

Fig.2 Influence of powder feeding speed on the three?dimensional morphology and particle size distribution of granulation

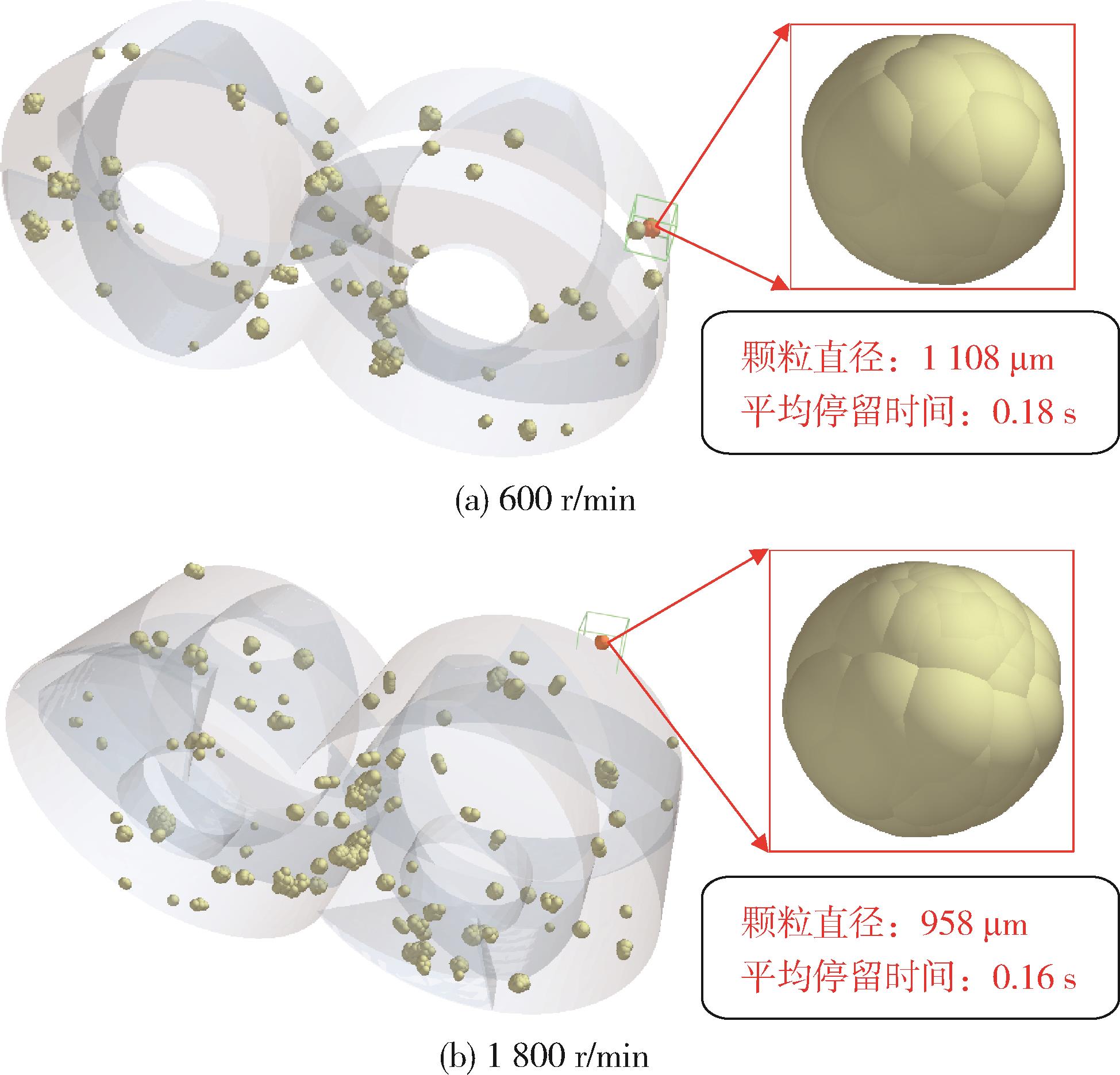

图3 螺杆转速对制粒三维形貌与粒径分布影响

Fig.3 Influence of screw speed on the three?dimensional morphology and particle size distribution of granulation

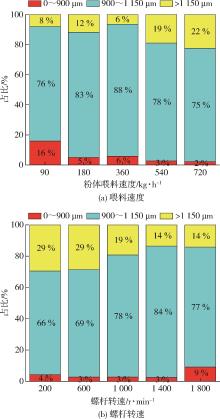

图4 粉体喂料速度和螺杆转速对粒径分布的影响

Fig.4 Influence of powder feeding speed and screw speed on particle size distribution

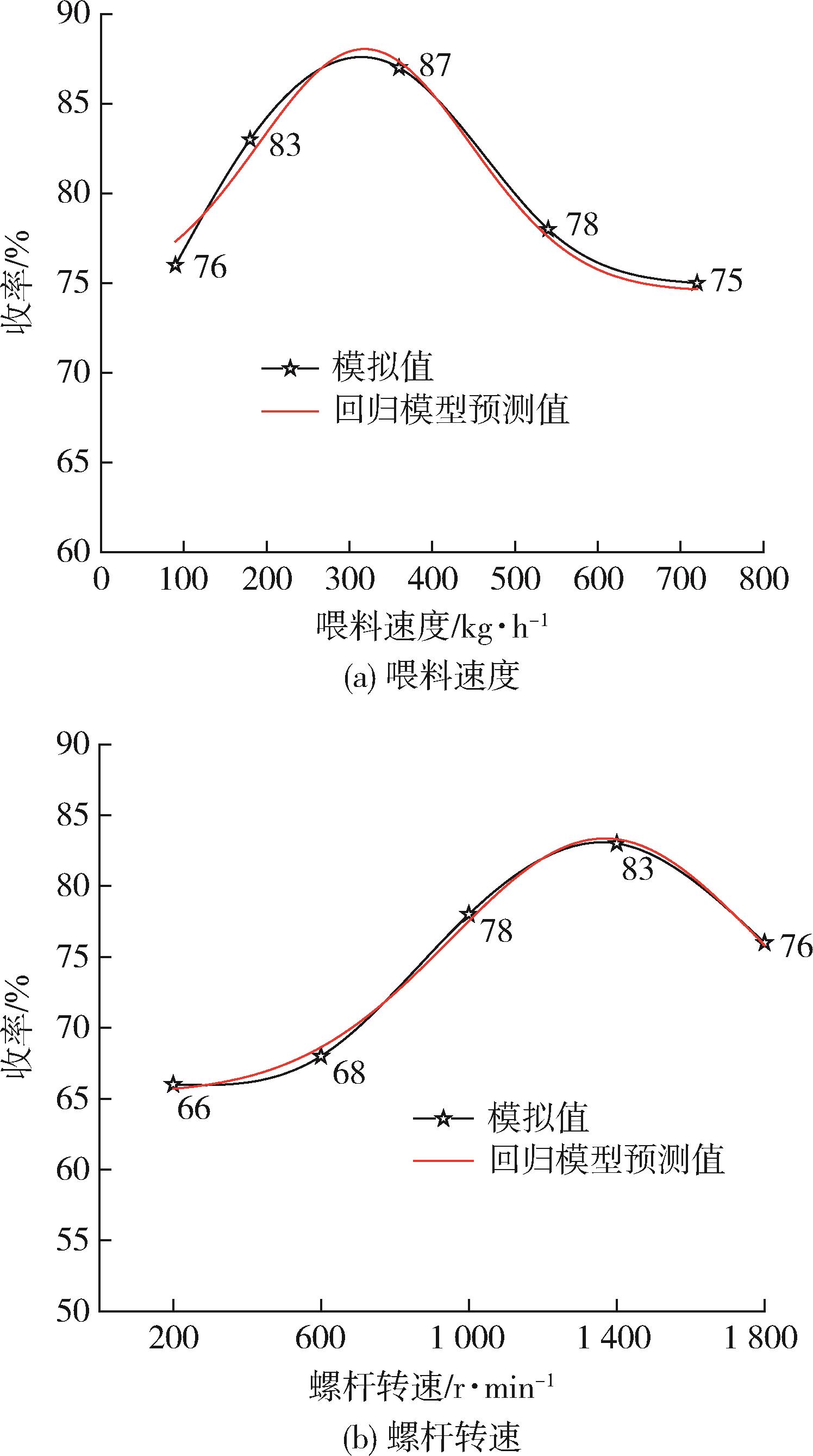

图5 制粒收率与粉体喂料速度、螺杆转速关联曲线

Fig.5 Correlation curve of granulation yield， powder feeding speed and screw speed

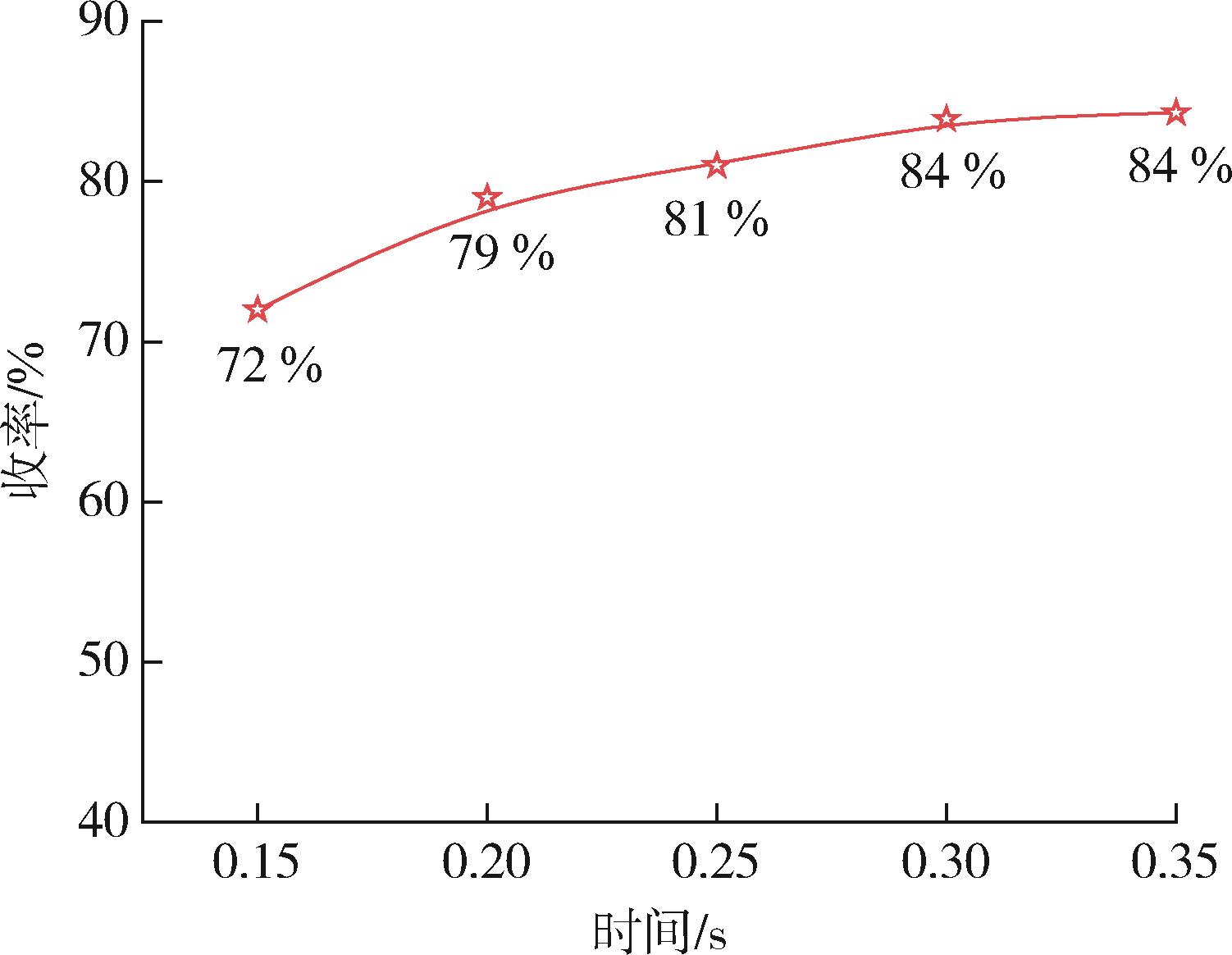

图6 制粒收率与时间关联曲线

Fig.6 Granulation yield against time

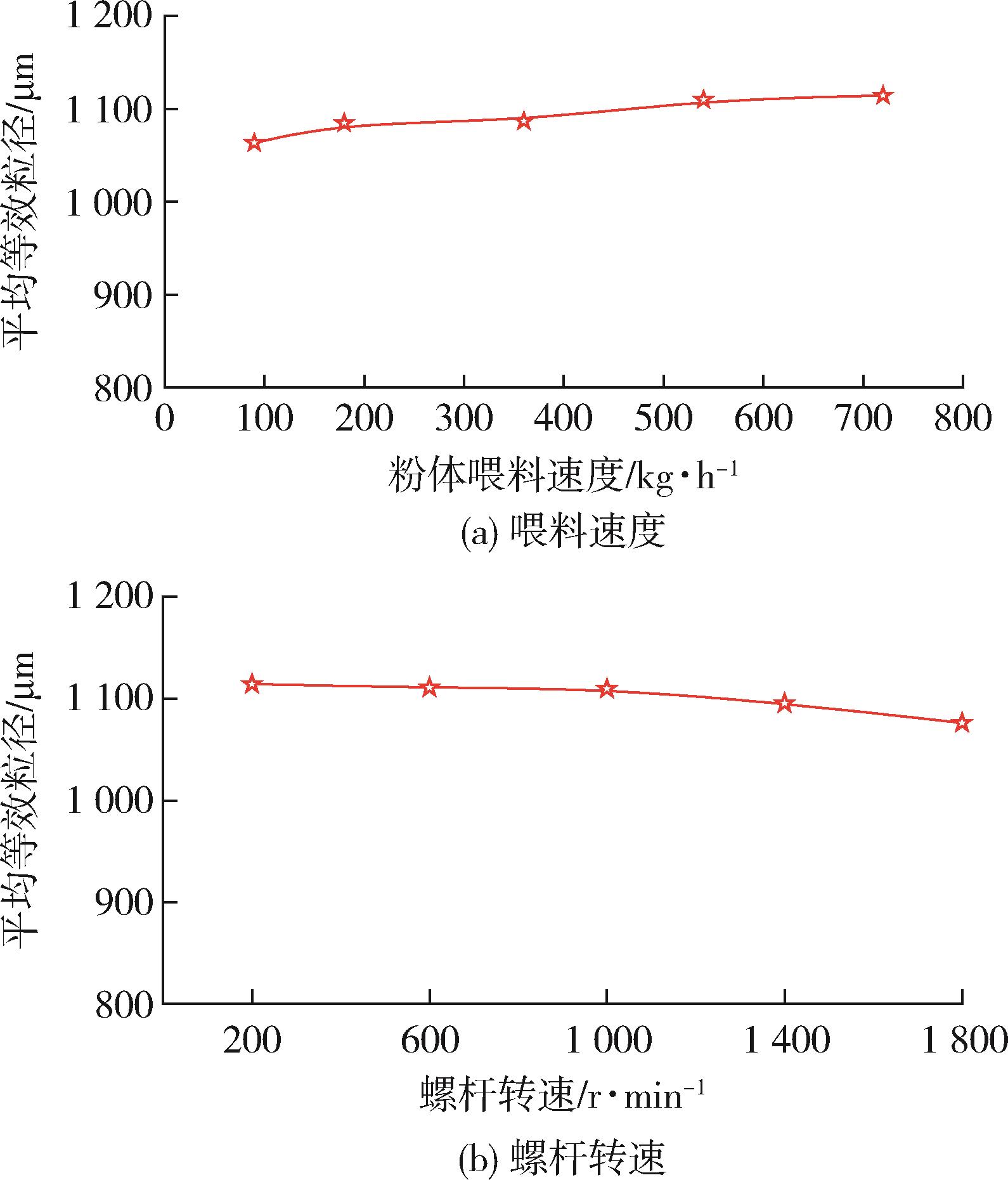

图7 平均等效粒径与粉体喂料速度和螺杆转速关联曲线

Fig.7 Average equivalent particle size against powder feeding speed and screw speed

颗粒材料	黏附力强度/N	表面能/J•m^-2	接触塑性比	黏附分支指数	切向刚度系数
PE⁃HD‐PE⁃HD	-0.001	3.00	0.8	1.5	0.30
PE⁃HD‐碳酸钙	-0.001	2.00	0.5	1.5	0.25
碳酸钙‐碳酸钙	-0.001	0.25	0.2	1.5	0.80

表3 PE?HD与碳酸钙粉体的EEPA模型参数

Tab.3 EEPA model parameters of PE?HD and calcium carbonate powder

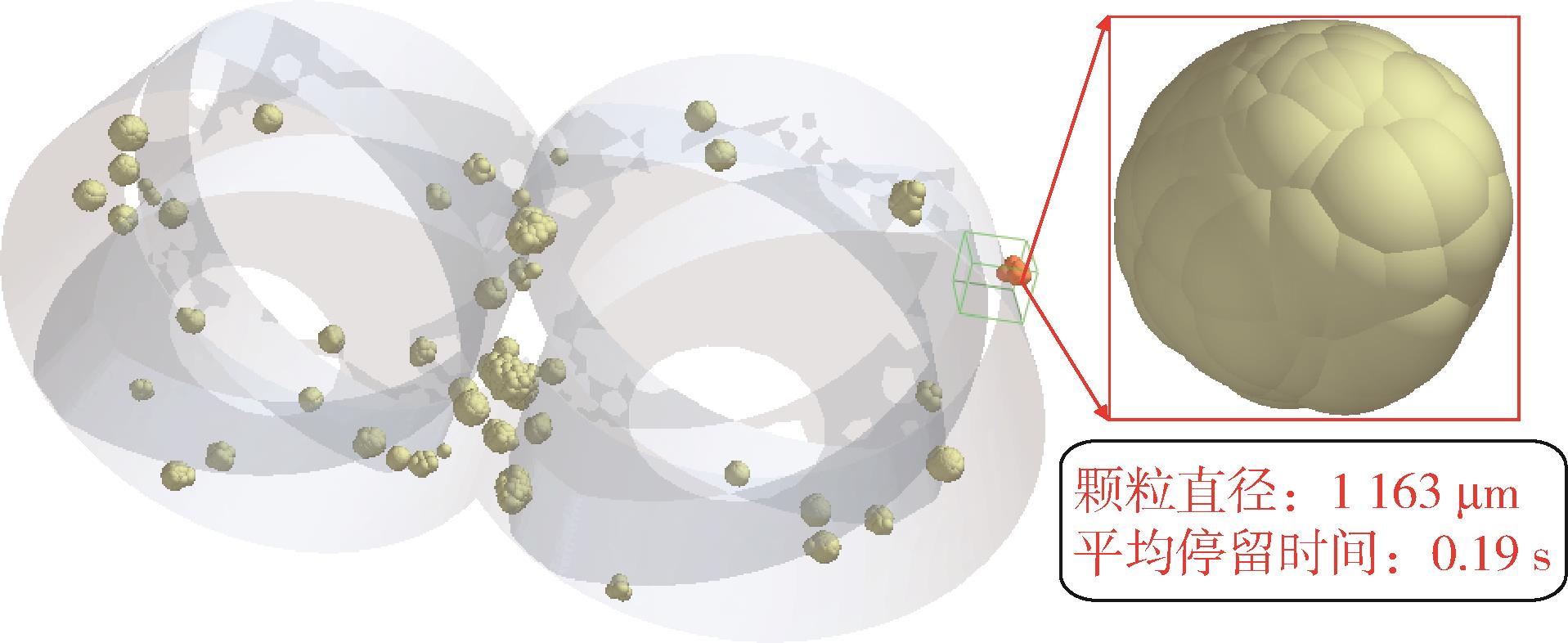

图8 PE?HD填充碳酸钙复合颗粒三维形貌

Fig.8 Three dimensional morphology of high density polyethylene filled calcium carbonate composite particles

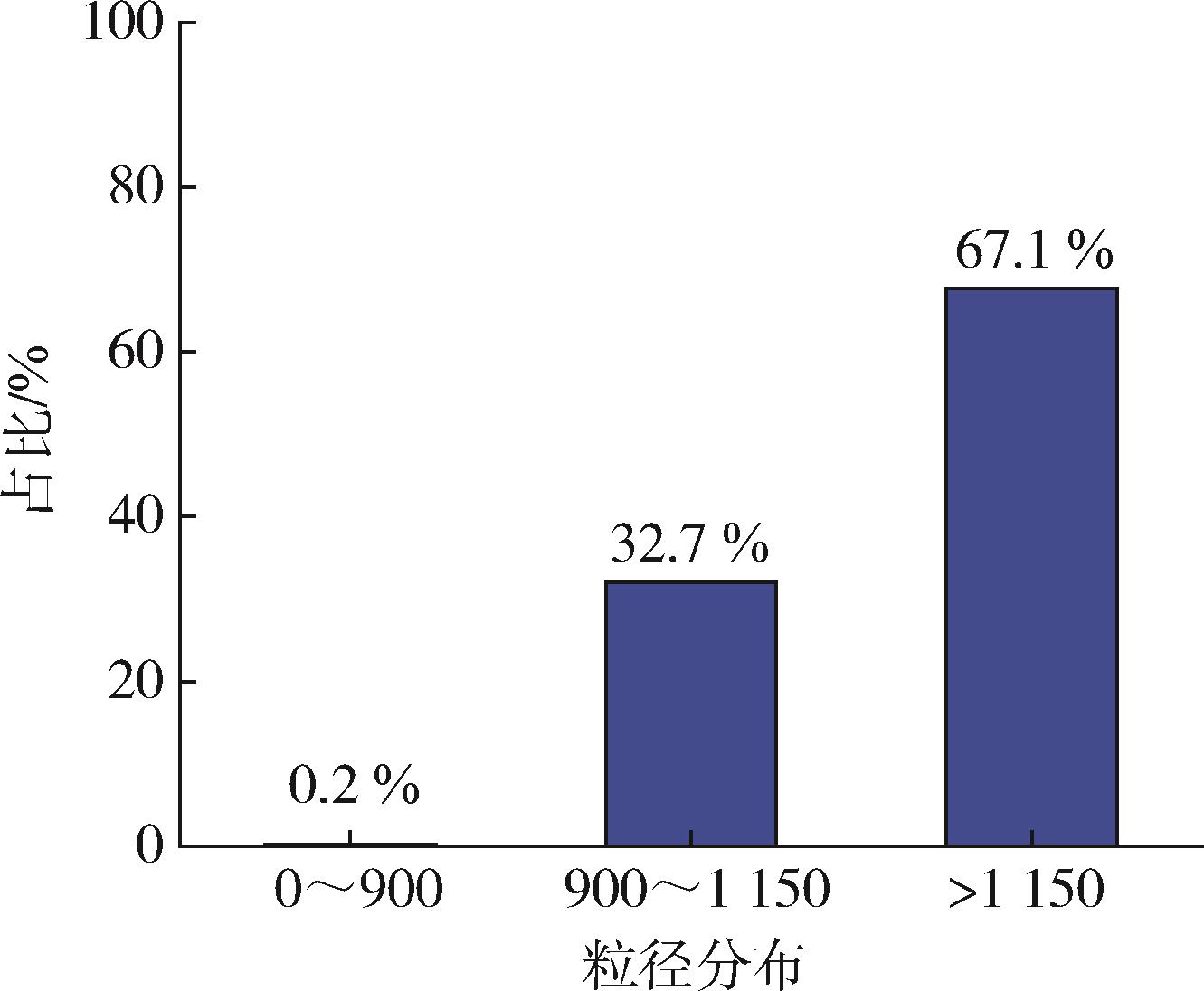

图9 PE?HD填充碳酸钙复合颗粒粒径分布

Fig.9 Particle size distribution of high density polyethylene filled calcium carbonate composite particles

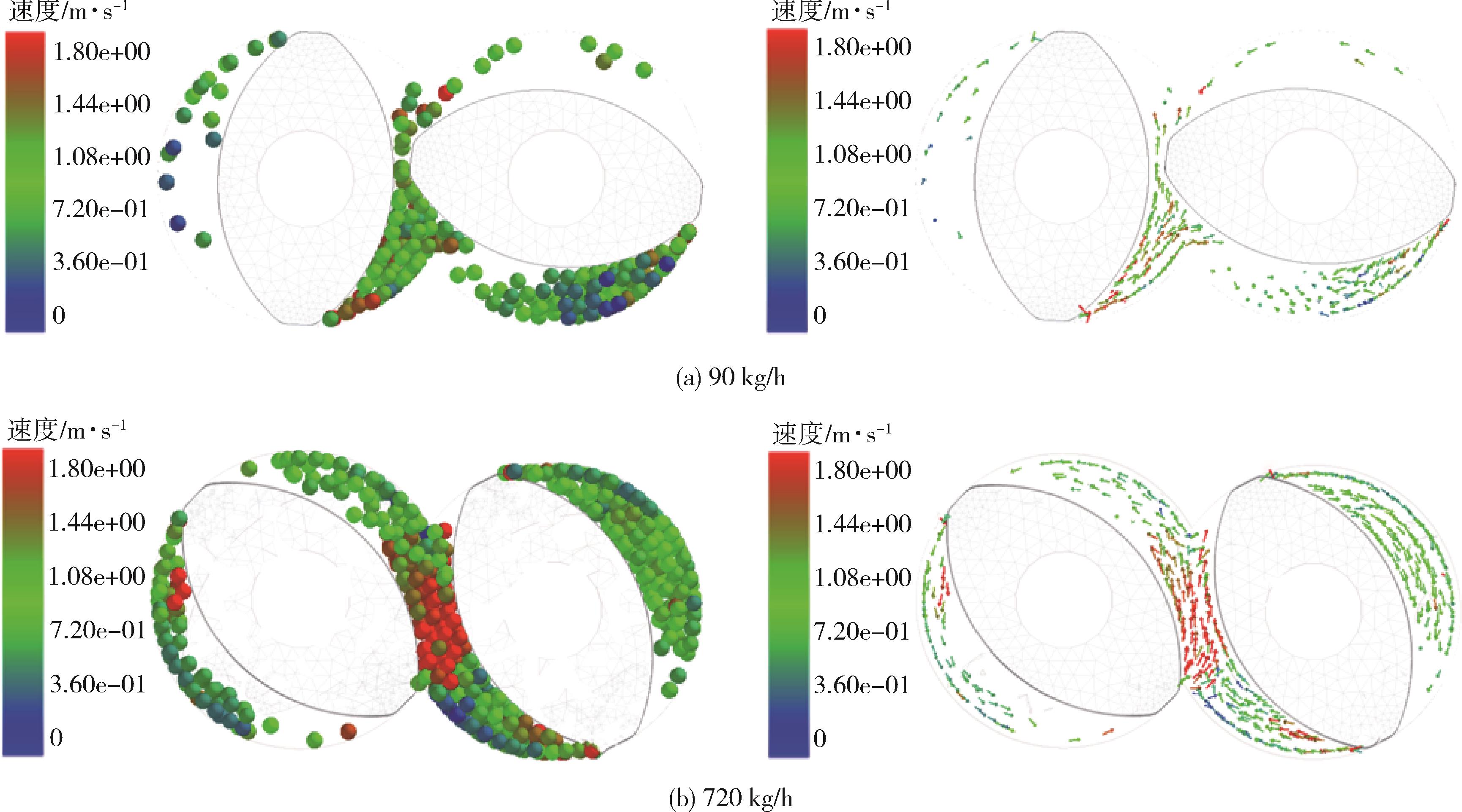

图10 粉体喂料速度对粉体运动速度和粉体体积密度的影响

Fig.10 Influence of powder feeding speed on powder movement speed and powder bulk density

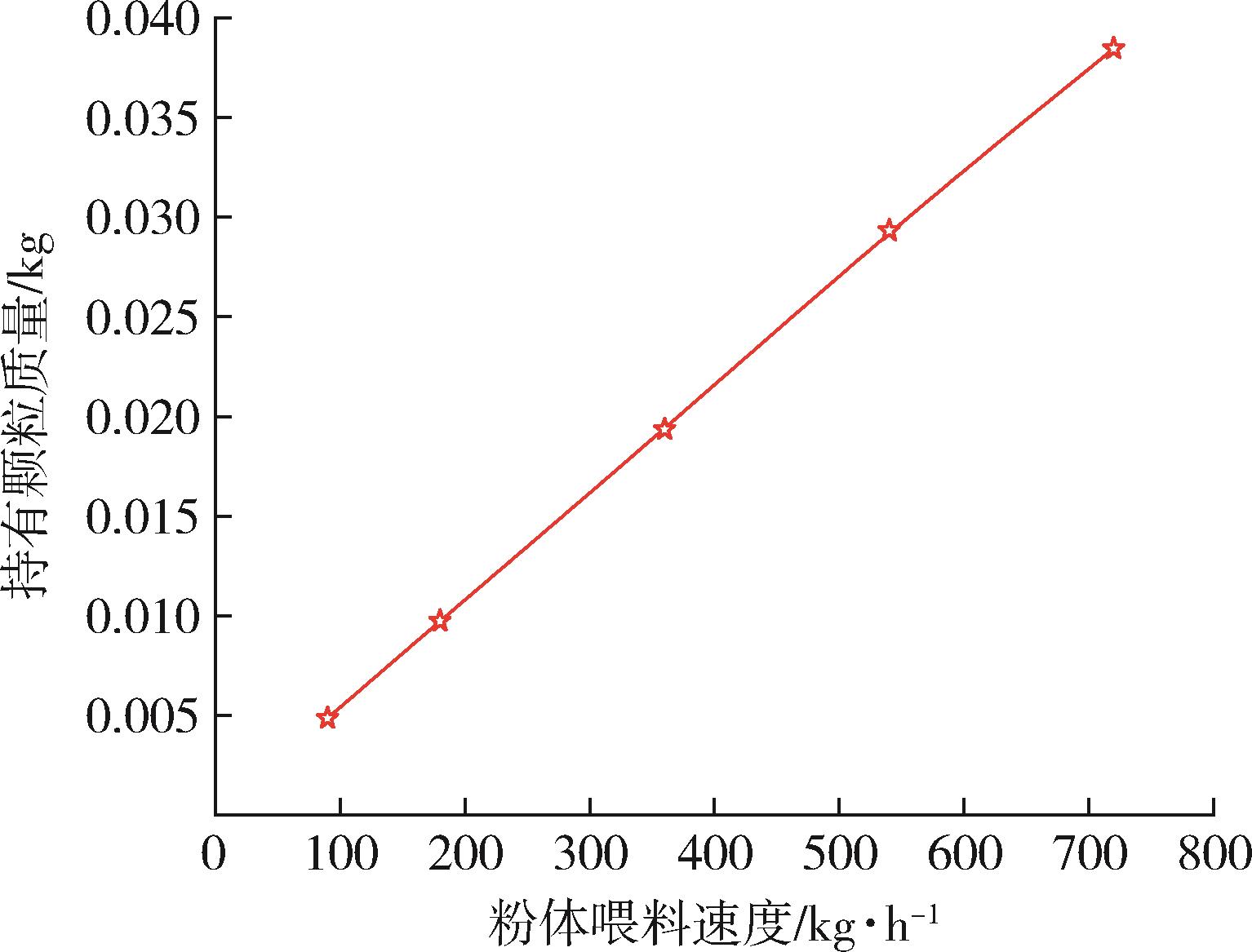

图11 持有颗粒质量与粉体喂料速度的关系

Fig.11 Holding up particle mass against powder feeding speed

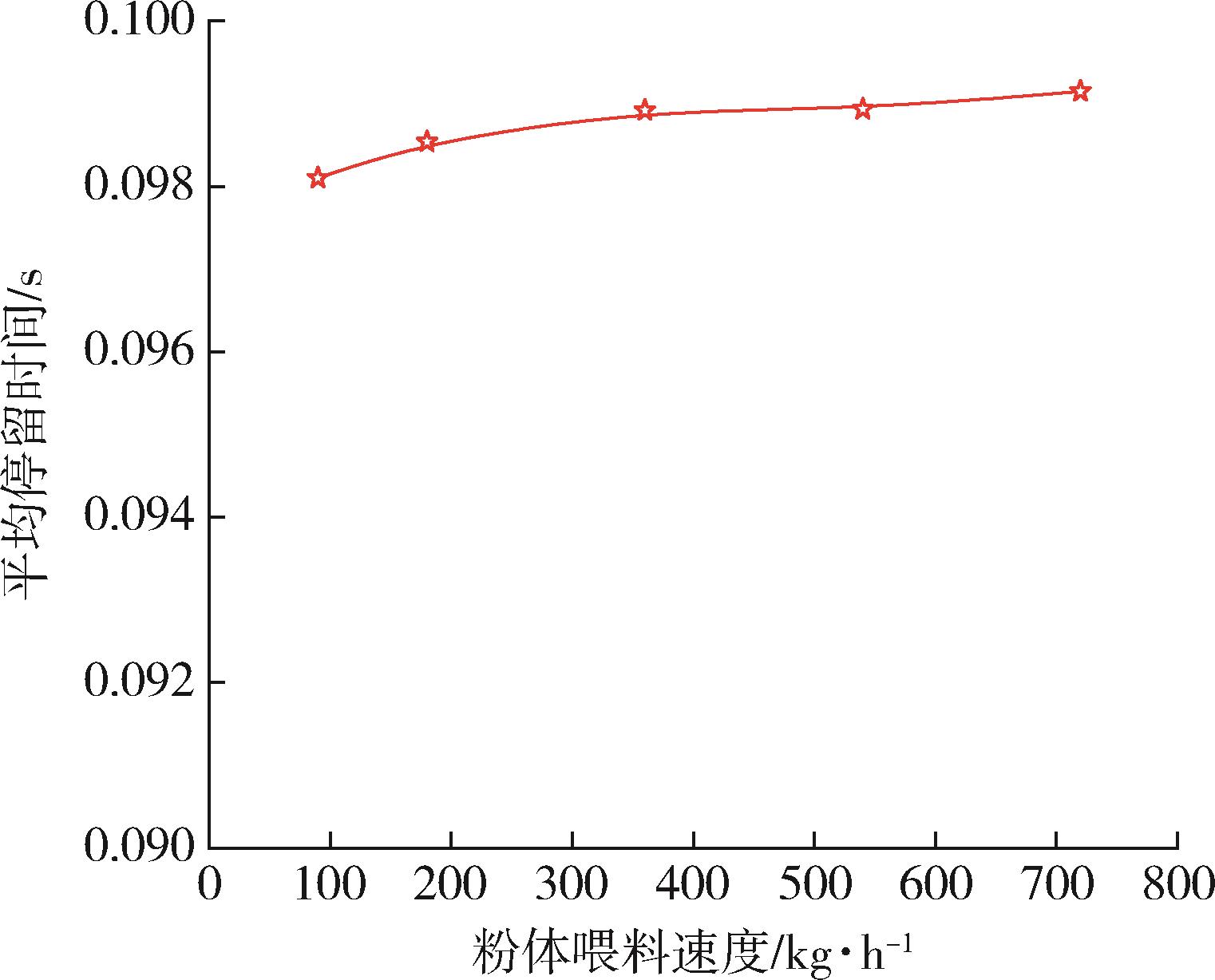

图12 颗粒平均停留时间与粉体喂料速度的关系

Fig.12 Average residence time against powder feeding speed

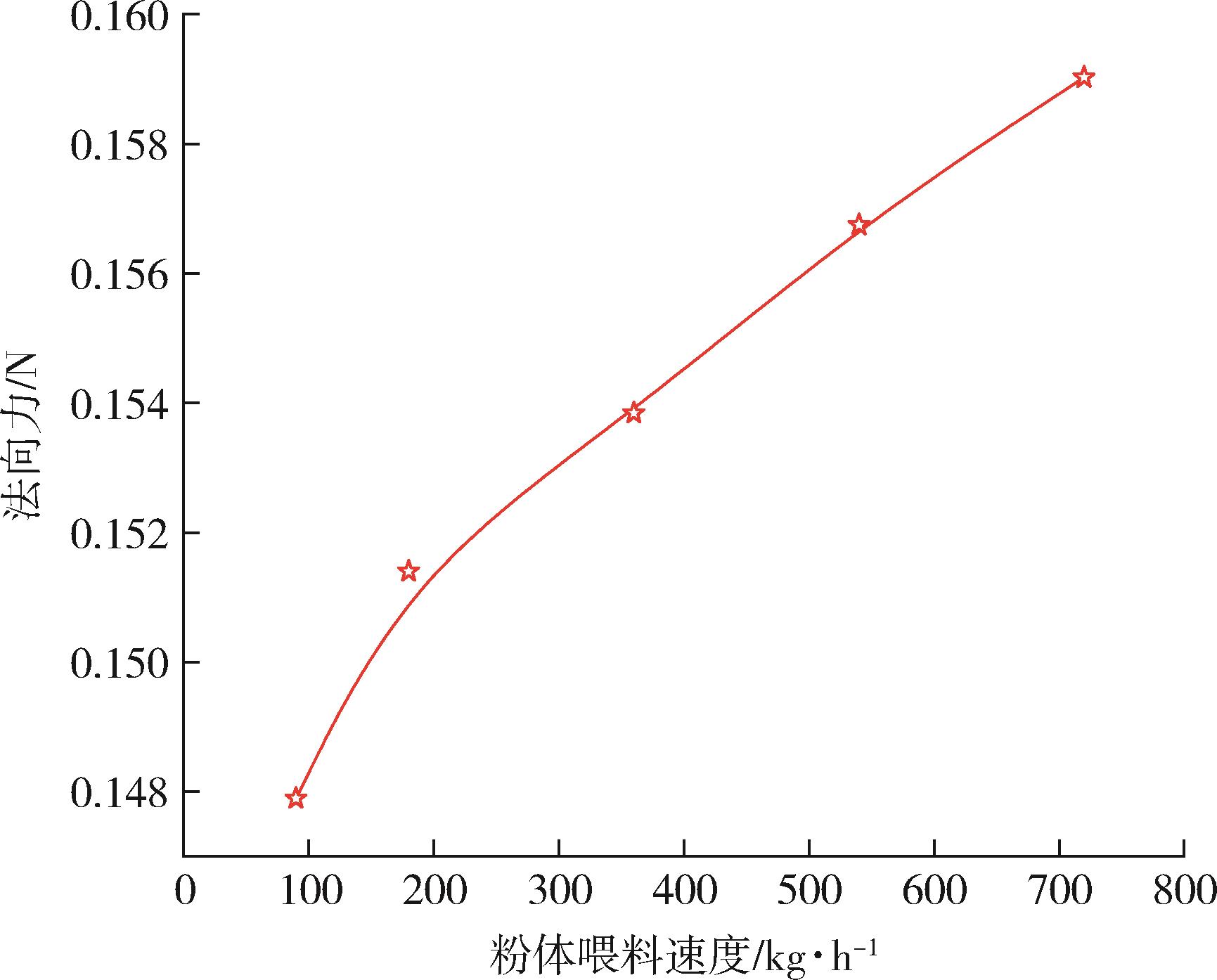

图13 润湿粉体法向接触力与粉体喂料速度的关系

Fig.13 Normal contact force of the wetting powder against feeding speed of the powder

图14 螺杆转速对KE块内粉体运动特性的影响

Fig.14 Influence of screw speed on the movement characteristics of powder in KE block

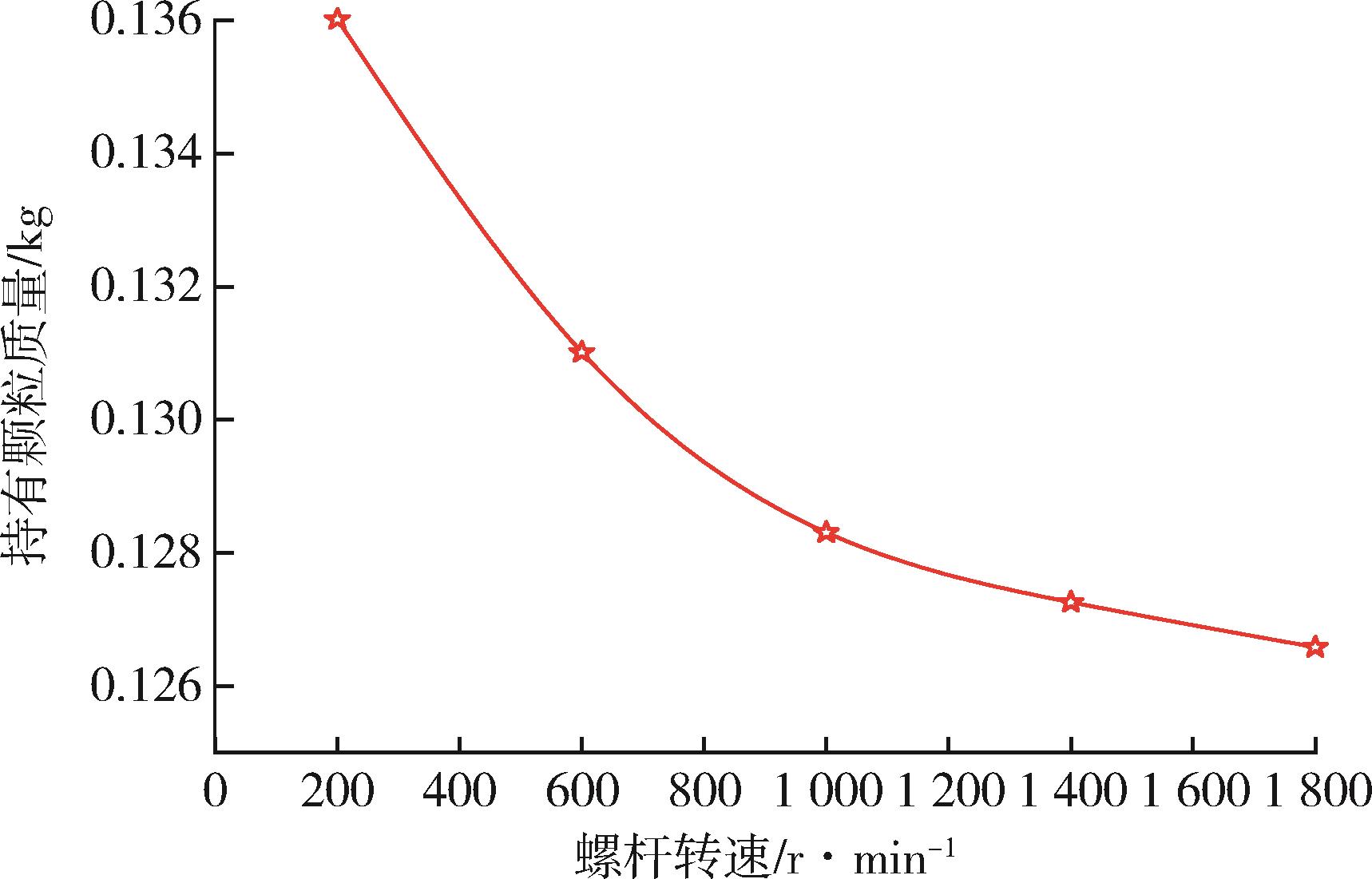

图15 持有颗粒质量与螺杆转速的关系

Fig.15 Holding up particle mass against screw speed

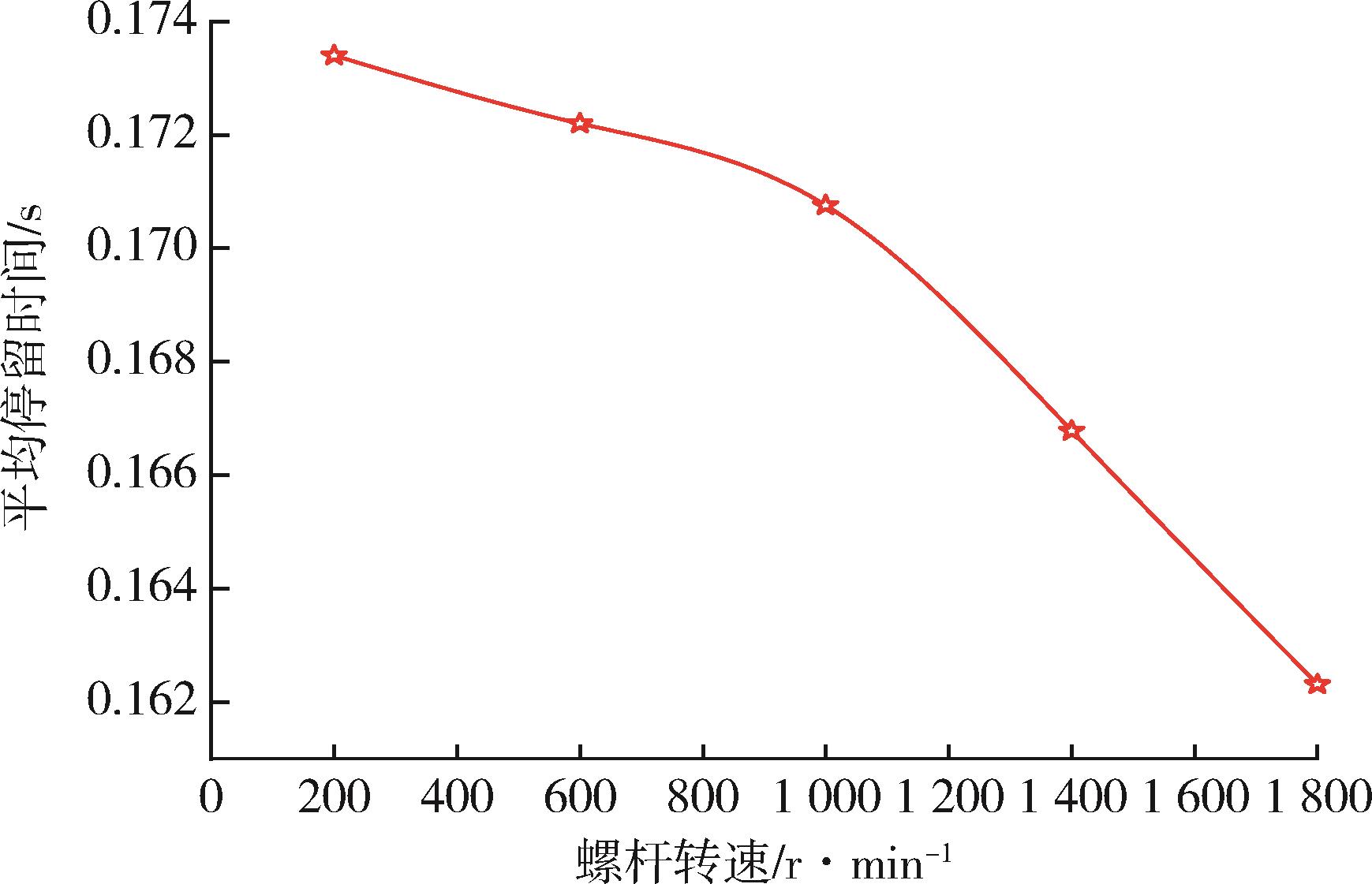

图16 颗粒平均停留时间与螺杆转速的关系

Fig.16 Average residence time against screw speed

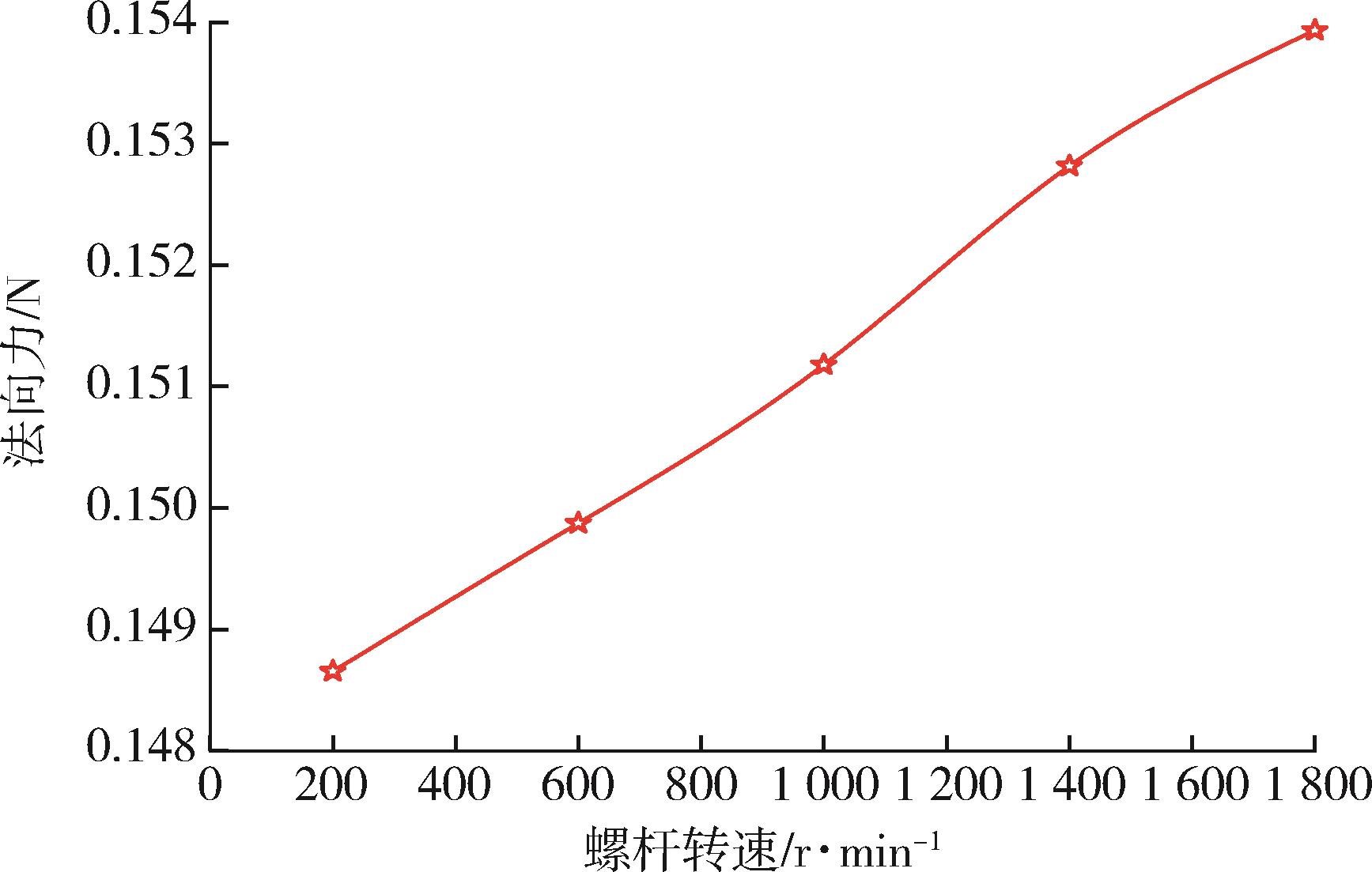

图17 润湿粉体法向接触力与螺杆转速的关系

Fig.17 Normal contact force of the wetting powder against screw speed

参考文献 16

1	Lajos Madarász， Zsombor Kristóf Nagy， HofferIstván， et al. Real⁃time feedback control of twin⁃screw wet granulation based on image analysis［J］. International Journal of Pharmaceutics，2018， 547（ 1/2）： 360⁃367.
2	Dhengerm， Cartwrightjj， Doughtydg， et a1. Twin screw wet granulation： effect of powder feed rate［J］. Adv Powder Technol，201l，22（2）：162⁃166.
3	Nandi U， Trivedi V， Ross S A， et al. Advances in twin⁃screw granulation processing［J］. Pharmaceutics， 2021，13（5）： 624⁃655.
4	Kyu⁃Min Hwang， Cho Cheol⁃Hee， Yoo Seung⁃Dong， et.al. Continuous twin screw granulation： impact of the starting material properties and various process parameters［J］. Powder Technology， 2019， 356： 847⁃857.
5	Stienvuthchan S. Wet granulation： effect of surface tension， polymer concentration and particle morphology on particle agglomeration and granule strength［D］. Purdue University， 1997.
6	Dejan Djuric， Peter Kleinebudde. Impact of screw elements on continuous granulation with a twin⁃screw extruder ［J］. Journal of pharmaceutical sciences，2008，97（11）：4 934⁃4 942.
7	Lalith Kotamarthy， Rohit Ramachandran. Mechanistic understanding of the effects of process and design parameters on the mixing dynamics in continuous twin⁃screw granulation［J］.Powder Technology， 2021， 390（9）：73⁃85.
8	Portier C， Pandelaere K， Delaet U，et al. Continuous twin screw granulation： Influence of process and formulation variables on granule quality attributes of model formulations［J］. International Journal of Pharmaceutics， 2020， 576（2）：118981.
9	Liu Huolong， Brendon Ricart， Courtney Stanton， et al. Design space determination and process optimization in at⁃scale continuous twin screw wet granulation［J］.Computers & Chemical Engineering， 2019，125： 271⁃286.
10	Ryckaertt A. Towards an enhanced process understanding for a continuous pharmaceutical manufacturing process of tablets based on twin⁃screw wet granulation ［D］. 2021， Ghent University，Gent，Belgium.
11	Christoph Portier， Kenny Pandelaere， Urbain Delaet， et al. Continuous twin screw granulation： Influence of process and formulation variables on granule quality attributes of model formulations［J］，International Journal of Pharmaceutics，2020， 576（2）： 118981.
12	Thakur Subhash C， Morrissey John P， Jin Sun， et al. Micromechanical analysis of cohesive granular materials using the discrete element method with an adhesive elasto⁃plastic contact model［J］. Granular Matter，2014，16（3）： 383⁃400.
13	祁晗璐，王嘉骏，顾雪萍，等.黏性颗粒团聚机理及流化特性研究进展［J］.过程工程学报，2019，19（01）：55⁃63.
	QI H L， Wang J J，Gu，X P， et al. Research progress on agglomeration mechanism and fluidization characteristics of viscous particles ［J］. Chinese Journal of Process Engineering， 2019，19（01）：55⁃63.
14	Morrissey J P， Chen J Y. A DEM study of silo discharge of a cohesive solid ［C］. III International Conference on Particle⁃Based Methods： fundamentals and applications （PARTICLES 2013）. Stuttgart， 2013： 18⁃20.
15	Coetzee C J. Edinburgh⁃Elasto⁃Plastic⁃Adhesion （EEPA） Contact Model ⁃ Implementation in PFC［R］. Stellenbosch South Africa： Stellenbosch University，2020：1⁃19.
16	单喜良，马玉录，谢林生，等.基于离散元方法的差动自清洁混合器混合特性研究［J］.中国塑料，2020，34（04）：54⁃59.
	SHAN X L， Ma Y L， XIE L S， et al. Study on mixing characteristics of differential self⁃cleaning mixer based on discrete element method ［J］. China Plastics， 2020，34（04）：54⁃59.
