Study on Toughening Modification of PLA/PPC Blends with Hyperbranched Ethylenediamine Trazine Polymer

doi:10.19491/j.issn.1001-9278.2020.06.005

Abstract

Abstract:

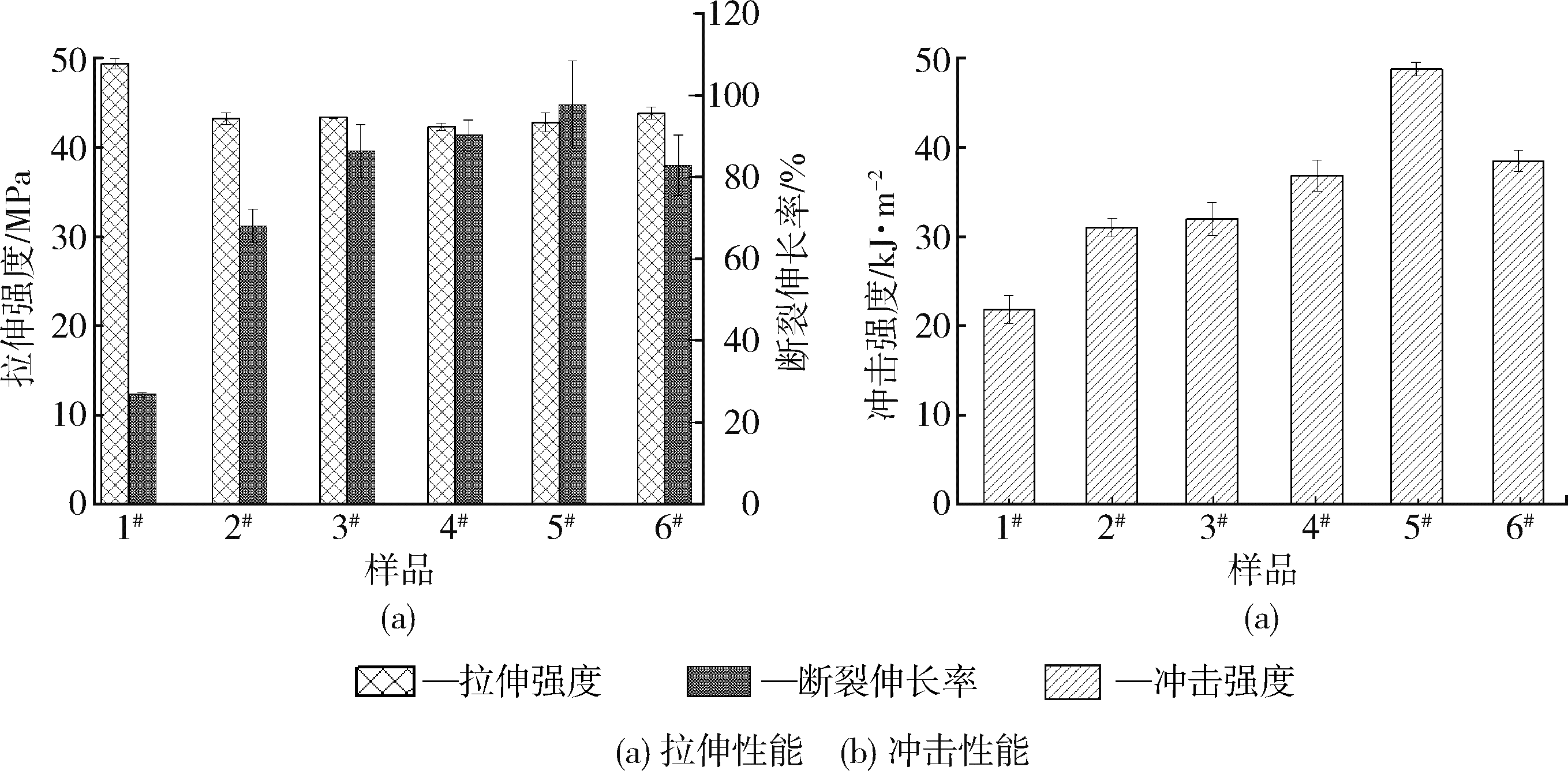

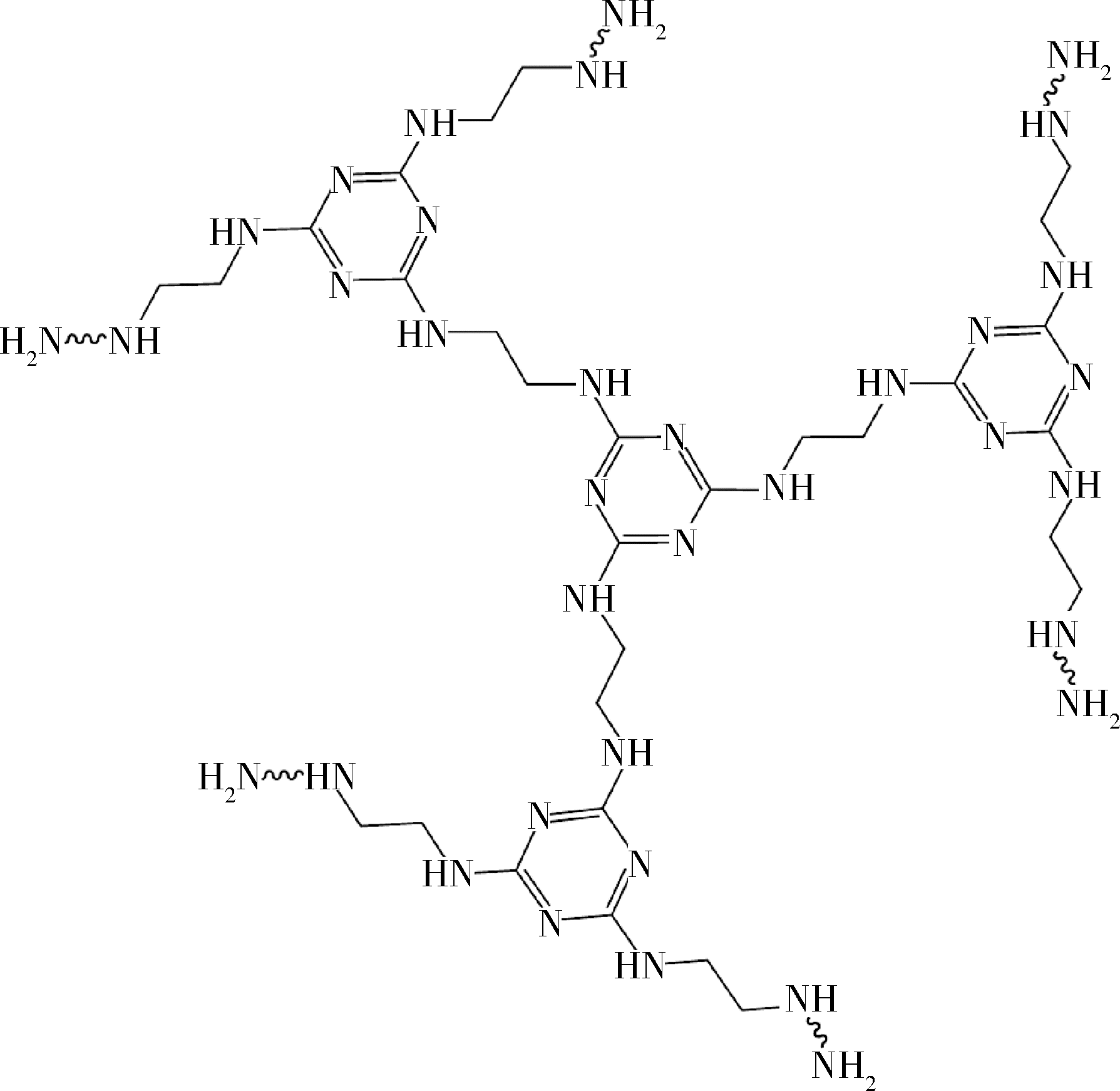

Hyperbranched ethylenediamine triazine polymer (HBETP) was synthesized by a one?step method using ethylenediamine and cyanuric chloride as raw materials and acetone as a solvent, and then polylactic acid (PLA)/polypropylene carbonate (PPC) blends were prepared by melt blending with HBETP as an impact modifier. The thermal properties, mechanical properties and the cross?sectional morphology of PLA/PPC/HBETP blends were investigated by means of differential scanning calorimetry thermogravimetric analysis, electronic universal testing machine and scanning electron microscopy. The results indicated that the elongation at break and impact strength of the blends increased by 266.0 % and 122.9 %, respectively, when 0.6 phr of HBETP was incorporated. HBETP can act as an effective impact modifier for toughening of PLA/PPC blends.

Key words: polylactic acid, polypropylene carbonate, hyperbranched polymer, modify

CLC Number:

TQ321

Wei ZHAI, Jianjian SUN, Bohua WANG, Chong TENG, Shiyu XIE, Fenghao HAO, Yujuan JIN. Study on Toughening Modification of PLA/PPC Blends with Hyperbranched Ethylenediamine Trazine Polymer[J]. China Plastics, 2020, 34(6): 27-33.

Figures/Tables 10

References 35

1	TALBAMRUNG T, KASEMSOOK C, SANGTEAN W, et al. Effect of Peroxide and Organoclay on Thermal and Mechanical Properties of PLA in PLA/NBR Melted Blend [J]. Energy Procedia, 2016, 89: 274⁃281.
2	LI X, QI C, HAN L, et al. Influence of Dynamic Compressive Loading on the in Vitro, Degradation Behavior of Pure PLA and Mg/PLA Composite[J]. Acta Biomaterialia, 2017, 64: 269⁃278.
3	ZHAO H, CUI Z, WANG X, et al. Processing and Characterization of Solid and Microcellular Poly(lactic acid)/Polyhydroxybutyrate⁃valerate (PLA/PHBV) Blends and PLA/PHBV/Clay Nanocomposites[J]. Composites Part B:Engineering, 2013, 51(51): 79⁃91.
4	LORENZO M L D, OVYN R, MALINCONICO M, et al. Peculiar Crystallization Kinetics of Biodegradable Poly(lactic acid)/Poly(propylene carbonate) Blends[J]. Polymer Engineering & Science, 2016, 55(12): 2 698⁃2 705.
5	WANG G L, ZHANG D M, LI B, et al. Strong and Thermal⁃resistance Glass Fiber⁃reinforced Polylactic Acid (PLA) Composites Enabled by Heat Treatment[J]. International Journal of Biological Macromolecules, 2019, 129: 448⁃459.
6	LI MZ, HU X Y, HE M, YU J, LU S Jet al. Structure and Properties of Epoxy Modified PLA/Low Melting Point PA6 Composites[J]. Chinese Journal of Materials Research, 2019, 33(4):261⁃270.
7	CHEN W, CHEN H, YUAN Y, et al. Synergistic Effects of Polyethylene Glycol and Organic Montmorillonite on The Plasticization and Enhancement of Poly(lactic acid)[J]. Journal of Applied Polymer Science, 2019,136(21): 47576.
8	GARCIA⁃CAMPO M J, QUILES⁃CARRILLO L, SANCHEZ⁃NACHER L, et al. High Toughness Poly(lactic acid) (PLA) Formulations Obtained by Ternary Blends with Poly(3⁃hydroxybutyrate) (PHB) and Flexible Polyesters From Succinic Acid[J]. Polymer Bulletin, 2019, 76(4): 1 839⁃1 859.
9	HOU A L, QU J P. Super⁃Toughened Poly(lactic Acid) with Poly(epsilon⁃caprolactone) and Ethylene⁃Methyl Acrylate⁃Glycidyl Methacrylate by Reactive Melt Blending[J]. Polymers, 2019,11(5): 771.
10	WANG Y, MEI Y, WANG Q, et al. Improved Fracture Toughness and Ductility of PLA Composites by Incorporating a Small Amount of Surface⁃modified Helical Carbon Nanotubes[J]. Composites Part B：Engineering, 2019, 162:54⁃61.
11	KILIC N T, CAN B N, KODAL M, et al. Compatibilization of PLA/PBAT Blends by Using Epoxy‐POSS[J]. Journal of Applied Polymer Science, 2019, 136(12): 47217.
12	CARBONELL⁃VERDU A, FERRI JM, DOMINICI F, et al. Manufacturing and Compatibilization of PLA/PBAT Binary Blends by Cottonseed Oil⁃based Derivatives[J]. Express Polymer Letters, 2018, 12(9):808⁃823.
13	PHETPHAISIT C W, WAPANYAKUL W, PHINYOCHEEP P. Effect of Modified Rubber Powder on the Morphology and Thermal and Mechanical Properties of Blown Poly(lactic acid)⁃hydroxyl Epoxidized Natural Rubber Films for Flexible Film Packaging[J]. Journal of Applied Polymer Science, 2019, 136(21): 47503.
14	AHMED M F, LI Y, YAO Z, et al. TPU/PLA Blend Foams: Enhanced Foamability, Structural Stability, and Implications for Shape Memory Foams[J]. Journal of Applied Polymer Science, 2019, 136(17): 47416.
15	AGUERO A, QUILES⁃CARRILLO L, JORDA⁃VILAPLANA A, et al. Effect of Different Compatibilizers on Environmentally Friendly Composites From Poly(lactic acid) and Diatomaceous Earth[J]. Polymer International, 2019, 68(5):893⁃903.
16	YANG Z Z, BI H J, BI Y B, et al. Comparison Between Polyethylene Glycol and Tributyl Citrate to Modify the Properties of Wood Fiber/Polylactic Acid Biocomposites[J]. Polymer Composites, 2019, 40(4):1 384⁃1 394.
17	WENG F Q, WANG M, KORANTENG E, et al. Effects of PBA⁃Based Polyurethane Prepolymer as Compatibilizer on the Properties of Polylactic Acid⁃Starch Composites[J]. Starch⁃Starke, 2019, 71(3⁃4):1800205.
18	SHOJAEIARANI J, BAJWA D S, HARTMAN K. Esterified Cellulose Nanocrystals as Reinforcement in Poly(lactic acid) Nanocomposites[J]. Cellulose, 2019, 26(4):2 349⁃2 362.
19	INHMHANEEF, BUYS Y F, SHAFFIAR N M, et al. Miscibility, Mechanical and Thermal Properties of Polylactic Acid/Polypropylene Carbonate (PLA/PPC) Blends Prepared by Melt⁃mixing Method[J]. Materials Today⁃Proceedings, 2019, 17(3):534⁃542.
20	ZHOU Y, WANG J, CAI S Y, et al. Effect of POE⁃g⁃GMA on Mechanical, Rheological and Thermal Properties of Poly(lactic acid)/Poly(propylene carbonate) Blends[J]. Polymer Bulletin, 2018, 75(12): 5 437⁃5 454.
21	GAO J, BAI H, ZHANG Q, et al. Effect of Homopolymer Poly(vinyl acetate) on Compatibility and Mechanical Properties of Poly(propylene carbonate)/Poly(lactic acid) Blends. Express Polym Lett, 2012(6): 860⁃870.
22	DENG Y, SAUCIERSAWYER J, HOIMES C, et al. The Effect of Hyperbranched Polyglycerol Coatings on Drug Delivery Using Degradable Polymer Nanoparticles[J]. Biomaterials, 2014, 35(24):6 595⁃6 602.
23	TOMUTA A, FERRANDO F, ÀSERRA, et al. New Aromatic⁃Aliphatic Hyperbranched Polyesters with Vinylic End Groups of Different Length as Modifiers of Epoxy/Anhydride Thermosets[J]. Reactive & Functional Polymers, 2012, 72(9):556⁃563.
24	RUN M T, WANG J, YAO M, et al. Influences of Hyperbranched Poly(amide⁃ester) on The Properties of Poly(butylene succinate)[J]. Materials Chemistry & Physics, 2013, 139(2/3):988⁃997.
25	TANG B, LIU X B, ZHAO X L, et al. Highly Efficient in Situ Toughening of Epoxy Thermosets with Reactive Hyperbranched Polyurethane[J]. Journal of Applied Polymer Science, 2014, 131(16):1 107⁃1 117.
26	CHEN S F, ZHANG D H, JIANG S B, et al. Preparation of Hyperbranched Epoxy Resin Containing Nitrogen Heterocycle and Its Toughened and Reinforced Compo⁃sites[J]. Journal of Applied Polymer Science, 2012, 123(6):3 261⁃3 269.
27	LUO L J, MENG Y, QIU T, et al. An Epoxy—Ended Hyperbranched Polymer as a New Modifier for Toughe⁃ning and Reinforcing in Epoxy Resin[J]. Journal of Applied Polymer Science, 2013, 130(2):1 064⁃1 073.
28	JIANG S Z, YAO Y F, CHEN Q, et al. NMR Study of Thermoresponsive Hyperbranched Polymer in Aqueous Solution with Implication on the Phase Transition[J]. Macromolecules, 2013, 46(24):9 688⁃9 697.
29	FOTIADOU S, KARAGEORGAKI C, CHRISSOPOULOU K, et al. Structure and Dynamics of Hyperbranched Polymer/Layered Silicate Nanocomposites[J]. Macromolecules, 2013, 46(7):2 842⁃2 855.
30	BHARDWAJ R, MOHANTY AK. Modification of Brittle Polylactide by Novel Hyperbranched Polymer⁃based Nanostructures.[J]. Biomacromolecules, 2007, 8(8):2 476⁃2 484.
31	HUBER T, POTSCHKE P, POMPE G, et al. Blends of Hyperbranched Poly(ether amide)s and Polyamide⁃6[J]. Macromolecular Materials and Engineering, 2000, 280(281): 33⁃40.
32	JIN Y J, MEN S, WENG Y X. An Investigation of the Impact of an Amino⁃Ended Hyperbranched Polymer as a New Type of Modifier on the Compatibility of PLA/PBAT Blends[J]. Journal of Polymer Engineering, 2018, 38 (3): 223⁃229.
33	JIN Y J, WANG E E, WENG Y X, et al. The Investigation of the Toughening Mechanism of PHBV/PBAT with a Novel Hyperbranched Ethylenediamine Triazine Polymer Based Modifier: The Formation of the Transition Layer and the Microcrosslinking Structure[J].Journal of Polymers and the Environment, 2018, 26: 4 158⁃4 167.
34	JIN Y J, GAO P X, QIAN L Jet al. Synthesis of Hyperbranched Aromatic Amine Triazine Polymer and Its Flame Retardation Performance on Polypropylen[J]. China Plastics, 2013, 27(5): 77⁃81.
35	XU M L, CHEN Y J, QIAN L J, et al. Component Ratio Effects of Hyperbranched Triazine Compound and Ammonium Polyphosphate in Flame⁃Retardant Polypropylene Composites[J]. Journal of Applied Polymer Science, 2014, 131(21): 41 006.

样品编号	PLA含量/g	PPC含量/g	HBETP含量/g
1^#	350	150	0
2^#	350	150	0.5
3^#	350	150	1.0
4^#	350	150	2.0
5^#	350	150	3.0
6^#	350	150	4.0

样品编号	PLA含量/g	PPC含量/g	HBETP含量/g
1^#	350	150	0
2^#	350	150	0.5
3^#	350	150	1.0
4^#	350	150	2.0
5^#	350	150	3.0
6^#	350	150	4.0

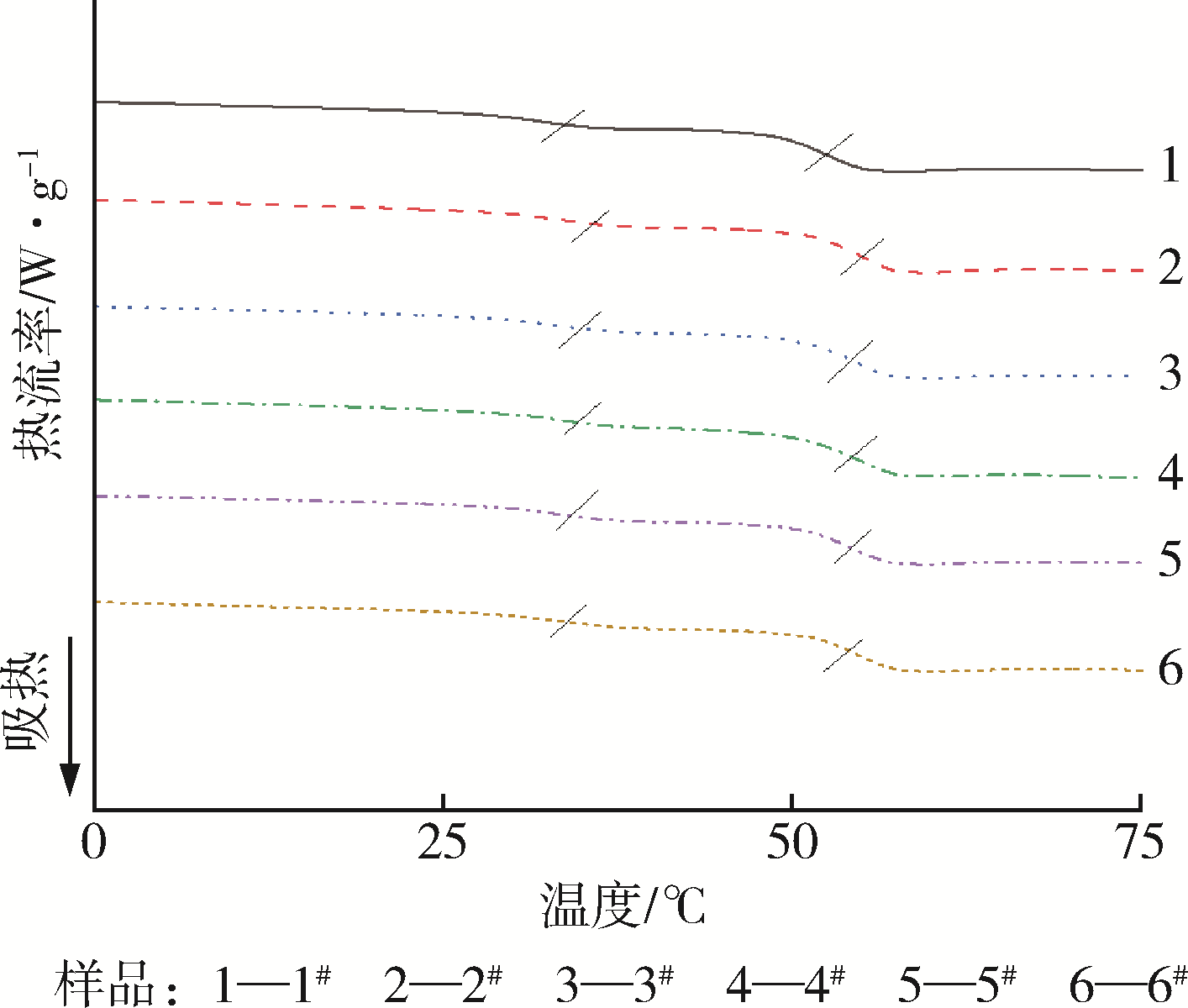

样品编号	T_g1/℃	T_g2/℃	ΔT_g/℃
1^#	52.97	30.97	22.00
2^#	55.21	33.89	21.32
3^#	54.36	33.96	20.40
4^#	54.36	33.42	20.94
5^#	54.13	33.71	20.42
6^#	54.53	33.92	20.61

样品编号	T_g1/℃	T_g2/℃	ΔT_g/℃
1^#	52.97	30.97	22.00
2^#	55.21	33.89	21.32
3^#	54.36	33.96	20.40
4^#	54.36	33.42	20.94
5^#	54.13	33.71	20.42
6^#	54.53	33.92	20.61

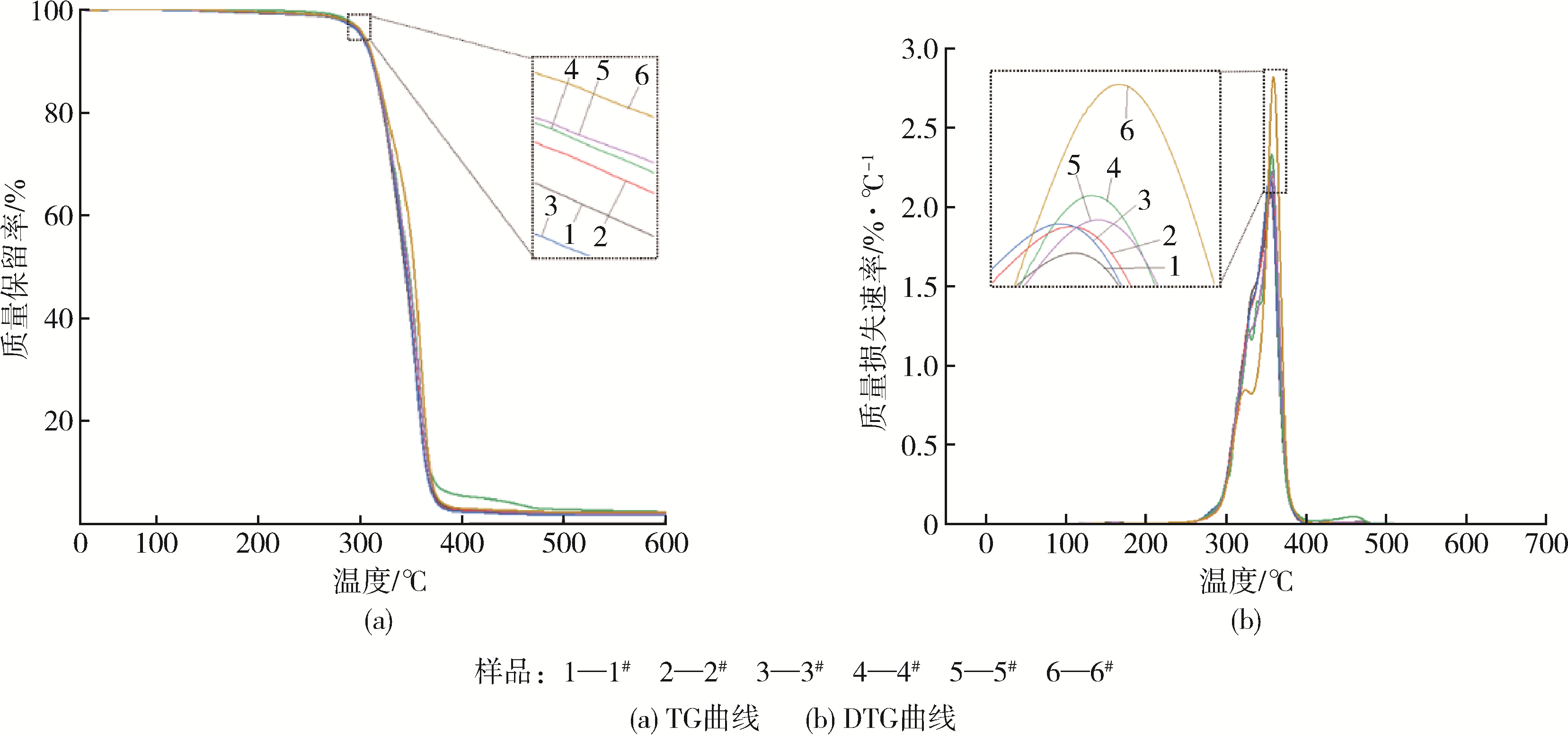

样品编号	T_5%/℃	T_50%/℃	T_95%/℃	500 ℃残炭率/%
1^#	301.87	343.52	374.46	2.033
2^#	302.58	344.71	373.02	2.059
3^#	300.91	344.33	372.36	1.829
4^#	302.93	347.25	421.61	2.821
5^#	303.13	346.61	376.07	2.096
6^#	303.91	352.71	376.24	2.344
